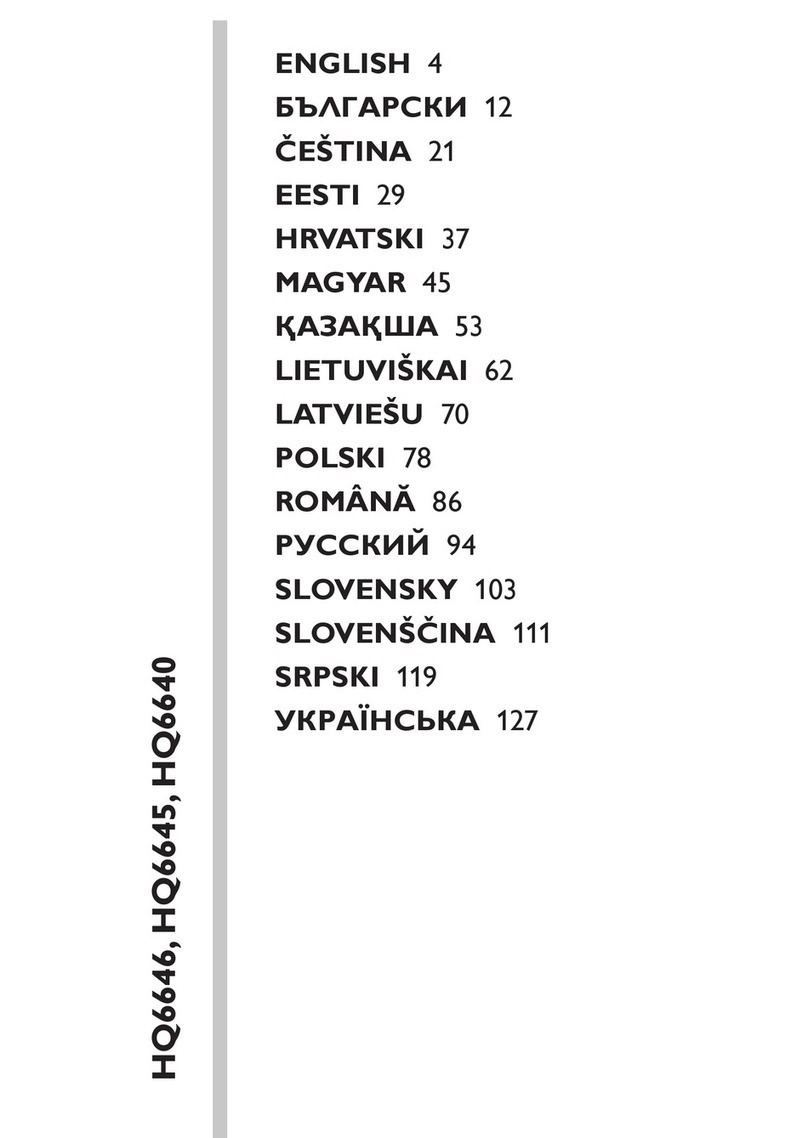

Philips HQ6640 User manual

HQ6646, HQ6645, HQ6640
ENGLISH 4
 12
 20
 28
 35
 43
 51
 59
 66
 74
 82
 90
 98
 106
 113
 120

4
Important
Read these instructions for use carefully before using
the appliance and save them for future reference.
Only use the mains cord supplied.
Do not use a damaged mains cord.
If the mains cord is damaged, always have it
replaced by one of the original type in order to
avoid a hazard.
The appliance is equipped with an automatic
voltage selector and is suitable for mains
voltages ranging from 100 to 240 volts.
Store and use the appliance at a temperature
between 5 cC and 35 cC.
Keep the appliance and the mains cord dry.
Noise level: Lc = 60 dB [A]


1 Put the appliance plug in the shaver.
2 Put the mains plug in the wall socket.
3 Switch the shaver on by pushing the on/off
slide to position I.
4 Move the shaving heads quickly over your skin,
making both straight and circular movements.
Shaving on a dry face gives the best results.
Your skin may need 2 or 3 weeks to get accustomed
to the Philips shaving system.
5 Switch the shaver off by pushing the on/off
slide to position 0.
,
,
,
,
,
,
,
ENGLISH

6 Put the protection cap on the shaver every
time you have used it, to prevent damage to
the shaving heads.

For grooming sideburns and moustache.
1 Open the trimmer by pushing the slide
upwards.
The trimmer can be activated while the motor is
running.
2 Close the trimmer (‘click’).

Regular cleaning guarantees better shaving
performance.
For easy and optimal cleaning, the Philips Shaving
Head Cleaner (type HQ100) is available.Ask
your Philips dealer for information.
The Philips Shaving Head Cleaner may not be
available in all countries. Contact the Customer Care
Centre in your country about the availability of this
accessory.
You can also clean the shaver in the following way:

1 Switch the shaver off, remove the mains plug
from the wall socket and pull the appliance plug
out of the shaver.
,
ENGLISH 5

2 Cleanthetopoftheappliancerst,usingthe
brush supplied.
3 Press the release button (1) and remove the
shaving unit (2).
4 Clean the inside of the shaving unit and the
hair chamber with the brush.
5 Put the shaving unit back onto the shaver.

1 Switch the shaver off, remove the mains plug
from the wall socket and pull the appliance plug
out of the shaver.
2
1
2
1
ENGLISH6

2 Press the release button (1) and remove the
shaving unit (2).
3 Turn the wheel anticlockwise (1) and remove
the retaining frame (2).
4 Remove the cutters and guards and clean them
with the brush supplied.
Do not clean more than one cutter and guard
at a time, since they are all matching sets. If you
accidentally mix up the cutters and guards, it
may take several weeks before optimal shaving
performance is restored.
5 Clean the cutter with the short-bristled side of
the brush.
Brush carefully in the direction of the arrow.
6 Brush the guard.
2
1
2
1
1
2
1
2
ENGLISH 7

7 Put the shaving heads back into the shaving
unit. Put the retaining frame back into the
shaving unit (1) and turn the wheel clockwise
(2).
8 Put the shaving unit back onto the shaver.
For extra thorough cleaning, clean the shaving heads
by putting them in a degreasing liquid (e.g. alcohol)
every six months.To remove the shaving heads,
follow steps 1 to 4 described above. After cleaning,
lubricate the central point on the inside of the
guards with a drop of sewing machine oil to prevent
wear of the shaving heads.

Clean the trimmer every time you have used it.
1 Switch the shaver off, remove the mains plug
from the wall socket and pull the appliance plug
out of the shaver.
2 Clean the trimmer with the brush supplied.
3 Lubricate the trimmer teeth with a drop of
sewing machine oil every six months.

Put the protection cap on the shaver to prevent
damage.
,
1
2
1
2
ENGLISH8


Replace the shaving heads every two years for
optimal shaving results.
Replace damaged or worn shaving heads with HQ55
Philips Shaving Heads only.
1 Switch the shaver off, remove the mains plug
from the wall socket and pull the appliance plug
out of the shaver.
2 Press the release button (1) and remove the
shaving unit (2).
3 Turn the wheel anticlockwise (1) and remove
the retaining frame (2).
4 Remove the shaving heads and place new ones
in the shaving unit.
5 Put the retaining frame back into the shaving
unit (1) and turn the wheel clockwise (2).
6 Put the shaving unit back onto the shaver.
2
1
2
1
1
2
1
2
1
2
1
2
ENGLISH 9


Do not throw the appliance away with the
normal household waste at the end of its life,
buthanditinatanofcialcollectionpointfor
recycling. By doing this you will help to preserve
the environment.

The following accessories are available:
HQ55 Philips Shaving Heads.
HQ100 Philips Shaving Head Cleaner.
HQ101 Philips Shaving Head Cleaning Fluid.
HQ110 Philips Shaving Head Cleaning Spray.

If you need information or if you have a
problem, please visit the Philips website at
www.philips.com or contact the Philips Customer
Care Centre in your country (you will nd its phone
number in the worldwide guarantee leaet). If there
is no Customer Care Centre in your country, turn
to your local Philips dealer or contact the Service
Department of Philips Domestic Appliances and
Personal Care BV.
,
-
-
-
-
ENGLISH10


1 Reduced shaving performance
Cause 1: the shaving heads are dirty.
The shaver has not been cleaned well enough or has
not been cleaned for a long time.
Clean the shaver thoroughly before you continue
shaving. See chapter ‘Cleaning and maintenance’.
Cause 2: long hairs are obstructing the shaving heads.
Clean the cutters and guards with the brush
supplied. See chapter ‘Cleaning and maintenance’,
section ‘Every two months: shaving heads’.
Cause 3: the shaving heads are damaged or worn.
Replace the shaving heads. See chapter
‘Replacement’.
2 The shaver does not work when the on/off
slide is pushed to position I.
Cause: the shaver is not connected to the mains.
Put the mains plug in the wall socket.
,
,
,
,
ENGLISH 11

12

Преди да използвате уреда, прочетете
внимателно това ръководство за експлоатация и
го запазете за справка в бъдеще.
Използвайтесамодоставенияскомплекта
захранващкабел.
Неизползвайтеповредензахранващкабел.
Акозахранващияткабелеповреден,с
огледпредотвратяваненаопасноствинаги
заменяйтеповредениязахранващкабелсамо
соригиналентакъв.
Уредътесъоръженсавтоматиченселектор
нанапрежениеиеподходящзанапрежения
намрежатаот100до240Волта.
Съхранявайтеиизползвайтеуредапри
температурамежду5cCи35cC.
Пазетеуредаизахранващиякабелсухи.
Нивонашум:Lc=60dB[A]


1 Включетещекеранауредавгнездотому.
2 Включетещепселаназахранващиякабелв
контакта.
3 Включетесамобръсначкатаспреместванена
плъзгачавкл./изкл.вположениеI.
4 Движетебръснещитеглавибързопокожата
си,катоправитеправолинейниикръгови
движения.
Най-добри резултати се получават при бръснене
на суха кожа.
,
,
,
,
,
,
,

