Introduction
Congratulations on your purchase and welcome
to Philips! To fully benet from the support
that Philips offers, register your product at
www.philips.com/welcome.
Please read this user manual, as it contains
information about the wonderful features of this
shaver as well as some tips to make shaving easier
and more enjoyable.

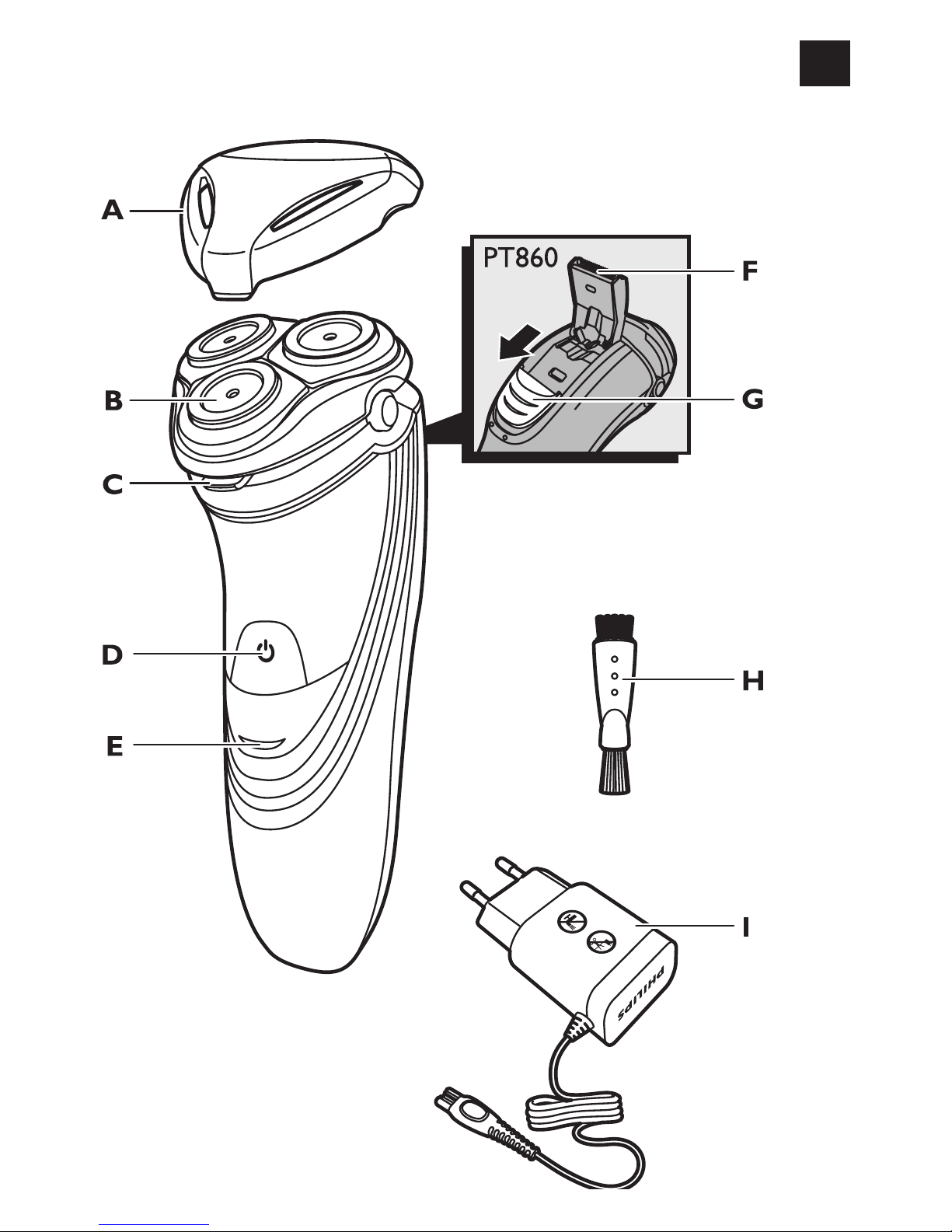

General description (Fig. 1)
AProtection cap
BShaving unit
CShaving unit release button
DShaver on/off button
ECharging light
FTrimmer (PT860 only)
GTrimmer release slide (PT860 only)
HCleaning brush
IAdapter
Note: You can nd the type number on the back of
the shaver.
Important
Read this user manual carefully before you use the
appliance and save it for future reference.
Danger
- Make sure the adapter does not get wet.
Warning
- The adapter contains a transformer. Do not cut
off the adapter to replace it with another plug, as
this causes a hazardous situation.
ENGLISH

- The appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
- Children should be supervised to ensure that they
do not play with the appliance.
- Always unplug the shaver before you clean it under
the tap.
Caution
- Never immerse the shaver in water.
- Do not use the shaver in the bath or in the shower.
- Never use water hotter than 80°C to rinse the
shaver.
- Be careful with hot water. Always check if the water
is not too hot, to prevent your hands from
getting burnt.
- The shaver is not dishwasher-proof.
- Water may leak from the socket at the bottom of
the shaver when you rinse it.This is normal and not
dangerous because all electronics are enclosed in
a sealed power unit inside the shaver.
- Do not use the shaver, adapter or any other part if
it is damaged, as this may cause injury. Always
replace a damaged adapter, charger or part with
one of the original type.
- Use, charge (specic types only) and store the
appliance at a temperature between 10°C and 35°C.
- Always place and use the shaver on a surface that
is uid-resistant.
- Only use the adapter, charger and accessories
supplied.
- Always put the protection cap on the shaver
to protect the shaving heads when you are travelling.
ENGLISH 7

Compliance with standards
- The shaver complies with the internationally
approved IEC safety regulations and can be safely
cleaned under the tap.
- The shaver complies with all standards regarding
electromagnetic elds (EMF). If handled properly
and according to the instructions in this user
manual, they are safe to use based on scientic
evidence available today.
General
- The appliance is equipped with an automatic
voltage selector and is suitable for mains voltages
ranging from 100 to 240 volts.
- The adapter transforms 100-240 volts to a safe
low voltage of less than 24 volts.
Charging
PT860: It takes approx. 1 hour to fully charge the
shaver.
PT735/PT730/PT725/PT720: It takes approx. 8 hours
to fully charge the shaver.
When you charge the shaver for the rst time or
after a long period of disuse, let it charge until the
charging light lights up continuously.
A fully charged shaver provides up to 17 (PT860) or
14 (PT735/PT730/PT725/PT720) cordless shaves.
The shaving time may be less than 17 (PT860) or
14 (PT735/PT730/PT725/PT720) cordless shaves
as a result of your shaving behaviour, your cleaning
habits or your beard type.
ENGLISH8

Charge indications
Battery low
- When the battery is almost empty (when there
are only 5 or fewer shaving minutes left), the
charging light starts to ash orange.
- When you switch off the shaver, the charging light
continues to ash orange for a few seconds.
Quick charging
- When you start charging the empty battery,
the charging light alternately ashes orange and
green. After approx. 3 minutes, the charging light
continues to ash green. The shaver now contains
enough energy for a 5-minute shave.
Charging
- When the shaver is charging, the charging light
ashes green.
Battery fully charged
- When the battery is fully charged, the charging
light lights up green continuously.
Note: After approx. 30 minutes, the charging light goes
out to save energy.
Charging with the adapter
1 Put the small plug in the shaver.
2 Put the adapter in the wall socket.
,The charging light shows the charging status of
the shaver (see section ‘Charge indications’ in
this chapter).
ENGLISH 9

Using the shaver
Note: You can also use the shaver directly from the
mains. Simply connect the shaver to the mains.
Shaving
1 Press the on/off button once to switch on the
shaver.
2 Move the shaving heads over your skin. Make
circular movements.
- Do not make straight movements.
- Your skin may need 2 or 3 weeks to get
accustomed to the Philips shaving system.
3 Press the on/off button once to switch off the
shaver.
4 Clean the shaver (see chapter ‘Cleaning and
maintenance’).
Trimming (PT860 only)
You can use the trimmer to groom your sideburns
and moustache.
1 Press the on/off button once to switch on the
shaver.
2 Push the trimmer slide downwards to open
the trimmer.
,You can now start trimming.
3 After trimming, close the trimmer and switch
off the shaver.
ENGLISH10

Cleaning and maintenance
Never use compressed air, scouring pads, abrasive
cleaning agents or aggressive liquids such as petrol
or acetone to clean the appliance.
- Clean the shaver after every shave for optimal
shaving performance.
- Regular cleaning guarantees better shaving
performance.
- For the best cleaning results, we advise you to use
the Philips Cleaning spray (HQ110).
- Be careful with hot water. Always check if the
water is not too hot, to prevent your hands from
getting burnt.
Note: Water may leak from the socket at the bottom
of the shaver when you rinse it. This is normal and not
dangerous because all electronics are enclosed in a
sealed power unit inside the shaver.
Cleaning the shaving unit under the tap
1 Switch off the shaver and disconnect it from
the mains.
2 Press the release button to open the shaving unit.
3 Rinse the shaving unit and hair chamber under
a hot tap for 30 seconds.
Be careful with hot water. Always check if the
water is not too hot, to prevent your hands from
getting burnt.
ENGLISH 11

- Rinse the hair chamber and the inside of the
shaving unit.
- Rinse the outside of the shaving unit.
4 Close the shaving unit and shake off excess
water.
Be careful not to hit the shaving unit against
anything while shaking off excess water.
Never dry the shaving unit and the hair chamber
with a towel or tissue, as this may damage the
shaving heads and the coupling spindles.
5 Open the shaving unit again and leave it open
to let the shaver dry completely.
Cleaning the shaving unit with the cleaning
brush
1 Switch off the shaver and disconnect it from
the mains.
2 Press the release button to open the shaving
unit.
3 Pull the shaving unit off the shaver.
ENGLISH12

4 Turn the lock anticlockwise (1) and remove the
retaining frame (2).
5 Remove and clean one shaving head at a time.
Each shaving head consists of a cutter and a
guard.
Note: Do not clean more than one cutter and guard
at a time, since they are all matching sets. If you
accidentally mix up the cutters and guards, it may take
several weeks before optimal shaving performance is
restored.
- Remove the cutter from the shaving guard and
clean it with the brush.
- Clean the inside and outside of the shaving guard
with the brush.
6 Put the shaving heads back into the shaving unit.
ENGLISH 13

PT860/PT735/PT730: Make sure that the projections
of the shaving heads t exactly into the recesses.
7 Put the retaining frame back into the shaving
unit and turn the lock clockwise.
8 Insert the lug of the shaving unit into the slot
in the top of the shaver (1). Then close the
shaving unit (2).
Note: If the shaving unit does not close smoothly, check
if you have inserted the shaving heads properly and if
the retaining frame is locked.
Cleaning the trimmer with the cleaning
brush (PT860 only)
Clean the trimmer every time you have used it.
1 Switch off the shaver and disconnect it from
the mains.
2 Push the trimmer slide downwards to open
the trimmer.
3 Clean the trimmer with the short-bristled side
of the cleaning brush. Brush up and down along
the trimmer teeth.
4 Close the trimmer (‘ click’).
Tip: For optimal trimming performance, lubricate the
trimmer teeth with a drop of sewing machine oil every
six months.
ENGLISH14

Storage
- Put the protection cap on the shaver every time
you have used it, to prevent damage.
Replacement
For maximum shaving performance, we advise you
to replace the shaving heads every year.
Replace damaged shaving heads right away.
Only replace the shaving heads with original HQ8
Philips Shaving Heads.
1 Switch off the shaver and disconnect it from
the mains.
2 Press the release button to open the shaving
unit.
3 Pull the shaving unit off the shaver.
4 Turn the lock anticlockwise (1) and remove the
retaining frame (2).
5 Remove the shaving heads and place new ones
in the shaving unit.
Make sure that the projections of the shaving
heads t exactly into the recesses.
6 Put the retaining frame back into the shaving
unit and turn the lock clockwise.
ENGLISH 15

7 Insert the lug of the shaving unit into the slot
in the top of the shaver (1). Then close the
shaving unit (2).
Note: If the shaving unit does not close smoothly, check
if you have inserted the shaving heads properly and if
the retaining frame is locked.
Accessories
To retain the top performance of your shaver, make
sure you clean it regularly and replace its shaving
heads at the recommended time.
Shaving heads
- We advise you to replace your shaving heads
every year. Always replace with HQ8 shaving
heads.
Cleaning
- Use Cleaning spray (HQ110) to clean the shaving
heads thoroughly.
Environment
- Do not throw away the appliance with the normal
household waste at the end of their life, but
hand them in at an ofcial collection point for
recycling. By doing this, you help to preserve the
environment.
- The built-in rechargeable shaver battery contains
substances that may pollute the environment.
Always remove the battery before you discard or
hand in the shaver at an ofcial collection point.
Dispose of the battery at an ofcial collection
point for batteries. If you have trouble removing
ENGLISH16

the battery, you can visit our website,
www.philips.com/support or call toll free: 1-866-
800-9311.
Removing the rechargeable shaver battery
Only remove the rechargeable battery when you
discard the shaver. Make sure the rechargeable
battery is completely empty when you remove it.
1 Disconnect the shaver from the mains.
2 Let the shaver run until it stops.
3 Undo the screws in the back of the shaver and
in the hair chamber.
4 Remove the front panel and the back panel.
5 Bend the 6 hooks aside and take out the
power unit.
Be careful, the hooks are sharp.
6 Remove the battery.
Be careful, the battery strips are sharp.
Do not connect the shaver to the mains again after
you have removed the rechargeable battery.
Guarantee and service
If you need service or information or if you have a
problem, please visit the Philips website at
www.philips.com or contact the Philips Consumer
Care Centre toll free at 1-866-800-9311.
Guarantee restrictions
The shaving heads (cutters and guards) are not
covered by the terms of the international guarantee
because they are subject to wear.
ENGLISH 17

Troubleshooting
This chapter summarises the most common
problems you could encounter with the appliance. If
you are unable to solve the problem with the
information below, contact the Consumer Care
Centre in your country.
Problem Possible cause Solution
The shaver does
not shave as well
as it used to.
The shaving
heads are
damaged or
worn.
Replace the shaving heads (see
chapter ‘Replacement’).
Long hairs
obstruct the
shaving heads.
Clean the shaving heads one by
one (see section ‘Cleaning the
shaving unit with the cleaning
brush’ in chapter ‘Cleaning and
maintenance’).
You have not
inserted the
shaving heads
properly.
Make sure that the projections of
the shaving heads t exactly into
the recesses (see section ‘Cleaning
the shaving unit with the cleaning
brush’).
The shaver does
not work when I
press the on/off
button.
The
rechargeable
battery is
empty.
Recharge the battery (see chapter
‘Charging’) or connect the
shaver to the mains.
The
temperature
of the shaver
is too high. In
this case, the
shaver does
not work.
As soon as the temperature of the
shaver has dropped sufciently, you
can switch on the shaver again.
ENGLISH18

19
Introduction
Félicitations pour votre achat et bienvenue dans
l’univers Philips! Pour proter pleinement du soutien
de Philips, enregistrez votre produit à l’adresse :
www.philips.com/welcome.
Veuillez lire ce manuel contenant des renseignements
sur les caractéristiques fantastiques de ce rasoir
ainsi que des conseils pour simplier le rasage et le
rendre plus agréable.
Description générale (g. 1)
ACapuchon de protection
B Unité de rasage
C Bouton de libération de l’unité de rasage
DBouton marche/arrêt du rasoir
E Témoin de charge
FTaille-favoris (PT860 uniquement)
GGlissière du taille-favoris (PT860 uniquement)
HBrosse de nettoyage
IAdaptateur
Remarque : Le numéro de modèle est indiqué à l’arrière
de votre rasoir.
Important
Lisez attentivement ce mode d’emploi avant d’utiliser
l’appareil et conservez-le pour un usage ultérieur.
Danger
- Gardez l’adaptateur au sec.
Mise en garde
- L’adaptateur contient un transformateur. Pour
éviter tout accident, n’essayez pas de remplacer la
che de l’adaptateur en la coupant.
FRANÇAIS (CANADA)

- Cet appareil ne doit pas être utilisé par des
personnes (incluant des enfants) dont les capacités
physiques, sensorielles ou mentales sont réduites,
ou qui n’ont pas l’expérience et les connaissances
nécessaires, à moins qu’elles ne soient sous la
surveillance d’une personne responsable de leur
sécurité ou qu’elles aient reçu de cette personne
des directives concernant l’utilisation de l’appareil.
- Les enfants doivent être surveillés pour s’assurer
qu’ils ne s’amusent pas avec l’appareil.
- Toujours débrancher le rasoir avant de le nettoyer
sous le robinet.
Avertissement
- Ne plongez jamais le rasoir dans l’eau.
- N’utilisez jamais le rasoir dans le bain ni sous la
douche.
- N’utilisez jamais d’eau dont la température est
supérieure à 80 °C pour rincer le rasoir.
- Attention avec l’eau chaude. Il est important de
toujours vérier que l’eau n’est pas trop chaude
pour ne pas vous brûler les mains.
- Le rasoir ne peut pas être nettoyé dans le
lave-vaisselle.
- Il est possible que de l’eau s’écoule de la prise au
bas du rasoir au cours du rinçage. C’est normal et
sans danger car tous les composants électroniques
sont regroupés dans un boîtier hermétique à
l’intérieur du rasoir.
- Pour éviter tout accident, n’utilisez pas le rasoir,
l’adaptateur ou tout autre élément s’il est
endommagé. Remplacez toujours un adaptateur,
chargeur ou élément endommagé par un autre du
même type.
- Utilisez, chargez (certains modèles uniquement)
et rangez l’appareil à une température comprise
entre 10 °C et 35 °C.
FRANÇAIS (CANADA)20
