Philips S1520 User manual

S1520

1

S1520
ENGLISH 6
FRANÇAIS (CANADA) 19

6
Introduction
Congratulations on your purchase and welcome to
Philips! To fully benet from the support that Philips
offers, register your product at www.philips.com/
welcome.
Please read this user manual, as it contains information
about the wonderful features of this shaver as well as
some tips to make shaving easier and more enjoyable.

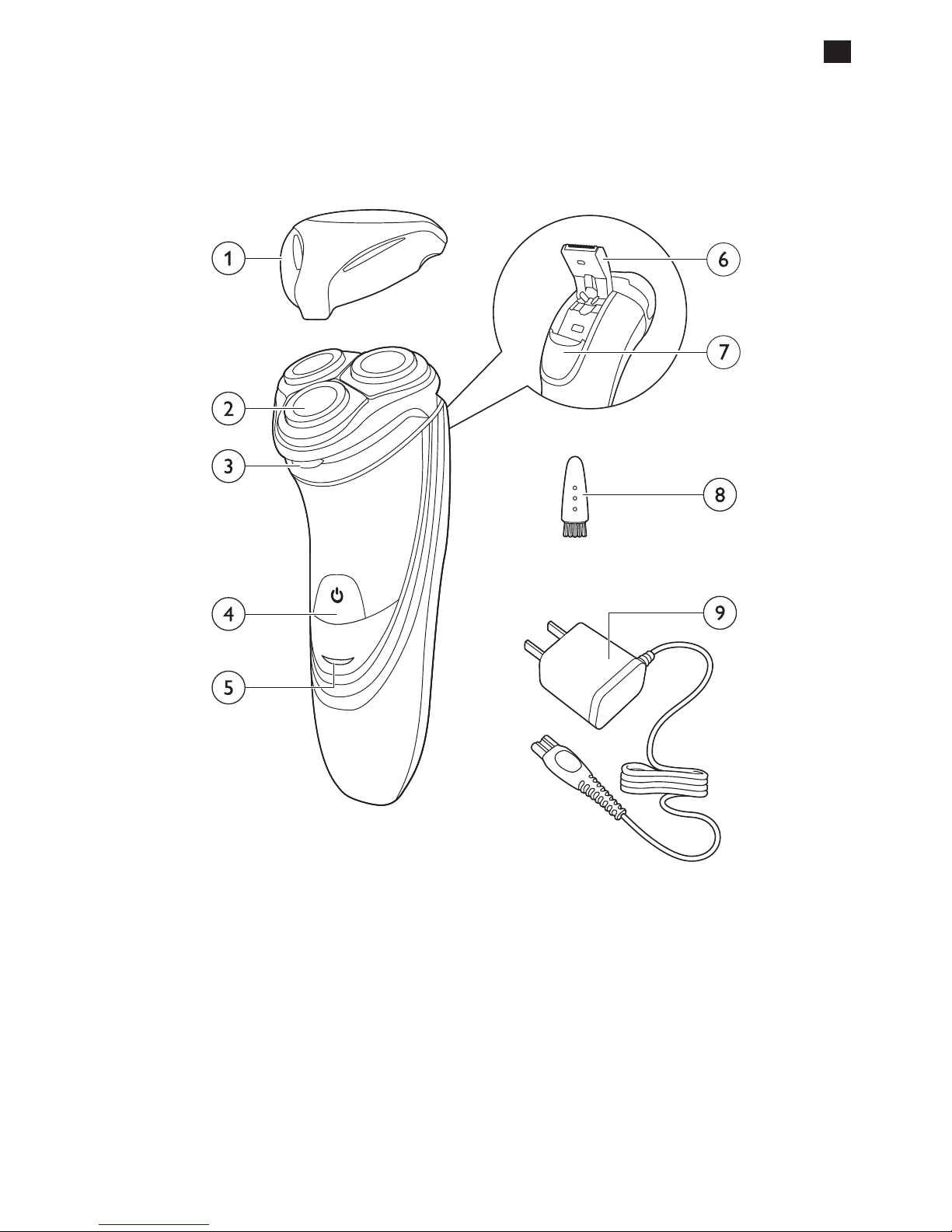

General description (Fig. 1)
1 Protection cap
2 Shaving unit
3 Shaving unit release button
4 On/off button
5 Charging light
6 Trimmer
7 Trimmer release slide
8 Cleaning brush
9 Adapter
Important safety information
Read this important information carefully before you
use the appliance and its accessories and save it for
future reference.The accessories supplied may vary
for different products.
Danger
- Keep the adapter dry.
Warning
- The adapter contains a transformer. Do not cut
off the adapter to replace it with another plug, as
this causes a hazardous situation.
ENGLISH

- This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
- Children should be supervised to ensure that they
do not play with the appliance.
- Always check the appliance before you use it.
Do not use the appliance if it is damaged, as this
may cause injury.Always replace a damaged part
with one of the original type.
Caution
- This appliance is not washable. Never immerse
the appliance in water and do not rinse it under
the tap.
- Only use this appliance for its intended purpose as
shown in the user manual.
- For hygienic reasons, the appliance should only be
used by one person.
- Do not use the adapter in or near wall sockets that
contain or have contained an electric air freshener
to prevent irreparable damage to the adapter.
- Never use compressed air, scouring pads, abrasive
cleaning agents or aggressive liquids such as petrol
or acetone to clean the appliance.
Electromagnetic elds (EMF)
- This Philips appliance complies with all applicable
standards and regulations regarding exposure to
electromagnetic elds.
General
- The appliance is suitable for mains voltages ranging
from 100 to 240 volts.
- The adapter transforms 100-240 volts to a safe
low voltage of less than 24 volts.
ENGLISH 7

Charging
It takes approx. 8 hours to fully charge the shaver.
When you charge the shaver for the rst time or
after a long period of disuse, let it charge until the
charging light lights up continuously.
A fully charged shaver provides up to 45 minutes of
shaving time.
The shaving time may be less than 45 minutes as
a result of your shaving behavior, your cleaning
habits or your beard type.
Note:This shaver can only be used without cord.
Charging with the adapter
1 Put the small plug in the shaver.
2 Put the adapter in the wall socket.
- The charging light shows the charging status of
the shaver (see section ‘Charge indications’ in this
chapter).
Charge indications
Battery low
- When the battery is almost empty (when there
are only 5 or fewer shaving minutes left), the
charging light starts to ash orange.
- When the battery is completely empty the
charging light starts to ash orange quickly.
- When you switch off the shaver, the charging light
continues to ash orange for a few seconds.
ENGLISH8

Charging
- When the shaver is charging, the charging light
ashes green.
Battery fully charged
- When the battery is fully charged, the charging
light lights up green continuously.
Note:After approx. 30 minutes, the charging light goes
out to save energy.
Note:When you press the on/off button, while the shaver
is connected to the mains, the charging light lights up to
remind you to unplug the shaver before use.
Using the shaver
Note:This shaver can only be used without cord.
Shaving tips & tricks
- Make circular movements during use.
- This shaver can only be used without cord.
- Your skin may need 2 or 3 weeks to get
accustomed to the Philips shaving system.
Switching the shaver on and off
1 To switch on the shaver, press the on/off
button once.
2 To switch off the shaver, press the on/off
button once.
ENGLISH 9

Shaving
1 Switch on the shaver.
2 Move the shaving heads in circular movements
over your skin.
3 After shaving, switch off the shaver.
4 Clean the shaver (see chapter ‘Cleaning and
maintenance’).
Trimming
You can use the trimmer to groom your sideburns
and moustache.
1 Push the trimmer slide downwards to open
the trimmer.
2 Switch on the shaver.
- You can now start trimming
3 After trimming, switch off the shaver.
4 Clean the trimmer (see chapter ‘Cleaning and
maintenance’).
5 Close the trimmer (‘click’).
Cleaning and maintenance
This appliance is not washable. Never immerse the
appliance in water, nor rinse it under the tap.
Never use compressed air, scouring pads, abrasive
cleaning agents or aggressive liquids such as petrol
or acetone to clean the appliance.
ENGLISH10

- Clean the shaver after every shave for optimal
shaving performance.
- Regular cleaning guarantees better shaving
performance.
- For the best cleaning results, we advise you to use
the Philips Cleaning spray (HQ110).
Cleaning the shaving unit with the brush
1 Switch off the shaver and disconnect it from
the mains.
2 Press the release button to open the shaving unit.
3 Clean the shaving unit and hair chamber with
the brush supplied.
4 Close the shaving unit.
Never clean the shaving unit and the hair chamber
with a towel or tissue, as this may damage the
shaving heads and the coupling spindles.
Cleaning the shaving heads with the cleaning
brush
1 Switch off the shaver and disconnect it from
the mains.
2 Press the release button to open the shaving unit.
3 Pull the shaving unit off the shaver.
ENGLISH 11

4 Turn the lock anticlockwise (A) and remove
the retaining frame (B).
5 Remove and clean one shaving head at a time.
Each shaving head consists of a cutter and a
guard.
- Remove the cutter from the shaving guard and
clean it with the brush,
- Clean the inside and outside of the shaving guard
with the brush.
Note: Do not clean more than one cutter and guard
at a time, since they are all matching sets. If you
accidentally mix up the cutters and guards, it may take
several weeks before optimal shaving performance is
restored.
6 Put the shaving heads back into the shaving unit.
Note: Make sure the notches on both sides of the
shaving heads t exactly onto the projections in the
shaving-head holder.
7 Put the retaining frame back into the shaving
unit (A) and turn the lock clockwise (B).
ENGLISH12

8 Insert the lug of the shaving unit into the slot
in the top of the shaver.Then close the shaving
unit.
Note: If the shaving unit does not close smoothly, check
if you have inserted the shaving heads properly and if
the retaining frame is locked.
Cleaning the trimmer with the cleaning
brush
Clean the trimmer every time you have used it.
1 Switch off the shaver and disconnect it from
the mains.
2 Push the trimmer slide downwards to open
the trimmer.
3 Clean the trimmer with the cleaning brush.
Brush up and down along the trimmer teeth.
4 Close the trimmer (‘ click’).
Tip: For optimal trimming performance, lubricate the
trimmer teeth with a drop of sewing machine oil every
six months.
ENGLISH 13

Storage
- Put the protection cap on the shaver to prevent
damage.
Replacement
For maximum shaving performance, we advise you
to replace the shaving heads every year. Replace
damaged shaving heads right away. Only replace
the shaving heads with original SH30 Philips Shaving
Heads.
1 Switch off the shaver and disconnect the shaver
from the mains.
2 Press the release button to open the shaving unit.
3 Pull the shaving unit off the shaver.
4 Turn the lock anticlockwise (A) and remove
the retaining frame (B).
5 Remove the shaving heads and place new ones
in the shaving unit.
Note: Make sure the notches on both sides of the
shaving heads t exactly onto the projections in the
shaving-head holder.
ENGLISH14

6 Put the retaining frame back into the shaving
unit (A) and turn the lock clockwise (B).
7 Insert the lug of the new shaving unit into the
slot in the top of the shaver.Then close the
shaving unit.
Note: If the shaving unit does not close smoothly, check
if you have inserted the shaving heads properly and if
the retaining frame is locked.
Ordering accessories
To buy accessories or spare parts, visit
www.shop.philips.com/service or go to your
Philips dealer.You can also contact the Philips
Consumer Care Centre in your country (see the
worldwide guarantee leaet for contact details).
Shaving heads
- We advise you to replace your shaving heads
every year.Always replace them with SH30 Philips
Shaving Heads.
Cleaning
- Use Cleaning spray (HQ110) to clean the shaving
heads thoroughly.
ENGLISH 15

Disposal
- This appliance contains a rechargeable battery
which must be disposed of properly.
- Contact your local town or city ofcials for
battery disposal information.You can also call
1-800-8-BATTERY or visit www.rbrc.com for
battery drop-off locations.
- For assistance, visit our website www.philips.com/
support or call 1-800-243-3050 toll free.
Guarantee and support
If you need information or support, please
www.philips.com/support or call toll free:
1-866-800-9311.To locate the nearest Philips
warranty depot, visit our website www.philips.com.
Guarantee restrictions
- Philips Consumer Lifestyle guarantees its products
for a period of two years after the date of
purchase. If any defect due to faulty materials
and workmanship occurs within this two-year
guarantee period, Philips Consumer Lifestyle will
repair or replace the product at its expense.
- Philips Consumer Lifestyle will only pay for repair
or replacement if convincing proof is provided, for
instance by means of a receipt, that the day on which
service is claimed is within the guarantee period.The
shaving heads (cutters and shaving guards) are not
covered by the terms of the international guarantee
because they are subject to wear.
- The guarantee is not valid if a defect is due to
damage caused by incorrect use, poor maintenance
(e.g. parts blocked by scale) or if alterations or
repairs have been carried out by persons not
authorised by Philips Consumer Lifestyle.
ENGLISH16

- For the appliance to be used correctly, the user
should strictly adhere to all instructions included
in the user manual and should abstain from any
actions or uses that are described as undesired or
which are warned against in the user manual.
- These guarantee restrictions do not affect your
statutory rights.
Troubleshooting
This chapter summarises the most common
problems you could encounter with the appliance.
If you are unable to solve the problem with the
information below, visit www.philips.com/
support for a list of frequently asked questions or
contact the Consumer Care Centre in your country.
Problem Possible cause Solution
The shaver does
not shave as well
as it used to.
The shaving heads
are damaged or
worn.
Replace the shaving heads
(see chapter ‘Replacement’).
Long hairs
obstruct the
shaving heads.
Clean the shaving heads one
by one (see chapter ‘Cleaning
and maintenance’).
You have not
inserted the
shaving heads
properly.
Make sure the notches on
both sides of the shaving heads
t exactly onto the projections
in the shaving-head holder
(see chapter ‘Cleaning and
maintenance’’).
The shaver does
not work when
I press the on/off
button.
The shaver is
connected to the
mains.
This appliance can only be
used without cord.
ENGLISH 17

Problem Possible cause Solution
The rechargeable
battery is empty. Recharge the battery (see chapter ‘Charging’).
The temperature
of the shaver is
too high. In this
case, the shaver
does not work.
As soon as the temperature
of the shaver has dropped
sufciently, you can switch on
the shaver again.
ENGLISH18

19
Introduction
Félicitations pour votre achat et bienvenue dans
l’univers Philips! Pour proter pleinement du soutien
de Philips, enregistrez votre produit sur le site :
www.philips.com/welcome.
Veuillez lire ce manuel contenant des
renseignements sur les caractéristiques fantastiques
de ce rasoir ainsi que des conseils pour simplier le
rasage et le rendre plus agréable.
Description générale (g. 1)
1 Coque de protection
2 Unité de rasage
3 Bouton de déverrouillage de l’unité de rasage
4 Bouton marche/arrêt
5 Témoin de charge
6 Tondeuse
7 Glissière de libération de la tondeuse
8 Brosse de nettoyage
9 Adaptateur
Renseignements importants sur la sécurité
Lisez attentivement ces renseignements importants
avant d’utiliser l’appareil et conservez-les pour un
usage ultérieur. Les accessoires fournis peuvent
varier selon le produit.
Danger
- Évitez de mouiller l’adaptateur.
Avertissement
- L’adaptateur contient un transformateur.
Pour éviter tout accident, n’essayez pas de
remplacer la che de l’adaptateur en la coupant.
FRANÇAIS (CANADA)

- Cet appareil ne doit pas être utilisé par des
personnes (incluant des enfants) avec des
capacités physiques, sensorielles ou mentales
réduites, ou qui n’ont pas l’expérience et les
connaissances nécessaires, à moins qu’elles
ne soient sous la surveillance d’une personne
responsable de leur sécurité ou qu’elles aient
reçu de cette personne des directives concernant
l’utilisation de l’appareil.
- Les enfants doivent être surveillés pour s’assurer
qu’ils ne s’amusent pas avec l’appareil.
- Vériez toujours l’appareil avant utilisation.
Ne l’utilisez pas s’il est endommagé an d’éviter
tout accident. Remplacez toujours un élément
endommagé par un autre du type d’origine.
Avertissement
- Cet appareil n’est pas lavable. Ne plongez jamais
l’appareil dans l’eau et ne le rincez pas sous l’eau
du robinet.
- N’utilisez cet appareil qu’aux ns décrites dans le
mode d’emploi.
- Pour des raisons d’hygiène, l’appareil doit être
utilisé par une seule personne.
- N’utilisez pas l’adaptateur dans ou à proximité de
prises murales qui contiennent ou ont contenu
un désodorisant électrique, an d’éviter des
dommages irréversibles à l’adaptateur.
- N’utilisez jamais d’air comprimé, de tampons à
récurer, de produits abrasifs ou de détergents
agressifs tels que de l’essence ou de l’acétone
pour nettoyer le rasoir.
Champs électromagnétiques (CEM)
- Cet appareil Philips est conforme à toutes les
normes et réglementations relatives à l’exposition
aux champs électromagnétiques.
FRANÇAIS (CANADA)20
