Philips S5340 User manual

S5340, S5320, S5100
4222_002_5827_1_FrontCover_A6_bl.indd 1 11-09-15 11:41

7
17
16 18
13
4
3
5
68
9
10
2
12
11
114
15

English
Français (Canada)

English
Introduction
Congratulations on your purchase and welcome to
Philips! To fully benefit from the support that Philips
offers, register your product at
www.philips.com/welcome.
Please read this user manual, as it contains information
about the features of this shaver as well as some tips
to make shaving easier and more enjoyable.
General description
1 Protection cap for shaving unit
(S5420,S5400,S5380,S5230 only)
2 Click-on shaving unit
3 On/off button
4 Turbo button (S5620,S5380 only)
5 Handle
6 Socket for small plug
7 Battery charge indicator with 1 light
(S5420,S5400,S5230 only)
8 Battery charge indicator with 3 lights
(S5620,S5600,S5380 only)
9 Unplug for use symbol
10 Travel lock symbol
11 Replacement reminder
12 Cleaning reminder
13 Click-on trimmer attachment
(S5600,S5420,S5400,S5380,S5230 only)
14 Click-on beard styler attachment (S5620 only)
15 Comb for beard styler attachment (S5620 only)
16 Adapter
17 Small plug
18 Pouch (S5620,S5600 only)
5
English

Important safety information
Read this important information carefully before you
use the appliance and its accessories and save it for
future reference. The accessories supplied may vary
for different products.
Danger
- Keep the adapter dry ().
Warning
- The adapter contains a transformer. Do not cut off
the adapter to replace it with another plug, as this
causes a hazardous situation.
- This appliance can be used by children aged from 8
years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made
by children without supervision.
- Always unplug the shaver before you clean it
under the tap.
- Always check the appliance before you use it. Do
not use the appliance if it is damaged, as this may
cause injury. Always replace a damaged part with
one of the original type.
6English

Caution
- Never immerse the adapter in water nor rinse it
under the tap.
- Never use water hotter than 80°C to rinse the
shaver.
- Only use this appliance for its intended purpose as
shown in the user manual.
- For hygienic reasons, the appliance should only be
used by one person.
- Never use compressed air, scouring pads, abrasive
cleaning agents or aggressive liquids such as petrol
or acetone to clean the appliance.
- Water may drip from the socket at the bottom of
the shaver when you rinse it. This is normal and
not dangerous because all electronics are enclosed
in a sealed power unit inside the shaver.
Electromagnetic fields (EMF)
- This Philips appliance complies with all applicable
standards and regulations regarding exposure to
electromagnetic fields.
General
- This shaver is waterproof (). It is suitable for use in
the bath or shower and for cleaning under the tap.
For safety reasons, the shaver can therefore only
be used without cord.
- The appliance is suitable for voltages ranging from
100 to 240 volts.
- The adapter transforms 100-240 volts to a safe
low voltage of less than 24 volts.
- Maximum noise level: Lc = 69dB(A)
7
English

The display
Charging
Battery charge indicator with 3 lights (specific
types only)
- Charging takes approx. 1 hour.
- Quick charge: When the appliance is connected to
the power outlet, the lights of the battery charge
indicator light up one after the other continuously.
When the appliance contains enough energy for
one shave, the bottom light of the battery charge
indicator flashes slowly.
- If you leave the appliance connected to the power
outlet, the charging process continues. To indicate
that the appliance is charging, first the bottom light
flashes and then lights up continuously. Then the
second light flashes and then lights up continuously,
and so on until the appliance is fully charged.
Battery charge indicator with 1 light (specific
types only)
- Charging takes approx. 1 hour.
- Quick charge: When the appliance does not
contain enough energy for one shave, the battery
charge indicator flashes quickly. When the battery
charge indicator starts flashing slowly, the appliance
contains enough energy for one shave .
- If you leave the appliance connected to the power
outlet, the charging process continues. To indicate
that the appliance is charging, the battery charge
indicator flashes slowly.
8English

Battery fully charged
Note: This appliance can only be used without cord.
Note: When the battery is full, the display switches off
automatically after 30 minutes.
Note: If you press the on/off button during charging, the
'unplug for use' symbol flashes white to remind you that
you have to disconnect the appliance from the power
outlet.
When the battery is full, all lights of the battery charge
indicator light up continuously.
- Battery charge indicator with 3 lights (specific types
only)
- Battery charge indicator with 1 light (specific types
only)
Battery low
When the battery is almost empty, the battery charge
indicator flashes orange.
- Battery charge indicator with 3 lights (specific types
only)
9
English

- Battery charge indicator with 1 light (specific types
only)
Remaining battery capacity
Battery charge indicator with 3 lights (specific
types only)
- The remaining battery capacity is indicated by the
lights of the battery charge indicator that light up
continuously.
’Unplug for use’ reminder
- The appliance is equipped with an ‘unplug for use’
reminder. The ‘unplug for use’ symbol flashes to
remind you that you have to disconnect the
appliance from the adapter before you can switch
it on.
Cleaning reminder
Clean the shaver after every shave for optimal
performance. When you switch off the shaver, the
cleaning reminder flashes to remind you to clean the
shaver.
10 English

Travel lock
You can lock the shaver when you are going to travel.
The travel lock prevents the shaver from being
switched on by accident.
Activating the travel lock
3 sec.
1Press the on/off button for 3 seconds to enter the
travel lock mode.
-While you activate the travel lock, the travel
lock symbol lights up continuously. When the
travel lock is activated, the travel lock symbol
flashes.
Deactivating the travel lock
1Press the on/off button for 3 seconds.
-The travel lock symbol flashes and then lights
up continuously. The shaver is now ready for
use again.
Replacing shaving heads
For maximum shaving performance, we advise you to
replace the shaving heads once a year.
- The appliance is equipped with a replacement
reminder which reminds you to replace the shaving
heads. The replacement reminder lights up
continuously.
11
English

Note: After replacing the shaving heads, you need to
reset the replacement reminder by pressing the on/off
button for 7 seconds.
Turbo setting (specific types only)
The appliance is equipped with a Turbo setting. This
allows you to shave hard-to-reach areas more quickly.
Charging
Charging takes approx. 1 hour.
Note: You cannot use the appliance while charging.
Charge the shaver before you use it for the first time
and when the display indicates that the battery is
almost empty.
Charging with the adapter
1Make sure the appliance is switched off.
2Put the adapter in the wall socket (1) and put the
small plug in the appliance (2).
3After charging, remove the adapter from the wall
socket and pull the small plug out of the appliance.
12 English

Using the appliance
Switching the appliance on and off
1To switch on the appliance, press the on/off button
once.
2To switch off the appliance, press the on/off button
once.
Battery charge indicator with 3 lights (specific types
only): the display lights up for a few seconds to show
the remaining battery status.
Shaving
Skin adaption period
Your first shaves may not bring you the result you
expect and your skin may even become slightly
irritated. This is normal. Your skin and beard need
time to adapt to any new shaving system. We advise
you to shave regularly (at least 3 times a week) and
exclusively with this shaver for a period of 3 weeks to
allow your skin to adapt to the new shaver.
Note: This appliance can only be used without cord.
1Switch on the appliance.
2Move the shaving heads over your skin in circular
movements.
3Clean the shaver after use (see 'Cleaning and
maintenance').
Wet shaving
You can also use this shaver on a wet face with
shaving foam or shaving gel.
To shave with shaving foam or shaving gel, follow the
steps below:
13
English

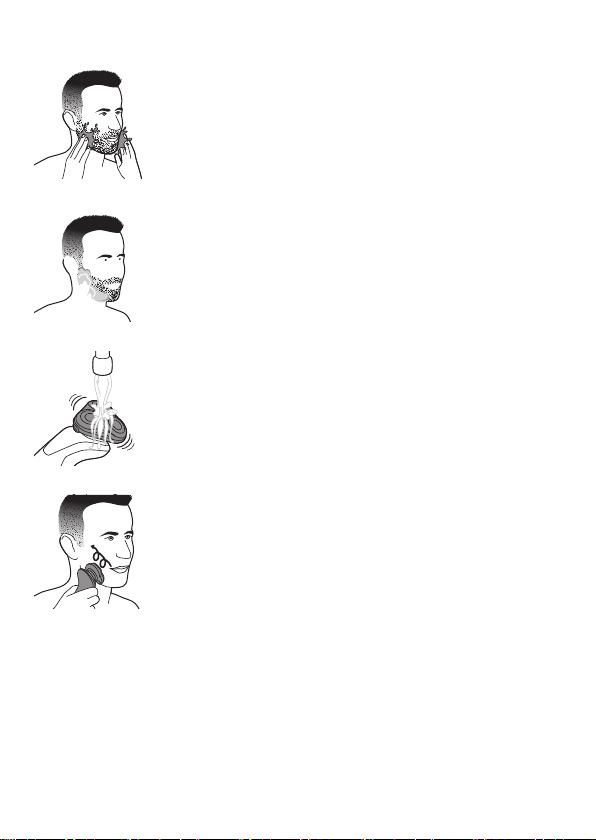

1Apply some water to your skin.
2Apply shaving foam or shaving gel to your skin.
3Rinse the shaving unit under the tap to ensure that
the shaving unit glides smoothly over your skin.
4Switch on the appliance.
5Move the shaving heads over your skin in circular
movements.
Note: Rinse the shaving unit regularly to ensure that
it continues to glide smoothly over your skin.
6Dry your face.
7Clean the shaver after use (see 'Cleaning and
maintenance').
Note: Make sure you rinse all foam or shaving gel off the
shaver.
Turbo setting (specific types only)
The appliance is equipped with a Turbo setting. This
allows you to shave hard-to-reach areas more quickly.
14 English

1To activate the Turbo setting, press the Turbo
button once.
2Move the shaving heads over your skin in circular
movements.
Note: Donot make straight movements.
3To deactivate the Turbo setting, press the Turbo
button once.
Using the click-on attachments
Note: The accessories supplied may vary for different
products. The box shows the accessories that have been
supplied with your appliance.
Removing or attaching the click-on
attachments
1Make sure the appliance is switched off.
2Pull the attachment straight off the appliance.
Note: Do not twist the attachment while you pull it
off the appliance.
3Insert the lug of the attachment into the slot in the
top of the appliance. Then press down the
attachment to attach it to the appliance (‘click’).

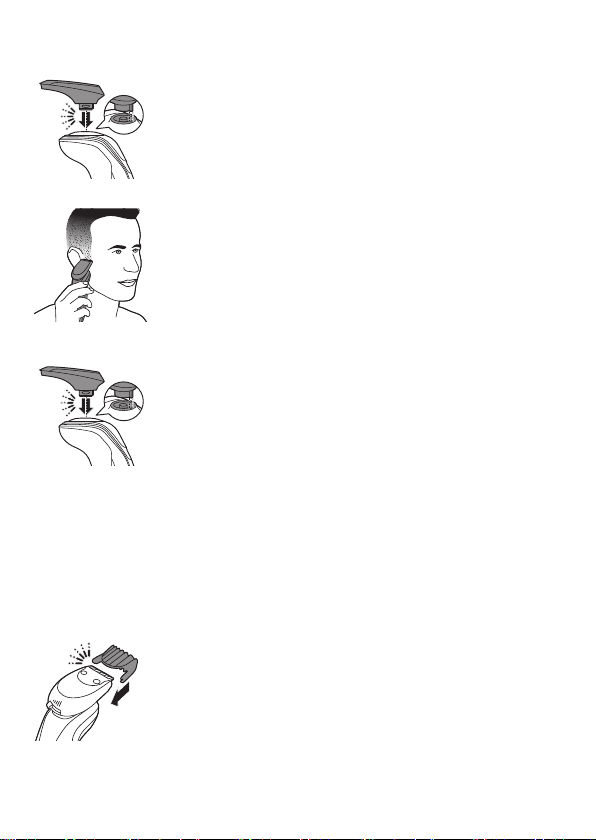

Using the trimmer attachment (specific types
only)
You can use the trimmer attachment to groom your
sideburns and moustache.
1Make sure the appliance is switched off.
2Remove the shaving unit from the appliance.
15
English

3Insert the lug of the trimmer attachment into the
slot in the top of the appliance.
4Switch on the appliance.
5You can now start trimming.
6Clean the attachment after use (see 'Cleaning and
maintenance').
Using the beard styler attachment (specific
types only)
1Make sure the appliance is switched off.
2Insert the lug of the beard styler attachment into
the slot in the top of the appliance. Then press
down the beard styler attachment to attach it to
the appliance (‘click’).
Using the beard styler attachment with comb
You can use the beard styler attachment with the
comb attached to style your beard at one fixed
setting, but also at different length settings. You can
use it also to pre-trim any long hairs before shaving to
have a more comfortable shave.
The hair length settings on the beard styler
attachment correspond to the remaining hair length
after cutting and range from 1 to 5mm.
1Slide the comb straight into the guiding grooves on
both sides of the attachment (‘click’).
16 English

1
2
2Press the length selector and then push it to the
left or right to select the desired hair length setting.
3Switch on the appliance.
4You can now start styling your beard by moving
the attachment upwards with gentle pressure
making sure the front of the comb is in full contact
with the skin.
5Clean the attachment after use (see 'Cleaning and
maintenance').
Using the beard styler attachment without
comb
You can use the beard styler attachment without the
comb to contour your beard, moustache, sideburns or
neckline to a length of 0.5mm.
1Pull the comb off the beard styler attachment.
Note: Grab the comb in the centre to pull it off the
Beard Styler attachment. Do not pull at the sides of
the comb.
2Switch on the appliance.
3You can now start contouring your beard,
moustache, sideburns or neckline by moving the
styler downwards with gentle pressure while
holding it perpendicular to the skin.
4Clean the attachment after use (see 'Cleaning and
maintenance').
17
English

Cleaning and maintenance
Cleaning the shaver under the tap
Clean the shaver after every shave for optimal
performance.
Caution: Be careful with hot water. Always check
if the water is not too hot, to prevent burning
your hands.
Caution: Never dry the shaving unit with a towel
or tissue, as this may damage the shaving heads.
1Rinse the shaving unit under a hot tap.
2Press the release button to open the shaving unit.
3Rinse the shaving head holder under a hot tap for
30 seconds.
4Carefully shake off excess water and let the shaving
head holder dry.
5Close the shaving head holder ('click').
18 English

Thorough cleaning method
1Switch off the appliance.
2Press the release button to open the shaving unit.
3Pull the shaving head holder off the bottom part of
the shaving unit.
1
2
4Turn the retaining rings anticlockwise and remove
them.
5Remove the shaving heads from the shaving head
holder. Each shaving head consists of a cutter and
guard.
Note: Do not clean more than one cutter and guard
at a time, since they are all matching sets. If you
accidentally put a cutter in the wrong shaving guard,
it may take several weeks before optimal shaving
performance is restored.
19
English

6Clean the cutter and guard under the tap.
7Put the cutter back into the guard.
8Place the shaving heads in the shaving head holder.
Note: Make sure that the projections of the shaving
heads fit exactly into the recesses.
1
2
9Place the retaining rings back onto the shaving
head holder and turn them clockwise ('click').
20 English
