English
Introduction
Congratulations on your purchase and welcome to
Philips! To fully benefit from the support that
Philips offers, register your product at
www.philips.com/welcome.
General description (Fig.1)
1 Blade
2 Blade release slide
3 Travel lock (QP6520 only)
4 Battery status percentage (QP6520 only)
5 Charge symbol (QP6520 only)
6 Display (QP6520 only)
7 On/off button
8 Battery status indicator (QP6510 only)
9 Charging stand (QP6520 only)
10 Small plug of the charging stand (QP6520 only)
11 Pouch (QP6520 only)
12 Small plug
13 Supply unit (adapter, type HQ8505)
14 Precision trimming comb
15 Hair length setting wheel
Important safety information
Read this important information carefully before
you use the appliance and its accessories and
save it for future reference. The accessories
supplied may vary for different products.
Danger
-Keep the supply unit dry.
6English

Warning
-The supply unit contains a
transformer. Do not cut off the
supply unit to replace it with
another plug, as this causes a
hazardous situation.
-Only charge the appliance with
the supply unit provided.
-This appliance is not intended
for use by persons (including
children) with reduced physical,
sensory or mental capabilities,
or lack of experience and
knowledge, unless they have
been given supervision or
instruction concerning use of
the appliance by a person
responsible for their safety.
-Children should be supervised
to ensure that they do not play
with the appliance.
7
English

-Always unplug the appliance
before you clean it under the
tap.
-Always check the appliance
before you use it. Do not use
the appliance if it is damaged,
as this may cause injury. Always
replace a damaged part with
one of the original type.
-Do not open the appliance to
replace the rechargeable
battery.
Caution
-Never immerse the charging
stand in water and do not rinse
it under the tap.
-Never use water hotter than
80°C to rinse the appliance.
-Only use this appliance for its
intended purpose as shown in
the user manual.
8English

-For hygienic reasons, the
appliance should only be used
by one person.
-Never use compressed air,
scouring pads, abrasive
cleaning agents or aggressive
liquids such as petrol or
acetone to clean the appliance.
-Do not use the supply unit in or
near wall sockets that contain
or have contained an electric air
freshener to prevent irreparable
damage to the supply unit.
Electromagnetic fields (EMF)
-This Philips appliance complies with all
applicable standards and regulations regarding
exposure to electromagnetic fields.
General
-This appliance is waterproof. It is suitable for
use in the bath or shower and for cleaning
under the tap. For safety reasons, the appliance
can therefore only be used without cord.
-The appliance is suitable for mains voltages
ranging from 100 to 240 volts.
-The supply unit transforms 100-240 volts to a
safe low voltage of less than 24 volts.
9
English

Charging
Note: This appliance can only be used without
cord.
QP6520, QP6510: Charging takes approx. 1 hour. A
fully charged appliance has an operating time of
up to 90 minutes (QP6520) or 60 minutes
(QP6510).
Charge the appliance before you use it for the first
time and when the charge symbol indicates that
the battery is almost empty.
Battery status indicator QP6520
-When the charge symbol flashes orange, the
battery is almost empty. The remaining battery
capacity is indicated by the battery status
percentage shown on the display.
-To indicate that the appliance is charging, the
charge symbol flashes white.
-Quick charge: after approx. 5 minutes charging,
the appliance contains enough energy for 5
minutes using. During quick charge the charge
symbol flashes white quickly until quick charge
is finished.
-The battery is fully charged when the battery
status percentage shown on the display is 100%
and the charge symbol lights up continuously.
-Approx. 30 minutes after the battery is fully
charged or when you disconnect the appliance
from the mains, the display switches off
automatically.
10 English

Battery status indicator QP6510
-When the battery status indicator light flashes
orange, the battery is almost empty.
-To indicate that the appliance is charging, first
the bottom light flashes white and then lights
up white continuously. Then the second light
flashes and then lights up continuously, and so
on until the appliance is fully charged.
-Quick charge: after approx. 5 minutes charging,
the appliance contains enough energy for 5
minutes using. During quick charge the lights of
the battery status indicator will light up
continuously one after another and then all
switch off. This will repeat itself until quick
charge is finished.
-The battery is fully charged when all lights of
the battery status indicator light up
continuously.
-Approx. 30 minutes after the battery is fully
charged or when you disconnect the appliance
from the mains, the lights of the battery status
indicator switch off automatically.
Charging with the adapter
1Insert the small plug into the appliance and put
the adapter in the wall socket.
2After charging, remove the adapter from the
wall socket and pull the small plug out of the
appliance.
11
English

Charging in the charging stand (QP6520 only)
1Insert the small plug into the charging stand
and put the adapter in the wall socket.
2Put the appliance in the charging stand.
3After charging, remove the adapter from the
wall socket and pull the small plug out of the
charging stand.
Using the appliance
You can use the appliance to trim, edge or shave
facial hair (beard, moustache and sideburns).
Shave for a smooth result, trim to obtain a certain
length and edge to create perfect edges and sharp
lines. This appliance is not intended for shaving,
edging or trimming hairs on lower body parts or
scalp hair. Take your time when you first start to
use the appliance. You have to acquire practice
with the appliance.
Note: This appliance can only be used without
cord.
Switching the appliance on and off
1To switch on the appliance, press the on/off
button once.
2To switch off the appliance, press the on/off
button once.
12 English

Shaving
Warning: Before you use the appliance,
always check the blade for damage or
wear. If the blade is damaged or worn, do
not use the appliance, as injury may occur.
Replace a damaged blade before you use
the appliance (see chapter ‘Replacement’).
Shaving tips and tricks
-Make sure that the blade is in full contact with
the skin by placing it flat on the skin.
-For the best result, move the appliance against
the grain.
-Make long strokes while you press lightly.
-You can use the appliance dry or wet with gel
or foam, even in the shower.
-Shaving a clean beard and face gives the best
results.
1Switch on the appliance.
2Place the blade on the skin and move the
appliance up or against the grain in long strokes
while you press it lightly.
Note: Make sure you hold the surface of the
blade flat against your skin.
3Switch off and clean the appliance after every
use (see ‘Cleaning and maintenance’).
Edging
You can also use both edges of the blade to create
sharp lines and perfect edges. Hold the appliance
in such a way that the blade is perpendicular to
13
English

the skin and one of its edges touches the skin. This
allows more precise detailing of sideburns and the
area around the mouth and nose.
1To use the blade for creating sharp edges and
lines, use either edge of the blade.
2Switch on the appliance.
3Place the edge of the blade perpendicular onto
the skin.
-Make straight strokes while applying gentle
pressure.
4Switch off and clean the appliance after every
use (see ‘Cleaning and maintenance’).

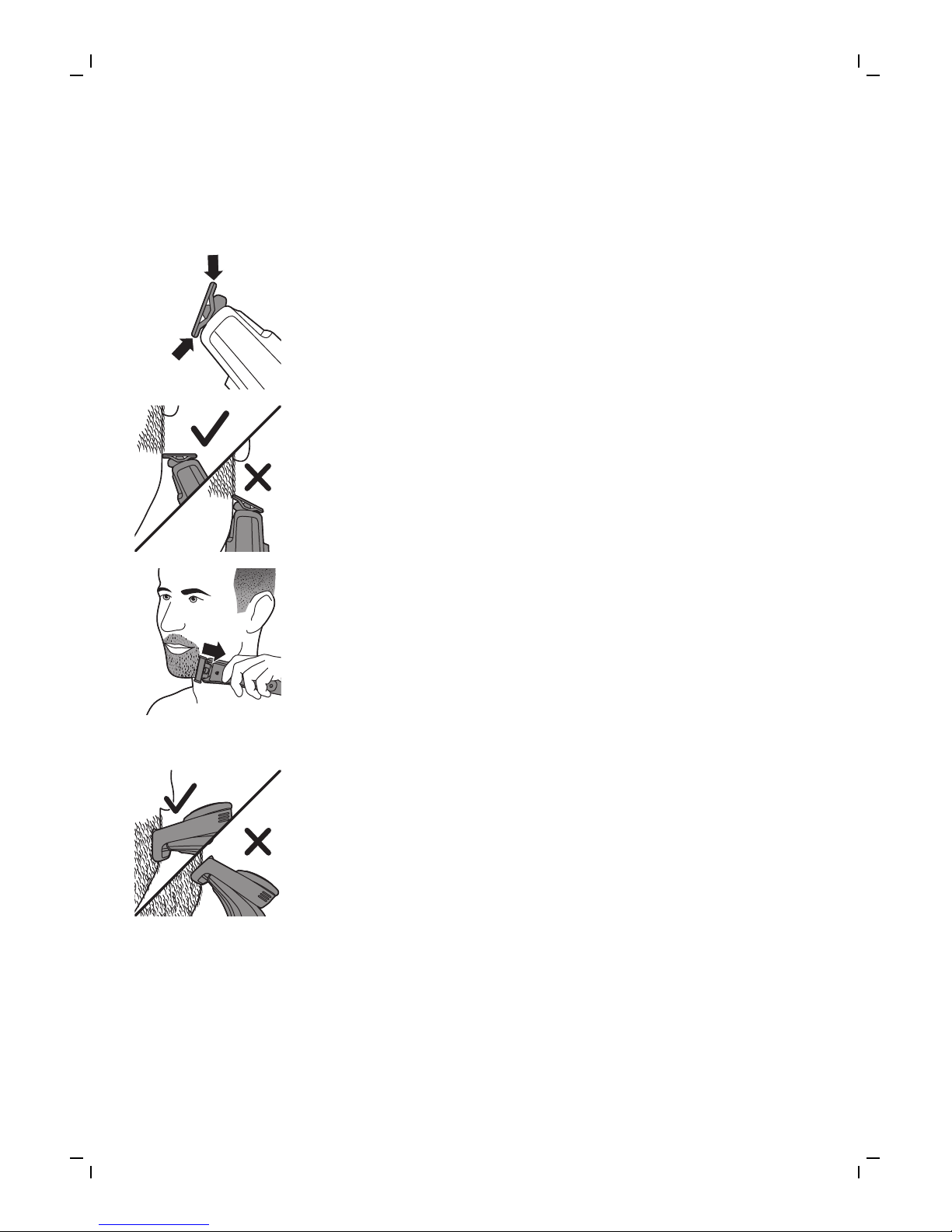

Trimming with comb
Tips
-Always trim in the direction of the teeth of the
precision trimming comb making sure the flat
part of the comb is in full contact with the skin
for an even trimming result.
-Since hair grows in different directions, you
need to hold the appliance in different
positions as well. However, always make sure
that you move the appliance upwards against
the grain.
-Trimming is easier when the skin and hair are
dry.
14 English

The precision trimming comb allows you to trim
hair to different lengths. Start at the highest setting
to acquire practice with this appliance. The settings
on the wheel correspond to the hair lengths in
millimeters.
1 2
1Place the front part of the comb onto the blade
and push the projection at the back of the
comb into the appliance (‘click’).
2Turn the hair length setting wheel to select the
desired hair length setting.
The settings on the wheel correspond to the
hair lengths in millimeters.
-QP6520
-QP6510
3Switch on the appliance.
4Place the comb onto the skin and move the
appliance upwards slowly, against the grain.
5Switch off and clean the appliance after every
use (see ‘Cleaning and maintenance’).
15
English

1
2
6To remove the comb, pull its back part off the
appliance and then slide it off the blade.
Cleaning and maintenance
Clean the appliance after every use.
Caution: Never use compressed air, scouring
pads, abrasive cleaning agents or aggressive
liquids such as petrol or acetone to clean the
appliance.
Caution: Do not tap the appliance against a
surface to remove water from it, as this may
cause damage. Replace the blade if it is
damaged.
Cleaning the appliance
1
2
1Remove the comb from the blade. Always turn
the appliance off before putting on or taking off
the comb.
2If a lot of hairs have accumulated on the comb,
first blow them off.
16 English

3If a lot of hairs have accumulated on the
appliance, first blow them off.
4Then switch on the appliance and rinse the
blade with lukewarm water.
Caution: Do not dry the blade with a towel or a
tissue as this may cause damage.
5Then rinse the comb with lukewarm water.
6Let the appliance and comb dry.
Note: The blade is fragile. Handle it carefully.
Replace the blade if it is damaged.
Storage
Note: We advise you to let the appliance and its
attachments dry before you store them for the
next use.
1 2
1Always attach the precision trimming comb on
the blade to protect the blade from damage
during travelling or storage.
Travel lock (QP6520 only)
You can lock the appliance when you are going to
travel. The travel lock prevents the appliance from
being switched on by accident.
Activating the travel lock
17
English

3 sec.
1Press the on/off button for 3 seconds.
-While you activate the travel lock, the travel
lock symbol lights up and the digital display
counts down.
-When the travel lock is activated, the travel lock
symbol flashes.
Deactivating the travel lock
1Press the on/off button for 3 seconds.
-While you deactivate the travel lock, the display
counts down. Then the travel lock symbol lights
up and switches off.
-The appliance is now ready for use again.
Replacement
Replacing the blade
For optimal cutting and gliding performance of the
blade, we advise you to replace the blade every 4
months or when it no longer provides the shaving
or trimming results you expect. The advice of
replacing every 4 months is based on two full
shaves a week. Depending on your usage behavior
the exact lifetime of the blade could be longer or
shorter. Similar to what you would experience with
a manual blade, the blade becomes blunt over
time, which results in increased hair pulling and
reduced cutting performance.
18 English

2
1
1Push the blade release slide upwards carefully,
and hold the blade on its sides to remove the
blade and prevent it from flying away.
2Hold the new blade on its sides and press it
onto the handle (‘click’).
Note: When you hear a click the new blade is
placed correctly and ready for use.
Ordering accessories
To buy accessories or spare parts, visit
www.shop.philips.com/service or go to your
Philips dealer. You can also contact the Philips
Consumer Care Centre in your country (see the
worldwide guarantee leaflet for contact details).
The following parts are available:
-QP210 Blade 1-pack
-QP220 Blade 2-pack
Recycling
-This symbol means that this product shall not
be disposed of with normal household waste
(2012/19/EU).
19
English

-This symbol means that this product contains a
built-in rechargeable battery which shall not be
disposed of with normal household waste
(2006/66/EC). We strongly advise you to take
your product to an official collection point or a
Philips service centre to have a professional
remove the rechargeable battery.
-Follow your country’s rules for the separate
collection of electrical and electronic products
and rechargeable batteries. Correct disposal
helps prevent negative consequences for the
environment and human health.
Removing the rechargeable battery
Caution: Only remove the rechargeable battery
when you discard the appliance. Make sure the
battery is completely empty when you remove it.
Note: We strongly advise you to have a
professional remove the rechargeable battery.
1Disconnect the appliance from the mains and
let the appliance run until the motor stops.
2Remove the blade from the appliance.
3Insert a screwdriver under the back panel and
remove the panel.
4Break the snap connections on both sides with
the screwdriver.
20 English
