Contents
1 Your new TV 3
1.1 Pause TV and recordings 3
1.2 EasyLink 3
2 Setting up 4
2.1 Read safety 4
2.2 TV stand and wall mounting 4
2.3 Tips on placement 4
2.4 Power cable 4
2.5 Antenna cable 5
2.6 Satellite dish 5
3 Connections 6
3.1 Tips on connections 6
3.2 EasyLink HDMI CEC 7
3.3 Common interface - CAM 8
3.4 Set-top box - STB 8
3.5 Satellite receiver 9
3.6 Home Theatre System - HTS 9
3.7 Blu-ray Disc player 10
3.8 DVD player 11
3.9 Game console 11
3.10 USB Hard Drive 11
3.11 USB flash drive 12
3.12 Camcorder 12
3.13 Computer 12
3.14 Headphones (For 5210 TV models) 13
4 Switch on 14
4.1 On or Standby (For 4000, 5210 TV models) 14
5 Remote control 15
5.1 Key overview (For 4000, 4100, 4200, 5210 TV
models) 15
5.2 IR sensor 15
5.3 Batteries 16
5.4 Cleaning 16
6 TV channels 17
6.1 Watching TV channels 17
6.2 Channel installation 20
7 Satellite channels (For PxK models)
24
7.1 Watching satellite channels 24
7.2 Satellite channel list 24
7.3 Favourite satellite channels 24
7.4 Lock satellite channels 25
7.5 Satellite installation 26
7.6 Problems with satellites 28
8 TV guide 30
8.1 Using the TV guide 30
8.2 Recordings 30
8.3 Receiving TV guide data 30
9 Sources 32
9.1 Sources list 32
9.2 From standby 32
9.3 EasyLink 32
10 Timers and clock 33
10.1 Sleep timer 33
10.2 Clock 33
10.3 Auto switch off 33
11 Your photos, videos and music 34
11.1 From a USB connection 34
12 Pause TV 36
12.1 Pause TV 36
13 Recording 37
13.1 What you need 37
13.2 Record a programme 37
13.3 Watch a recording 37
14 Settings 38
14.1 Picture 38
14.2 Game or computer 40
14.3 Format and edges 40
14.4 Sound 40
14.5 Ambilight (For 6300 TV models) 42
15 Specifications 44
15.1 Environmental 44
15.2 Reception for PxK models 44
15.3 Display 45
15.4 Power 45
15.5 Dimensions and weights 45
15.6 Connectivity for Pxx5210 46
15.7 Sound 47
15.8 Multimedia 47
16 Software 48
16.1 Software update 48
16.2 Software version 48
16.3 Open source software 48
16.4 Open source license 48
17 Troubleshooting and support 51
17.1 Troubleshooting 51
17.2 Register 52
17.3 Help 52
17.4 Online help 52
17.5 Consumer Care / Repair 53
18 Safety and care 54
18.1 Safety 54
18.2 Screen care 55
19 Terms of use, copyrights and licenses
56
19.1 Terms of use 56
19.2 Copyrights and licenses 56
Index 58
2

1
Your new TV
1.1
Pause TV and recordings
If you connect a USB Hard Drive, you can pause and
record a broadcast from a digital TV channel.
Pause your TV and answer that urgent phone call or
simply take a break during a sports match, while the
TV stores the broadcast on the USB Hard Drive. You
can start watching again later.
1.2
EasyLink
With EasyLink you can operate a connected device,
like a Bluray Disc player, with the remote control of
the TV.
EasyLink uses HDMI CEC to communicate with the
connected devices.
3

2
Setting up
2.1
Read safety
Read the safety instructions first before you use the
TV.
In Help, go to Safety and care > Safety.
2.2
TV stand and wall mounting
TV stand
You can find the instructions for mounting the TV
stand in the Quick Start Guide that came with the TV.
In case you lost this guide, you can download it from
www.philips.com.
Use the product type number of the TV to look for the
Quick Start Guide to download.
Wall mounting
Your TV is also prepared for a VESA-compliant wall
mount bracket (sold separately).
Use the following VESA code when purchasing the
wall mount . . .
To fix the bracket securely, use screws with a length
indicated in the drawing.
- 22Pxx4000 - VESA MIS-F 75x75, M4 (Minimum 10
mm, Maximum 10.5 mm)
- 24Pxx4000 - VESA MIS-F 75x75, M4 (Minimum 10
mm, Maximum 10.5 mm)
- 24PHx5210 - VESA MIS-F 75x75, M4 (Minimum 10
mm, Maximum 10.5 mm)
- 32PFx4100 - VESA MIS-F 100x100, M4 (Minimum
10 mm, Maximum 14 mm)
- 32PHx4100/12 - VESA MIS-F 100x100,
M4 (Minimum 10 mm, Maximum 14 mm)
- 32PHx4100/88 - VESA MIS-F 100x100,
M4 (Minimum 10 mm, Maximum 14 mm)
- 32PHT4100/60 - VESA MIS-F 100x100,
M4 (Minimum 12 mm, Maximum 16 mm)
- 40Pxx4100 - VESA MIS-F 200x200, M4 (Minimum
12 mm, Maximum 16 mm)
- 48Pxx4100 - VESA MIS-F 200x200, M6 (Minimum
12 mm, Maximum 16 mm)
- 32Pxx4200 - VESA MIS-F 100x100, M4 (Minimum
10 mm, Maximum 14 mm)
- 40Pxx4200 - VESA MIS-F 200x200, M4 (Minimum
12 mm, Maximum 16 mm)
- 40Pxx6300 - VESA MIS-F 200x200, M6 (Minimum
14 mm, Maximum 24 mm)
- 48Pxx6300 - VESA MIS-F 400x400, M6 (Minimum
14 mm, Maximum 24 mm)
- 55Pxx6300 - VESA MIS-F 400x400, M6 (Minimum
14 mm, Maximum 24 mm)
Caution
Wall mounting the TV requires special skills and
should only be performed by qualified personnel. The
TV wall mounting should meet safety standards
according to the TV's weight. Also read the safety
precautions before positioning the TV.
TP Vision Europe B.V. bears no responsibility for
improper mounting or any mounting that results in
accident or injury.
2.3
Tips on placement
- Position the TV where light does not shine directly
on the screen.
- Position the TV up to 15 cm away from the wall.
- The ideal distance to watch TV is 3 times its
diagonal screen size. When seated, your eyes should
be level with the centre of the screen.
2.4
Power cable

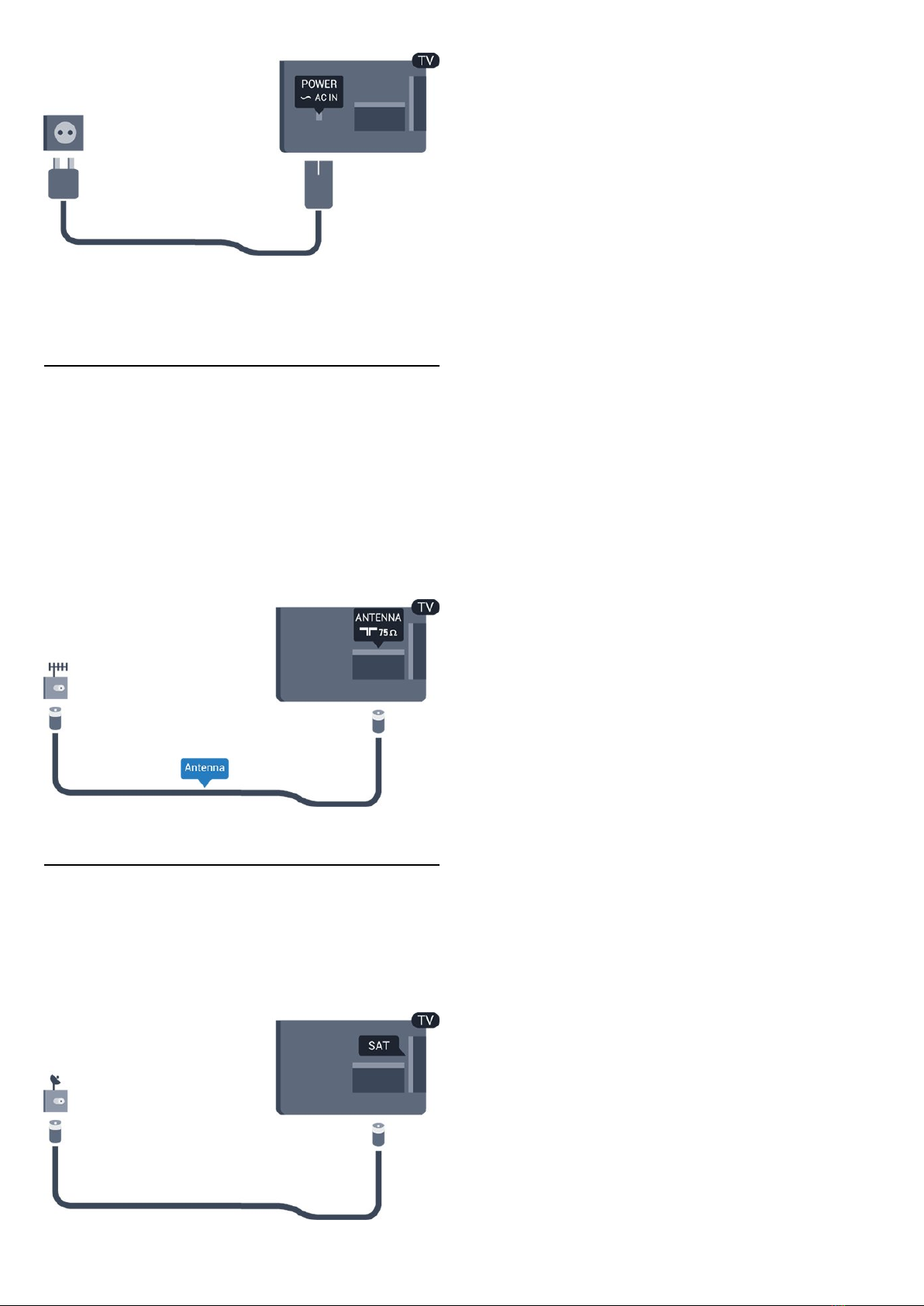

- Insert the power cable into the POWER connector
on the back of the TV.
- Make sure the power cable is securely inserted in
the connector.
- Make sure that the power plug, in the wall socket, is
accessible at all times.
- When you unplug the power cable, always pull the
plug, never pull the cable.
4

Although this TV has a very low standby power
consumption, unplug the power cable to save energy
if you do not use the TV for a long period of time.
2.5
Antenna cable
Insert the antenna plug firmly into the ANTENNA
socket at the back of the TV.
You can connect your own antenna or an antenna
signal from an antenna distribution system. Use an
IEC Coax 75 Ohm RF antenna connector.
Use this antenna connection for DVB-T and DVB-C
input signals.
2.6
Satellite dish
- For PxK models
Attach the satellite F-type connector to the satellite
connection SAT at the back of the TV.
5
