Kogan KALED28DVDVB User manual

Table of Contents
Safety Instructions.............................................................................................................................3
General Safety Instructions.......................................................................................................3
Installation........................................................................................................................................4
Cleaning............................................................................................................................................5
General Description..........................................................................................................................6
Specifications & Accessories........................................................................................................6
Specifications.................................................................................................................................6
Accessories......................................................................................................................................6
Buttons and Ter inal Interface...................................................................................................7
TV Buttons.......................................................................................................................................7
Ter inal Interface.........................................................................................................................7
Installation of TV................................................................................................................................7
TV place ent..................................................................................................................................7
Connect antenna and power....................................................................................................7
Turn on the TV...............................................................................................................................7
Re ote Control.............................................................................................................................8
TV Menu.................................................................................................................................................11

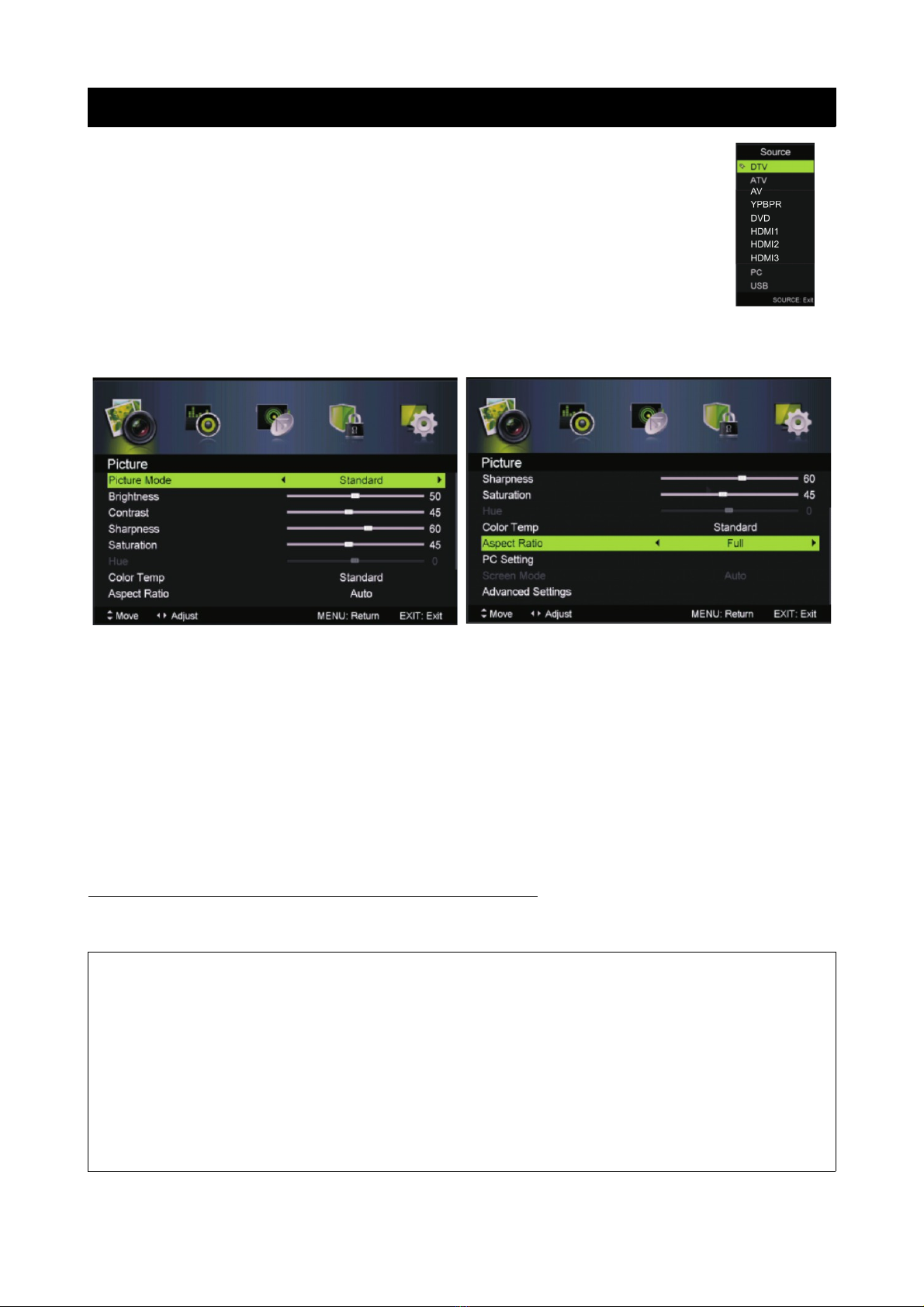

Input Source....................................................................................................................................11
Picture Menu...................................................................................................................................11
Picture MODE.................................................................................................................................11
Brightness/Contrast/Sharpness/Saturation/Hue......................................................11
Color Te p................................................................................................................................12
Aspect Ratio.............................................................................................................................12
PC Setting..................................................................................................................................12
Advanced Settings.................................................................................................................12
Sound Menu...................................................................................................................................12
Sound MODE.................................................................................................................................13
Treble/Bass/Balance.............................................................................................................13
Surround Sound......................................................................................................................13
EQ Setting..................................................................................................................................13
AVL...............................................................................................................................................13
SPDIF...........................................................................................................................................13
Audio Description...................................................................................................................13
Sound Type...............................................................................................................................13

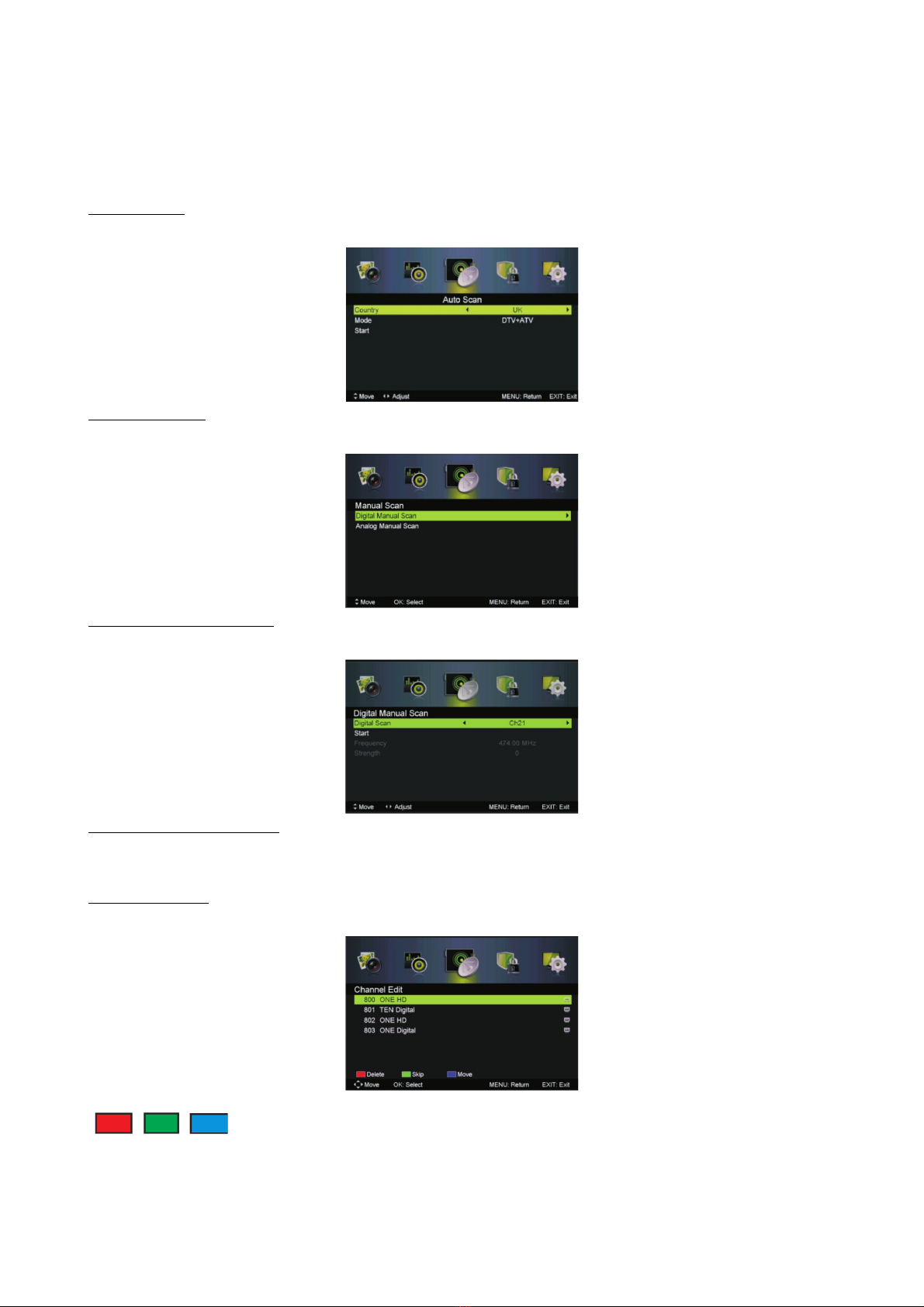

Channel Menu................................................................................................................................13
Auto Scan..................................................................................................................................14
Manual Scan..............................................................................................................................14
Digital Manual Scan...............................................................................................................14
Analog Manual Scan..............................................................................................................14
Channel Edit..............................................................................................................................14
Signal Infor ation..................................................................................................................15
Lock Syste ..................................................................................................................................15
Channel Locks..........................................................................................................................15
Parental Rating........................................................................................................................15
Lock Keypad.............................................................................................................................15
New Password.........................................................................................................................15
1

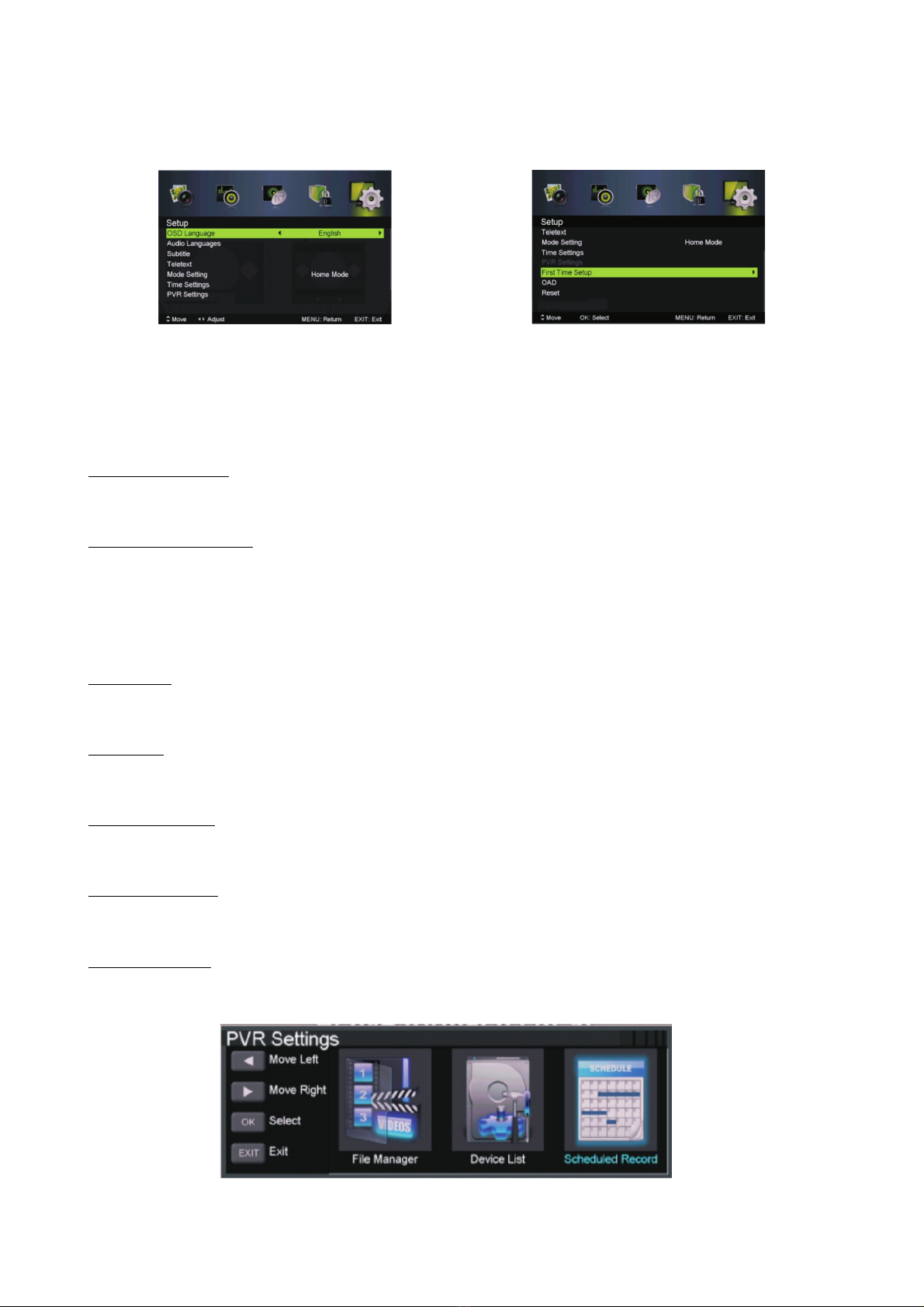

SETUP MENU.................................................................................................................................16
OSD Language.........................................................................................................................16
Audio Languages....................................................................................................................16
Subtitles......................................................................................................................................16
Teletext.......................................................................................................................................16
Mode Setting............................................................................................................................16
Ti e Settings...........................................................................................................................16
PVR Settings.............................................................................................................................16
First Ti e Setup......................................................................................................................17
OAD..............................................................................................................................................17
Reset............................................................................................................................................17
USB Operation..............................................................................................................................17
DVD........................................................................................................................................................17
General Setup Page....................................................................................................................17
Audio Setup Page........................................................................................................................17

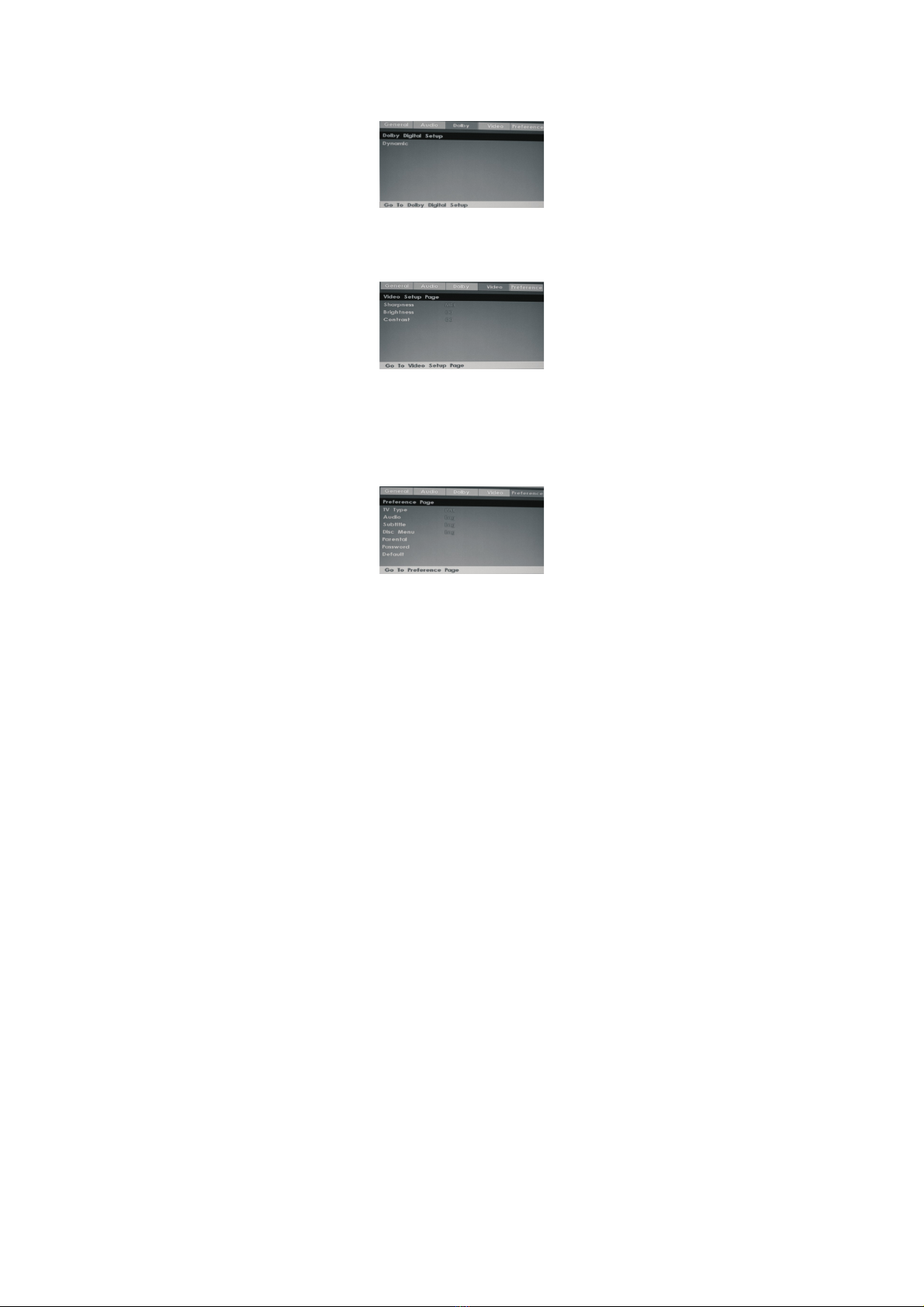

Dolby Digital Setup Page.........................................................................................................18
Video Setup Page........................................................................................................................18
Preference Page...........................................................................................................................18
Setting Up TV Stand or Mount...................................................................................................19
TV Stand Installation..................................................................................................................19
Mounting the TV to the wall...................................................................................................19
Troubleshooting................................................................................................................................19
2

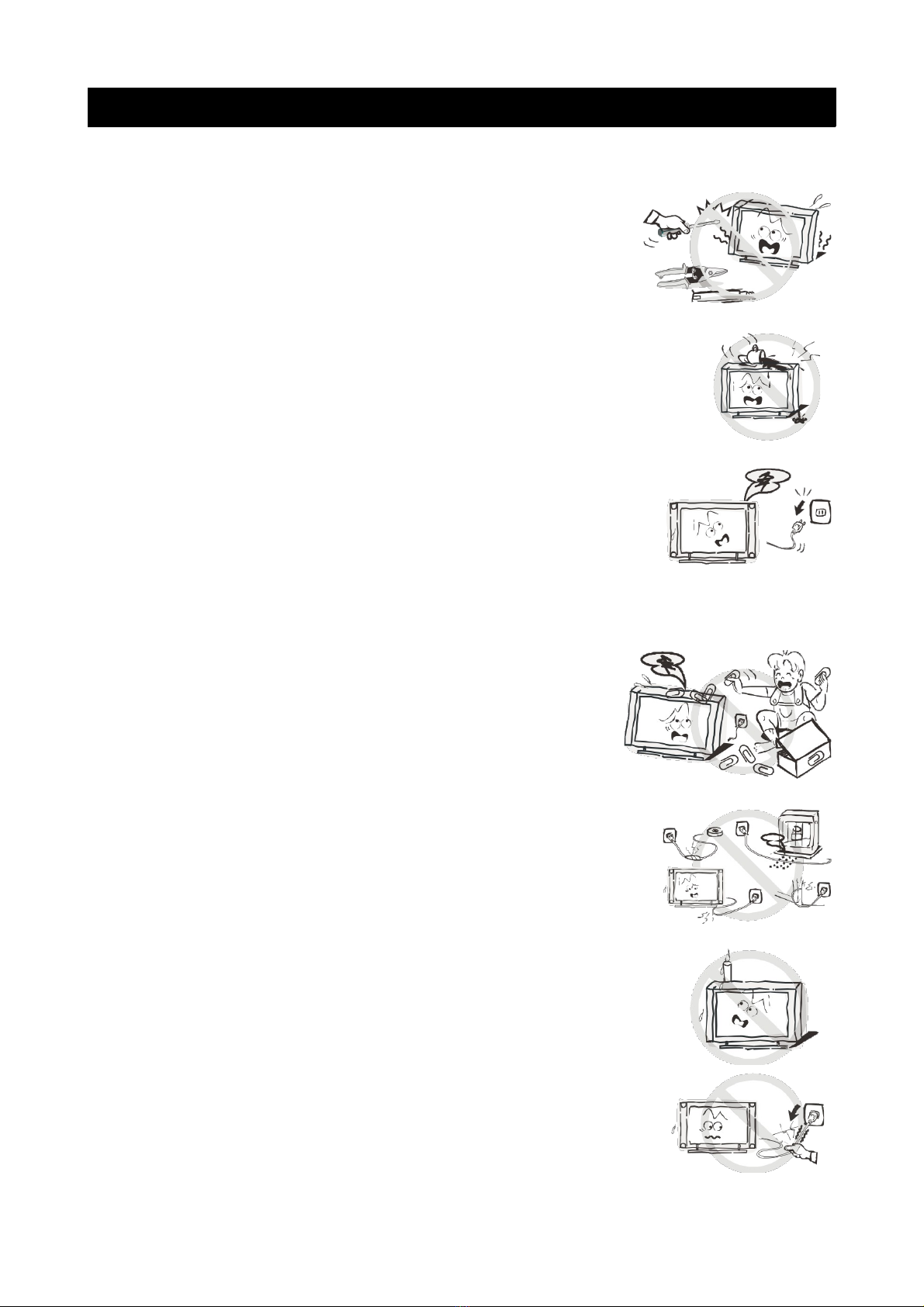

Safety Instructions
General Safety Instructions
Risk of electric shock. DO NOT OPEN!
Do not atte pt to service the television yourself, as
opening or re oving the covers ay expose you to
dangerous voltage or other hazards. Refer all servicing to
the Kogan custo er support tea .
To reduce the risk of fire or electric shock, do not expose this
product to rain or oisture. The television should not be
exposed to dripping or or splashing, and no liquid filled objects
such as vases should be placed on the case.
In the event of s oke, strange noises or a strange s ell fro
the unit, you should follow these steps:
•Turn off the unit i ediately.
•Disconnect the power plug fro the power outlet.
•Contact the Kogan custo er support tea . Never
atte pt to ake repairs yourself.
Never push objects of any kind into the set through the
cabinet slots as they ay touch dangerous voltage
points or short-circuit parts that could result in a fire or
electric shock. Never spill any liquids onto the set. Use
special caution in households where children are
present. The television is not suitable for children under
4 years old to operate.
Power supply cords should be routed safely to prevent
dangers due to da aged cords.
The ains plug is the ain disconnect ethod, so it should
be easily accessible and not be obstructed during use.
To avoid fires, no naked fla e sources such as lit candles or
burning incense should be placed onto the casing of the
television.
Do not pull the plug out of a power outlet by pulling on the
power cable. Always grasp the plug and pull.
Never touch the plug with wet hands.
3

An outside antenna syste should not be located in the
vicinity of overhead power lines or other electric light or
power circuits.
When installing an outside antenna syste , extre e
care should be taken to keep fro touching such power
lines or circuits, as contact with the ay be fatal.
Always turn the set off when it is not being used.
Unplug the television fro the power outlet when it will
not be used for a long ti e or when there is an
electrical stor .
Never touch the antenna cable during a lightning stor .
Excessive volu e fro earphones and headphones can
cause per anent hearing loss. Always onitor the volu e of
noise fro these devices, especially when children are using
the .

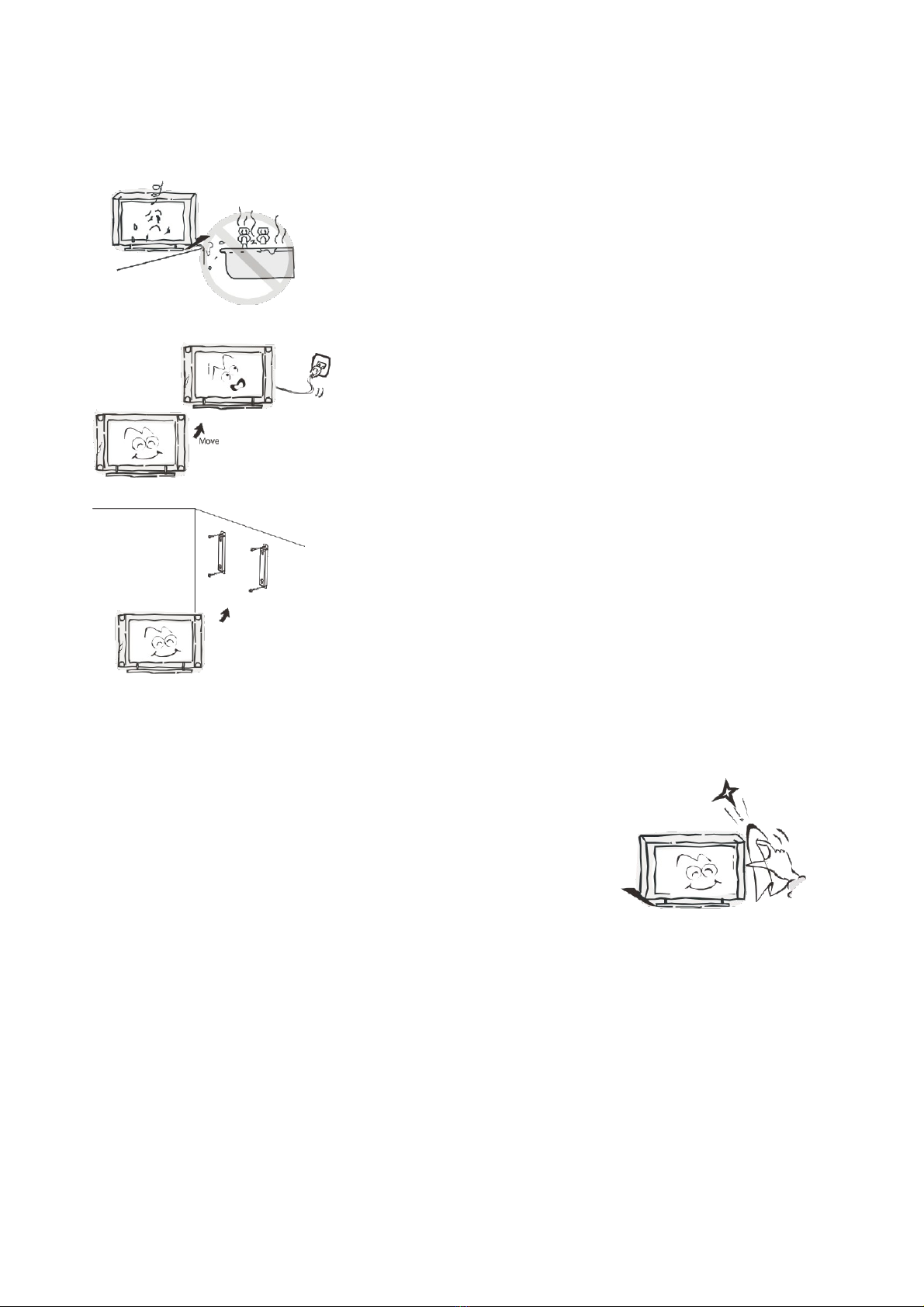

Installation
Ventilation should not be i peded or li ited by
covering the ventilation slots with ite s such as
newspapers, tablecloths, curtains etc..
At least 10c of space should be left around the
apparatus for sufficient ventilation.
The television should be situated away fro heat
sources such as radiators, heaters, stoves or other
products that product heat.
Place the television in a position where the screen is
not exposed to direct sunlight. It is best to have soft
indirect lighting while watching, and you should avoid
a co pletely dark viewing environ ent and
reflections to avoid eye fatigue.
Keep the product away fro high agnetic fields
(such as near an a plifier speaker) to avoid affecting
the tint.
Do not place the television on an unstable table, stand
or shelf. The set ay fall, causing serious injury as well
as da age to the television itself.
If oving the television on a cart, ove the unit with
care as sudden stops and starts ay cause the
television to overturn.
4

Do not place this television near water, for exa ple
near a bathtub, wash bowl, kitchen sink, laundry tub,
swi ing pool or in a da p base ent etc..
When oving the television to a war location fro
a cold location, allow so e ti e for any dew or
condensation inside the television to evaporate fully
before you turn the unit on.
To prevent injury, the television ust be securely
attached to the floor/wall in accordance to the
supplied installation instructions.
Cleaning
Unplug the television fro the power supply before
cleaning. Do not use any liquid cleaners or harsh
che icals. Use a soft, da p cloth.
5

General Description
•Zero X radiation co plies to green environ ent protection require ents.
•Auto tuning and fine tuning.
•One PC VGA input socket.
•One YpbPr input socket.
•One HDMI input socket (HDMI 1.4)
•One co posite input socket.
•USB support.
•Headphone support
Specifications & Accessories
Specifications
Model KALED28DVDVB
Display Screen Size 28” Diagonal
Power Supply 100-240V ~ 50/60Hz
Video In PAL/NTSC
Sound Output 2 x 10W
Re ote Power Input DC 3V (Two AAA batteries)
Power Consu ption 36W
Operating Te peratures 0°C ~ 40°C
Accessories
Re ote Control
6

Buttons and Terminal Interface
TV Buttons
Note: The following is a function sche atic. The actual position and arrange ent ay differ.
Turn power ON/OFF
SOU CE External Signal Input Selection
MENU Display ain MENU and confir MENU ite selection
CH +/- Select channel
VOL +/- Adjust volu e
Terminal Interface
AV Input
External AV signal input with relevant
left/right audio channels.
USB Input
Connect USB device to play edia files or
record progra s via the PVR function.
Y Pb Pr Input
Connect to the co posite ter inal of your
DVD/VCR.
HDMI Input
Digital signal fro a HDMI video
connector.
ANT 75
Connect the antenna/cable TV input
(75/VHF/UHF)
VGA Input
PC analog signal input.
PC Audio Input
VGA input and audio input when in VGA
ode.
Earphone Output
For use with headphones or external
speakers. TV speakers will be disabled
while in use.
Installation of TV
TV placement
Place your TV on a flat surface that is able to bear the weight of the TV.
To avoid da age, please don't expose the TV to water or direct heat. Do
not block the ventilation on the back of the TV.
Connect antenna and power
Connect the antenna cable to the antenna socket on the back of the
television.
Plug the power cable into the wall socket.
Turn on the TV
Press the power button on the TV and the indicator light will turn green.
If the TV is in standby ode (the indicator showing as red), then press
the power button on the re ote control to turn the TV on.
7

emote Control
