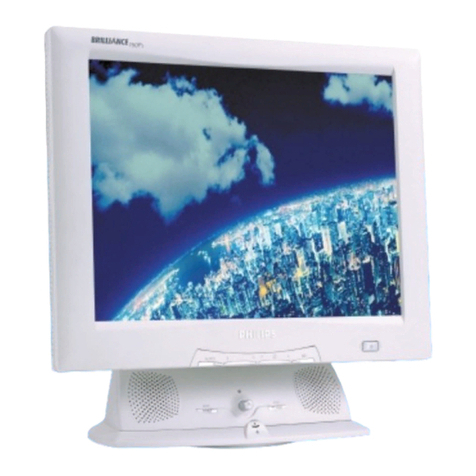

Philips LCD Series Monitors
150P
150P
Stealth Black
Model
· Digital/Analog Support
Experience the advantages of a true digital monitor while still
maintaining support for traditional analog signals
· AUTOmatic Adjustment
A perfect picture is only three seconds away. Philips auto
adjustment provides optimal screen position and performance
with a press of a single button.
· VESA Compliant
StandardVESA mounting holes and optional wall-mounting kit
· XtraSpace Design™
Everyone needs more desk space. Only 9.1" in depth, the 150P
has the smallest footprint in its class
· Philips First Choice Program
One-call support includes a comprehensive 3-year
warranty with a 1-year 48-hour advance
swap guarantee

Printed in the U.S.A., ©2000 Philips Consumer Electronics Co.A Division of Philips Electronics North America Corp. Literature Order Number: 150PIL KID Design 200243 - 9/00
Product Number 150P1L (Mist White)
150P1B (Stealth Black)
Technical Specifications
LCD Panel
• Screen Size 15.0"/38 cm (15.0" VIS)
• Pixel Pitch 0.300 x 0.300 mm
• Panel Type Active Matrix TFT LCD
• Display Format 1024 x 768, RGB Vertical Stripe
• Surface Treatment Non-glare, Hard Coat, 25% Haze
• Light Transmission 6.5%
• Surface (Pencil) Hardness 3H
• Backlight CCFL x 2
• Display Area 12.1" x 9.1"/307.2 x 230.4 mm
Video
• Video 80MHz
• Input Impedance: Video: 75Ω, Sync: 2kΩ
• Input Signal Levels: 0.7Vp-p (S-O-G), 0.286Vp-p (S-O-G)
- Sync Input Signal Separate Sync, Composite Sync,
Sync on Green
• Sync Polarities Positive and Negative
Audio
• Input Signal Level 0.4Vp-p
• Loud Speakers 2 Built-in, Front-firing, 1+1 Watt Stereo
• Earphone Out 32Ω, 50+50mW
• Microphone Internal Electrical Condenser
Resolution and Preset Modes
• Maximum Resolution 1024 x 768 @ 75Hz
• 14 User Definable Modes
• 14 Factory Preset Modes:
Resolution Mode H. Freq. V. Freq. Standard
640 x 350/720 x 400 n.i.(kHz) 31.47(Hz) 70.09 VGA®
640 x 480 n.i. 31.47 60.00 VGA®
640 x 480 n.i. 35.00 66.67 MAC®
640 x 480 n.i. 37.86 72.80 VESA®/75
640 x 480 n.i. 37.50 75.00 VESA®/75
800 x 600 n.i. 35.16 56.25 SVGA®
800 x 600 n.i. 37.88 60.32 VESA®/60
800 x 600 n.i. 48.09 72.19 VESA®/75
800 x 600 n.i. 46.88 75.00 SVGA®
832 x 624 n.i. 49.72 75.00 MAC®
1024 x 768 n.i. 48.36 60.00 XGA
1024 x 768 n.i. 56.48 70.07 VESA®/70
1024 x 768 n.i. 60.02 75.03 VESA®/75
Plug and Play Compatibility
• Display Data Channel DDCI/2B (VESA)
Low-Emission Characteristics
• Complies with MPR-II and TCO '99 Specifications (150P1L)
• Complies with MPR-II and TCO '95 Specifications (150P1B)
Optical Characteristics (at 77°F/25°C)
• Contrast Ratio (C/R) 250:1
• Brightness 210cd/m2(max), 200cd/m2(min)
• Viewing Angle (C/R>5)
- Horizontal: 150° (±75°) - Vertical: 110° (±55°)
• Number of Colors 16.7M (8 bit x 3)
• White Color Temperature and Chromaticity
CIE Coordinates: (measured at ±0°H/±0°V)
at 9300˚K: x = 0.281, y = 0.311
at 6500˚K: x = 0.312, y = 0.338
at 6100˚K: x = 0.320, y = 0.340 (as shipped at 100% RGB)
• Response time
(0- = 0°, 0/ = 0°) trise = 10mS (typ) tfall = 35mS (typ)
Power Management
• Complies with EPA Energy Star, NUTEK, and TCO ’99
(150P1B-TCO’95) Specifications
• Philips 150P Consumes less than 5 Watts in Power Off Mode
Regulatory Approvals
• UL • TUV/ERGO • CE
• TUV/GS • CSA • MPR II Low Emission
• TCO ’95 (150P1B) • TCO '99 (150P1L) • FCC-B
Controls and Connections
• Front
- Power - Up/Down (Brightness) - Auto Button
- Left/Right (Mute) - OSD Button - Headphone Jack
•Rear
- Power Input Socket A/C & D/C
- 15-Pin D-Sub Analog Input Cable
- 3.5 mm Mini-jack Audio Input Cable
- 3.5 mm Mono Mini-jack Microphone Input
- DVI-D Digital Input
- Kensington®Lock Socket - USB Device (Upstream) Socket
•OSD Controls
- Brightness - Language - Phase Adj.
- Color Temp. - Clock Adj. - Contrast (Analog Mode Only)
- Reset - H. Position - Volume
- Exit - OSD Position - V. Position - Product Information
•Cables
- Detachable Power Cord - USB Cable - Microphone Cable
- D-Sub Interface Cable - Stereo Audio Cable
•Supported Platforms
- MS-DOS®, Macintosh®, O/S 2®,Windows®,Windows ’95®
- Includes Windows ’95/’98/2000® Drivers
- Includes FPAdjust Panel Adjustment Software for Windows ’95/’98/2000®
Available Accessories
• Protective Cover XG3P10
• USB Wedge 4G350A2H
• VESA Mount 4G35082Q
USB Technology
For those who need support for USB peripherals, adding a Philips optional
USB wedge is a snap. Just click the USB wedge onto the back of the monitor
base, and let your computer do the rest. Don’t worry about IRQ settings,
hardware interrupts, or jumpers; with USB, those decisions will be automati-
cally made by your operating system.The USB wedge is a fully powered hub
supporting five USB devices: four downstream and one upstream.
Physical Specifications
• Unit Dimensions 15.2"W x 15.7"H x 6.5"D
387 x 400 x 165 mm (incl. pedestal)
• Unit Weight 11.9 lbs./5.4 kg. (incl. stand and adapter)
• Carton Dimensions 21.1"W x 20.5"H x 9.1"D
535 x 520 x 230 mm
• Carton Weight 16.5 lbs./7.5 kg.
• UPC Code 0 37849 89542 9
• Power Supply 85-264 Vac, 50/60Hz
• Power Consumption 35 Watts Max./30 Watts Typ.
• Operating Temperature 32°F to 104°F/0°C to 40°C
• Relative Humidity 20% to 80%
• Storage Temperature -4°F to 140°F/-20°C to 60°C
• MTBF >50,000 Hours (excluding LCD)
• CCFL Lifetime 30,000 Hours (brightness ≥50% of original)
Carton contains: 150P LCD Monitor, power cord, stereo cable, mic cable, and users’ manual.
This monitor fulfills all Nutek requirements regarding power management. Philips is a partner in the
EPA’s ENERGY STAR® Computers Program.As an ENERGY STAR® partner, Philips has determined
that this product meets the ENERGY STAR® guidelines for energy efficiency. Mac is a registered
trademark of Apple Computer, Inc. MS-DOS is a registered trademark and Windows® 95/98/NT is a
trademark of Microsoft Corp.All trademarks acknowledged.
INTERNET ADDRESS: http://www.philipsusa.com
FAX INFORMATION SYSTEM: [phone]
TECHNICAL SUPPORT: [phone] (USA)
[phone] (outside USA)
150P
150P
Specifications subject to change without notice.
