Philips 43PP8441 User manual

3135 035 20852
Rear-projection TV
with HD Input
Rear-projection TV
with HD Input
43PP8441
43PP8442
43PP8443

2
CONTENTS
Setup and Installation
Product Highlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Installing the TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Using the TV keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Using the Remote Control Keys . . . . . . . . . . . . . . . .6–7
Operation
Using the Menus
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8–13
Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14–16
Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18–21
Using Program List . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Using Smart Surf . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Using Smart Picture and Smart Sound . . . . . . . . . . . . .23
Using the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . .24
Peripheral Equipment
Connecting Peripheral Equipment . . . . . . . . . . . . .25–33
Selecting Connected Equipment for Viewing . . . . . . . .34
General Information
Care, Cleaning, and Tips . . . . . . . . . . . . . . . . . . . . . . . .35
Before Calling Service . . . . . . . . . . . . . . . . . . . . . . . . .36
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
International Guarantee Conditions . . . . . . . . . . . . . . .38
Consumer Information Centres . . . . . . . . . . . . . . .39–42
SAFETY INFORMATION
Disconnect mains plug when :
• the red light below the TV screen is flashing continuously
• a bright white line is displayed across the screen
• cleaning the TV screen (never use abrasive cleaning agents; use a slightly damp chamois leather or soft cloth)
• a lightning storm is occurring
• the set is left unattended for a prolonged period.
Never attempt to repair a defective TV yourself. Always consult a skilled service person.
Battery Usage CAUTION :
To prevent battery leakage which may result in bodily injury or damage to the remote :
• Install ALL batteries correctly, + and – as marked on the remote control.
• Do not mix batteries : (OLD and NEW or CARBON and ALKALINE, etc.).
• Remove batteries when the remote is not used for a long time.
Thank you for purchasing this television set. You are now the proud owner of a Philips TV, which promises full value to
you as a customer. Please read this manual carefully and thoroughly for help with installation and operation.
Note: Although every effort has been made to insure accuracy, your television may differ from the information presented
in this book.

3
PRODUCT HIGHLIGHTS
Active Control, APAC, Easy Tune, and Incredible Surround are trademarks of Philips Consumer Electronics North America. Copyright 2002
Philips Consumer Electronics.
*Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
Philips HD Pix Optics System answers the demand for extreme resolution HD with cutting-edge processing and display tech-
nology, including microphosphor CRTs, hybrid projection lenses, first-surface mirrors, fine-pitched lenticular screens, and Philips
wideband amplifier.
100Hz Digital Scan eliminates picture flickering and line jitter, offering a stable picture for relaxed viewing (no eye strain). The
100Hz digital scan option can be selected in the onscreen menu.
Progressive Scan doubles the number of visible picture lines per field by displaying all picture frame lines at once. This mini-
mizes the visibility of the scan lines. The progressive scan option can be selected in the onscreen menu.
High-definition Inputs allow you to connect digital equipment with 1080i and 480p signals for 60Hz and 576p signals for 50Hz. The
AV4 sockets are for YPbPr or RGB+HV sync connections, plus audio. The AV5 sockets are for RGB (or YPbPr with adaptor) DB15 con-
nections, plus audio.
Component Video Inputs support advanced video input—such as DVD video—for superb colour performance.
Active Control™continuously measures and corrects all incoming signals with automatic digital noise reduction and auto sharp-
ness to provide the best possible picture.
Automatic Phosphor Aging Compensation (APAC™) functions like a screen saver for your TV. Nonmoving images
can be bad for a television screen. If a video image remains stationary, it can eventually leave a permanent after-image. Video games
and the stationary black bars around some movies are examples of sources of concern. Philips APAC technology addresses this prob-
lem. Periodically, APAC automatically shifts your television picture in increments that are very small and yet large enough to blur
image retention that can lead to screen burn. Coupled with the Philips Auto Screen Format feature, APAC helps provide you protec-
tion from the dreaded screen burn.
Protective Screen Filter (if provided; availability varies) gives the best possible picture while still protecting your investment.
Specifically formulated by Philips for HD displays, this protective screen filter helps prevent accidental damage to the delicate front lenticu-
lar screen.
Dolby* Virtual Surround uses two speakers to simulate the surround effect produced by a multichannel system.
Digital Comb Filter makes the finest colour details purer and sharper. It eliminates disturbing cross-colour (Moiré) effects
between different colours that you normally see with striped clothing worn on camera. The digital comb filter works by electronical-
ly separating the chroma (colour) and luminance (black and white) components of the TV signal, preventing cross-colour interfer-
ence.
Supporting Features
•Digital Colour Transient Improvement (CTI)
•Digital Histogram
•Picture Freeze
•Auto Aspect Ratio Adaptation (and 16:9 compress, expand 4:3)
•Incredible Surround™
•Automatic Volume Leveler (AVL)
•Independent Headphone Volume Control
•Easy Tune™ (Auto Search,Auto Tune, and Auto Install)
•Alternate Channel
•Smart Surf
•Low-power standby (<1 W)

4

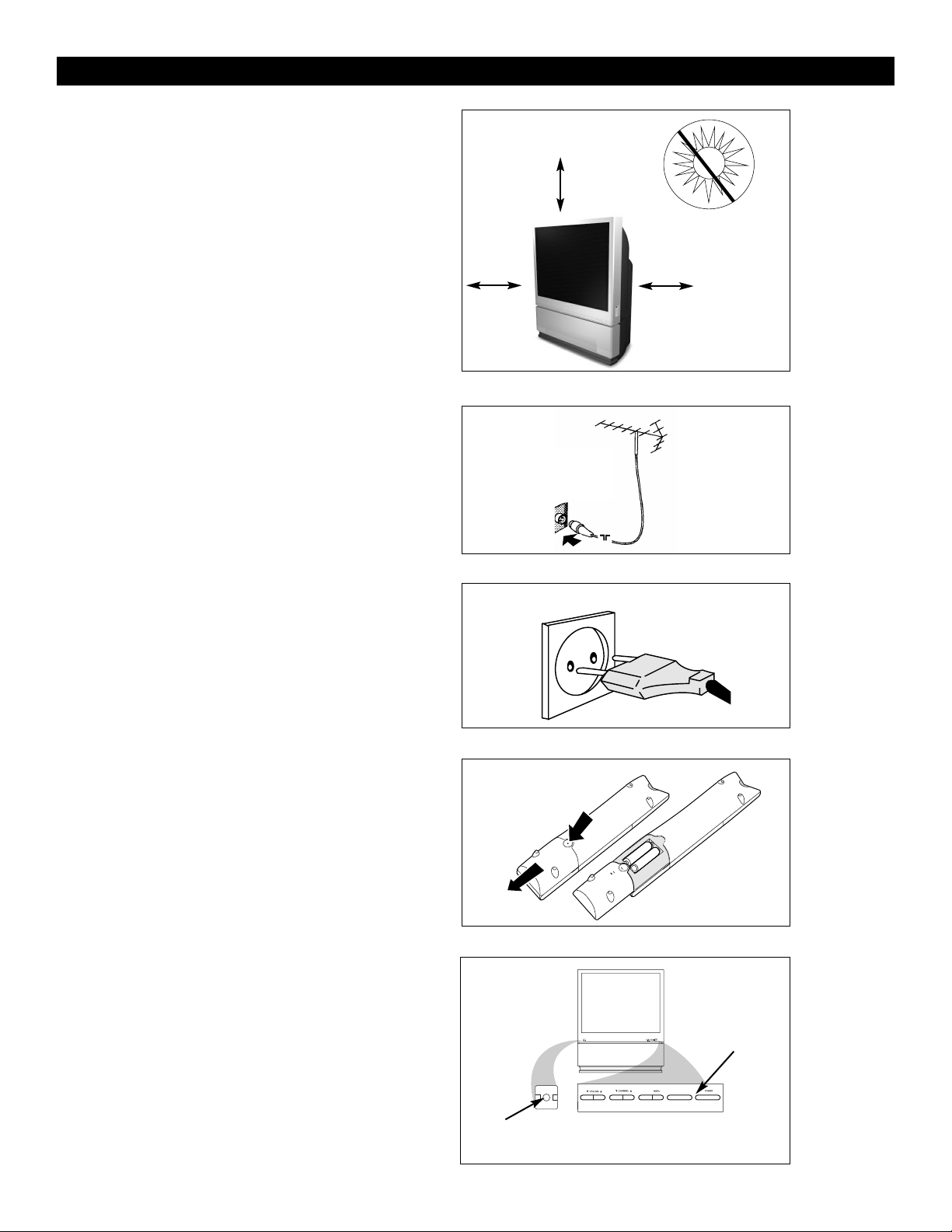

INSTALLING THE TV
SOURCE
15 cm
Do not place
the TV in
direct
sunlight or
near a heat-
ing appliance.
Mains Power
Switch
Standby
1The major benefit of this projection tel-
evision is its large viewing screen. To
see the large screen at its best, test vari-
ous locations in the room to find the
optimal spot for viewing.
Be sure to allow a minimum of 15 cm
of space around the TV.
To avoid cabinet warping, cabinet color
changes, and increased chance of set
failure, do not place the TV where tem-
peratures can become excessively
hot—for example, in direct sunlight or
near a heating appliance.
Magnetic fields, such as those of exter-
nal speakers, may cause the picture to
distort if the speakers are placed too
close to the television. Move the mag-
netic field source away from the TV
until there is no picture distortion.
2Insert the aerial plug firmly into the
ANTENNA IN 75Ωsocket at the rear
of the set.
3Insert the mains plug in the wall sock-
et. Refer to the back of the TV set for
the correct operation voltage. Consult
your local dealer if your main supply is
different. To prevent damaging the
mains (AC) cord, which could cause
hazard, do not place the TV on the
cord.
4Remove the cover of the battery com-
partment on the remote control. Insert
the two batteries supplied
(Type R6-1.5V).
The batteries supplied do not contain
the heavy metals mercury and cadmi-
um. Nevertheless, in many countries
exhausted batteries may not be dis-
posed of with your household waste.
Please check on how to dispose of
exhausted batteries according to local
regulations.
See the battery caution statement on
page 2.
Note : This remote control functions
with TVs that use the RC5 signalling
standard.
5Switch the TV on : Press the mains
power switch on the front of the TV. If
the Standby key is lighted, press the
CH +/– keys, digit keys, or the Standby
key on the remote control. Or press the
Standby or CH keys on the front of the
TV.
15 cm
15 cm
ANTENNA IN 75Ω
Socket on the rear of
the TV

5

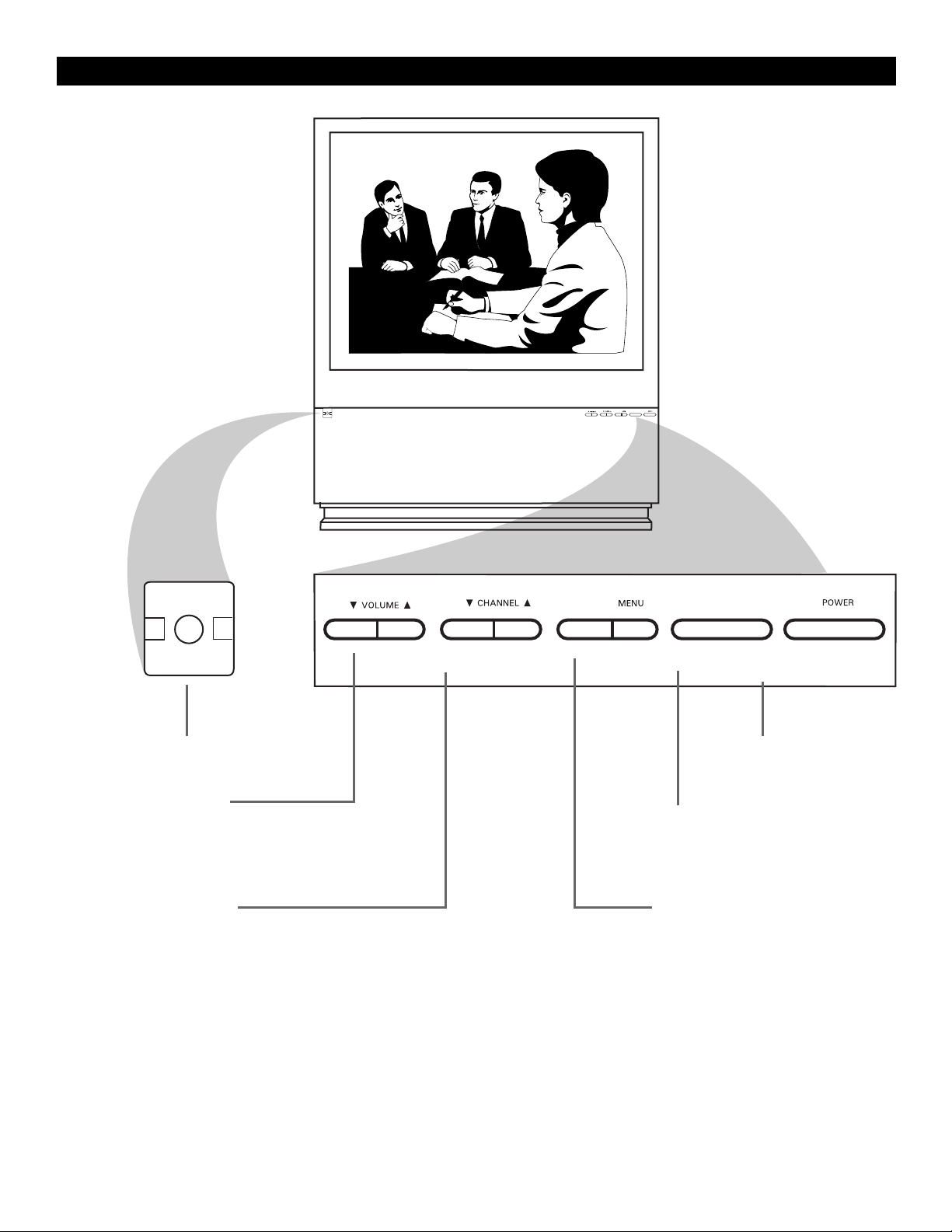

USING THE TV KEYS
MAINS POWER KEY
Switches the mains power on or off.
REMOTE SENSOR
Receives infrared commands to acti-
vate controls when the remote-control
handset is aimed at it and remote keys
are pushed.
VOL -
AA+ AA/ MENU
The - Akey adjusts the sound volume
softer. The + Akey adjusts the sound
volume louder. Pressing - Aand + A
simultaneously displays the onscreen
TV menu. With a menu item selected,
pressing the - Aor + Akey allows
entry to the item. Pressing - Aand + A
simultaneously and repeatedly exits
the onscreen menu.
CH %%fifi
The fifikey selects channels in
descending order. The %%key selects
channels in ascending order. When
the onscreen menu is displayed,
pressing fifior %%selects the next item
in the menu. Also, use either of these
keys to switch the TV on from stand-
by mode.
SOURCE SELECT
Press to cycle through the signal
sources.
STANDBY
Switches the TV on or
activates standby mode.
SOURCE
SOURCE

6
SLEEP TIMER
Allows you to select a time period after which the set will automatical-
ly switch to standby mode. Choose 15, 30, 45, 60, 90, 120, 180, or 240
minutes. See page 24.
A/CH (Alternate Channel)
Allows you to alternate between the last viewed channel and the pres-
ent channel.
PICTURE-IN-PICTURE (PIP)
Not applicable.
FORMAT
Each press selects another picture format. For AV1, CVI, AV2, or
AV3, the options are 4:3, Auto, and Expand 4:3. For AV4 and AV5
1080i signal sources, the options are 4:3, Auto, and Compress 16:9.
For AV4 and AV5 480p signal sources, no screen format options are avail-
able through the TV. Control the format at the source (DVD player or digi-
tal set-top box).
DIGIT (0–9)
Allows you to select a channel. Note : For a two-digit number, the sec-
ond digit must be entered before the “–” sign disappears.
SMART SOUND
Allows you to select from three predefined optimal settings—Voice,
Music, and Theatre—and a Personal setting based on your own selec-
tions through the onscreen Sound menu. Press the key repeatedly to
select a setting. See page 23.
MENU
Displays the main menu. Also allows you to go backwards in the
menu system.
CURSOR LEFT
Allows you to access the menus and adjust the settings.
CURSOR UP
Allows you to select the next or previous item in the menu and to
select a screen format. See page 21.
VOLUME +/–
Increases or decreases volume.
AV
Allows you to select the different signal sources connected to the TV.
i+ (STATUS/EXIT)
• Displays the channel number, sound and colour transmission
modes, status of the sleep timer, channel name (if the channel has
been named), and the current time (if the time has been set).
• Allows you to navigate or make adjustments in multipoint-conver-
gence mode.
• Allows you to switch the menu off.
DOLBY V (with Dolby* Surround Signals)
Allows you to select various factory surround-sound listening modes :
DolbyVirtual (Virtual Dolby Surround)
Dolby Virtual uses two speakers to simulate the surround effect pro-
duced by a multichannel system.
Incredible Surround™
• In Stereo sound mode—when switched on, the Incredible Surround™ fea-
ture provides the feeling that the speakers are farther apart to enhance the
home-cinema effect.
• In Mono sound mode—when switched on, the Incredible Surround feature
enables you to hear a spatial sound effect.
*Manufactured under license from Dolby Laboratories. “Dolby”
and the double-D symbol are trademarks of Dolby Laboratories.

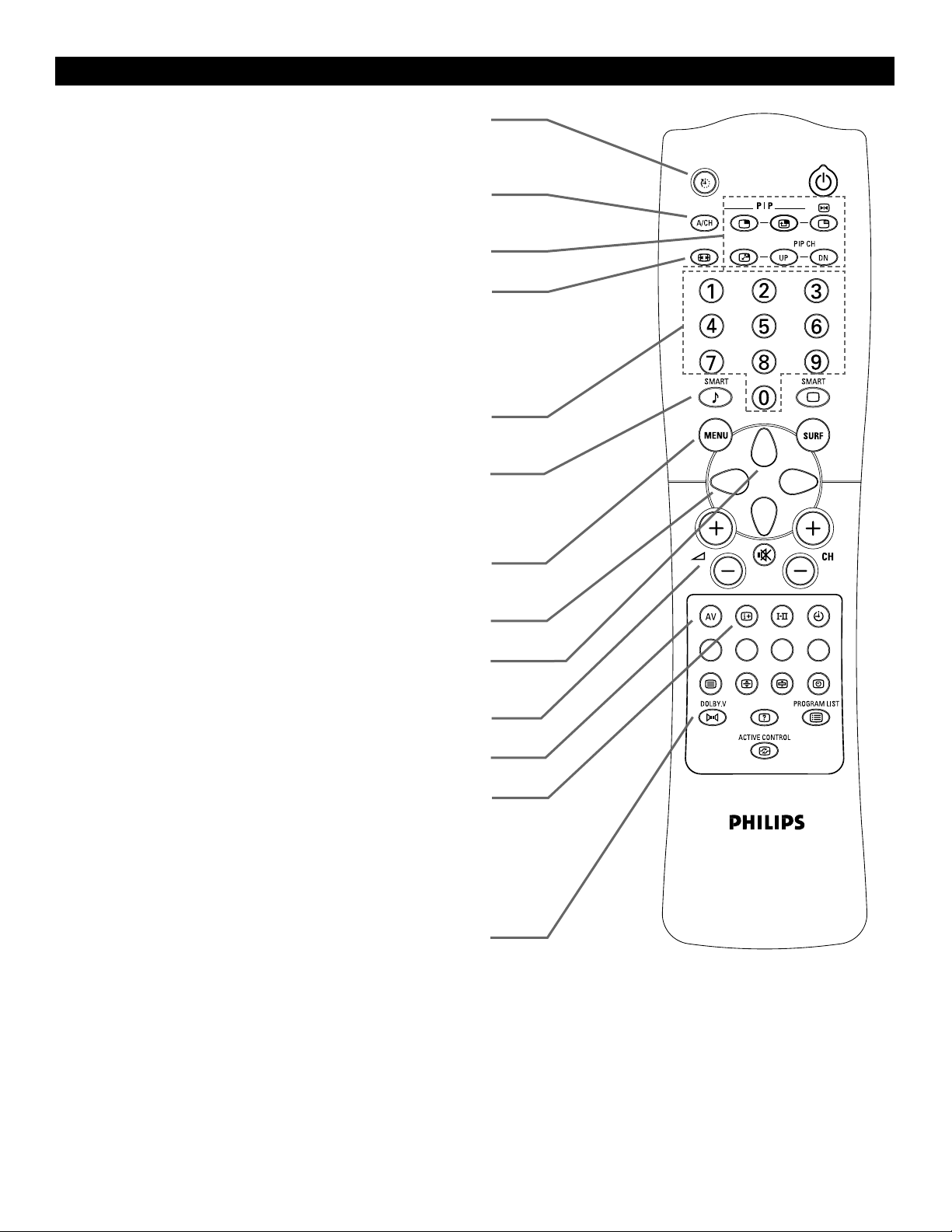

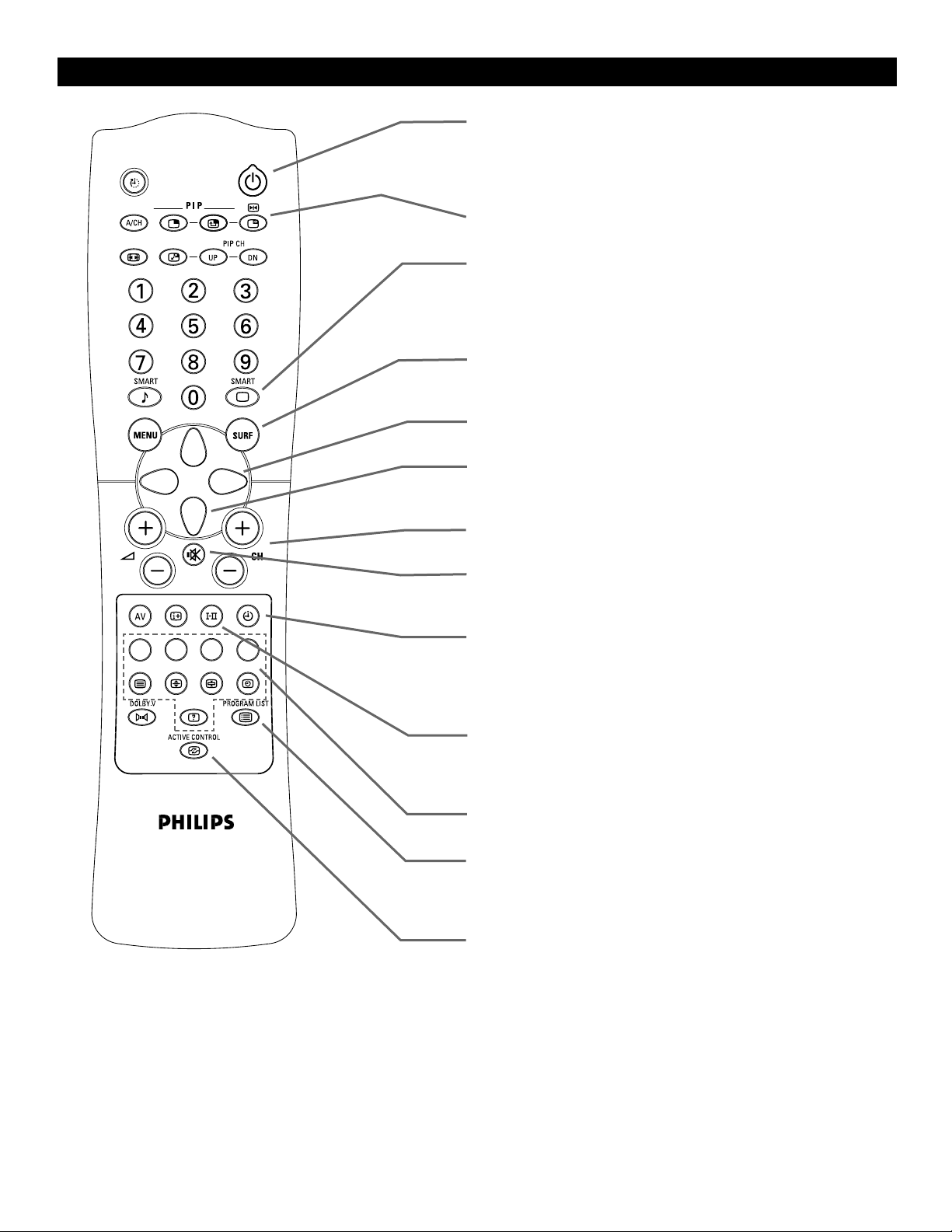

USING THE REMOTE CONTROL KEYS

7
STANDBY
• Switches the set off temporarily to standby mode. (The red light
indicator lights up when the set is in standby mode.)
• To switch the set on from standby mode, press the Standby,
Channel +/–, or Digit (0–9) keys.
FREEZE
Allows you to freeze the main picture.
SMART PICTURE
Allows you to select from four predefined optimal settings—Rich,
Natural, Soft, and Multimedia—and a Personal setting based on
choices you make through the onscreen Picture menu. See
page 23.
SURF
Allows you to select up to 10 channels and quickly view them. See
page 22.
CURSOR RIGHT
Allows you to access the menus and adjust the settings.
CURSOR DOWN
Allows you to select the next or previous item in the menu or to select
a screen format. See page 21.
CHANNEL +/–
Allows you to select channels in ascending and descending order.
MUTE
Allows you to mute the sound. To restore the sound, press the key
again.
TIMER
Allows you to access the onscreen Timer menu, through which you
can set the TV’s clock and the Timer. The Timer can be set to switch
to another channel at a specified time while you are watching another
channel or when the set is in standby mode.
I–II
Allows you to switch from stereo to mono sound during stereo trans-
mission or to choose between language I or language II during dual
sound transmission.
TELETEXT
Not applicable.
PROGRAM LIST
Allows you to navigate through a list of installed programmes for a
quick overview of the channels and to activate the channel you have
selected. See page 22.
ACTIVE CONTROL™
Allows you to switch the Active Control™ feature on or off. When
Active Control™ is on, it measures and corrects all incoming signals
to provide the best picture-quality settings, controlling Sharpness and
Noise Reduction continuously and automatically. The onscreen Active
Control™ display items cannot be selected. See page 21.
USING THE REMOTE CONTROL KEYS

1Press the MENU key to display/cancel the main menu.
2Use the cursor in the up/down directions to select a menu
item.
Note : Sometimes not all the menu items are visible on the
screen; press the cursor up/down until you can see the item
you desire.
3Use the cursor in the left/right directions to display the
menu and adjust the settings.
4Press the MENU key to return.
5Press the mkey to switch the menu off.
Note : If no action is executed, the menu automatically dis-
appears after about 20 seconds.
8
USING THE MENUS :OVERVIEW
Selecting the Menu Language
1Press the MENU key.
2Select INSTALL with the cursor down.
3Press the cursor right to select LANGUAGE.
4Press the cursor right again.
5Select your language with the cursor up/down.
From this point on, all onscreen displays will appear in the
language that you have chosen.
Now you can search for and store the TV channels in two
different ways : with Auto Store or Manual Store (tuning in
channel by channel).
USING THE MENUS :INSTALL
•PICTURE BRIGHTNESS
•SOUND COLOUR
•FEATURES CONTRAST
•INSTALL SHARPNESS
COLOUR TEMP
•PICTURE LANGUAGE
•SOUND AUTO STORE
•FEATURES MANUAL STORE
•INSTALL SORT
CHANNEL EDIT
INSTALL
LANGUAGE •ENGLISH
•AUTO STORE
•MANUAL STORE
•SORT
•CHANNEL EDIT
•
INSTALL
LANGUAGE •ENGLISH
•AUTO STORE
•MANUAL STORE
•SORT
•CHANNEL EDIT
•
Select
menu
item
Return
Switch
menu
off

9
Tuning Channels Automatically
1Select AUTO STORE in the INSTALL menu.
2
Press the cursor right to start the searching. All the TV channels
are searched for and stored automatically.
3When the tuning is completed, press the MENU key to
return to the INSTALL menu or press the mkey to switch
the menu off.
Note : Channel numbers will always be written in Latin
characters, even when a language that uses other characters
has been selected.
USING THE MENUS :INSTALL
Tuning Channels Manually
Manual tuning allows you to store channel by channel. You must go
through every step of the manual store menu.
1Select MANUAL STORE in the INSTALL menu.
2Press the cursor right to enter the menu.
3Select COLOUR SYSTEM and press the cursor right.
If AUTO is selected, the respective colour system will be
automatically selected according to the transmission system.
Note : If reception is poor, select another colour system
with the cursor up/down.
4Press the MENU key or the cursor left.
5Select SOUND SYSTEM and press the cursor right.
If AUTO is selected, the respective sound system will be
automatically selected according to the transmission system.
Note : If the reception is poor, select another sound system
with the cursor up/down.
6Press the MENU key or the cursor left.
7Select SEARCH and press the cursor left or right to start
the searching. Searching stops once a transmitting channel is
found .
Note : If the reception is poor, select another colour and/or
sound system.
Continue to the next page.
INSTALL
•LANGUAGE
•AUTO STORE •SEARCH
•MANUAL STORE
•SORT
•CHANNEL EDIT
•
INSTALL
LANGUAGE
•AUTO STORE •SEARCHING
•MANUAL STORE PLEASE WAIT
•SORT CHAN.FOUND 8
•CHANNEL EDIT 048 31 MHZ
•
•PICTURE BRIGHTNESS
•SOUND COLOUR
•FEATURES CONTRAST
•INSTALL SHARPNESS
COLOUR TEMP
•PICTURE LANGUAGE
•SOUND AUTO STORE
•FEATURES MANUAL STORE
•INSTALL SORT
CHANNEL EDIT
INSTALL
•LANGUAGE COLOUR SYSTEM
•AUTO STORE SOUND SYSTEM
•MANUAL STORE SEARCH
•SORT CHANNEL
•CHANNEL EDIT FINE TUNE
•
INSTALL
MANUAL STORE
•COLOUR SYSTEM
•SOUND SYSTEM
SEARCH •196.25MHZ
•CHANNEL
•STORE
•
INSTALL
MANUAL STORE
•COLOUR SYSTEM
•SOUND SYSTEM
SEARCH •048.31MHZ
•CHANNEL
•STORE
•
•
•

8Select CHANNEL.
9Key in the desired channel number with the digit keys or
with the cursor left/right.
10Press the cursor down.
In case of poor reception, you can improve the reception by
adjusting the frequency using FINE TUNE.
11Select FINE TUNE and press the cursor left/right to adjust.
12In rare cases, certain TV channels may reproduce distorted
or unstable pictures.
Select PLL (Phase Locked Loop) to switch to the setting 2
with the cursor left/right to restore the picture for the respec-
tive transmission.
13Select STORE.
14Press the cursor right.
The message STORED appears and the search menu item is
highlighted again.
15Now repeat steps 7–14 to continue searching for another
transmitting channel.
16Press the MENU key to return to the INSTALL menu or
press the mkey to switch the menu off.
10
USING THE MENUS :INSTALL
INSTALL
MANUAL STORE
•COLOUR SYSTEM
•SOUND SYSTEM
•SEARCH
CHANNEL •18
•STORE
•
INSTALL
MANUAL STORE
•SOUND SYSTEM
•SEARCH
•CHANNEL
•STORE
GFINE TUNE F
•
•
INSTALL
MANUAL STORE
•COLOUR SYSTEM
•SOUND SYSTEM
•SEARCH
•CHANNEL
GSTORE • ‰
•
INSTALL
MANUAL STORE
•COLOUR SYSTEM
•SOUND SYSTEM
•SEARCH
•CHANNEL
GSTORE • ‰STORED
•
•
•
•
INSTALL
MANUAL STORE
•SEARCH
•CHANNEL
•STORE
•FINE TUNE
GPLL •
2
•
•

11
Sorting Channels
According to your preference, you can change the order of the stored
TV channels.
1Select SORT in the INSTALL menu.
2Press the cursor right to enter the menu.
3Key in the channel number in the FROM column you
want to swap from. Use the digit keys or the cursor
left/right.
4Press the cursor down and select TO.
5Key in the channel number in the TO column you want to
swap to.
6Press the cursor down and select EXCHANGE.
7Press the cursor right.
The message EXCHANGED appears and the selected
channels are exchanged.
8Repeat steps 3–7 until all TV channels are allocated as you
like.
9Press the MENU key to return to the INSTALL menu or
press the mkey to switch the menu off.
USING THE MENUS :INSTALL
INSTALL
•LANGUAGE FROM
•AUTO STORE TO
•MANUAL STORE EXCHANGE
•
FSORT
•CHANNEL EDIT
•
G
G
INSTALL
SORT
GFROM • ‰8
•TO
•EXCHANGE
INSTALL
SORT
•FROM
GTO • ‰6
•EXCHANGE
INSTALL
SORT
•FROM
•TO
GEXCHANGE • ‰EXCHANGED
INSTALL
SORT
•FROM
•TO
GEXCHANGE • ‰

12
Editing Channels
This feature allows you to edit or skip channels from the channel list
that have bad or weak signals or channels that you do not watch
often.
Note : Once a channel is skipped, you cannot select it with the CH –
or + key. You can only access the channel with the digit keys.
1Select CHANNEL EDIT in the INSTALL menu.
2Press the cursor right to enter the channel list.
3Select the channel you want to skip with the cursor
up/down.
4Press the cursor right to skip the selected channel.
The message SKIPPED is displayed.
5Press the cursor up/down to select another channel and
repeat step 4.
6Press the cursor left or the MENU key to return to the
INSTALL menu or the mkey to switch the menu off.
Note : To add back channels to the list, repeat steps 1–4 and
press the mkey to switch the menu off.
USING THE MENUS :INSTALL
INSTALL
•LANGUAGE 3
•AUTO STORE 4
•MANUAL STORE 5
•SORT 6
•
FCHANNEL EDIT • ‰7
•
G
G
G
G
INSTALL
•LANGUAGE 3
•AUTO STORE 4
•MANUAL STORE 5
•SORT 6
GCHANNEL EDIT • F7
•
G
G
INSTALL
•LANGUAGE 3
•AUTO STORE 4
•MANUAL STORE 5
•SORT 6
GCHANNEL EDIT • F7 SKIPPED
•

13
Naming Channels
It is possible to assign a name to a TV channel. This feature allows
you to enter a name or modify an existing name of a channel, includ-
ing peripherals.
Note : Even when you have selected another language in the
LANGUAGE menu, only the English language character set is
offered to enter names to the TV channels stored.
1Select a TV channel or peripheral you want to assign a name
or modify the existing name.
2Select NAME in the INSTALL menu.
3Press the cursor right to enter the menu.
4Key in the selected character with the cursor up/down.
5Move to the next character with the cursor right and key in
the next character. You can key in up to a maximum of five
characters.
6Press the MENU key to store the named channel.
USING THE MENUS :INSTALL
INSTALL
•AUTO STORE
•MANUAL STORE
•SORT
•CHANNEL EDIT
GNAME • ‰PERSONAL
G
G
•INSTALL
•AUTO STORE
•MANUAL STORE
•SORT
•CHANNEL EDIT
GNAME • ‰PERSONAL
G
G
•
INSTALL
•AUTO STORE
•MANUAL STORE
•SORT
•CHANNEL EDIT
GNAME • ‰-
G
G
•
INSTALL
•AUTO STORE
•MANUAL STORE
•SORT
•CHANNEL EDIT
GNAME • ‰CNN
G
G
•
INSTALL
•AUTO STORE
•MANUAL STORE
•SORT
•CHANNEL EDIT
GNAME • ‰PERSONAL
G
G
•

14
USING THE MENUS :PICTURE
Picture Menu Items
Brightness
Allows you to adjust the brightness levels of the picture.
Colour
Allows you to adjust the colour saturation of the picture.
Contrast
Allows you to adjust the contrast levels of the picture.
Sharpness
Allows you to adjust the edge definition of the picture to improve details.
Hue (only with NTSC signals)
Allows you to adjust the colour mix of the picture.
Colour Temperature
Offers the options Normal, Warm, and Cool. Make your selection with the
cursor left/right. Normal keeps whites white. Warm makes whites reddish.
Cool makes whites bluish.
Digital Options
Digital Scan eliminates picture flickering and line jitter, offering a stable
picture for relaxed viewing (no eye strain). Progressive doubles the number
of visible picture lines per field by displaying all picture frame lines at once.
This minimizes the visibility of the scan lines. Auto detects the input signal
and provides the appropriate mode for the best picture performance. Choose
Digital Scan for PAL 50Hz signals and Progressive Scan for NTSC 60Hz
signals.
Dynamic Contrast
Automatically makes the contrast in the darker and the brighter picture
areas more noticeable as the image on screen changes. Normally, select
MED. In certain circumstances it may be preferable to select MIN, MAX,
or OFF.
Manual Converge
Allows you to adjust picture convergence.
Note : The picture settings Brightness, Colour, Contrast, Sharpness (Hue),
and Colour Temperature are stored separately for channels 0–11 and for
the external sources.

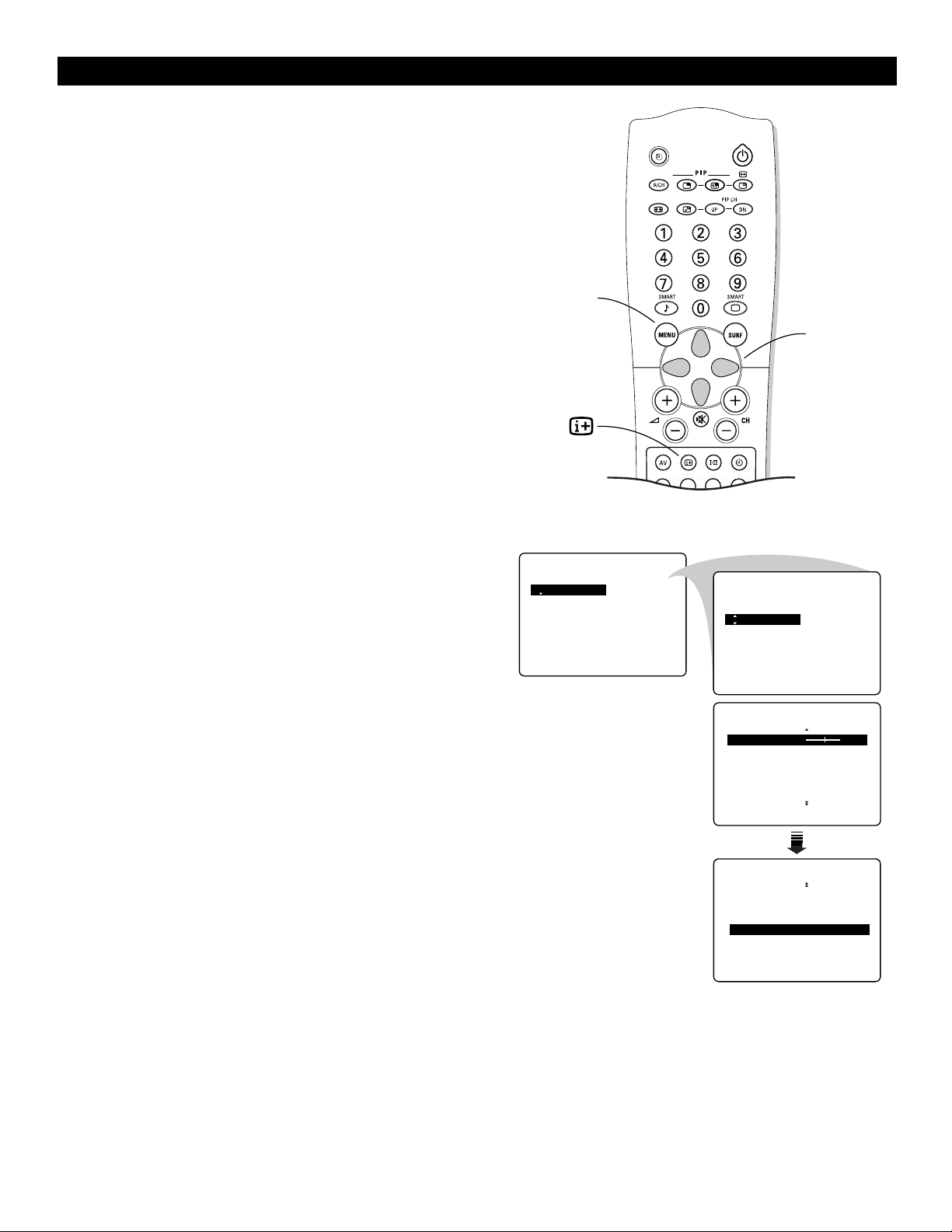

Accessing the Menu

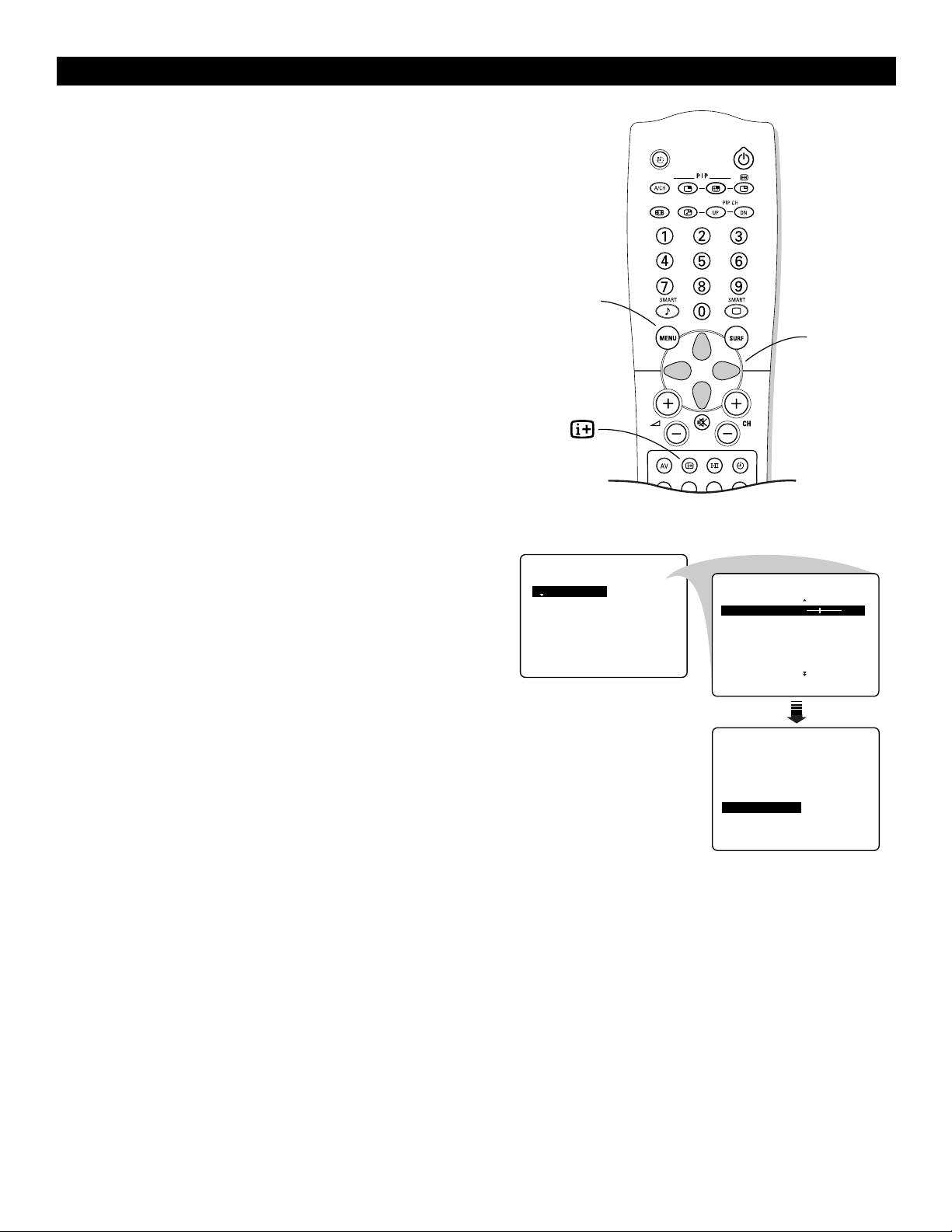

1Press the MENU key to display the main menu.
2Select PICTURE.
3Press the cursor right to access the PICTURE submenu.
4Use the cursor in the up/down directions to select an item.
5Use the cursor in the left/right directions to make adjust-
ments or settings.
6Press the MENU key to return or press the mkey to switch
the menu off.
•
FPICTURE BRIGHTNESS
•SOUND COLOUR
•FEATURES CONTRAST
•INSTALL SHARPNESS
EDIT COLOUR TEMP
G
G
GBRIGHTNESS F30
•COLOUR
•CONTRAST
•SHARPNESS
•
COLOUR TEMP
•
DIGITAL OPTIONS
G
G
•
•
SHARPNESS CONVERGE RED
•COLOUR TEMP CONVERGE BLUE
•DIGITAL OPTIONS MULTIPOINT RED
•DYNAMIC CONTRAST MULTIPOINT BLUE
GMANUAL CONVERGE SAVE MULTIPOINT
G
•
•
Select
menu
item
Return
Switch
menu
off

15
USING THE MENUS :PICTURE
Using Manual Converge : Converge Red/Blue
Your projection TV has three color projection tubes : one for red, one
for green, and one for blue. When mixed in proper proportion, the
beams of light coming from the tubes can produce any color. To cre-
ate a clear picture, however, these color beams must be precisely
aligned. This alignment is called convergence. Bumps and vibrations,
moving the set, or the presence or magnetic fields can cause the color
beams to become improperly aligned, or misconverged, resulting in a
fuzzy picture. The Manual Converge controls allow you to adjust
picture convergence.
Note : Allow the TV to warm up for 20 minutes before adjusting conver-
gence.
1Select MANUAL CONVERGE in the PICTURE menu.
2Press the cursor down and select either CONVERGE RED
or CONVERGE BLUE.
Note : If various images in the picture have red outlines,
select CONVERGE RED. If various images in the picture
have blue outlines, select CONVERGE BLUE.
3Use the cursor right, left, up, or down to adjust the cross
hair until the color outline is gone. The adjustment is auto-
matically saved in the TV’s memory when you exit the
adjust mode.
4Press the MENU key to return or the mkey to switch the
menu off.
Check the TV picture. If any color outlines remain around
the images, use the MULTIPOINT RED (for red outlines)
or MULTIPOINT BLUE (for blue outlines) control. See
the next page for instructions for using those controls.
Converge Red
Converge Red
MANUAL CONVERGE
GCONVERGE RED • ‰
•CONVERGE BLUE
•MULTIPOINT RED
•MULTIPOINT BLUE
•SAVE MULTIPOINT
•
•

16
USING THE MENUS :PICTURE
Using Manual Converge : Multipoint Red/Blue
The Multipoint Red/Blue convergence controls allow you to adjust
picture convergence at specific points on the TV screen.
Note : Allow the TV to warm up for 20 minutes before adjusting
convergence. Adjust Converge Red or Converge Blue before using
the Multipoint Red/Blue controls. See the previous page.
1Select MULTIPOINT RED or MULTIPOINT BLUE in
the MANUAL CONVERGE menu.
2Press the cursor right to enter navigate mode.
3Use the cursor left, right, up, or down to move to a cross
hair that has a color outline.
4Press the m(Status/Exit) key to enter adjust mode.
5Use the cursor left, right, up, or down to adjust the cross
hair until the color outline is gone.
6Press the mkey to return to navigate mode.
7Repeat steps 3–6 until all misaligned cross hairs have been
adjusted. Then press the MENU key.
8For your multipoint adjustments to be stored in the TV’s
memory, you must activate SAVE MULTIPOINT.
Note : If you are not satisfied with the adjustments you just
made and want to start over, you can use the UNDO
MULTIPOINT control. This control allows you to undo
the adjustments, but only if you use it before saving.
To save your multipoint adjustments : Select SAVE
MULTIPOINT and press the cursor left or right.
To undo your multipoint adjustments : Select UNDO
MULTIPOINT and press the cursor left or right.
To restore the TV’s picture convergence to factory settings,
select RESTORE FACTORY and press the cursor left or
right.
9Press the MENU key to return or the mkey to switch the
menu off.
to Navigate EXIT to Adjust
SAVE MULTIPOINT
UNDO MULTIPOINT
OR
RESTORE FACTORY
MANUAL CONVERGE
•CONVERGE RED
•CONVERGE BLUE
GMULTIPOINT RED • ‰
•MULTIPOINT BLUE
•SAVE MULTIPOINT
•
•
to Adjust EXIT to Navigateto Navigate EXIT to Adjust
to Adjust EXIT to Navigate
to Navigate EXIT to Adjust
to Adjust EXIT to Navigate
MANUAL CONVERGE
•CONVERGE RED
•CONVERGE BLUE
GMULTIPOINT RED • ‰
•MULTIPOINT BLUE
•SAVE MULTIPOINT
•
•
MANUAL CONVERGE
•CONVERGE RED
•CONVERGE BLUE
•MULTIPOINT RED
•MULTIPOINT BLUE
GSAVE MULTIPOINT • ‰
•
•
MANUAL CONVERGE
•CONVERGE RED
•CONVERGE BLUE
•MULTIPOINT RED
•MULTIPOINT BLUE
GSAVE MULTIPOINT • ‰STORED
•
•
MANUAL CONVERGE
•CONVERGE BLUE
•MULTIPOINT RED
•MULTIPOINT BLUE
•SAVE MULTIPOINT
GUNDO MULTIPOINT • ‰
•
•
MANUAL CONVERGE
•CONVERGE BLUE
•MULTIPOINT RED
•MULTIPOINT BLUE
•SAVE MULTIPOINT
GUNDO MULTIPOINT • ‰RESTORED
•
•
MANUAL CONVERGE
•MULTIPOINT RED
•MULTIPOINT BLUE
•SAVE MULTIPOINT
•UNDO MULTIPOINT
GRESTORE FACTORY • ‰
•
•
MANUAL CONVERGE
•MULTIPOINT RED
•MULTIPOINT BLUE
•SAVE MULTIPOINT
•UNDO MULTIPOINT
GRESTORE FACTORY • ‰RESTORED
•
•
OR

17
USING THE MENUS :SOUND
Sound Menu Items
Treble
Attenuates or amplifies the high-frequency response of the audio out-
put signal.
Bass
Attenuates or amplifies the low-frequency response of the audio out-
put signal.
Balance
Adjusts the balance of the right and left speaker’s sound output.
AVL (Automatic Volume Leveller)
Automatically controls the volume level to avoid excessive level dif-
ferences, especially when switching to another channel or during
commercial breaks.
Headphone
Allows you to adjust the volume and balance of the headphone.
1Select HEADPHONE.
2Press the cursor right.
3Select VOLUME or BALANCE with the cursor up/down.
4Press the cursor left/right to adjust.
5Press the MENU key to return.
Accessing the Menu
1Press the MENU key to display the main menu.
2Select SOUND with the cursor down.
3Press the cursor right to access the SOUND submenu.
4Use the cursor in the up/down directions to select an item.
5Use the cursor in the left/right directions to make adjust-
ments or settings.
6Press the MENU key to return or press the mkey to switch
the menu off.
•
FPICTURE BRIGHTNESS
•SOUND COLOUR
•FEATURES CONTRAST
•INSTALL SHARPNESS
EDIT COLOUR TEMP
G
G
•PICTURE TREBLE
•
FSOUND BASS
•FEATURES BALANCE
•INSTALL AVL
EDIT
G
G
SOUND
GTREBLE F59
•BASS
•BALANCE
•AVL
•
G
G
SOUND
•BASS
•BALANCE
•AVL
GBASS BOOST • FOFF
G
G
•
Select
menu
item
Return
Switch
menu
off

18
USING THE MENUS :FEATURES
Accessing the Menu

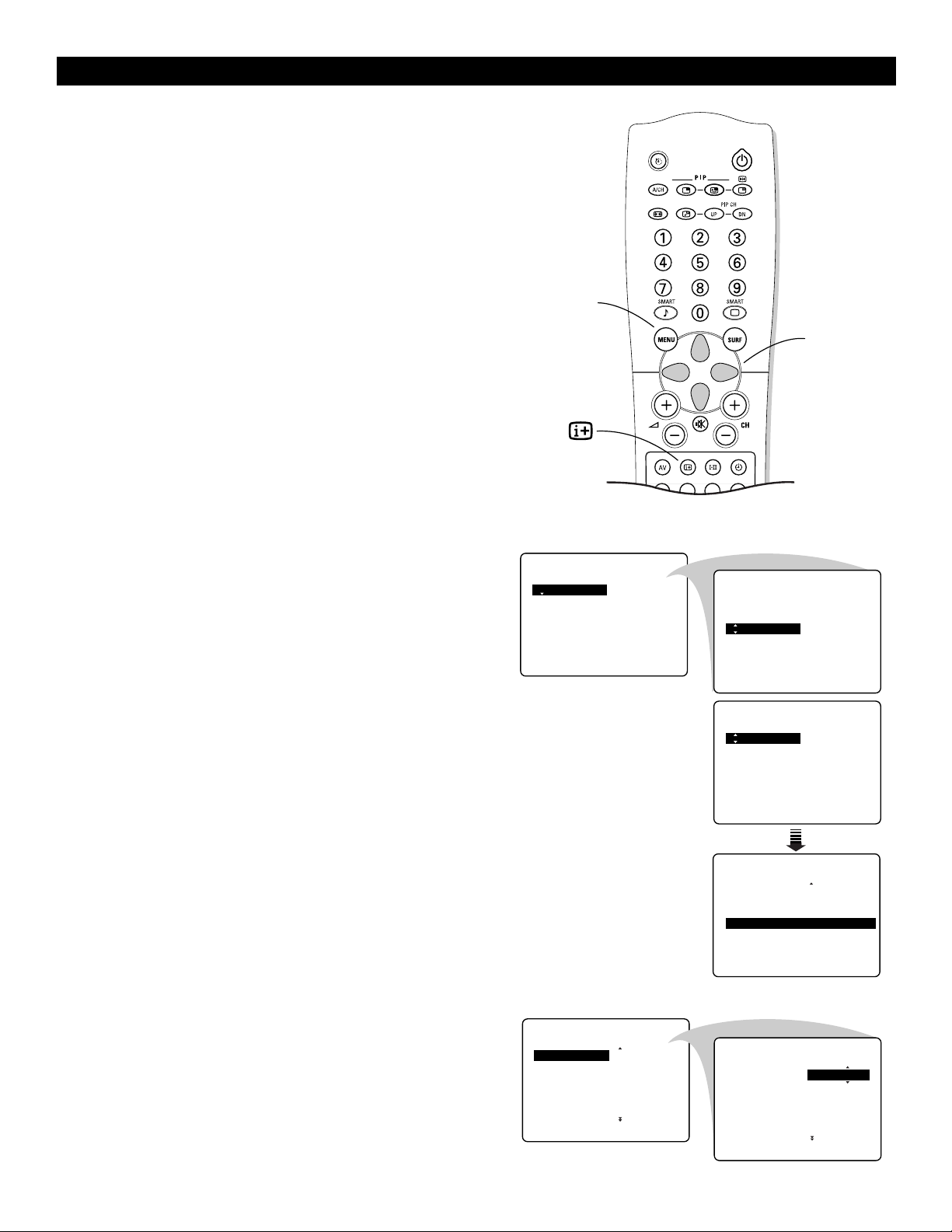

1Press the MENU key to display the main menu.
2Select FEATURES with the cursor down.
3Press the cursor right to access the FEATURES submenu.
4Use the cursor in the up/down directions to select an item.
5Use the cursor in the left/right directions to make settings.
6Press the MENU key to return or press the mkey to switch
the menu off.
Activating the Timer
The Timer feature allows you to set the timer to switch to another
channel at a specified time while you are watching a channel or
when the TV is in standby mode. You can also set the TV to switch
off automatically at a specific time by setting a Stop Time.
1Select TIMER in the FEATURES menu.
2Press the cursor right to enter the Timer.
Setting the Timer
1Press the cursor right again to enter TIME mode.
2Key in the current time with the digit keys.
You must use 24-hour, or military, time. For example : 2:15
p.m. is 14:15.
If you entered an incorrect digit :
Complete the actual time with arbitrary numbers, then start
again.
3Press the cursor left to exit TIME mode.
Continue to the next page.
•
FPICTURE BRIGHTNESS
•SOUND COLOUR
•FEATURES CONTRAST
•INSTALL SHARPNESS
EDIT COLOUR TEMP
G
G
•PICTURE TIMER
•SOUND CHILD LOCK
•
FFEATURES FORMAT
•INSTALL ACTIVE CTRL
EDIT
G
FEATURES
•
FTIMER TIME
•CHILD LOCK START TIME
•FORMAT STOP TIME
•ACTIVE CTRL CHANNEL
EDI ACTIVATE
G
G
G
FEATURES
•TIMER
•CHILD LOCK
•FORMAT
GACTIVE CTRL • ‰ON
EDIT
FEATURES
TIMER
GTIME • ‰--:--
•START TIME
•STOP TIME
•CHANNEL
•ACTIVATE
•
G
G
FEATURES
TIMER
GTIME • ‰14:15
•START TIME
•STOP TIME
•CHANNEL
•ACTIVATE
•
G
Select
menu
item
Return
Switch
menu
off

19
Setting Start Time
1Select START TIME with the cursor down.
2Press the cursor right to enter the START TIME mode.
3Key in the time you want the programme to be switched on.
4Press the cursor left to exit START TIME mode.
Setting Stop Time
1Select STOP TIME with the cursor down.
2Press the cursor right to enter the STOP TIME mode.
3Key in the time you want the programme to be switched off.
4Press the cursor left to exit STOP TIME mode.
Selecting the Channel
1Select CHANNEL with the cursor down.
2Select the channel you want to switch to.
Activating the Timer
1Select ACTIVATE with the cursor down.
2Press the cursor right to enter the ACTIVATE mode to acti-
vate the timer.
3Using the cursor right, select ONCE or DAILY, according to
if you want to activate the timer on the selected channel and
the selected time every day or only once.
Displaying the Time
1Select DISPLAY with the cursor down.
2Press the cursor right to select ON or OFF, according to if
you want to display the current time on the TV screen or not.
3Press the MENU key to return or the mkey to switch the
menu off.
USING THE MENUS :FEATURES
FEATURES
TIMER
•TIME
GSTART TIME • ‰--:--
•STOP TIME
•CHANNEL
•ACTIVATE
•
G
G
FEATURES
TIMER
•TIME •
‰12:30
GSTART TIME • ‰16:00
•STOP TIME
•CHANNEL
•ACTIVATE
•
G
FEATURES
TIMER
•TIME •
‰12:30
•START TIME •
‰13:30
GSTOP TIME • ‰18:00
•CHANNEL
•ACTIVATE
•
G
FEATURES
TIMER
•TIME
•START TIME
GSTOP TIME • ‰--:--
•CHANNEL
•ACTIVATE
•
G
G
FEATURES
TIMER
•TIME
•START TIME
•STOP TIME
GCHANNEL • ‰3
•ACTIVATE
•
FEATURES
TIMER
•TIME
•START TIME
•STOP TIME
GCHANNEL • ‰8
•ACTIVATE
•
FEATURES
TIMER
•TIME
•START TIME
•STOP TIME
•CHANNEL
GACTIVATE • ‰OFF
•
GACTIVATE • ‰ONCE
OR
GACTIVATE • ‰DAILY
OR
FEATURES
TIMER
•START TIME
•STOP TIME
•CHANNEL
•ACTIVATE
GDISPLAY • ‰ON
•

Activating the Child Lock
The Child Lock feature allows you to lock channels to prevent chil-
dren from watching certain programmes.
Entering the Access Code
1Select CHILD LOCK in the FEATURES menu.
2Press the cursor right to enter the ACCESS CODE.
3Key in the access code 0711 (the default access code).
A message INCORRECT will appear.
4Key in access code 0711 a second time.
The message CORRECT will appear and make the Child
Lock menu accessible.
Changing the Access Code
1Select CHANGE CODE to enter an access code of your
choice.
2Press the cursor right to enter the CHANGE CODE mode.
3Key in the access code of your choice and confirm it again.
The message CORRECT will appear.
Activating the Child Lock
1Select LOCK CHANNEL in the CHILD LOCK menu.
Note : Enter the access code if requested. See above.
2Press the cursor right to enter the LOCK CHANNEL
mode.
3Use the cursor up/down to select the channel you want to
lock.
4Press the cursor right to lock the channel.
A keylock symbol will appear beside the locked channel.
From now on the locked channel(s) can be accessed only
via the remote control.
5Repeat steps 1–4 to unlock a locked channel.
To clear all locked channels at once, select CLEAR ALL in
the CHILD LOCK menu and press the cursor right.
The message CLEARED will appear.
6Press the MENU key to return or the mkey to switch the
menu off.
20
USING THE MENUS :FEATURES
FEATURES
•TIMER ACCESS CODE
•CHILD LOCK ----
•FORMAT
•ACTIVE CTRL
EDIT
G
FEATURES
CHILD LOCK
•LOCK CHANNEL ENTER
GCHANGE CODE • FNEW CODE
•CLEAR ALL XXXX
FEATURES
CHILD LOCK
•LOCK CHANNEL CONFIRM
GCHANGE CODE • FCODE
•CLEAR ALL XXXX
FEATURES
CHILD LOCK
•LOCK CHANNEL CONFIRM
GCHANGE CODE • FCODE
•CLEAR ALL XXXX
CORRECT
G
FEATURES
CHILD LOCK
•LOCK CHANNEL ENTER
GCHANGE CODE • FNEW CODE
•CLEAR ALL ----
G
FEATURES
CHILD LOCK
GLOCK CHANNEL •
F2
•CHANGE CODE 3
•CLEAR ALL 4
5
6
G
FEATURES
CHILD LOCK
GLOCK CHANNEL •
F3 Ç
•CHANGE CODE 4
•CLEAR ALL 5
6
7
G
FEATURES
CHILD LOCK
•LOCK CHANNEL
•CHANGE CODE
GCLEAR ALL • F
6
G
FEATURES
CHILD LOCK
•LOCK CHANNEL
•CHANGE CODE
GCLEAR ALL • FCLEARED
6
G
FEATURES
•TIMER ACCESS CODE
GCHILD LOCK XXXX
•FORMAT INCORRECT
•ACTIVE CTRL
EDIT
G
FEATURES
•TIMER ACCESS CODE
GCHILD LOCK XXXX
•FORMAT CORRECT
•ACTIVE CTRL
EDIT
