FW 316C Mini HiFi System
FW 339C [~*
MA
Instructions for use
Mode d’emploi
Instrucciones de manejo
Bedienungsanleitung
Gebruiksaanwijzing
Istruzioni per l’uso
Bruksanvisning
Brugsanvisning
Kayttoohje
Manual de utilizacao
Odnyiec xonoewec
a aE a

em a i
Important notes for users in the U.K.
Mains plug
This apparatus ts fitted with an approved 13 Amp plug. To change a fuse in this
type of plug proceed as follows:
1 Remove fuse cover and fuse.
2 Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. or BSI approved type.
3 Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it should be cut off and an
appropriate plug fitted in its place.
If the mains plug contains a fuse, this should have a value of 5 Amp. if a plug
without a fuse is used, the fuse at the distribution board should not be greater
than 5 Amp.
Note: The severed plug must be disposed of to avoid a possible shock hazard
should it be inserted into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with the following code: blue = neutral
(N), brown = live (L}.
As these colours may not correspond with the colour markings identifying the
terminals in your plug, proceed as follows:
e Connect the blue wire to the terminal marked N or coloured black.
e Connect the brown wire to the terminal marked L or coloured red.
¢ Do not connect either wire to the earth terminal in the plug, marked E (or 4) or
coloured green (or green and yellow).
Before replacing the plug cover, make certain that the cord grip is clamped over
the sheath of the lead - not simply over the two wires.
Copyright in the U.K.
Recording and playback of material may require consent. See Copyright Act 1956
and The Performer’s Protection Acts 1958 to 1972.
ltalia
Dichiarazione di conformita’
Si dichiara che I'apparecchio FW316C e 339C
Philips risponde alle prescrizioni dell’art. 2,
comma 1 del D.M. 28 Agosto 1995
n. 548.
Fatto a Eindhoven , il 31/1/1998
Philips Sound & Viston
Philips, Glaslaan 2, SFF 10
5616 JB Eindhoven, The Netherlands.
Norge
Typeskilt finnes pa apparatens underside.
Observer: Nettbryteren er sekundert innkoplet.
Den innebygde netdelen er derfor ikke frakoplet
nettet sa lenge apparatet er tilsluttet
nettkontakten.
For 4 redusere faren for brann eller elektrisk
stot, skal apparatet ikke utsettes for regn eller
fuktighet.
te ee - re ee ee

CLASS 1
LASER PRODUCT
St a tate a Re SR a
*
, i es Stiinta ad
=
ower oC ee rn re ee ee
lad el a lil aba
es
ortugu

€ FW 316C FW 339C

nn
~

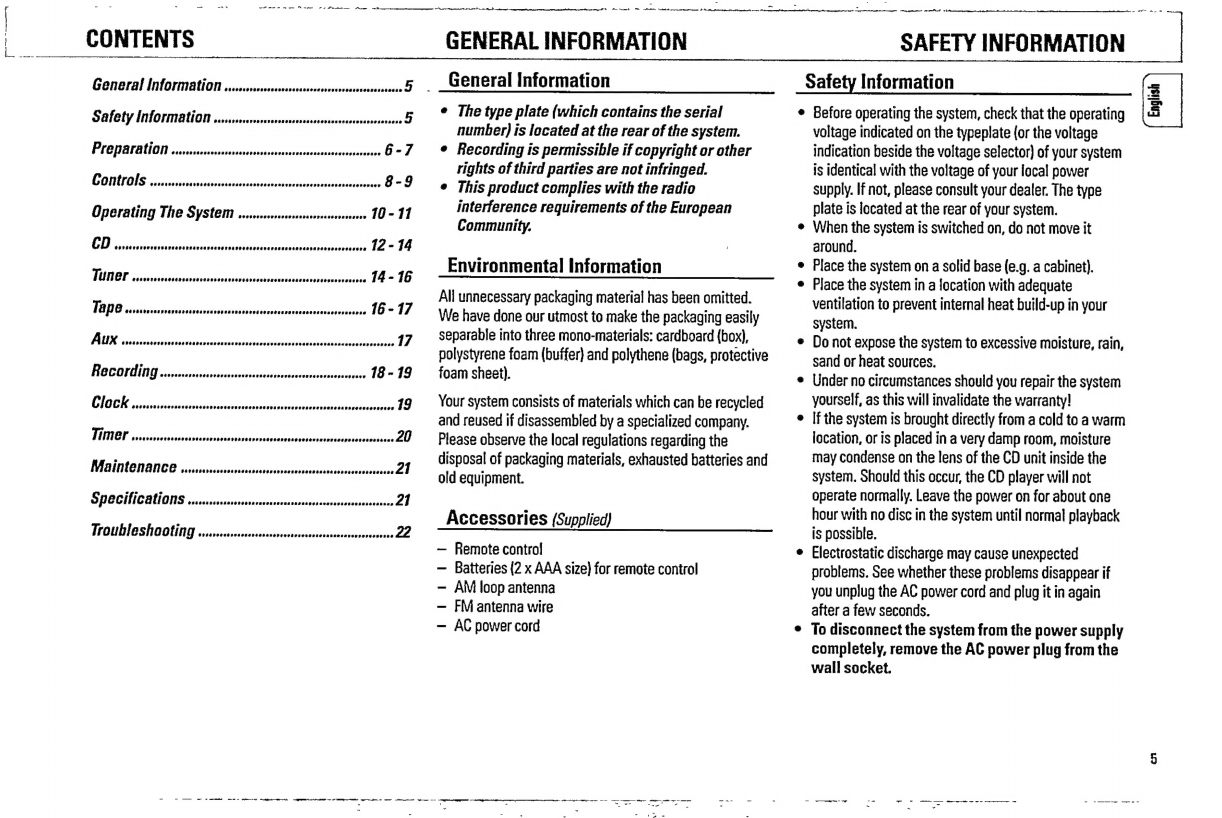

CONTENTS
GENERAL
INFORMATION
SAFETY
INFORMATION
|
General Information vscsssscssessssssrssssvsrsevsssessssesneseess 5.
Safety INfOrMation ..resssscssersesesnresescevercscesenesersens 5
PIB POLALIOIN: civsesacisvciseiveatucaavacivecvbecsviviiisicedindncooste 6-7
CONIOIS sa sitssisivssssiviveaceisasisistcanioeriausniswataeiiows 8-9
Operating The Syste srccsrssersessersisesenenee 10-11
CLD ss cstscussitesiusnaiusbepedeaesdrastaih lea nonusteesestanstrbsbuea as 12-14
TUNGT ssssisssessotcasenercstize sipia tied scsbouvadastias daitesapsbesela 14-16
VATIG wissiecs cccccestisalasscoscosscnceees aise ici cuslasneiteabeyeete 16-17
AUX visser saboa sate ip ubaceniaubs avin beuciahver sedi ncnstacviaiiapegipaoitintis 17
POCO =: sicsssasssssssscsccsecccesetsiecsbcsceuiseecdecsiiexts 18-19
CIGCK scissvisusstscsasstosstectcsuapsensasiasateesseutvsavenstnestasmsesoorss 19
TUNING svsssiccsucshessusonscvsoas soit coodis vous sedesiuslevacsecevesesiased 20
WIBUNONANGE s ccisssccsisoccscoitstassscecsouastasiscsicsscssscononsioes 21
SPOCHICATIONS .esccsssssessrserernesssesssissssesseneereerereeiens 2]
TroubleSHOOTING ..ssseccssessserseses scivsccianeruicentbciseiséeds 22
General Information
¢ The type plate (which contains the serial
number) is located at the rear of the system.
¢ Recording is permissible if copyright or other
rights of third parties are not infringed.
¢ This product complies with the radio
interference requirements of the European
Community.
Environmental Information
All unnecessary packaging material has been omitted.
We have done our utmost to make the packaging easily
separable into three mono-materials: cardboard (box),
polystyrene foam (buffer) and polythene (bags, protective
foam sheet).
Your system consists of materials which can be recycled
and reused if disassembled by a specialized company.
Please observe the local regulations regarding the
disposal of packaging materials, exhausted batteries and
old equipment.
Accessories (Supplied)
— Remote control
— Batteries (2 x AAA size) for remote control
— AM loop antenna
— FM antenna wire
— AC power cord
Safety Information
3
a
Before operating the system, check that the operating
voltage indicated on the typeplate (or the voltage
indication beside the voltage selector) of your system
is identical with the voltage of your local power
supply. If not, please consult your dealer. The type
plate is located at the rear of your system.
When the system is switched on, do not move it
around.
Place the system on a Solid base (e.g. a cabinet).
Place the system in a location with adequate
ventilation to prevent internal heat build-up in your
system.
Do not expose the system to excessive moisture, rain,
sand or heat sources.
Under no circumstances should you repair the system
yourself, as this will invalidate the warranty!
If the system is brought directly from a cold to a warm
location, or is placed in a very damp room, moisture
may condense on the lens of the CD unit inside the
system. Should this occur, the CD player will not
operate normally. Leave the power on for about one
hour with no disc in the system until normal playback
is possible.
Electrostatic discharge may cause unexpected
problems. See whether these problems disappear if
you unplug the AC power cord and plug it in again
after a few seconds.
To disconnect the system from the power supply
completely, remove the AC power plug from the
wall socket.

PREPARATION
i ie eee
| Rear Connections
z
—

ee ne ney
- ~
ee re rt ee Meh ee a pe — ne a ey ee |
PREPARATION :
(A) AM Antenna Connection (©) Connecting other equipmentto your _—Inserting batteries into the Remote 5
Connect the supplied loop antenna to the AM AERIAL __ system —— Control S
terminal.
Place
the
AM
loop
antenna
far
away
from
the
You
can
connect
the
audio
left
and
right
OUT
terminals
of
©
©
Insert
the
batteries
(Type
RO3
or
AAA)
into
the
system
and
adjust
its
position
for
the
best
reception.
a
TV,
VCR,
Laser
Disc
or
DVD
player
to
the
AUX
IN
remote
control
as
shown
in
the
battery
compartment.
terminals at the rear of the system.
B) FM Wire Antenna Connection
Connect the supplied FM wire antenna to the FM 75 Q AC Power Suppl
terminal.
Adjust
the
position
of
the
FM
antenna
for
the
After
all
other
connections
have
been
made,
connect
the
best
reception.
AC
power
cord
to
the
system
and
to
the
wall
outlet.
Outdoor
Antenna
For better FM stereo reception connect an outdoor FM
antenna to the FM AERIAL 75 Q terminal using a 75 Q
coaxial wire.
. ¢ To avoid damage from possible battery leakage,
c)
Speaker
Connections
remove
dead
batteries
or
batteries
that
will
not
be
e
Connect
the
right
speaker
to
Front
terminal
R,
with
the
used
for
a
long
time.
For
replacement,
use
type
R03
or
red wire to ++ and the black wire to —. AAA batteries.
¢ Connect the left speaker to Front terminal L, with the
red wire to -- and the
black wire to —.
Clip the stripped portion
of the speaker wire as
shown.
Ce a a ---- —
.

CONTROLS
Ss
&
&@
Sens
&
of
ai
t
iO}
FOC
oscko|@
i
ee
|
Fe
kee
MIN} MIF SYSTEM
ee pe ct
ee a ee Oe ee
¢
i]
f,
10
®
oA
a
I0ICQIQ
©
i
a
erent ntl
WOE
o
TAPE Tart?
ae a ee -_
4
FW 3396
TAPE 2
TAPE 1
©
co
L
ced
“
0
(OIOIO
0I@:OfO
©2080
=,
aor
~~
—
+
=

a ee es ee tee
ne ee A ee
Controls on the system and remote
control
i] STANDBY-ON
to switch the system on or to standby mode.
- to store radio stations automatically by pressing and
holding for 2 seconds.
[2] SOURCE: to select the following.
CD / (CD 1°CD 2¢CD 3)
- toselect CD mode. When CD in stop mode; to select
the respective disc tray.
TUNER / (BAND)
~ — to select Tuner mode. When in tuner mode; to select
the waveband: FM, MW or LW.
TAPE / (TAPE 1°TAPE 2)
— toselect Tape mode.
AUX / (VIDEO)
— ta select sound from an external source (e.g. TV,
Laser Disc, DVD or VCR player}.
(3] MODE SELECTION
SEARCH <4 >> (TUNING <4 >>)
for CD vases to search backward/forward.
for TUNER ..... to tune to a lower or higher radio
frequency.
STOP M@ (CLEAR)
for CD... to stop CD playback or clear a
program.
for TUNER ..... to stop programming.
PLAY PAUSE > II
TOF GE) cisccststs to start or interrupt playback.
PREV {4 /NEXT Pi (PRESET A ¥)
for CD... to skip to the beginning of the current
or previous/next track.
for TUNER ..... to select a preset station in memory.
DUBBING
to dub a tape in normal or high speed.
DIGITAL SOUND CONTROL (DSC)
I fen} | fay |
ROCK or TECHNO.
DIGITAL SOUND CONTROL DISPLAY PANEL
to view the selected DSC display.
DYNAMIC BASS BOOST (DBB)
'f) | Bl
to switch off bass boost.
DISPLAY
to view the current setting of the system.
CD CAROUSEL TRAY
3 CD DIRECT PLAY
to select a CD tray for playback.
OPENeCLOSE
to open or close the CD carousel tray.
DISC CHANGE
to change CD(s).
CLOCK*TIMER
to view clock, set clock or timer.
PROGRAM
to program CD tracks in CD mode or preset radio
stations in tuner mode.
INCREDIBLE SURROUND (available in mode!
FW339C only)
to switch on or off the surround sound effect.
VOLUME
to adjust the abl level.
HEADPHONES {}
to connect headphones.
TAPE DECK 2
'el'o'e'O@ ' awe 'el
fa]
@'e)' ey!
ee es ee ee - + - ~
to select the desired sound effect : OPTIMAL, JAZZ,
to switch on bass boost to enhance bass response or
te Rr rte rr ae en re mee ER LR eet A mere ee
'R)' SIS
' ie)!
CONTROLS |
TAPE DECK 2 OPERATION 4
PLAY P .............. to start playback. =>
A iiooecccecstssssees to rewind the tape. om
DP ros setvscivtilastciees to fast forward the tape.
STOP*OPEN......... to stop playback or to open the
tape door.
PAUSE ................. to interrupt playback.
TAPE DECK 1 OPERATION
RECORD ............... to start recording.
PLAY P uuu... to start playback.
i ioiiastsaitanites to rewind the tape.
ge rs to fast forward the tape.
STOP*OPEN........ to stop playback/recording or to
open the tape door.
PAUSE ................. to interrupt playback or
recording.
TAPE DECK 1
REPEAT
to repeat a CD track.
SHUFFLE
to play all the available discs and their tracks in
random order.
to switch the system to standby mode.
MUTE favailable in model FW316C only)
to switch off the sound temporarily.
Notes for remote control:
~ First select the source you wish to contral by pressing
one of the source select keys on the remote control
(e.g. CD, TUNER, TAPE 1/2 or AUX).
— Then select the desired function (PLAY, NEXT, etc.}.

(aie | ‘
OPERATING THE SYSTEM
MINI HIFI SYSTEM
TAPE 1¢ TAPE 2 VRE CO1-CO2. Cos BAND
Important:
Before you begin operating the system, complete
the preparation procedures.
Demonstration mode
The system has a demonstration mode that shows the
various features offered by the system. Whenever the
system is switched on from the wall socket, the
demonstration mode will start automatically.
Notes:
— During demonstration mode, if you press any source
(or standby-on) button, the system will switch to the
respective (or standby) made.
— When the system is switched to standby mode, 5
seconds later, the demonstration mode will resume.
SURROUND CONTROL
To cance! demonstration mode
e Press andhold STOP MM (on the system only) for 3
seconds to stop the demonstration.
~ The demonstration mode will be switched off
permanenily.
— The system will switch to standby mode.
Easy Set
EASY SET allows you to store all available radio stations
in a particular band (FM, MW or LW) automatically.
e Press and hold STANDBY®ON (on the system only)
for 2 seconds; when the system is in standby or
demonstration mode.
— "EASY SET" will be displayed and followed by
"TUNER.
— EASY SET will start with the last active band.
— All available radio stations with sufficient signal
strength will be stored or until 40 presets are filled.
Notes :
— When EASY SET is used, all previously stored stations
will be erased.
— the last preset station will appear on the display
when EASY SET is completed.
Switching the system ON
e Press STANDBY®ON (on the system only), CD,
TUNER, TAPE or AUX.
You can also switch on the system by pressing any one of
the 3 CD DIRECT PLAY buttons.
Switching the system to standby mode
e Press STANDBY®ON again.
— The system will switch to standby mode.
Selecting the Source
e Press the respective source selection button: CD,
TUNER, TAPE or AUX.
— The display indicates the selected source.
Note:
— Foran external source, make sure that you have
connected the audio left and right QUT terminals of
the external equipment (TV, VCR, Laser Dise or DVD
player) to the AUX IN terminals.

Ore er rere,
Sound Control
Volume Adjustment
Adjust VOLUME to increase or decrease the sound level.
For Personal Listening
Connect the headphones plug to the §}\ socket at the
front of the system. The speakers will be muted.
Digital Sound Control (DSC)
The DSC feature enables you to enjoy special sound
effects that have preset equalizer settings, providing the
best music reproduction.
e Press DIGITAL SOUND CONTROL (DSC) to select
OPTIMAL, JAZZ, ROCK or TECHNO.
~~ The Digital Sound Control display panel will light up
respectively.
— “OPTIMAL, JAZZ, ROCK or TECHNGD" will
be displayed.
Automatic DSC-DBB selection
The best setting for the DBB is automatically generated
for the respective DSC selection. You can manually select
the DBB setting that best suits your listening
environment.
DBB Onloft
DSC Selection
Optimal
Se —-- ~
fmm be te ee The Ae wee eS.
rt ent ee
Dynamic Bass Boost (DBB)
The DBB mode enhances the bass response.
e Press DBB to switch on bass response.
—~ The DBB button lights up.
— “TBE ON" will be displayed.
To switch off DBB
¢ Press DBB again.
— The DBB button light is switched off.
— “BBB OFF” will be displayed.
Note:
— Some CDs or tapes might be recorded in high
modulation. It may cause a distortion at high volume.
If this occurs, switch off Incredible Surround (if
available), DBB level or reduce the volume.
= —e a
OPERATING THE SYSTEM |
Incredible Surround (available in model FW339C only)
Normal stereo sound ts determined by the distance
between the front speakers. When Incredible Surround is
switched on, it magnifies the virtual distance between
the front speakers for an incredibly wide, enveloping,
stereo effect.
¢ Press INCREDIBLE SURROUND to switch on.
— The INCREDIBLE SURROUND button lights up.
— "TS" will be displayed.
To switch off Incredible Surround
¢ Press INCREDIBLE SURROUND again.
— The INCREDIBLE SURROUND button light is
switched off.
—- "TS OFF” willbe displayed.
Mute (available in model FW316C remote control only)
This feature allows you to temporarily switch off the
sound of the system without switching off the system
when you require a moment of silence.
e Press MUTE on the remote
control to switch off the sound.
— “MUTE” will be displayed.
e Press MUTE again on the remote
control or increase the VOLUME
level to switch on the sound.

12
CHANGER
3 CO ROTARY CHANGER SYSTEM > CD SYNCHAD RECORDING
ELT AGUND CO .TREL
Warning!
1) This system is designed for conventional CDs. Do not use any accessories like disc stabilizer rings or
CD treatment sheets, etc., which may damage the CD mechanism.
2) Do not load more than one disc into each tray.
3) When the CD changer is loaded with CD(s), do not turn over or shake the system. This may jam the
changer.
You can load up to three discs in the CD changer for continuous playback without interruption.
Loading the CD Changer
1 Press CD to select CD mode.
2 Press OPEN*CLOSE.
— The CD compartment slides out.
3 Load a CD with the printed side up in the right tray.
e You can load another disc in the left tray.
¢ To load the third dise, press the DISC CHANGE
button.
— The CD changer carousel will rotate until the empty
tray is at the right hand side and is ready for
loading.
— Playback will always start with the disc in the outer
right disc tray.
4 Press OPEN*CLOSE to close the CD compartment.
— The total number of tracks and playing time of the
last selected disc appear on the display.
3 CD Direct Play
You can play a CD directly by pressing the 3 CD DIRECT
PLAY (1 - 3) buttons. The CD player will stop at the end
of playback of the selected disc.
— When the button is lighted, it indicates that there is a
disc loaded in the disc tray.

Playing a CD
1 Press PLAY > to start playback.
— The disc tray, track number and elapsed playing
time of the current track appear on the display.
e To interrupt playback, press PAUSE 1.
— The playing time flashes.
e To resume playback, press PLAY >» again.
2 To stop playback, press STOP MM.
Note:
— All the available discs will play once, then stop. When
the CD has stopped playing, the system will switch to
the standby mode after 15 minutes if no button is
pressed.
Disc Change
You can change the outer 2 discs while the third inner
disc is at the stop or playing mode.
1 Press DISC CHANGE.
— The CD compartment slides out.
2 Replace the discs in the left and right disc trays.
¢ If you press DISC CHANGE again during playback,
the CD will stop playing.
— The CD carousel tray will rotate until the inner tray
is at the right hand side and is ready for changing.
3 Press OPEN*CLOSE to close the CD compartment.
*
ar woe Se Ae ae
Selecting a desired track
Selecting a desired track at the stop mode
1 Press PREV I4 or NEXT PI until the desired ack
- appears on the display. -
2 Press PLAY > to start playback.
— The selected track number and elapsed playing
time appear on the display.
Selecting a desired track during playback
1 Press PREV i or NEXT Pi until the desired track
appears on the display.
— The selected track number and elapsed playing
time appear on the display.
° If you press PREV I once it will skip to the
beginning of the current track and play the track again.
Searching for a particular passage
during playback |
e Press and hold <4 or >> until the desired passage is
located.
— The volume will be reduced.
e Play returns to normal when <4 or >> is released.
« ‘ vee Dw - ~- “ate . oa
Pm ee mR ee en et ee rn Be ee he Pa
Programming Tracks
Programming tracks of a loaded CD is possible in the stop
mode. The display will indicate the total tracks stored in
the program. Up to 40 tracks can be stored in the memory
in any order. When 40 tracks are stored and you attempt
to store another track, the display will show “PROGRAM
PULL”.
1 Load the desired discs in the disc trays.
2 Press PROGRAM to start programming.
— The PROGRAM flag starts flashing.
3 Press the CD 1°CD 2°CD 3 button to select the disc.
4 Press PREV [4 or NEXT Pl to select the desired
track.
5 Press PROGRAM to store the track.
Repeat steps 3to Sto store other discs and tracks.
6 Press STOP Mi once to end programming mode.
— The total number of tracks programmed and total
playing time appear on the display.
Notes:
— If the total playing time is more than “99:59 " or if
one of the programmed tracks has a number greater
than 30, then “- -:- - ” appears in the display instead
of the total playing time.
— During programming, if no button is pressed within 20
seconds, the system will exit program mode
automatically. -
13

g
14
CD
Playing the program
1 Press PLAY » to start program playback.
— "PLAY PROGRAM” appears on the display.
— The track number and elapsed playing time of the
current track will appear on the display.
e If you press REPEAT during program playback, the
current track will be played repeatedly.
—> The REPEAT and PROGRAM flags will be displayed.
2 Press STOP Mi to stop program playback.
Note:
— /f you press any of the 3 CD DIRECT PLAY buttons, the
system will play the selected disc or track and the
stored program will be ignored temporarily. The
PROGRAM flag will also temporarily disappear from
the display and then reappear when the playback for
the selected dise ends.
Reviewing the program
Reviewing of the program is only possible in the stop
mode.
e Press PREV I or NEXT >I repeatedly to review the
programmed tracks.
e Press STOP M@ to exit review mode.
Erasing the program (in the stop mode)
e Press CLEAR on the system.
~ "PROGRAM CLEARED” will be displayed.
Note:
— The program will be erased when the system is
disconnected from the power supply. If the CD
carousel is opened, the tracks belonging to the outer
two trays will be erased and the display will show
‘CLEARED ”.
Shuffle (only on remote control)
It will play all the available discs and their tracks in
random order. Shuffle may also be used when tracks are
programmed.
To shuffle all the discs and tracks
1 Press SHUFFLE.
— “GHUFFLE” will be displayed.
— The SHUFFLE flag, the disc and the track selected
at random appear on the display.
The dises and the tracks will now be played in random
order until you press STOP Mi.
If you press REPEAT during shuffling, the current track
will be played repeatedly.
— The REPEAT and SHUFFLE fiags will be displayed.
2 Press SHUFFLE again to resume normal playback.
— The SHUFFLE flag disappears from the display.
Repeat (only on remote control)
It will play the current track repeatedly.
1 Press REPEAT during CD playback.
— “REPEAT TRACK” will be displayed.
— The REPEAT flag appears on the display.
e The track will now be played repeatedly until you
press STOP Ml.
2 Press REPEAT again to resume normal playback.
— The REPEAT flag disappears from the display.
TUNER
Easy Set
EASY SET allows you to store all available radio stations
in a particular band (FM, MW or LW) automatically.
e Press and hold STANDBY®ON (on the system only)
for 2 seconds; when the system is in standby or
demonstration mode.
— "EASY SET* will be displayed and followed by
"TUNER",
— EASY SET will start with the last active band.
— All available radio stations with sufficient signal
strength will be stored or until 40 presets are filled.
Notes :
~ When EASY SET is used, all previously stored radio
stations will be erased.
~ The last preset radio station will appear on the display
when EASY SET is completed.
Tuning to radio stations
1 Press TUNER to select TUNER mode.
— "TUNER? will be displayed.
A few seconds later, the current frequency or the
radio station name if available will be displayed.
2 Press TUNER (BAND) again to select the desired
waveband : FM, MW or LW.
3 Press TUNING <4 or >> for more than one second,
then release.
— The display will show ‘SERRCH' until a radio
station with sufficient signal strength is found.
e Repeat this procedure until the desired station is
reached.

> a ine
Ved Ce?
a)
O NTAL COMO CONTFOL
¢ To tune to a weak station, briefly press TUNING <<
or >> until the display shows the desired frequency
and/or when the best reception has been obtained.
Storing Preset Stations
You can store up to 40 radio stations in the memory.
When a preset radio station is selected, the preset
number appears next to the frequency on the display.
Automatic programming
1 Press TUNER.
2 Press TUNER (BAND) again to select the desired
waveband : FM, MW or LW.
3 Press PROGRAM for more than one second.
— PROGRAM flag starts flashing and ‘AUTO’ will be
displayed.
err ee
SUPROUND CONTROL
INSTEON
—=—_—_=
- =
— Every available station for the selected waveband
will be stored automatically. The frequency and
preset number will be displayed briefly.
— The system will stop searching when all the
available radio stations are stored or when the
memory for 40 preset radio stations is used.
— The system will remain tuned to the last stored
preset radio station.
Repeat the above procedure to store other preset radio
stations for the other waveband. Remember to select
the next available preset number before proceeding. If
not, some of the preset radio stations may be erased.
Notes:
~ You can cancel the automatic programming by
pressing PROGRAM or STOP Mf on the system only.
TUNER
— /f you want to reserve a section of preset numbers, for
example preset numbers 1 to 9, select preset 10
before starting automatic programming: now only the
preset numbers 10 to 40 will be programmed.
Manual programming
1 Press TUNER.
2 Press TUNER (BAND) to select the desired waveband
> FM, MW or LW.
3 Press PROGRAM for less than one second.
— PROGRAM fiag, the frequency and preset number
Start flashing.
— The next available preset number will be displayed
for selection.
4 Press TUNING <4 or >> to tune to the desired
frequency.
e If you wish to store the radio station to another preset
number, press PRESET Y or A to select the desired
preset number.
5 Press PROGRAM again.
— PROGRAM flag will stop flashing, and the radio
Station will be stored.
e Repeat the above procedure to store other preset radio
stations.
Notes:
— When 40 radio stations are stored and you attempt to
store another radio station, the display will show
” PROGRAM FULL “. Ifyou want to change an
existing preset number; repeat steps 4 and 5.
— You can cancel manual programming by pressing
STOP MF on the system only.
— During programming, if no button is pressed within 20
seconds, the system will exit program mode
automatically.

TURNER
TAPE
z Tuning to Preset Radio Stations
e Press PRESET Y or A to select the desired preset
number.
— The preset number, frequency and waveband
appear on the display
MINUHIFI SYSTEM
_ TAPE 1 TAPE 2
Le nos ae eee PLAYR 4a > STOPOPEN PAUSE STOP-CPEN PAUSE
16

Poi ee errr Ae reemnes,
TAPE
Loading a tape
e Press STOP*OPEN.
¢ The tape deck door opens.
e Load the tape with the
open side downward and
the full spool to the left.
e Close the tape deck door.
Tape Playback
1 Press TAPE to select TAPE mode.
— "TRFE* will be displayed.
2 Load the tape into the selected tape deck.
3 Press PLAY > to start playback.
¢ To interrupt playback, press PAUSE.
¢ To resume playback, press PAUSE again,
4 Press STOPeOPEN to end playback.
Rewind/Fast Forward
At the stop mode
1 You can rewind or fast forward a tape by pressing <<
or >> respectively.
~ The tape will stop automatically at the end of
rewinding or fast forwarding,
2 Press STOP*OPEN to stop rewinding or fast
forwarding.
Se ee. ee were eee ee ee
Nt nt ee Oe te tt ee
PO eR ee ern ene Seep a hy it et a ate I
Continuous Playback From Tape Deck 2
to Tape Deck 1
1 Press TAPE to select TAPE mode.
2 Load the tapes in tape deck 1 and 2.
3 Press PLAY > on tape deck 2.
4 Press PAUSE on tape deck 1.
5 Press PLAY > on tape deck 1.
— Playback will begin with tape deck 2 and will
continue with tape deck 1 when playback on tape
deck 2 ends.
6 Press STOPeOPEN if you want to stop playback
before the end of the tape in tape deck 1 or tape
deck 2.
Notes:
— During rewinding or fast forwarding of a tape, it is
also possible to select another source mode (e.g. CD,
TUNER or AUX mode).
— Check and tighten slack tape before use with a pencil.
Slack tape may get jammed or may burst in the
mechanism.
~ C€-120 tape is extremely thin and is easily deformed or
damaged. It is not recommended for use in this
system.
— Store the tapes at room temperature and do not put
them too close to a magnetic field (for example, a
transformer, TV or loudspeaker boxes).
pirdgs
Pehl ¢
MINI HIFISYSTEM
YAPZ 4" TAPT 2 VIDEO
J C=)
Selecting External Equipment
if you have connected the audio out terminals of the
external equipment (TV, VCR, Laser Disc or DVD player) to
the AUX IN terminals, you can hear the enhanced sound
from the system.
e Press AUX to select the external mode.
— "AU will be displayed.
Note:
— All the sound control features (e.g. DSC, DBB, etc.) are
available for selection.

RECORDING
=A ‘
eit
B STZL COULD COMITOL
Lol
rFantaro’ oe
!
{
1
|
| rst
| Os
|
\
STARA
Notes:
~ For recording, use only tape of IEC type | {normal tape).
— The tape is secured at both ends with leader tape. At
the beginning and end of tape, nothing will be
recorded for six to seven seconds.
— The recording level is set automatically, regardless of
the position of VOLUME, DBB or Incredible Surround {if
available) .
— Jo prevent accidental recording, break out the tab on
the left shoulder of the tape side you want to protect.
MINE HIFI SYSTEM
TAPE 1+ TAPE 2
Ho
ci
|S
/
CUP OULO CONTE ON
a
Ef
XN
hy i/ AN
: eS (cm) p peas) (c=) Ga)
‘ }
oe
aes
SIS
rt 4
One Touch Recording
1
2
3
4
For One Touch Recording, as saon as you press
RECORD, the current source will be recorded on tape
deck 1.
Load a blank tape in tape deck 1.
Press RECORD on tape deck 1 to start recording.
— The REC flag starts flashing.
Press PAUSE to interrupt recording.
Press STOP OPEN on tape deck 1 to stop recording.
Dubbing tapes (from tape deck 2 to tape deck 1)
1 Load the prerecorded tape into tape deck 2 anda
blank tape into tape deck 1.
— Make sure that both tapes have their full spoot to
the left.
2 Press DUBBING to switch between normal and high
speed dubbing.
— "NERMAL ® (normal speed) or ‘fF AST* (high speed)
will be displayed.
— HSD flag appears on the display for high speed
dubbing.
3 Press PAUSE on tape deck 1.
4 Press RECORD on tape deck 1.
5 Press PLAY on tape deck 2.
— Recording will start automatically.
— The REC flag starts flashing.
6 Press STOPeOPEN on tape deck 1 and tape deck 2 to
stop dubbing.
Notes:
— At the end of side A, flip the tapes to side B and
repeat the procedure.
— Dubbing of tapes is only possible from tape deck 2 to
tape deck 1.
— To ensure good dubbing, use tapes of the same length.
— During high speed dubbing in Tape mode, the sound is
reduced to 2 low volume.

RECORDING
CD Synchro Start Recording
During CD synchro start recording,
¢ It is not advisable to fast forward/rewind your tape in
tape deck 2.
¢ |t is not possible to fisten to another source.
1 Load a blank tape into tape deck 1 and a disc into the
disc tray.
2 Press CD.
¢ You can program the tracks in the order you want them
to be recorded (see Programming Tracks). If not, the
tracks are recorded according to the selected disc.
3 Press RECORD on tape deck 1 to start recording.
4 Press STOP*OPEN on tape deck 1 to stop recording
and STOP @ to stop CD playback.
Recording from other sources (only on tape
deck 1}
1 Load a blank tape into tape deck 1.
2 Press CD, TUNER, TAPE or AUX.
¢ Start playback of the selected source.
3 Press RECORD on tape deck 1 to start recording.
- The REC flag is flashing.
4 Press PAUSE to interrupt recording.
5 Press STOP*OPEN on tape deck 1 to stop recording.
Note:
— During recording, it is not possible to listen to another
sound source.
(fe) CG
S < :
STAC COSY-ON
|
{
MINI HIF! SYSTEM VOLUME | Did =
f
f=) ©]
—
rr
TAPE 16 TAPT 2
SUFAGUAD CONTROL
Ss... eibed pppoteniciert og
ies ees o
View Clock
You can view the clock (if it is set) at standby or any
source mode. It will be displayed for about 7 seconds.
¢ Press CLOCK*TIMER briefly.
> * f@225" (the current time) will be displayed.
—- “+ -:--" will be displayed if the clock is not set.
Clock Setting
The clock is set in 24-hour made, e.g. “2 2:722" or
“e 3/59". Before setting the clock, you must be in the
View Clock mode.
1 Press CLOCKeTIMER to select clock mode.
— “2G:2G" or the current time starts flashing.
— “44 ,>> 14, pi, Mf light up (for model
FW339C only).
2 Set the hour with <4 or b>.
3 Set the minute with I or PI.
4 Press CLOCK*TIMER again to store the setting.
— The clock starts running.
e To exit without storing the setting, press STOP Ml.
Notes:
— During clock setting, if no button is pressed within 90
seconds, the system will exit clock setting mode
automatically.
— When a power interruption occurs, the clock setting is
erased.
19

tH.
4
20
AMER
Timer Settin
ot
The system can switch on to CD or TUNER mode
automatically at a preset time. It can serve as an
alarm to wake you up. After half an hour from the
preset time, the system will return to the standby
mode if no button is pressed.
Before setting the timer, make sure the clock is set
correctly.
The timer has to be reset or start again for each
subsequent preset time.
The volume of the timer will be at the last setting
before the set is switched to standby mode.
Press and hold CLOCKeTIMER for more than Z
seconds to select timer mode.
— "ON 22:22" or the last set timer starts flashing.
The TIMER flag flashes.
— The last selected source is lighted while other
available sources are flashing.
—+ "dq b> id Pi, Mt light up (for model
FW339C only):
Press CD or TUNER to select the desired source.
Press <4 or >> to set the hour for the timer to start.
Press I¢ or I to set the minute for the timer to
Start.
Press CLOCKeTIMER to store the start time.
— The TIMER is now set. |
— The TIMER flag remains on the display.
Jo exit without storing the setting, press STOP Ml.
At the preset time, the TIMER will be activated.
— The selected source will be played.
~ The TIMER flag disappears from the display.
Notes:
— During timer setting, if no button is pressed within 90
seconds, the system will exit timer setting mode
automatically.
— /f the source selected is TUNER, the last tuned
frequency will be switched on.
— If the source selected is CD, playback will begin with
the first track of the last selected disc. If the CD trays
are empty, the TUNER will be selected instead.
To start the TIMER again (for the same time]
1 Press CLOCKeTIMER for more than 2 seconds.
2 Press CLOCKeTIMER again to store the start time
and the selected source.
