Philips MAS-100/37 User manual

CLASS 1
LASER PRODUCT
COMPACT
DIGITAL AUDIO
ServiceManual
Service
Service
Service
Service
Service
MAS-100/37
TABLE OF CONTENTS Page
Location of pc boards & Version variations................1-2
Technical Specifications .............................................1-3
Measurement setup....................................................1-4
Service Aids, Safety Instruction, etc...........................1-5
Connections & Controls ............................................... 2

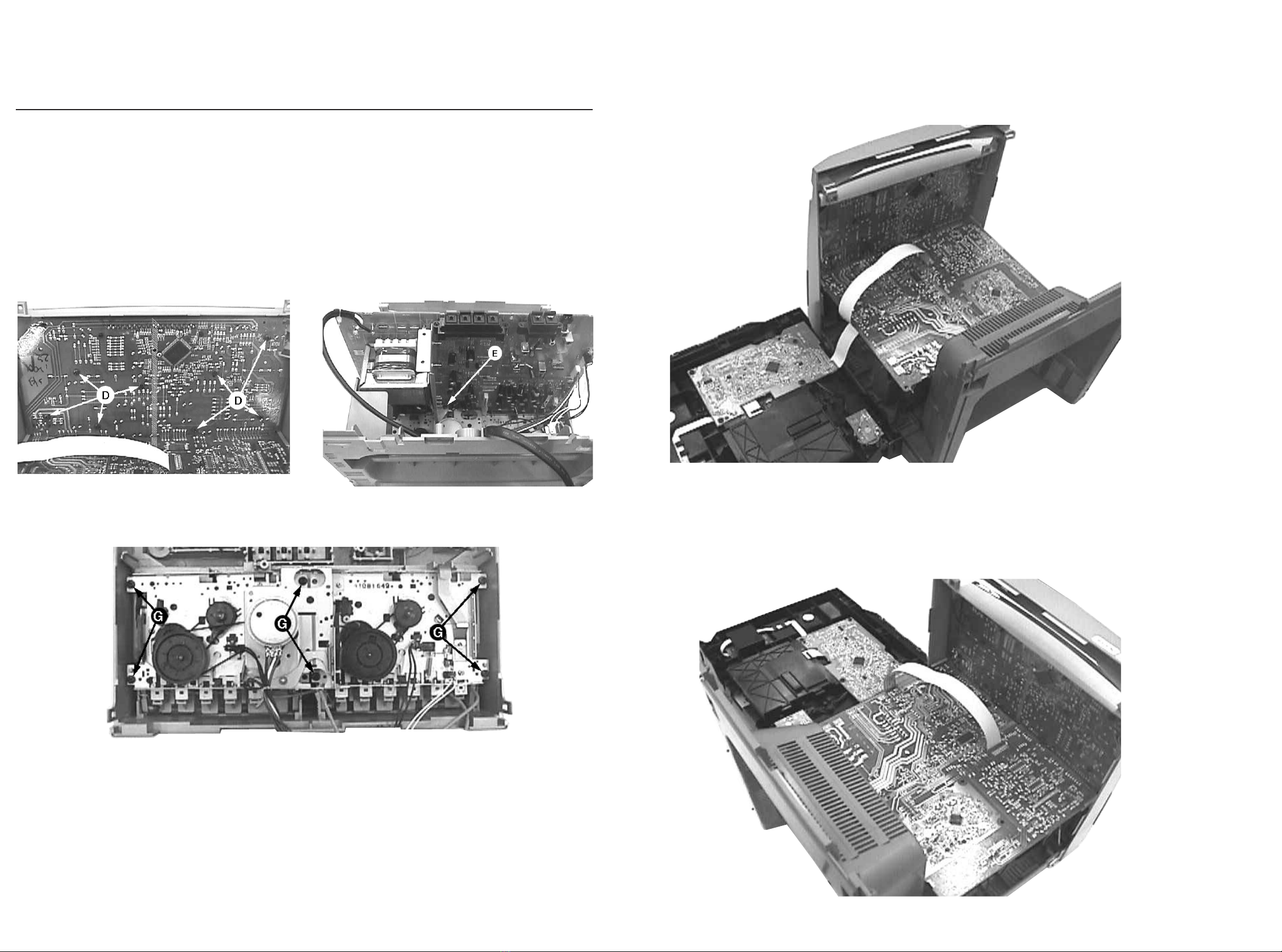

Disassembly Instructions & Service positions ..............2
Service Test Programs ..................................................3
Set Block diagram .........................................................4
Set Wiring diagram ........................................................5
Front and Combi Board .................................................6
3CDC-LLC-MCD1........................................................10
Set Mechanical Exploded view & parts list ................. 11
©Copyright 2001 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise
without the prior permission of Philips.
Published by SL 0222 Service Audio Printed in The Netherlands Subject to modification
GB
3140 785 32110
Mini System

1-2
LOCATION OF PC BOARDS
COMBI BOARD
FRONT
BOARD
CDBOARD

1-3
SPECIFICATIONS
GENERAL:
Mains voltage : 120V for /37
Mains frequency : 60Hz
Power consumption : < 11W at Standby
25W Active
Clock accuracy : < 4 seconds per day
Dimension centre unit : 265 x 310 x 330mm
TUNER:
FM
Tuning range : 87.5-108MHz
IF frequency : 10.7MHz ±20kHz
Aerial input : 300Ω
Sensitivity at 26dB S/N : < 7µV
Selectivity at 600kHz bandwidth : > 25dB
Image rejection : > 25dB
Distortion at RF=1mV, dev. 75kHz : < 3%
-3dB Limiting point : < 8µV
Crosstalk at RF=1mV, dev. 40kHz : > 18dB
MW
Tuning range : 530-1700kHz
IF frequency : 450kHz ±1kHz
Aerial input : Frame aerial
Sensitivity at 26dB S/N : < 4.4mV/M
Selectivity at 18kHz bandwidth : > 18dB
IF rejection : > 45dB
Image rejection : > 28dB
Distortion at RF=50mV, m=80% : < 5%
AMPLIFIER:
Output power 1) :2x 5W ±1dB
Frequency response within -3dB : 50Hz-15kHz
Dynamic Bass Boost : DBB ON, DBB Off 2)
Digital Sound Control : Jazz, Techno, Optimal, Rock 2)
Headphone output at 32Ω:900mV ±1dB (max Vol.)
CASSETTE RECORDER:
Number of track : 2 x 2 stereo
Tape speed : 4.76 cm/sec +2.5/-1.5%
Wow and flutter : < 0.35% DIN
Fast-wind/rewind time C60 : 130 sec
Bias system : 75kHz ±5kHz
Rec/Pb frequency response within 8dB : 80Hz - 10kHz
Signal to noise ratio : > 48dBA
COMPACT DISC:
Measurement done at output conn. of the CDC module.
Frequency response within ±1.5dB: 20Hz - 20kHz
Output level (in Vrms) : 550mV, Zout = 100Ω
Signal/Noise ratio (A-weighted) : > 80dBA
Distortion at 1kHz : < 0.003%
Channel unbalance at 1kHz : ±1dB
Channel separation at 1kHz : > 60dB
De-emphasis : 0 or 15/50 mS (Switched by subcode
on the disc)
1) 8 Ω, 1 kHz, 10% THD
2) Frequency response in each setting is software controlled.

LF Generator
e.g. PM5110
Recorder
Use Universal Test Cassette CrO2 SBC419 4822 397 30069
LEVEL METER
e.g. Sennheiser UPM550
with FF-filter
S/N and distortion meter
e.g. Sound Technology ST1700B
L
R
DUT
or Universal Test Cassette Fe SBC420 4822 397 30071
LEVEL METER
e.g. Sennheiser UPM550
with FF-filter
S/N and distortion meter
e.g. Sound Technology ST1700B
L
R
DUT
CD
Use Audio Signal Disc
(replaces test disc 3)
SBC429 4822 397 30184
Bandpass
250Hz-15kHz
e.g. 7122 707 48001
LF Voltmeter
e.g. PM2534
DUT
S/N and distortion meter
e.g. Sound Technology ST1700B
Frame aerial
e.g. 7122 707 89001
Tuner AM (MW,LW)
To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage.
Use a bandpass filter (or at least a high pass filter with 250Hz) to eliminate hum (50Hz, 100Hz).
RF Generator
e.g. PM5326
Ri=50Ω
Bandpass
250Hz-15kHz
e.g. 7122 707 48001
LF Voltmeter
e.g. PM2534
DUT
RF Generator
e.g. PM5326
S/N and distortion meter
e.g. Sound Technology ST1700B
Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance from the pilottone (19kHz, 38kHz).
Ri=50Ω
Tuner FM
MEASUREMENT SETUP
1-4

1-5
SERVICE AIDS
Service Tools:
Universal Torx driver holder .................................. 4822 395 91019
Torx bit T10 150mm ............................................. 4822 395 50456
Torx driver set T6 - T20......................................... 4822 395 50145
Torx driver T10 extended ...................................... 4822 395 50423
Cassette:
SBC419 Test cassette CrO2................................. 4822 397 30069
SBC420 Test cassette Fe ..................................... 4822 397 30071
MTT150 Dolby level 200nWb/M............................ 4822 397 30271
Compact Disc:
SBC426/426A Test disc 5 + 5A ............................ 4822 397 30096
SBC442 Audio Burn-in Test disc 1kHz ................. 4822 397 30155
SBC429 Audio Signals disc .................................. 4822 397 30184
Dolby Pro-logic Test Disc...................................... 4822 395 10216
ESD Equipment:
Anti-static table mat - large 1200x650x1.25mm ... 4822 466 10953
Anti-static table mat - small 600x650x1.25mm..... 4822 466 10958
Anti-static wristband .............................................. 4822 395 10223
Connector box (1MΩ)............................................ 4822 320 11307
Extension cable
(to connect wristband to conn. box).................. 4822 320 11305
Connecting cable
(to connect table mat to conn. box) .................. 4822 320 11306
Earth cable (to connect product to mat or box) .... 4822 320 11308
Complete kit ESD3
(combining all above products) ......................... 4822 320 10671
Wristband tester .................................................... 4822 344 13999

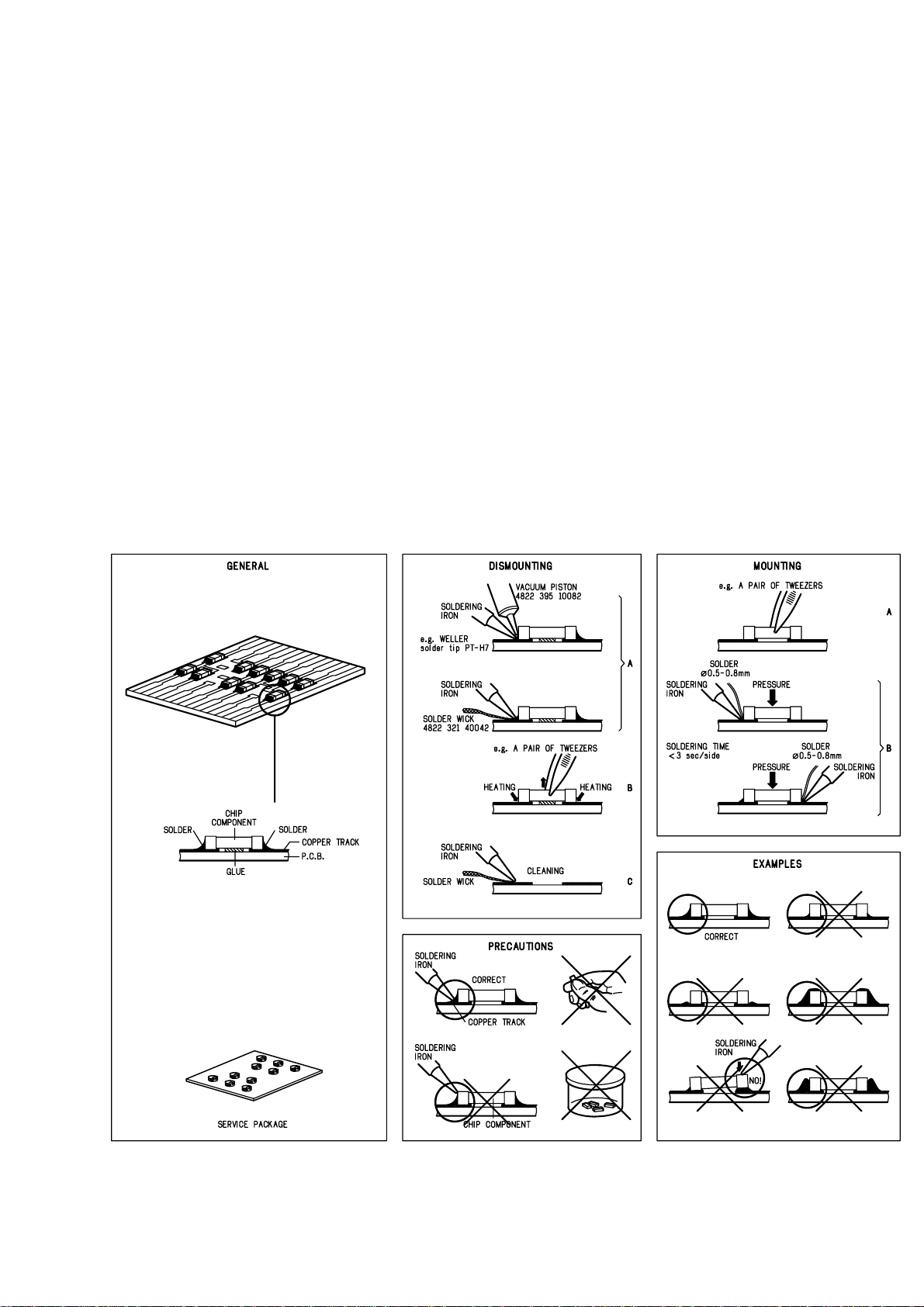

HANDLING CHIP COMPONENTS

1-6
GB
WARNING
All ICs and many other semi-conductors are
susceptible to electrostatic discharges (ESD).
Careless handling during repair can reduce life
drastically.
When repairing, make sure that you are
connected with the same potential as the mass
of the set via a wrist wrap with resistance.
Keep components and tools also at this
potential.
F
ATTENTION
Tous les IC et beaucoup d’autres
semi-conducteurs sont sensibles aux
décharges statiques (ESD).
Leur longévité pourrait être considérablement
écourtée par le fait qu’aucune précaution n’est
prise à leur manipulation.
Lors de réparations, s’assurer de bien être relié
au même potentiel que la masse de l’appareil et
enfiler le bracelet serti d’une résistance de
sécurité.
Veiller à ce que les composants ainsi que les
outils que l’on utilise soient également à ce
potentiel.
ESD
D
WARNUNG
Alle ICs und viele andere Halbleiter sind
empfindlich gegenüber elektrostatischen
Entladungen (ESD).
Unsorgfältige Behandlung im Reparaturfall kan
die Lebensdauer drastisch reduzieren.
Veranlassen Sie, dass Sie im Reparaturfall über
ein Pulsarmband mit Widerstand verbunden
sind mit dem gleichen Potential wie die Masse
des Gerätes.
Bauteile und Hilfsmittel auch auf dieses gleiche
Potential halten.
NL
WAARSCHUWING
Alle IC’s en vele andere halfgeleiders zijn
gevoelig voor electrostatische ontladingen
(ESD).
Onzorgvuldig behandelen tijdens reparatie kan
de levensduur drastisch doen verminderen.
Zorg ervoor dat u tijdens reparatie via een
polsband met weerstand verbonden bent met
hetzelfde potentiaal als de massa van het
apparaat.
Houd componenten en hulpmiddelen ook op
ditzelfde potentiaal.
I
AVVERTIMENTO
Tutti IC e parecchi semi-conduttori sono
sensibili alle scariche statiche (ESD).
La loro longevità potrebbe essere fortemente
ridatta in caso di non osservazione della più
grande cauzione alla loro manipolazione.
Durante le riparazioni occorre quindi essere
collegato allo stesso potenziale che quello della
massa dell’apparecchio tramite un braccialetto
a resistenza.
Assicurarsi che i componenti e anche gli utensili
con quali si lavora siano anche a questo
potenziale.
“Pour votre sécurité, ces documents
doivent être utilisés par des spécia-
listesagréés,seulshabilitésàréparer
votre appareil en panne”.
GB
Safety regulations require that the set be restored to its original
condition and that parts which are identical with those specified,
be used.
NL
Veiligheidsbepalingen vereisen, dat het apparaat bij reparatie in
zijn oorspronkelijke toestand wordt teruggebracht en dat onderdelen,
identiek aan de gespecificeerde, worden toegepast.
F
Les normes de sécurité exigent que l’appareil soit remis à l’état
d’origine et que soient utiliséés les piéces de rechange identiques
à celles spécifiées.
D
Bei jeder Reparatur sind die geltenden Sicherheitsvorschriften zu
beachten. Der Original zustand des Geräts darf nicht verändert werden;
für Reparaturen sind Original-Ersatzteile zu verwenden.
I
Le norme di sicurezza esigono che l’apparecchio venga rimesso
nelle condizioni originali e che siano utilizzati i pezzi di ricambio
identici a quelli specificati.
"After servicing and before returning set to customer perform a
leakage current measurement test from all exposed metal parts to
earth ground to assure no shock hazard exist. The leakage current
must not exceed 0.5mA."
CLASS 1
LASER PRODUCT
3122 110 03420
GB
Warning !
Invisible laser radiation when open.
Avoid direct exposure to beam.
S
Varning !
Osynlig laserstrålning när apparaten är öppnad och spärren
är urkopplad. Betrakta ej strålen.
SF
Varoitus !
Avatussa laitteessa ja suojalukituksen ohitettaessa olet alttiina
näkymättömälle laserisäteilylle. Älä katso säteeseen!
DK Advarse !
Usynlig laserstråling ved åbning når sikkerhedsafbrydere er
ude af funktion. Undgå udsaettelse for stråling.

MINI HIFI STEREO SYSTEM
CD / CD-R/
CD-RW COMP AT IBLE
DECK 1 DECK 2
FULL AUTO STOP
PLAYBACK•RECORD
3 CD DIRECT PLAY
PLAYBACK
CONTINUOUS PLAY
1
2
4
3
5
6
7
8
9
0!
#
@
$
%
^
&
*
ST ANDBY-ON
OPEN•CLOSE
CD
DISC
CHANGE DIGITAL SOUND
CONTROL
DSC
DYNAMIC
BASS BOOST
TUNER TAPE
CD 1 CD 2 CD 3
SEARCH /
TUNING
SEARCH /
TUNING
DEMO STOP
FM•AM TAPE 1•2
▲
PREV•PRESET
▲
NEXT•PRESET
MASTER VOLUME
CLOCK •TIMERPROGRAM DIM
3CD
CHANGER
2
4
(
3
%
^
7
8
™
¡
%
£
2
)
#

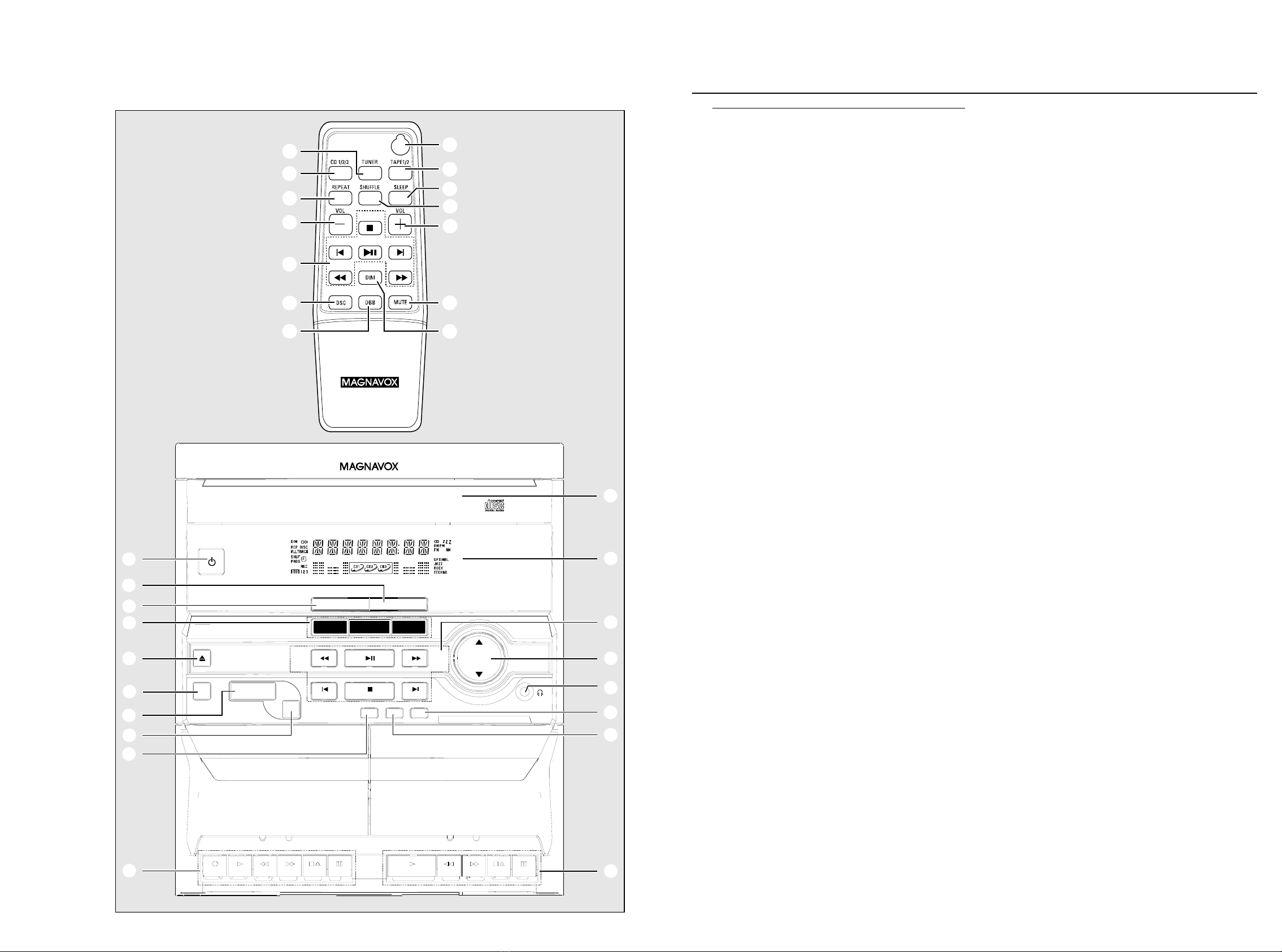

Controls
Controls on the system and
remote control
1
STANDBY ON y
–to switch the system on or to standby mode.
2
TA PE (TAPE 1/2)
–to select tape mode.
3
TUNER (FM•AM)
– to select waveband : FM or AM.
4
CD 1 / CD 2 / CD 3 (CD 1/2/3)
–to select disc tray 1, 2 or 3.
5
CD OPEN/CLOSE
–to open or close the disc tra y.
6
DISC CHANGE
– to change disc(s).
7
DIGITAL SOUND CONTROL (DSC)
–to select the desired sound effect :
JAZZ, ROCK, TECHNO or OPTIMAL.
8
DYNAMIC BASS BOOST (DBB)
–to select the desired bass boost level.
9
PROGRAM
for CD .................to program disc tracks.
for Tuner .............to program preset radio stations.
for Clock ............to select 12- or 24-hour clock
mode.
for Timer .............to select CD program mode as
the wake up source.
0
Ta pe deck 1 operation
â.......................... to start recording.
É.......................... to star t playback.
à/ á............... to rewind or fast forward.
70 ........................ to stop playback/recording or to
open the tape door.
Å.......................... to interrupt playback or
recording.
!
Ta pe deck 2 operation
É.......................... to star t playback.
à/ á............... to rewind or fast forward.
70 ........................ to stop playback or to open the
tape door.
Å.......................... to interrupt playback.
@
CLOCK•TIMER
–to view the clock, set the clock or set the timer.
#
DIM
– to select different brightness for the display
screen: DIM 1, DIM 2, DIM 3 or DIM OFF.
$
n
–to connect headphones.
%
MASTER VOLUME 3 4 (VOL +/-)
– to increase or decrease the volume.
^
Mode Selection
PLAY•PAUSE ÉÅ
for CD ................. to star t or interrupt playback.
for Plug & Play…(on the system only) to initiate
and star t plug
& play mode
.
SEARCH/TUNING àá
for CD ................. to search backward/forward.
for Tuner ............. to tune to a lower or higher
radio frequency .
for Clock ............(on the system only) to set the
hour.
STOP•CLEAR / DEMO STOP Ç
for CD ................. to stop playback or to clear a
program.
for Tuner .............(on the system only) to stop
programming or to erase
a
selected preset.
for Demo ...........(on the system only) to activate/
deactivate the demonstration.
for Clock ............(on the system only) to exit clock
setting or cancel timer.
for Plug & Play…
(on the system only) to exit plug
& play mode.
PREV í/ NEXT ë(PRESET 4/ 3)
for CD .................to skip to the beginning of the
current, previous, or next track.
for Tuner .............to select a preset radio station.
for Clock ............(on the system only) to set the
minute.
&
Display screen
–to view the current status of the system.
*
Disc tray
(
REPEAT
– to playback track(s)/disc(s)/program repeatedly.
)
MUTE
–to interrupt or resume sound reproduction.
¡
SHUFFLE
–to playback all available discs and their tracks/
program in random order.
™
SLEEP
– to activate/deactivate or set the sleep timer.
£
B
–to switch the system to standby mode.
CONNECTION AND CONTROLS
2-1 2-1

Preparations
R
+
–
L
speaker
(right) speaker
(left)
FM wire antenna
AM loop
antenna
A
B
C
+–
AC power cord
Rear connections
The type plate is located at the rear of the
system.
A
Po we r
Before connecting the AC power cord to the
wall outlet, ensure that all other connections
have been made .
WARNING!
–For optimal performance,use only the
original power cable.
–Never make or change any connections
with the power switched on.
B
Antennas Connection
Connect the supplied AM loop antenna and FM
antenna to the respective terminals. Adjust the
position of the antenna for optimal reception.
AM Antenna
Fix the claw
to the slot
●Position the antenna as far as possible from a TV,
VCR or other radiation source
English
Preparations
FM Antenna
1
2
●For better FM stereo reception, connect an
outdoor FM antenna to the FM AERIAL (FM
ANTENNA) ter minal.
C
Speakers Connection
FrontSpeakers
Connect the speaker wires to the SPEAKERS
terminals, right speaker to "R" and left speaker to
"L", colored (marked) wire to "
+
" and black
(unmarked) wire to "
-
".
1
2
●Fully insert the stripped por tion of the speaker
wire into the terminal as shown.
Notes:
–For optimal sound performance , use the
supplied speakers .
– Do not connect more than one speaker to any
one pair of
+
/
-
speaker terminals .
–Do not connect speakers with an impedance
lower than the speak ers supplied. Please refer to
the SPECIFICATIONS section of this manual.
Inserting batteries into the
remote control
Inser t two batteries type R03 or AAA (not
supplied) into the remote control with the
correct polarity as indicated by the "
+" and
"-" symbols inside the battery compar tment.
CAUTION!
–Remove batteries if they are exhausted
or will not be used for a long time.
–Do not use old and new or different
types of batteries in combination.
– Batteries contain chemical substances , so
they should be disposed off properly.
Notes for remote control:
– First select the source you wish to control
by pressing one of the source select keys on
the remote control (for example CD 1/2/3,
TUNER).
–Then select the desired function (for
example
É
,
í
,
ë
).
For more information on operation instruction please visit Philips
Audio internet site :
http://www.audio.philips.com
2-2
2-2

2-3
DISMANTLING INSTRUCTIONS
1) Loosenthe4screws,slideCovertop(pos30)towardsthe
rear and remove it upwards.
2) Loosen3screwsslidethePanelright(pos26)towardsthe
rearandremoveitoutwards. DolikewiseforthePanelleft
(pos 27).
3) Push the gear slowly towards the front as shown in figure
Dismantling the 3CDC Module
3untiltheCDCtraystartstomoveoutoftheFrontCabinet
(pos8). TheCDCtrayisnowdisengageandcanbepulled
out completely.
4) Remove the Cover Tray (pos 29) as shown in figure 2.
5) Loosen4screwsAtoremovetheCDCModule(pos28)as
shown in figure 1.
A
A
A
Turn the Gear towards the Front
till the CDC Tray starts to open
Figure 1
C1
Press Inwards
Pull Rear
Panel out
1
2
Figure 3
Dismantling of the Panel Rear
1) Loosen 6 screws C on the Panel rear (pos 24).
2) Press the 2 catches C1 inwards and dismantle the Panel
rear by pulling it towards the rear.
Figure 2
2-3

2-4 2-4
Service pos A
Service pos B
Note: After re-assembly, it is very important to ensure the
wires from the Tape mechanism are routed properly
to ensure that they do not touch/obstruct all moving
parts.
Dismantling of the Front Panel and Bottom Panel assembly
Figure 4 Figure 5
Figure 6
1) Remove 9 screws D mounting the Front board.
2) Remove 1 screw E supporting the bracket, Combi board
(pos 33) to the Panel front (pos 8).
3) Remove 1 screw F (see figure 3) mounting the Mains
transformer body to the Panel Bottom (pos 25).
Note: Care must be taken not to damage the board
because of the heavy Mains transformer.
4) The Front and Combi boards together with the Mains
transformer can now be remove.
5) Loosen 6 screws G and eject both cassette doors to
remove the Tape mechanism (pos 12).
Note: During re-assembly of the Tape mechanism
and Front board care must be taken to ensure
the wires are properly dressed and not touch-
ing any moving parts on the Tape mechanism.

3-1 3-1
Various
other Tests
Activated with
ACTION
TEST
QEEPROM FORMAT Load default data. Display shows "NEW"
for 1 second.
Caution!
All presets from the customer will be lost
!!
Disconnect
mains cord
LEAVE SERVICE
TESTPROGRAM
R
9to Exit
EEPROM TEST A test pattern will be sent to the EEPROM.
"PASS" is displayed if the uProcessor read
back the test pattern correctly, otherwise
"FAIL" will be displayed.
Volume Knob
or
Jog Shuttle knob
ROTARY
ENCODER TEST Display shows value for 2 seconds.
Values increases or decreases in steps of 1
until 0 (Min.) or 40 (Max.) is reached.
DBBDEMO DEMO will toggle on or off.
The message: "DEMO ON" or "DEMO OFF"
will scroll across the display to show the
new status of the set.
STANDBY-ON
Button pressed?
Y
N
Set is in Service PLAY Mode.
The Service Play Mode is intended to
detect and identify the failures in the CD Mode.
In this mode the electronics will still function
even when an error is detected so that
repair activities can be carried out.
SERVICE
PLAY MODE
In case of failures, error
codes according to table 2
will be displayed.
O
Button pressed?
Y
Y
Y
N
N
N
O
Button pressed?
9
Button pressed?
Display shows
8M
Output at (Front Board)
pin 80 of uP = 1,953.125Hz
Display shows
32K
Output at (Front Board)
pin 80 of uP = 2048Hz
QUARTZ
TEST
Note:During the 3CDC tray may "jerks" open
&close or the carousel may rotates
slightly. This is due to sharing of control
lines during the Service test program.
TUNER
Button pressed?
Disconnect
Mains cord ?
Y
N
N
Y
Service frequencies are
copied to the RAM (see Table1)
Tuner works normally
except:
PROGRAM button
Service Mode left
TUNER
TEST
Display Tuner Version
"ccc"
TUNER
Button pressed?
N
Y
PRESET
1
2
3
4
5
6
7
8
9
10
11
Europe
"EUR"
87.5MHz
108MHz
531kHz
1602kHz
558kHz
1494kHz
87.5MHz
87.5MHz
87.5MHz
87.5MHz
98MHz
East Eur.
"EAS"
87.5MHz
108MHz
531kHz
1602kHz
558kHz
1494kHz
87.5MHz
87.5MHz
87.5MHz
87.5MHz
98MHz
USA
"USA"
87.5MHz
108MHz
530kHz
1700kHz
560kHz
1500kHz
98MHz
87.5MHz
87.5MHz
87.5MHz
87.5MHz
Oversea
"OSE"
87.5MHz
108MHz
530/531kHz*
1700/1602kHz*
560/558kHz*
1500/1494kHz*
98/87.5MHz*
87.5MHz
87.5MHz
87.5MHz
87.5/98MHz*
Table 1
East Eur. Extended-band
"EAS"
65.81MHz
108MHz
74MHz
87.5MHz
531kHz
1602kHz
558kHz
1494kHz
98MHz
70.01MHz
65.81MHz
Note:* Depending on the selected grid frequency (9 or 10kHz)
By holding the TUNER and R buttons depressed while switching on the Mains supply, one
of the undermentioned features will be activated:
-the tuning grid frequency is toggled between 9kHz and 10kHz for the Oversea (/21) version.
-the extended FM1 (65.81MHz - 74MHz) is toggled on and off for East Eur. (/34) version.
Y
N
Y
N
Y
N
DIM
Button pressed?
DIM
Button pressed?
9
Button pressed?

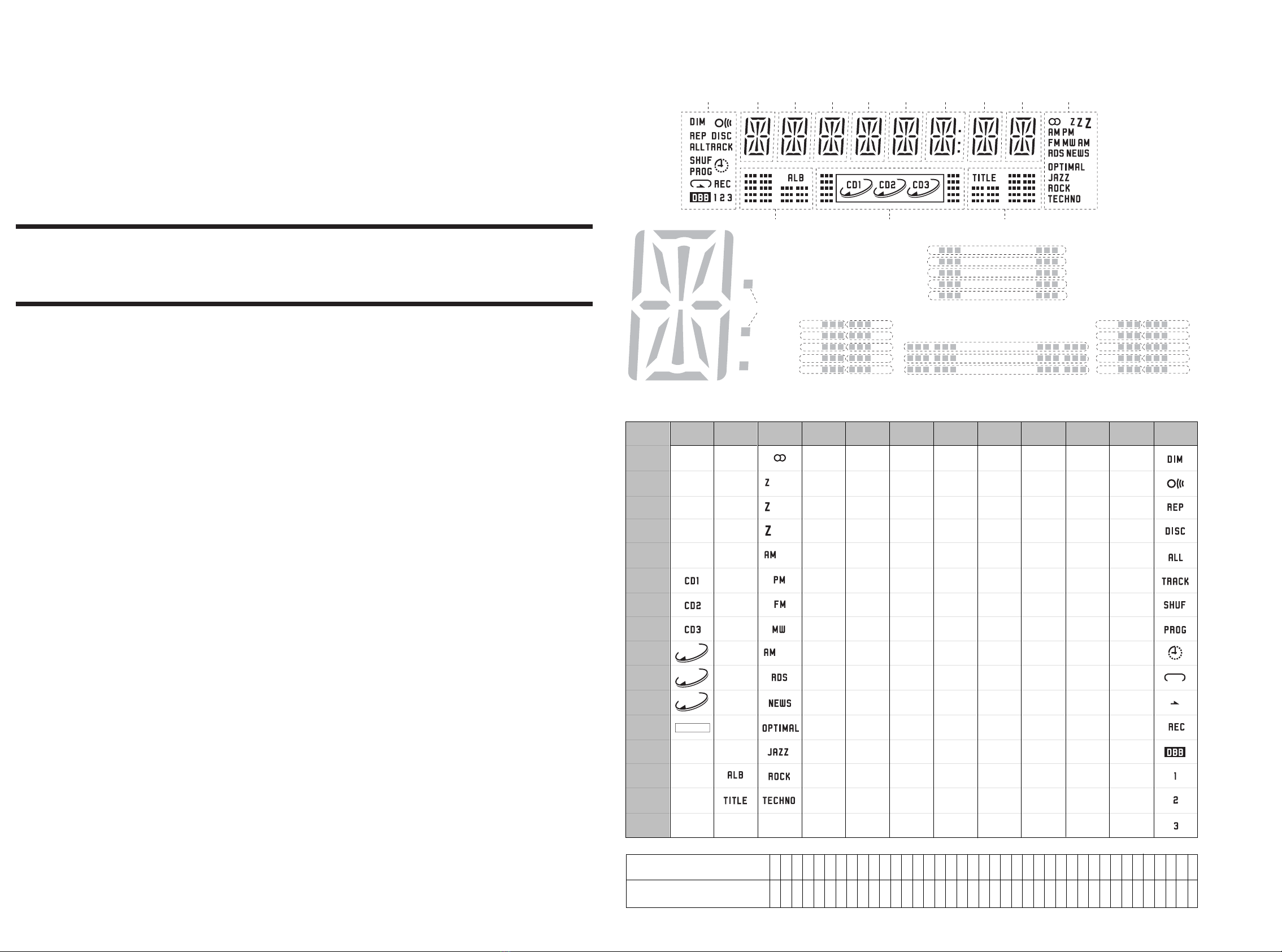

DISPLAY
TEST
Display shows Fig. 2
and selected LEDs on
(see note 2)
Display shows Fig. 1
and selected LEDs on
(see note 1)
Figure 1
Figure 2
note 2 :OPTIMAL is on while JAZZ & TECHNO are off, other LEDs status
are not important (applicable only for sets with LEDs)
note 1 :JAZZ & TECHNO are on while OPTIMAL is off, other LEDs status
are not important (applicable only for sets with LEDs)
Table 2
Error code
E1000
E1001
E1002
E1003
E1005
E1006
E1007
E1008
E1020
E1070
E1071
E1079
Error Description
Focus Error
Triggered when the focus could not be found within a certain time when starting up the CD
or when the focus is lost for a certain time during play.
Radial Error
Triggered when the radial servo is off-track for a certain time during play.
Sledge In Error
The sledge did not reach its inner position (inner-switch is still close) before approximately
6 Sec. have passed by. Inner-switch or sledge motor problem.
Sledge Out Error
The sledge did not come out of its inner position (inner-switch is still open) before approximately
250 mSec. have passed by. Inner-switch or sledge motor problem.
Jump-offtrack error
Triggered in normal play when the jump destination could not be found within a certain time.
When this error occurred, software will try to recover by initiating the jump command again.
If it is recoverable, the disc will continue to play.
Subcode Error
Triggered when a new subcode was missing for a certain time during play.
PLL Error
The Phase Lock Loop could not lock within a certain time.
Turntable Motor Error
Generated when the CD could not reached 75% of speed during startup within a certain time.
Discmotor problem.
Focus Search Error
The focus point has not been found within a certain time.
This happens when the carousel switch is defective and closed all the time, or when the
carousel is blocked when it is located exactly at a disc position.
This happens when the carousel switch is defective and does not closed electrically, or when
the carousel is blocked in between two disc positions. The time-out is approximately 5 Sec.
The drawer could not open or enter the inside position and is opening again. This happen when
the drawer is blocked and cannot go fully inside or when the drawer switch is defective and does
not close.
To start service test program
hold P& TAPE
depressed while
plugging in the mains cord
Display shows the
ROM version *
"S-Vyy"
(Main menu)
S refers to Service Mode.
V refers to Version.
yy refers to Software version number of µProcessor.
(Counting up from 01 to 99)
SERVICE TEST PROGRAM

4-1
BLOCK DIAGRAM
4-1

5-1
SET WIRING DIAGRAM
5-1

6-1
6-1
COMBI & FRONT BOARDS
TABLE OF CONTENTS
FTD Display pin connection .......................................... 6-1
Tape Adjustment & Mesurement ................................... 6-2
Tuner Adjustment Table ................................................. 6-2

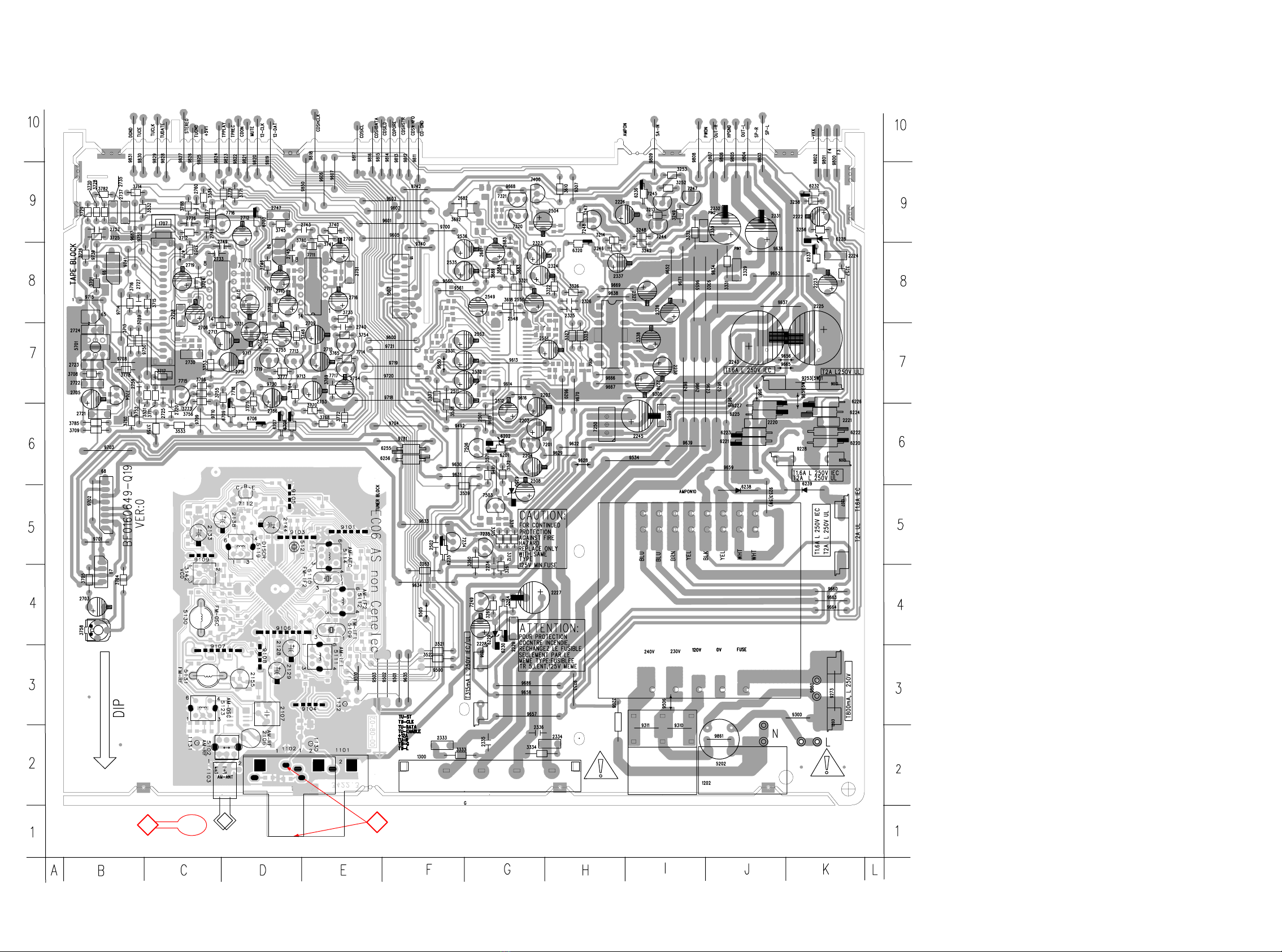

Combi part Component Layout ..................................... 6-3
Combi part SMD Layout ................................................ 6-4

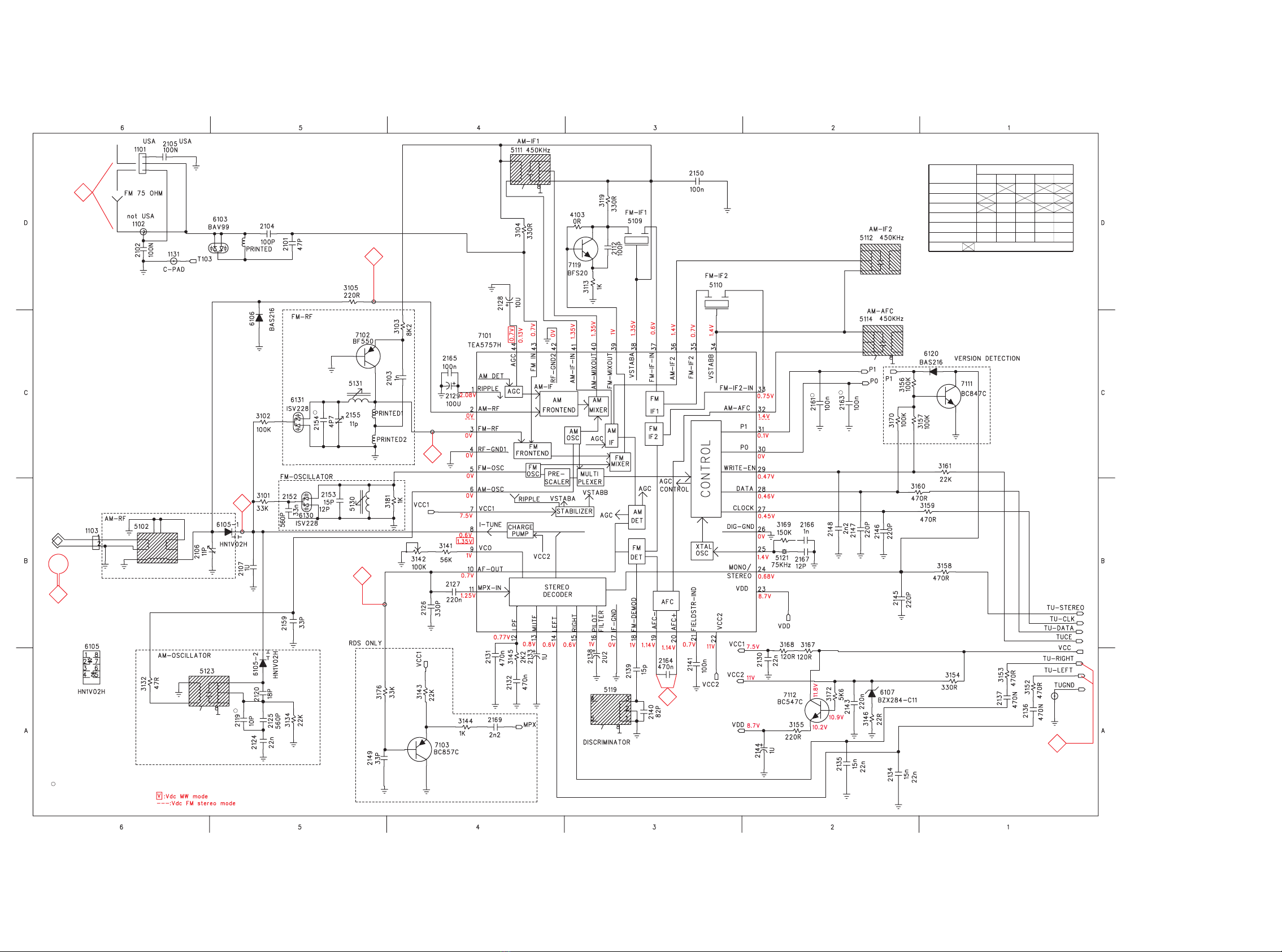

Tuner Circuit .................................................................. 6-5

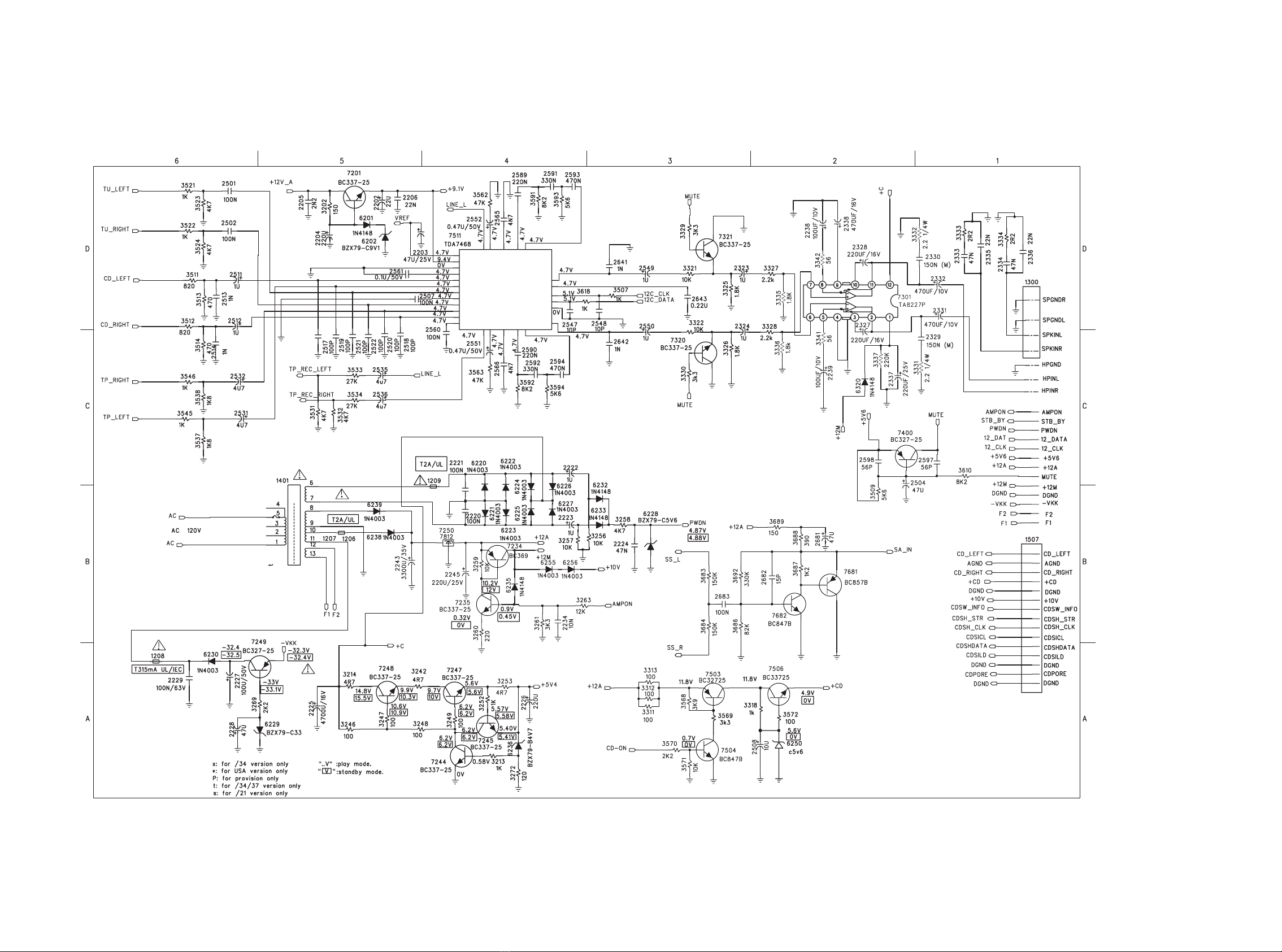

Supply & Power Amplifier Circuit................................... 6-6
Tape Circuit.................................................................... 6-7
Front Circuit ................................................................... 6-8
Front part SMD Layout .................................................. 6-9
Front part Component Layout ..................................... 6-10
TDA7468 & TMP87CN71 Internal Block diagram....... 6-11
Electrical parts list........................................................ 6-11
FTD DISPLAY PIN CONNECTIONS
FTD DISPLAY PIN NO.
FUNCTION
3
4
2
G
3
5
1
G
3
6
-
3
7
-
3
8
-
3
9
F
2
3
3
3
G
3
1
5
G
3
0
6
G
2
9
7
G
2
8
8
G
3
2
4
G
2
6
10
G
2
5
11
G
2
4
12
G
2
3
-
2
7
9
G
2
2
-
2
1
-
2
0
P
1
1
9
P
2
1
8
P
3
1
7
P
4
1
6
P
5
1
4
P
7
1
3
P
8
1
2
P
9
1
1
P
10
1
5
P
6
1
0
P
11
9
P
12
8
P
13
7
P
14
6
P
15
5
P
16
4
-
3
-
2
-
1
F
1
4G
a
h
j , p
k
b
f
m
g
c
e
r
n
d
---
10G
-
6G
a
h
j , p
k
b
f
m
g
c
e
r
n
d
---
12G
B1
B2
B3
B4
B5
----
5G
a
h
j , p
k
b
f
m
g
c
e
r
n
d
---
3G
a
h
j , p
k
b
f
m
g
c
e
r
n
d
---
1G
7G
a
h
j , p
k
b
f
m
g
c
e
r
n
d
Col
Dp
-
8G
a
h
j , p
k
b
f
m
g
c
e
r
n
d
---
9G
a
h
j , p
k
b
f
m
g
c
e
r
n
d
---
11G
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
-
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
P16
2G
a
h
j , p
k
b
f
m
g
c
e
r
n
d
---
(Left)
(Middle)
(Right)
(Up)
(Low)
(1)
(2)
(3)
B5
B4
B1
B2
B3
B10
B9
B8
B7
B6
B5
B4
B3
B2
B1
B10
B9
B8
B7
B6
B13
B12
B11
B5
B4
B3
B2
B1
Col 1
(11G)
(12G)
a
k
h
fb
j
Dp
n
gm
p
ec
r
d
(2G - 9G)
1G 2G 10G
11G
8G 9G
3G 4G 5G 6G 7G
12G 11G

Playback
LEFT RIGHT mV-meter Check limits see fig.1
SBC420
(4822 397 30071)
CHECK
PLAYBACK
FREQUENCY RESPONSE
General
TEST
CASSETTE RECORDER
MODE MEASURE
ON READ ON ADJUST
with to
ADJUST
MOTOR SPEED
SBC420
(4822 397 30071)
3150Hz
PLAY
deck A or B
PLAY
deck A or B
or
LEFT RIGHT frequency
counter 3758
SBC420
(4822 397 30071)
3150Hz LEFT RIGHT
SBC420
(4822 397 30071)
10kHz LEFT RIGHT
PLAY deck A
W&F-meter check only
mV-meter
or
oscilloscope left hand screw max. output level
& left=right
CHECK
WOW & FLUTTER
ADJUST
AZIMUTH
3150Hz ±1%
≤0.4 % DIN or
≤0.35 % CCIR
figure. 1
f(Hz)
level(dB)
8dB
6dB
10k
4k
250
80
8dB
or
headphone socket
or
headphone socket
or
headphone socket
PLAY deck B
PLAY deck A
PLAY deck B
figure. 2
f(Hz)
level(dB)
6dB
10k
4k
250
100
8dB
(10dB HSD)
8dB
(10dB HSD)
adj. ECO MTF DD AS, 110399
11 12
or
11 12
11 12
or
11 12
Recording
mV-meter 5701
RECORDED
CASSETTE LEFT RIGHT
PLAY mV-meter check only limits see fig.2
FERRO
FERRO
RECORDED
CASSETTE LEFT RIGHT
PLAY THD-meter check only ≤5%
PRE-ADJUST
BIAS
Input signal: 3mV
100Hz, 250Hz, 1kHz,
10kHz
via or
CHECK
OVERALL
FREQUENCY RESPONSE
CHECK
DISTORTION
Input signal: 300mV
1kHz
via or
Remark: If high frequencies are not within lower limit, decrease bias and re-measure.
If distortion is too high increase bias and re-measure.
14Vrms
(40Vpp)
RECORD
RECORD
RECORD
FERRO 15
or
11 12
or
11 12
13 14
13 14
VARICAP ALIGNMENT
FM RF
FM IF
VCO
AM IF
AM RF
3)
108MHz
87.5MHz
(65.81MHz)
87.5MHz
(65.81MHz)
87.5MHz
(65.81MHz)
279kHz
153kHz
1602kHz
531kHz
5130
check
5122
check
5123
check
8V ±0.2V
4.3V ±0.5V
(1.2V ±0.5V)
8V ±0.2V
1.1V ±0.4V
8V ±0.2V
1.1V ±0.4V
1494kHz
558kHz
560kHz 5102
1500kHz
5103198kHz
1494kHz
558kHz
560kHz
1500kHz
198kHz
2106
5102
2106
3142 152kHz ±1kHz
1)
98MHz
5112
MAX
FM
87.5 - 108MHz
(65.81 - 74, 87.5 - 108MHz)
LW
153 - 279kHz
MW
FM/MW/LW- version, 9kHz grid
531 - 1602kHz
1700kHz
530kHz 5123
check 8V ±0.2V
1.1V ±0.4V
1602kHz
531kHz 5123
check 6.9V ±0.2V
1.1V ±0.4V
108MHz 108MHz 2155
5131
MW
FM/AM-version, 10kHz grid
530 - 1700kHz
FM
MW
LW
98MHz, 1mV
continuous wave
450kHz
connect pin 6 of
IC 7101 (AM Osc.)
with 3.3kΩto Vcc
Use Service Testprogram. By selecting the TUNER TEST test frequencies will be stored as preset frequencies automatically.
4
1
3
5
5
A
A
5119FM 10.7MHz, 45mV
continuous wave
2D
mod=1kHz
∆f=±22.5kHz
1)
If sensitivity of frequency counter is too low adjust to max. channel separation
(input signal: stereo left 90% + 9%, adjust output on right channel to minimum)
Repeat
ECO6, Sys + PA with frame aerial, 070799
TUNER ADJUSTMENT TABLE
( ECO6 FM/MW- and FM/MW/LW - versions with AM-frame aerial )
∆f=±10kHz
V
RF
= 0.5mV
C
see
remark 2)
220R
100nF
36
IC 7101
220R
100nF
40
IC 7101
2141
shortcircuit
to block AFC
21
IC 7101
max.
symmetric
f
o
AM AFC
MW
C
continuous wave
V
RF
= 2mV
5111
5114
2
0 ±2 mV DC
0 ±3 mV DC
MW
4)
FM/MW/LW- and FM/MW-version
( 9kHz grid)
531 - 1602kHz
B
∆f = ±30kHz
V
RF
as low as
possible
max.
symmetric
f
o
MW
FM/AM-version, 10kHz grid
530 - 1700kHz
3)
For AM RF adjustments the original frame antenna has to be used !
2)
RC network serves for damping the IF-filter while adjusting the other one.
4)
MW has to be aligned before LW.
Waverange Input frequency Input Tuned to Adjust Output Scope/Voltmeter
FM
87.5 - 108MHz
(65.81 - 74, 87.5 - 108MHz)
FM/MW-version, 9kHz grid
531 - 1602kHz
(as low as
possible)

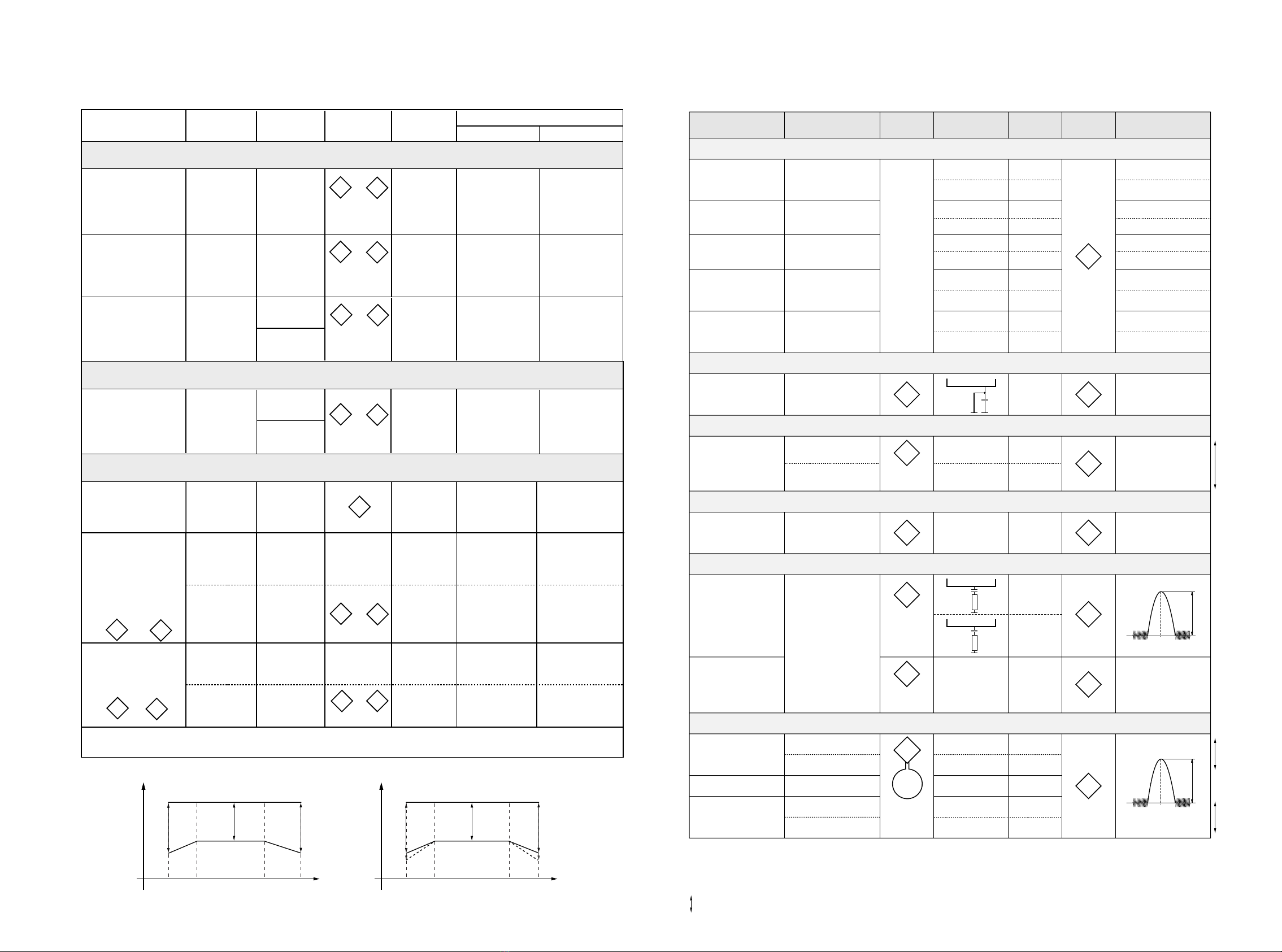

TAPEADJUSTMENTS &MEASUREMENT
6-2 6-2

6-3 6-3
B
AM FRAME
AERIAL
A
1B82521 F7 3248 I9 3755 D7 9103 D5 9816 E9
2B72522 H7 3249 I9 3756 C7 9104 E3 9817 E9
65 B8 2531 F7 3252 I9 3757 C9 9105 D5 9818 E9
66 B8 2532 F7 3253 I9 3758 B4 9106 D4 9819 D9
67 B5 2535 F8 3256 K9 3759 C6 9107 C3 9820 D9
68 B5 2536 F8 3257 K8 3760 B6 9108 D3 9821 D9
69 D8 2547 G8 3258 K9 3764 D7 9109 C5 9822 D9
1101 E2 2548 G8 3259 C5 3765 E7 9253(5W) J
6
9823 D9
1102 D2 2549 G8 3260 G5 3766 C7 9253(5W)
1
K7 9824 C9
1103 C2 2550 G8 3261 G4 3767 D8 9300 K3 9825 C9
1202 I2 2551 G7 3263 F4 3768 E6 9302 J
8
9826 C9
1203 K2 2552 F7 3264 G4 3769 E7 9305 I7 9827 C9
1206 K7 2560 H7 3269 G4 3770 E6 9307 H9 9828 C9
1207 K5 2561 G7 3272 I9 3771 D9 9310 I2 9829 C9
1208 G3 2565 F7 3311 G5 3772 E6 9311 I2 9830 C9
1209 K6 2566 H7 3312 G5 3773 C7 9491 G5 9831 B9
1300 G2 2589 F8 3313 G5 3774 D6 9492 G6 9834 J
8
1507 F8 2590 H7 3318 G5 3775 D7 9500 F3 9850 E9
1707 C8 2591 F7 3321 G8 3776 D7 9501 F3 9851(5W) K7
2101 D3 2592 H8 3322 H8 3777 D7 9502 F3 9861 J
2
2102 D2 2593 F8 3325 H8 3778 B7 9503 E3 27261 C9
2103 C3 2594 H7 3326 H8 3779 D9 9505 F4 27331 C8
2104 E3 2597 G9 3327 H8 3780 E8 9506 I3 27491 C8
2105 D2 2598 H9 3328 H8 3781 C7 9510 E3 AM-ANT C2
2106 D2 2599 I6 3329 G9 3782 B9 9534 H6 AMPON10
2107 D3 2641 F8 3330 G9 3785 B6 9560 F8
2112 E4 2642 G7 3331 J
8
3787 B7 9561 F8
2119 C3 2643 G7 3332 I8 3788 C9 9600 E7
2120 C3 2681 G8 3333 F2 3789 B7 9601 F9
2124 C2 2682 G9 3334 G2 4103 E4 9602 F9
2125 C2 2683 G8 3335 H7 4106 D3 9603 F9
2126 C5 2703 B4 3336 H7 4107 D4 9605 F9
2127 D4 2704 D7 3337 H8 4108 D4 9606 E9
2128 D3 2705 B7 3341 I7 4711 C8 9607 E10
2129 D3 2706 C7 3342 I7 5102 C2 9613 G7
2130 C4 2708 E8 3507 F8 5109 E4 9614 G7
2131 D4 2709 E7 3509 H9 5110 E4 9615 G6
2132 C5 2710 E7 3511 F7 5111 E3 9616 G7
2133 C5 2711 D8 3512 F7 5112 E4 9620 H7
2134 C5 2712 D8 3513 G6 5114 E5 9622 H6
2135 C5 2713 C7 3514 F7 5119 D5 9623 J
7
2136 E4 2714 C7 3521 F3 5121 D5 9624 I7
2137 E4 2715 D8 3522 F3 5123 C3 9625 J
7
2138 C5 2716 E8 3523 F4 5130 C4 9626 J
7
2139 D5 2718 D8 3524 F4 5131 C3 9628 H6
2140 D5 2719 C8 3531 C6 5202 J
2
9629 H6
2141 D5 2720 C6 3532 B9 5701 B7 9630 G6
2143 D5 2721 B6 3533 C6 6103 D3 9631 G6
2144 D5 2722 B7 3534 C9 6105 D3 9633 F5
2145 E4 2723 B7 3537 F7 6106 D2 9634 F4
2146 E5 2724 B7 3538 F7 6107 D5 9635 F3
2147 E4 2725 C6 3539 F5 6120 E4 9636 K8
2148 E5 2726 C9 3545 F7 6130 C4 9637 J
8
2149 C5 2727 B8 3546 E7 6131 D3 9638 H8
2150 E4 2728 C8 3562 F7 6201 G6 9639 I6
2152 D4 2730 C7 3563 H7 6202 G8 9650 F7
2153 D4 2731 C8 3568 G5 6220 K6 9652 I8
2154 D4 2732 C7 3569 G5 6221 J
6
9653 K8
2155 D3 2733 C8 3571 G6 6222 K6 9655 I8
2159 D4 2735 B9 3572 G6 6223 J
6
9656 J
7
2161 E5 2737 B9 3591 F7 6224 K6 9657 H3
2163 E5 2738 D8 3592 H8 6225 J
6
9658 H3
2164 D5 2740 E7 3593 F8 6226 K7 9659 J
6
2165 D4 2741 E7 3594 G8 6227 J
6
9660 K4
2166 D5 2743 E9 3610 H9 6228 K9 9661 J
7
2167 D5 2744 E7 3618 G8 6229 G4 9662 I7
2169 E3 2745 D8 3683 G8 6230 G4 9663 K4
2202 G6 2747 D9 3684 G8 6232 K9 9664 K4
2203 G6 2748 C9 3686 G8 6233 K8 9665 J
7
2204 G6 2749 D8 3687 G9 6235 F5 9666 H7
2205 G6 2751 E8 3688 G8 6236 I9 9667 H7
2206 G6 2752 E9 3689 G8 6238 J
5
9668 G9
2220 J
6
2753 E7 3692 F9 6239 K5 9669 H8
2221 K6 2754 D7 3710 B8 6250 G6 9670 H6
2222 K9 2755 D7 3704 B4 6255 F6 9671 I8
2223 K8 2756 D7 3705 B4 6256 F6 9686 H3
2224 K8 2759 B7 3706 B7 6320 H9 9687 B8
2225 K7 2760 C9 3707 B6 6730 D9 9700 F9
2226 H9 2761 C8 3708 B7 6706 D6 9701 B5
2227 G4 2762 D8 3709 B6 6707 D6 9702 B6
2228 G4 3101 C4 3711 C6 6708 D6 9703 B6
2229 G4 3102 D3 3712 C9 6709 D6 9704 E6
2234 G5 3103 D3 3713 B7 7101 D4 9708 B7
2238 I7 3104 E3 3714 B9 7102 C3 9709 C6
2239 I7 3105 D3 3715 C8 7103 C5 9710 C6
2243 J
7
3113 E4 3716 B8 7111 E4 9713 E7
2245 I6 3119 E4 3717 C7 7112 D5 9714 B8
2321 G9 3132 C4 3718 C8 7119 E4 9715 B8
2322 G9 3134 C3 3719 C9 7201 G6 9717 D7
2323 G8 3141 D4 3720 C7 7234 F5 9718 E7
2324 G8 3142 C4 3721 C8 7235 G5 9719 F7
2325 H8 3144 E5 3722 C8 7244 I9 9720 E7
2326 H8 3145 D4 3724 C8 7245 I9 9721 E7
2327 I8 3146 D5 3725 B9 7247 I9 9730 D7
2328 I8 3152 E3 3726 B8 7248 H9 9739 B8
2329 J
8
3153 E3 3727 B9 7249 G4 9740 F8
2330 I9 3154 D5 3728 B9 7250 H6 9741 B8
2331 J
9
3155 D5 3729 B9 7301 H7 9742 F9
2332 J
9
3156 E5 3730 B9 7320 G9 9750 C7
2333 F2 3157 E5 3731 D7 7321 G9 9751 B8
2334 H2 3158 E3 3733 E8 7400 G9 9752 B6
2335 G2 3159 E4 3734 E8 7503 G5 9753 H3
2336 G2 3160 E4 3736 D8 7504 G5 9781 F6
2337 H8 3161 E4 3737 E8 7506 G6 9800 K9
2338 I7 3167 E5 3738 E8 7511 G7 9801 K9
2501 G6 3168 D6 3740 E9 7681 G9 9802 K9
2502 F5 3169 D5 3741 E9 7682 G9 9803 J
9
2504 G9 3170 E5 3742 D8 7704 B7 9804 J
9
2507 G7 3172 D5 3743 D8 7711 E8 9805 J
9
2508 G5 3176 C5 3745 I9 7712 D8 9806 J
9
2511 F7 3181 C4 3746 D8 7713 D7 9807 J
9
2512 G6 3202 G6 3747 D8 7714 E7 9808 I9
2513 G6 3208 H3 3748 D7 7715 C7 9809 I9
2514 F6 3213 I9 3749 D8 7716 D9 9811 F9
2517 G7 3214 H9 3750 D8 7717 E7 9812 F9
2518 H7 3242 I8 3752 C9 7718 D7 9813 F9
2519 F7 3246 I8 3753 C7 7719 D7 9814 F9
2520 H7 3247 H9 3754 E7 9101 E5 9815 F9
I5
COMBI PART - COMPONENT LAYOUT

COMBI PART - SMD LAYOUT
6-4 6-4
A
D
1
C
5
3
4
2
11 12
13
14
15
1B82521 F7 3248 I9 3755 D7 9103 D5 9816 E9
2B72522 H7 3249 I9 3756 C7 9104 E3 9817 E9
65 B8 2531 F7 3252 I9 3757 C9 9105 D5 9818 E9
66 B8 2532 F7 3253 I9 3758 B4 9106 D4 9819 D9
67 B5 2535 F8 3256 K9 3759 C6 9107 C3 9820 D9
68 B5 2536 F8 3257 K8 3760 B6 9108 D3 9821 D9
69 D8 2547 G8 3258 K9 3764 D7 9109 C5 9822 D9
1101 E2 2548 G8 3259 C5 3765 E7 9253(5W) J
6
9823 D9
1102 D2 2549 G8 3260 G5 3766 C7 9253(5W)
1
K7 9824 C9
1103 C2 2550 G8 3261 G4 3767 D8 9300 K3 9825 C9
1202 I2 2551 G7 3263 F4 3768 E6 9302 J
8
9826 C9
1203 K2 2552 F7 3264 G4 3769 E7 9305 I7 9827 C9
1206 K7 2560 H7 3269 G4 3770 E6 9307 H9 9828 C9
1207 K5 2561 G7 3272 I9 3771 D9 9310 I2 9829 C9
1208 G3 2565 F7 3311 G5 3772 E6 9311 I2 9830 C9
1209 K6 2566 H7 3312 G5 3773 C7 9491 G5 9831 B9
1300 G2 2589 F8 3313 G5 3774 D6 9492 G6 9834 J
8
1507 F8 2590 H7 3318 G5 3775 D7 9500 F3 9850 E9
1707 C8 2591 F7 3321 G8 3776 D7 9501 F3 9851(5W) K7
2101 D3 2592 H8 3322 H8 3777 D7 9502 F3 9861 J
2
2102 D2 2593 F8 3325 H8 3778 B7 9503 E3 27261 C9
2103 C3 2594 H7 3326 H8 3779 D9 9505 F4 27331 C8
2104 E3 2597 G9 3327 H8 3780 E8 9506 I3 27491 C8
2105 D2 2598 H9 3328 H8 3781 C7 9510 E3 AM-ANT C2
2106 D2 2599 I6 3329 G9 3782 B9 9534 H6 AMPON10
2107 D3 2641 F8 3330 G9 3785 B6 9560 F8
2112 E4 2642 G7 3331 J
8
3787 B7 9561 F8
2119 C3 2643 G7 3332 I8 3788 C9 9600 E7
2120 C3 2681 G8 3333 F2 3789 B7 9601 F9
2124 C2 2682 G9 3334 G2 4103 E4 9602 F9
2125 C2 2683 G8 3335 H7 4106 D3 9603 F9
2126 C5 2703 B4 3336 H7 4107 D4 9605 F9
2127 D4 2704 D7 3337 H8 4108 D4 9606 E9
2128 D3 2705 B7 3341 I7 4711 C8 9607 E10
2129 D3 2706 C7 3342 I7 5102 C2 9613 G7
2130 C4 2708 E8 3507 F8 5109 E4 9614 G7
2131 D4 2709 E7 3509 H9 5110 E4 9615 G6
2132 C5 2710 E7 3511 F7 5111 E3 9616 G7
2133 C5 2711 D8 3512 F7 5112 E4 9620 H7
2134 C5 2712 D8 3513 G6 5114 E5 9622 H6
2135 C5 2713 C7 3514 F7 5119 D5 9623 J
7
2136 E4 2714 C7 3521 F3 5121 D5 9624 I7
2137 E4 2715 D8 3522 F3 5123 C3 9625 J
7
2138 C5 2716 E8 3523 F4 5130 C4 9626 J
7
2139 D5 2718 D8 3524 F4 5131 C3 9628 H6
2140 D5 2719 C8 3531 C6 5202 J
2
9629 H6
2141 D5 2720 C6 3532 B9 5701 B7 9630 G6
2143 D5 2721 B6 3533 C6 6103 D3 9631 G6
2144 D5 2722 B7 3534 C9 6105 D3 9633 F5
2145 E4 2723 B7 3537 F7 6106 D2 9634 F4
2146 E5 2724 B7 3538 F7 6107 D5 9635 F3
2147 E4 2725 C6 3539 F5 6120 E4 9636 K8
2148 E5 2726 C9 3545 F7 6130 C4 9637 J
8
2149 C5 2727 B8 3546 E7 6131 D3 9638 H8
2150 E4 2728 C8 3562 F7 6201 G6 9639 I6
2152 D4 2730 C7 3563 H7 6202 G8 9650 F7
2153 D4 2731 C8 3568 G5 6220 K6 9652 I8
2154 D4 2732 C7 3569 G5 6221 J
6
9653 K8
2155 D3 2733 C8 3571 G6 6222 K6 9655 I8
2159 D4 2735 B9 3572 G6 6223 J
6
9656 J
7
2161 E5 2737 B9 3591 F7 6224 K6 9657 H3
2163 E5 2738 D8 3592 H8 6225 J
6
9658 H3
2164 D5 2740 E7 3593 F8 6226 K7 9659 J
6
2165 D4 2741 E7 3594 G8 6227 J
6
9660 K4
2166 D5 2743 E9 3610 H9 6228 K9 9661 J
7
2167 D5 2744 E7 3618 G8 6229 G4 9662 I7
2169 E3 2745 D8 3683 G8 6230 G4 9663 K4
2202 G6 2747 D9 3684 G8 6232 K9 9664 K4
2203 G6 2748 C9 3686 G8 6233 K8 9665 J
7
2204 G6 2749 D8 3687 G9 6235 F5 9666 H7
2205 G6 2751 E8 3688 G8 6236 I9 9667 H7
2206 G6 2752 E9 3689 G8 6238 J
5
9668 G9
2220 J
6
2753 E7 3692 F9 6239 K5 9669 H8
2221 K6 2754 D7 3710 B8 6250 G6 9670 H6
2222 K9 2755 D7 3704 B4 6255 F6 9671 I8
2223 K8 2756 D7 3705 B4 6256 F6 9686 H3
2224 K8 2759 B7 3706 B7 6320 H9 9687 B8
2225 K7 2760 C9 3707 B6 6730 D9 9700 F9
2226 H9 2761 C8 3708 B7 6706 D6 9701 B5
2227 G4 2762 D8 3709 B6 6707 D6 9702 B6
2228 G4 3101 C4 3711 C6 6708 D6 9703 B6
2229 G4 3102 D3 3712 C9 6709 D6 9704 E6
2234 G5 3103 D3 3713 B7 7101 D4 9708 B7
2238 I7 3104 E3 3714 B9 7102 C3 9709 C6
2239 I7 3105 D3 3715 C8 7103 C5 9710 C6
2243 J
7
3113 E4 3716 B8 7111 E4 9713 E7
2245 I6 3119 E4 3717 C7 7112 D5 9714 B8
2321 G9 3132 C4 3718 C8 7119 E4 9715 B8
2322 G9 3134 C3 3719 C9 7201 G6 9717 D7
2323 G8 3141 D4 3720 C7 7234 F5 9718 E7
2324 G8 3142 C4 3721 C8 7235 G5 9719 F7
2325 H8 3144 E5 3722 C8 7244 I9 9720 E7
2326 H8 3145 D4 3724 C8 7245 I9 9721 E7
2327 I8 3146 D5 3725 B9 7247 I9 9730 D7
2328 I8 3152 E3 3726 B8 7248 H9 9739 B8
2329 J
8
3153 E3 3727 B9 7249 G4 9740 F8
2330 I9 3154 D5 3728 B9 7250 H6 9741 B8
2331 J
9
3155 D5 3729 B9 7301 H7 9742 F9
2332 J
9
3156 E5 3730 B9 7320 G9 9750 C7
2333 F2 3157 E5 3731 D7 7321 G9 9751 B8
2334 H2 3158 E3 3733 E8 7400 G9 9752 B6
2335 G2 3159 E4 3734 E8 7503 G5 9753 H3
2336 G2 3160 E4 3736 D8 7504 G5 9781 F6
2337 H8 3161 E4 3737 E8 7506 G6 9800 K9
2338 I7 3167 E5 3738 E8 7511 G7 9801 K9
2501 G6 3168 D6 3740 E9 7681 G9 9802 K9
2502 F5 3169 D5 3741 E9 7682 G9 9803 J
9
2504 G9 3170 E5 3742 D8 7704 B7 9804 J
9
2507 G7 3172 D5 3743 D8 7711 E8 9805 J
9
2508 G5 3176 C5 3745 I9 7712 D8 9806 J
9
2511 F7 3181 C4 3746 D8 7713 D7 9807 J
9
2512 G6 3202 G6 3747 D8 7714 E7 9808 I9
2513 G6 3208 H3 3748 D7 7715 C7 9809 I9
2514 F6 3213 I9 3749 D8 7716 D9 9811 F9
2517 G7 3214 H9 3750 D8 7717 E7 9812 F9
2518 H7 3242 I8 3752 C9 7718 D7 9813 F9
2519 F7 3246 I8 3753 C7 7719 D7 9814 F9
2520 H7 3247 H9 3754 E7 9101 E5 9815 F9
I5

6-5 6-5
TUNER CIRCUIT
1101 D6
1102 D6
1103 B6
1131 D6
2101 D5
2102 D6
2103 C4
2104 D5
2105 D6
2106 B6
2107 B5
2112 D3
2119 A5
2120 A5
2124 A5
2125 A5
2126 B4
2127 B4
2128 D4
2129 C4
2130 A2
2131 A4
2132 A4
2133 A4
2134 A2
2135 A2
2136 A1
2137 A1
2138 A3
2139 A3
2140 A3
2141 A3
2143 A2
2144 A2
2145 B2
2146 B2
2147 B2
2148 B2
2149 A5
2150 D3
2152 B5
2153 B5
2154 C5
2155 C5
2159 B5
2161 C2
2163 C2
2164 A3
2165 C4
2166 B2
2167 B2
2169 A4
3101 B5
3102 C5
3103 C4
3104 D4
3105 D5
3113 D3
3119 D3
3132 A6
3134 A5
3141 B4
3142 B4
3143 A4
3144 A4
3145 A4
3146 A2
3152 A1
3153 A1
3154 A1
3155 A2
3156 C2
3157 C1
3158 B1
3159 B1
3160 B1
3161 C1
3167 A2
3168 A2
3169 B2
3170 C2
3172 A2
3176 A5
3181 B4
4103 D3
5102 B6
5109 D3
5110 D3
5111 D4
5112 D2
5114 C2
5119 A3
5121 B2
5123 A5
5130 B5
5131 C5
6103 D5
6105-1 B5
6105-2 A5
6106 C5
6107 A2
6120 C1
6130 B5
6131 C5
7101 C4
7102 C5
7103 A4
7111 C1
7112 A2
7119 D3
5
7111
component mounted
/14 FM-OIRT/MW
6120 3170
/01 FM/MW
VERSION 3156
/17 FM/AM
3157
VERSION PROGRAMMING COMPONENTS
LEGEND
p ...for provision only
USA ... for USA version only
E-EU ... for East European version only
p
E-EU
E-EU
p
USA
USA
J ... for Japanese version only
J
J
J
J
p
p
A
B
C
D
1
1
4

6-6 6-6
SUPPLY & POWER AMPLIFIER CIRCUIT
1207 B5 3242 A5 6232 B4
1208 A6 3246 A5 6233 B3
1209 B4 3247 A5 6235 B4
1300 D1 3248 A5 6236 A4
1401 B5 3249 A4 6238 B5
1507 B1 3252 A4 6239 B5
2202 D5 3253 A4 6255 B4
2203 D5 3256 B3 6256 B4
2204 D5 3257 B4 6320 C2
2205 D5 3258 B3 7201 D5
2206 D5 3259 B4 7234 B4
2220 B4 3260 B4 7235 B4
2221 B3 3261 B4 7244 A4
2222 C4 3263 B4 7245 A4
2223 B4 3269 A5 7247 A4
2224 A6 3272 A4 7248 A5
2225 A5 3311 A3 7249 A5
2226 A4 3312 A3 7250 B4
2227 A6 3313 A3 7301 D2
2228 A6 3321 D3 7320 C3
2229 B4 3322 C3 7321 D3
2234 C1 3325 D3 7400 C2
2238 D2 3326 C3 7503 A3
2239 C2 3327 D2 7504 A3
2243 B5 3328 C2 7506 A2
2245 B4 3329 D3 7511 D4
2323 D3 3330 C3 7681 B2
2324 C3 3331 C1 7682 B2
2327 C2 3332 D1
2328 D2 3333 D1
2329 D1 3334 D1
2330 D1 3335 D2
2331 D1 3336 C2
2332 D1 3337 C2
2333 D1 3341 C2
2334 D1 3342 D2
2335 D1 3507 D3
2336 D1 3509 B2
2337 C2 3511 D6
2338 D2 3512 D6
2501 D6 3513 D6
2502 D6 3514 C6
2504 C2 3521 D6
2507 D5 3522 D6
2508 A2 3523 D6
2511 D6 3524 D6
2512 D6 3531 C5
2513 D6 3532 C5
2514 C6 3533 C5
2517 C5 3534 C5
2518 C5 3537 C6
2519 C5 3538 C6
2520 C5 3545 C6
2521 C5 3546 C6
2522 C5 3562 D4
2531 C6 3563 C4
2532 C6 3568 A3
2535 C5 3570 A3
2536 C5 3571 A3
2547 D4 3591 D4
2548 D3 3592 C4
2549 D3 3593 D4
2550 C3 3594 C4
2551 C4 3610 C1
2552 D4 3618 D4
2560 C4 3683 B3
2565 D4 3684 B3
2566 C4 3686 B3
2589 D4 3687 B2
2590 C4 3688 B2
2591 D4 3689 B2
2592 C4 3692 B3
2593 C4 6201 D5
2594 C4 6202 D5
2597 C1 6220 B4
2598 C2 6221 B4
2641 D3 6222 B4
2642 C3 6223 B4
2643 D3 6224 C4
2681 B2 6225 B4
2682 B2 6226 C4
2683 B3 6227 B4
3202 D5 6228 B3
3213 A4 6229 A5
3214 A5 6230 A6

6-7 6-7
TAPE CIRCUIT
1707-A C4
1707-B A5
1707-C A6
1707-D B6
1707-E B5
1707-F B4
2703 A2
2704 A5
2705 A3
2706 B6
2708 C6
2709 D5
2710 C5
2711 D6
2712 A6
2713 B5
2714 A5
2715 D5
2716 C5
2718 A5
2719 B5
2720 C3
2721 A3
2722 A3
2723 A3
2724 A4
2725 B5
2726 A4
2727 B5
2728 B4
2730 B5
2731 B5
2732 B5
2733 B6
2735 A4
2737 A5
2738 A5
2740 C5
2741 D5
2743 C6
2744 C5
2745 D6
2747 C5
2748 A5
2749 A6
2751 C5
2752 A5
2753 D4
2754 D4
2755 C3
2756 C3
2759 C6
2760 C6
2761 B5
2762 A5
3701 A4
3704 B2
3705 A2
3706 A5
3707 A3
3708 A3
3709 B3
3711 B5
3712 A4
3713 C6
3714 C6
3715 B5
3716 B5
3717 B5
3718 B5
3719 B5
3720 B5
3721 B5
3722 B6
3724 B6
3725 A5
3726 A5
3727 A4
3728 A4
3729 A5
3730 A5
3731 B5
3733 C5
3734 C5
3736 D5
3737 C5
3738 C6
3740 C6
3741 B6
3742 D5
3743 D6
3745 D5
3746 C6
3747 D5
3748 D5
3749 A5
3750 A6
3750 A6
3752 A6
3753 B5
3754 D5
3755 D5
3756 D5
3757 C5
3758 B2
3759 B3
3760 B3
3764 D4
3765 D4
3766 C4
3767 C4
3768 D4
3769 D4
3770 D3
3771 B2
3772 B3
3773 D3
3774 C3
3775 C3
3776 C2
3777 C2
3778 B3
3779 B3
3780 D5
3781 B5
3782 A5
3785 B3
3787 A3
3788 C6
3789 C6
5701 A4
6703 A5
6706 B3
6707 C3
6708 C2
6709 C3
7704 A3
7711-A A6
7711-B B6
7712-A B6
7712-B A6
7713 D4
7714 D4
7715 C4
7716 C4
7717 D4
7718 C3
7719 C2
15
12
13
11
14
Other Philips Stereo System manuals

Philips
Philips MC-I250/21M User manual

Philips
Philips FW-C90 User manual

Philips
Philips FWD 792 User manual

Philips
Philips FW-C85/02 User manual

Philips
Philips MC-220 User manual

Philips
Philips 6916360PH User manual

Philips
Philips FW-C115/22 User manual

Philips
Philips FWM998X/78 User manual

Philips
Philips FWM654X/77 User manual

Philips
Philips FWM210/78 User manual

Philips
Philips FWD182/79 Operating manual

Philips
Philips MCB275 User manual

Philips
Philips FW 80 User manual

Philips
Philips FW-M355 User manual

Philips
Philips FW768P User manual

Philips
Philips FW365C/22G User manual

Philips
Philips FWD831/05 User manual

Philips
Philips FWM593/55 User manual

Philips
Philips MC230/25 User manual

Philips
Philips MC-M570 User manual
