Philips 22HFL30x7x/10 series User manual

Philips Hospitality TV
Installation Manual for
22HFL30x7x/10
26HFL30x7x/10
32HFL30x7x/10
42HFL30x7x/10
Version 1.1

1
Contents
1. Requirements before starting the installation.......................................................................................................... 2
2. Find out the state of the TV ...................................................................................................................................... 3
3. Re-install TV .............................................................................................................................................................. 4
4. Installation wizard..................................................................................................................................................... 6
5. Channel options ...................................................................................................................................................... 13
a. Reordering channels ...........................................................................................................................................13
b. Rename channels................................................................................................................................................15
c. Hide channels...................................................................................................................................................... 15
6. Professional Settings........................................................................................................................................... 16
7. Welcome Logo ........................................................................................................................................................ 26
7.1 Hotel Information.................................................................................................................................................... 26
8. Clone ....................................................................................................................................................................... 27
9. Feature settings.......................................................................................................................................................28
10. CSM (Consumer Setup menu) ................................................................................................................................. 29

2
1. Requirements before starting the installation

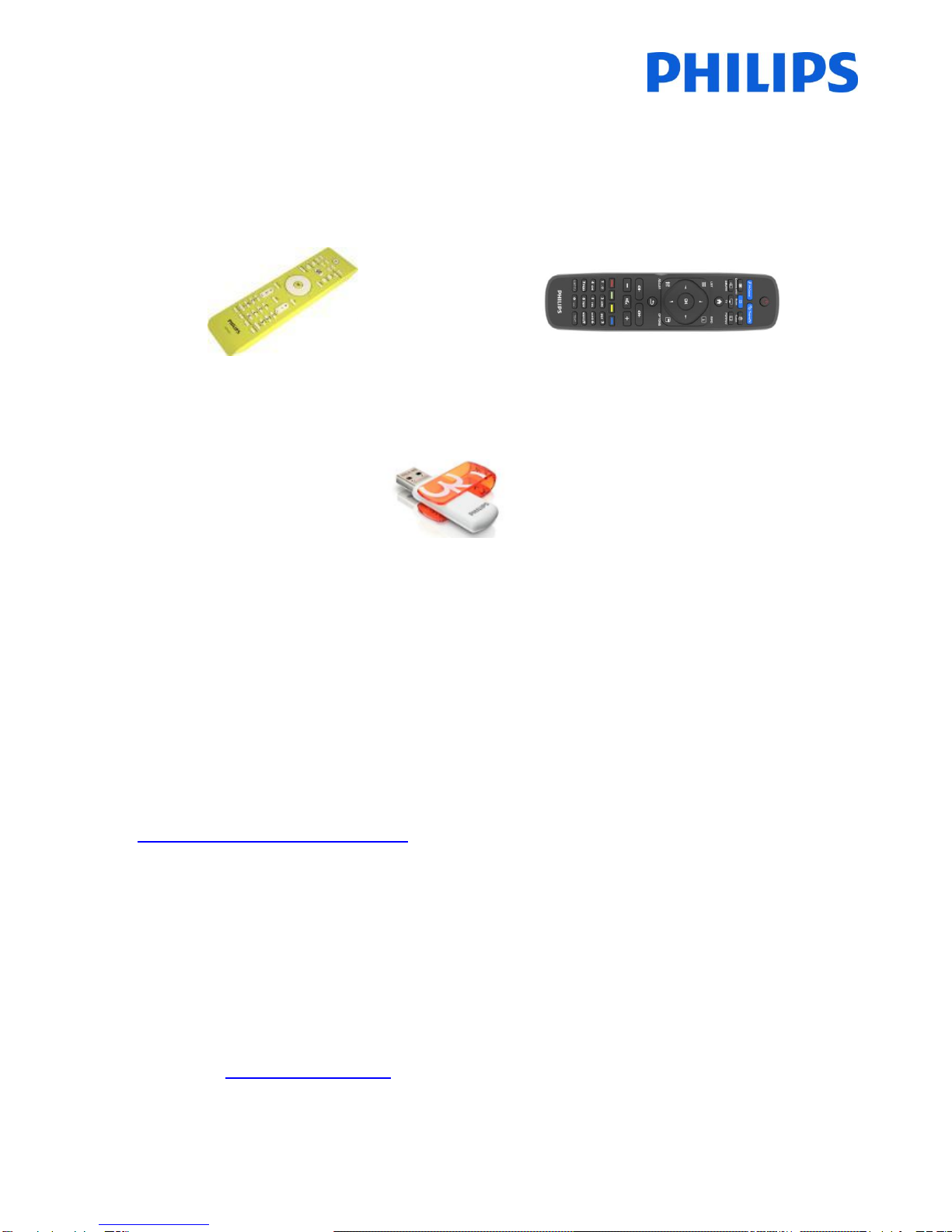

Before starting the installation, make sure that you have everything you need at hand.
Master remote control 22AV8573 or Guest remote control 22AV1108A
And
USB stick
You will need the master remote control or the guest remote control to access the menus.
To access the setup menu press the ‘RC5 SETUP’ key, and then press the ‘Home/Menu’ button.
For the guest remote control, press the following keys sequential: 3,1,9,7,5,3, ‘MUTE’.
Note: The sequence: 3,1,9,7,5,3, ‘MUTE’ will not show the Setup Menu if High Security Menu is enabled. For
cloning settings from one TV to another TV, you will need to have a USB stick. This stick needs to be
formatted as FAT32 and should be empty.
For the best guest experience check if the software version on the TV is the latest one. This can be done using the
Master Remote control by pressing Recall Button and checking on page 2.1 - Current Main Software’. This also can
be done with the Guest Remote by pressing 1,2,3,6,5,4.
Go to: http://www.support.philips.com/support
Enter the model number and check to confirm you have the latest version available.
Confirm the software version present on TV is identical with the one from website. If not please download the latest
version from website, unzip and save on to a USB key The USB key must be formatted as FAT32 and preferably
empty to avoid and accidental upload of wrong setting and software. Follow the instruction how to upgrade the
software.
If the software version from your TV is identical with the one available on website it is not necessary to upgrade.
If an upgrade is necessary you can upgrade and clone files at the same time automatically. (Upgrade -> Automatic
Reboot -> Clone) --- See Instant Initial Cloning
Initial instant cloning option can only be used if you reinstall TV or TV is out the box.

3
2. Find out the state of the TV
It is important to know if a TV is in ‘virgin mode’ (out of the box) or installed before.
If you can see this screen below, you know that the TV is in ‘virgin mode’ and you can install the set. See chapter 4 of
this manual.
If you power on the set and then press the ‘Home’ button on the guest remote, you will see this screen appear, if the
TV already has been installed or the wizard was already skipped.
Professional Settings ON Professional Settings OFF
You can start the installation wizard again by reinstalling the TV as explained in chapter 3 of this manual.
Disable the Professional Settings
Access the setup menu press the ‘RC5 SETUP’ key, and then press the ‘Home/Menu’ button. (For the guest remote
control, press the following keys in sequence: 3,1,9,7,5,3, ‘MUTE’).
Go to, Professional Mode and select the OFF option and confirm with “OK”. Go back with the arrow keys and select
Store settings. Do confirm with “OK”. After restart the TV will have the PBS mode set to OFF.
Note: All settings can be done without disabling the Professional Mode, but all settings from ‘Professional Settings’ which were not saved will
discarded during the transition to Consumer Mode.

4
3. Re-install TV
If you want to start an installation from scratch you can always re-install the TV. This can be done by using the
option: Re-install TV set.
If Professional mode is active you can access the setup menu by pressing the ‘RC5 SETUP’ key, and then press the
‘Home/Menu’ button (For the guest remote control, press the following keys in sequence: 3,1,9,7,5,3, ‘MUTE’) , then
go to TV Setup, confirm with “OK”. This menu will appear:
If the Professional mode is disabled, you can access the Setup menu with the guest remote control.
Select “Setup” and press “OK”
Select the option TV settings for this menu

5
Press “OK” to access the sub-menu, navigate to “Reinstall TV”.
Press “OK” to reinstall TV set.
If all is correct select “Start now” and press “OK”.
After this operation the TV will power off and on and display the installation wizard.
Note: All settings are at default values and no channel plan is available.

6
4. Installation wizard
When you turn on the TV for the first time, or you have reinstalled the TV, you should see the following screen.
Here you will need to select your preferred language. Please select with Up and Down arrow keys and confirm with
‘OK’ or press the Left arrow key.
After this, you will need to select the country. Depending on the country selection, some pre-defined settings will be
activated, because of local broadcast requirements. Example: digital/analog channels could be disabled; reordering
and deleting channels can in some cases not be possible.
Note: If you are experiencing some issues after selecting your country, please select ‘Others’ in the menu.
The next step is to select ‘Wall mounted’ or ‘On a TV stand’. This option changes some settings for the audio and
image of the TV.

7
The next step is to choose between ‘Shop’ and Home’ use.
If you select “SHOP” an ‘e-sticker’ banner will be displayed on the TV. This is for commercial purpose only.
Now you can select the visual and hearing impaired options. If you select ‘On’, your TV will automatically turn on
settings to help visual and hearing impaired people. THE MOST COMMON OPTION IS TO TURN THIS FUNCTION OFF.
On the following page we can start the channel installation wizard. You can also press “Back”to correct any previous
setting. We recommend you only select your preferred options as this will result in longer installation times.

8
For the channel installations, select ‘Install TV channels’ and press ‘OK’
Then you can select ‘Continue’ and press ‘OK’ again.
Here you can select the type of channels you would like to install and what preference you will use.

9
It is advisable to check the settings before starting the search.
The “Frequency scan”contains two options:
-“Quick”: this is a fast method to search channels but it might skip some channels (depending on the
network).
-“Full”: the scan will search on all frequencies and will store all channels available. This is the safe method if
you don’t know the network parameters, but it takes more time.
-Advanced: If you know the network parameters like Network ID, Network Frequency, you can use this
option, otherwise the safe option is tu use the Full option.
-

10

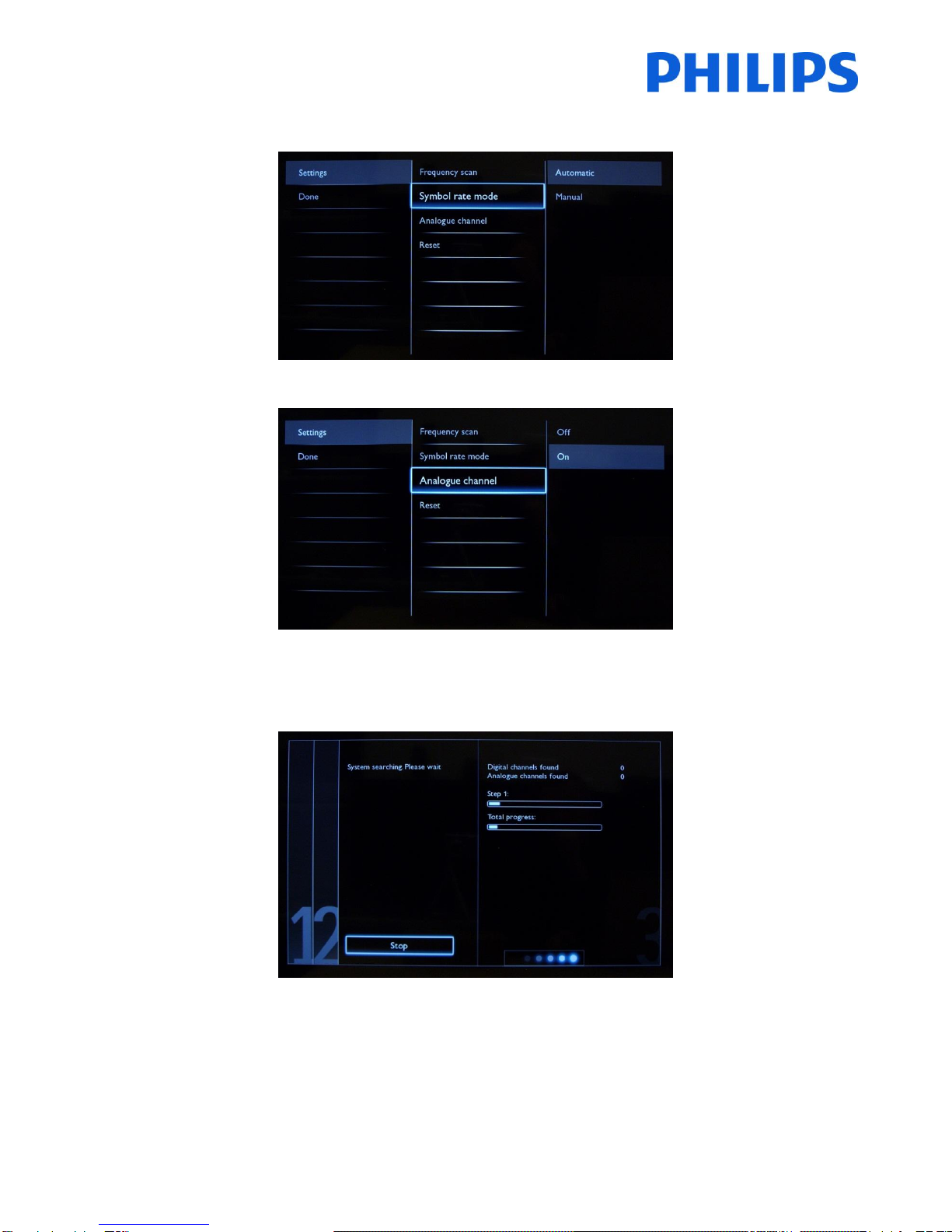

The Symbol Rate options are: Automatic and Manual. If you do not know the correct values for this option, please
use the Automatic option.
Analogue channel: If you don’t have or you don’t want to install analogue channels, you can disable the search for
this type of channels.
The “Reset” option will reset the search settings to default. After you have checked or changed settings, you can
select “Done” and select “Start” to start the channel search.
During the channel search you can see the progress bar and how many channels are found at that time.
When the search is done, you should see “Channel search complete”and a summary of the channels found.
Press “OK”button on remote control to finish the search.

11

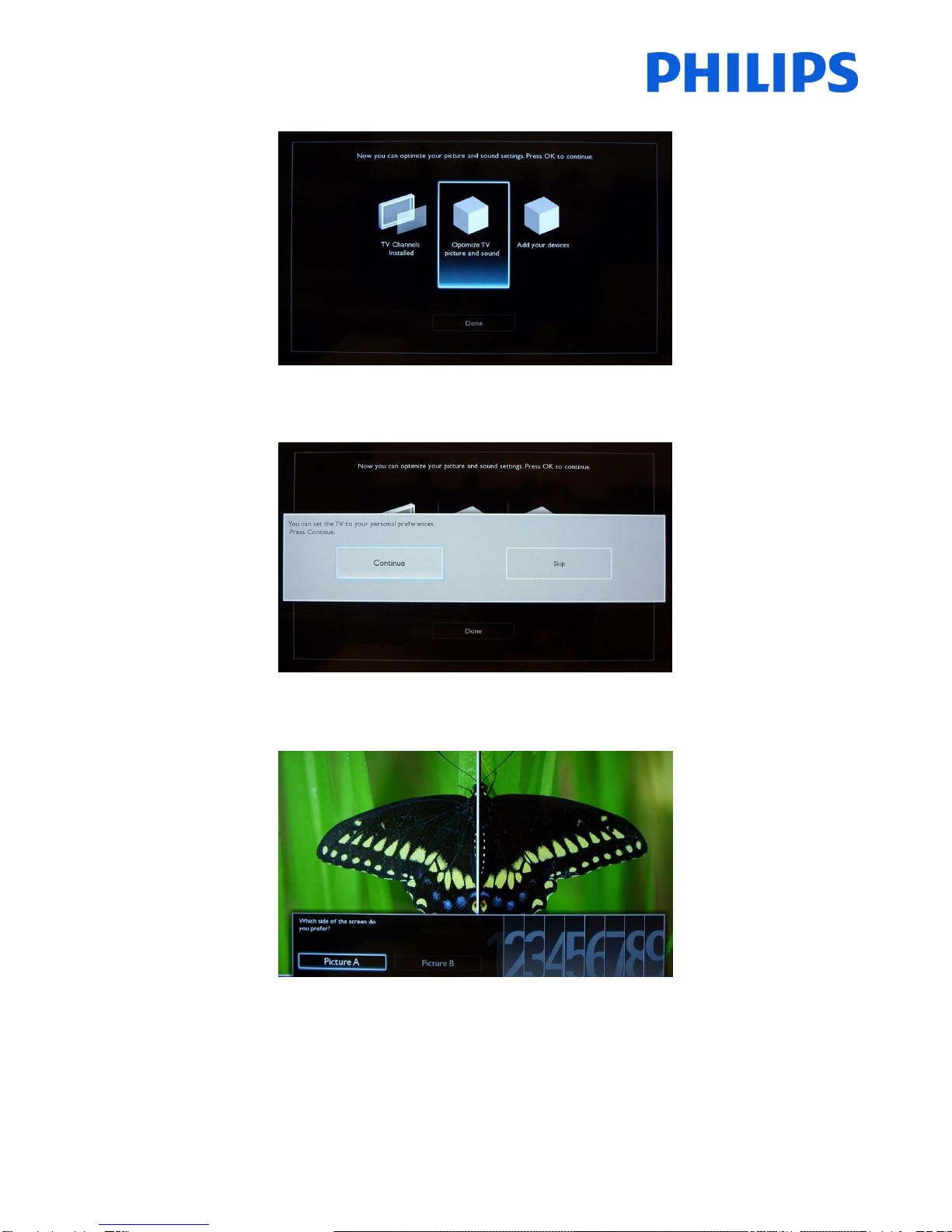

If you would like to change the picture and sound settings, you can go to “Optimize TV picture and sound”and press
the “OK”button on remote control.
A wizard will start to guide you through the process of setting the sound and picture on the TV set.
Select “Continue”to start the wizard and press the “OK”on remote control.
The wizard will ask you some questions about which image you prefer, select the option you desire and press “OK”
on the remote control.
Once this wizard is done, you will return to the installation menu again. The last option in this menu is “Add your
devices”. This can be done if you would like to add a DVD player or STB.
When you are done with this, select “Done” and press ‘OK’ on the remote control.

12
After pressing “Done”you have completed the installation of the TV and you should see this screen. Press “OK” on
the remote control to exit this wizard.
Note: This wizard will not be available anymore when you start the TV the next time.
The only way to re-use this wizard is to reinstall the TV set.

13
5. Channel options
a. Reordering channels
To reorder TV channels you need the channel plan from the Professional Settings menu. In the consumer menu you
cannot rearrange channels. The Professional Settings menu can be accessed by using the Yellow remote (RC
22AV8573 Master Remote control) and pressing the MENU Button or with the TV remote press 3,1,9,7,5,3, MUTE).
The Professional Settings menu will appear like in the picture below. Go to the “Channel setup” option and press
“OK” to access the submenu.
The warning message which informs you that “all unsaved changes will be discarded” will popup. Select ‘Yes’ and
press the “OK”to confirm.
The channel grid will contain all installed channels.
With the channel grid displayed, press the “OPTION” button on the remote control to display settings for channels.

14
Select “Reorder” and Press the “OK” button on the remote control to reorder channels.
Navigate to the channel that you want to move and press “OK” on the remote control to select that channel.
The arrows around the channel indicate that the channel is selected and can be moved. Use the arrow keys to move
the channel to the new position. When you have reached the new position press “OK” on the remote control to
confirm the new position of the channels.
Once you finished with the reordering, press “Options” on the remote control again. Press “OK” on the remote
control to confirm that you are done with the re-ordering.

15

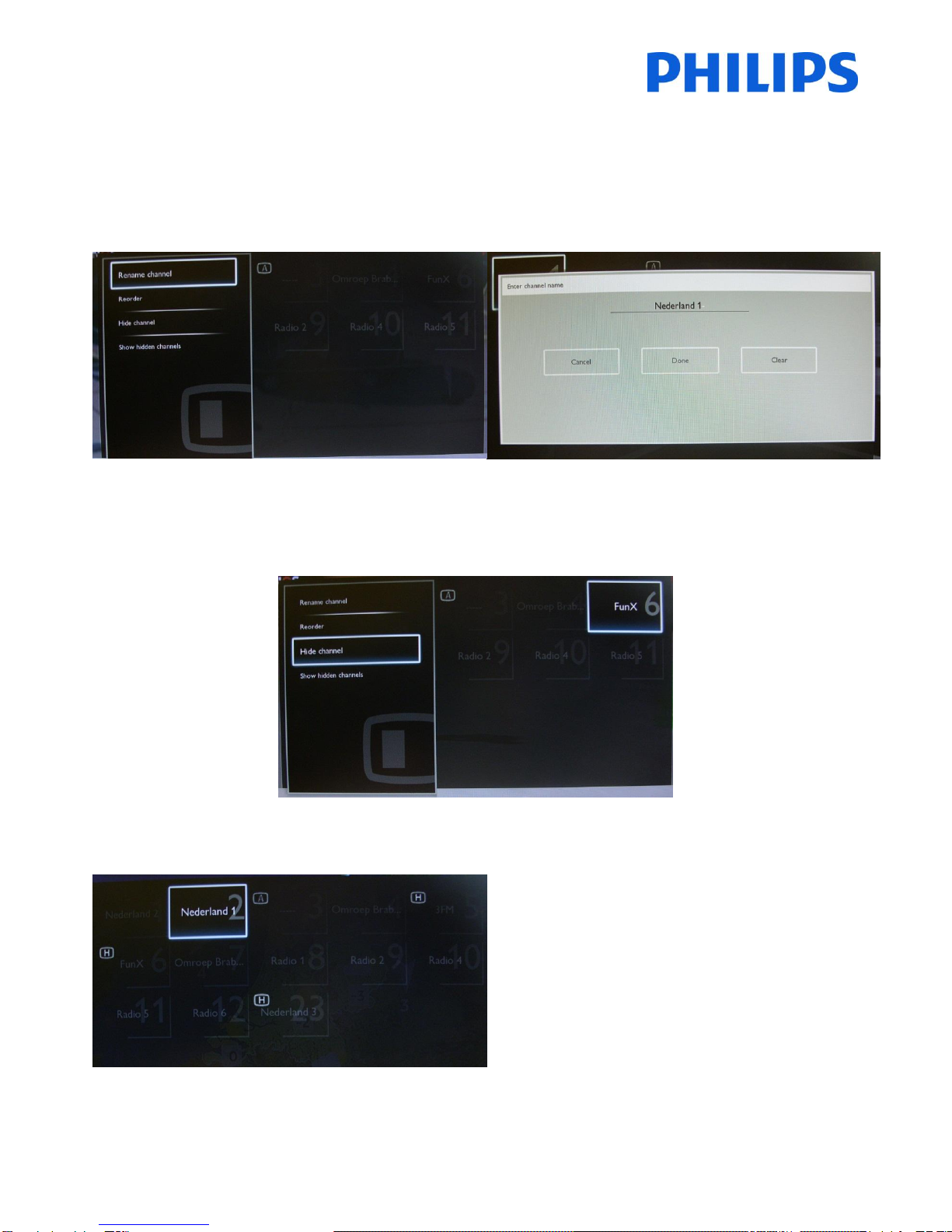

b. Rename channels
Select the channel, press the “Options” button on remote control and select “Rename”to change name of a channel.
If you then press the “OK” button a virtual QWERTY keyboard will pop up.
c. Hide channels
Important: You cannot delete channels from the channel grid, but you can use the option to hide the channels.
Select the Channel, press the “Options” button and select “Hide channels”. You will see an “H”in the channel square.
Select “Show hidden channels” if you want to see all channels, hidden or not hidden. Using this option will not
remove the hidden attribute.
Meanings for the letters in top left corner:
A: Analogue channels
H: Hidden channel –not available in the channel grid.
These channels are shown only If the “Show hidden
channels” option is used.

16

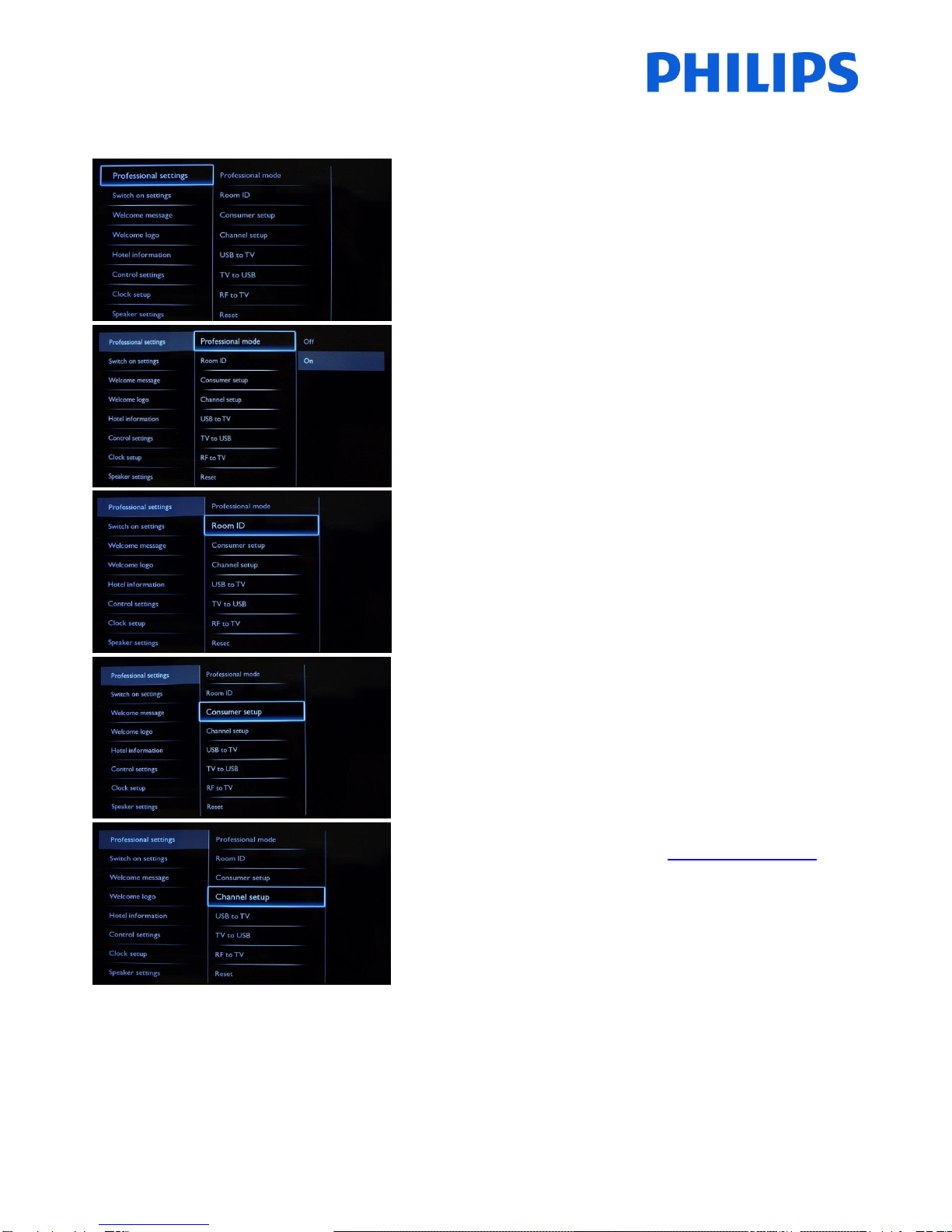

6. Professional Settings
[Professional Settings]
Settings especially designated for hospitality.
[Professional Mode]
[Off]: The TV operates as a basic (consumer) TV.
[On]: All settings in the Professional Settings Setup menu are
active.
Only by switching on this mode the TV will act as a Hospitality TV.
[Room ID]
Entry field to store 4 digits to set the Room Identifier.
Room ID can be used to distinguish between different
floors/rooms/setups when using SmartInstall.
[Consumer setup]
A shortcut to enter the consumer installation menu.
Consumer installation menu should be accessed to change e.g.
picture and sound settings and update channels.
Note: Using this shortcut will trigger a popup screen which warns about losing
settings in the Professional settings menu if you continue. Select discard if you
want to stay in the Professional settings menu or continue.
[Channel setup]
A shortcut to enter the channel grid (check Channel Options).
In this grid you can reorder, rename and hide channels.
Note: Using this shortcut will trigger a popup screen which warns about losing
settings in the Professional settings menu if you continue. Select discard if you
want to stay in the Professional settings menu or continue.

17

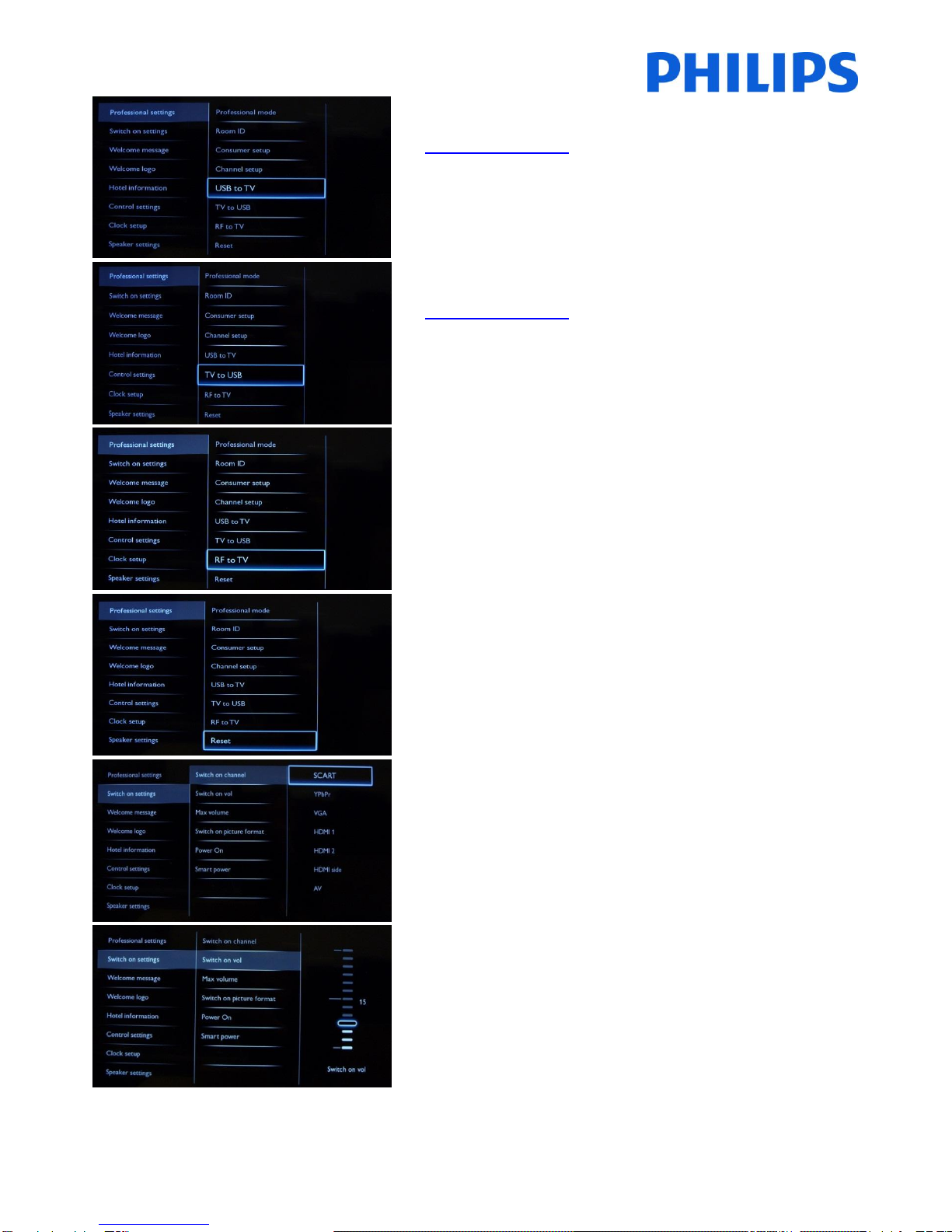

[USB to TV]
Check Cloning section
[TV to USB]
Check Cloning section
[RF to TV]
Option used for SmartInstall
Note: Setup and configuration for SmartInstall is not covered by this manual
[Reset]
Reset all settings from Professional mode to default values.
[Switch on channel]
When the TV is switched on it will start up on the specified
source/channel.
Available EXT1, EXT2, VGA, HDMI, HDMI side, AV side or one of the installed TV
channels.
[Switch on volume]
When the guest switches the TV on, it will play at the specified
volume level.
Selectable value from 00 until 60.

18
[Maximum volume]
This option specifies the maximum allowable volume level of the
TV.
Selectable value from 00 until 60.
[Switch on picture format]
This settings allows you to set a switch on picture format.
The power on function allows the TV to enter a specific mode
([On], [Standby], or [Last status]) of operation when the mains
power is activated (cold start):
[On]: The TV will always turn on (show startup channel) after the
mains power is connected.
[Standby]: When set, the TV will always turn to standby (status
as defined in Low power standby option) after the mains power
is connected.
[Smart Power]
The power consumption for the Smart power mode is defined by
the Smart Picture setting in the TV Setup part.
[Off]: The TV will start with Standard Smart Picture setting, but
the setting can be changed in the guest setup mode.
[On]: The TV will start with default Smart Picture setting and
Smart Picture setup and is not selectable in the guest setup.
[Display message]
[On]: To enable the welcome message.
[Off]: No welcome message
[Line 1]
Line 1: First line of the welcome message.

19
When pressing “OK” button on remote control while editing line
1 or 2, a virtual keyboard will pop up on screen.
Note: Maximum 20 characters per line.
[Line 2]
Line 2: Second line of the welcome message.
[Clear]
Will delete the current welcome message.
[Message Time-out]
Sets the period of time to display the welcome message on the
screen when TV is turned on from standby.
Selectable values: 20, 25, 30 seconds.
[Display logo]
Enables / disables to show the stored welcome Logo at start-up
when TV starts up in Green Mode (see Power Settings):
[Off]: When set to Off, the TV will hide the Welcome Logo at
start-up.
[On]: When set to On, the TV will show the Welcome Logo at
start-up.
Note: If no welcome logo is loaded the feature is greyed out.
[Display information]
[On]: Enables hotel information to be available in guest menu.
[Off]: Disables hotel information to be available in guest menu.
Check upload hotel info.
