2Preparation
n
3
Installing the TV
4Place your TV set on a stable and strong
base.
4Leave at least a free space of 5 cm on both
sides and 10 cm from the top for good
ventilation of the TV set.
4Do not cover the ventilation openings with
items such as newspapers, cloths etc.
Connecting the aerial
4Insert the aerial plug into the socket g at
the back of the TV.
Connecting the mains
4Insert the mains plug into the wall socket
and switch on.
Refer to the specification at the back of the
TV for the correct operating voltage.
(Picture is only a representation of the actual
plug and socket)
Switching on
4Press the on/off button at the front of the
TV to switch it on.
If the indicator is red, press either the digit,
channel, AV or B key on the remote control.
Installing the remote control
4Remove the cover at the back of the remote
control.
4Insert the correct type and size batteries
into the compartment, making sure that
they are the right way around.
10 cm
5 cm
5 cm

3
3Useful Tips
4Avoid heat and
direct sunlight.
4Avoid direct
exposure to rain
or water.
4Never repair the TV yourself – get a skilled
personnel!
4DO NOT leave your TV on standby for a
prolonged period.
4Switch off your TV if not in use.
5This will allow the TV to be demagnetised,
giving good picture.
4Clean the TV’s screen with a slightly damp
soft cloth ONLY WHEN NECESSARY.
Note : Do not use abrasive solvent as it can
damage the screen’s coating.

4
4Connecting peripheral equipment
VCR
VCD
1. Connect to AV sockets
You may choose to connect up VIDEO 1 in
or VIDEO 2 in or both.
4connect the corresponding sockets of
the equipment to that of the TV.
5to view the playback, select the first
AV channel (if connection is made to
sockets at VIDEO 1 in) or the second
AV channel (if connection is made to
sockets at VIDEO 2 in).
Note: For mono equipment, connect to
the VIDEO and L sockets only.
2. Connect to S-Video socket
If you have a S-Video equipment, connect
to the S-Video socket for better picture
quality.
4connect the corresponding socket of
the equipment to that of the TV.
5to view the playback, select the Y/C
channel.
Note: If both the S-Video socket and the
Video socket of VIDEO 2 are connected,
S-Video input override the Video input.
3. Connect to aerial socket
(only for VCR)
The playback on your VCR is considered a
TV channel by your TV if you connect via
the aerial socket. You must tune in to
your VCR’s test signal and assign the
channel number 0 to it. Refer to your
VCR’s instruction manual for more
details.
4connect the RF cable to the VCR’s “RF
in” and connect the “RF out” of the VCR
to the aerial socket of the TV.
4select channel 0 and tune in to to your
VCR’s signal.
5to view the playback, select channel 0.
VCR
Laser disc
player
OR
VIDEO 2
in
MONITOR
out
VIDEO 1
in
S-VIDEO
AUDIO
VIDEO
L
R
g
Ω75
OR
Equipment such as VCR, Laser disc player, VCD etc. could be connected to
the video and audio (AV) sockets at the back of the TV. Switch off the TV and
equipment before making any connection.
Connection for playback
VIDEO 2
in
MONITOR
out
VIDEO 1
in
S-VIDEO
AUDIO
VIDEO
L
R
VIDEO 2
in
MONITOR
out
VIDEO 1
in
S-VIDEO
AUDIO
VIDEO
L
R
VCR
VCR

5
5
…connecting peripheral equipment
VIDEO 2
in
MONITOR
out
VIDEO 1
in
S-VIDEO
AUDIO
VIDEO
L
R
VIDEO 2
in
MONITOR
out
VIDEO 1
in
S-VIDEO
AUDIO
VIDEO
L
R
1. From the TV channel you are
watching
4connect the corresponding sockets of
the VCR to the sockets at MONITOR out.
Note: For mono equipment, connect to
the VIDEO and L sockets only.
2. From one VCR to another VCR
4connect the sockets of the VCR which
you wish to record from to the
corresponding sockets at either VIDEO
in 1 or VIDEO in 2.
4connect the sockets of the receiving
VCR to the corresponding sockets at
MONITOR out.
Note: For mono equipment, connect to
the VIDEO and L sockets only.
3. From the TV antenna
4connect the RF cable to the VCR’s “RF
in” and the “RF out” of the VCR to the
aerial socket of the TV.
VIDEO 2
in
MONITOR
out
VIDEO 1
in
S-VIDEO
AUDIO
VIDEO
L
R
g
Ω75
n
Connection for headphones
4connect the headphones to the socket
at the front of the TV.
The headphones impedance must be
between 8 and 4000 ohms.
Connection for recording
VCR
VCR 1
VCR 2
VCR
Headphones

6
6The TV’s controls
For 25” models
1. Mains power Switch on or off the TV.
2. Red light indicator When light is on, it indicates that the TV is on
standby. Note :If no signal is detected by the
TV after 10 minutes, it will switch to standby
automatically.
3. Remote control sensor For the remote control to work, it must be
activated within the operating range of this
sensor.
4. Headphone socket For connection of headphones.
5. Volume adjustment To adjust volume level. Press these 2 keys
simultaneously will call up the 1st level
menu. Press these 2 keys again will exit
menu. Works as cursor left (VOLUME L) or
right (VOLUME K) in a menu.
6. Channel selection To select a lower or higher channel number.
Works as cursor up (CHANNEL 6) or down
(CHANNEL 7) in a menu.
For 29” models
n
VOLUME
LK
˙
˝˚
¸
CHANNEL
˚
¸
3
12
34
5
6
n
VOLUME
LK
4
˙
˝˚
¸
CHANNEL
˚
¸
3
12
345
6

7
7Using the remote control
Press :
Standby
AV channel
selection
Screen
information
Sleeptimer
Digit
Smart
Picture/
Smart
Sound
Result :
Switch off TV and a red indicator
lights up. To switch on TV again,
press either the
0
to 9,
CH
,
CH
,
AV
or
2
key.
Select the AV channels .
In TV mode : Switch on/off
information of a particular
channel.
In a menu : Exit menu.
Sets timer to switch TV to standby
in steps of 15 minutes (from 0 to
60 minutes) and in steps of 30
minutes (from 60 to 240 minutes).
To disable timer, set to “OFF”.
Key in numerals e.g. confidential
code in child lock and in channel
selection. For a 2-digit channel,
the second numeral must be
entered before the dash disap-
pears.
Select the presets for sound and
picture.
OSD
2
AV
2
ehf
4
b
123
456
789
0
CH
MENU INC.
SURR.
SLEEPOSDAV
SMART SMART
±`
A/CH
SURF
AH
45 ° 45 °
10 m
For the remote control to work effectively, it has to be operated within the
recommended operating range to the remote control sensor on the TV.
SLEEP
0
9
to
SMART
`
SMART
±
2
ehf
4
b
123
456
789
0
CH
MENU
INC.
SURR.
SLEEPOSDAV
SMART SMART
±
`
A/CH
SURF
A
H

8
8
Press :
Menu
Incredible
Surround
Mute
Channel
selection
Volume
adjustment
Teletext function:
Surf or
alternate
channel
Sound
mode
…using the remote control
Result :
Call up the main menu. If there is
an existing menu, pressing this
key will bring you back to the
previous level menu. If you are in
the 1st level menu, pressing this
will exit the menu.
Switch on to enhance stereo
sound from your TV.
Switch off the sound of the TV.
Press again to switch on the
sound.
Select a higher or lower channel
number .
Adjust the volume of the TV set.
Refer to the section on “Teletext”.
Surf mode : Add or delete channel
from the surf list. View channel in
the surf list.
A/CH mode : Return to the previ-
ous channel.
Switch from stereo to mono sound
(for stereo transmission) or choose
between first language or second
language (for bilingual transmis-
sion).
f
A/CH
SURF
e
4
ehf
4
b
A/CH
SURF
A
CH
MENU
¬
INC.
SURR.
2
ehf
4
b
123
456
789
0
CH
MENU
INC.
SURR.
SLEEPOSDAV
SMART SMART
±
`
A/CH
SURF
A
H

9
9

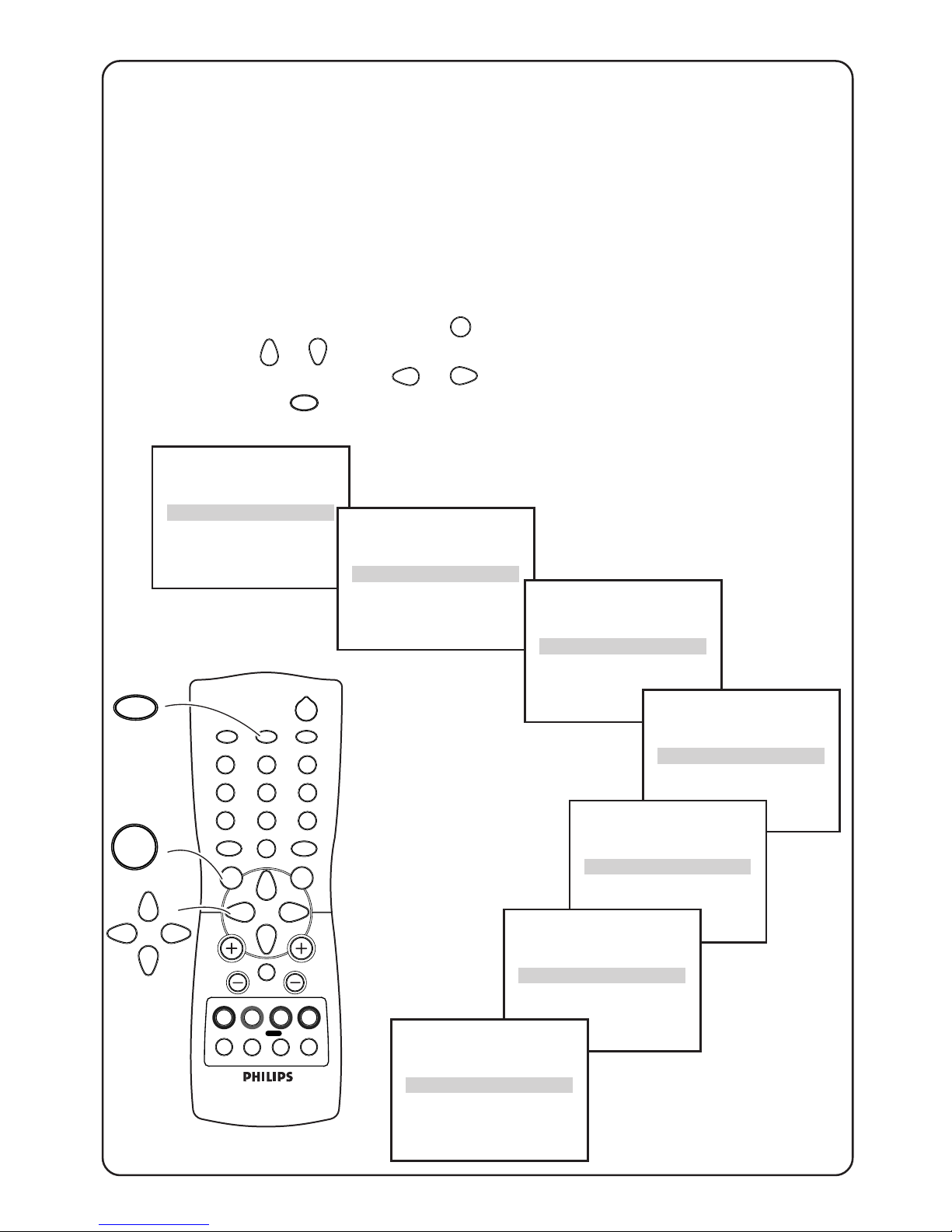

To call up the 1st level menu :
4Press MENU key.
To use the menus:
4Press the cursor keys.
to highlight go down to the next
level or to select or
to execute
To exit from a menu:
4Press MENU key to go back to the previous level.
OR
4Press
OSD
key to exit.
2
ehf
4
b
123
456
789
0
CH
MENU
INC.
SURR.
SLEEPOSDAV
SMART SMART
±
`
A/CH
SURF
A
H
Menus
1st level
BRIGHTNESS
COLOUR
CONTRAST
SHARPNESS
HUE*
COL TEMP
CONTRAST PLUS*
NOISE REDUCE*
4:3 EXPAND*
16:9 COMPRESS*
VOLUME
BALANCE*
TREBLE*
BASS*
INCR SURROUND*
ULTRA BASS*
AVL
SLEEPTIMER
CHILD LOCK*
CLOCK*
SURF
BLUE MUTE*
INSTALLATION
2nd level
CHANGE CODE
CHANNEL
LOCK
CLEAR ALL
TIME
TIMER ACTIVE
CHANNEL
AT
LANGUAGE
AUTO STORE
SWAP
SKIP
MANUAL
3rd level
FROM
TO
EXCHANGE
CHANNEL
SKIP
SYSTEM*
SEARCH
FINE TUNE
CHANNEL
STORE
H
H
H
H
H
H
H
H
H
H
H
H
OSD
MENU
Note* : You may not see these items on your menu because it is applicable to
certain models only.

10
10 Installing the TV
In order to view the programmes broadcasted, you have to do some simple
installation on the TV. Go into the INSTALLATION menu by using the keys
on your remote control.
Follow the following steps to enter INSTALLATION menu:
&Call up 1st level
menu with the
MENU
key.
éPress the key to
highlight
INSTALLATION.
“Select INSTALLATION
with the or
key.
BLUE MUTE OFF
INSTALLATION B
BRIGHTNESS ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■ ■
31
COLOUR ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■ ■
31
CONTRAST ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■ ■
31
LANGUAGE ENGLISH
AUTO STORE B
SWAP B
SURF A/CH
BLUE MUTE OFF
INSTALLATION B
BRIGHTNESS ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■ ■
31
COLOUR ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■ ■
31
Selecting the menu language
The TV is pre-set to a language for display of menus and screen information.
You may change it to another available language.
LANGUAGE ENGLISH
AUTO STORE B
SWAP B
&Go into INSTALLATION
menu.
LANGUAGE is high-
lighted.
éSelect a language
with the or
key.
LANGUAGE ENGLISH
AUTO STORE B
SWAP B
➧ ➧ ➧
➧ ➧ ➧
“Exit with the
OSD
key.

11
11
…installing the tv – system selection
System selection (not applicable for single system sets)
For multi-system sets:
It is possible to select either PAL-BG, PAL-I, PAL-DK, SECAM-BG, SECAM-DK,
NTSC M or AUTO. AUTO means that the TV automatically selects the
current system in transmission.
For dual-system sets:
PAL-DK or PAL-I is selectable.
General steps to enter SYSTEM menu:
&Go into INSTALLATION
menu.
éPress the key to
highlight
MANUAL.
“Select MANUAL
with the or
key.
SYSTEM is
highlighted.
LANGUAGE ENGLISH
AUTO STORE B
SWAP B
➧ ➧ ➧
SWAP B
SKIP B
MANUAL BSYSTEM AUTO
SEARCH 055 MHZ B
FINE TUNE
■ ■ ■ ■ ■ ■
❙
■ ■ ■ ■ ■ ■
‘Press the or
key to select a
system for
transmission.
(Exit with the
OSD
key.
➧
SYSTEM PAL-I
SEARCH 055 MHZ B
FINE TUNE
■ ■ ■ ■ ■ ■
❙
■ ■ ■ ■ ■ ■
➧
Note: If your current system is AUTO and the reception on the TV is poor,
re-select another transmission system.

12
12
There are 2 ways to tune in channels : automatically (by AUTO STORE) or
manually (by MANUAL menu).
Tuning in TV channels
Auto store
Use to tune in channels automatically.
LANGUAGE ENGLISH
AUTO STORE B
SWAP B
LANGUAGE ENGLISH
AUTO STORE B
SWAP B
SKIP B
➧ ➧
LANGUAGE ENGLISH
AUTO STORE B
SWAP B
SKIP B
➧➧
AUTO STORE 055 MHZ
CHANNEL 1
&Enter INSTALLATION
menu.
éPress the key to
highlight AUTO
STORE.
“Select AUTO
STORE with the
or key.
The TV will automatically search and store all available channels starting from
channel number 1.
‘Press
MENU
key once
will bring you back
to the previous level
menu. You can
continue with other
installation.
➧
OR
Press
OSD
key to exit.

13
13
…tuning in tv channels
Manual
This menu enables you to search and store every available channel manually.
&Enter INSTALLATION
menu.
éPress the key to
highlight MANUAL .
“Select MANUAL with
the or key.
‘Press the key to
highlight SEARCH and
the key to start
searching.
Searching stops once
a channel is available.
(If you wish to fine
tune the channel,
scroll down to
highlight FINE TUNE.
Press the or
key to fine tune.
§Press the key to
highlight CHANNEL
and assign a number
to the channel that
you found.
èPress the key to
highlight STORE and
press the or
key to store the
channel.
!Exit with the
OSD
key.
LANGUAGE ENGLISH
AUTO STORE B
SWAP B
➧
➧
➧
➧ ➧
➧
➧
➧
SWAP B
SKIP B
MANUAL BSYSTEM AUTO
SEARCH 055 MHZ B
FINE TUNE
■ ■ ■ ■ ■ ■
❙
■ ■ ■ ■ ■ ■
SYSTEM AUTO
SEARCH 197 MHZ B
FINE TUNE
■ ■ ■ ■ ■ ■
❙
■ ■ ■ ■ ■ ■
CHANNEL 2
SYSTEM AUTO
SEARCH 197 MHZ B
FINE TUNE
■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
❙
CHANNEL 2
STORE B
SEARCH 197 MHZ B
FINE TUNE
■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
❙
CHANNEL 3
STORE B
FINE TUNE
■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
❙
CHANNEL 3
STORE B

14
14Swap
After the tuning of TV channels, you may wish to rearrange the channel
numbers according to your preference.
&Enter INSTALLATION
menu.
éPress the key to
hightlight SWAP.
“Select SWAP with the
or key.
FROM is highlighted.
‘Select the channel
you wish to change
from with the or
or digit key.
(Press the key to
highlight TO.
Select the channel
you wish to change
to with the or
or digit key.
§Press the key to
highlight EXCHANGE.
Press the or
key to confirm
change. The word
“EXCHANGED”
appears.
To undo the change, press the or key. To rearrange more channels, press
the to highlight FROM and repeat steps ‘to §.
èExit with the
OSD
key.
➧
➧➧
➧
➧
LANGUAGE ENGLISH
AUTO STORE B
SWAP B
SKIP B
MANUAL B
FROM 5
TO 4
EXCHANGE B
5
FROM 5
TO 7
EXCHANGE B
FROM 7
TO 5
EXCHANGED
7
➧
FROM 2
TO 4
EXCHANGE B
LANGUAGE ENGLISH
AUTO STORE B
SWAP B
➧

15
15Skip channels
LANGUAGE ENGLISH
AUTO STORE B
SWAP B
&Go into INSTALLATION
menu
éPress the key to
highlight SKIP.
“Select SKIP with
the or key.
CHANNEL is
highlighted.
‘Enter a channel
number which you
wish to skip.
(Press the key to
highlight SKIP.
§Select YES with the
or key.
CHANNEL DELETED
appears to confirm
that the channel is
skipped.
To unskip channels, repeat step ‘ to § but select NO instead of YES.
èExit with the
OSD
key.
➧
➧
➧
➧
➧
➧➧
AUTO STORE B
SWAP B
SKIP B
MANUAL B
CHANNEL 2
SKIP NO
CHANNEL 5
SKIP NO
CHANNEL 5
SKIP NO
CHANNEL 5
SKIP YES
CHANNEL DELETED
This menu enables you to skip channels which have bad reception or
channels which you do not watched often. Once a channel is skipped, you
can only call it up via the digit keys on the remote control.

16
16 Fine tuning
&Enter INSTALLATION
menu.
LANGUAGE ENGLISH
AUTO STORE B
SWAP B
SWAP B
SKIP B
MANUAL BSYSTEM AUTO
SEARCH 055 MHZ B
FINE TUNE
■ ■ ■ ■ ■ ■
❙
■ ■ ■ ■ ■ ■
éPress the key to
highlight MANUAL.
“Select MANUAL with
the or key.
‘Press the key to
highlight CHANNEL.
Enter a channel
number.
(Press the key to
highlight FINE
TUNE.
§Press the or
key to start fine
tuning until you get
the best picture and
sound.
SEARCH 055 MHZ B
FINE TUNE
■ ■ ■ ■ ■ ■
❙
■ ■ ■ ■ ■ ■
CHANNEL 5
STORE B
èPress the key to
highlight STORE.
Press the or
key to store changes.
FINE TUNE
■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
❙
CHANNEL 5
STORE B
➧ ➧
➧ ➧
➧
➧ ➧ ➧
To fine tune the frequency of a channel.
!Exit with the
OSD
key.
SEARCH 055 MHZ B
FINE TUNE
■ ■ ■ ■ ■ ■
❙
■ ■ ■ ■ ■ ■
CHANNEL 5
STORE B
SEARCH 055 MHZ B
FINE TUNE
■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
❙
CHANNEL 5
STORE B

17
17 Picture settings
Personal settings
You can do adjustment on BRIGHTNESS, COLOUR, CONTRAST, SHARPNESS,
HUE*, COLOUR TEMP and CONTRAST PLUS of a picture via the 1st level
menu. This adjustment will automatically be stored in the PERSONAL mode of
the SMART PICTURE feature.
(*for NTSC programmes only)
How to do adjustment
&Call up 1st level menu with the
MENU
key.
éPress the or key to highlight the item that you wish to adjust.
“Select or adjust with the or key.
‘Exit with the
OSD
key.
BLUE MUTE OFF
INSTALLATION B
BRIGHTNESS ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■ ■
31
COLOUR ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■ ■
31
CONTRAST ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■ ■
31 INSTALLATION B
BRIGHTNESS ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■ ■
26
COLOUR ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■ ■
31
CONTRAST ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■ ■
31
SHARPNESS ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■ ■
31
BRIGHTNESS ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■ ■
26
COLOUR ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■
30
CONTRAST ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■ ■
31
SHARPNESS ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■ ■
31
HUE
■ ■ ■ ■ ■ ■
❙
■ ■ ■ ■ ■ ■
0
COLOUR ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■
30
CONTRAST ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■
48
SHARPNESS ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■ ■
31
HUE
■ ■ ■ ■ ■ ■
❙
■ ■ ■ ■ ■ ■
0
COL TEMP NORMAL
CONTRAST ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■
48
SHARPNESS ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■
46
HUE
■ ■ ■ ■ ■ ■
❙
■ ■ ■ ■ ■ ■
0
COL TEMP NORMAL
CONTRAST PLUS OFF
SHARPNESS ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■ ■
31
HUE
■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
❙ 20
COL TEMP NORMAL
CONTRAST PLUS OFF
NOISE REDUCE OFF
HUE
■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
❙ 20
COL TEMP COOL
CONTRAST PLUS OFF
NOISE REDUCE OFF
4:3 EXPAND OFF
2
ehf
4
b
123
456
789
0
CH
MENU
INC.
SURR.
SLEEPOSDAV
SMART SMART
±
`
A/CH
SURF
A
H
MENU
OSD

18
18
…picture settings – smart picture
Smart Picture
These are some picture presets on the TV for your viewing pleasure. Press
the
SMART
`
key repeatedly to select RICH, NATURAL, SOFT or PERSONAL.
Very vibrant colours.
Other picture settings
Natural and original
colours.
Warm colours and
gives a cinema like
effect when light is
switched off.
2
ehf
4
b
123
456
789
0
CH
MENU
INC.
SURR.
SLEEPOSDAV
SMART SMART
±
`
A/CH
SURF
A
H
SMART
`
COL TEMP NORMAL
CONTRAST PLUS OFF
NOISE REDUCE ON
4:3 EXPAND OFF
16:9 COMPRESS OFF
CONTRAST PLUS OFF
NOISE REDUCE ON
4:3 EXPAND ON
16:9 COMPRESS OFF
VOLUME ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■ ■
30
NOISE REDUCE ON
4:3 EXPAND OFF
16:9 COMPRESS ON
VOLUME ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■ ■
30
BALANCE
■ ■ ■ ■ ■ ■
❙
■ ■ ■ ■ ■ ■
0
Noise reduction
Switch this to ON to reduce the pixel size of your
picture.
4:3 expand
In instances when you are watching movies which
has a black bar at the top and bottom, you can
expand the picture vertically, by selecting ON.
Note: You have to switch OFF this option before
activating “16:9 compress”.
16:9 compress
Select ON to view details hidden at the top and
bottom of the screen.
Note: You have to switch OFF “4:3 expand” before
activating this option.
Your personal
picture settings.
RICH
NATURAL
SOFT
PERSONAL

19
19 Sound settings
Personal settings
You can do adjustment on TREBLE , BASS and INCREDIBLE SURROUND* of a
picture via the 1st level menu. These adjustment will automatically be stored in
the PERSONAL mode of the SMART SOUND feature.
How to do adjustment
&Call up 1st level menu with the
MENU
key.
éPress the or key to highlight the item that you wish to adjust.
“Select or adjust with the or key.
‘Exit with the
OSD
key.
*Switch on this feature and you will feel the incredible depth and unbelievable
three-dimensional effect of stereo sound.
Other sound settings
Volume
Adjusts the volume level of the TV. You can also
do adjustment via the buttons on the front of the
TV or remote control.
2
ehf
4
b
123
456
789
0
CH
MENU
INC.
SURR.
SLEEPOSDAV
SMART SMART
±
`
A/CH
SURF
A
H
MENU
OSD
4:3 EXPAND OFF
16:9 COMPRESS ON
VOLUME ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■ ■
30
BALANCE
■ ■ ■ ■ ■ ■ ■ ■
❙
■ ■ ■ ■ ■ ■ ■ ■
0
TREBLE ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■
55
16:9 COMPRESS ON
VOLUME ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■ ■
30
BALANCE
■ ■ ■ ■ ■ ■
❙
■ ■ ■ ■ ■ ■
0
TREBLE ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■
55
BASS ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■
40
VOLUME ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■ ■
30
BALANCE
■ ■ ■ ■ ■ ■
❙
■ ■ ■ ■ ■ ■
0
TREBLE ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■ ■
30
BASS ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■ ■
30
INCR SURROUND OFF
BALANCE
■ ■ ■ ■ ■ ■
❙
■ ■ ■ ■ ■ ■
0
TREBLE ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■
55
BASS ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■ ■ ■ ■
30
INCR SURROUND OFF
ULTRA BASS OFF
TREBLE ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■
55
BASS ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■
40
INCR SURROUND ON
ULTRA BASS OFF
AVL OFF
Balance
Balances the stereo sound output of speakers in
the TV.

20
20
Ultra Bass
Switch this feature to ON to further enhance the
bass level of the sound output.
…sound settings – smart sound
Smart Sound
These are some sound presets on the TV for your viewing pleasure. Press
the
SMART
±
key repeatedly to select THEATRE, MUSIC, VOICE or PERSONAL*.
(Note *: “NORMAL” for certain model)
2
ehf
4
b
123
456
789
0
CH
MENU INC.
SURR.
SLEEPOSDAV
SMART SMART
±
`
A/CH
SURF
A
H
SMART
±
BASS ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙
■ ■ ■ ■ ■
40
INCR SURROUND ON
ULTRA BASS ON
AVL OFF
SLEEPTIMER OFF
MUSIC
VOICE
PERSONAL
Emphasizes low and high
frequencies to give sensation to
the action and a wider sound
ambience.
Emphasizes bass frequency
so that music is dynamic.
Emphasizes speech
frequency.
AVL-Auto Volume Leveller
This feature if switched on will automatically
adjust any sudden changes in the TV’s volume to a
preset level.
INCR SURROUND ON
ULTRA BASS ON
AVL OFF
SLEEPTIMER OFF
CHILD LOCK B
THEATRE
Your personal
sound settings.
