Philips 34PT5633 User manual

Instructions for use
Colour Television
34PT5633
3139 125 26952

2
22

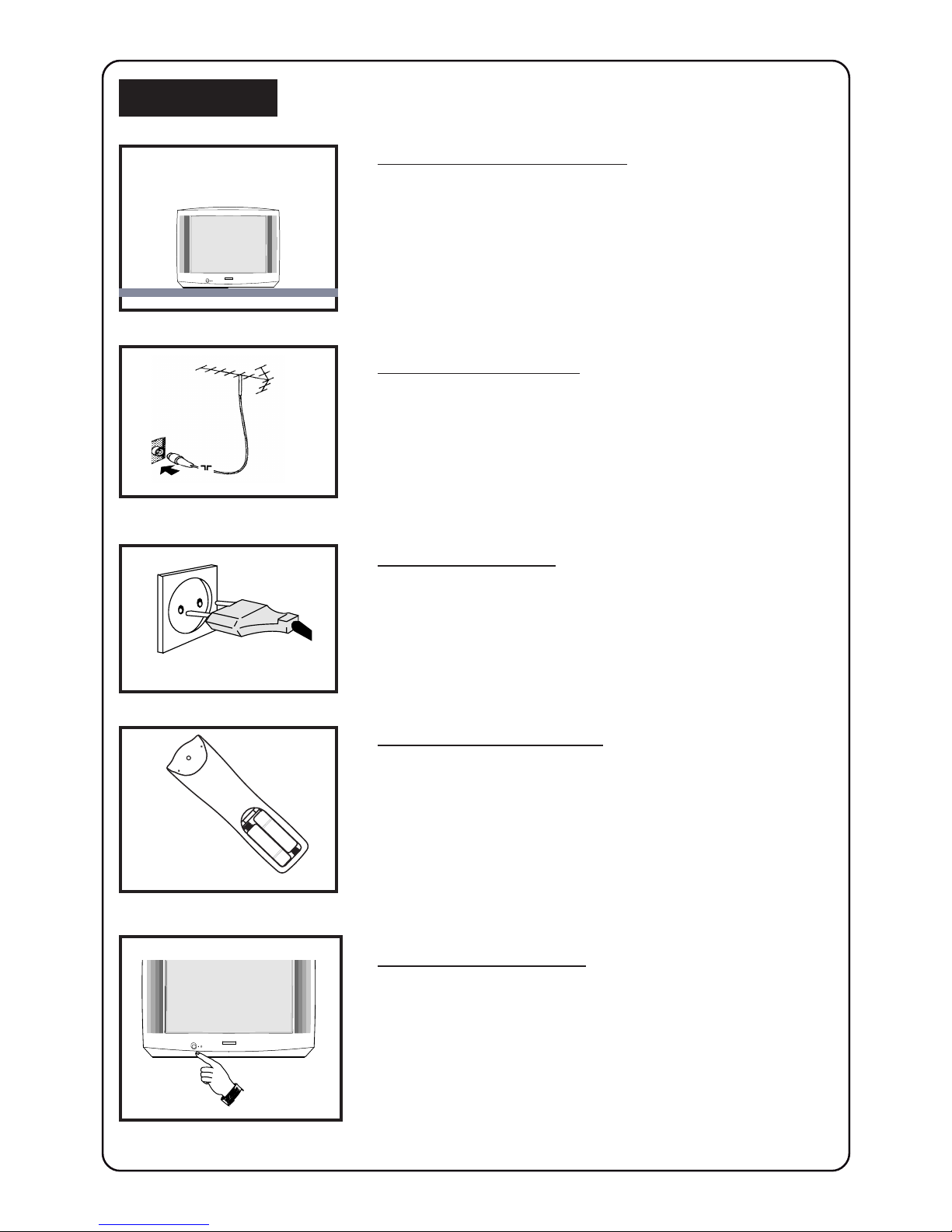

Positioning of the TV set
• Place TV set on a solid base (e.g. a TV/Video cabinet)
• Leave at least 5 cm around each side of TV set for
ventilation to avoid over-heating.
• Do not place TV set near a radiator or other sources of
heat.
• Do not place TV set where it can be exposed to rain or
excessive moisture.
Antenna Connection
• Connect the aerial plug to the antenna socket ¬¬
¬¬
¬on the
backcover.
Mains Connection
• For correct mains voltage, refer to type sticker at the rear
of the TV set
• Consult your dealer if mains supply is different.
Note : This diagram is not representative of the actual
plug and socket.
Use of Remote Control
• Insert correct type of batteries into the compartment.
• Replace the battery cover.
Note : Always remove the batteries from the remote
control handset if handset is not used for a long period.
This can help prevent damage to handset from possible
battery leakage.
Switching on the Set
• Press the main power button to switch on/off the TV.
If the set is on standby (indicator is red), press STANDBY
button on the remote control to switch on set.
INSTALLATION
PHILIPS
PHILIPS
÷÷
◊
5 cm 5 cm
5 cm
PHILIPS
+
+

3
33
K
K
´ L
´ L
P
A

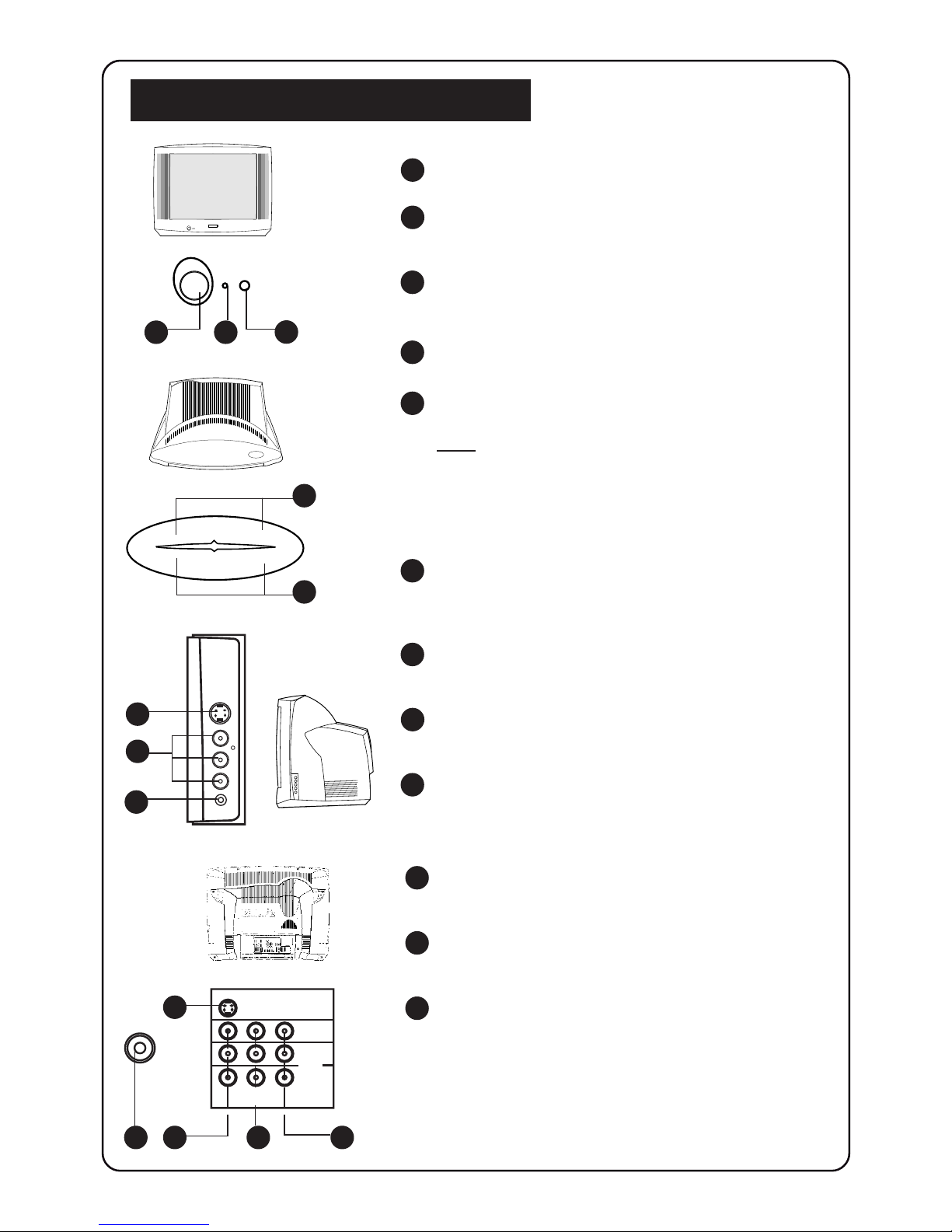

FUNCTIONS OF TV CONTROLS/SOCKETS
123
6
4
7
➠
➠
➠
5
➠
810 11 12
9
1Mains Power button
Switch mains power on or off.
2Standby light indicator
Indicate red light when standby mode is
activated.
3Remote Sensor
Aim remote control handset at remote
sensor when operating the TV.
4Volume +/ – button
Adjust sound volume louder/softer.
5P (Programme) +/ – button
Select channel in ascending/descending order.
Note
• You can enter the main menu by pressing both
the Volume + / – buttons at the same time.
• Press Programme + / – button to select
sub-menu.
• Press Volume + / – button to activate sub-menu.
6AV3 in sockets
Connect to Output sockets of VCR/laser disc
player to the AV3 in sockets to playback
programmes.
7Headphone socket
Connect headphone jack to socket for
personal listening.
8Antenna socket
Connect the aerial plug to the antenna socket
on the backcover.
9S-Video In socket
Connect the S-VIDEO Output socket (if available)
of the VCR to the S-VIDEO in socket to enhance
picture quality.
10 AV1 In sockets
Connect the Output sockets of the VCR/laser disc
to the AV1 in sockets to playback programmes.
11 AV2 In sockets
Connect the Output sockets of the VCR/laser disc
to the AV2 in sockets to playback programmes.
12 Monitor out sockets
Connect the VIDEO out socket of the TV to the
Input socket of VCR to record programmes.
To enhance sound of your TV, connect the
AUDIO L and Rsockets to an external audio
system.
PHILIPS
A
S-VIDEO
in
AV1
VIDEO
L
AUDIO
R
in
AV2
out
Monitor
9
S-VIDEO
VIDEO
in
AUDIO
L
R
n

4
44
AV
A/CH
PIP UP PIP DOWN
4
MENU SURF
SMARTSMART
±`
`
nor
vp
ACH
H
m\
5
13
2
46
79
8
0
GAME
INCREDIBLEINC. SURR.
2

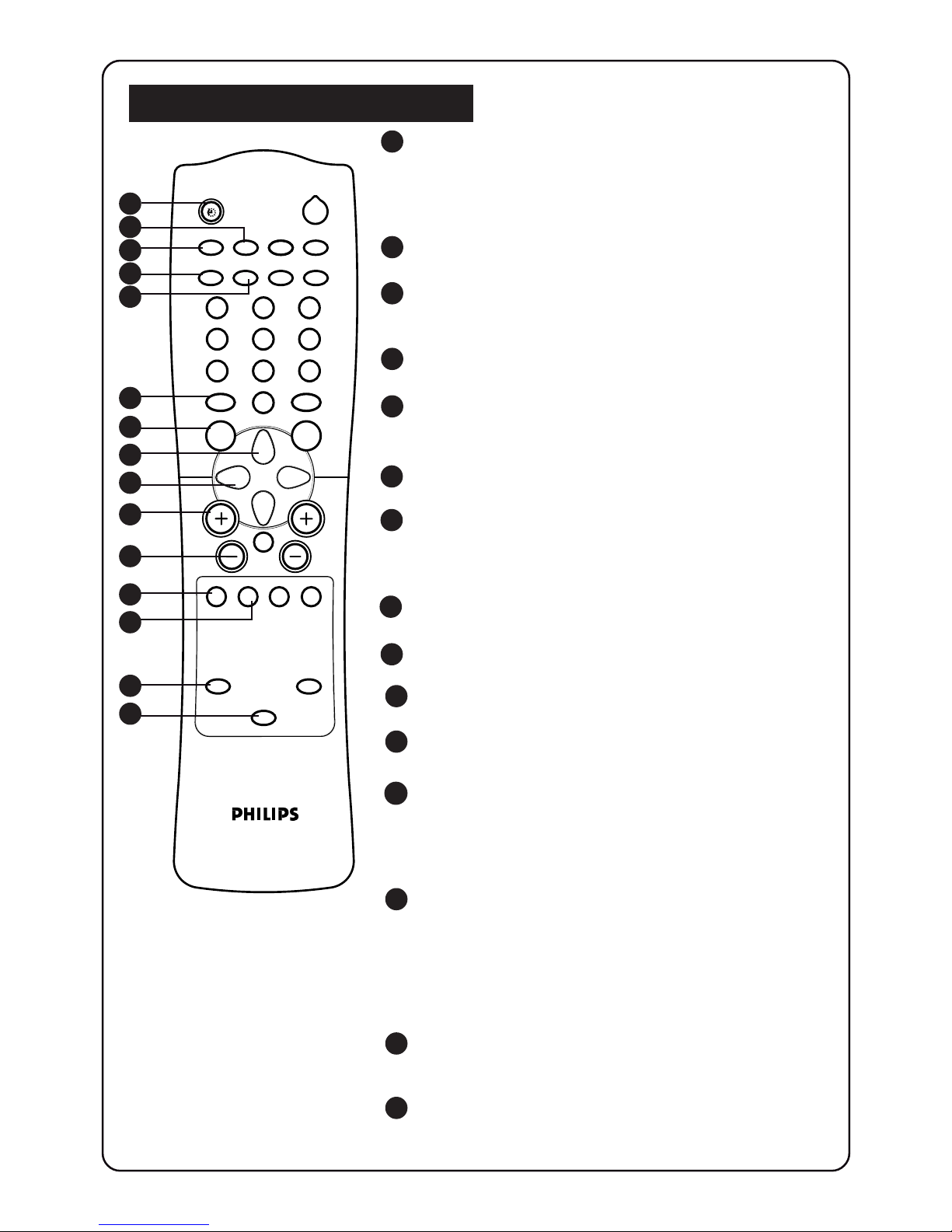

FUNCTIONS OF REMOTE CONTROL
1
1SLEEPTIMER
Allows you to select a time period after which the set
will switch to standby mode automatically. You can
set the timer in steps of 15 minutes from OFF mode
up to a maximum of 120 minutes.

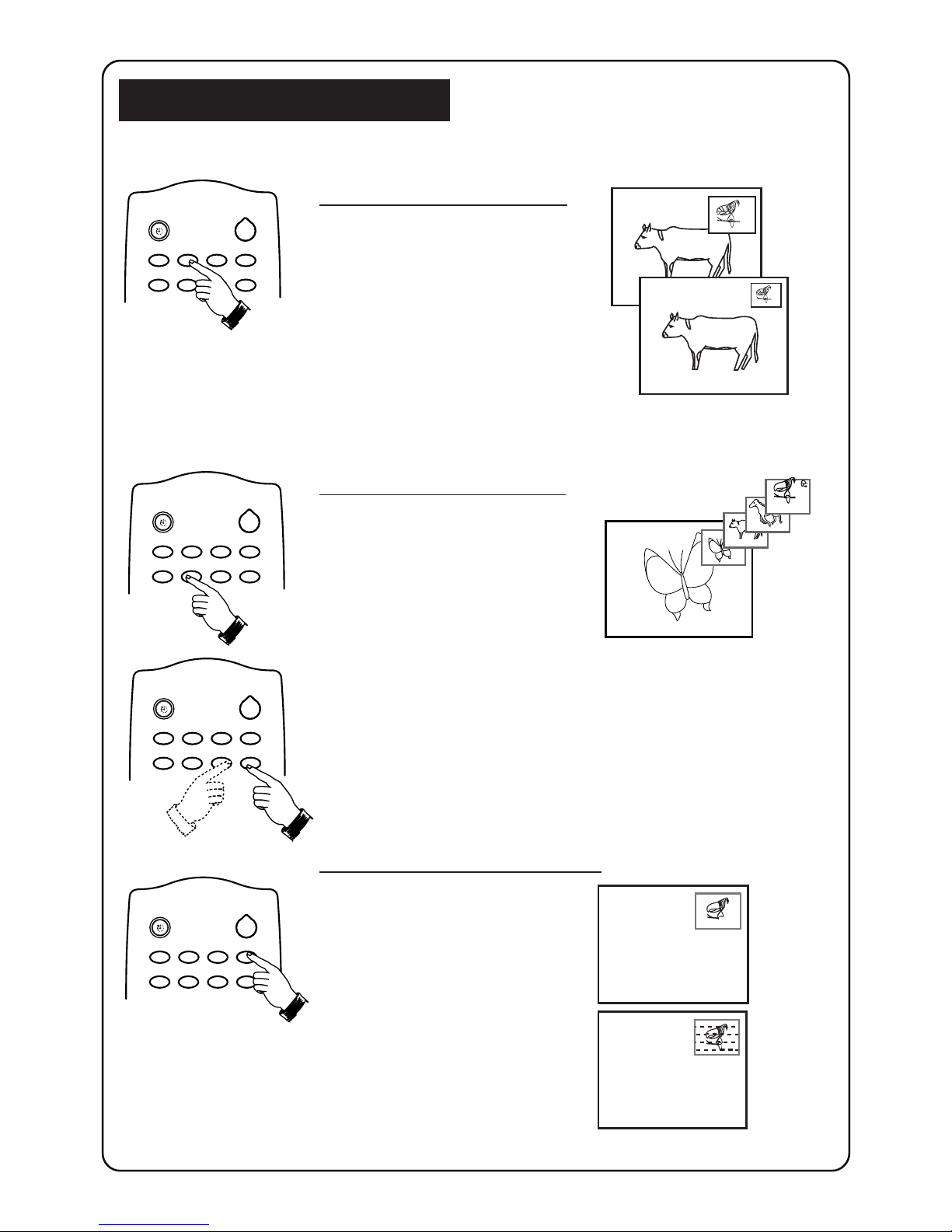

2PIP ON/OFF
Switch on or PIP (Picture in Picture).
3A/CH (ALTERNATE CHANNEL)
Alternate between last viewed channel and present
channel.
4PIP SWAP
Interchange channel on main screen and subscreen.
5PIP SOURCE
Allows you to select various external connection for
PIP.
6SMART SOUND
Allows you to select 4 types of sound settings
7MENU
Allows you to adjust picture and sound settings and
activate the features and install the channels
automatically.
8CURSOR UP
Allows you to select the sub-menus.
9CURSOR LEFT
Allows you to access or adjust the sub-menus.
10 VOLUME +
Increases volume.
11 VOLUME –
Decreases volume.
12 AV
Selects AV1, S-VID1, AV2, AV3, S-VID3 and the last
viewed channel respectively. The correct channel
must be selected when viewing a playback
programme.
13 OSD (On-Screen Display)
Displays :
– channel number.
– remaining time of the sleeptimer.
– programme name.
– information line
– transmission mode.
14 INCREDIBLE SURROUND
Allows you to select incredible surround sound
when transmission is in stereo mode.
151GAME
Allows you to select Video mode as input for video
games.
3
4
5
7
8
9
10
11
2
6
12
13
14
15

5
55

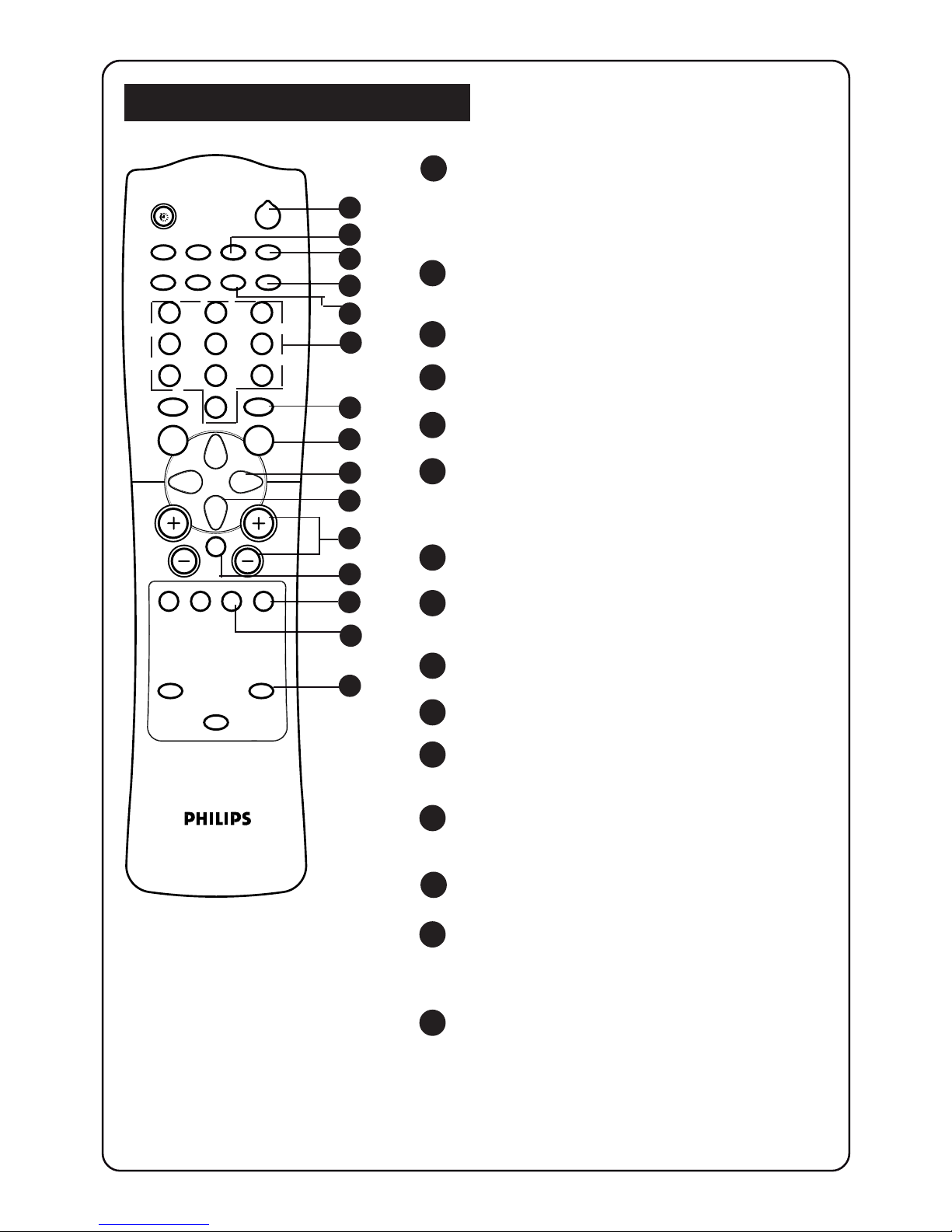

FUNCTIONS OF REMOTE CONTROL
18
19
16
17
20
21
22
23
24
25
26
28
16 POWER
Switch set off temporarily to standby mode.
(The red light indicator lights up when set is on
standby mode). To switch on set from standby
mode, press and hold button for a few seconds.

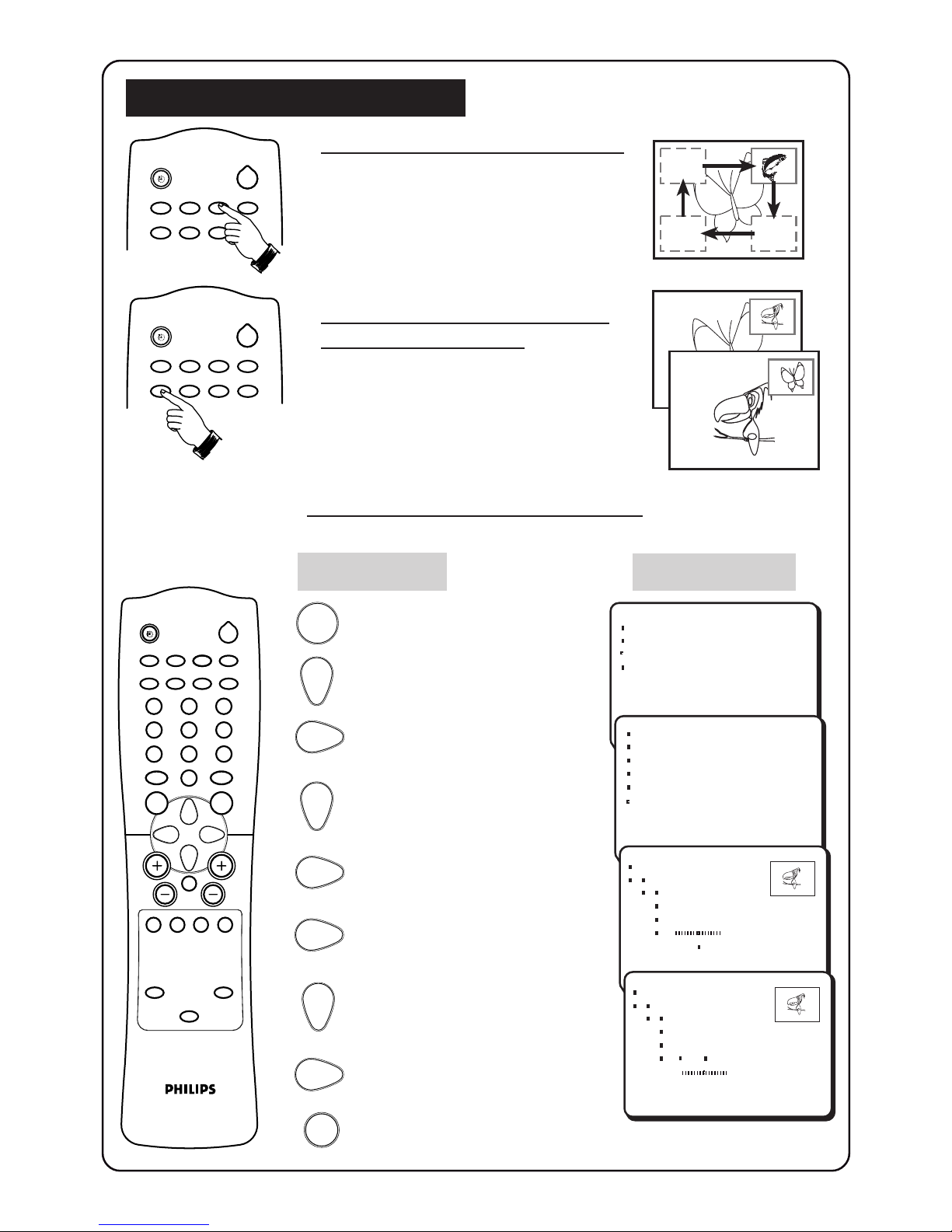

17 PIP POSITION
Allows you to move the PIP screen to your
desired position.
18 PIP FREEZE
Allows you to freeze or resume the PIP screen.
19 PIP DOWN
Selects a PIP channel in descending order.
20 PIP UP
Selects a PIP channel in ascending order.
21 DIGIT (0 - 9)
Allows you select a channel. For a 2- digit
channel number, the second digit must be
entered before the “ – “ sign disappears
22 SMART PICTURE
Allows you to select 4 types of picture settings.
23 SURF
Allows you to select up to a maximum of 10
channels and view quickly the selected channels.
24 CURSOR RIGHT
Allows you to access or adjust the sub-menus.
25 CURSOR DOWN
Allows you to select the sub-menus.
26 CHANNEL + / –
Allows you to select channel in ascending or
descending order.
27 MUTE
Mutes sound. To restore sound, press button
again.
28 TIMER
Not applicable.
29 44
44
4
Allows you to switch from Stereo to Mono
sound (stereo transmission) or to choose
between language5and language 6.
30 INCREDIBLE PICTURE
Allows you to view a more vivid and realistic
picture with better contrast when the “ON”
function is selected.
29
27
30
AV
A/CH
PIP UP PIP DOWN
4
MENU SURF
SMARTSMART
±`
`
nor
vp
A
CH
H
m\
5
13
2
46
79
8
0
GAME
INCREDIBLEINC. SURR.
2
