Phoenix Contact UM EN FL WLAN EPA User manual

User manual
Hardware and software for the WLAN Ethernet port
adapter versions with 2.4 GHz or 5 GHz and with
external antenna connection
UM EN FL WLAN EPA (5N)

2015-10-27
PHOENIX CONTACT 8099_en_02
Hardware and software for the WLAN Ethernet port adapter versions with
2.4 GHz or 5 GHz and with external antenna connection
UM EN FL WLAN EPA (5N)
02
—
80998099
Designation Revision Order No.
FL WLAN EPA Hardware version
2.1 or later/
firmware version
2.2 or later
2692791
FL WLAN EPA 5N Hardware version
2.1 or later/
firmware version
2.2 or later
2700488
FL WLAN EPA RSMA Hardware version
2.1 or later/
firmware version
2.2 or later
2701169
User manual
Designation:
Revision:
Order No.:
This user manual is valid for:

PHOENIX CONTACT
Please observe the following notes
User group of this manual
The use of products described in this manual is oriented exclusively to:
– Qualified electricians or persons instructed by them, who are familiar with applicable
standards and other regulations regarding electrical engineering and, in particular, the
relevant safety concepts.
– Qualified application programmers and software engineers, who are familiar with the
safety concepts of automation technology and applicable standards.
Explanation of symbols used and signal words
How to contact us
Internet Up-to-date information on Phoenix Contact products and our Terms and Conditions can be
found on the Internet at:
www.phoenixcontact.com
Make sure you always use the latest documentation.
It can be downloaded at:
www.phoenixcontact.net/catalog
Subsidiaries If there are any problems that cannot be solved using the documentation, please contact
your Phoenix Contact subsidiary.
Subsidiary contact information is available at www.phoenixcontact.com.
Published by PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstraße 8
32825 Blomberg
GERMANY
Should you have any suggestions or recommendations for improvement of the contents and
layout of our manuals, please send your comments to:
tecdoc@phoenixcontact.com
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety measures that follow this symbol to avoid possible in-
jury or death.
There are three different categories of personal injury that are indicated with a
signal word.
DANGER This indicates a hazardous situation which, if not avoided, will re-
sult in death or serious injury.
WARNING This indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION This indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
This symbol together with the signal word NOTE and the accompanying text
alert the reader to a situation which may cause damage or malfunction to the
device, hardware/software, or surrounding property.
This symbol and the accompanying text provide the reader with additional in-
formation or refer to detailed sources of information.

Please observe the following notes
PHOENIX CONTACT
General terms and conditions of use for technical documentation
Phoenix Contact reserves the right to alter, correct, and/or improve the technical
documentation and the products described in the technical documentation at its own
discretion and without giving prior notice, insofar as this is reasonable for the user. The
same applies to any technical changes that serve the purpose of technical progress.
The receipt of technical documentation (in particular user documentation) does not
constitute any further duty on the part of Phoenix Contact to furnish information on
modifications to products and/or technical documentation. You are responsible to verify the
suitability and intended use of the products in your specific application, in particular with
regard to observing the applicable standards and regulations. All information made
available in the technical data is supplied without any accompanying guarantee, whether
expressly mentioned, implied or tacitly assumed.
In general, the provisions of the current standard Terms and Conditions of Phoenix Contact
apply exclusively, in particular as concerns any warranty liability.
This manual, including all illustrations contained herein, is copyright protected. Any
changes to the contents or the publication of extracts of this document is prohibited.
Phoenix Contact reserves the right to register its own intellectual property rights for the
product identifications of Phoenix Contact products that are used here. Registration of such
intellectual property rights by third parties is prohibited.
Other product identifications may be afforded legal protection, even where they may not be
indicated as such.

Table of Contents
8099_en_02 PHOENIX CONTACT 1
Table of Contents
1 FL WLAN EPA / FL WLAN EPA 5N / FL WLAN EPA RSMA ...................................................1-1
1.1 Properties...........................................................................................................1-1
1.2 Factoryline WLAN ..............................................................................................1-1
1.2.1 Device versions ..................................................................................1-2
1.3 Country approvals for the FL WLAN EPA ... .......................................................1-2
1.4 Firmware versions and their functions ................................................................1-3
1.5 FCC information .................................................................................................1-3
1.6 Mounting the FL WLAN EPA ... ..........................................................................1-6
1.6.1 Mounting the FL WLAN EPA ... on a flat surface .................................1-6
1.6.2 DIN rail mounting ................................................................................1-7
1.6.3 Wall or mast mounting ........................................................................1-7
1.7 FL WLAN EPA ... installation/interfaces..............................................................1-8
1.7.1 Electrical connection .........................................................................1-10
1.7.2 Status and diagnostic indicators .......................................................1-11
2 Startup and configuration ........................................................................................................2-1
2.1 Options for device configuration.........................................................................2-1
2.1.1 Configuration using the MODE button .................................................2-2
2.1.2 Configuration examples ......................................................................2-4
2.2 Delivery state/default settings.............................................................................2-4
2.3 Web-based management...................................................................................2-4
2.3.1 Configuration example: .......................................................................2-8
2.4 SSC script ........................................................................................................2-17
3 Simple Network Management Protocol (SNMP) .....................................................................3-1
3.1 General function .................................................................................................3-1
3.2 Supported MIBs..................................................................................................3-2
4 Additional information .............................................................................................................4-1
4.1 Propagation of radio waves ................................................................................4-1
4.1.1 Basics .................................................................................................4-1
4.1.2 Propagation of radio waves outdoors (Fresnel zone) ..........................4-1
4.1.3 Free space attenuation of the wireless signal/Fresnel zone ................4-2
4.1.4 Propagation of the radio wave indoors ................................................4-3
4.2 LAN operating modes.........................................................................................4-4
4.3 PROFINET/PROFIsafe via WLAN ......................................................................4-5

FL WLAN EPA
2PHOENIX CONTACT 8099_en_02
5 Technical data ........................................................................................................................5-1
5.1 Ordering data .....................................................................................................5-3
5.1.1 Products .............................................................................................5-3
5.1.2 Accessories ........................................................................................5-3
5.1.3 Declaration of conformity ....................................................................5-4

FL WLAN EPA / FL WLAN EPA 5N / FL WLAN EPA RSMA
8099_en_02 PHOENIX CONTACT 1-1
1 FL WLAN EPA / FL WLAN EPA 5N / FL WLAN EPA RSMA
1.1 Properties
The FL WLAN EPA ... Ethernet port adapter is a high-performance, industrial WLAN
interface for Ethernet or PROFINET-compatible equipment. A WLAN access point or
another FL WLAN EPA ... can be used as the access point to the Ethernet network. A
transparent protocol is used for data transmission on Layer 2 level, which ensures easy
integration also in Industrial Ethernet networks such as PROFINET or Modbus/TCP. The FL
WLAN EPA ... meets the PROFINET requirements of conformance class A and the
PROFIsafe profile for failsafe communication. Observe the information in Sections 4.2 on
page 4-4 and 4.3 on page 4-5.
The FL WLAN EPA has certified compatibility with the 2.4 GHz WLAN standard
IEEE 802.11 b/g/n. The FL WLAN EPA 5N, however, has certified compatibility with the
5 GHz WLAN standard IEEE 802.11 a/n. The FL WLAN EPA RSMA is compatible with the
2.4 GHz WLAN standardIEEE 802.11 b/g/n and the 5 GHz WLAN standard IEEE 802.11 a/n.
This means it can connect any WLAN module to the Ethernet network, provided the module
also supports standard IEEE 802.11 b/g/n or IEEE 802.11 a/n. Industrial devices with
WLAN interface include, for example, (industrial) PCs or notebooks, mobile portable
devices, industrial barcode scanners, RFID readers, and weighing systems.

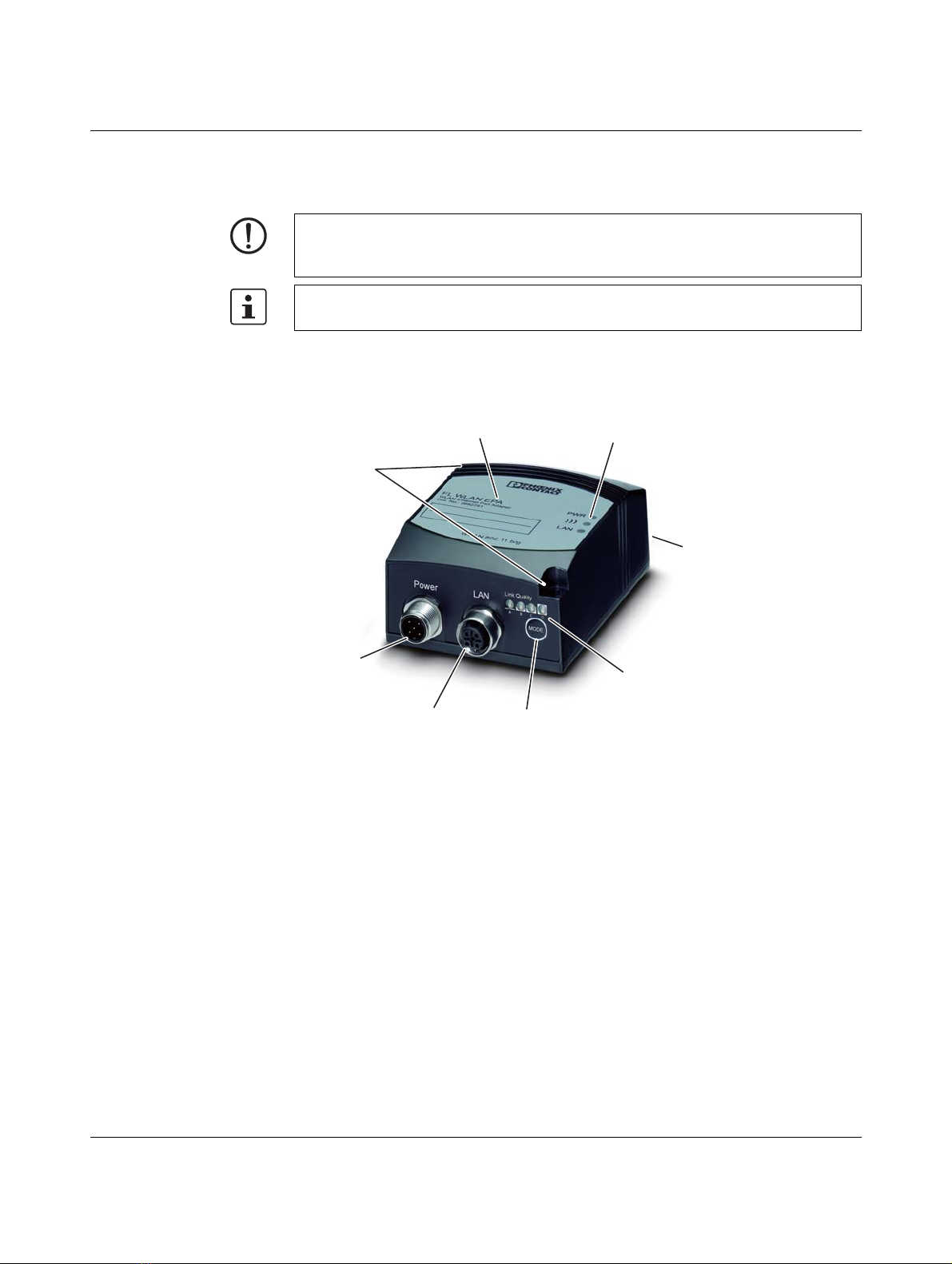

Figure 1-1 Front view of the FL WLAN EPA ...
1.2 Factoryline WLAN
WLAN (IEEE 802.11 b/g or a/n) is a standardized wireless technology, which enables
extremely rugged and reliable data transmission in metal environments and industrial
environments with high levels of interference. WLAN has become established as the
standard for the wireless transmission of control data in automation networks. Factoryline
WLAN is the standard-compliant optimization for industrial factory automation.

FL WLAN EPA
1-2 PHOENIX CONTACT 8099_en_02
Benefits:
– Tap-proof and manipulation-proof
– Long range in industrial halls
–Highperformance
– Excellent integration in automation systems
The use of Factoryline WLAN is recommended if the following requirements are to be met:
– Very reliable control data in harsh industrial environments
– Fast data transmission with stable latencies
1.2.1 Device versions
Three device versions are available:
– FL WLAN EPA, Order No. 2692791
– FL WLAN EPA 5N, Order No. 2700488
– FL WLAN EPA RSMA, Order No. 2701169
The devices differ with regard to the WLAN standard used, i.e., the frequencies at which
they are operated.
FL WLAN EPA (2692791) supports standard 802.11 b,g.n in the 2.4 GHz frequency band.
FL WLAN EPA 5N (2700488) supports standard 802.11 a,n in the 5 GHz frequency band.
FL WLAN EPA RSMA supports both of these bands.
1.3 Country approvals for the FL WLAN EPA ...
The FL WLAN EPA is a WLAN client for integrating Ethernet-capable devices into WLAN
networks. The device uses the international license-free WLAN standard which is free of
charge and operates in the 2.4 GHz ISM band. This enables global use.
The device meets all the requirements of R&TTE directive 1999/5/EC (Europe):
R&TTE Directive 1999/5/EC:
– Effective use of frequency spectrum:
– EN 300 328 V1.7.1 (2006-10) (f2.4 GHz)
– EN 301 893 V1.5.1 (2008-12) (f5 GHz)
EMC:
– EN 301 489-1 V1.9.2 (2011-09)
– EN 301 489-17 V2.1.1 (2009-05)
– EN 61000-6-2:2005
– EN 61000-6-3:2007 + A1:2011
– EMC according to EN 61000-6-2:2005
– Safety according to EN 60950-1:2006+A11
– Health according to EN 50371
– EN 300 328 V1.7.1, EN 301 489-01 V1.8.1, and EN 301 489-17 V2.1.1

FL WLAN EPA / FL WLAN EPA 5N / FL WLAN EPA RSMA
8099_en_02 PHOENIX CONTACT 1-3
In addition, the following approvals have been performed and passed:
– FCC/CFR 47, Part 15 (USA)
– RSS 210 (Canada)
Depending on the maximum possible transmission power, device operation must be
approved or registered in some countries. In some cases there are usage restrictions for the
transmission power for indoor and outdoor use.
The FL WLAN EPA has a maximum transmission power of 100 mW (20 dBm) and
corresponds to R&TTE device class 2. Please refer to the list of country approvals to see for
which countries the operation of this device has been approved (please observe the
corresponding usage restrictions*):
Approvals for other countries are available on request.
* Usage restrictions for the FL WLAN EPA:
France: a maximum transmission power of 10 mW (10 dBm) is permitted outside buildings.
Web-based management should be used to adapt the transmission power with the
inclusion of the antenna data.
1.4 Firmware versions and their functions
Firmware version 2.xx provides the standard WLAN functions and can be used from
hardware version 2.1 or later.
1.5 FCC information
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
– Consult the dealer or an experienced radio/TV technician for help.
An up-to-date list of approvals for countries can be found in the e-shop at
www.phoenixcontact.com.

FL WLAN EPA
1-4 PHOENIX CONTACT 8099_en_02
To comply with FCC part 15 rules in the United States, the system must be professionally
installed to ensure compliance with the Part 15 certification. It is the responsibility of the
operator and professional installer to ensure that only certified systems are deployed in the
United States. The use of the system in any other combination (such as co-located
antennas transmitting the same information) is expressly for bidden.
FCC Caution
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user´s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
operated. Selection of other channels is not possible.
This device and its antenna(s) must not be co-located or operation in conjunction with any
other antenna or transmitter.
If this device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in
indoor environment only.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
IC Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B conforme á la norme NMB-003 du Canada.
This device complies with Industry Canada license-exempt RSS standard(s). Operation this
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d`Industrie Canada applicables aux appareils
radio exempts de licence. L`exploitation est autorisèe aux deux conditions suivantes: (1)
l`appareil ne doit pas produire de brouillage, et (2) l`utilisateur de l`appareil doit accepter
tout brouillage radioèlectrique subi, mème si le brouillage est susceptible d`en
compromettre le fonctionnement.
For product available in the USA/Canada market, only channel 1~11 can be operated.
Selection of other channels is not possible.
This device and its antenna(s) must not be co-located or operation in conjunction with any
other antenna or transmitter.

FL WLAN EPA / FL WLAN EPA 5N / FL WLAN EPA RSMA
8099_en_02 PHOENIX CONTACT 1-5
Under Industry Canada regulations, this radio transmitter may only operate using an
antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry
Canada. To reduce potential radio interference to other users, the antenna type and it´s gain
should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more
than that necessary for successful communication.
This radio transmitter (identify the device by certification number, or model number if
Category II) has been approved by Industry Canada to operate with the antenna types listed
below with the maximum permissible gain and required antenna impedance for each
antenna type indicated. Antenna types not included in this list, having a gain greater than
the maximum gain indicated for that type, are strictly prohibited for use with this device.
The device could automatically discontinue transmission in case of absence of information
to transmit, or operational failure. Note that this is not intended to prohibit transmission of
control or signaling information or the use of repetitive codes where required by the
technology.
Dynamic Frequency Selection (DFS) for devices operating in the bands 5250-5350 MHz,
5470-5600 and 5650-5725 MHz.
The maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply
with the e.i.r.p. limits specified for point-to-point and non point-to-point operation as
appropriate.
Users should also be advised that high-powers radars are allocated as primary users (i.e.
priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars
could cause interfernce and/or damage to LE-LAN devices.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
unconcrolled environment. This equipment should be installed and operated with minimum
distance 20cm between radiator & your body.
This module is intended for OEM integrator. The OEM integrator is still responsible for the
IC compliance requirement of the product, which integrates this module.
20cm minimum distance has to be able to be maintained between the antenna and the
users for the host this module is integrated into. Under such configuration, the IC RSS-102
radiation exposure limits set forth for a population/uncontrolled environment can be
satisfied.
Any changes or modifications not expressly approved by the manufacturer could voids the
users´s authority to operate this equipment.

FL WLAN EPA
1-6 PHOENIX CONTACT 8099_en_02
1.6 Mounting the FL WLAN EPA ...
1.6.1 Mounting the FL WLAN EPA ... on a flat surface
Mount the FL WLAN EPA ... on a level surface and secure the device using two screws (e.g.,
84-M3 X 35-8.8 cylinder head screws). For the required drill hole spacing, please refer to
Figure 1-2 on page 1-6.
1.6.1.1 Drill hole template and housing dimensions
Figure 1-2 Housing dimensions and drill hole spacing for the device in millimeters
(inches)
A minimum distance of 50 cm between modules must be observed when mounting the FL
WLAN EPA ...s.
Make sure that the antenna is not directly located in front of a metal surface. This may ad-
versely affect the wireless features of the antenna in the long term.
Observe a minimum distance of 20 cm between devices and personnel.
82/3.228"
58/2.283"
91/3.583"
66/2.598"

FL WLAN EPA / FL WLAN EPA 5N / FL WLAN EPA RSMA
8099_en_02 PHOENIX CONTACT 1-7
1.6.2 DIN rail mounting
The FL EPA RMS mounting kit (2701133) is available as an accessory for mounting the
device on a 35 mm DIN rail.
Figure 1-3 Fixing the EPA to the mounting kit for the DIN rail
•Fix the EPA on the base plate using the two screws provided.
•Place the EPA with the adapter on the top edge of the DIN rail.
•Push the EPA towards the DIN rail until it snaps into place.
•For releasing the adapter from the DIN rail, pull the latch downwards using a
screwdriver and, at the same time, remove the EPA from the DIN rail.
1.6.3 Wall or mast mounting
The FL EPA WMS mounting kit (2701134) allows for mounting the EPA to a wall or a mast.
Figure 1-4 Fixing the EPA to the mounting kit for wall/mast mounting

FL WLAN EPA
1-8 PHOENIX CONTACT 8099_en_02
•Fix the EPA on the base plate using the two screws provided.
•The two 4.5 mm bore holes can be used for mounting. Two steel clamps are provided
for mounting the EPA to a mast (25 - 85 mm).
1.7 FL WLAN EPA ... installation/interfaces
Figure 1-5 View and interfaces of the FL WLAN EPA ...
– Fixing holes
Using these holes, you can install the FL WLAN EPA ... on a level surface using two
screws (e.g., 84-M3 X 30-8.8 cylinder head screws) (for drill hole spacing, see
Figure 1-2 on page 1-6).
– Antenna
Devices with an internal antenna: these devices are supplied with a circular polarized
5-dB panel antenna. This design is particularly suitable in environments where many
reflections occur on metal. The internal antenna cannot be replaced. It is adapted to the
frequency band of the relevant product (2.4 GHz or 5 GHz).
Devices without internal antenna: the antenna technology used can be chosen by the
user.
– Supply voltage connection
The supply voltage is connected via the 5-pos. M12 socket (plug on the device; for the
assignment, please refer to page 1-10).
NOTE: Observe the approved operating temperatures of the EPA when using the EPA
outdoors. The device is designed for installation in protected outdoor areas (e.g., beneath
a porch). Direct sunlight may lead to overheating and permanent damage of the device.
Note: observe the applicable regulations for using wireless devices outdoors.
Fixing holes
Internal circular
polarized antenna Status and diagnostic
indicators
Mode button
Link Quality and
mode LEDs
LAN interface
Supply voltage
connection/switching input 7901001
RSMA antenna
connection (version)
7901001

FL WLAN EPA / FL WLAN EPA 5N / FL WLAN EPA RSMA
8099_en_02 PHOENIX CONTACT 1-9
– Network connection
LAN interface in M12 format (socket on the device) with 10/100 Mbps and auto
negotiation.
– Status and diagnostic indicators
The LEDs display the status of the Ethernet and WLAN interfaces.
Figure 1-6 FL WLAN EPA RSMA with external antenna connection

FL WLAN EPA
1-10 PHOENIX CONTACT 8099_en_02
1.7.1 Electrical connection
The supply voltage and the trigger signal are connected via the 5-pos. M12 plug
(A-encoded) labeled "Power" (see Figure 1-5 on page 1-8).
1.7.1.1 Pin assignment for the connection of trigger input DI and the supply
voltage
Pin 1 Vin + (9 - 30 V DC)
Pin 2 External trigger ground
Pin 3 Vin GND (0 V)
Pin 4 External trigger + (9 - 30 V DC), responds to a rising edge
Pin 5 n. c.
Figure 1-7 View of the supply voltage connection - plug on the device (contact side, not
solder side)
1.7.1.2 Assignment of the LAN socket
Pin 1 Transmit +
Pin 2 Receive +
Pin 3 Transmit -
Pin 4 Receive -
Figure 1-8 View of the network connection - socket on the device (contact side, not
solder side)
A-coded Male M12
1
4
2
3
5
D-coded Female M12
1
4
2
3

FL WLAN EPA / FL WLAN EPA 5N / FL WLAN EPA RSMA
8099_en_02 PHOENIX CONTACT 1-11
1.7.2 Status and diagnostic indicators
Three LEDs are located on the top of the device, which indicate various states.
Figure 1-9 LEDs on the top of the device
On the bottom of the device there are four LEDs, which display different information
depending on the operating mode.
Figure 1-10 LEDs on the bottom of the device
The "MODE" button is used for configuration. Please refer to the user manual for more
details of this function. LEDs "A" to "D" are used to indicate the status during configuration
(see Section “Configuration using the MODE button” on page - 2-2).
Des. Color Status Meaning
PWR Green ON Supply voltage present
Flashing Supply voltage too low
OFF Supply voltage not present
))) Blue/
purple/
red
ON (blue) A WLAN connection has been established
Purple Attempt to establish a connection to another WLAN
device
Flashing blue Data transmission
Red Error
OFF
Link Quality
MODE
AB CD

FL WLAN EPA
1-12 PHOENIX CONTACT 8099_en_02
LAN Yellow ON Ethernet link present
Flashing Ethernet communication active
OFF No Ethernet connection
Link
Quality
Green ON A: poor link quality
A and B: sufficient link quality
A, B, and C: good link quality
A, B, C, and D: excellent link quality
Des. Color Status Meaning

Startup and configuration
8099_en_02 PHOENIX CONTACT 2-1
2 Startup and configuration
2.1 Options for device configuration
The EPAs can be configured differently for operation:
MODE button
Typical operating modes, such as direct connection of two EPAs as a “wireless Ethernet
cable”, can be directly selected via the “MODE” button on the EPA without the need for a
PC. For a detailed description, please refer to 2.1.1 on page 2-2.
Web-based management (WBM)
To use all the options, the device has a web-based management, which provides a
graphical user interface via a web browser. This means that the current operating state can
simply be displayed without the use of special software or that the device can be configured
using a password.
For a description of the parameters, please refer to 2.3 on page 2-4.
AT commands
All the EPA parameters can be modified or transmitted to the EPA in an automated manner,
for example from a program of a controller. For development or testing purposes AT
commands can also be transmitted to the EPA via the WBM or directly via any web browser.
For the AT command reference, please refer to the Phoenix Contact download center.
SSC script
If easy, quick, and reliable startup of numerous devices is required, even complex
configurations can be stored in the form of an SSC script and transmitted to the EPA via the
Windows Scripting Host (WSH) from any Windows PC without the need for special
software.
For detailed instructions and example scripts, please refer to 2.4 on page 2-17.
SNMP
Normally, the Simple Network Management Protocol (SNMP) is used for configuration and
maintenance of complex networks. It enables central access to the device parameters
independent of the manufacturer. The EPA provides the corresponding support.
For a detailed description, please refer to 3 on page 3-1.

FL WLAN EPA
2-2 PHOENIX CONTACT 8099_en_02
2.1.1 Configuration using the MODE button
Figure 2-1 “MODE” button on the bottom of the FL WLAN EPA - Above the “MODE”
button are LEDs “A” to “D” for configuration indication
General sequence:
•Connect the module to the power supply.
•Within 5 seconds of switching on the supply voltage, press the “MODE” button to
access configuration mode.
•Select the desired operating mode by pressing the “MODE” button until the
corresponding LED combination lights up. Once you have scrolled through all the LED
combinations (operating modes), the selection automatically starts again from the
beginning.
•Exit configuration mode by holding down the “MODE” button (> 2 seconds) after
selecting the desired operating mode until the LEDs flash or go out (reset or exit
configuration mode).
During configuration using the “MODE” button, not all parameters are rewritten just those
required for the operating mode. It is therefore possible to make some settings via the web
interface or via SNMP or AT commands, which are still effective after configuration using the
“MODE” button. For example, the WLAN channels that are not to be used can be selected
in advance.
If the module has been configured before, it is advisable to reset to the default settings prior
to configuration using the “MODE” button. This reset can also be performed using the
“MODE” button.
If the “MODE” button is not pressed for a longer period in active configuration mode,
configuration mode is exited automatically and the EPA starts with its previous settings.
Table 2-1 Operating modes
Mode Description LEDs A B C D
1Activate DHCP server
The EPA operates as DHCP server and, for example, assigns address
192.168.0.1 to a computer which is connected for configuration
purposes via DHCP. Not to be used for operation in a network.
A
2Restoring default settings (factory defaults) B
3Resetting the IP address
Resets the IP address to the default settings (192.168.0.254). Other
settings are not modified.
A+B
Table of contents
Other Phoenix Contact Adapter manuals
