Phoenix Contact ILB BT ADIO MUX Installation and operating instructions

1 Description
Typical combinations of antennas and
adapter cables
ILB BT ADIO MUX INSTALL
© PHOENIX CONTACT
Application note
This application note shows you how to install the Wireless
MUX set indoors or outdoors with various accessories.
Accessories:
– Antennas
– Antenna cables
– Surge protection
WARNING
This application note does not replace the device-specific documents.
Observe the safety information, conditions, and limits of use specified in the respective product documentation.
Make sure you always use the latest documentation.
It can be downloaded at: phoenixcontact.net/product/2702875
107804_en_01 2022-06-29

ILB BT ADIO MUX INSTALL
107804_en_01 PHOENIX CONTACT 2/14
2 Table of contents
1 Description .............................................................................................................................. 1
2 Table of contents ..................................................................................................................... 2
3 Ordering data .......................................................................................................................... 3
4 Optimum antenna installation .................................................................................................. 6
5 Installation indoors................................................................................................................... 8
6 Installation outdoors .............................................................................................................. 13

ILB BT ADIO MUX INSTALL
107804_en_01 PHOENIX CONTACT 3/14
Description Type Item no. Pcs./Pkt.
Wireless MUX set, two modules with 16digital inputs and
outputs and 2analog inputs and outputs (0...20mA,
0...10V) each, RSMA (female) antenna connection,
without antennas
ILB BT ADIO MUX 2702875 1
Wireless MUX set, two modules with 16digital inputs and
outputs and 2analog inputs and outputs (0...20mA,
0...10V) each, RSMA (female) antenna connection, incl.
omnidirectional antennas with 1.5 m cable
ILB BT ADIO MUX-OMNI 2884208 1
3 Ordering data
Accessories Type Item no. Pcs./Pkt.
Inline shield connector IB IL SCN 6-SHIELD-TWIN 2740245 5
Connector, colored, for Inline power and segment terminal
blocks
IB IL SCN-PWR IN-CP 2727637 10
Connector, for digital 1, 2 or 8-channel Inline terminals IB IL SCN-8 2726337 10
Labeling field, width: 12.2 mm IB IL FIELD 2 2727501 10
Insert strip, Sheet, white, unlabeled, can be labeled with:
Office printing systems: Laser printer, mounting type:
insert, lettering field size: 62 x 10 mm, Number of
individual labels: 72
ESL 62X10 0809492 1
Flat zack marker sheet, Sheet, white, unlabeled, can be
labeled with: CMS-P1-PLOTTER, PLOTMARK, mounting
type: snapped, for terminal block width: 6.2 mm, lettering
field size: 5 x 5.5 mm, Number of individual labels: 100
ZBFM 6/WH:UNBEDRUCKT 0803618 10
Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/
15 DIN rail, with marking option, with parking option for
FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color:
gray
CLIPFIX 35-5 3022276 50
Compact omnidirectional antenna, 2.4GHz/5GHz, gain:
2dBi/2.5dBi, polarization: linear, opening angle: h 360°,
degree of protection: IP68, connection: N (male),
corresponding connecting cable for control cabinet feed-
through (Item No. 2701402)
ANT-OMNI-2459-04 1284780 1
Omnidirectional antenna, 2.4GHz, gain: 2dBi,
polarization: linear, opening angle: h/v 360°/75°, degree of
protection: IP65, connection: RSMA (male), incl. 1.5m /
5ft. connecting cable and mounting bracket for wall
mounting
RAD-ISM-2400-ANT-OMNI-2-
1-RSMA
2701362 1
Omnidirectional antenna with protection against
vandalism, 2.4GHz, gain: 3dBi, polarization: linear,
opening angle: h/v 360°/85°, degree of protection: IP55,
connection: RSMA (male), for control cabinet mounting
(optional wall mounting), incl. 1.5m / 5ft. connecting
cable
RAD-ISM-2400-ANT-VAN-3-
0-RSMA
2701358 1

ILB BT ADIO MUX INSTALL
107804_en_01 PHOENIX CONTACT 4/14
Omnidirectional antenna with protection against
vandalism, 2.4GHz/5GHz, gain: 6dBi/8dBi,
polarization: linear, opening angle: h 360°, degree of
protection: IP68, resistant to cleaning agents, connection:
N (female), for control cabinet mounting
RAD-ISM-2459-ANT-FOOD-
6-0-N
2702898 1
Multiband omnidirectional antenna with protection against
vandalism for control cabinet mounting, frequency band:
0.6GHz...7.1GHz, gain: 2dBi...4dBi, degree of
protection: IP67, shockproof: IK10, seawater-resistant,
connection: N(female)
ANT-OMNI-0671-02 1396318 1
Multiband omnidirectional antenna for wall or mast
mounting, 0.6GHz...7.1GHz, gain: 1dBi...3dBi,
degree of protection: IP67, seawater-resistant,
connection: N(female), incl. mounting bracket and mast
clamps
ANT-OMNI-0671-01 1396316 1
Omnidirectional antenna, 2.4GHz, gain: 6dBi,
polarization: linear, opening angle: h/v 360°/30°, degree of
protection: IP67, seawater-resistant, connection:
N (female), incl. mounting bracket and mast clamps,
ATEX and IECEx approval
RAD-ISM-2400-ANT-OMNI-6-
0
2885919 1
Directional antenna, 2.4GHz/5GHz, gain: 9dBi,
polarization: linear, opening angle: h/v 75°/55°, degree of
protection: IP67, seawater-resistant, connection:
N (female), incl. mounting bracket and mast clips,
ATEX and IECEx approval
ANT-DIR-2459-01 2701186 1
Antenna cable for control cabinet feed-through, outside
diameter: 3.2mm (0.126in.), inner conductor: stranded,
attenuation: 0.6 / 0.9 / 1.4dB at 0.9 / 2.4 / 5.8GHz,
connection: N (female) -> RSMA (male), cable length:
0.5m (1.6ft.)
RAD-PIG-EF316-N-RSMA 2701402 1
Antenna cable, outside diameter: 5mm (0.2in.),
inner conductor: solid, attenuation: 0.4 / 0.5 / 0.6dB at
0.9 / 2.4 / 5.8GHz, connection: N (male) -> RSMA (male),
cable length: 0.5m (1.6ft.)
RAD-PIG-RSMA/N-0.5 2903263 1
Antenna cable, outside diameter: 5mm (0.2in.),
inner conductor: solid, attenuation: 0.5 / 0.8 / 1.1dB at
0.9 / 2.4 / 5.8GHz, connection: N (male) -> RSMA (male),
cable length: 1m (3.3ft.)
RAD-PIG-RSMA/N-1 2903264 1
Antenna cable, outside diameter: 5mm (0.2in.),
inner conductor: solid, attenuation: 0.9 / 1.3 / 2.0dB at
0.9 / 2.4 / 5.8GHz, connection: N (male) -> RSMA (male),
cable length: 2m (6.5ft.)
RAD-PIG-RSMA/N-2 2903265 1
Antenna cable, outside diameter: 5mm (0.2in.),
inner conductor: solid, attenuation: 1.2 / 2.0 / 3.0dB at
0.9 / 2.4 / 5.8GHz, connection: N (male) -> RSMA (male),
cable length: 3m (10ft.)
RAD-PIG-RSMA/N-3 2903266 1
Antenna cable, outside diameter: 5mm (0.2in.),
inner conductor: solid, attenuation: 2.0 / 3.3 / 4.8dB at
0.9 / 2.4 / 5.8GHz, connection: N (male) -> RSMA (male),
cable length: 5m (16ft.)
RAD-PIG-RSMA/N-5 2702140 1
Accessories Type Item no. Pcs./Pkt.

ILB BT ADIO MUX INSTALL
107804_en_01 PHOENIX CONTACT 5/14
Antenna cable, outside diameter: 10mm (0.4in.), inner
conductor: stranded, attenuation: 1.0 / 1.8 / 3.1dB at
0.9 / 2.4 / 5.8GHz, connection: 2 x N (male),
cable length: 3m (10ft.)
RAD-CAB-EF393- 3M 2867649 1
Antenna cable, outside diameter: 10mm (0.4in.), inner
conductor: stranded, attenuation: 1.6 / 2.9 / 5.0dB at
0.9 / 2.4 / 5.8GHz, connection: 2 x N (male),
cable length: 5m (16ft.)
RAD-CAB-EF393- 5M 2867652 1
Antenna cable, outside diameter: 10mm (0.4in.), inner
conductor: stranded, attenuation: 2.9 / 5.6 / 9.9dB at
0.9 / 2.4 / 5.8GHz, connection: 2 x N (male),
cable length: 10m (32ft.)
RAD-CAB-EF393-10M 2867665 1
Antenna cable, outside diameter: 10mm (0.4in.), inner
conductor: stranded, attenuation: 4.3 / 8.3 / 14.8dB at
0.9 / 2.4 / 5.8GHz, connection: 2 x N (male), cable length:
15m (50ft.)
RAD-CAB-EF393-15M 2885634 1
Attachment plug with Lambda/4 technology as surge
protection for coaxial signal interfaces. Connection:
N connectors socket-socket
CN-LAMBDA/4-5.9-BB 2838490 1
Antenna adapter for control cabinet feed-through,
frequency range: 0.3GHz...6GHz, degree of protection:
IP65, connection: 2 x N (female)
RAD-ADP-N/F-N/F 2867843 1
Antenna adapter, frequency range: 0.3GHz...6GHz,
connection: RSMA (male) -> RSMA (female), 90° angled
RAD-ADP-RSMA/M-RSMA/F-
90
2904790 1
Vulcanizing sealing tape for external protection of
adapters, cable connections, etc. against the effects of
weather, roll length: 3 m
RAD-TAPE-SV-19-3 2903182 1
Accessories Type Item no. Pcs./Pkt.

ILB BT ADIO MUX INSTALL
107804_en_01 PHOENIX CONTACT 6/14
4 Optimum antenna installation
Mounting height
•Mount the antenna as high as possible. This allows you
to improve the range.
•Make sure there is a line of sight between the antennas.
Keep the Fresnel zone clear.
Antenna cables
•Keep the connection between the wireless module and
the antenna as short as possible. Every adapter cable
will cause higher attenuation.
•Do not install cables parallel to power lines or other
electrical fields.
•Do not bend the cable.
•Provide strain relief for the cable.
Protection of antenna connections
•In outdoor installations, always protect connections on
the cables, junctions, and antennas with sealing tape.
– RAD-TAPE-SV-19-3, 2903182
Figure 1 Sealing tape
Surge protection
•In outdoor installations, use surge protection for coaxial
signal interfaces.
– CN-LAMBDA/4-5.9-BB, 2838490
Mounting
•In the case of insufficient stability, the quality of the
antenna alignment can be reduced. When mounting the
antenna, also take wind and other outside influences
into consideration.
WARNING: Danger to life by electric shock!
Parts of the antenna are electrically conductive.
Contact with live cables can lead to death or
serious injuries.
– The antenna and the mast must not be in the
vicinity of live cables during installation or
removal.
– If there is risk of lightning strikes: Make sure
that the antenna is mounted and grounded by
qualified specialist personnel in accordance
with generally recognized technical
regulations.
WARNING: Fall hazard
Make sure that the mounting location can be
reached safely with the available equipment.

ILB BT ADIO MUX INSTALL
107804_en_01 PHOENIX CONTACT 7/14
Distance
•Always install omnidirectional antennas a sufficient
distance away from obstacles suchas masts, buildings,
or metal walls.
•Note that there must be a gap of at least 30centimeters
between the antenna and metal parts or surfaces.
•If using several antennas, allow as much distance as
possible between the antennas.
– At least 0.6meters vertically
– At least one meter horizontally
Antenna connection
•Connect the antenna cable to the antenna from below.
•If necessary, use a drip loop.
Weather influences
•Snow, rain, or hail only have a small effect on the
wireless signal. However, in the case of ice and snow,
you must make sure that the antennas are not covered
with ice.
CAUTION: High frequency
Mount the antenna in such a way that persons will
not be within a radius of 30centimeters during
operation.

ILB BT ADIO MUX INSTALL
107804_en_01 PHOENIX CONTACT 8/14
5 Installation indoors

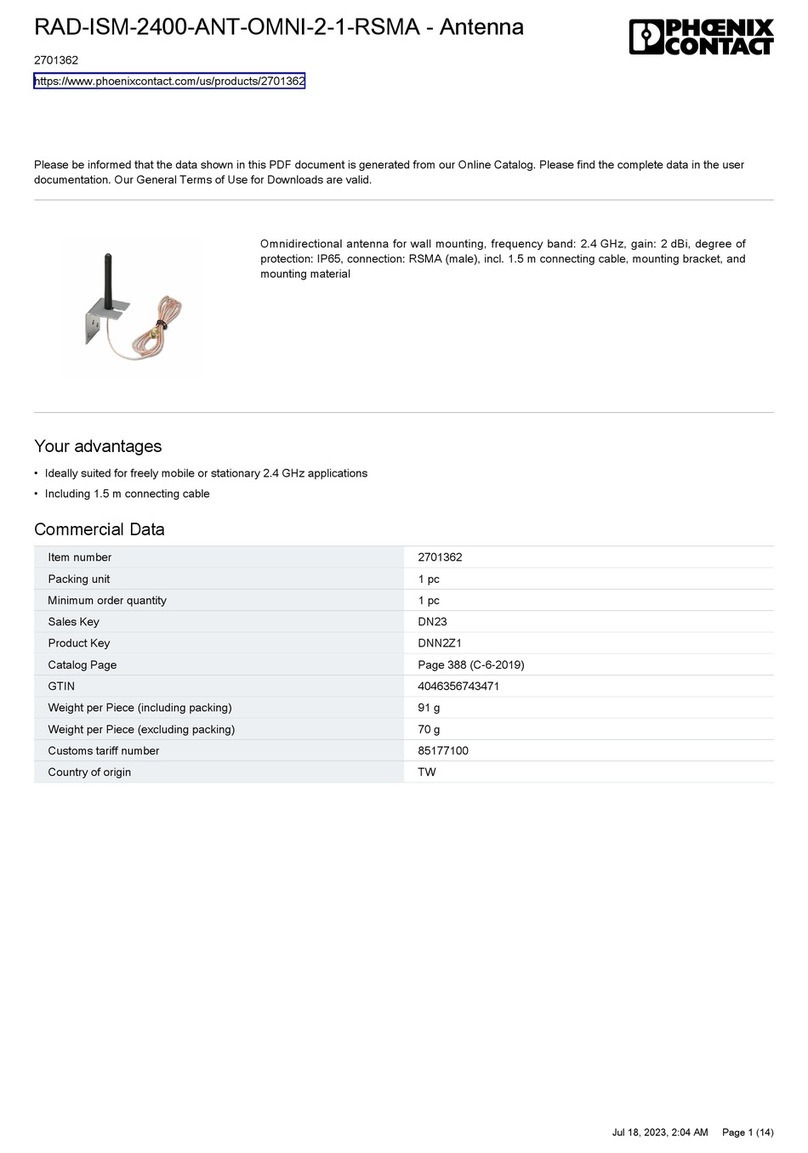

Figure 2 Omnidirectional antenna, 2dBi
Supplied as standard with the ILBBTADIOMUX-OMNI
Pos. Product Description Connection Item No.
 RAD-ISM-2400-ANT-OMNI-2-1-
RSMA
Omnidirectional antenna for wall mounting,
frequency band: 2.4GHz, gain: 2dBi, degree of
protection: IP65, incl. 1.5 m connecting cable,
mounting bracket, and mounting material
RSMA (male) 2701362
UA
UL
PWR1 DO
16
DI 16
FS
AO2 LINK
QUALITY
AI2

ILB BT ADIO MUX INSTALL
107804_en_01 PHOENIX CONTACT 9/14

Figure 3 Omnidirectional antenna with protection against vandalism, 3dBi
Pos. Product Description Connection Item No.
 RAD-ISM-2400-ANT-VAN-3-0-
RSMA
Omnidirectional antenna with protection against
vandalism for control cabinet mounting,
frequency band: 2.4GHz, gain: 3dBi, degree of
protection: IP55, shockproof: IK08, incl. 1.5 m
connecting cable
RSMA (male) 2701358
Appropriate mounting material is available for
wall mounting.
UA
UL
PWR1 DO
16
DI 16
FS
AO2 LINK
QUALITY
AI2

ILB BT ADIO MUX INSTALL
107804_en_01 PHOENIX CONTACT 10/14

Figure 4 Omnidirectional antenna, 2.5dBi
UA
UL
PWR1 DO
16
DI 16
FS
AO2 LINK
QUALITY
AI2
1
2
Pos. Product Description Connection Item No.
1ANT-OMNI-2459-04 Multiband omnidirectional antenna for freely
mobile applications, compact design, frequency
band: 2.4GHz / 5GHz / 6GHz, gain: 2.0dBi /
2.5dBi / 3.0dBi, degree of protection: IP68/IP-
69K, shock and vibration resistant
N (male) 1284780
2RAD-PIG-EF316-N-RSMA Adapter cable, 50cm pigtail, 50Ω impedance N(female) 
RSMA(male)
2701402

ILB BT ADIO MUX INSTALL
107804_en_01 PHOENIX CONTACT 11/14

Figure 5 Multiband omnidirectional antenna with protection against vandalism, 4dBi

Pos. Product Description Connection Item No.
1ANT-OMNI-0671-02 Multiband omnidirectional antenna with protec-
tion against vandalism, 617MHz...7125MHz,
gain: 2dBi...4dBi, polarization: linear, opening
angle: h/v 360°/30°...55°, degree of protection:
IP67, shock resistance:IK10
N (female) 1396318
Alternatively:
RAD-ISM-2459-ANT-FOOD-6-0-N Omnidirectional antenna with protection against
vandalism, 2.4GHz / 5GHz, gain: 6dBi / 8dBi,
polarization: linear, opening angle: h360°,
degree of protection: IP68, resistant to cleaning
agents, for control cabinet mounting
2702898
2RAD-PIG-RSMA/N-0.5 Antenna cable, 0.5m, 50Ω impedance N(male) 
RSMA(male)
2903263
Alternatively:
RAD-PIG-RSMA/N-1 Antenna cable, 1m 2903264
RAD-PIG-RSMA/N-2 Antenna cable, 2m 2903265
RAD-PIG-RSMA/N-3 Antenna cable, 3m 2903266
RAD-PIG-RSMA/N-5 Antenna cable, 5m 2702140
UA
UL
PWR1 DO
16
DI 16
FS
AO2 LINK
QUALITY
AI2
1
2

ILB BT ADIO MUX INSTALL
107804_en_01 PHOENIX CONTACT 12/14

Figure 6 Omnidirectional antenna, 6dBi

1
2
Pos. Product Description Connection Item No.
1RAD-ISM-2400-ANT-OMNI-6-0 Omnidirectional antenna for wall or mast mount-
ing, 2.4GHz, gain: 6dBi, degree of protection:
IP67, salt-water resistant, shock and vibration
resistant, incl. mounting bracket and mast
clamps, ATEX and IECEx approval
N (female) 2885919
Alternatively:
ANT-OMNI-0671-01 Multiband omnidirectional antenna for wall or
mast mounting, 0.6GHz...7.1GHz, gain:
1dBi...3dBi, degree of protection: IP67, salt-
water resistant, incl. mounting bracket and mast
clamps
1396316
2RAD-PIG-RSMA/N-0.5 Antenna cable, 0.5m, 50Ω impedance N(male) 
RSMA(male)
2903263
Alternatively:
RAD-PIG-RSMA/N-1 Antenna cable, 1m 2903264
RAD-PIG-RSMA/N-2 Antenna cable, 2m 2903265
RAD-PIG-RSMA/N-3 Antenna cable, 3m 2903266
RAD-PIG-RSMA/N-5 Antenna cable, 5m 2702140

ILB BT ADIO MUX INSTALL
107804_en_01 PHOENIX CONTACT 13/14
6 Installation outdoors
Figure 7 Omnidirectional antenna, 6dBi, with surge protection

1
23
4
Pos. Product Description Connection Item No.
1RAD-ISM-2400-ANT-OMNI-6-0 Omnidirectional antenna for wall or mast mount-
ing, 2.4GHz, gain: 6dBi, degree of protection:
IP67, salt-water resistant, shock and vibration
resistant, incl. mounting bracket and mast
clamps, ATEX and IECEx approval
N (female) 2885919
Alternatively:
ANT-OMNI-0671-01 Multiband omnidirectional antenna for wall or
mast mounting, 0.6GHz...7.1GHz, gain:
1dBi...3dBi, degree of protection: IP67, salt-
water resistant, incl. mounting bracket and mast
clamps
1396316
2RAD-CAB-EF393-3M Antenna cable, 3m, 50Ω impedance N(male) 
N(male)
2867649
Alternatively: 
RAD-CAB-EF393-5M Antenna cable, 5m 2867652
RAD-CAB-EF393-10M Antenna cable, 10m 2867665
RAD-CAB-EF393-15M Antenna cable, 15m 2885634
3CN-LAMBDA/4-5.9-BB Intermediate plug with LAMBDA/4 technology
as surge protection for coaxial signal interfaces
N(female) 
N(female)
2838490
4RAD-PIG-RSMA/N-0.5 Antenna cable, 0.5m, 50Ω impedance N(male) 
RSMA(male)
2903263
Alternatively:
RAD-PIG-RSMA/N-1 Antenna cable, 1m 2903264
RAD-PIG-RSMA/N-2 Antenna cable, 2m 2903265
RAD-PIG-RSMA/N-3 Antenna cable, 3m 2903266
RAD-PIG-RSMA/N-5 Antenna cable, 5m 2702140

ILB BT ADIO MUX INSTALL
107804_en_01 14/14
PHOENIX CONTACT GmbH & Co. KG • 32823 Blomberg • Germany
phoenixcontact.com

Figure 8 Directional antenna, 9dBi, with surge protection

Pos. Product Description Connection Item No.
1ANT-DIR-2459-01 Directional antenna for wall or mast mounting,
2.4GHz / 5GHz, gain: 9dBi, degree of protec-
tion: IP67, shockproof: IK06, salt-water resis-
tant, incl. mounting bracket and mast clamps,
ATEX and IECEx approval
N (female) 2701186
2RAD-CAB-EF393-3M Antenna cable, 3m, 50Ω impedance N(male) 
N(male)
2867649
Alternatively: 
RAD-CAB-EF393-5M Antenna cable, 5m 2867652
RAD-CAB-EF393-10M Antenna cable, 10m 2867665
RAD-CAB-EF393-15M Antenna cable, 15m 2885634
3CN-LAMBDA/4-5.9-BB Intermediate plug with LAMBDA/4 technology
as surge protection for coaxial signal interfaces
N(female) 
N(female)
2838490
4RAD-PIG-RSMA/N-0.5 Antenna cable, 0.5m, 50Ω impedance N(male) 
RSMA(male)
2903263
Alternatively:
RAD-PIG-RSMA/N-1 Antenna cable, 1m 2903264
RAD-PIG-RSMA/N-2 Antenna cable, 2m 2903265
RAD-PIG-RSMA/N-3 Antenna cable, 3m 2903266
RAD-PIG-RSMA/N-5 Antenna cable, 5m 2702140
2
1
3
4
