Phoenix Contact MACX MCR-CONF User manual

INTERFACE
UM EN MACX MCR-CONF
User Manual
Quick Start Guide for the
MACX MCR-CONF configuration software

Designation:
Revision:
Order No.:
This user manual is valid for:
INTERFACE
104203_en_03 PHOENIX CONTACT
2009-12-08
Quick Start Guide for the MACX MCR-CONF configuration software
UM EN MACX MCR-CONF
03
—
Designation Version Order No.
MACX MCR-CONF 1.1.7 or later —
User Manual

MACX MCR-CONF
PHOENIX CONTACT 104203_en_03
Please observe the following notes
In order to ensure the safe use of the product described, you have to read and understand
this manual. The following notes provide information on how to use this manual.
User group of this manual
The use of products described in this manual is oriented exclusively to
– qualified electricians or persons instructed by them, who are familiar with applicable
standards and other regulations regarding electrical engineering and, in particular, the
relevant safety concepts.
– qualified application programmers and software engineers, who are familiar with the
safety concepts of automation technology and applicable standards.
Phoenix Contact accepts no liability for erroneous handling or damage to products from
Phoenix Contact or third-party products resulting from disregard of information contained in
this manual.
Explanation of symbols used and signal words
The following types of messages provide information about possible property damage and
general information concerning proper operation and ease-of-use.
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible
injury or death.
DANGER
This indicates a hazardous situation which, if not avoided, will result in death or serious
injury.
WARNING
This indicates a hazardous situation which, if not avoided, could result in death or serious
injury.
CAUTION
This indicates a hazardous situation which, if not avoided, could result in minor or
moderate injury.
NOTE
This symbol and the accompanying text alerts the reader to a situation which may cause
damage or malfunction to the device, either hardware or software, or surrounding
property.
This symbol and the accompanying text provides additional information to the reader. It is
also used as a reference to other sources of information (manuals, data sheets, literature)
on the subject matter, product, etc.

MACX MCR-CONF
104203_en_03 PHOENIX CONTACT
General terms and conditions of use for technical documentation
Phoenix Contact reserves the right to alter, correct, and/or improve the technical
documentation and the products described in the technical documentation at its own
discretion and without giving prior notice, insofar as this is reasonable for the user. The
same applies to any technical changes that serve the purpose of technical progress.
The receipt of technical documentation (in particular data sheets, installation instructions,
manuals, etc.) does not constitute any further duty on the part of Phoenix Contact to furnish
information on alterations to products and/or technical documentation. Any other
agreement shall only apply if expressly confirmed in writing by Phoenix Contact. Please
note that the supplied documentation is product-specific documentation only and that you
are responsible for checking the suitability and intended use of the products in your specific
application, in particular with regard to observing the applicable standards and regulations.
Although Phoenix Contact makes every effort to ensure that the information content is
accurate, up-to-date, and state-of-the-art, technical inaccuracies and/or printing errors in
the information cannot be ruled out. Phoenix Contact does not offer any guarantees as to
the reliability, accuracy or completeness of the information. All information made available
in the technical data is supplied without any accompanying guarantee, whether expressly
mentioned, implied or tacitly assumed. This information does not include any guarantees
regarding quality, does not describe any fair marketable quality, and does not make any
claims as to quality guarantees or guarantees regarding the suitability for a special purpose.
Phoenix Contact accepts no liability or responsibility for errors or omissions in the content
of the technical documentation (in particular data sheets, installation instructions, manuals,
etc.).
The aforementioned limitations of liability and exemptions from liability do not apply, in so
far as liability must be assumed, e.g., according to product liability law, in cases of
premeditation, gross negligence, on account of loss of life, physical injury or damage to
health or on account of the violation of important contractual obligations. Claims for
damages for the violation of important contractual obligations are, however, limited to
contract-typical, predictable damages, provided there is no premeditation or gross
negligence, or that liability is assumed on account of loss of life, physical injury or damage
to health. This ruling does not imply a change in the burden of proof to the detriment of the
user.

MACX MCR-CONF
PHOENIX CONTACT 104203_en_03
Statement of legal authority
This manual, including all illustrations contained herein, is copyright protected. Use of this
manual by any third party is forbidden. Reproduction, translation, and public disclosure, as
well as electronic and photographic archiving or alteration requires the express written
consent of Phoenix Contact. Violators are liable for damages.
Phoenix Contact reserves all rights in the case of patent award or listing of a registered
design, in as far as this concerns software of Phoenix Contact that meets the criteria of
technicity or has technical relevance. Third-party products are always named without
reference to patent rights. The existence of such rights shall not be excluded.
Windows 3.x, Windows 95, Windows 98, Windows NT, Windows 2000, Windows XP, and
Windows Vista are trademarks of the Microsoft Corporation.
All other product names used are trademarks of the respective organizations.
How to contact us
Internet Up-to-date information on Phoenix Contact products and our Terms and Conditions can be
found on the Internet at:
www.phoenixcontact.com.
Make sure you always use the latest documentation.
It can be downloaded at:
www.phoenixcontact.net/catalog.
Subsidiaries If there are any problems that cannot be solved using the documentation, please contact
your Phoenix Contact subsidiary.
Subsidiary contact information is available at www.phoenixcontact.com.
Published by .
Should you have any suggestions or recommendations for improvement of the contents and
layout of our manuals, please send your comments to
[email protected].
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstraße 8
32825 Blomberg
Germany
Phone +49 - (0) 52 35 - 3-00
Fax +49 - (0) 52 35 - 3-4 12 00

104203_en_03 PHOENIX CONTACT i
Table of Contents
1 Installing MACX MCR-CONF ..................................................................................................1-1
1.1 Requirements .....................................................................................................1-1
1.1.1 System requirements ..........................................................................1-1
1.1.2 Hardware requirements ......................................................................1-1
1.2 Installing the software .........................................................................................1-2
1.2.1 Starting the installation program .........................................................1-2
1.2.2 Installing the USB driver ......................................................................1-4
2 Starting MACX MCR-CONF ....................................................................................................2-1
2.1 Information area .................................................................................................2-2
2.2 Toolbar ...............................................................................................................2-2
2.3 Tabs ...................................................................................................................2-4
2.3.1 Device Settings ...................................................................................2-4
2.3.2 Monitoring .........................................................................................2-10

MACX MCR-CONF
ii PHOENIX CONTACT 104203_en_03

Installing MACX MCR-CONF
104203_en_03 PHOENIX CONTACT 1-1
1 Installing MACX MCR-CONF
MACX MCR-CONF is a configuration software solution for parameterizing devices from the
MACX MCR product range.
The software is a stand-alone tool for installation on PCs and laptops.
1.1 Requirements
Communication with the device is only possible by means of an
"IFS-USB-PROG-ADAPTER" programming adapter, which is available as an accessory.
Figure 1-1 IFS-USB-PROG-ADAPTER, Order No. 2811271
1.1.1 System requirements
Supported operating
systems
Windows 2000
Windows XP SP2 or later (recommended)
Windows Vista SP1 or later
1.1.2 Hardware requirements
No functions or commands that require communication with the device can be executed
without a physical configuration.
However, complete parameterization is possible in the "offline" state.
CPU Pentium III 400 MHz, 1 GHz (recommended)
Main memory 256 MB (minimum), 512 MB (recommended)
Hard disk space 15 MB (minimum), 100 MB (recommended)
CD-ROM drive Yes
Interfaces USB (1.1 or later)
Interface adapter IFS-USB-PROG-ADAPTER, Order No. 2811271
Monitor SVGA, resolution of 1024 x 768 pixels (minimum),
1152 x 864 pixels (recommended)
Operating devices Mouse, keyboard

MACX MCR-CONF
1-2 PHOENIX CONTACT 104203_en_03
1.2 Installing the software
Prior to installation If an earlier version has been installed, uninstall this version via the Windows Control Panel
under "Software".
1.2.1 Starting the installation program
Downloaded installation
file
•Start the "MACX_MCR_CONF_Install_1_x_x.exe" file from the directory in which this
file was downloaded.
CD-ROM installation level • If you have received a CD, insert it in your CD-ROM drive.
The installation program usually starts automatically after a few seconds.
If this is not the case, start the "MACX_MCR_CONF_Install_1_x_x.exe" file on the
CD-ROM.
Starting installation An installation wizard is called, which guides you through the installation process.
•Follow the instructions in the installation program.
The installation program generates all the directories required for operation and copies
the files for the selected programs.
Figure 1-2 Selecting the setup language
Figure 1-3 Installation wizard (1)
Prior to installation, close all open Windows applications.

Installing MACX MCR-CONF
104203_en_03 PHOENIX CONTACT 1-3
Figure 1-4 Installation wizard (2)
Following program installation, the wizard for installing the USB driver is started. This
installs all the files needed to operate the "IFS-USB-PROG-ADAPTER".
Figure 1-5 Installing the programming adapter
Note for Windows XP
If during installation under Windows XP an alert appears stating that the software has not
passed Windows logo testing, continue with the installation process.

MACX MCR-CONF
1-4 PHOENIX CONTACT 104203_en_03
Connect the computer to a MACX MCR-EX-SL temperature transducer using the
"IFS-USB-PROG-ADAPTER" programming adapter, which is available as an accessory.
1.2.2 Installing the USB driver
The USB driver is installed in two steps. First, a "USB Composite Device" is installed, then
the "USB Programming Adapter IFS" is installed in the second step.
If the "IFS-USB_PROG-ADAPTER" is connected to the USB connection, the Windows
hardware wizard starts.

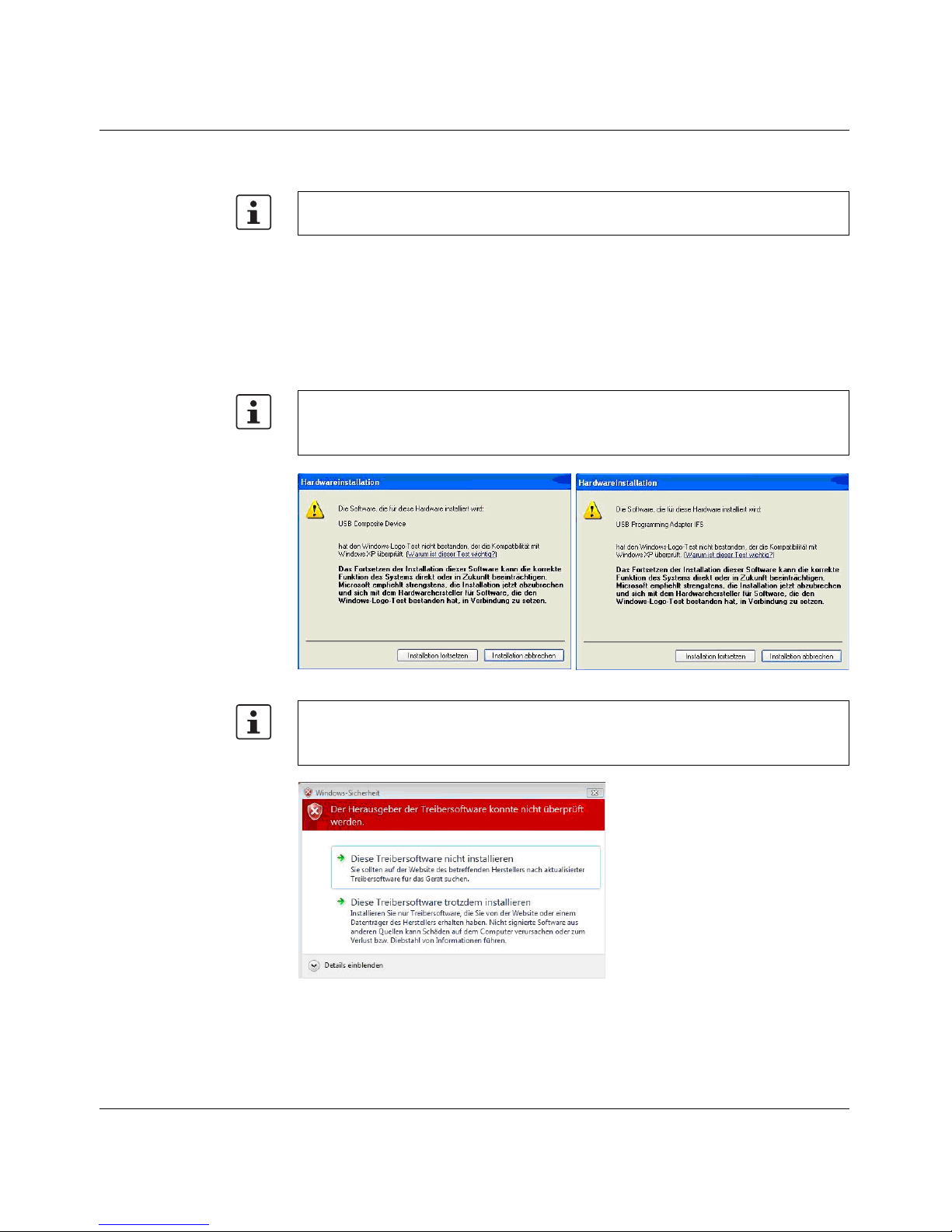

Figure 1-6 Alerts about Windows logo testing
Figure 1-7 Note for Windows Vista
Only click on "Install" once the connection to the device has been established. Otherwise
click on "Cancel" and switch to offline mode.
Note for Windows XP
If during installation under Windows XP an alert appears stating that the software has not
passed Windows logo testing, continue with the installation process.
Note for Windows Vista
If an error message stating that "Windows can't verify the publisher of this driver software"
appears, select "Install this driver software anyway" and continue the installation process.

Installing MACX MCR-CONF
104203_en_03 PHOENIX CONTACT 1-5

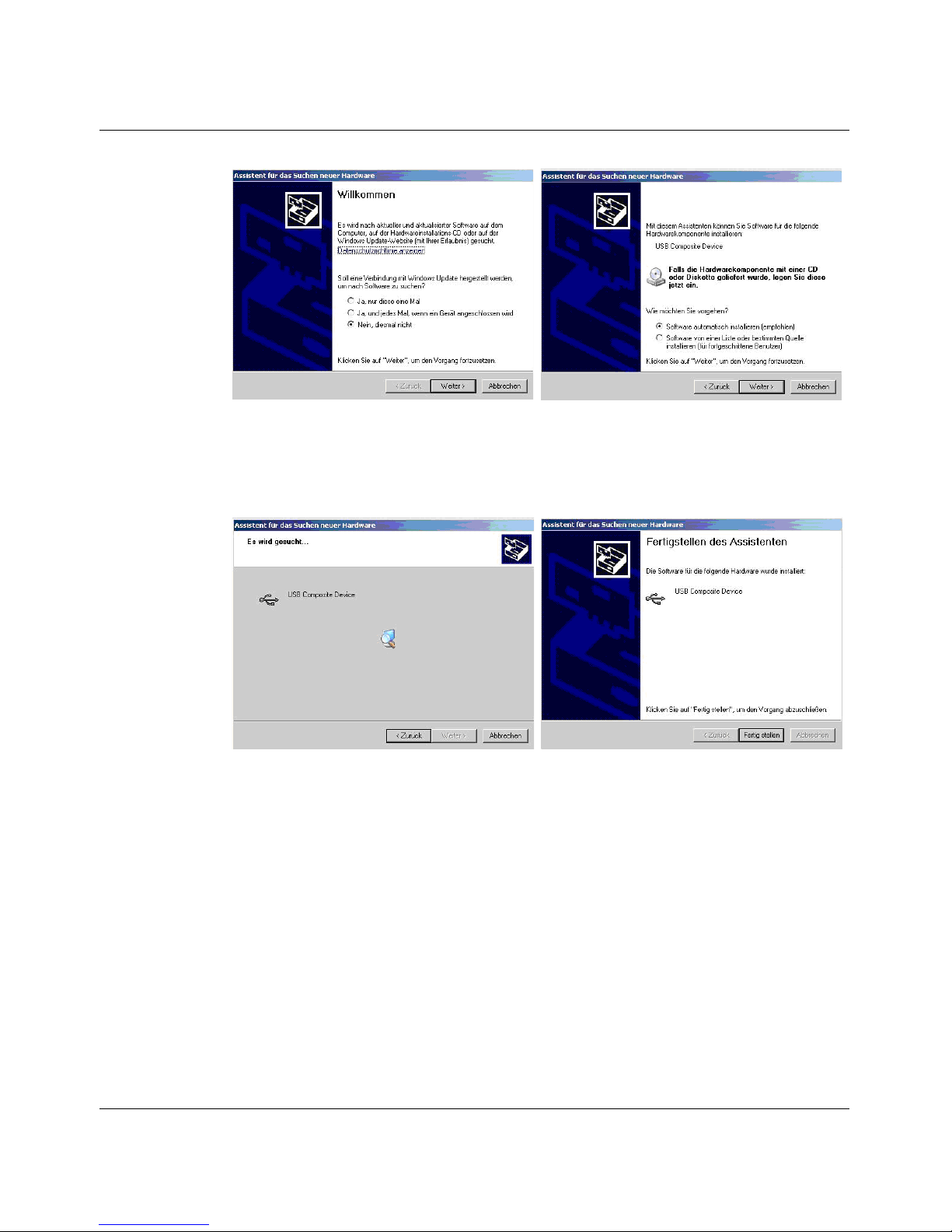

The Windows hardware wizard appears.
Figure 1-8 Windows hardware wizard (1)
•When prompted, select "No, not this time" and "Install software automatically".
The hardware wizard now starts the installation process for the "USB Composite Device"
driver.
Figure 1-9 Windows hardware wizard (2)
•Click on "Finish".

MACX MCR-CONF
1-6 PHOENIX CONTACT 104203_en_03
The hardware wizard is started again following successful installation.
Figure 1-10 Windows hardware wizard (3)
•When prompted, again select "No, not this time" and "Install software automatically".
The drivers for the "USB Programming Adapter IFS" are now installed.
•Click on "Finish".
Following successful installation, the "USB IFS-USB_PROG-ADAPTER" is ready to
operate.

Starting MACX MCR-CONF
104203_en_03 PHOENIX CONTACT 2-1
2 Starting MACX MCR-CONF
•If installed using the default settings, start MACX MCR-CONF via "Start/All
Programs/Phoenix Contact/MACX MCR-CONF 1.1/MACX MCR-CONF 1.1".
Response following
program start
The USB port is scanned to check whether a MACX MCR device is already connected.
1. If a device is found:
– The configuration window opens, if the device is known.
– An error message is displayed, if the device is not known.
2. If a device is not found:
– Window with device selection list for offline configuration
– Select the device
– Switch to offline configuration

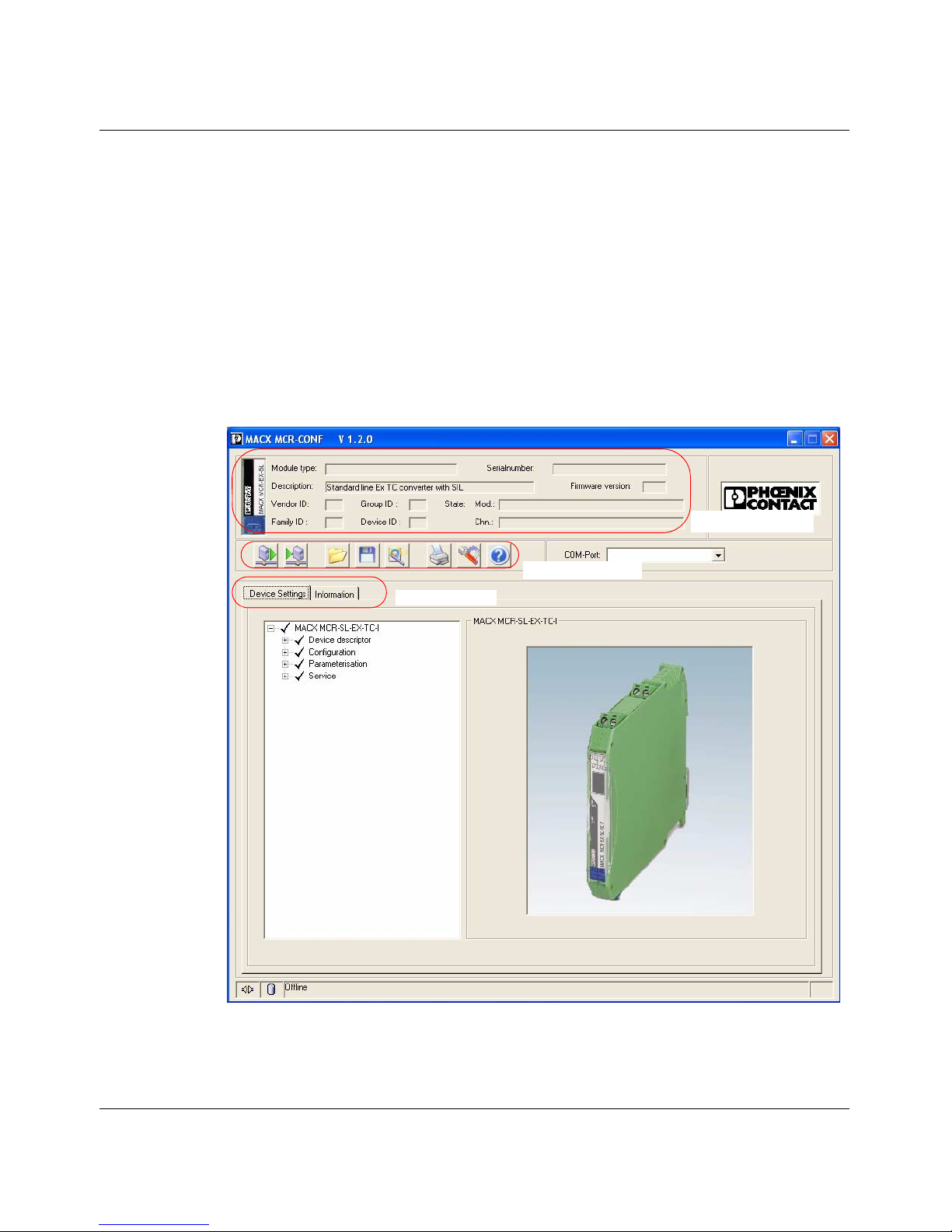

Figure 2-1 Configuration window
Tabs
Toolbar
Information area

MACX MCR-CONF
2-2 PHOENIX CONTACT 104203_en_03
2.1 Information area
The following information about the currently connected device is displayed here:
2.2 Toolbar
The toolbar contains the following menu items:
Device image A stylized image of the front view of the device is displayed
here.
Device information Device type
Description
Device IDs
Serial number
Firmware version
Status information
Manufacturer logo An image of the manufacturer's logo is displayed here.

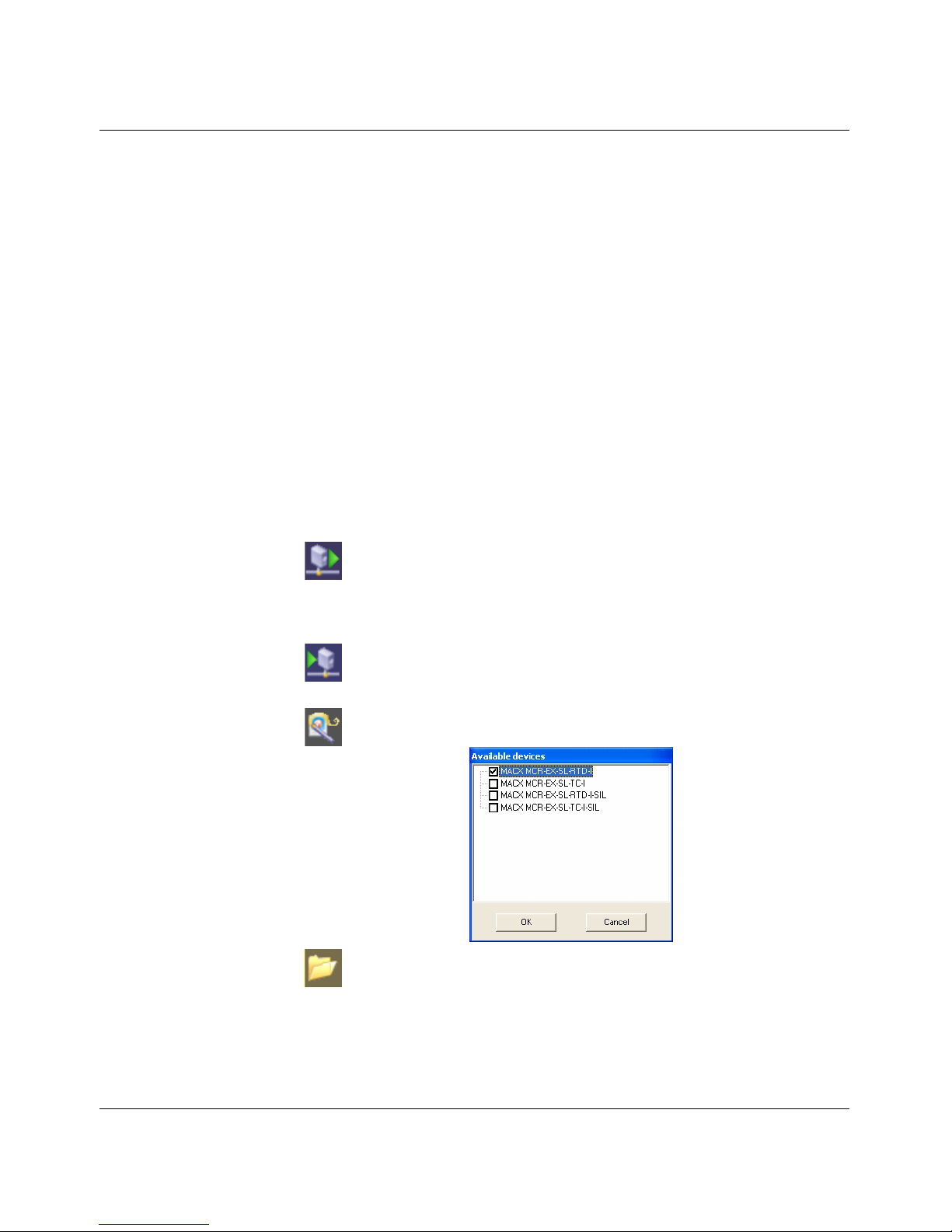

Read device
settings
This button can be used to read the device data of a connected
device.
If the connected device is not supported, an error message is
displayed.
If no device is connected, this option is grayed out.
Transfer (local)
device settings
to the device
When this button is pressed, the current local device settings
are transferred to the device.
If no device is connected, this option is grayed out.
Offline setting When this option is selected, a list of supported devices is
opened, from which the required module can be selected.
Load device
settings from
data carrier
Can be used to load prepared device settings from a local data
carrier or network drive in the current workspace window.

Starting MACX MCR-CONF
104203_en_03 PHOENIX CONTACT 2-3
Save device
settings to data
carrier
Can be used to save the current device settings to a local data
carrier or network drive.
Print device
settings
The current device settings can be printed in table format for
documentation purposes.

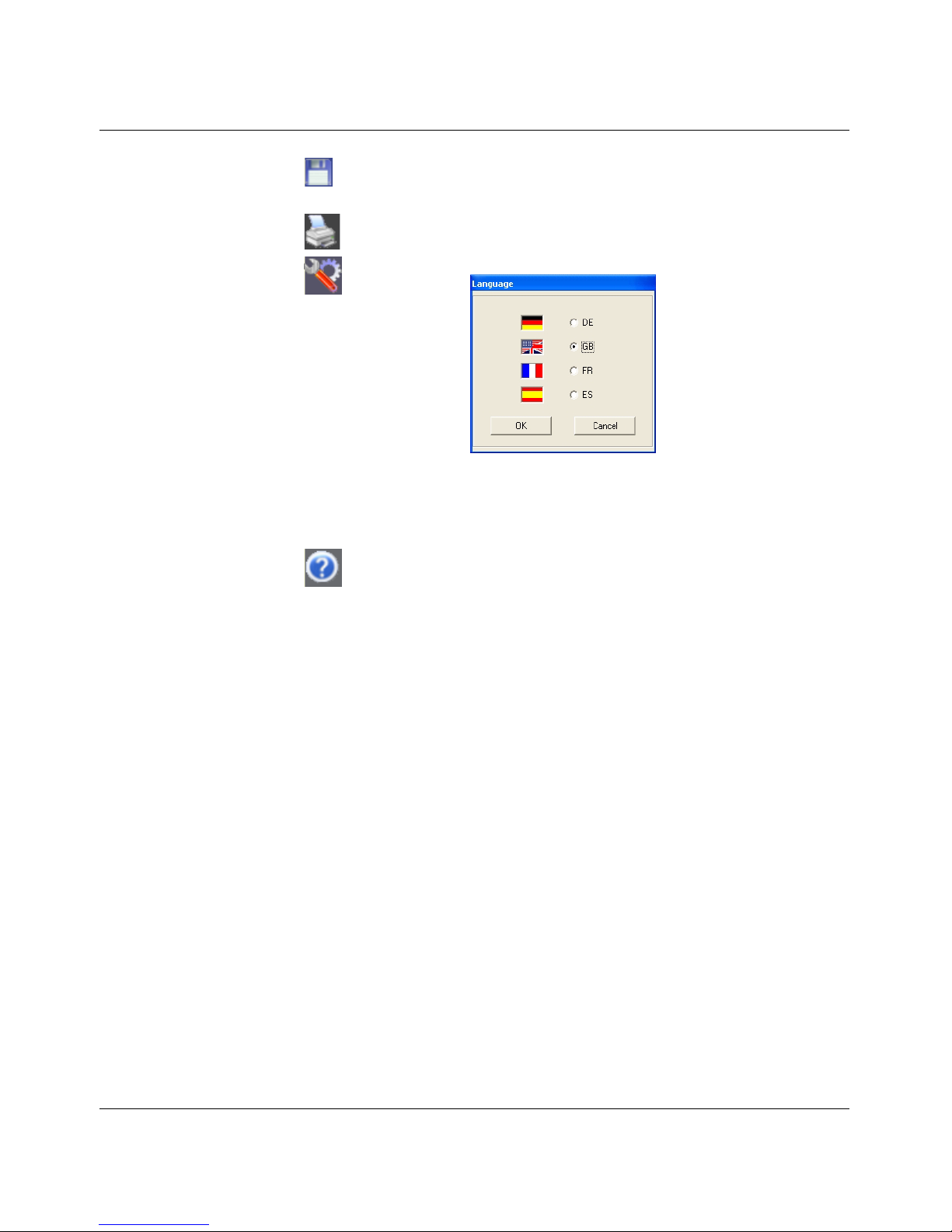

Settings This menu item can be used to set the software language.
The selected language is activated the next time
MACX MCR-CONF is started.
In Version 1.2.0, English and German are available.
French and Spanish are to follow.
Help This menu item opens this user manual as a PDF file.

MACX MCR-CONF
2-4 PHOENIX CONTACT 104203_en_03
2.3 Tabs

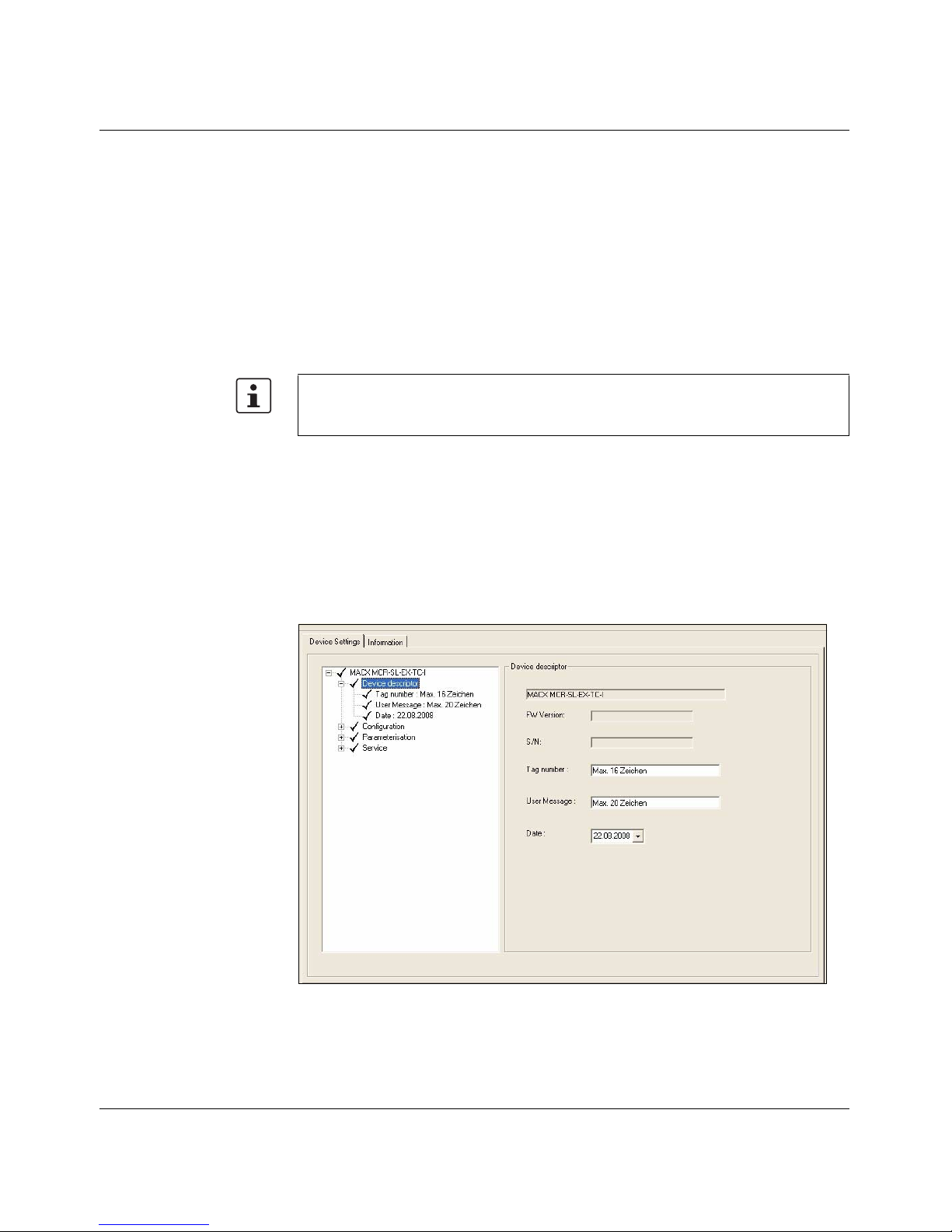

2.3.1 Device Settings
The "Device Settings" tab contains configuration and parameterization dialog boxes that
are relevant for the connected device.
The tree structure is divided into the following groups:
– Device descriptor
– Configuration
– Parameterization
–Service
In all windows in which parameters can be modified:
– The modified parameters are indicated with an icon (pencil)
– The "Cancel" button is available to reject the current changes
If a yellow padlock appears in front of the menu items in the tree structure, these menu
items are locked. To unlock them, enter a password via the "Service" menu item
(see page 2-8).
Device descriptor A device designation (16 characters), user text (20 characters,
maximum), and the installation date can be specified here.
In addition, the module name, serial number, and firmware
version are displayed.

Starting MACX MCR-CONF
104203_en_03 PHOENIX CONTACT 2-5
Configuration Input The analog input specific to the device is set here:
– Signal type/sensor type
– Connection method
– Sensor monitoring
Output The information displayed here is purely
informative and cannot be modified.
Error
handling
The following settings are possible:
– According to NE43 (upscale)
– According to NE43 (downscale)
– Definable
– Detection OFF
Functional
safety
This item is only available if a SIL-compatible
module (firmware Version 1.100 or later) has
been selected.
When "SIL ON" is selected, "Restart after
fail-safe"can be deactivated.
This means that in the event of an error, the
measuring transducer enters the failsafe state
according to safety functions 1 and 2, but is not
restarted.

MACX MCR-CONF
2-6 PHOENIX CONTACT 104203_en_03
Parameterization Input The analog input specific to the device is set here:
– Signal range
– Temperature unit (depending on sensor type)
– Oversampling (mean-value generation)
– Moving average
– Cable resistance compensation for 2-wire
measurement (MACX MCR-EX-SL-RTD...
only)
