1
OBSERVER function
OBSERVER is a wireless baby alarm and pager and one of the PUZZLE
system’s alerting transmitters. OBSERVER detects when a baby cries,
then activates a red light on top of the unit and sends an alarm
signal wirelessly to the PUZZLE system’s receivers. There is also a
button on top of the unit that lets you use OBSERVER as a pager.
OBSERVER sends one alarm pattern when the baby cries and a different
alarm pattern when used as a pager. It works with the following
receivers in the PUZZLE system: CALL, FLASH, WAKE, POCKETVIB,
LOOP, BEAM,and LINK.
3321 Puzzle Observer User Guide 5/13/03 11:37 AM Page 7
Notice : The changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCCRULES. OPERATIONS IS SUBJECT TO 
THE FOLLOWING TWO CONDITIONS: ( 1 ) THIS DEVICE MAY NOT CAUSE HARMFUL 
INTERFERENCE AND( 2 ) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, 
INCLUDING INTERFEERENCE THAT MAYCAUSE UNDESRIED OPERATION
The term “IC:” before the radio certification number only signifies that Industry Canada 
Technical specifications were met.
Operation is subject to the following two conditions: (1) this device may not cause 
interference, and (2) this device must accept any interference, including interference 
that may cause undesired operation of the device.

8pager button
Allows you to use
OBSERVER as a pager
1built-in microphone
2belt clip
9power switch
Turns unit on and off
2
3personal code
selector
Located inside battery
compartment
6sensitivity control
To adjust built-in micro-
phone sensitivity level
7indicator light
Light indicates when a
signal is being transmitted
by the OBSERVER unit
OBSERVER features
English
5battery
compartment
4alarm switch
To select alarm pattern.
Located inside battery
compartment
3321 Puzzle Observer User Guide 5/13/03 11:37 AM Page 8

3

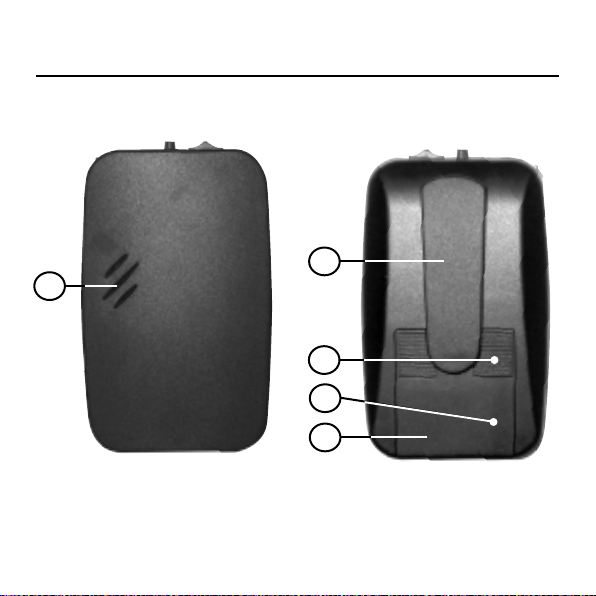

OBSERVER features
1
front back
2
4
5
3
3321 Puzzle Observer User Guide 5/13/03 11:37 AM Page 9

4
English
OBSERVER features
6
top
7 8 9
3321 Puzzle Observer User Guide 5/13/03 11:37 AM Page 10

5
OBSERVER instructions

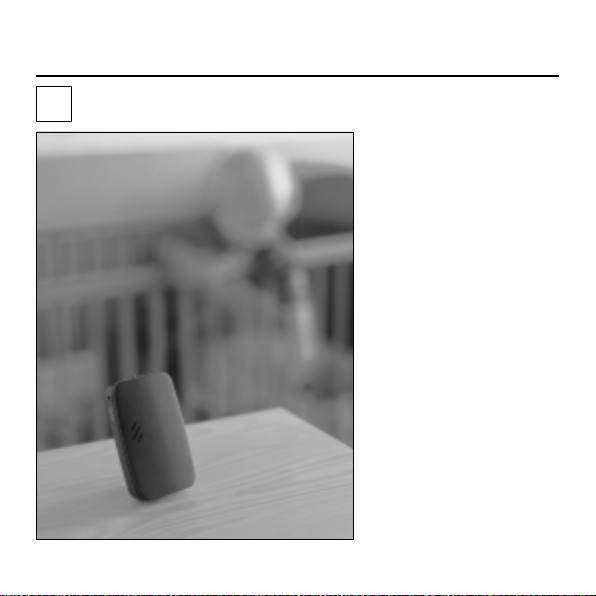

OBSERVER installation
OBSERVER should be
placed as near as possi-
ble to the baby without
being within reach.
NOTE: OBSERVER should
not be exposed to wet or
damp conditions.
1
3321 Puzzle Observer User Guide 5/13/03 11:37 AM Page 11

6
English
OBSERVER instructions
operating OBSERVER
OBSERVER is switched
on by sliding the
switch on the top
of the unit from
left to right.
To turn it off, slide
the switch from
right to left.
2
3321 Puzzle Observer User Guide 5/13/03 11:38 AM Page 12

7
OBSERVER instructions
selecting alarm patterns
If you have two
OBSERVER units and
wish to distinguish
between the signals sent
from each unit, the
positions of the switches
must be opposite.
If you have one or more
DETECT alerting trans-
mitters the selection of
alarm patterns must be
different for all DETECT
and OBSERVER alerting
transmitters.
3
baby pager
switch in left position alarm 3 alarm 4
switch in right position alarm 5 alarm 6
3321 Puzzle Observer User Guide 5/13/03 11:38 AM Page 13

8
English
OBSERVER instructions
selecting personal code
The personal code
can be selected
using the tuner
in the unit’s
battery chamber.
(See 6a for
instructions on
removing battery
compartment door).
NOTE: The PUZZLE
system’s different
alerting transmitters
and receivers should
be set to the same
personal code.
4
3321 Puzzle Observer User Guide 5/13/03 11:38 AM Page 14

9
setting microphone sensitivity
Turn the micro-
phone sensitivity
control, on top of
unit up to 8(maxi-
mum sensitivity).
When receiving
false alarms, turn
the control one step
toward 0.
Repeat the above
procedure until you
only receive alarms
when the baby
is crying.
5a
1
1
2
2
OBSERVER instructions
3321 Puzzle Observer User Guide 5/13/03 11:38 AM Page 15

10
English
OBSERVER instructions
setting microphone sensitivity
NOTE: Sensitivity
should be adjusted as
low as possible to
minimize the possi-
bility of false alarms.
5b
When red light on
top of the unit
lights, OBSERVER has
detected a signal
and is transmitting
a signal.
3321 Puzzle Observer User Guide 5/13/03 11:38 AM Page 16

11
NOTE: OBSERVER sends
a signal to the PUZZLE
system’s receivers when
the batteries need
to be changed.
OBSERVER instructions

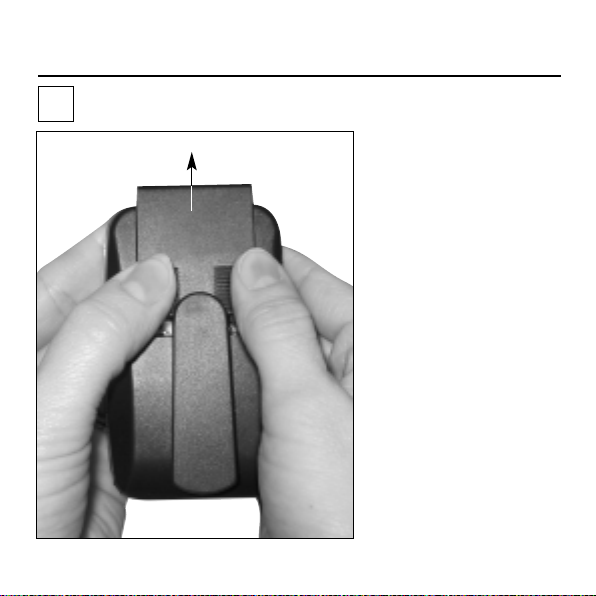

changing batteries
Hold OBSERVER in both
hands with back facing
up and top facing
toward you.
Press down on the
marked areas with your
thumbs and push the
top away from yourself.
6a
3321 Puzzle Observer User Guide 5/13/03 11:38 AM Page 17

12
English
OBSERVER instructions
changing batteries
Insert new batteries,
being careful to
orient the batteries
correctly according
to the plus and
minus symbols in
battery chamber.
6b
-+
-
+
-
+
NOTE: Use three
IEC LR1 penlight
1,5V batteries. The
batteries should be
removed if OBSERVER
is not used for an
extended period
of time.
3321 Puzzle Observer User Guide 5/13/03 11:38 AM Page 18

13
Should your OBSERVER baby alarm and pager not function satisfactorily,
please check the list below.
OBSERVER does not react to baby crying
• Check that the unit is turned on. See 2 .
• Check that the microphone is adjusted correctly. See 5a and 5b .
OBSERVER does not react to either the baby crying or
pushing the pager button
• Check that the unit is turned on. See 2 .
• Check that the batteries are correctly placed in the battery chamber.
See 6b .
• Change the batteries in OBSERVER. See 6a and 6b .
OBSERVER reacts to baby’s cries and to pressing the
pager button, but none or only some of the PUZZLE
system’s receivers give a signal
• Check that the personal code on OBSERVER and the PUZZLE
system’s receivers are the same. See 4 .
troubleshooting
3321 Puzzle Observer User Guide 5/13/03 11:38 AM Page 19

14
English
OBSERVER is approved and CE marked in accordance with the
R&TTE directive.
tests and approvals
troubleshooting (cont’d)
PUZZLE system’s receivers activate an alarm
without apparent reason
• Change the personal code using the tuner placed in the
battery chamber. See 4 .
If you still have trouble after trying the ideas above please
contact your local authorized PhonicEar Logia dealer/installer.
3321 Puzzle Observer User Guide 5/13/03 11:38 AM Page 20

warranty
A one-year limited warranty is issued to the original consumer of this product(s) by
PhonicEar Logia.
time period of warranty
This warranty will go into effect upon the date of original purchase of this equipment, and
will remain in effect for one calendar year from that date as long as the instrument remains
the property of the original consumer.
what is covered by this warranty
Any electronic component which, because of workmanship, manufacturing, or design
defects, fails to function properly under normal use during the life of this warranty
will be replaced or repaired at no charge for parts or labor when returned to the factory
service center. Transportation in is paid by the customer. If it is determined that repair
is not feasible, the entire unit may be replaced with an equivalent unit upon mutual
agreement of the manufacturer and customer.
what is not covered by this warranty
This one-year limited warranty does not apply to:
1Malfunctions resulting from abuse, neglect, or accident.
2Peripheral accessories as itemized within the product brochure, when such items are
returned after 90 days from the original purchase.
3Alkaline batteries (if applicable).
4Instruments connected, installed, used, or adjusted in a manner contrary to instruc-
tions provided by the manufacturer.
15
3321 Puzzle Observer User Guide 5/13/03 11:38 AM Page 21

English
warranty (cont’d)
5Consequential damages and damages resulting from delay or loss of this instru-
ment. The exclusive remedy under this warranty is strictly limited to repair or
replacement as herein provided.
6Products damaged in transit unless investigated by the shipper and returned to the
warrantor with the investigation report.
PhonicEar Logia reserves the right to make changes in the design or construction of
any of its instruments at any time without incurring any obligation to make any
changes whatsoever on units previously purchased. This warranty is in lieu of all other
expressed warranties. All expressed and implied warranties will terminate upon the
expiration of this written warranty. No representative or person is authorized to repre-
sent or assume for us any liability in connection with the sale or use of our products
other than as set forth above.
The above warranty does not affect any legal rights that you might have under applic-
able national legislation governing sale of consumer goods. Your distributor may have
issued a warranty that goes beyond the clauses of this limited warranty. Please consult
your distributor for further information.
what to do if you need service
If you require service under the terms of this warranty, carefully package the instru-
ment to prevent damage and return it to your distributor (see information on back
cover). Please provide your receipt, a detailed description of the problem, your full name,
billing address, and telephone number.
