Physik Instrumente E-836.1G User manual

The following company names and brands are registered trademarks of Physik Instrumente (PI) GmbH & Co.
KG:
PI®, NanoCube®, PICMA®, PILine®, NEXLINE®, PiezoWalk®, NEXACT®, Picoactuator®, PInano®, PIMag®,
Q-Motion®
The patents held by PI are found in our patent list: https://www.physikinstrumente.com/en/about-pi/patents
© 2023 Physik Instrumente (PI) GmbH & Co. KG, Karlsruhe, Germany. The text, photographs, and drawings in
this manual are protected by copyright. Physik Instrumente (PI) GmbH & Co. KG reserves all rights in this
respect. The use of any text, images and drawings is permitted only in part and only when indicating the
source.
Original instructions
First printing: 7/12/2023
Document number: PZ250E, BRo, ASt, Version 1.1.0
Subject to change. This manual is superseded by any new release. The latest respective release is available for
download (p. 2) on our website.

1About this Document 1
1.1 Objective and Target Group of this User Manual ...................................................... 1
1.2 Symbols and Typographic Conventions...................................................................... 1
1.3 Other Applicable Documents ..................................................................................... 2
1.4 Downloading Manuals................................................................................................ 2
2Safety 3
2.1 Intended Use .............................................................................................................. 3
2.2 General Safety Instructions ........................................................................................ 3
2.3 Organizational Measures............................................................................................ 4
3Product Description 5
3.1 Product View .............................................................................................................. 5
3.1.1 Front Panel .................................................................................................... 5
3.1.2 Rear Panel...................................................................................................... 6
3.2 Scope of Delivery........................................................................................................ 7
4Unpacking 9
5Installing 11
5.1 General Notes on Installation................................................................................... 11
5.2 Connecting the E-836.1G to the Protective Earth Conductor.................................. 11
5.3 Connecting the Power Supply to the E-836.1G........................................................ 12
5.4 Connecting the Positioner........................................................................................ 12
5.5 Connecting the Control Input Voltage...................................................................... 13
6Startup 15
6.1 General Notes on Startup......................................................................................... 15
6.2 Switching the E-836.1G On....................................................................................... 16
6.3 Starting Motion ........................................................................................................ 16
7Maintenance 19
7.1 General Notes on Maintenance ............................................................................... 19
7.2 Cleaning the E-836.1G.............................................................................................. 19
Contents

8Troubleshooting 21
9Customer Service Department 23
10 Technical Data 25
10.1 Specifications............................................................................................................ 25
10.1.1 Data Table.................................................................................................... 25
10.1.2 Maximum Ratings........................................................................................ 26
10.1.3 Ambient Conditions and Classifications ...................................................... 26
10.2 Operating Limits ....................................................................................................... 27
10.3 Dimensions ............................................................................................................... 28
10.4 Block Diagrams ......................................................................................................... 29
10.5 Pin Assignment ......................................................................................................... 29
10.5.1 PZT Socket.................................................................................................... 29
10.5.2 24 VDC Power Supply Connection............................................................... 29
11 Old Equipment Disposal 31
12 Appendix 33
12.1 Lifetime of PICMA® Actuators .................................................................................. 33
12.2 European Declarations of Conformity...................................................................... 35

1 About this Document
E-836.1G Piezo Amplifier PZ250E Version: 1.1.0 1
1.1 Objective and Target Group of this User Manual
This user manual contains the information necessary for using the E-836.1G as intended.
We assume that the user has basic knowledge of closed-loop systems, motion control concepts,
and applicable safety measures.
1.2 Symbols and Typographic Conventions
The following symbols and typographic conventions are used in this user manual:
DANGER
Immediate threat of danger
Failure to comply could lead to death or serious injury.
Precautionary measures for avoiding the risk.
NOTICE
Dangerous situation
Failure to comply could cause damage to equipment.
Precautionary measures to avoid the risk.
INFORMATION
Information for easier handling, tricks, tips, etc.
Symbol/
Label
Meaning
1.
2.
Action consisting of several steps with strict sequential
order
Action consisting of one or more steps without relevant
sequential order.
Bullet point
p. 5
Cross-reference to page 5
1
About this Document

1 About this Document
2 Version: 1.1.0 PZ250E E-836.1G Piezo Amplifier
Symbol/
Label
Meaning
RS-232
Label on the product indicating an operating element
(example: RS-232 interface socket)
Warning signs on the product that refer to detailed
information in this manual.
1.3 Other Applicable Documents
The devices and software tools from PI mentioned in this documentation are described in
separate manuals.
The latest versions of the user manuals are available on our website for download (p. 2).
Component Document
Analog Controller Driver Library for Use with NI LabVIEW
software
PZ181E Software Manual
1.4 Downloading Manuals
INFORMATION
If a manual is missing or problems occur with downloading:
Contact our customer service department (p. 23).
Downloading manuals
1. Open the website www.pi.ws.
2. Search the website for the product number (e.g., E-836.1G).
3. Click the corresponding product to open the product detail page.
4. Click the Downloads tab.
The manuals are shown under Documentation. Software manuals are shown under
General Software Documentation.
5. Click the ADD TO LIST button for the desired manual and then click REQUEST.
6. Fill out the request form and click SEND REQUEST.
The download link will then be sent to the email address entered.

2 Safety
E-836.1G Piezo Amplifier PZ250E Version: 1.1.0 3
2.1 Intended Use
The E-836.1G is a laboratory device as defined by DIN EN 61010-1. It is intended to be used in
interior spaces and in an environment which is free of dirt, oil and lubricants.
Corresponding to its design, the E-836.1G is intended for driving capacitive loads (e. g. piezo
ceramic actuators).
The E-836.1G must not be used for purposes other than those named in this user manual. In
particular, the E-836.1G must not be used to drive ohmic or inductive loads.
The E-836.1G can be used for static as well as dynamic applications.
2.2 General Safety Instructions
The E-836.1G is built according to state-of-the-art technology and recognized safety standards.
Improper use of the E-836.1G may result in personal injury and/or damage to the E-836.1G.
Use the E-836.1G for its intended purpose only, and only when it is in perfect condition.
Read the user manual.
Immediately eliminate any faults and malfunctions that are likely to affect safety.
The operator is responsible for installing and operating the E-836.1G correctly.
Install the E-836.1G near the power source so that the power plug can be quickly and
easily disconnected from the mains.
Use the supplied components (power supply, adapter, power cord) to connect the E-
836.1G to the power source.
If one of the supplied components for connecting to the power source has to be
replaced, use a sufficiently dimensioned component.
If the protective earth conductor is not or not properly connected, dangerous touch voltages
can occur on the E-836.1G in the event of a malfunction or failure of the system. If there are
touch voltages, touching the E-836.1G can result in serious injury or death from electric shock.
Connect the E-836.1G to a protective earth conductor (p. 11) before starting.
Do not remove the protective earth conductor during operation.
2
Safety

2 Safety
4 Version: 1.1.0 PZ250E E-836.1G Piezo Amplifier
If the protective earth conductor has to be removed temporarily (e.g., in the case of
modifications), reconnect the E-836.1G to the protective earth conductor before
restarting.
2.3 Organizational Measures
User Manual
Always keep this user manual together with the E-836.1G.
The latest versions of the user manuals are available for download on our website (p.
2).
Add all information from the manufacturer to the user manual, for example,
supplements or technical notes.
If you give the E-836.1G to a third party, include this user manual as well as other
relevant information provided by the manufacturer.
Do the work only if the user manual is complete. Missing information due to an
incomplete user manual can lead to serious or fatal injuries as well as damage to the
equipment.
Install and operate the E-836.1G only after you have read and understood this user
manual.
Personnel Qualification
The E-836.1G may only be installed, started, operated, maintained, and cleaned by authorized
and appropriately qualified personnel.

3 Product Description
E-836.1G Piezo Amplifier PZ250E Version: 1.1.0 5
3.1 Product View
3.1.1 Front Panel
Figure 1: E-836.1G piezo amplifier, front view
Labeling Type Function
24 VDC
Barrel connector
socket (input)
Connection for the supply voltage
Threaded bolt with
fastening material
for protective earth
conductor
Protective earth connection (p. 11)
The threaded bolt must be connected to a
protective earth conductor, since the E-836.1G is
not grounded via the power supply connector.
Control In
BNC socket Connection of a signal source
Input for the control input voltage of the E-
836.1G
PZT
-30 to 130 V
LEMO socket
EPK.00.250.NTN
Connection of the positioner
Output of the piezo voltage for the piezo
actuator in the positioner
DC Offset
Rotary knob
1-turn potentiometer, adds 0 to 10 V to control
input voltage
Power
LED
green/off
Display of the ready state:
Green: E-836.1G is ready for operation
Off: E-836.1G is not ready for operation
3
Product Description

3 Product Description
6 Version: 1.1.0 PZ250E E-836.1G Piezo Amplifier
Labeling Type Function
-
Manufacturer's logo
E-836 Piezo Driver
-
Product Description
-
CE conformity mark
3.1.2 Rear Panel

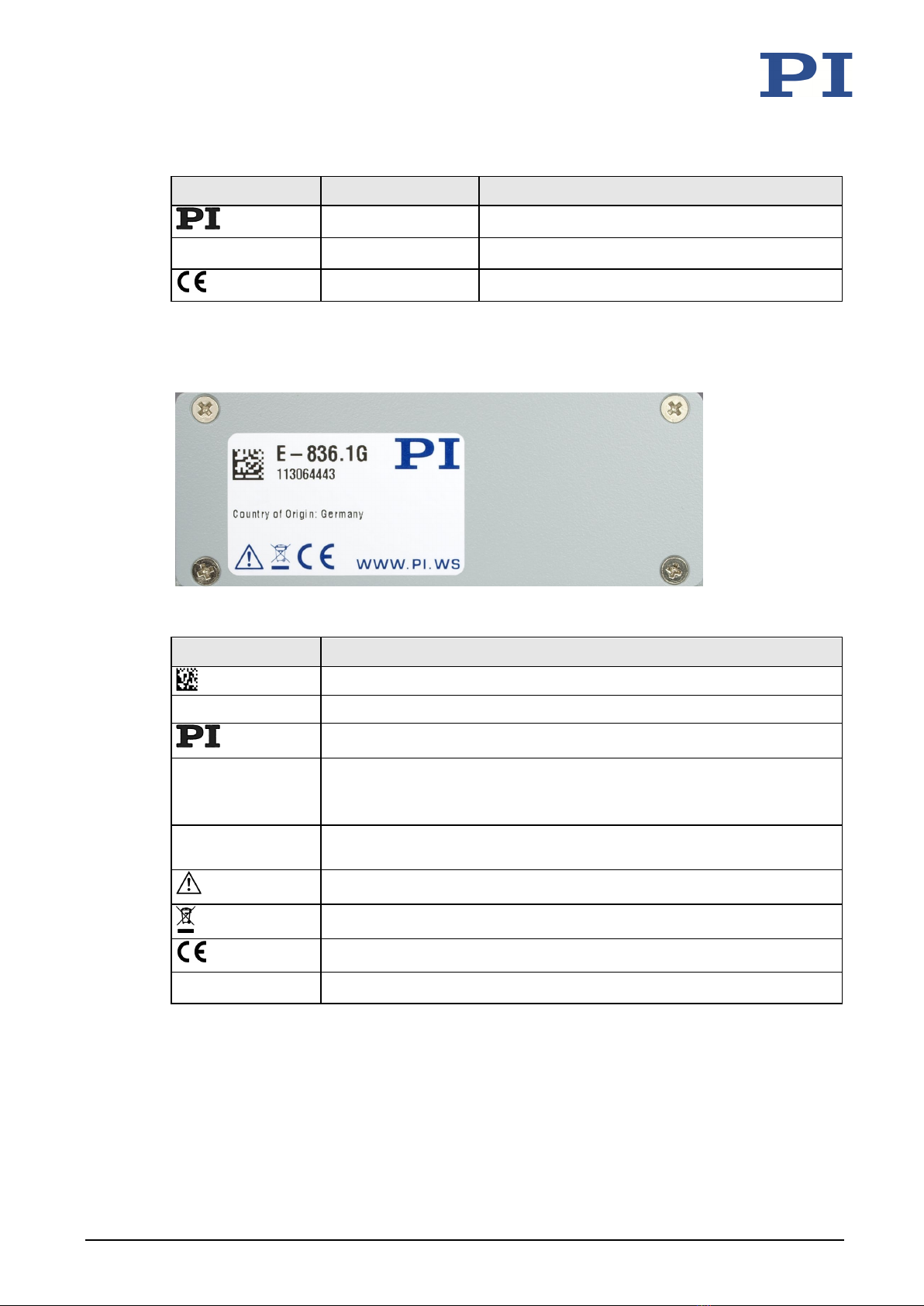

Figure 2: E-836.1G piezo amplifier, rear view
Labeling Function
Data matrix code (example; contains the serial number)
E-836.1G Product name
Manufacturer's logo
113064443
Serial number (example), individual for each E-836.1G
Meaning of each position (from t
he left): 1 = internal information, 2 and 3
= year of manufacture, 4 to 9 = consecutive number
Country of origin:
Germany
Country of origin
Warning sign "Pay attention to the manual!"
Old equipment disposal (p. 31)
CE conformity mark
WWW.PI.WS
Manufacturer's address (website)

3 Product Description
E-836.1G Piezo Amplifier PZ250E Version: 1.1.0 7
3.2 Scope of Delivery
Item ID Component
E-836.1G
Piezo amplifier
C-663.PS
Separate 24 V wide-range-input power supply for use with line voltages
from 100 to 240 VAC and voltage frequencies of 50 or 60 Hz, with barrel
connector
3763
Power cord
PZ250E
User manual for E-836.1G (this document)
E500T0011
Technical note for the PI analog drivers for use with NI LabVIEW software


4 Unpacking
E-836.1G Piezo Amplifier PZ250E Version: 1.1.0 9
1. Unpack the E-836.1G with care.
2. Compare the contents with the scope of delivery according to the contract and the
delivery note.
3. Inspect the contents for signs of damage. If any parts are damaged or missing, contact
our customer service department immediately (p. 23).
4. Keep all packaging materials in case the product needs to be returned.
4
Unpacking


5 Installing
E-836.1G Piezo Amplifier PZ250E Version: 1.1.0 11
5.1 General Notes on Installation
Install the E-836.1G near the power source so that the power plug can be quickly and
easily disconnected from the mains.
Only use cables and connectors that meet local safety regulations.
5.2 Connecting the E-836.1G to the Protective Earth Conductor
The E-836.1G must be connected to a protective earth conductor because it is not grounded via
the power adapter connection.
INFORMATION
Pay attention to the applicable standards for connecting the protective earth conductor.
Requirements
You have read and understood the General Notes on Installation (p. 11).
The E-836.1G is not connected to the power supply.
Tools and Accessories
Suitable protective earth conductor:
−Cable cross section ≥ 0.75 mm2
−Contact resistance < 0.1 ohm at 25 A at all points relevant for attaching the
protective earth conductor
Mounting hardware for the protective earth conductor, sits on the protective earth
connector (threaded bolt) in the following order on delivery of the E-836.1G, starting
from the housing:
−Lock washer
−Nut
−Flat washer
−Lock washer
−Nut
Suitable wrench
5
Installing

5 Installing
12 Version: 1.1.0 PZ250E E-836.1G Piezo Amplifier
Connecting the E-836.1G to the Protective Earth Conductor
1. If necessary, attach a suitable cable lug to the protective earth conductor.
2. Remove the outer nut from the protective earth connector on the front panel of the E-
836.1G (threaded bolt marked with ).
3. Connect the protective earth conductor:
a) Push the cable lug of the protective earth conductor onto the threaded bolt.
b) Screw the nut onto the threaded bolt. In this way, the cable lug attached to the
protective earth conductor is wedged between the lock washer and the nut.
c) Tighten the nut with at least three turns and a torque of 1.2 Nm to 1.5 Nm.
5.3 Connecting the Power Supply to the E-836.1G
Requirements
The power cord is not connected to the power socket.
Tools and accessories
24 V wide input range power supply included (for line voltages between 100 and 240
VAC at 50 or 60 Hz)
Alternative: Sufficiently rated power supply
Power cord included
Alternative: Sufficiently sized power cord
Connecting the power supply to the E-836.1G
Connect the power supply to the E-836.1G's 24 VDC connector.
5.4 Connecting the Positioner
Prerequisites
When a signal source is connected to the Control In BNC socket: The signal source is
switched off or its output is 0 V.
The DC Offset potentiometer is turned fully counterclockwise.
Tools and accessories
Positioner with the following characteristics:
−Drive: Piezo actuator(s)

5 Installing
E-836.1G Piezo Amplifier PZ250E Version: 1.1.0 13
−Operating voltage range: -30 to 130 V
−Voltage connection: Via LEMO connector
Connecting the positioner
Connect the voltage connection of the positioner to the PZT -30 to 130 V LEMO socket
of the E-836.1G.
5.5 Connecting the Control Input Voltage
INFORMATION
The control signal for the output piezo voltage is the sum of the following signals:
Control input voltage at the Control In BNC socket
Offset that is set with the DC Offset potentiometer
The control signal should always be within the range of –2 to +12 V. The range can be
expanded to –3 to +13 V. However, this can shorten the lifetime of the piezo actuator in the
positioner (p. 33).
Prerequisites
The signal source for the control input voltage is switched off or its output is 0 V.
The DC Offset potentiometer is turned fully counterclockwise.
Tools and accessories
Signal source for the control input voltage. The control input voltage can also be a
computer-generated analog signal (e. g. from a data acquisition board). You can use the
PI LabVIEW analog drivers to generate the analog signal (see E500T0011 Technical Note
and the PZ181E manual).
Connecting the control input voltage
Connect the signal source to the Control In BNC socket.


6 Startup
E-836.1G Piezo Amplifier PZ250E Version: 1.1.0 15
6.1 General Notes on Startup
DANGER
Risk of electric shock if the protective earth conductor is not connected!
If the protective earth conductor is not or not properly connected, dangerous touch voltages
can occur on the E-836.1G in the event of a malfunction or failure of the system. If there are
touch voltages, touching the E-836.1G can result in serious injury or death from electric shock.
Connect the E-836.1G to a protective earth conductor (p. 11) before starting.
Do not remove the protective earth conductor during operation.
If the protective earth conductor has to be removed temporarily (e.g., in the case of
modifications), reconnect the E-836.1G to the protective earth conductor before
restarting.
NOTICE
Reduced lifetime of the piezo ceramic due to continuous high voltage!
Applying a high static voltage to piezo actuators continuously reduces the lifetime of the piezo
ceramic.
If the E-836.1G is not being used but should remain switched on:
Set the control signal (sum of Control In and DC Offset) to 0 V.
INFORMATION
The output piezo voltage contains the switching frequency of the internal DC/DC transducer of
the E-836.1G (600 kHz). This frequency has no effect on the motion of the positioner, however.
For this reason, the measurement of the piezo voltage (e.g. with a digital oscilloscope) is not
suitable for determining the motion resolution of the positioner.
Measure the motion of the positioner directly, e.g. with optical methods or high-resolution
sensors.
INFORMATION
When it is switched off, the E-836.1G generates a voltage spike at the output for the piezo
voltage. A connected positioner will execute a corresponding motion, which can be noticeable
as a clicking sound. This behavior is unproblematic and does
not
affect the positioner.
6
Startup

6 Startup
16 Version: 1.1.0 PZ250E E-836.1G Piezo Amplifier
6.2 Switching the E-836.1G On
Prerequisites
You have read and understood the general notes on startup (p. 15).
You have connected the power supply to the E-836.1G (p. 12).
When a signal source is connected to the Control In BNC socket: The signal source is
switched off or its output is 0 V.
The DC Offset potentiometer is turned fully counterclockwise.
Switching on the E-836.1G
Connect the power cord of the power supply with the power socket.
The Power LED on the front panel shows the ready state of the E-836.1G:
−Green: E-836.1G is ready for operation
−Off: E-836.1G is not ready for operation
6.3 Starting Motion
INFORMATION
The control signal for the output piezo voltage is the sum of the following signals:
Control input voltage at the Control In BNC socket
Offset that is set with the DC Offset potentiometer
The control signal should always be within the range of –2 to +12 V. The range can be
expanded to –3 to +13 V. However, this can shorten the lifetime of the piezo actuator in the
positioner (p. 33).
Prerequisites
You have read and understood the user manual for the positioner.
You have mounted the positioner according to the description in the corresponding
user manual.
You have connected the positioner to the E-836.1G (p. 12).
When the positioner is operated via a control input voltage: You have connected a
signal source to the E-836.1G (p. 13).
You have switched the E-836.1G (p. 16) on.
Starting motion
Change the control signal within the range of -2 V to +12 V:
−Change the control input voltage at the Control In BNC socket.
This manual suits for next models
1
Table of contents
Other Physik Instrumente Amplifier manuals
