Pidion HM45 User manual

www.bluebirdsoft.com
HM45
- Before using, please read and follow the user warnings.
- In the manual the component’s shape and color
can be different from the actual model.
-The information in the manual can vary depending
on the software version and your mobile carrier.
USER MANUAL
HM45
- Before using, please read and follow the user warnings.
- In the manual the component’s shape and color
can be different from the actual model.
-The information in the manual can vary depending
on the software version and your mobile carrier.
USER MANUAL

FCC Compliance Information
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
HM45

HM45
FCC Compliance Information
This device complies with Part 15 of FCC Rules. Operation is subject to the following
twoconditions:
(1) the device may not cause interference, and
(2) the device must accept any interference, including interference that may cause undesired
operation of this device.
For body-worn operation, this device has been tested and meets the FCC RF exposure
guidelines when used with an accessory that contains no metal and that positions the handset a
minimum of 1.5cm from the user’s body.
NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS
NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE.
SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE
THE EQUIPMENT.

PIDION as the future mobile’s leading global brand, expresses with reliability,
representativeness, and image of advanced technology. It is a registered trademark from the
global brand of Bluebird Soft. and is copyright protected.
※ PLEASE READ THE WARNING SIGNS BEFORE USING THIS PRODUCT.
MODEL TYPE NOTICE TO USERS
Class B Device
(Household Information and
Communication Device)
This device has qualified the electromagnetic wave suitable registration and can be used as a
household device at a residential area as well as any other areas.
NOTICE TOUSERS
REGISTERED
∙ This user manual is copyright protected.
∙ This user manual has been created by the bluebird software co. We have done our best not to create typos, editing errors, and leaving
out any information. Please understand if there are any inconveniences.
∙ This product’s program is legally protected. Illegal copying, transmitting, or erasing of the program is prohibited
∙ This product’s partial functions might have problems from the environment, user program, and other machines.
∙ This wireless equipment cannot service related to safety of human lives due to possible signal interference.

HM45
1
Notice Before Using the Device
----------
2
Precautions Before Using the Battery
-------
4
About the Product
------ ----------
5
Checking components
--- ----------
5
Getting to know your device’s each part
-----
6
Learning Basics
------- ----------
8
Insert/Remove the battery
- ----------
8
I
nsert/Remove the USIM card
----------
12
Insert/Remove the MicroSD card
---------
13
Charging with Cradle
---- ----------
16
Turning On
--------- ----------
17
Soft Reset
--------- ----------
17
Hard Reset
-------- ----------
18
Using the Stylus Pen
---- ----------
18
Connecting ActiveSync
-----------
19
Installing on PC
-------- ------
19
Using ActiveSync
------- ------
21
Connecting ActiveSync
----------
24
Using the Barcode Reader
----------
25
Using the Barcodes
------------
25
Scanning with Barcodes
----------
25
Checking Barcodes
------------
26
Device Specifications
----- -------
27
Q & A
--------------------
28
Service Center
----------------
29
Warranty Certificate -------------
31
Contents

2
HM45 Manual
∙ In case your device is wet, do not put your device in
heaters, microwaves, or etc to dry- there is a risk of
explosion or it can be the cause of malfunction. (Please
note there is a label in the device that changes color
when it gets wet. In this case your will not be able to
get your free repair service.)
∙Do not use your device on-board an airplane or in
hospitals.
∙Please backup your device’s inner data and information.
During the repair or upgrade, there is a slight possibility
of your data being erased. (Ring tones, text/voice
message, characters will be reset.)
Notice Before Using Device
∙This device is qualified of electromagnetic wave human
safety standards. For your own safety please use the
authenticated devices only from the head company. If
not the case, we cannot guarantee your safety.
∙Do not press the power button or the power adepter/
cord when the device is wet. There is a danger of
electrical shock.
∙Do not remodel, take apart, or repair the device. Please
refer to your customer service center. If not the case,
you will not be able to get your free repair service.
∙Please follow instructions when using the batter.
∙Do not use your device at an explosive danger zone.
This information is for your own safety. Please observe the following precautions

HM45
3
∙Please refrain from using your device while driving. If
you are in an unavoidable situation, stop your vehicle or
use your hand free kit.
∙Do not use in places of high temperature and
high humidity. The following can be the causes of
malfunction: getting wet from the rain, spilling drinks,
and taking it in with you at the sauna (high temp.) In
these cases, you cannot receive your free repair service.
∙Do not place credit cards, phone cards, bankbook, and
tickets next to the device. The device’s magnetism can
damage the listed item’s information.
∙Please avoid impacts or vibrations. When not using the
device unplug the power cord and place it at a safe
place where it will not drop.
∙ Do not place your device at a dusty place. Keep your
power cord away from any heating devices. Unplug
the power cord when cleaning. If there are any dusts or
residue clean the power cords pins thoroughly.
∙When not using a battery for long periods, please
charge it and leave in at room temperature. Even a
charged battery’s voltage will decrease over time.
∙Do not paint your device. It can damage your screen or
your device’s exterior. Also, the paint can peel off and
trigger allergies. If there is a allergic reaction please
seek medical advice.

4
HM45 Manual
∙If the battery is taken apart by impact, applied
heat, submersion, or hole-drilling, there is a risk of a
dangerous explosion. Please keep away from children
and animals.
∙Leaving the battery in a hot car or enclosed space
where there is direct sunlight, can deform or break
down the battery.
∙Please take precaution in not letting necklaces, coins
and etc touch the battery’s terminal (metal part). Do not
give an impact on the battery by a sharp object or an
animal. There is a risk of explosion.
∙Please use only the designated battery for the device.
If the original battery is not used, the device’s life may
decrease and there is a risk of explosion.
(In this case you cannot receive the free repair service)
∙When charging the battery you must use the supplied
standard power adapter. If the original adapter is not
used the battery life may decrease and may explode.
(In this case you cannot receive the free repair service)
Precautions Before Using Battery
These are safety precautions in order to prevent a dangerous accident. Please use the battery correctly and carefully
observe the instructions.

HM45
5

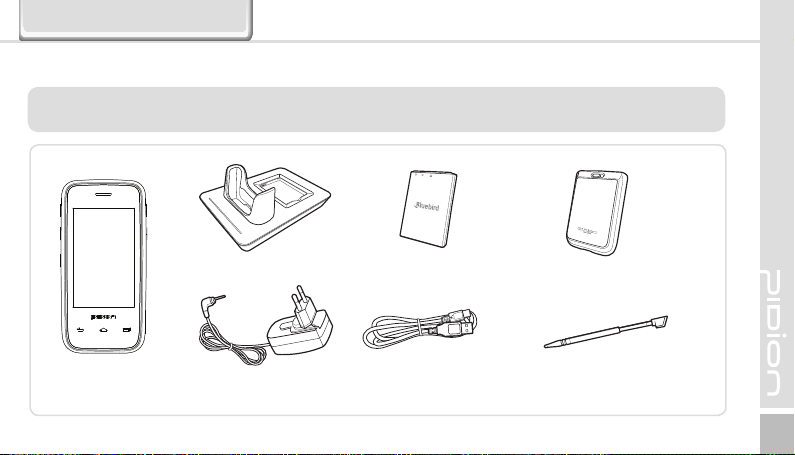

[ Main set ] [ USB cable ] [ Stylus Pen ]
[ Desktop Cradle ] [Battery Cover]
[ Adaptor ]
[Battery]
The images in this User’s Manual may not reflect the color and shape of the actual product.
(Please contact the Customer Care Center if you wish to purchase any additional or optional products.)
1. Checking components
About the Product

6
HM45 Manual
MicroUSB Port
Power Button
Cradle I/O
Connector
2. Getting to know your device's each part
Getting to know your Device
Phone Speaker Power/Programmable
LED
Screen Barcode
Scan Button
Microphone

HM45
7
Volume Down
Stylus pen
Barcode Scan Window
Battery Cover
Battery Cover On/Off
FN/PTT Button
Speaker Camera
Flash
Volume Up

8
HM45 Manual
Only use the supplied adapter to charge your battery.
1 Push the battery to the direction of the arrow. 2 Push down the battery protect cover to the direction of arrow.
1-1. Insert the battery
1. Insert/Remove the battery
Learning Basics

HM45
9
3

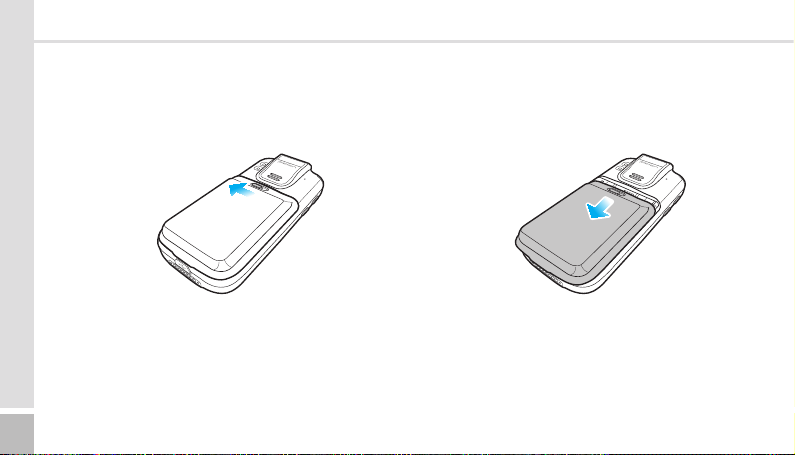

Push the battery cover to the direction of the arrow. 4 Lock the battery cover sliding the ‘LOCK’ to the right.
Learning Basics

10
HM45 Manual
1 Unlock the battery cover sliding the ‘LCOK’ to the left. 2 Slide down the battery cover to remove.
1-2. Removing the battery

HM45
11
3
Lift up the battery protect cover . 4 Lift up the battery from the top of the battery.
Learning Basics

12
HM45 Manual
2 Place the USIM card on the holder then push down the
holder.
1 Push the USIM card holder to (◀ OPEN), direction then lift
up.
2. Insert/Remove the USIM card
2-1. Insert the USIM card

HM45
13
1 Open the storage card holder by lifting up the flap.
3-1. Insert the MicroSD Card
3. Insert/Remove the MicroSD Card

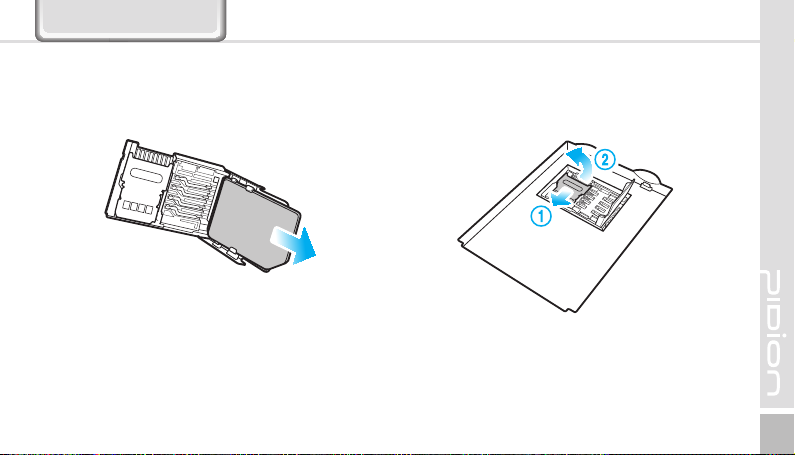

Push the top of the USIM card and slide it out from the holder.
2-3. Removing the USIM card
Learning Basics

14
HM45 Manual

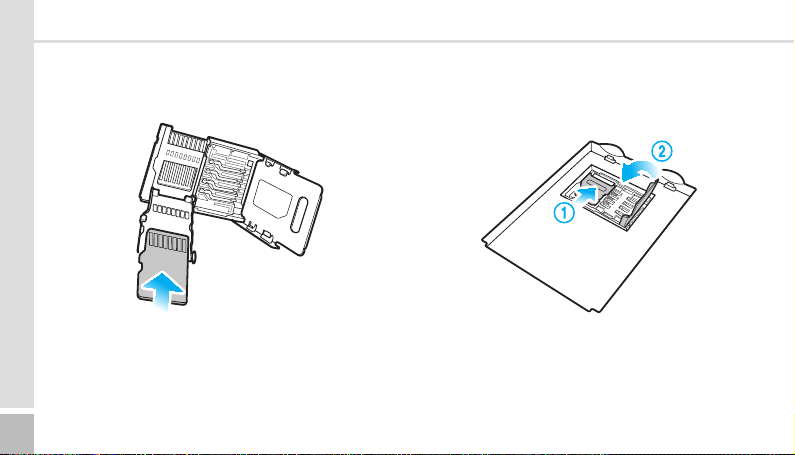

3 Lock the storage card holder by pushing it down into place. 2 Insert the microSD card into the storage card holder with its
gold contacts facing out.

HM45
15
∙ The SD card can break if you frequently slide in/out
or put or excessively put too much force.
∙ If the card is removed while being used or being
turned off, the data can be lost or malfunction.
∙ Please back up important data. We are not
responsible for the lost data.
∙ If the memory card does not slide out, do not
remove by force. After removing the card at the
repair center, exchange your device or get a refund.
3-3. Precautions using the MicroSD Card
With the USIM card and storage card compartment opened, lift the
storage card holder flap to open it.
3-2. Remove the MicroSD card
Learning Basics

16
HM45 Manual

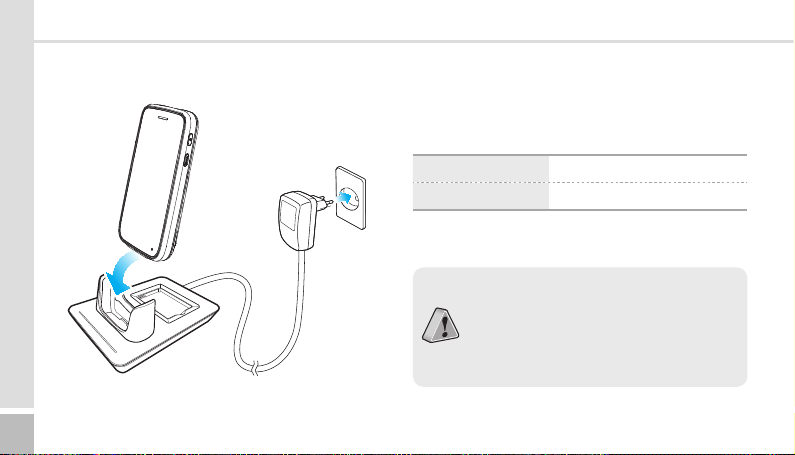

4. Charging with Cradle As you see in the picture, connect the adapter with
the power cable to charge the PDA.
Power Charging Light
Charging Orange
Charged Green
∙ When the device’s battery is low, it may
warn you with a ring and a message.
∙ The charging time can vary depending on
the environment. A new battery is only
partially charged. Please charge fully before
using.
