Pioneer DEH 2000MP - Radio / CD User manual

m
:::s
cc
iii'
::::T
ill •
m
fh
"C
D)
:::Sl
o
-

."to;. - :,'
. :;::'~.'.>
,. :., ~ .> '.
'""
r.:,v~;>~~
:.~::. _:'~i~~(
..... ~.~":
'-:y' ., .. ;:" ~:'f~

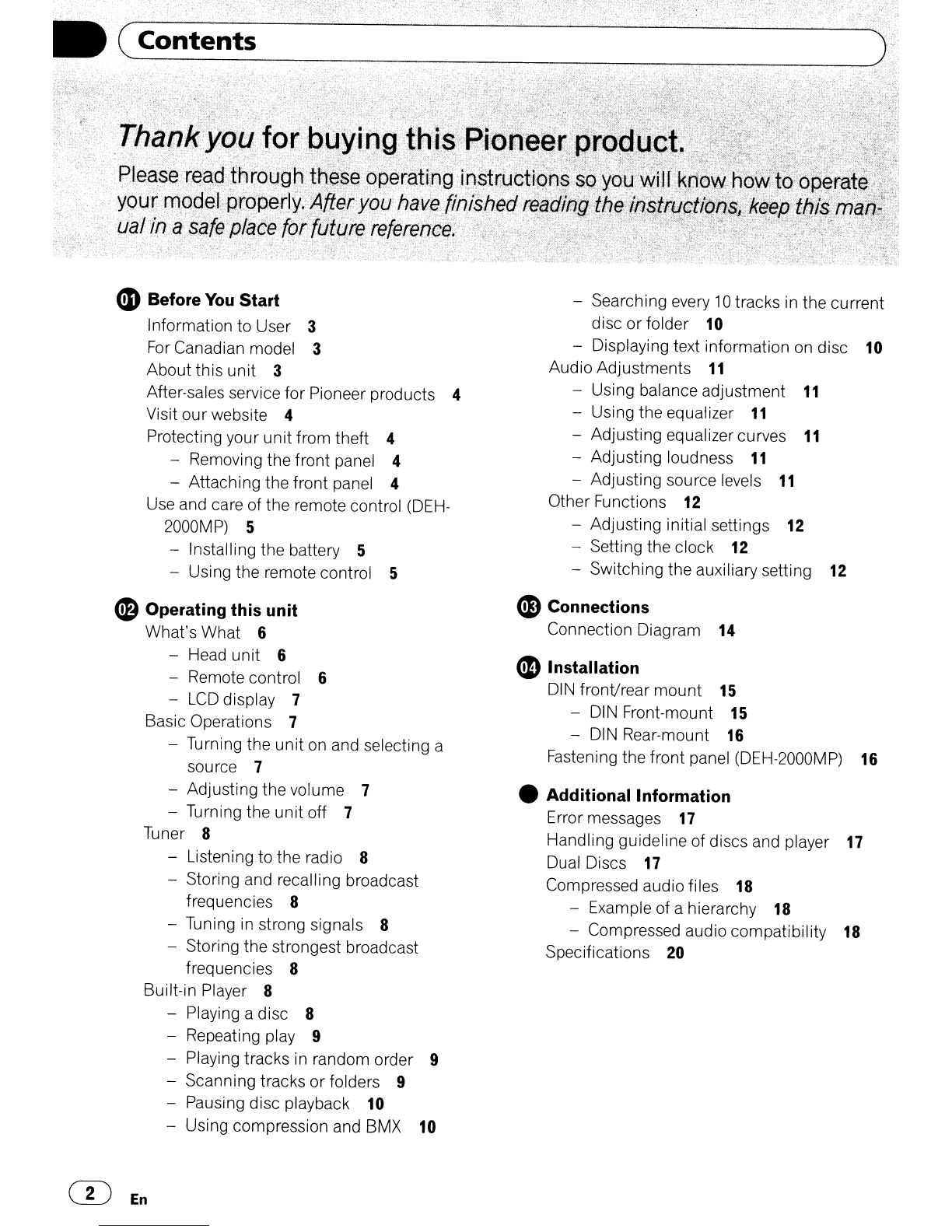

• c Con1:e~ts
~ Before You Start
Information to User 3
For Canadian model 3
About this unit 3
After-sales service for Pioneer products 4
Visit our website 4
Protecting your
unit from theft 4
-
Removi ng the front panel 4
-Attaching the front panel 4
Use and care of the remote control (DEH-
2000MP) 5
-Installing the battery 5
-Using the remote control 5
~ Operating this unit
What's What 6
-Head unit 6
-Remote control 6
-
LCD display 7
Basic Operations 7
-Turning the unit
on and selecting a
source 7
-Adjusting the volume 7
-Turning the unit off 7
Tuner 8
-Listening to the radio 8
-Storing and recalling broadcast
frequencies 8
-Tuning
in strong signals 8
-Storing the strongest broadcast
frequencies 8
Built-in Player 8
-Playing adisc 8
-Repeating play 9
-Playing tracks
in random order 9
-Scanning tracks or folders 9
-Pausing disc playback 10
-Using compression and BMX 10
-Searching every 10 tracks in the current
disc or folder 10
-Displaying text information on disc 10

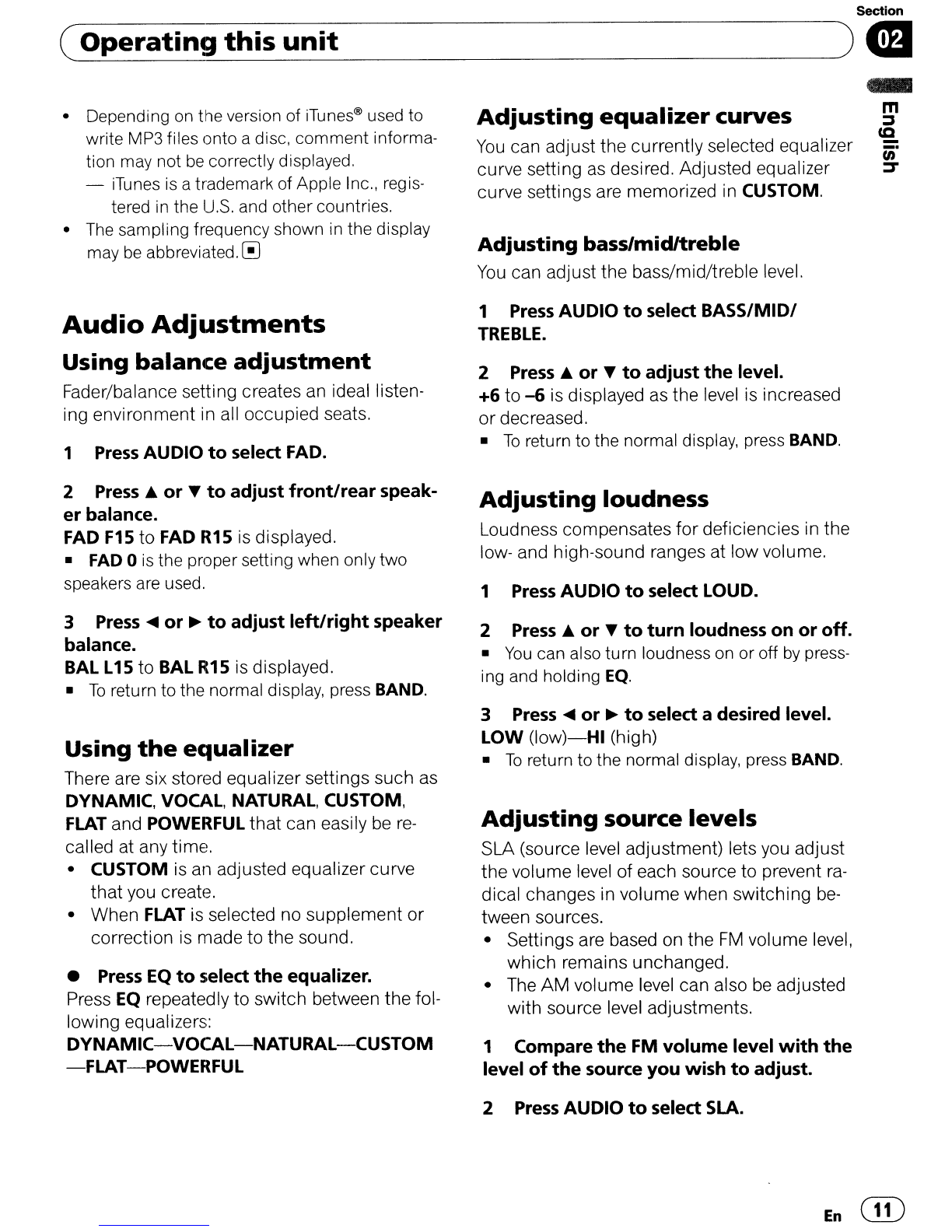

Audio Adjustments 11
-Using balance adjustment 11
-Using the equalizer 11
-Adjusting equalizer curves 11
-Adjusting loudness 11
-Adjusting source levels 11

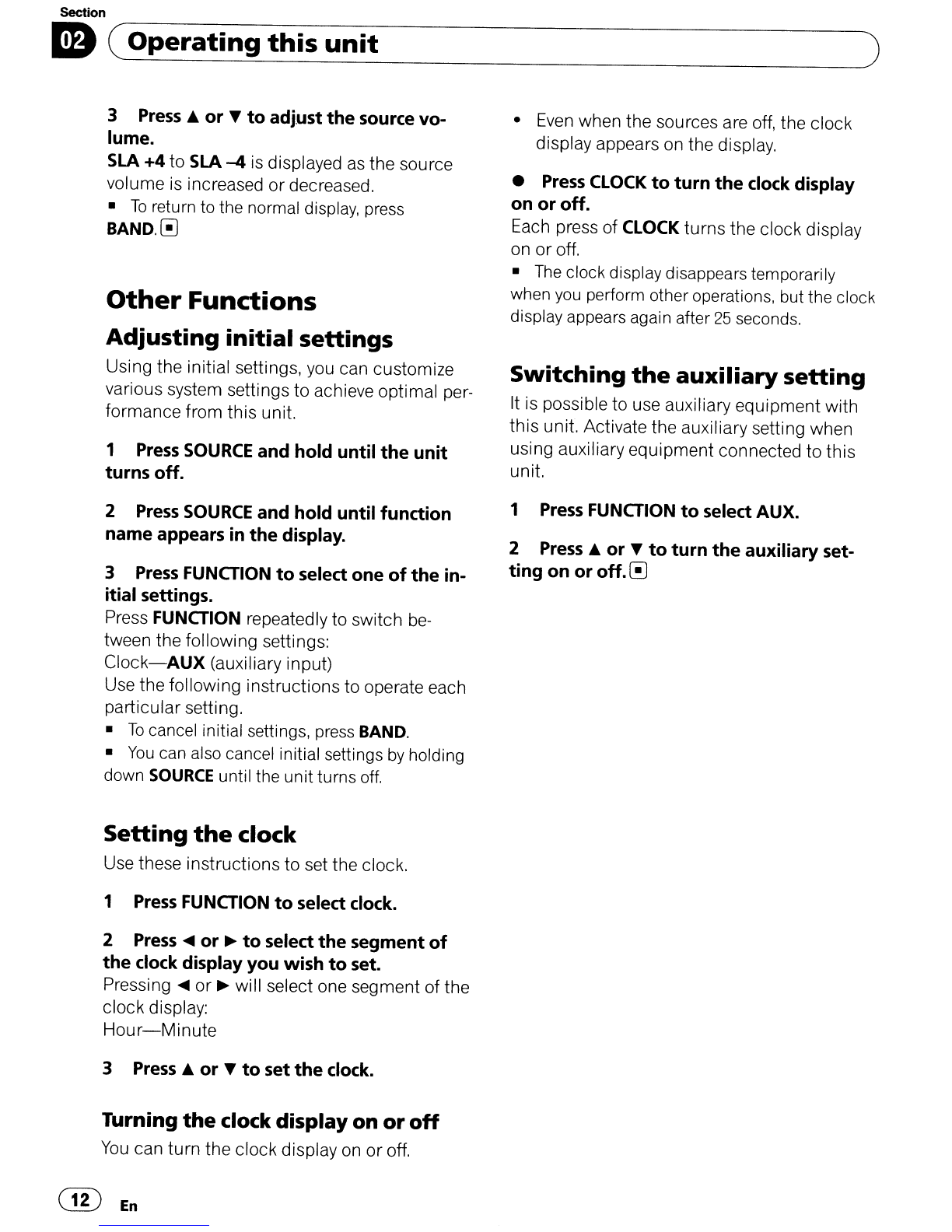

Other Functions 12
-Adjusting initial settings 12
-Setting the clock 12
-Switching the auxiliary setting 12
(I) Connections
Connection Diagram 14
OD Installation
DIN front/rear mount 15
-DIN Front-mount 15

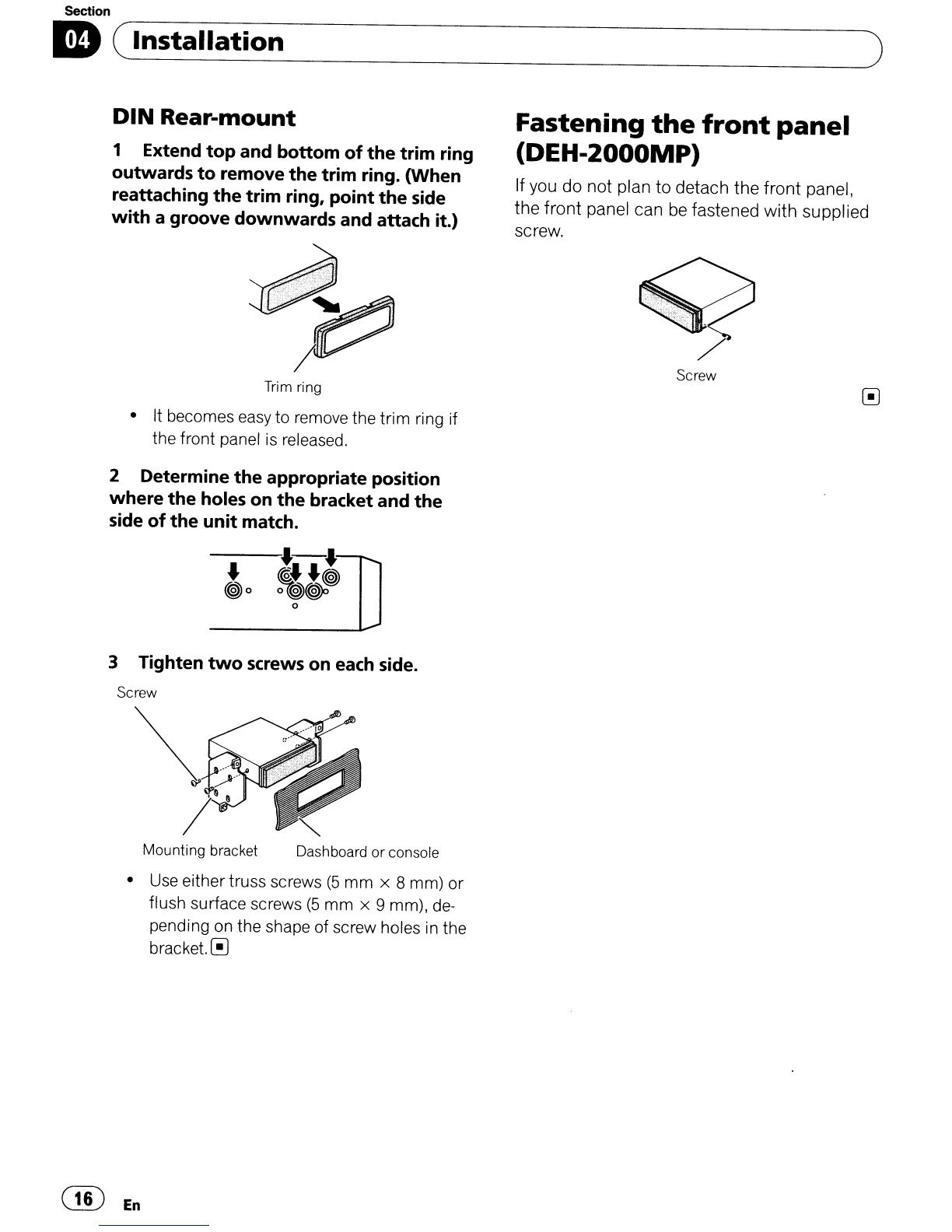

-DIN Rear-mount 16
Fastening the front panel (DEH-2000MP) 16
• Additional Information

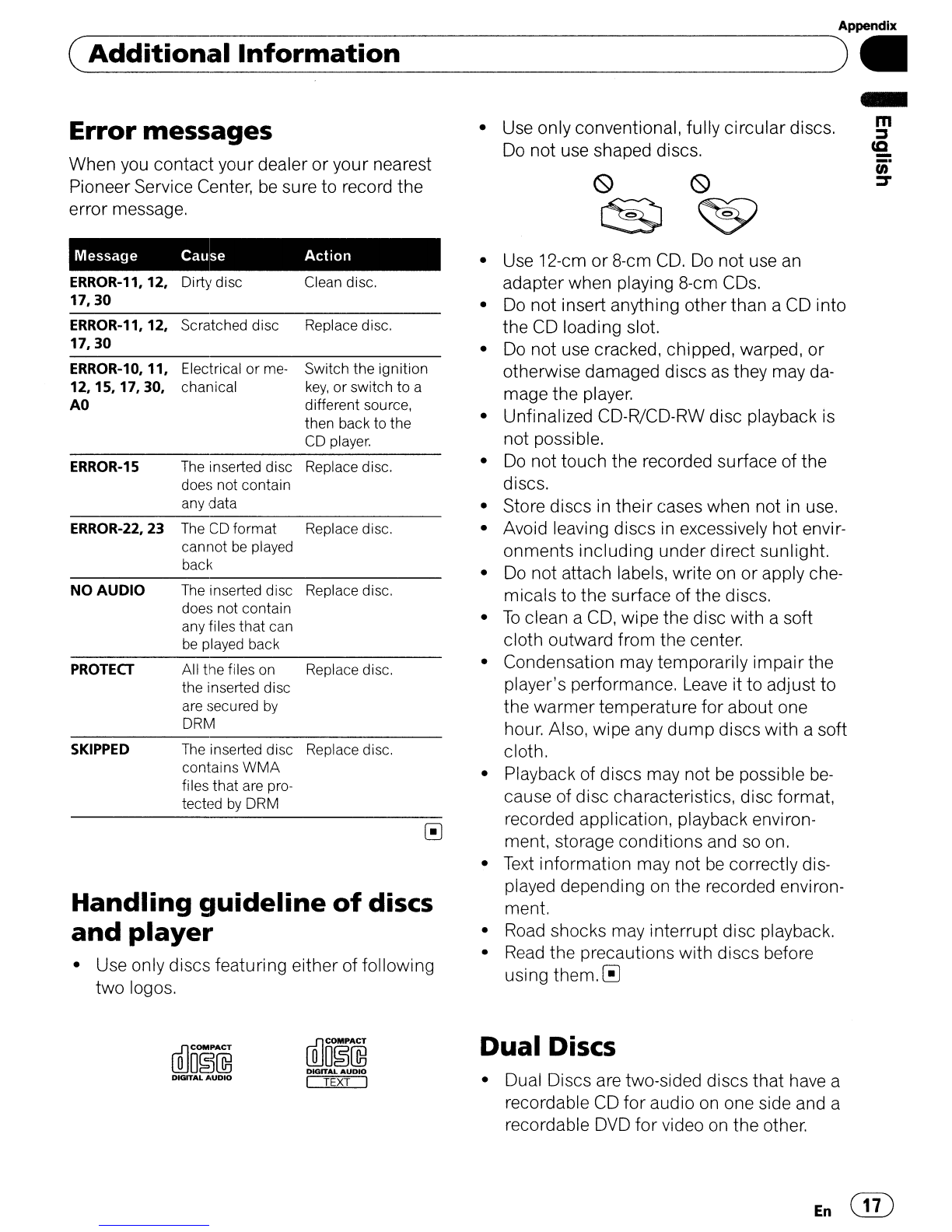

Error messages 17
Handling guideline of discs and player 17
Dual Discs 17

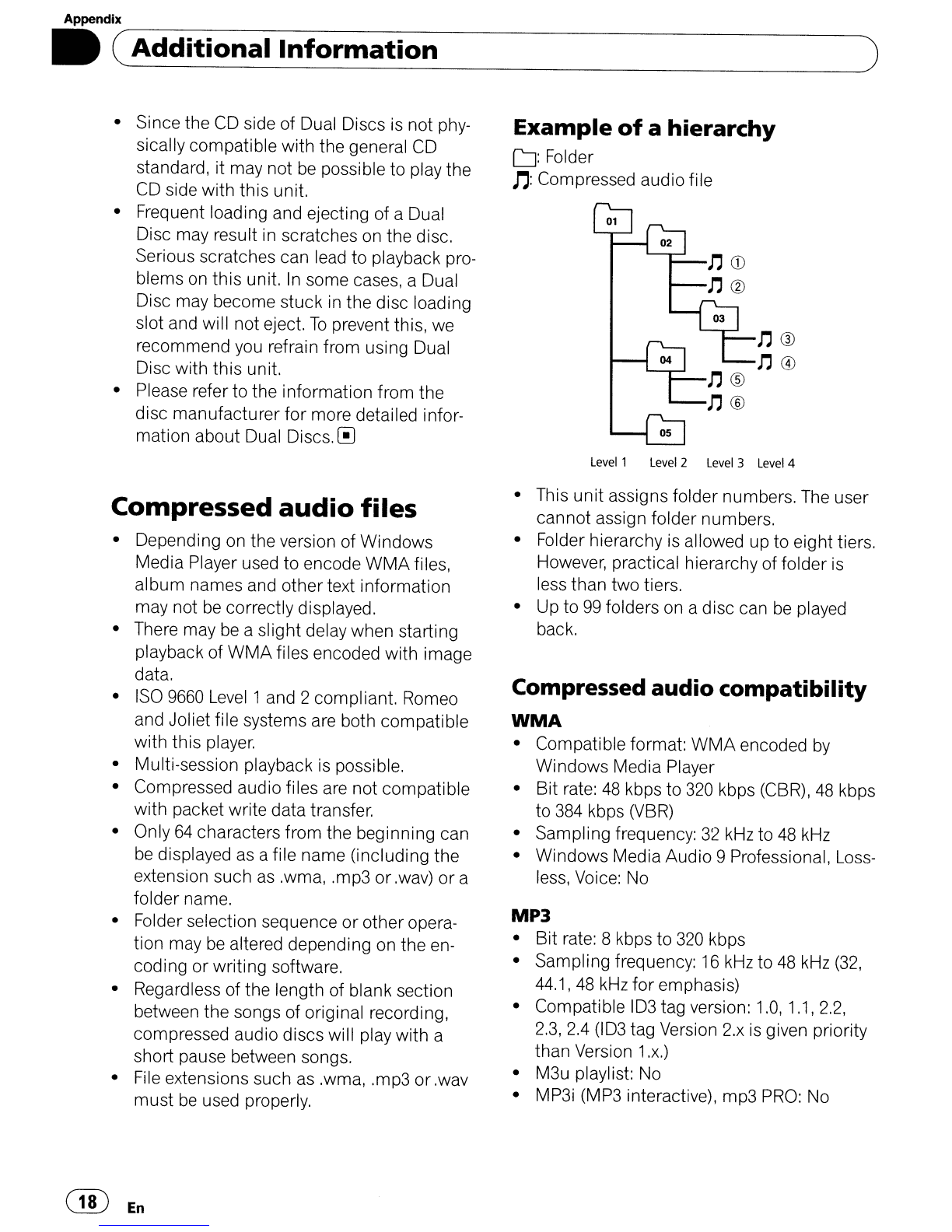

Compressed audio files 18
-Example of ahierarchy 18
-Compressed audio compatibility 18
Specifications 20
CI) En

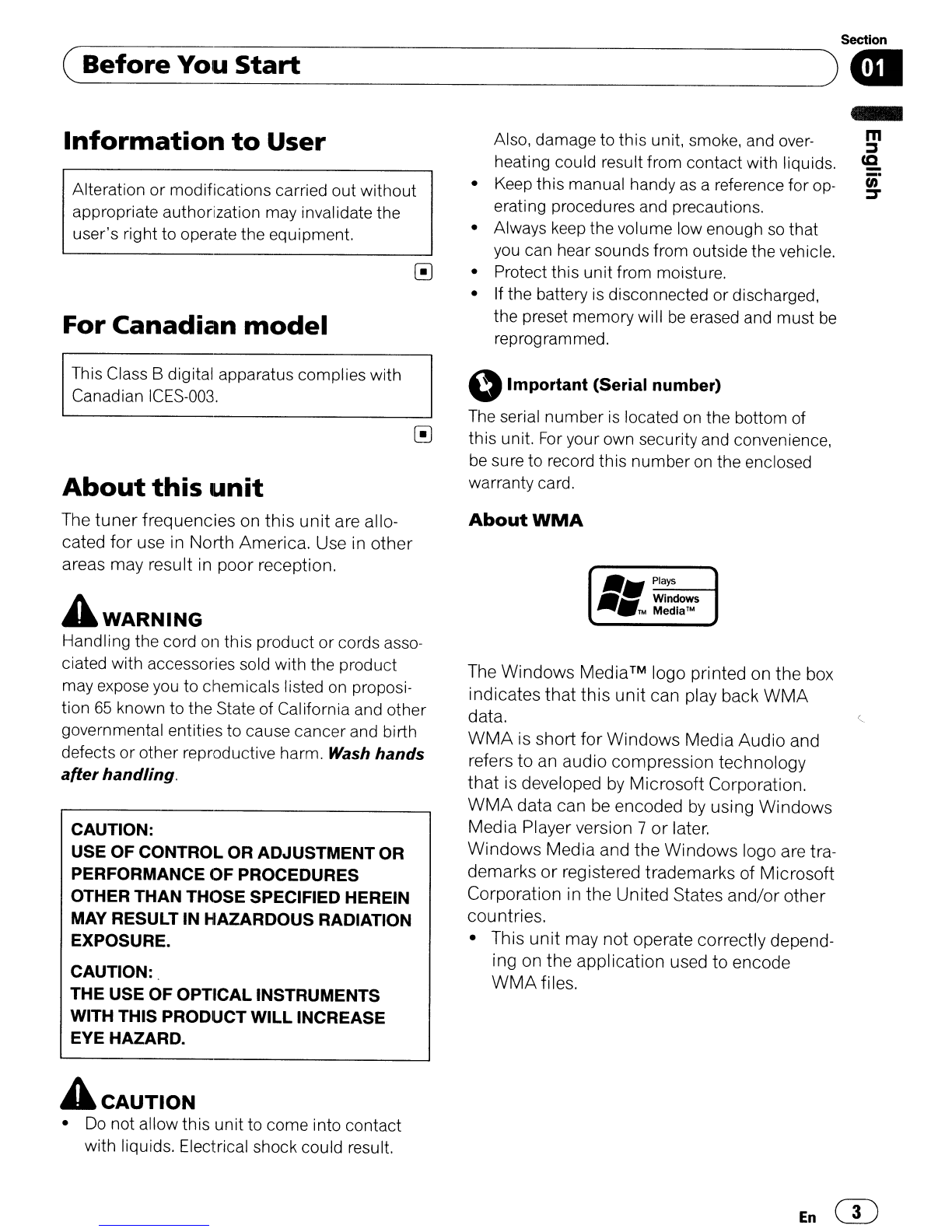

( Before You Start
Information to User
Alteration or modifications carried out without
appropriate authomation may invalidate the
user's right to operate the equipment.
For Canadian model
This Class Bdigital apparatus complies with
Canadian
ICES-003.
About this unit
The tuner frequencies on this unit are allo-
cated
for use in North America. Use in other
areas may result in poor reception.
A WARNING
Handling the cord on this product or cords asso-
ciated with accessories sold with the product
may expose
you to chemicals listed on proposi-
tion
65 known to the State of California and other
governmental entities to cause cancer and birth
defects orother reproductive harm. Wash hands
afterhandling.
CAUTION:
USE OF CONTROL OR ADJUSTMENT OR
PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE.
CAUTION: .
THE USE
OF OPTICAL INSTRUMENTS
WITH THIS PRODUCT WILL INCREASE
EYE HAZARD.
A CAUTION
• Do not allow this unitto come into contact
with liquids. Electrical shock could result.
Section
)GI
Also, damage to this unit, smoke, and over-
heating could result from contact with liquids.
•Keep this manual handy
as areference for op-
erating procedures and precautions.
•Always
keep the volume low enough so that
you can hear sounds from outside the vehicle.
•Protect this unit from moisture.
•If the battery
is disconnected or discharged,
the preset memory will
be erased and must be
reprogrammed.
QImportant (Serial number)
The serial number is located on the bottom of
this unit.
For your own security and convenience,
be sure to record this number on the enclosed
warranty card.
AboutWMA
_. _Pla";,,YS_--I
_.
Windows
1M Media'"
The Windows Media™ logo printed on the box
indicates
that this unit can play back WMA
data. <...
WMA is short for Windows Media Audio and
refers
to an audio compression technology
that is developed by Microsoft Corporation.
WMA data can be encoded by using Windows
Media Player version 7 or later.
Windows Media and the Windows logo are tra-
demarks or registered trademarks of Microsoft
Corporation in the United States and/or other
countries.
•This
unit may not operate correctly depend-
ing on
the application used to encode
WMA files.
En CI)

section
II (Before You Start

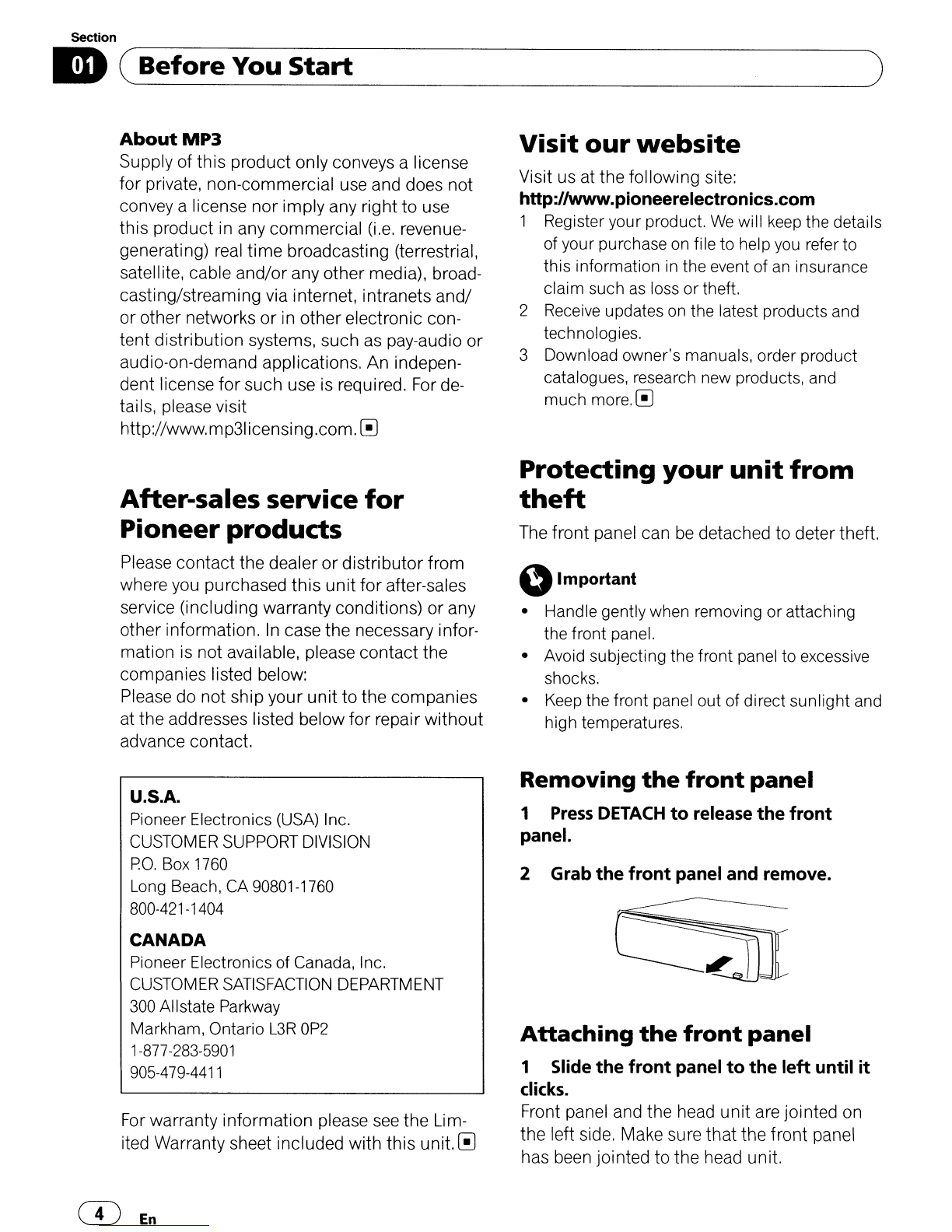

AboutMP3
Supply of this product only conveys alicense
for private, non-commercial use and does not
convey alicense nor imply any right to use
this product in any commercial (i.e. revenue-
generating) real
time broadcasting (terrestrial,
satellite, cable
and/or any other media), broad-
casting/streaming via internet, intranets
and/
or other networks or in other electronic con-
tent distribution systems, such as pay-audio
or
audio-on-demand applications. An indepen-
dent license
for such use is required. For de-
tails, please visit
http://www.mp3Iicensing.com. ~
After-sales service for
Pioneer produds
Please contact the dealer or distributor from
where you purchased
this unit for after-sales
service (including warranty conditions)
or any
other information.
In case the necessary infor-
mation is
not available, please contact the
companies listed below:
Please do not
ship your unit to the companies
at
the addresses listed below for repair without
advance contact.
U.S.A.
Pioneer Electronics (USA) Inc.
CUSTOMER SUPPORT DIVISION
P.O. Box 1760
Long Beach, CA 90801-1760
800-421-1404
CANADA
Pioneer Electronics of Canada, Inc.
CUSTOMER SATISFACTION DEPARTMENT
300 Allstate Parkway
Markham, Ontario
L3R OP2
1-877 -283-5901
905-479-4411
For warranty information please see the Lim-
ited Warranty sheet included with
this unit. ~
m En
)
Visit our website
Visit us at the following site:
http://www.pioneerelectronics.com
1Register your product. We will keep the details
of your purchase
on file to help you refer to
this information in the event of
an insurance
claim such
as loss or theft.
2
Receive updates on the latest products and
technologies.
3Download owner's manuals, order product
catalogues, research new products, and
much more.~
Proteding your unit from
theft
The front panel can be detached to detertheft.
Qlmportant
•Handle gently when removing or attaching
the front panel.
•Avoid subjecting the front panel to excessive
shocks.
• Keep the front panel out of direct sunlight and
high temperatures.
Removing the front panel
1 Press DETACH to release the front
panel.
2Grab the front panel and remove.
Attaching the front panel
1Slide the front panel to the left until it
clicks.
Front panel and the head unit are jointed on
the left side. Make sure that the front panel
has been jointed to the head unit.

( Before You Start
Section
)GI
2 Press the right side of the front panel
until it
is firmly seated.
•If you can't attach the front panel to the head
unit successfully, try again. Front panel may
be
damaged if you attach the front panel forcedly.
Use and care of the remote
control (DEH-2000MP)
Installing the battery
Slide the tray on the back of the remote con-
trol
out and insert the battery with the plus (+)
and minus (-) poles pointing in the proper di-
rection.
AWARNING
Keep the battery out of the reach of children.
Should the battery
be swallowed, consult adoc-
tor immediately.
A CAUTION
•Use one CR2025 (3 V) lithium battery.
•Remove the battery if the remote control
is not
used for amonth
or longer.
•There
is adangerof explosion if the battery is
incorrectly replaced. Replace only with the
same
or equivalent type.
•
Do not handle the battery with metallic tools.
•
Do not store the battery with metallic objects.
•
In the event of battery leakage, wipe the re-
mote control completely clean and install a
new battery.
•When disposing of used batteries, please
comply with governmental regulations or
en-
vironmental public institutions' rules that
apply
in your country/area.
•"Perchlorate
Material- special handling may
apply.
See www.dtsc.ca.gov/hazardouswaste/
perchlorate. (Applicable to California, U.S.A.)"
Using the remote control
Point the remote control in the direction of the
front panel to operate.
Qlmportant
• Do not store the remote control in high tem-
peratures or direct sunlight.
•
The remote control may not function properly
in direct sunlight.
•
Do not let the remote control fall onto the
floor, where it may become jammed underthe
brake or accelerator pedal. 0
En (I)

Section
ID (Operating this unit
What's What
Head unit
CD CLOCK button
Press to change to the clock display.
@FUNCTION button
Press to recall the function menu when op-
erating asource.
® ./T I ott4/~ buttons
Press to perform manual seek tuning, fast
forward, reverse and track search controls.
Also used for controlling functions.
@AUDIO button
Press to select various sound quality con-
trols.
® Disc loading slot
Insert adisc to
play.
® EJECT button
Press to eject a CD from your built-in CD
player.
(j) AUX inputjack (3.5 mm stereo jack)
Use to connect
an auxiliary equipment.
® DETACH button
Press to remove the front panel from the
head unit.
®1 to 6buttons
Press for preset tuning.
@ EQbutton
Press to select various equalizer curves.
Press and hold to turn loudness on
or off.
m En
)
@ SOURCE button, VOLUME
This unit
is turned on by selecting asource.
Press to cycle through all the available
sources.
Press and hold to recall the initial setting
menu when the sources are off.
Rotate it to increase
or decrease the vo-
lume.
@BAND button
Press to select among three
FM bands and
one AM band and to cancel the control
mode of functions.
@DISPLAY button
Press to select different displays.
Remote control
Aremote control is only supplied with DEH-
2000MP.
Operation is the same as when using the but-
tons on the head unit.
See the explanation of
the head unit about the operation of each but-
ton with the exception of
ATT, which is ex-
plained below.
":::~~~+===L.H-----{ 3
(g)~';;";'
@~~
17\--";:';:':"':,/,
®VOLUME button
Press to increase
or decrease the volume.
@ ATTbutton
Press to quickly lower the volume level by
about 90%. Press once more to return to the
original volume
level.

Section
(~o~p:....-e_r_a_t_in-=g:-t_h_i_s_u_n_it ~) em
@ SOURCE button
Press to cycle through all the available
sources. Press and hold to turn the source
off.
@ PAUSE button
Press to tu
rn pause on or off.
LCD display
o Main display section
Shows the various information such
as
band, play time, and other setting.
•Tuner
Band and frequency are displayed.
•Built-in
CD Player (Audio CD)
Elapsed play time is displayed.
•Built-in CD Player (WMA/MP3/WAV disc)
Folder number and elapsed play time are
displayed,
•Audio and initial setup
Function names and setup status are dis-
played.
•Preset number/track number indicator
Shows the track number or preset number.
• If atrack number 100 or more is selected,
~ on the left of the track number indica-
tor will light.
•
MP3IWMA indicator
Shows the type of the currently playing disc.
•
RPT indicator
Shows when repeat play is turned on.
•LOUD indicator
Appears in the display when loudness
is
turned on.
•Stereo
(0) indicator
Shows when the selected frequency is
being broadcast
in stereo.
•
LOC indicator
Shows when local seek tuning is on.
C!J
Basic Operations
Turning the unit on and
selecting asource
You can select asource you want to listen to,
To switch to the built-in CD player, load adisc
in the
unit (refer to the next page).
•
Press SOURCE to select asource.
Press
SOURCE repeated Iy to switch between
the following sources:
Tuner-Built-in CD player-AUX
_Notes
• In the following cases, the sound source will
not change:
-When there is no disc in the unit.
-When AUX (auxiliary input)
is set to off
(refer to page 12),
•AUX is set to on by default. Turn off the AUX
when not in use (refer to Switching the auxili-
ary setting
on page 12),
•When this unit's blue/white lead is connected
to the vehicle's auto-antenna relay control
terminal, the vehicle's antenna extends when
this unit's source is turned on.
To retract the
antenna, turn the source off.
Adjusting the volume
•Use VOLUME to adjust the sound level.
Turning the unit off
• Press SOURCE and hold until the unit
turns off. C!J
m
::J
(Q
-
iii'
::::J"
En CiJ

Section
m( Operating this unit

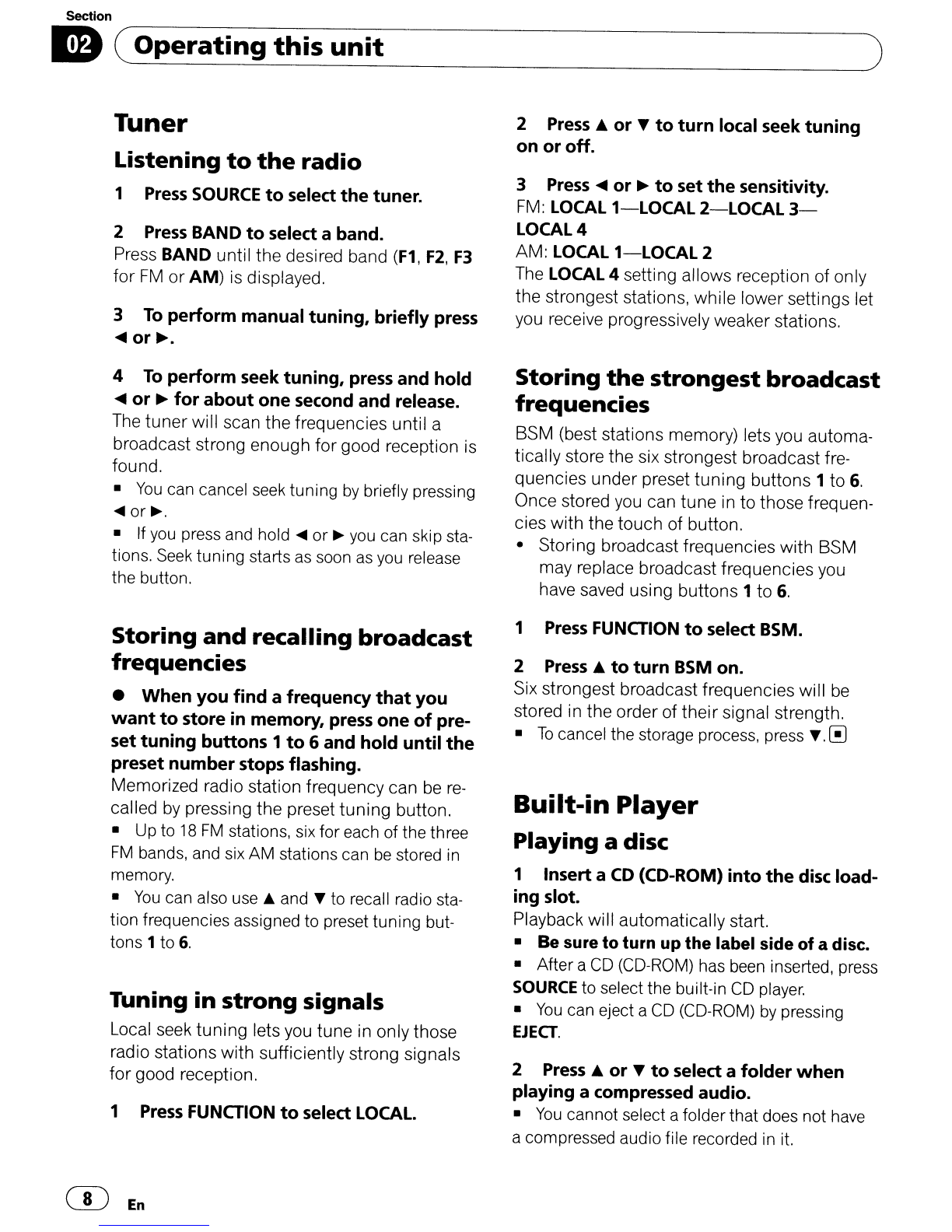

Tuner
Listening to the radio
1 Press SOURCE to select the tuner.
2 Press BAND to select aband.
Press BAND until the desired band (F1, F2, F3
for FM or AM) is displayed.
3 To perform manual tuning, briefly press
.... or~.
4 To perform seek tuning, press and hold
.... or ~ for about one second and release.
The tuner will scan the frequencies until a
broadcast strong enough
for good reception is
found.
•
You can cancel seek tuning by briefly pressing
~or~.
• If you press and hold ~ or ~ you can skip sta-
tions. Seek tuning starts as soon as you release
the button.
Storing and recalling broadcast
frequencies
•When you find afrequency that you
want to store in memory, press one of pre-
set tuning buttons 1
to 6and hold until the
preset number stops flashing.
Memorized radio station frequency can be re-
called by pressing the preset tuning button.
•
Up to 18 FM stations, six for each of the three
FM bands, and six AM stations can be stored in
memory.
•
You can also use. and" to recall radio sta-
tion frequencies assigned to preset tuning but-
tons 1to
6.
Tuning in strong signals
Local seek tuning lets you tune in only those
radio stations with sufficiently strong signals
for good reception.
1 Press FUNalON to select lOCAL.
IT) En
)
2 Press. or .. to turn local seek tuning
on or off.
3
Press .... or ~ to set the sensitivity.
FM: lOCAL 1-l0CAl 2-l0CAl 3-
lOCAL 4
AM: lOCAl1-l0CAl2
The lOCAL 4setting allows reception of only
the strongest stations, while lower settings let
you receive progressively weaker stations.
Storing the strongest broadcast
frequencies
SSM (best stations memory) lets you automa-
tically store the six strongest broadcast fre-
quencies under preset
tuning buttons 1to 6.
Once stored you can tune in to those frequen-
cies with the touch of button.
•Storing broadcast frequencies
with SSM
may replace broadcast frequencies you
have saved using buttons 1to
6.
1 Press FUNalON to select BSM.
2
Press. to turn BSM on.
Six strongest broadcast frequencies will be
stored in the order of their signal strength.
•
To cancel the storage process, press". C!J
Built-in Player
Playing adisc
1Insert aCD (CD-ROM) into the disc load-
ing slot.
Playback will automatically start.
•Be sure to turn up the label side of adisc.
•After a CD (CD-ROM) has been inserted, press
SOURCE to select the built-in CD player.
• You can eject a CD (CD-ROM) by pressing
EJECT.
2 Press. or .. to select afolder when
playing acompressed audio.
• You cannot select afolder that does not have
acompressed audio file recorded in it.

section
(_O~p~e_r_a_t_in~g~t_h_i_s_u_n_i_t ~) CD
• To return to folder 01 (ROan, press and hold
BAND. However, if folder 01 (ROan contains no
files, playback commences with folder
02.
3 To perform fast forward or reverse,
press and hold
.... or ~.
• If you select ROUGH, pressing and holding.
or. enables you to search every 10 tracks in the
current disc (folder). (Refer to Searching every
10
tracks in the current disc or folder on the next
page.)
4 To skip back or forward to another
track, press • or ~.
• Notes
• Read the precautions with discs and player on
page
17.
•If an error message such as ERROR-11 is dis-
played, refer to Error messages
on page 17.
•There is sometimes adelay between starting
up disc playback and the sound being issued.
When being read, FRMTREAD is displayed.
•When playing
CD-EXTRA or MIXED-MODE
CDs, compressed audio and CD-DA can be
switched by pressing BAND.
• If you have switched between compressed
audio and CD-DA, playback starts at the first
track on the disc.
•
The built-in CD player can play back com-
pressed audio recorded
on CD-ROM. (Refer to
page
18 for fi les that can be played back.)
•When playing back
VBR (variable bit rate) re-
corded files, elapsed play time may not be dis-
played correctly,
•When playing compressed audio, there
is no
sound on fast forward or reverse.
Repeating play
Repeat play plays the same track/folder within
the selected repeat play range.
1 Press FUNCTION to select RPT.
2 Press ..... or ~ to select the repeat range.
OSC -Repeat all tracks
TRK -Repeat just the current track
FLO -Repeat the current folder
•If you select another folder during repeat play,
the repeat play range changes to disc repeat.
•When playing
CD, performing track search or
fast forward/reverse cancels the repeat play auto-
matically.
•When playing compressed audio, performing
track search or fast forward/reverse during TRK
(track repeat) changes the repeat play range to
folder repeat.
•When FLO (folder repeat) is selected, it is not
possible to play back asubfolder of that folder.
•
To return to the normal display, press BAND.
Playing tracks in random order
Tracks in aselected repeat range are played in
random order.
1Select the repeat range.
Refer to Repeating play on this page.
2 Press FUNCTION to select ROM.
3 Press. or T to turn random play on or
off.
When random play is on, ROM appears in the
display.
If you
turn random play on during folder re-
peat. FROM appears in the display.
•
To return to the normal display, press BAND.
Scanning tracks or folders
Scan play searches the song within the se-
lected repeat range.
1Select the repeat range.
Refer to Repeating play on this page.
2 Press FUNCTION to select SCAN.
3 Press. to turn scan play on.
SCAN appears in the display. The first 10 sec-
onds of each track is played.
• If you turn scan play on during FLO, FSCN ap-
pears in the display.
En m

Section
m( Operating this unit
4 When you find the desired track press
T to turn scan playoff.
• If the display has automatically returned to
the playback display, select
SCAN again by press-
ing
FUNCTION.
•After scanning of adisc (folder) is finished,
normal playback of the tracks will begin again.
Pausing disc playback
Pause lets you temporarily stop playback of
the disc.
1 Press FUNCTION to select PAUSE.
2 Press J;. or T to turn pause on or off.
• To return to the normal display, press BAND.
• You can also turn pause on or off by pressing
PAUSE on the remote control.
Using compression and BMX
Using the COMP (compression) and BMX
functions let you adjust the sound playback
quality of
this unit.
1 Press FUNCTION to select COMP OFF.
2 Press J;. or T to select your favorite set-
ting.
COMP
OFF-COMP 1-COMP 2-
COMP OFF-BMX 1-BMX 2
• To return to the normal display, press BAND.
Searching every 10 tracks in the
current disc or folder
You can switch the search method between
fast forward/reverse and searching every
10
tracks. Selecting ROUGH enables you to
search every 10 tracks.
1 Press FUNCTION to select FF/REV.
•If the search method ROUGH has been pre-
viously selected, ROUGH will be displayed.
2 Press ~ to select ROUGH.
•
FF/REV - Fast forward and reverse
(ill En
)
•ROUGH -Searching every 10 tracks
•
To select FF/REV, press ......
3 Press BAND to return to the playback
display.
4
Press and hold ~ or ~ to search every
10 tracks on a
disc (folder).
• If the rest of track number is less than 10,
press and hold ..... or ~ recalls the fi rst (last) one.
Displaying text information on
disc
• Press DISPLAY.
Press DISPLAY repeatedly to switch between
the following settings:
For CD TEXT discs
Play time-DISC TTL (disc title)-ART NAME
(disc artist name)-TRK TTL (track title)-
ART NAME (track artist name)
For WMA/MP3 discs
Play time-FOLDER (folder name)-FILE (file
name)-TRK TTL (track title)-ART NAME (ar-
tist name)-ALBM TTL (album title)-
COMMENT (comment)-Bit rate
For WAY discs
Play time-FOLDER (folder name)-FILE (file
name)-Sampling frequency
BNotes
• You can scroll to the left of the title by pressing
and holding
DISPLAY.
•Audio CD that contains certain information
such
as text and/or number is CD TEXT.
• If specific information has not been recorded
on adisc, NO XXXX will be displayed (e.g.,
NOT-TTL).
•When playing back VBR (variable bit rate)-re-
corded WMA files, the average bit rate value
is
displayed.
•When playing back
VBR (variable bit rate)-re-
corded MP3 files,
VBR is displayed instead of
bit rate value.

Section
(--.:::O~p~e:.:r-=a=ti~n~g~t=-:h:..::..::is=--u=n:...=-:i=--=t ) CD
•Depending on the version of iTunes® used to
write MP3 files onto adisc, comment informa-
tion may not be correctly displayed.
-
iTunes is atrademark of Apple Inc., regis-
tered
in the U.S. and other countries.
•
The sampling frequency shown in the display
may be abbreviated. ~
Audio Adjustments
Using balance adjustment
Fader/balance setting creates an ideal listen-
ing environment in all occupied seats.
1 Press AUDIO to select FAD.
2
Press. or • to adjust front/rear speak-
er balance.
FAD F15
to FAD R15 is displayed.
• FAD 0 is the proper setting when only two
speakers
are used.
3 Press ~ or ~ to adjust left/right speaker
balance.
BAL L15 to BAL R15 is displayed.
•
To return to the normal display, press BAND.
Using the eClualizer
There are six stored equalizer settings such as
DYNAMIC, VOCAL, NATURAL, CUSTOM,
FLAT and POWERFUL that can easily be re-
called at any time.
•CUSTOM is an adjusted equalizer curve
that you create.
•When
FLAT is selected no supplement or
correction is made to the sound.
• Press EQ to select the equalizer.
Press EQ repeatedly to switch between the fol-
lowing equalizers:
DYNAMIC-VOCAL-NATURAL-CUSTOM
--FLAT-POWERFUL
Adjusting equalizer curves
You can adjust the currently selected equalizer
curve setting
as desired. Adjusted equalizer
curve settings are memorized in CUSTOM.
Adjusting basslmidltreble
You can adjust the bass/mid/treble level.
1 Press AUDIO to select BASS/MID/
TREBLE.
2 Press. or • to adjust the level.
+6 to -6 is displayed as the level is increased
or decreased.
•
To return to the normal display, press BAND.
Adjusting loudness
Loudness compensates for deficiencies in the
low- and high-sound ranges at low volume.
1 Press AUDIO to select LOUD.
2 Press. or. to turn loudness on or off.
• You can also turn loudness on or off by press-
ing and holding EQ.
3 Press .... or ~ to select adesired level.
LOW (Iow)-HI (high)
•
To return to the normal display, press BAND.
Adjusting source levels
SLA (source level adjustment) lets you adjust
the volume level of each source to prevent
ra-
dical changes in volume when switching be-
tween sources.
•Settings are based on the
FM volume level,
which remains unchanged.
•The
AM volume level can also be adjusted
with source level adjustments.
1Compare the FM volume level with the
level of the source you wish to adjust.
2
Press AUDIO to select SLA.
-m
::s
cc
-
Cii"
::J"
En (ill

Section
liD ( Operating this unit
3 Press A. or 'f' to adjust the source vo-
lume.
SLA +4 to SLA -4 is displayed as the source
volume is increased
or decreased.
•
To return to the normal display, press
BAND.~
Other Functions
Adjusting initial settings
Using the initial settings, you can customize
various system settings to achieve optimal per-
formance from this unit.
1 Press SOURCE and hold until the unit
turns off.
2
Press SOURCE and hold until function
name appears
in the display.
3
Press FUNCTION to select one of the in-
itial settings.
Press FUNCTION repeatedly to switch be-
tween the following settings:
Clock-AUX (auxiliary input)
Use the following instructions to operate each
particular setting.
•
To cancel initial settings, press BAND.
• You can also cancel initial settings by holding
down
SOURCE until the unit turns off.
Setting the clock
Use these instructions to set the clock.
1 Press FUNCTION to select clock.
2 Press .... or ~ to select the segment of
the clock display you wish to set.
Pressing .... or ~ will select one segment of the
clock display:
Hour-Minute
3 Press A. or 'f' to set the clock.
Turning the clock displayon or off
You can turn the clock display on or off.
® En
)
• Even when the sources are off, the clock
display appears on the display.
• Press CLOCK to turn the clock display
on
or off.
Each press of CLOCK turns the clock display
on
or off.
•
The clock display disappears temporarily
when
you perform other operations, but the clock
display appears again after
25 seconds.
Switching the auxiliary setting
It is possible to use auxiliary equipment with
this unit. Activate the auxiliary setting when
using auxiliary equipment connected to this
unit.
1 Press FUNCTION to select AUX.
2 Press A. or 'f' to turn the auxiliary set-
ting on or off.
~

(Connections
~Important
•When this unit is installed in avehicle without
ACC (accessory) position on the ignition
switch, red cable must be wired to the term-
inal that can detect the operation of the igni-
tion
key. Otherwise, battery drain may result.
-m
:::J
CC
-
iii'
:::r
section
)(1
•Control signal is output through blue/white
cable when this
unit is powered on. Connect it
to
an external power amp's system remote
control
or the vehicle's auto-antenna relay
control terminal (max.
300 mA 12 V DC). If the
vehicle
is equipped with aglass antenna, con-
nect it to the antenna booster power supply
terminal.
•Never connect blue/white cable to external
power amp's power terminal. Also, never con-
nect it to the power terminal of the auto anten-
na. Otherwise, battery drain or malfunction
may result.
•Black cable
is ground. This cable and other
product's ground cable (especially, high-cur-
rent products such as power amp) must be
wired separately. Otherwise, fire or malfunc-
tion may result if they are accidentally
de-
tached.
No ACC position
ACC position
•Use of this unit in conditions other than the
following could result in fire
or malfunction.
-Vehicles with a12-volt battery and negative
grounding.
-Speakers with
50 W(output value) and 4
ohm to 8ohm (impedance value).
•
To prevent ashort-circuit, overheating or mal-
function,
be sure to follow the directions
below.
-Disconnect the negative terminal of the
battery before installation.
-Secure the wiring with cable clamps
or ad-
hesive tape. To protect the wiring, wrap ad-
hesive tape around them where they lie
against metal parts.
-Place all cables away from moving parts,
such
as gear shift and seat rails.
-Place all cables away from hot places,
such
as near the heater outlet.
-Do not pass the yellow cable through a
hole into the engine compartment to con-
nect to abattery.
-Cover any disconnected cable connectors
with insulating tape.
-
Do not shorten any cables.
-Never cut the insulation of the power cable
of this unit in orderto share the power
with other devices. Current capacity of the
cable
is limited.
-Use afuse of the rating prescribed.
-Never wire the speaker negative cable di-
rectly to ground.
-Never band together multiple speaker's
ne-
gative cables.
En @)

Section
I) (Connections )
Connection Diagram
System remote control
___ L _
With a 2 speaker system, do not connect
anything to the speaker leads that are not
connected to speakers.
Blue/white
Connect to system control terminal of the
power amp or auto-antenna relay control
terminal (max. 300 mA 12 V DC).
Black (chassis ground)
Connect to aclean, paint-free
metal location.
Red
Connect to terminal controlled
by ignition switch (12 V DC).
Yellow
Connect to the constant
12 V
supply terminal.
J--------------------------- -I
I I
II
This Prod\[ct ~J ''0•.•• _... • :.,- - ~. -- --- -: Sect with :CA cables i
. O'-',)£~:,~ :., ' _. '-. -I(sold separately) I
Rear output 1800:i~JT~;,.~t~\~.~, :
Antenna jack Fuse (lOA) I
I
I
IWhite
Gray I
I, ~ L!n1 II
Front speaker ~ ~ Front speaker
lee I
IWhite/black Gray/black I
ILeft Right I
IGreen Violet I
:Rear speaker ~ ~ Rear speaker ::
lee II
IGreen/black VioleVblack II
1 JI
r----------------------------------------
I
I EB EB
IRear speaker Rear speaker
I ---~----~--------------~-------------
Perform these connections when using
the optional amplifier.
En

Section
(~I_ns_t_a_lI_at_i_o_n ~) CD
m
::s
cc
-
U)
:::r
1
Rubber bush
ScrewMounting sleeve
Dashboard
• It becomes easy to remove the trim ring if
the front panel is released.
Trim ring
2Insert the supplied extraction keys into
both
sides of the unit until they click into
place.
3
Pull the unit out of the dashboard.
Removing the unit
1Extend top and bottom of the trim ring
outwards
to remove the trim ring. (When
reattaching the trim ring, point the side
with agroove downwards and attach it.)
2Secure the mounting sleeve by using a
screwdriver
to bend the metal tabs (90°)
into place.
3Install the unit.
DIN front/rear mount
This unit can be properly installed either from
"Front" (conventional DIN front-mount) or
"Rear" (DIN rear-mount installation, utilizing
threaded
screw holes at the sides of unit chas-
sis). For details, refer
to the following installa-
tion methods.
DIN Front-mount
Installation with the rubber bush
1Insert the mc:>Unting sleeve into the
dashboard.
When installing if") a shallow space, use asup-
plied
mounting sieeve. If there is enough
space behind the unit, use factory supplied
mounting sleeve.
QImportant
•Check all connections and systems before
final installation.
•
Do not use unauthorized parts. Use of un-
authorized parts may cause malfunctions.
•Consult your dealer if installation requires dril-
ling of holes orother modifications to the vehi-
cle.
•
Do not install this unit where:
-it may interfere with operation of the vehi-
cle.
-it may cause injury to apassenger
as a re-
sult of asudden stop.
•
The semiconductor laser will be damaged if it
overheats. Install this unit away from hot
places such
as near the heater outlet.
•Optimum performance
is obtained when the
unit is installed at
an angle of less than 60°.
En (]I)

Section
ID (Installation
DIN Rear-mount
1Extend top and bottom of the trim ring
outwards
to remove the trim ring. (When
reattaching the trim ring, point the
side
with agroove downwards and attach it.)
Trim ring
•It becomes easy to remove the trim ring if
the front panel
is released.
2Determine the appropriate position
where the holes on the bracket and the
side of the unit match.
)
Fastening the front panel
(DEH-2000MP)
If you do not plan to detach the front panel,
the front panel can be fastened with supplied
screw.
Screw
•
~o
3Tighten two screws on each side.
Screw
Mounting bracket Dashboard or console
• Use either truss screws (5 mm x 8 mm) or
flush surface screws
(5 mm x 9 mm), de-
pending on the shape of screw holes in the
bracket.
C!J
ill) En

~ ~Appendix
( Additional Information ) •
Error messages
When you contact your dealer or your nearest
Pioneer Service Center,
be sure to record the
error message.
Message Cause Action
ERROR-11, 12, Dirty disc Clean disc.
17,30
ERROR-11, 12, Scratched disc Replace disc.
17,30
ERROR-10,11, Electrical
or me- Switch the ignition
12,15,17,30,
chanical
key, or switch to a
AO
different source,
then back to the
CD player.
ERROR-15
The inserted disc Replace disc.
does not contain
any data
ERROR-22, 23 The CD format Replace disc.
cannot
be played
back
NO AUDIO
The inserted disc Replace disc.
does not contain
any files that can
be played back
PROTECT All the files on Replace disc.
the inserted disc
are secured
by
DRM
SKIPPED The inserted disc Replace disc.
contains
WMA
files that are pro-
tected
by DRM
C!J
Handling guideline of discs
and player
•Use only discs featuring either offollowing
two logos.
•Use only conventional, fully circular discs.
Do not use shaped discs.
•Use 12-cm or 8-cm
CD. Do not use an
adapter when playing 8-cm CDs.
•Do not insert anything otherthan a
CD into
the
CD loading slot.
•
Do not use cracked, chipped, warped, or
otherwise damaged discs
as they may da-
mage the player.
•Unfinalized CD-R/CD-RW disc playback is
not possible.
•
Do not touch the recorded surface of the
discs.
•Store discs in their cases when not in use.
•Avoid leaving discs
in excessively hot envir-
onments including underdirect sunlight.
•
Do not attach labels, write on or apply che-
micals to the surface of the discs.
•
To clean a CD, wipe the disc with asoft
cloth outward from the center.
•Condensation may temporarily impairthe
player's performance.
Leave it to adjust to
the warmer temperature for about one
hour. Also, wipe any
dump discs with asoft
cloth.
•Playback of discs may not be possible be-
cause of disc characteristics, disc format,
recorded application, playback environ-
ment, storage conditions and so on.
•
Text information may not be correctly dis-
played depending
on the recorded environ-
ment.
• Road shocks may interrupt disc playback.
•
Read the precautions with discs before
using them.
C!J
-m
::s
CC
-
iii"
::J'"
(illO~a3
DIGITAL AUDIO
[i]o~rn
DIGITAL AUDIO
ITEXT I
Dual Discs
•Dual Discs are two-sided discs that have a
recordable
CD for audio on one side and a
recordable DVD for video
on the other.
En GD

Appendix
• C-A-d-d-i-ti-o-n-a-I-In-f-o-r-m-a-t-io-n------------~)
•Since the CD side of Dual Discs is not phy-
sically compatible with the general CD
standard, it may not be possible to play the
CD side with this unit.
•Frequent loading and ejecting of aDual
Disc may result in scratches
on the disc.
Serious scratches can lead to playback pro-
blems
on this unit. In some cases, aDual
Disc may become stuck in the disc loading
slot and will not eject.
To prevent this, we
recommend you refrain from using Dual
Disc with this unit.
•Please refer to the information from the
disc manufacturer for more detailed infor-
mation about Dual Discs.
[!J
Compressed audio files
•Depending on the version of Windows
Media Player used to encode
WMA files,
album names and other text information
may not
be correctly displayed.
•There may
be aslight delay when starting
playback of
WMA files encoded with image
data.
•
ISO 9660 Level 1and 2compliant. Romeo
and Joliet file systems are both compatible
with this
player.
•Multi-session playback is possible.
•Compressed audio files are not compatible
with packet write data transfer.
•Only
64 characters from the beginning can
be displayed as afile name (including the
extension such
as .wma, .mp3 or.wav) or a
folder name.
•Folder selection sequence or other opera-
tion may
be altered depending on the en-
coding or writing software.
•Regardless of the length of blank section
between the songs of original recording,
compressed audio discs will play with a
short pause between songs.
•File extensions such
as .wma, .mp3 or .wav
must
be used properly.
® En
Example of ahierarchy
CJ: Folder
Jj: Compressed audio file
Level 1 Level 2 Level 3 Level 4
•This unit assigns folder numbers. The user
cannot assign folder numbers.
•Folder hierarchy is allowed up to eight tiers.
However, practical hierarchy of folder
is
less than two tiers.
•Up to
99 folders on adisc can be played
back.
Compressed audio compatibility
WMA
•Compatible format: WMA encoded by
Windows Media Player
•Bit rate:
48 kbps to 320 kbps (CBR), 48 kbps
to
384 kbps (VBR)
•Sampling frequency: 32 kHz to 48 kHz
•Windows Media Audio 9Professional, Loss-
less, Voice: No
MP3
•Bit rate: 8kbps to 320 kbps
•Sampling frequency:
16 kHz to 48 kHz (32,
44.1, 48 kHz for emphasis)
•Compatible
103 tag version: 1.0, 1.1,2.2,
2.3,2.4
(103 tag Version 2.x is given priority
than Version
1.x.)
•M3u playlist: No
•MP3i (MP3 interactive), mp3 PRO: No

Appendix
C-A-d-d-i-ti-o-n--a-.-In-f-o-rm-a-ti-o-n-------------) •

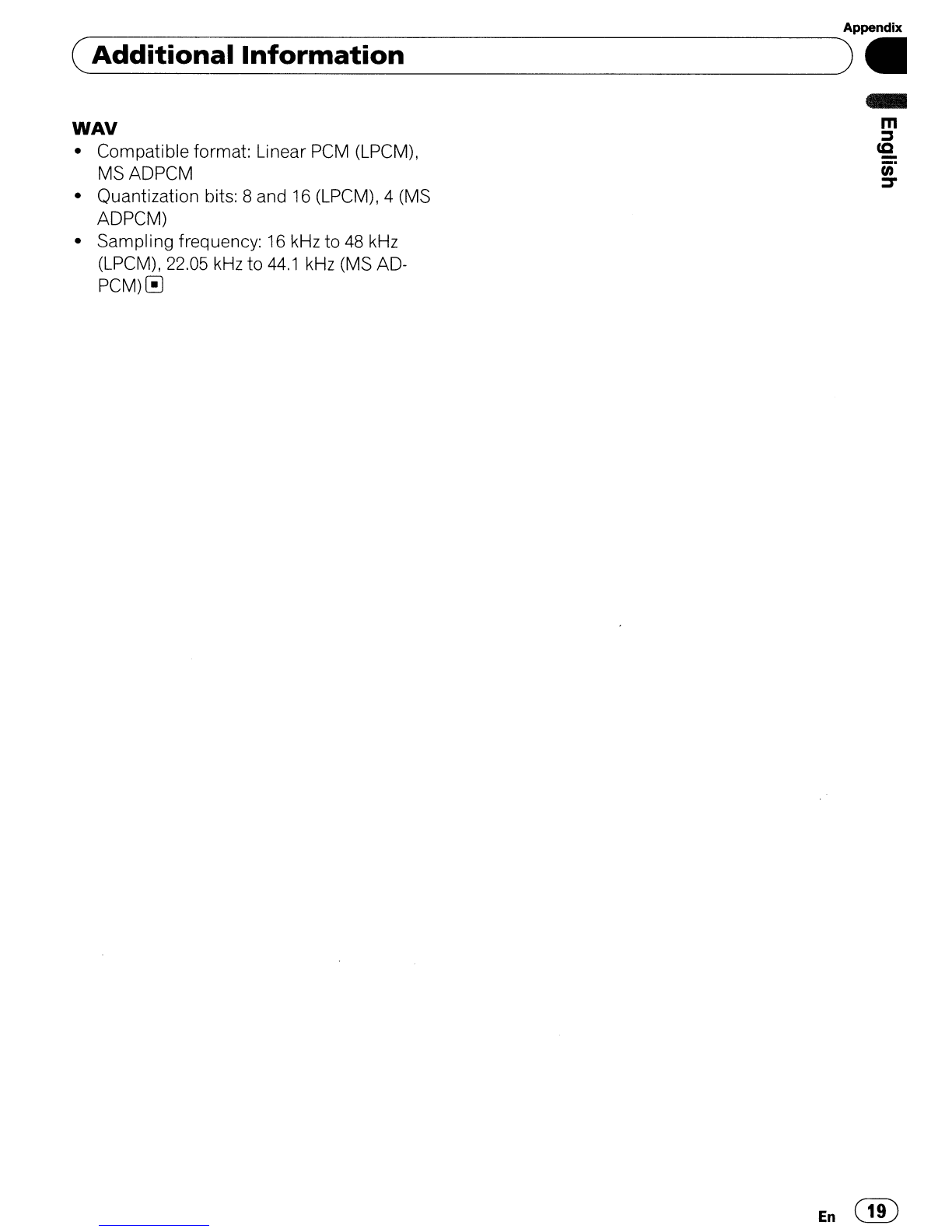

WAY
•Compatible format: Linear PCM (LPCM),
MSADPCM
•Quantization bits: 8and 16 (LPCM), 4(MS
ADPCM)
•Sampling frequency:
16 kHz to 48 kHz
(LPCM),
22.05 kHz to 44.1 kHz (MS AD-
PCM)C!J
..
m
:::s
cc
-
iii"
:::s'"
En (ill

Appendix
• C-A-d-d-i-ti-o-n-a-.-In-f-o-r-m-a-t-io-n------------ -)
Specifications
General
Power source 14.4 V DC (10.8 Vto 15.1 V
allowable)
Grounding system Negative type
Max. current consumption
..................................................... 10.0A
Dimensions (W xHx D):
DIN Chassis 178 x
50 x162 mm
(7 x2x 6-3/8 in.)
Nose
188 x 58 x 15 mm
(7-3/8 x 2-1/4 x 5/8 in.)
DChassis 178 x
50 x162 mm
(7 x2x 6-3/8 in.)
Nose 170 x
48 x 15 mm
(6-3/4 x 1-718 x 5/8 in.)
Weight
1.3 kg (2.9 Ibs)
Audio
Continuous power output is 22 Wper channel minimum
into 4ohms, both channels driven 50 Hz to 15000 Hz
with no more than 5% THD.
Maximum power output 50 Wx4
Load impedance 411 (411 to 811 allowable)
Preout max
output level 2.2 V
Tone controls:
BassFrequency 100
Hz
Gain , .. ±13dB
Mid Frequency 1
kHz
Gain ±12 dB
Treble
Frequency ,
10 kHz
Gain , ,
±12 dB
CD player
System 'Compact disc audio system
Usable discs ,Compact disc
Signal-to-noise ratio
94 dB (1 kHz) (IHF-A net-
work)
Number of channels .. " .. ,,,,,,,,2 (stereo)
WMA decoding format ......... Ver, 7, 7.1, 8, 9, 10, 11 (2ch
audio)
(Windows Media Player)
MP3 decoding format MPEG-1 &2Audio Layer 3
WAV signal format Linear PCM &MS ADPCM
FM tuner
Frequency range "87.9 MHz to 107,9 MHz
00 En
Usable sensitivity 8 dBf (0.7 /Nn5 11, mono,
SIN:
30 dB)
Signal-to-noise ratio
75 dB (IHF-A network)
AM tuner
Frequency range , 530 kHz to 1710kHz (10
kHz)
Usable sensitivity
18 f.1V (SIN: 20 dB)
Signal·to-noise ratio
65 dB (IHF-A network)
CEA2006 Specifications
~
.:!
~
",(/I~
etA-'ll"
Power output 14 WRMS x4Channels (4
11 and ~ 1 % THD+N)
SIN ratio 91 dBA (reference: 1 W into
411)
•Note
Specifications and the design are subject to mod-
ifications without notice due to improvements.
C!J
