Pioneer DEH-P7000R User manual

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER ELECTRONIC CORPORATION 1999 K-ZZD. FEB. 1999 Printed in Japan
ORDER NO.
CRT2375
MULTI-CD/MD/DAB CONTROL HIGH POWER CD PLAYER WITH RDS TUNER
DEH-P7000R EW
Service
Manual
CONTENTS
1. SAFETY INFORMATION ............................................2
2. EXPLODED VIEWS AND PARTS LIST.......................3
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...14
4. PCB CONNECTION DIAGRAM ................................40
5. ELECTRICAL PARTS LIST ........................................50
6. ADJUSTMENT..........................................................64
7. GENERAL INFORMATION .......................................68
7.1 PARTS .................................................................68
7.1.1 IC................................................................68
7.1.2 DISPLAY....................................................76
7.2 DIAGNOSIS ........................................................77
7.2.1 DISASSEMBLY .........................................77
7.2.2 TEST MODE..............................................82
8. OPERATIONS AND SPECIFICATIONS.....................86
-See the separate manual CX-916(CRT2300) for the CD mechanism description, disassembly and circuit
description.
-The CD mechanism employed in this model is one of S8 series.
-This device employs an inverter as the power supply for EL. The inverter has an output voltage reach
approximately 500 volts(AC). Utmost care should be used not to suffer from a possible electric shock,
accordingly.
-When executing an operation, be aware that the in around IC651 can become quite hot to the touch.
DEH-P7000R-W EW
DEH-P6000R EW
DEH-P7000R/EW

2
DEH-P7000R,P7000R-W,P6000R
-CD Player Service Precautions
1. For pickup unit(CXX1285) handling, please refer
to"Disassembly"(see page 77).
During replacement, handling precautions shall be
taken to prevent an electrostatic discharge(protection
by a short pin).
2. During disassembly, be sure to turn the power off
since an internal IC might be destroyed when a con-
nector is plugged or unplugged.
3. Please checking the grating after changing the ser-
vice pickup unit(see page 66).
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so
and refer the repair to a qualified service technician.
1. Safety Precautions for those who Service this Unit.
• When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable
results.
Caution:
1. During repair or tests, minimum distance of 13cm from the focus lens must be kept.
2. During repair or tests, do not view laser beam for 10 seconds or longer.
2. A “CLASS 1 LASER PRODUCT” label is affixed to the
bottom of the player.
3. The triangular label is attached to the mechanism
unit frame.
4. Specifications of Laser Diode
Specifications of laser radiation fields to which human access is possible during service.
Wavelength = 800 nanometers
CLASS 1
LASER PRODUCT

DEH-P7000R,P7000R-W,P6000R
2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING(DEH-P7000R/EW, DEH-P7000R-W/EW)
11
8
9
5
4
6
3
2
7
12
13
10
14
1
15 20
16
17
19 18
22
21
23
24
1 Cord Assy CDE5824
* 2 Accessory Assy CEA2397
3 Screw CBA1002
4 Handle CNC5395
5 Bush CNV3930
* 6 Polyethylene Bag E36-615
7 Polyethylene Bag CEG-162
8-1 Owner’s Manual CRD2910
8-2 Owner’s Manual CRD2911
8-3 Owner’s Manual CRD2912
8-4 Installation Manual CRD2913
8-5 Passport CRY1013
* 8-6 Warranty Card CRY1087
8-7 Polyethylene Bag CEG1116
* 8-8 Label CRW1343
9 Case Assy CXB3520
10 Carton See Contrast table(2)
11 Contain Box See Contrast table(2)
12 Protector CHP2101
13 Protector CHP2102
14 Inner Box CHW1754
15 Remote Control Assy CXB3488
16 Screw Assy CZE3169
* 17 Polyethylene Bag CEG-127
* 18 Hexagonal Wrench CZE3176
* 19 Screw RMZ30H060FBK
20 Belt CZN6416
21 Holder Assy CZX3172
22 Holder Assy CZX3173
23 Remote Control Assy CZX3231
24 Battery CEX1030
Mark No. Description Part No. Mark No. Description Part No.
(1) PACKING SECTION PARTS LIST
NOTE:
-Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.
-Screws adjacent to ∇mark on the product are used for disassembly.
3

4
DEH-P7000R,P7000R-W,P6000R
Part No.
Mark No. Symbol and Description DEH-P7000R/EW DEH-P7000R-W/EW
10 Carton CHG3750 CHG3808
11 Contain Box CHL3750 CHL3808
(2) CONTRAST TABLE
DEH-P7000R/EW and DEH-P7000R-W are constructed the same except for the following:
-Owner's Manual, Installation Manual
Model Part No. Language
DEH-P7000R/EW CRD2910 English, Spanish
DEH-P7000R-W/EW CRD2911 German, French
CRD2912 Italian, Dutch
CRD2913 English, Spanish, German, French, Italian, Dutch
2.2 PACKING(DEH-P6000R/EW)
11
8
9
5
4
6
3
2
7
12
13
10
14
1

5
DEH-P7000R,P7000R-W,P6000R
1 Cord Assy CDE5825
* 2 Accessory Assy CEA2397
3 Screw CBA1002
4 Handle CNC5395
5 Bush CNV3930
* 6 Polyethylene Bag E36-615
7 Polyethylene Bag CEG-162
8-1 Owner’s Manual CRD2918
8-2 Owner’s Manual CRD2919
8-3 Owner’s Manual CRD2920
8-4 Installation Manual CRD2921
8-5 Passport CRY1013
* 8-6 Warranty Card CRY1087
8-7 Polyethylene Bag CEG1116
9 Case Assy CXB3520
10 Carton CHG3753
11 Contain Box CHL3753
12 Protector CHP2101
13 Protector CHP2102
14 Inner Box CHW1754
Mark No. Description Part No. Mark No. Description Part No.
- PACKING SECTION PARTS LIST
-Owner's Manual, Installation Manual
Model Part No. Language
DEH-P6000R/EW CRD2918 English, Spanish
CRD2919 German, French
CRD2920 Italian, Dutch
CRD2921 English, Spanish, German, French, Italian, Dutch

6
DEH-P7000R,P7000R-W,P6000R
107
103
102
5
19
30
6
7
A
C
B
A
C
B
57
57
76
13
12
2
2
2
2
104
8
20 4
23
23
23
48
22
105
16
16
15
51
50
9
3
52
1
43
35
28
14
11
34
27
41
47
49
77
46
40
41
106
42
31
4
60
67
54
73
72
64
74
78
56
57
65
80
86
101
89
83
90
88
85
81
93
97 94
100
95 99
98
96
82
82
91
82
84
92
87
79
70
65
55
55
71
66
61
59
58
62
58
75
69
68
62
18
63
79
17
45
39
32
47
49
77
4640 21
10
38
36
44
10
29
25
37
26
33
24
1
3

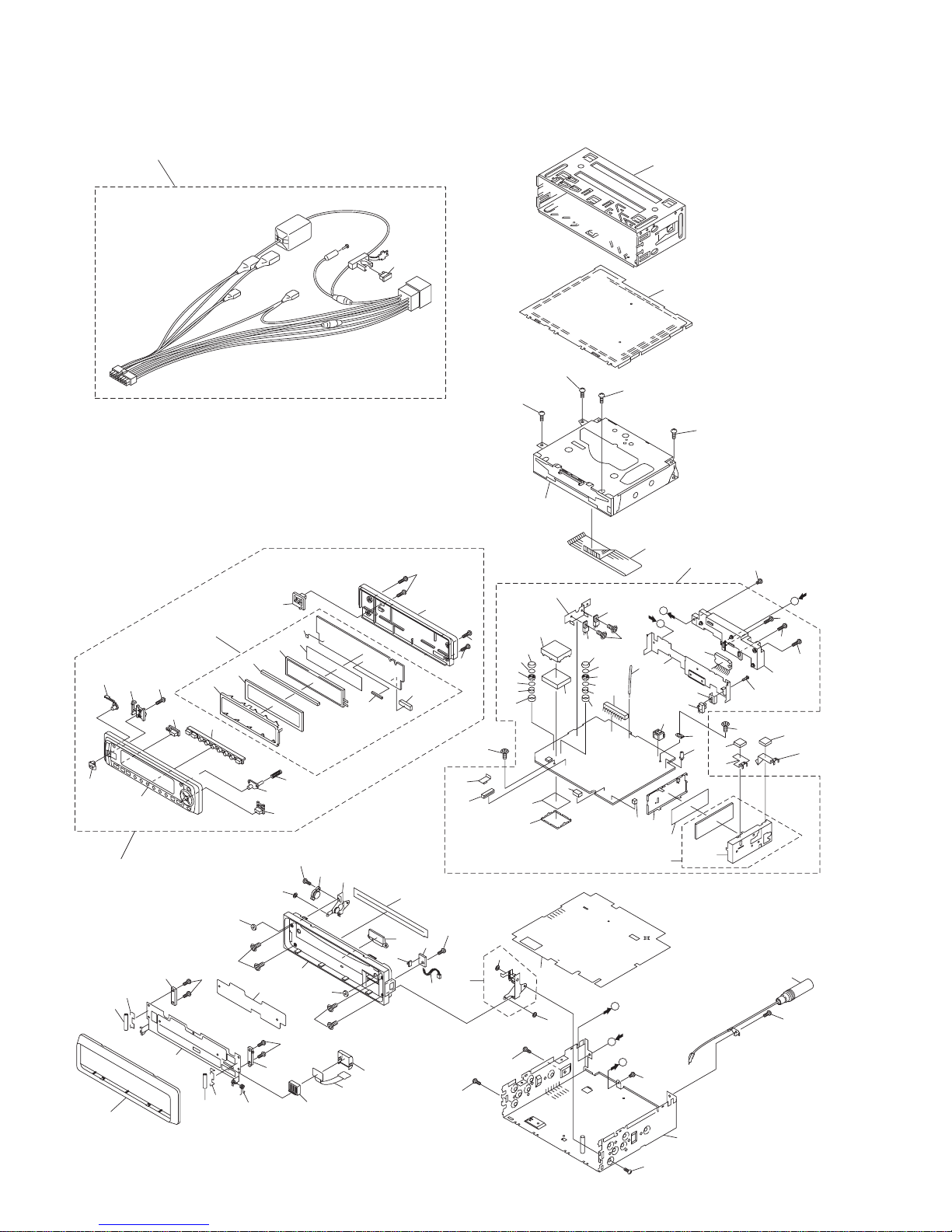

2.3 EXTERIOR(DEH-P7000R/EW)

DEH-P7000R,P7000R-W,P6000R
1 Screw BMZ30P040FMC
2 Screw BSZ26P060FMC
3 Screw BSZ30P060FMC
4 Screw BSZ30P100FMC
5 Cord Assy CDE5822
6 Cord Assy CDE5824
7 Fuse(10A) CEK1136
8 Connector CDE6049
9 Antenna Cable CDH1266
10 Transistor(Q954,991) 2SD2396
11 IC(IC551) PAL005A
12 Case CNB2508
13 Holder CNC6798
14 Holder CNC8300
15 Holder CNC8357
16 Spacer CNM4913
17 Insulator CNM6075
18 Panel CNS5148
19 Cap CNV2680
20 Tuner Amp Unit CWM6190
21 Screw ASZ26P080FMC
22 Screw BPZ26P060FMC
23 Screw BSZ26P160FMC
24 Clamper CEF1009
25 Pin Jack(CN431) CKB1028
26 Terminal(CN501) CKF1059
27 Plug(CN952) CKM1294
28 Plug(CN652) CKS-783
29 Connector(CN411) CKS3408
30 Connector(CN432) CKS3598
31 Connector(CN681) CKS3838
32 Connector(CN651) CKS4077
33 Mini Pin Jack(CN502) CKX1046
34 Panel CNB2378
35 Holder CNC7533
36 Case CNC8138
37 Holder CNC8298
38 Holder CNC8299
39 Case CNC8301
40 Case CNC8376
41 Case CNC8377
42 Heat Sink CNC8437
43 Insulator CNM5967
44 Insulator CNM6249
45 Insulator CNM6250
46 Insulator CNM6298
47 Insulator CNM6299
48 Heat Sink CNR1550
49 Insulator CNV5816
50 FM/AM Tuner Unit CWE1500
51 Holder CNC7532
52 Chassis Unit CXB3307
53 •••••
54 Screw BPZ20P060FMC
55 Screw CBA1082
56 Screw CBA1176
57 Washer CBF1001
58 Spring CBH2063
59 Spring CBH2204
60 Cord CDE5800
61 Connector CKS2780
62 Roller CLA3386
63 Sheet CNM6109
64 Cover CNM6118
65 Cushion CNM6376
66 PCB CNP5383
67 PCB CNP5430
68 Holder CNS5157
69 Holder CNS5165
70 Panel CNS5280
71 Cover CNS5389
72 Lighting Conductor CNV5540
73 Switch(S651) CSN1027
74 Holder Unit CXB3049
75 Holder Unit CXB3050
76 Holder Unit CXB3051
77 Coil(L652,L653) CTH1228
78 Damper Unit CXB3180
79 Screw IMS20P040FZK
80 Detach Grille Assy CXB3686
81 Screw BPZ20P060FMC
82 Screw BPZ20P080FZK
83 Button(OPEN) CAC5804
84 Button(EJECT) CAC5805
85 Button(SOURCE) CAC5806
86 Button(EQ) CAC5808
87 Button(DISP) CAC5809
88 Button(1-6) CAC5821
89 Button(BAND) CAC5936
90 Spring CBH2205
91 Cover CNS5146
92 Holder CNV5537
93 Keyboard Unit CWM6198
94 LCD CAW1517
95 EL CEL1592
96 Connector(CN901) CKS2733
97 Holder CNC8157
98 Spacer CNM6379
99 Double Sided Tape CNM6380
100 Connector CNV5539
101 Grille Unit CXB4092
102 Remote Control Assy CZX3231
103 Cover CZN6410
104 CD Mechanism Module CXK5200
105 Screw ISS26P055FUC
106 Screw CBA1492
107 Spacer CNM6421
-EXTERIOR SECTION PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
7

8
DEH-P7000R,P7000R-W,P6000R
107
103
102
5
19
30
6
7
A
C
B
A
C
B
57
57
76
13
12
2
2
2
2
104
8
20 4
23
23
23
48
22
105
16
16
15
51
50
9
3
52
1
43
35
28
14
11
34
27
41
47
49
77
46
40
41
106
42
31
4
60
67
54
73
72
64
74
78
56
57
65
80
86
101
89
83
90
88
85
81
93
97 94
100
95 99
98
96
82
82
91
82
84
92
87
79
70
65
55
55
71
66
61
59
58
62
58
75
69
68
62
18
63
79
17
45
39
32
47
49
77
4640 21
10
38
36
44
10
29
25
37
26
33
24
1
3
108
2.4 EXTERIOR(DEH-P7000R-W/EW)

DEH-P7000R,P7000R-W,P6000R
1 Screw BMZ30P040FMC
2 Screw BSZ26P060FMC
3 Screw BSZ30P060FMC
4 Screw BSZ30P100FMC
5 Cord Assy CDE5822
6 Cord Assy CDE5824
7 Fuse(10A) CEK1136
8 Connector CDE6049
9 Antenna Cable CDH1266
10 Transistor(Q954,991) 2SD2396
11 IC(IC551) PAL005A
12 Case CNB2508
13 Holder CNC6798
14 Holder CNC8300
15 Holder CNC8357
16 Spacer CNM4913
17 Insulator CNM6075
18 Panel CNS5540
19 Cap CNV2680
20 Tuner Amp Unit CWM6547
21 Screw ASZ26P080FMC
22 Screw BPZ26P060FMC
23 Screw BSZ26P160FMC
24 Clamper CEF1009
25 Pin Jack(CN431) CKB1028
26 Terminal(CN501) CKF1059
27 Plug(CN952) CKM1294
28 Plug(CN652) CKS-783
29 Connector(CN411) CKS3408
30 Connector(CN432) CKS3598
31 Connector(CN681) CKS3838
32 Connector(CN651) CKS4077
33 Mini Pin Jack(CN502) CKX1046
34 Panel CNB2378
35 Holder CNC7533
36 Case CNC8138
37 Holder CNC8298
38 Holder CNC8299
39 Case CNC8301
40 Case CNC8376
41 Case CNC8377
42 Heat Sink CNC8437
43 Insulator CNM5967
44 Insulator CNM6249
45 Insulator CNM6250
46 Insulator CNM6298
47 Insulator CNM6299
48 Heat Sink CNR1550
49 Insulator CNV5816
50 FM/AM Tuner Unit CWE1500
51 Holder CNC7532
52 Chassis Unit CXB4183
53 •••••
54 Screw BPZ20P060FMC
55 Screw CBA1082
56 Screw CBA1176
57 Washer CBF1001
58 Spring CBH2063
59 Spring CBH2204
60 Cord CDE5800
61 Connector CKS2780
62 Roller CLA3386
63 Sheet CNM6109
64 Cover CNM6118
65 Cushion CNM6376
66 PCB CNP5383
67 PCB CNP5430
68 Holder CNS5157
69 Holder CNS5165
70 Panel CNS5280
71 Cover CNS5389
72 Lighting Conductor CNV5540
73 Switch(S651) CSN1027
74 Holder Unit CXB3049
75 Holder Unit CXB3050
76 Holder Unit CXB3051
77 Coil(L652,L653) CTH1228
78 Damper Unit CXB3180
79 Screw IMS20P040FZK
80 Detach Grille Assy CXB4197
81 Screw BPZ20P060FMC
82 Screw BPZ20P080FZK
83 Button(OPEN) CAC5804
84 Button(EJECT) CAC5805
85 Button(SOURCE) CAC5806
86 Button(EQ) CAC5808
87 Button(DISP) CAC5809
88 Button(1-6) CAC6141
89 Button(BAND) CAC5936
90 Spring CBH2205
91 Cover CNS5538
92 Holder CNV5537
93 Keyboard Unit CWM6548
94 LCD CAW1550
95 EL CEL1592
96 Connector(CN901) CKS2733
97 Holder CNC8157
98 Spacer CNM6379
99 Double Sided Tape CNM6380
100 Connector CNV5539
101 Grille Unit CXB4084
102 Remote Control Assy CZX3231
103 Cover CZN6410
104 CD Mechanism Module CXK5200
105 Screw ISS26P055FUC
106 Screw CBA1492
107 Spacer CNM6421
108 Cover CNM4710
-EXTERIOR SECTION PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
9

10
DEH-P7000R,P7000R-W,P6000R
107
6
7
A
C
B
A
C
B
57
57
76
13
12
2
2
2
2
104
8
20 4
23
23
23
48
22
105
16
16
15
51
50
9
3
52
1
43
35
28
14
11
34
27
41
47
49
77
46
40
41
106
42
31
4
60
67
54
73
72
64
74
78
56
57
65
80
86
101
89
83
90
88
85
81
93
97 94
100
95 99
98
96
82
82
91
82
84
92
87
79
70
65
55
55
71
66
61
59
58
62
58
75
69
68
62
18
63
79
17
45
39
32
47
49
77
4640 21
10
38
36
44
10
29
25
37
26
33
24
1
3
2.5 EXTERIOR(DEH-P6000/EW)

DEH-P7000R,P7000R-W,P6000R
1 Screw BMZ30P040FMC
2 Screw BSZ26P060FMC
3 Screw BSZ30P060FMC
4 Screw BSZ30P100FMC
5 •••••
6 Cord Assy CDE5825
7 Fuse(10A) CEK1136
8 Connector CDE6049
9 Antenna Cable CDH1266
10 Transistor(Q954,991) 2SD2396
11 IC(IC551) PAL005A
12 Case CNB2508
13 Holder CNC6798
14 Holder CNC8300
15 Holder CNC8357
16 Spacer CNM4913
17 Insulator CNM6075
18 Panel CNS5148
19 Cap CNV2680
20 Tuner Amp Unit CWM6194
21 Screw ASZ26P080FMC
22 Screw BPZ26P060FMC
23 Screw BSZ26P160FMC
24 Clamper CEF1009
25 Pin Jack(CN431) CKB1028
26 Terminal(CN501) CKF1059
27 Plug(CN952) CKM1294
28 Plug(CN652) CKS-783
29 Connector(CN411) CKS3408
30 •••••
31 Connector(CN681) CKS3838
32 Connector(CN651) CKS4077
33 Mini Pin Jack(CN502) CKX1046
34 Panel CNB2477
35 Holder CNC7533
36 Case CNC8138
37 Holder CNC8298
38 Holder CNC8299
39 Case CNC8301
40 Case CNC8376
41 Case CNC8377
42 Heat Sink CNC8437
43 Insulator CNM5967
44 Insulator CNM6249
45 Insulator CNM6250
46 Insulator CNM6298
47 Insulator CNM6299
48 Heat Sink CNR1550
49 Insulator CNV5816
50 FM/AM Tuner Unit CWE1500
51 Holder CNC7532
52 Chassis Unit CXB3519
53 •••••
54 Screw BPZ20P060FMC
55 Screw CBA1082
56 Screw CBA1176
57 Washer CBF1001
58 Spring CBH2063
59 Spring CBH2204
60 Cord CDE5800
61 Connector CKS2780
62 Roller CLA3386
63 Sheet CNM6109
64 Cover CNM6118
65 Cushion CNM6376
66 PCB CNP5383
67 PCB CNP5430
68 Holder CNS5157
69 Holder CNS5165
70 Panel CNS5280
71 Cover CNS5389
72 Lighting Conductor CNV5540
73 Switch(S651) CSN1027
74 Holder Unit CXB3049
75 Holder Unit CXB3050
76 Holder Unit CXB3051
77 Coil(L652,L653) CTH1228
78 Damper Unit CXB3180
79 Screw IMS20P040FZK
80 Detach Grille Assy CXB3690
81 Screw BPZ20P060FMC
82 Screw BPZ20P080FZK
83 Button(OPEN) CAC5804
84 Button(EJECT) CAC5805
85 Button(SOURCE) CAC5806
86 Button(EQ) CAC5808
87 Button(DISP) CAC5809
88 Button(1-6) CAC5921
89 Button(BAND) CAC5936
90 Spring CBH2205
91 Cover CNS5146
92 Holder CNV5537
93 Keyboard Unit CWM6198
94 LCD CAW1517
95 EL CEL1592
96 Connector(CN901) CKS2733
97 Holder CNC8157
98 Spacer CNM6379
99 Double Sided Tape CNM6380
100 Connector CNV5539
101 Grille Unit CXB4096
102 •••••
103 •••••
104 CD Mechanism Module CXK5200
105 Screw ISS26P055FUC
106 Screw CBA1492
107 Spacer CNM6421
-EXTERIOR SECTION PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
11

12
DEH-P7000R,P7000R-W,P6000R
2.6 CD MECHANISM MODULE

13
DEH-P7000R,P7000R-W,P6000R
Mark No. Description Part No. Mark No. Description Part No.
1 Compound Unit CWX2235
2 Connector(CN802) CKS2192
3 Connector(CN801) CKS2193
4 Connector(CN701) CKS2773
5 Connector(CN101) CKS3486
6 Screw BMZ20P030FZK
7 Screw BSZ20P040FZK
8 Screw(M2×3) CBA1077
9 Screw(M2×6) CBA1230
10 Screw CBA1243
11 Screw(M2×4) CBA1362
12 Washer CBF1037
13 Washer CBF1038
14 Washer CBF1060
* 15 Washer CBF1075
16 Spring CBH2079
17 Spring CBH2117
18 Spring CBH2278
19 Spring CBH2110
20 Spring CBH2282
21 Spring CBH2114
22 Spring CBH2115
23 Spring CBH2080
24 Spring CBH2118
25 Spring CBH2161
26 Spring CBH2163
27 Spring CBH2189
28 Spring CBH2249
29 Spring CBH2260
30 Spring CBH2262
31 Spring CBL1367
32 Spring CBL1369
33 Connector CDE5531
34 Connector CDE5532
35 Shaft CLA3304
36 Screw(M2.6×6) CBA1458
37 Frame CNC7544
38 Frame CNC7545
39 Lever CNC7546
40 Arm CNC7739
41 Bracket CNC7798
42 Plate CNC8090
43 Spacer CNM3315
44 Sheet CNM6170
45 Cushion CNM6204
46 Sheet CNM6215
47 Ball CNR1189
48 Belt CNT1086
49 Roller CNV4509
50 Arm CNV5246
51 Arm CNV5247
52 Arm CNV5248
53 Arm CNV5249
54 Guide CNV5254
55 Guide CNV5255
56 Gear CNV5257
57 Gear CNV5256
58 Guide CNV5869
59 Damper CNV5266
60 Arm CNV5359
61 Arm CNV5360
62 Arm CNV5361
63 Guide CNV5509
64 Guide CNV5510
65 Holder CNV5578
66 Guide CNV5751
67 Clamper CNV5758
68 Gear CNV5813
69 Motor Unit(M1) CXB2190
70 Screw Unit CXB2191
71 Chassis Unit CXB2192
72 Gear Unit CXB2193
73 Arm Unit CXB2194
74 Motor Unit(M2) CXB2195
75 Lever Unit CXB2553
76 Arm Unit CXB2554
77 Motor Unit(M3) CXB2562
78 Arm Unit CXB2795
79 Bracket Unit CXB4071
80 Screw JFZ20P025FMC
81 Screw JGZ17P025FZK
82 Washer YE15FUC
83 Pickup Unit(Service)(P8) CXX1285
84 Screw IMS26P030FMC
* 85 PCB CNX2982
86 Photo-transistor(Q1, 2) CPT230SX-TU
-CD MECHANISM MODULE SECTION PARTS LIST

14
DEH-P7000R,P7000R-W,P6000R
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM
3.1 BLOCK DIAGRAM(DEH-P7000R/EW, DEH-P7000R-W/EW)
A
TUNER AMP UNIT
B
FM/AM TUNER UNIT
D
COMPOUND UNIT
PICKUP UNIT(SERVICE)
PHOTO UNIT
E

15
DEH-P7000R,P7000R-W,P6000R
KEYBOARD UNIT
C

16
DEH-P7000R,P7000R-W,P6000R
3.2 BLOCK DIAGRAM(DEH-P6000R/EW)
A
TUNER AMP UNIT
B
FM/AM TUNER UNIT
PICKUP UNIT(SERVICE)
PHOTO UNIT
E
D
COMPOUND UNIT

17
DEH-P7000R,P7000R-W,P6000R
KEYBOARD UNIT
C

18
DEH-P7000R,P7000R-W,P6000R
1234
1234
D
C
B
A
3.3 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)(DEH-P7000R/EW,
DEH-P7000R-W/EW)
Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS
LIST”.
A-a A-b
A-aA-a A-bA-b
A-bA-b
A-aA-a
Large size
SCH diagram
Guide page
Detailed page
A
A-a
ANTENNA
CABLE
DEH-P7000R
DEH-P7000R
A
B
E
D
TUNER AMP UNIT
FM/AM TUNER UNIT
CD MECHANISM MODULE

19
DEH-P7000R,P7000R-W,P6000R
5678
5678
D
C
B
A
A-b
A
CLOSE
S651
CSN1027
150P
CEK1136
RR+RR-
FR+
FL+
RL+
FR-
FL-
RL-
BACK UP
GND ACC
RR+
RR-
FR+
RL+
FL+
FR-
RL-
FL-
BACK UP
GND
ACC
B.REM
B.REM
TEL MUTE
ILL
ILL
BACK UP
ORANGE / WHITE
WHITE / YELLOW
/EW
-W/EW
R635
DELETE
47K
R636
47K
DELETE
C
KEYBOARD UNIT

20
DEH-P7000R,P7000R-W,P6000R
1234
1234
D
C
B
A
DEH-P7000R/EW DEH-P7000R-W/EW
R635 DELETE 47K
R636 47K DELETE
A-a
A-a A-b
A
B
TUNER AMP UNIT
FM/AM TUNER UNIT
