Pioneer DEH-P700R User manual

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER ELECTRONIC CORPORATION 1999 K-ZZD. FEB. 1999 Printed in Japan
ORDER NO.
CRT2373
MULTI-CD CONTROL HIGH POWER CD PLAYER WITH RDS TUNER
DEH-P700R UC
Service
Manual
CONTENTS
1. SAFETY INFORMATION ............................................2
2. EXPLODED VIEWS AND PARTS LIST.......................2
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...14
4. PCB CONNECTION DIAGRAM ................................46
5. ELECTRICAL PARTS LIST ........................................56
6. ADJUSTMENT..........................................................70
7. GENERAL INFORMATION .......................................74
7.1 PARTS .................................................................74
7.1.1 IC................................................................74
7.1.2 DISPLAY....................................................84
7.2 DIAGNOSIS ........................................................86
7.2.1 DISASSEMBLY .........................................86
7.2.2 TEST MODE..............................................90
8. OPERATIONS AND SPECIFICATIONS.....................94
-See the separate manual CX-916(CRT2300) for the CD mechanism description, disassembly and circuit
description.
-The CD mechanism employed in this model is one of S8 series.
-This device employs an inverter as the power supply for EL. The inverter has an output voltage reach
approximately 500 volts(AC). Utmost care should be used not to suffer from a possible electric shock,
accordingly.
-When executing an operation, be aware that the in around IC651 can become quite hot to the touch.
DEH-P7000R UC
DEH-P7050 ES
DEH-P700R/UC
MULTI-CD CONTROL HIGH POWER CD PLAYER WITH FM/AM TUNER

2
DEH-P700R,P7000R,P7050
-CD Player Service Precautions
1. For pickup unit(CXX1285) handling, please refer
to"Disassembly"(see page 86).
During replacement, handling precautions shall be
taken to prevent an electrostatic discharge(protection
by a short pin).
2. During disassembly, be sure to turn the power off
since an internal IC might be destroyed when a con-
nector is plugged or unplugged.
3. Please checking the grating after changing the ser-
vice pickup unit(see page 72).
CAUTION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so
and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of
California to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65
1. SAFETY INFORMATION
2. EXPLODED VIEWS AND PARTS LIST

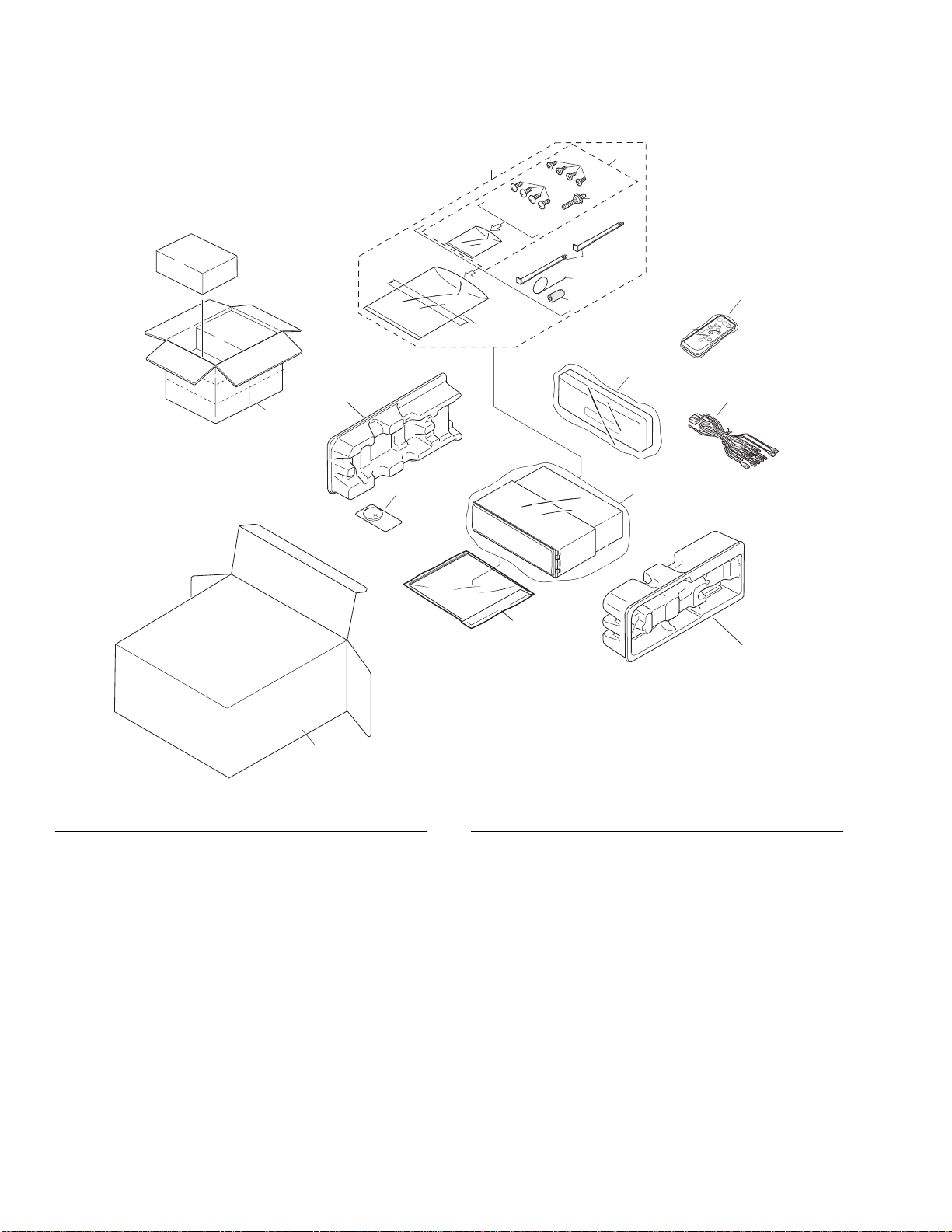

2.1 PACKING(DEH-P700R/UC)
20
19
15
12
16
17
4
7
11
3
10
9
8
6
5
2
14
1
25
13
18
21
24
23 22

3
DEH-P700R,P7000R,P7050
1 Cord Assy CDE5829
* 2 Accessory Assy CEA2395
3 Spring CBH1650
* 4 Screw Assy CEA2396
5 Screw CBA1002
* 6 Polyethylene Bag CEG-127
7 Screw CRZ50P090FMC
8 Screw TRZ50P080FMC
* 9 Polyethylene Bag CEG-158
10 Handle CNC5395
11 Bush CNV3930
12 Polyethylene Bag CEG1173
13 Battery CEX1006
14 Carton CHG3749
15 Contain Box CHL3749
16 Protector CHP2101
17 Protector CHP2102
18 Remote Control Assy CXB3875
19 Case Assy CXB3520
20-1 Owner’s Manual CRD2906
(English, French)
20-2 Installation Manual CRD2907
(English, French)
* 20-3 Warranty Card CRY1070
20-4 Polyethylene Bag CEG1116
* 20-5 Label CRW1343
21 Base Assy CEA2426
* 22 Base CNS5031
* 23 Sheet CZA3371
24 Polyethylene Bag CZE3188
25 Inner Box CHW1759
Mark No. Description Part No. Mark No. Description Part No.
-PACKING SECTION PARTS LIST
NOTE:
-Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.
-Screws adjacent to ∇mark on the product are used for disassembly.

4
DEH-P700R,P7000R,P7050
2.2 PACKING(DEH-P7000R/UC)
20
19
15
12
16
17
4
7
11
3
10
9
8
6
5
2
14
1
13
18
1 Cord Assy CDE5827
* 2 Accessory Assy CEA2395
3 Spring CBH1650
* 4 Screw Assy CEA2396
5 Screw CBA1002
* 6 Polyethylene Bag CEG-127
7 Screw CRZ50P090FMC
8 Screw TRZ50P080FMC
* 9 Polyethylene Bag CEG-158
10 Handle CNC5395
11 Bush CNV3930
12 Polyethylene Bag CEG1173
13 Battery CEX1030
14 Carton CHG3748
15 Contain Box CHL3748
16 Protector CHP2101
17 Protector CHP2102
18 Remote Control Unit CXB3455
19 Case Assy CXB3520
20-1 Owner’s Manual CRD2908
(English, French)
20-2 Installation Manual CRD2909
(English, French)
* 20-3 Card ARY1048
20-4 Polyethylene Bag CEG1116
* 20-5 Label CRW1343
Mark No. Description Part No. Mark No. Description Part No.
-PACKING SECTION PARTS LIST

5
DEH-P700R,P7000R,P7050
2.3 PACKING(DEH-P7050/ES)
20
19
15
12
16
17
4
7
11
3
10
9
8
6
5
2
14
1
25
13
18
21
24
23 22
1 Cord Assy CDE5828
* 2 Accessory Assy CEA2395
3 Spring CBH1650
* 4 Screw Assy CEA2396
5 Screw CBA1002
* 6 Polyethylene Bag CEG-127
7 Screw CRZ50P090FMC
8 Screw TRZ50P080FMC
* 9 Polyethylene Bag CEG-158
10 Handle CNC5395
11 Bush CNV3930
12 Polyethylene Bag CEG-162
13 Battery CEX1006
14 Carton CHG3747
15 Contain Box CHL3747
16 Protector CHP2101
17 Protector CHP2102
18 Remote Control Assy CXB3875
19 Case Assy CXB3520
20-1 Owner’s Manual CRD2903
(English, Spanish, Portuguese)
20-2 Owner’s Manual CRD2904
(Arabic, Chinese)
20-3 Installation Manual CRD2905
(English, Spanish, Portuguese,
Arabic, Chinese)
20-4 Polyethylene Bag CEG1116
21 Base Assy CEA2426
* 22 Base CNS5031
* 23 Sheet CZA3371
24 Polyethylene Bag CZE3188
25 Inner Box CHW1759
Mark No. Description Part No. Mark No. Description Part No.
-PACKING SECTION PARTS LIST

6
DEH-P700R,P7000R,P7050
107
A
C
B
A
C
B
57
57
76
13
12
2
2
2
2
104
8
20 4
23
23
23
48
22
105
16
16
15
51
50
9
3
52
1
43
35
28
14
11
34
30
27
41
47
49
77
46
40
41
106
42
31
4
60
67
54
73
72
64
74
78
56
57
65
80
86
101
89
83
90
88
85
81
93
5
6
7
19
19
103
102
97 94
100
95 99
98
96
82
82
91
82
84
92
87
79
70
65
55
55
71
66
61
59
58
62
58
75
69
68
62
18
63
79
17
45
39
32
47
49
77
4640 21
10
38
36
44
10
29
25
37
26
33
24
1
3

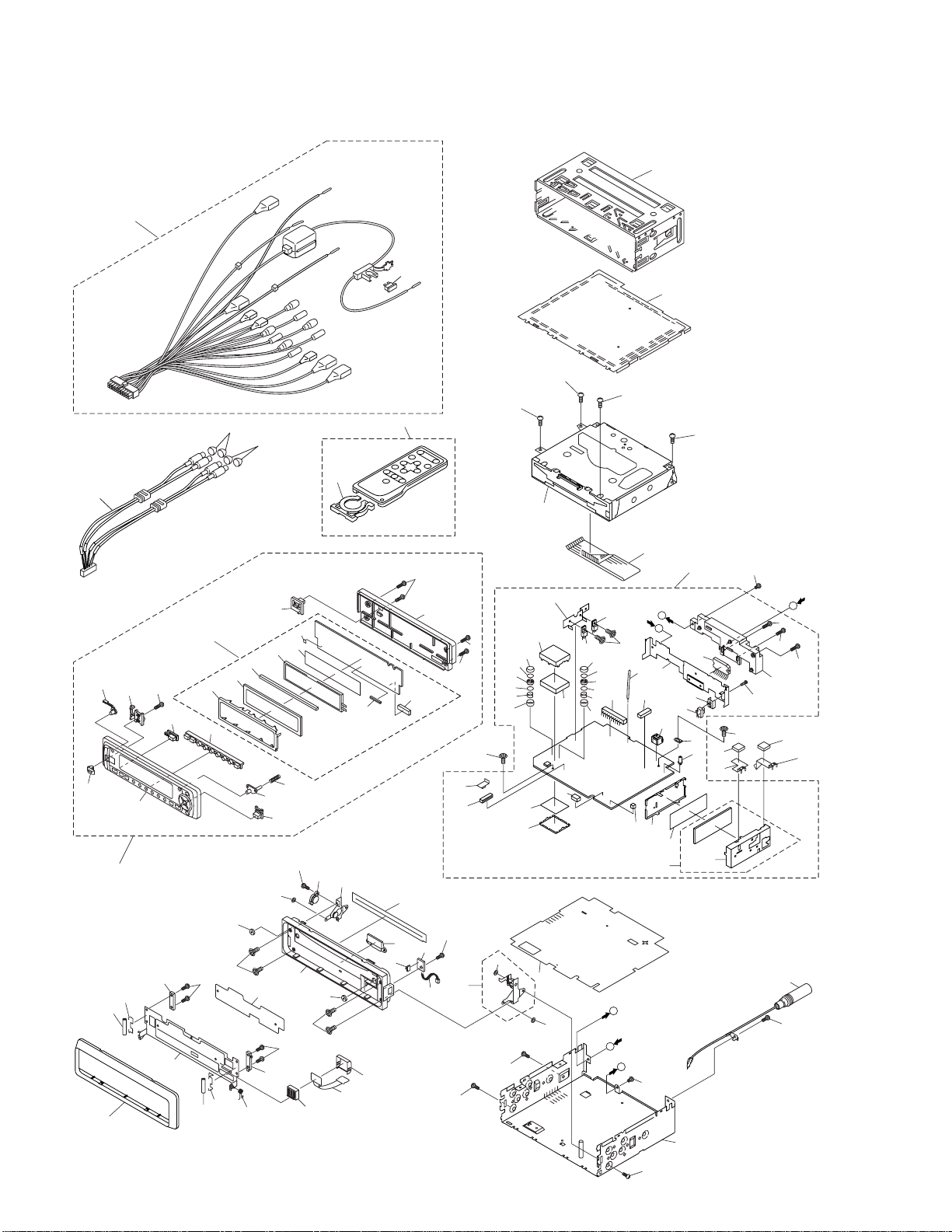

2.4 EXTERIOR(DEH-P700R/UC)

DEH-P700R,P7000R,P7050
1 Screw BMZ30P040FMC
2 Screw BSZ26P060FMC
3 Screw BSZ30P060FMC
4 Screw BSZ30P100FMC
5 Cord Assy CDE5821
6 Cord Assy CDE5829
7 Fuse(10A) CEK1136
8 Connector CDE6049
9 Antenna Cable CDH1266
10 Transistor(Q954,991) 2SD2396
11 IC(IC551) PAL005A
12 Case CNB2508
13 Holder CNC6798
14 Holder CNC8300
15 Holder CNC8357
16 Spacer CNM4913
17 Insulator CNM6075
18 Panel CNS5148
19 Cap CNV2680
20 Tuner Amp Unit CWM6188
21 Screw ASZ26P080FMC
22 Screw BPZ26P060FMC
23 Screw BSZ26P160FMC
24 Clamper CEF1009
25 Pin Jack(CN431) CKB1028
26 Terminal(CN501) CKF1059
27 Plug(CN951) CKM1296
28 Plug(CN652) CKS-783
29 Connector(CN411) CKS3408
30 Connector(CN433) CKS3602
31 Connector(CN681) CKS3838
32 Connector(CN651) CKS4077
33 Mini Pin Jack(CN502) CKX1046
34 Panel CNB2375
35 Holder CNC7533
36 Case CNC8138
37 Holder CNC8298
38 Holder CNC8299
39 Case CNC8301
40 Case CNC8376
41 Case CNC8377
42 Heat Sink CNC8437
43 Insulator CNM5967
44 Insulator CNM6249
45 Insulator CNM6250
46 Insulator CNM6298
47 Insulator CNM6299
48 Heat Sink CNR1550
49 Insulator CNV5816
50 FM/AM Tuner Unit CWE1501
51 Holder CNC7532
52 Chassis Unit CXB3306
53 •••••
54 Screw BPZ20P060FMC
55 Screw CBA1082
56 Screw CBA1176
57 Washer CBF1001
58 Spring CBH2063
59 Spring CBH2204
60 Cord CDE5800
61 Connector CKS2780
62 Roller CLA3386
63 Sheet CNM6109
64 Cover CNM6118
65 Cushion CNM6376
66 PCB CNP5383
67 PCB CNP5430
68 Holder CNS5157
69 Holder CNS5165
70 Panel CNS5280
71 Cover CNS5389
72 Lighting Conductor CNV5540
73 Switch(S651) CSN1027
74 Holder Unit CXB3049
75 Holder Unit CXB3050
76 Holder Unit CXB3051
77 Coil(L652,L653) CTH1228
78 Damper Unit CXB3180
79 Screw IMS20P040FZK
80 Detach Grille Assy CXB3684
81 Screw BPZ20P060FMC
82 Screw BPZ20P080FZK
83 Button(OPEN) CAC5804
84 Button(EJECT) CAC5805
85 Button(SOURCE) CAC5806
86 Button(EQ) CAC5808
87 Button(DISP) CAC5809
88 Button(1-6) CAC5811
89 Button(BAND) CAC5936
90 Spring CBH2205
91 Cover CNS5146
92 Holder CNV5537
93 Keyboard Unit CWM6196
94 LCD CAW1519
95 EL CEL1592
96 Connector(CN901) CKS2733
97 Holder CNC8157
98 Spacer CNM6379
99 Double Sided Tape CNM6380
100 Connector CNV5539
101 Grille Unit CXB4090
102 Remote Control Assy CXB3875
103 Battery Cover CNS5032
104 CD Mechanism Module CXK5200
105 Screw ISS26P055FUC
106 Screw CBA1492
107 Spacer CNM6421
-EXTERIOR SECTION PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
7

8
DEH-P700R,P7000R,P7050
107
A
C
B
A
C
B
57
57
76
18
13
12
2
2
2
2
104
8
20 4
23
23
23
48
22
105
16
16
15
51
50
9
3
52
1
43
35
28
14
11
34
30
27
41
47
49
77
46
40
41
106
42
31
4
60
67
54
73
72
64
74
78
56
57
65
80
86
101
89
83
90
88
85
81
93
5
6
7
19
19
97 94
100
95 99
98
96
82
82
91
82
84
92
87
79
70
65
55
55
71
66
61
59
58
62
58
75
69
68
62
63
79
17
45
39
32
47
49
77
4640 21
10
38
36
44
10
29
25
37
26
33
24
1
3
103
102

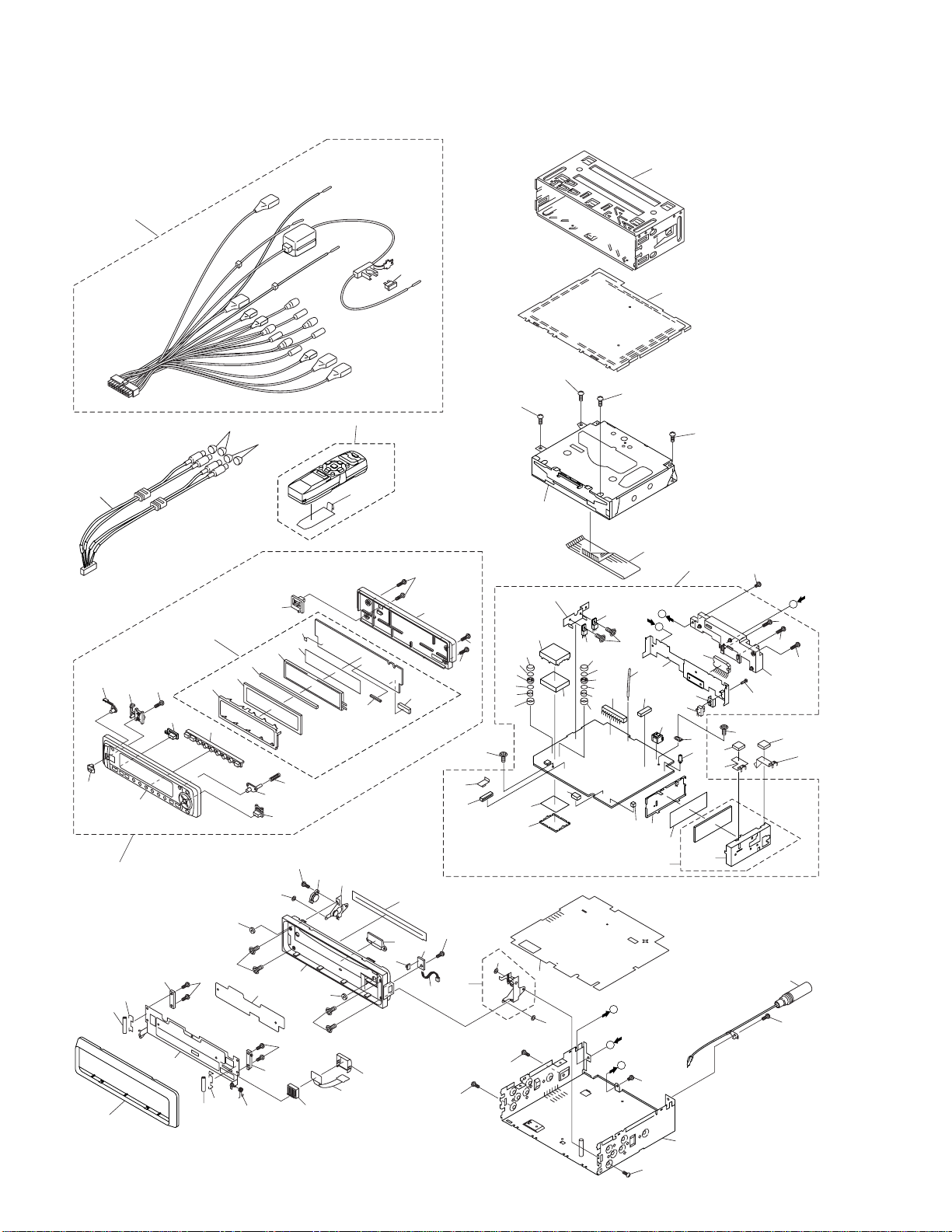

2.5 EXTERIOR(DEH-P7000R/UC)

DEH-P700R,P7000R,P7050
1 Screw BMZ30P040FMC
2 Screw BSZ26P060FMC
3 Screw BSZ30P060FMC
4 Screw BSZ30P100FMC
5 Cord Assy CDE5821
6 Cord Assy CDE5827
7 Fuse(10A) CEK1136
8 Connector CDE6049
9 Antenna Cable CDH1266
10 Transistor(Q954,991) 2SD2396
11 IC(IC551) PAL005A
12 Case CNB2508
13 Holder CNC6798
14 Holder CNC8300
15 Holder CNC8357
16 Spacer CNM4913
17 Insulator CNM6075
18 Panel CNS5148
19 Cap CNV2680
20 Tuner Amp Unit CWM6189
21 Screw ASZ26P080FMC
22 Screw BPZ26P060FMC
23 Screw BSZ26P160FMC
24 Clamper CEF1009
25 Pin Jack(CN431) CKB1028
26 Terminal(CN501) CKF1059
27 Plug(CN952) CKM1294
28 Plug(CN652) CKS-783
29 Connector(CN411) CKS3408
30 Connector(CN433) CKS3602
31 Connector(CN681) CKS3838
32 Connector(CN651) CKS4077
33 Mini Pin Jack(CN502) CKX1046
34 Panel CNB2376
35 Holder CNC7533
36 Case CNC8138
37 Holder CNC8298
38 Holder CNC8299
39 Case CNC8301
40 Case CNC8376
41 Case CNC8377
42 Heat Sink CNC8437
43 Insulator CNM5967
44 Insulator CNM6249
45 Insulator CNM6250
46 Insulator CNM6298
47 Insulator CNM6299
48 Heat Sink CNR1550
49 Insulator CNV5816
50 FM/AM Tuner Unit CWE1501
51 Holder CNC7532
52 Chassis Unit CXB3306
53 •••••
54 Screw BPZ20P060FMC
55 Screw CBA1082
56 Screw CBA1176
57 Washer CBF1001
58 Spring CBH2063
59 Spring CBH2204
60 Cord CDE5800
61 Connector CKS2780
62 Roller CLA3386
63 Sheet CNM6109
64 Cover CNM6118
65 Cushion CNM6376
66 PCB CNP5383
67 PCB CNP5430
68 Holder CNS5157
69 Holder CNS5165
70 Panel CNS5280
71 Cover CNS5389
72 Lighting Conductor CNV5540
73 Switch(S651) CSN1027
74 Holder Unit CXB3049
75 Holder Unit CXB3050
76 Holder Unit CXB3051
77 Coil(L652,L653) CTH1228
78 Damper Unit CXB3180
79 Screw IMS20P040FZK
80 Detach Grille Assy CXB3685
81 Screw BPZ20P060FMC
82 Screw BPZ20P080FZK
83 Button(OPEN) CAC5804
84 Button(EJECT) CAC5805
85 Button(SOURCE) CAC5806
86 Button(EQ) CAC5808
87 Button(DISP) CAC5809
88 Button(1-6) CAC5811
89 Button(BAND) CAC5936
90 Spring CBH2205
91 Cover CNS5146
92 Holder CNV5537
93 Keyboard Unit CWM6196
94 LCD CAW1519
95 EL CEL1592
96 Connector(CN901) CKS2733
97 Holder CNC8157
98 Spacer CNM6379
99 Double Sided Tape CNM6380
100 Connector CNV5539
101 Grille Unit CXB4091
102 Remote Control Unit CXB3455
103 Cover CNS4948
104 CD Mechanism Module CXK5200
105 Screw ISS26P055FUC
106 Screw CBA1492
107 Spacer CNM6421
-EXTERIOR SECTION PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
9

10
DEH-P700R,P7000R,P7050
107
A
C
B
A
C
B
57
57
76
13
12
2
2
2
2
104
8
20 4
23
23
23
48
22
105
16
16
15
51
50
9
3
52
1
43
35
28
14
11
34
30
27
41
47
49
77
46
40
41
106
42
31
4
60
67
54
73
72
64
74
78
56
57
65
80
86
101
89
83
90
88
85
81
93
5
6
7
19
19
103
102
97 94
100
95 99
98
96
82
82
91
82
84
92
87
79
70
65
55
55
71
66
61
59
58
62
58
75
69
68
62
18
63
79
17
45
39
32
47
49
77
4640 21
10
38
36
44
10
29
25
37
26
33
24
1
3
2.6 EXTERIOR(DEH-P7050/ES)

DEH-P700R,P7000R,P7050
1 Screw BMZ30P040FMC
2 Screw BSZ26P060FMC
3 Screw BSZ30P060FMC
4 Screw BSZ30P100FMC
5 Cord Assy CDE5821
6 Cord Assy CDE5828
7 Fuse(10A) CEK1136
8 Connector CDE6049
9 Antenna Cable CDH1266
10 Transistor(Q954,991) 2SD2396
11 IC(IC551) PAL005A
12 Case CNB2508
13 Holder CNC6798
14 Holder CNC8300
15 Holder CNC8357
16 Spacer CNM4913
17 Insulator CNM6075
18 Panel CNS5148
19 Cap CNV2680
20 Tuner Amp Unit CWM6187
21 Screw ASZ26P080FMC
22 Screw BPZ26P060FMC
23 Screw BSZ26P160FMC
24 Clamper CEF1009
25 Pin Jack(CN431) CKB1028
26 Terminal(CN501) CKF1059
27 Plug(CN951) CKM1296
28 Plug(CN652) CKS-783
29 Connector(CN411) CKS3408
30 Connector(CN433) CKS3602
31 Connector(CN681) CKS3838
32 Connector(CN651) CKS4077
33 Mini Pin Jack(CN502) CKX1046
34 Panel CNB2375
35 Holder CNC7533
36 Case CNC8138
37 Holder CNC8298
38 Holder CNC8299
39 Case CNC8301
40 Case CNC8376
41 Case CNC8377
42 Heat Sink CNC8437
43 Insulator CNM5967
44 Insulator CNM6249
45 Insulator CNM6250
46 Insulator CNM6298
47 Insulator CNM6299
48 Heat Sink CNR1550
49 Insulator CNV5816
50 FM/AM Tuner Unit CWE1501
51 Holder CNC7532
52 Chassis Unit CXB3306
53 •••••
54 Screw BPZ20P060FMC
55 Screw CBA1082
56 Screw CBA1176
57 Washer CBF1001
58 Spring CBH2063
59 Spring CBH2204
60 Cord CDE5800
61 Connector CKS2780
62 Roller CLA3386
63 Sheet CNM6109
64 Cover CNM6118
65 Cushion CNM6376
66 PCB CNP5383
67 PCB CNP5430
68 Holder CNS5157
69 Holder CNS5165
70 Panel CNS5280
71 Cover CNS5389
72 Lighting Conductor CNV5540
73 Switch(S651) CSN1027
74 Holder Unit CXB3049
75 Holder Unit CXB3050
76 Holder Unit CXB3051
77 Coil(L652,L653) CTH1228
78 Damper Unit CXB3180
79 Screw IMS20P040FZK
80 Detach Grille Assy CXB3683
81 Screw BPZ20P060FMC
82 Screw BPZ20P080FZK
83 Button(OPEN) CAC5804
84 Button(EJECT) CAC5805
85 Button(SOURCE) CAC5806
86 Button(EQ) CAC5808
87 Button(DISP) CAC5809
88 Button(1-6) CAC5826
89 Button(BAND) CAC5936
90 Spring CBH2205
91 Cover CNS5146
92 Holder CNV5537
93 Keyboard Unit CWM6197
94 LCD CAW1518
95 EL CEL1592
96 Connector(CN901) CKS2733
97 Holder CNC8157
98 Spacer CNM6379
99 Double Sided Tape CNM6380
100 Connector CNV5539
101 Grille Unit CXB4089
102 Remote Control Assy CXB3875
103 Battery Cover CNS5032
104 CD Mechanism Module CXK5200
105 Screw ISS26P055FUC
106 Screw CBA1492
107 Spacer CNM6421
-EXTERIOR SECTION PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
11

12
DEH-P700R,P7000R,P7050
2.7 CD MECHANISM MODULE

13
DEH-P700R,P7000R,P7050
Mark No. Description Part No. Mark No. Description Part No.
1 Compound Unit CWX2235
2 Connector(CN802) CKS2192
3 Connector(CN801) CKS2193
4 Connector(CN701) CKS2773
5 Connector(CN101) CKS3486
6 Screw BMZ20P030FZK
7 Screw BSZ20P040FZK
8 Screw(M2×3) CBA1077
9 Screw(M2×6) CBA1230
10 Screw CBA1243
11 Screw(M2×4) CBA1362
12 Washer CBF1037
13 Washer CBF1038
14 Washer CBF1060
* 15 Washer CBF1075
16 Spring CBH2079
17 Spring CBH2117
18 Spring CBH2278
19 Spring CBH2110
20 Spring CBH2282
21 Spring CBH2114
22 Spring CBH2115
23 Spring CBH2080
24 Spring CBH2118
25 Spring CBH2161
26 Spring CBH2163
27 Spring CBH2189
28 Spring CBH2249
29 Spring CBH2260
30 Spring CBH2262
31 Spring CBL1367
32 Spring CBL1369
33 Connector CDE5531
34 Connector CDE5532
35 Shaft CLA3304
36 Screw(M2.6×6) CBA1458
37 Frame CNC7544
38 Frame CNC7545
39 Lever CNC7546
40 Arm CNC7739
41 Bracket CNC7798
42 Plate CNC8090
43 Spacer CNM3315
44 Sheet CNM6170
45 Cushion CNM6204
46 Sheet CNM6215
47 Ball CNR1189
48 Belt CNT1086
49 Roller CNV4509
50 Arm CNV5246
51 Arm CNV5247
52 Arm CNV5248
53 Arm CNV5249
54 Guide CNV5254
55 Guide CNV5255
56 Gear CNV5257
57 Gear CNV5256
58 Guide CNV5869
59 Damper CNV5266
60 Arm CNV5359
61 Arm CNV5360
62 Arm CNV5361
63 Guide CNV5509
64 Guide CNV5510
65 Holder CNV5578
66 Guide CNV5751
67 Clamper CNV5758
68 Gear CNV5813
69 Motor Unit(M1) CXB2190
70 Screw Unit CXB2191
71 Chassis Unit CXB2192
72 Gear Unit CXB2193
73 Arm Unit CXB2194
74 Motor Unit(M2) CXB2195
75 Lever Unit CXB2553
76 Arm Unit CXB2554
77 Motor Unit(M3) CXB2562
78 Arm Unit CXB2795
79 Bracket Unit CXB4071
80 Screw JFZ20P025FMC
81 Screw JGZ17P025FZK
82 Washer YE15FUC
83 Pickup Unit(Service)(P8) CXX1285
84 Screw IMS26P030FMC
* 85 PCB CNX2982
86 Photo-transistor(Q1, 2) CPT230SX-TU
-CD MECHANISM MODULE SECTION PARTS LIST

14
DEH-P700R,P7000R,P7050
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM
3.1 BLOCK DIAGRAM(DEH-P700R/UC)
A
TUNER AMP UNIT
B
FM/AM TUNER UNIT
D
COMPOUND UNIT
PICKUP UNIT(SERVICE)
PHOTO UNIT
E

15
DEH-P700R,P7000R,P7050
KEYBOARD UNIT
C

16
DEH-P700R,P7000R,P7050
3.2 BLOCK DIAGRAM(DEH-P7050/ES)
A
TUNER AMP UNIT
B
FM/AM TUNER UNIT
PICKUP UNIT(SERVICE)
PHOTO UNIT
E
D
COMPOUND UNIT

17
DEH-P700R,P7000R,P7050
KEYBOARD UNIT
C

18
DEH-P700R,P7000R,P7050
1234
1234
D
C
B
A
3.3 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)(DEH-P700R/UC)
Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS
LIST”.
A-a A-b
A-aA-a A-bA-b
A-bA-b
A-aA-a
Large size
SCH diagram
Guide page
Detailed page
A
A-a
ANTENNA
CABLE
STCUT
STCUT
A
B
E
D
TUNER AMP UNIT
FM/AM TUNER UNIT
CD MECHANISM MODULE

19
DEH-P700R,P7000R,P7050
5678
5678
D
C
B
A
A-b
A
CLOSE
S651
CSN1027
150P
CEK1136
C
KEYBOARD UNIT

20
DEH-P700R,P7000R,P7050
1234
1234
D
C
B
A
A-a
A-a A-b
A
B
TUNER AMP UNIT
FM/AM TUNER UNIT
