Pioneer LaserDisc CLD-1450 User manual

Operating
CD
CDV
LD
PLAYER
LecorPice
BUTT WITS.
Instructions
—
CLD-1450
a
i
<=
:
bigitaLAUDIO
CD
VIDEO
Laserviston
CLOM450
Thank you for buying this Pioneer product.
Please read through these operating instructions so you
will know how to operate your model properly. After you
have finished reading the instructions, put them away ina
safe place for future reference.
In some countries or regions, the shape of the power plug
and power outlet may sometimes differ from that shown in
the explanatory drawings. However, the method of
connecting and operating the unit is the same
WARNING:
To
PREVENT
FIRE
OR
SHOCK
HAZARD,
LINE
VOLTAGE
SELECTOR
SWITCH
DO
NOT EXPOSE
THIS
APPLIANCE
TO
RAIN
OR
Only
multi-voltage
models
are
provided
with
this
MOISTURE.
switch.
Mains voltages in Saudi Arabia are 127V and
220V only. Never use this model with 110V
setting in Saudi Arabia.
The line voltage selector switch is located on the rear panel
of this player. Before your player is shipped from the
factory, the switch is set to the power requirements of the
player's destination. Check that it is set properly before
plugging the power cord into the outlet. If the voltage is not
porperly set or if you move to an area where the voltage
requirements differ, adjust the selector switch as follows:
Use a medium-sized (flat blade) screwdriver. Insert the tip
of the screwdriver into the groove of the selector switch
and turn it to set the player to the power voltage of your
area.
Set the selector so
that arrow points
power voltage of
your area (Figure
shows arrow point-
ing to 110 voits.}
Y PIONEER’
The future of sound and vision.

IMPCRTANT
The lightning fiash with arrowhead, within an
equilateral triangle, is intended to alert the user of the
presence of uninsulsted “dangerous voltage” within the
product's enciosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
The
exclamation
point
within
an
equilateral
triangle
is
JO
PREVENT
THE
RISK
OF
ELECTRIC
SHOCK.
DO
intended
to
alert
the
user
of
the
presence
of
important
NOT
REMOVE
COVER
{OR
SACK).
NO
USER-
operating
and
maintenance
{servicing}
instructions
in
SERVICEABLE
PARTS
INSIDE.
REFER
SERVIC-
the
literature
accompanying
the
appliance,
ING TO QUALIFIED SERVICE PERSONNEL.
IMPORTANT
CAUTION
The following caution labels appear on your player:
Location: On the rear panel of the player On the bonnet of the player
CLASS 1
LASER PRODUCT
This product contains a laser diode of higher class
than 1. To ensure continued safety, do not remove any
covers or attempt to gain access to the inside of the
product.
Refer all servicing to qualified personnel.
CAUTION
INVISIBLE LASER
RADIATION WHEN OPEN,
AVOID EXPOSURE
TO BEAM PRW1018
VRW-328
| “This product is manufactured to comply with the radio |
inerference requirements of EEC Directive 76/889/EEC and
82/499/EEC.”
IMPORTANT |
#f the apparatus is fitted with AC mains power
outlet{s}, sae REAR PANEL FACILITIES for convenient
connection of additonal Hi-Fi component(s). Make ail
connections to the AC outlet(s} and the signat
terminals first. Connect the plug to wall socket last.
make sure that the power switch is off.
FOR USE IN THE UNITED As the colours of wires in the mains lead of this
apparatus may not correspond with the coloured
KINGDOM marking identifying the terminals in your plug proceed as
fotiows:
The wires in this mains lead are coloured in accordance The wire which is coloured blue must be connected to
with the following code the terminal which is marked with the letter N or
Blue Neutral coloured black.
Brown: Live The wire which is coloured brown must be connected to
the terminal which is matked with the fetter L or |
coloured red. i"
Equipment sold in the U.K. is not supplied with a ea
plug.
<VRB1022>

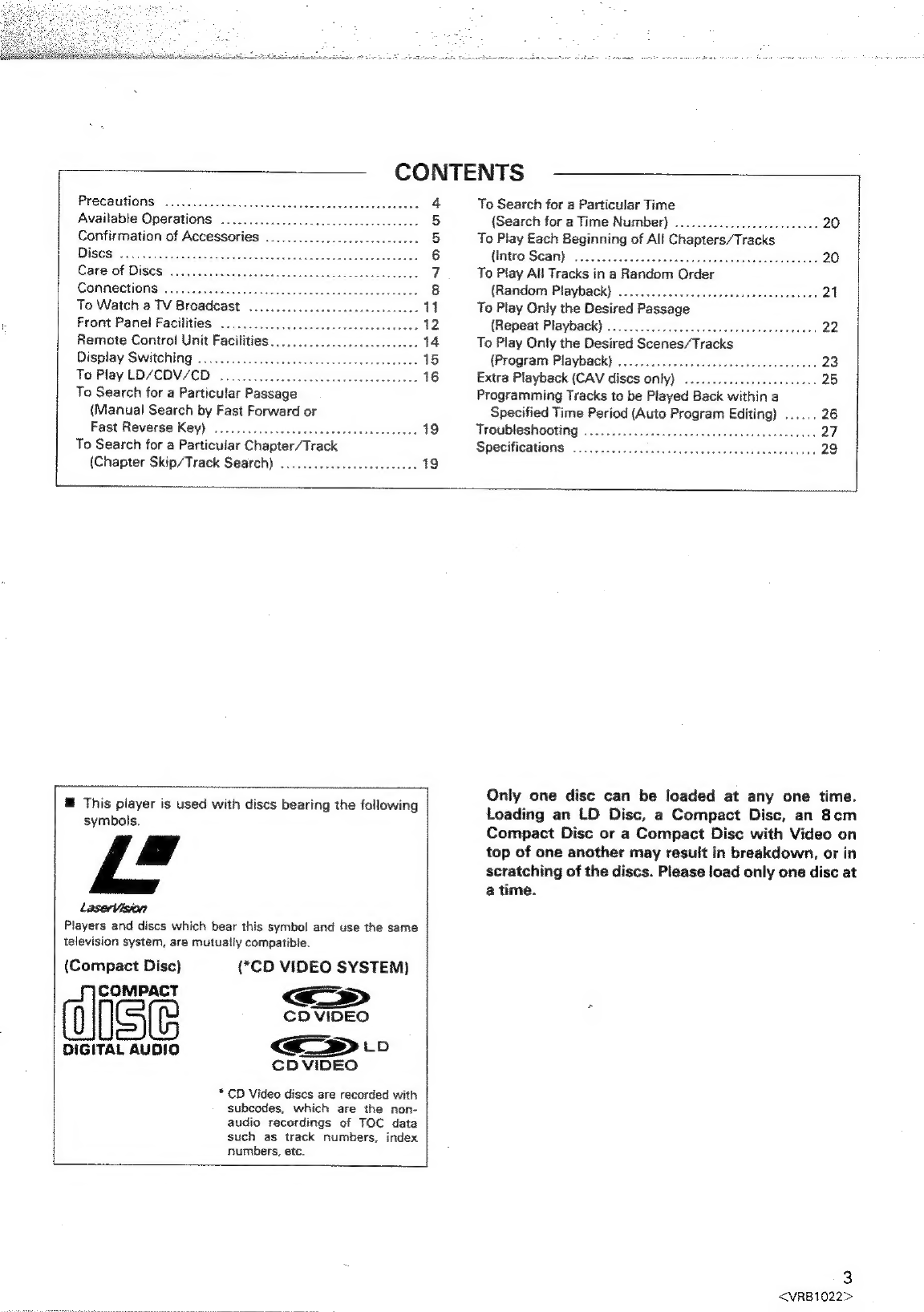

Precautions ................
Available Operations ....
Confirmation of Accessories .
Discs .......

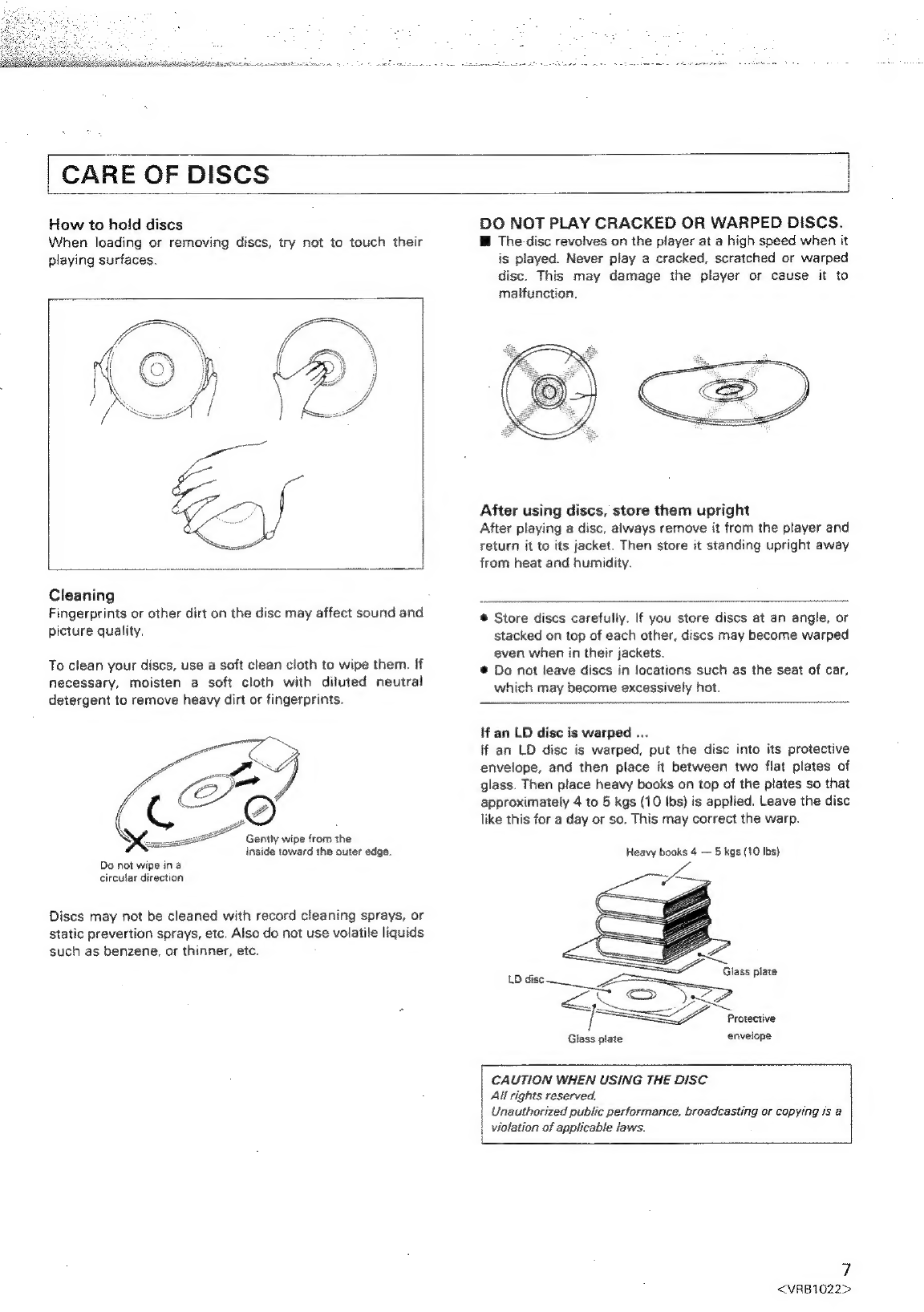

Care of Discs

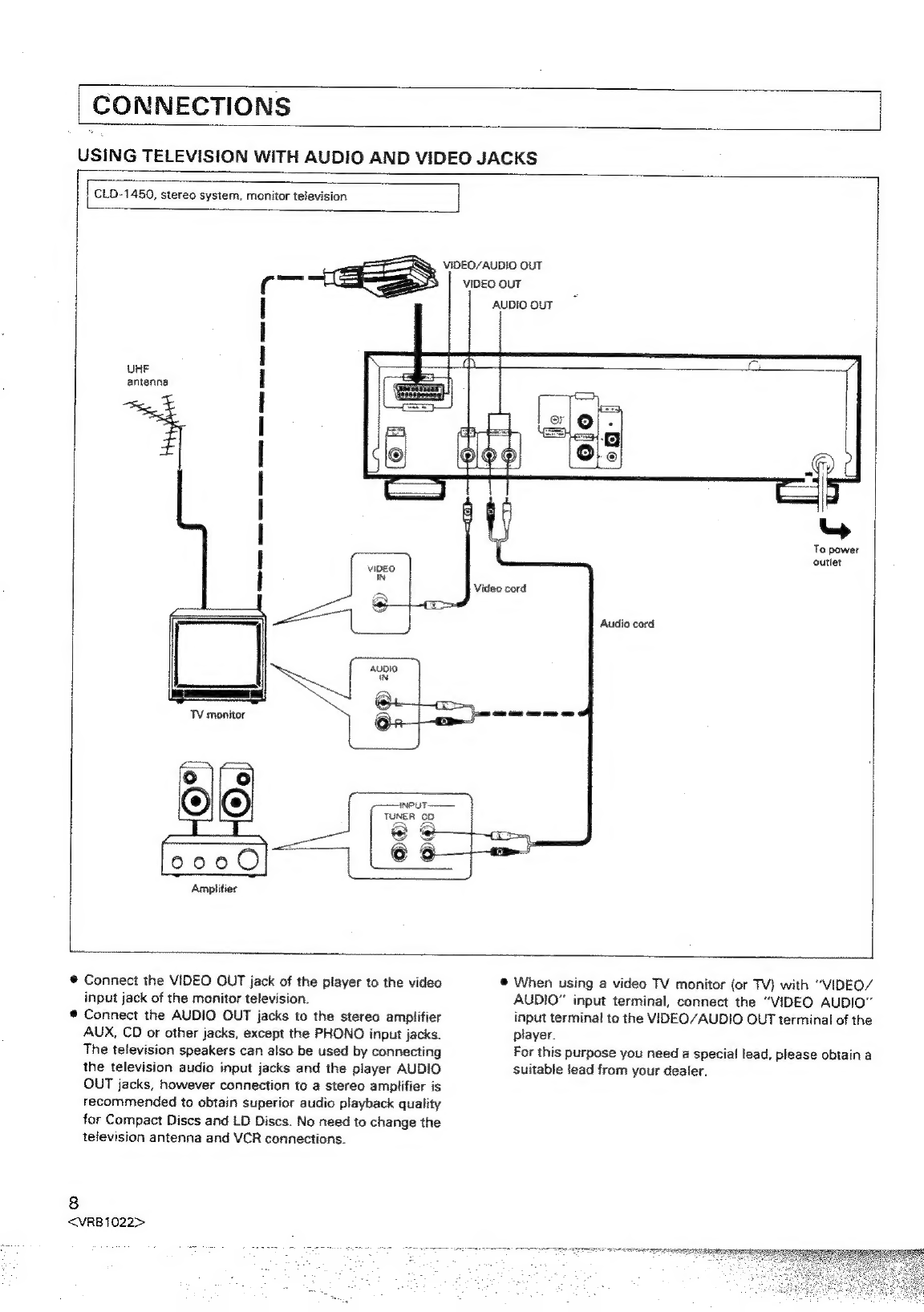

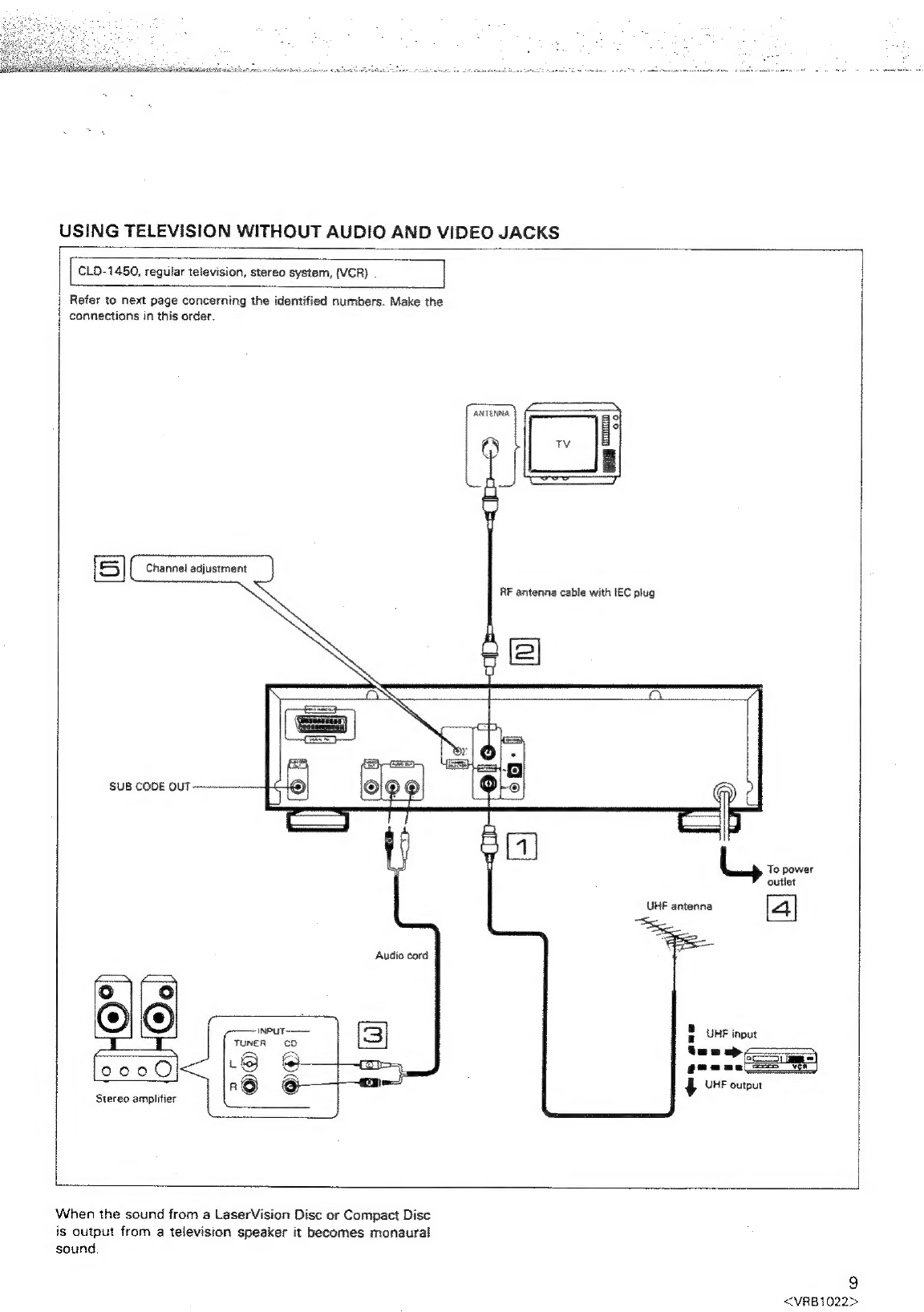

Connections
To Watch a TV Broadcas'

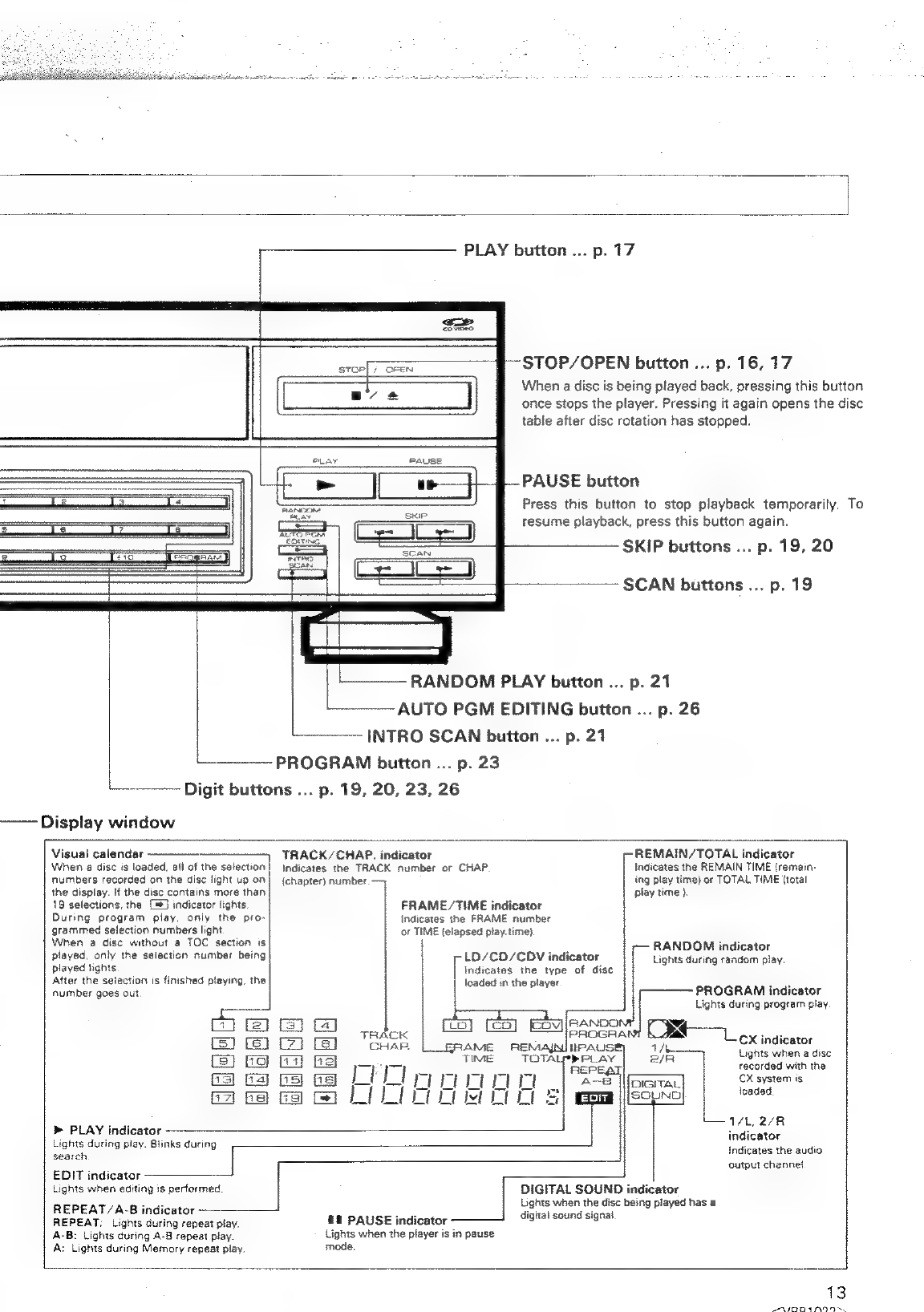

Front Panel Facilities ......
Remote Control! Unit Facilities...

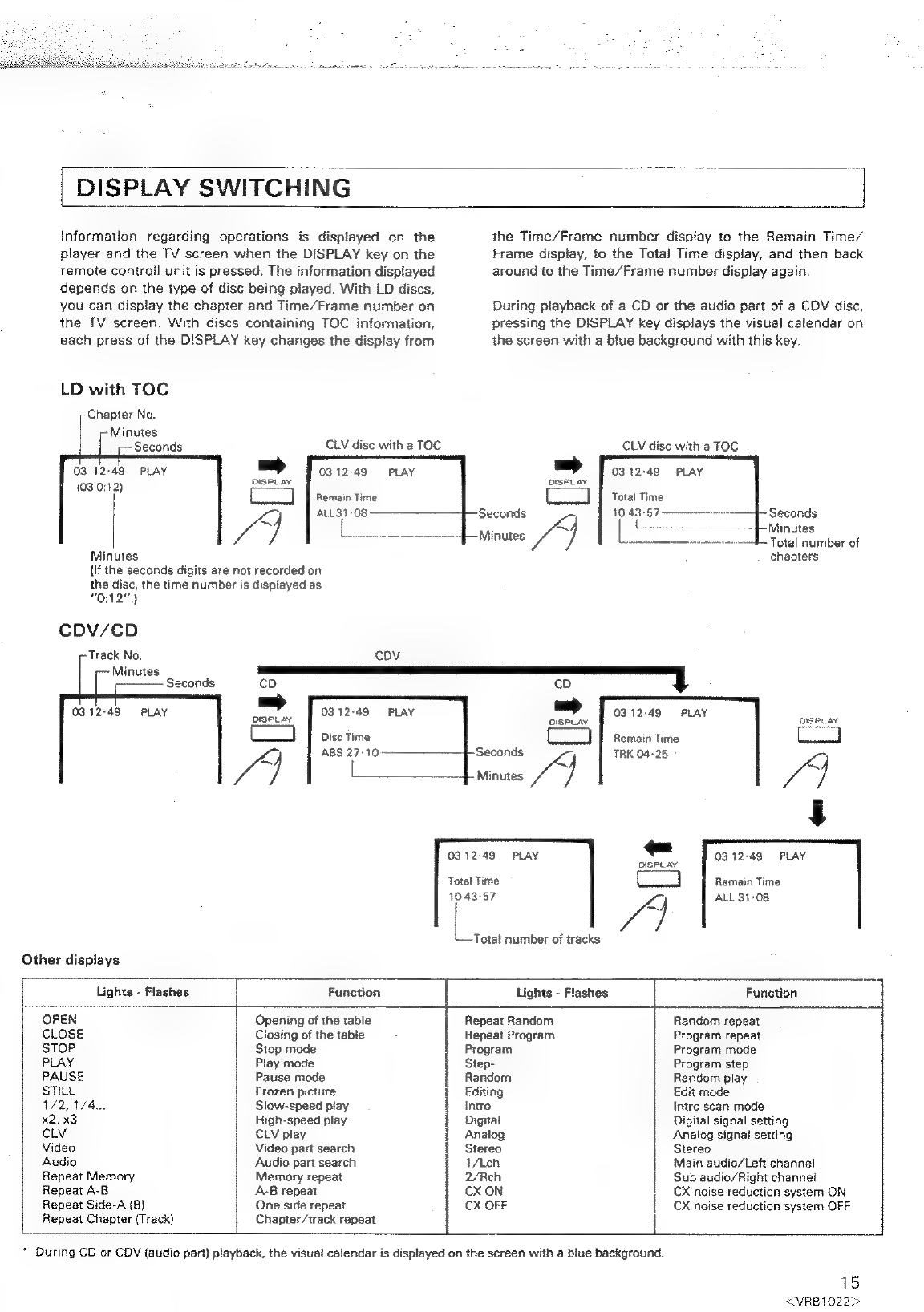

Display Switching
To Play LD/CDV/CD
To Search for a Particular Passage
(Manual Search by Fast Forward or
Fast Reverse Key) 2.0.0.0... .o.cceccceeececesececureee 19
To Search for a Particular Chapter/Track
(Chapter Skip/Track Search) ............0....cceeeeee 19

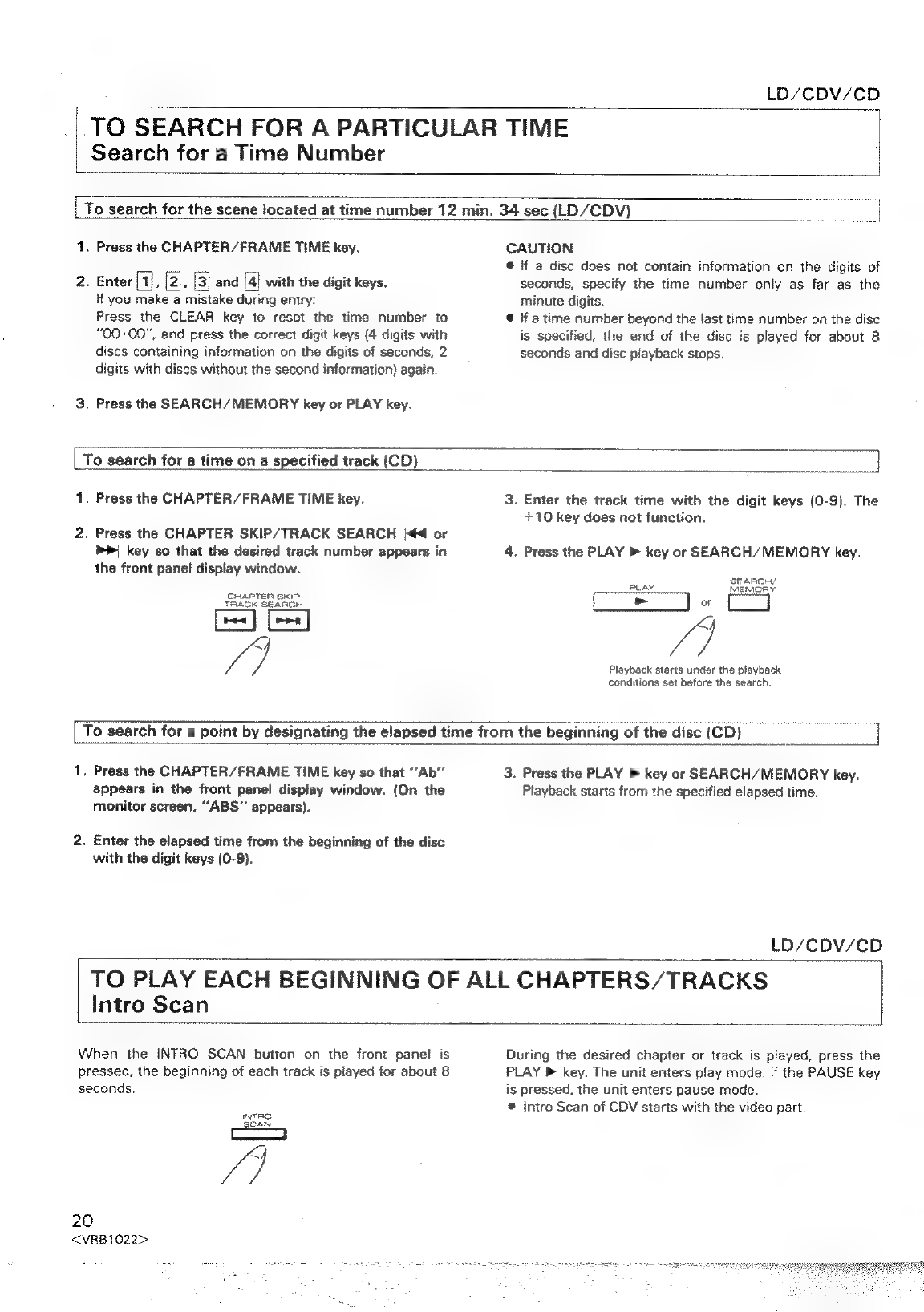

To Search for a Particular Time
To Play Each Beginning of All Chapters/Tracks
To Play All Tracks in a Random Order
To Play Only the Desired Passage
To Play Only the Desired Scenes/Tracks
Extra Playback (CAV discs only) ...
Programming Tracks to be Played Back within a
Troubleshooting
Specifications
{Search for a Time Number) .....00..00..00000..ceeee 20
(intlo Scan): eek ens al laws sonny eae sewe 20
(Random Playback) ...
(Repeat Playback) ........0.. 00... cess eceeceseceeeeaees 22
(Program Playback}
Specified Time Period (Auto Program Editing) ...... 26
®@ This player is used with discs bearing the following
symbols.
LaserVision
Players and discs which bear this symbol and use the same
television system, are mutually compatibie.
(Compact Disc) (*CD VIDEO SYSTEM)
COMPACT <zs
dsc =
a> 1D
CDVIDEO
'
DIGITAL AUDIO
* CD Video discs are recorded with
subcodes, which are the non-
audio recordings of TOC data
such as track numbers, index
numbers, ete.
Only one disc can be loaded at any one time.
Loading an LD Disc, a Compact Disc, an 8cm
Compact Disc or a Compact Disc with Video on
top of one another may result in breakdown, or in
scratching of the discs. Please load only one disc at
a time.
3
<VRB1022>

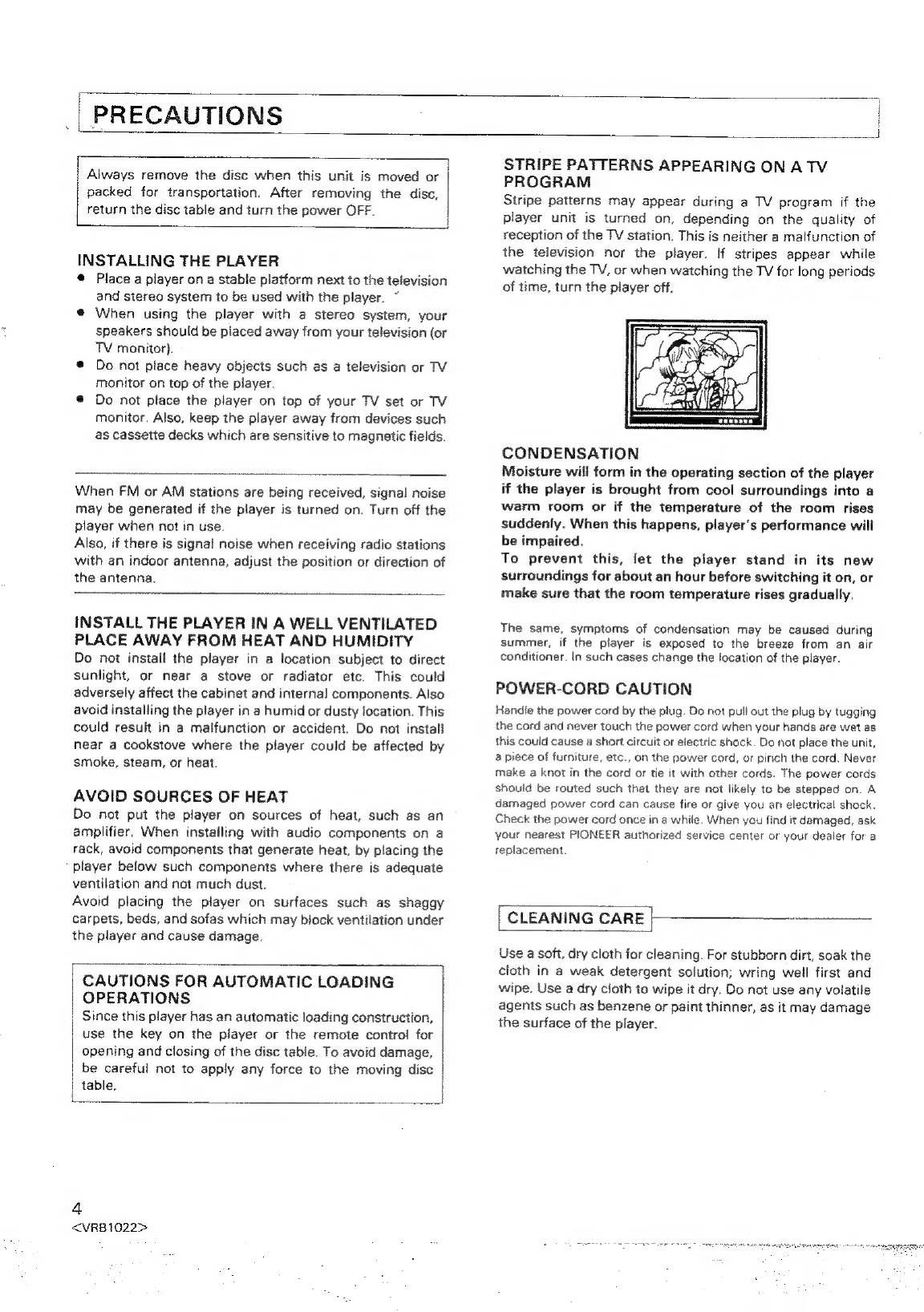

PRECAUTIONS
Eirpceen
| Always remove the disc when this unit is moved or
packed for transportation. After removing the disc,
return the disc table and turn the power OFF.
INSTALLING THE PLAYER
@ Place a player on a stable platform next to the television
and stereo system to be used with the player. ~
® When using the player with a stereo system, your
speakers should be placed away from your television (or
TV monitor).
®@ Do not place heavy objects such as a television or TV
monitor on top of the player.
® Do not piace the player on top of your TV set or TV
monitor. Also, keep the player away from devices such
as Cassette decks which are sensitive to magnetic fields.
When FM or AM stations are being received, signa! noise
may be generated if the player is turned on. Turn off the
player when not in use.
Also, if there is signal noise when receiving radio stations
with an indoor antenna, adjust the position or direction of
the antenna.
INSTALL THE PLAYER IN A WELL VENTILATED
PLACE AWAY FROM HEAT AND HUMIDITY
Do not install the player in a location subject to direct
sunlight, or near a stove or radiator etc. This could
adversely affect the cabinet and internal components. Also
avoid installing the player in a humid or dusty location. This
could result in a malfunction or accident. Do not install
near a cookstove where the player could be affected by
smoke, steam, or heat.
AVOID SOURCES OF HEAT
Do not put the player on sources of heat, such as an
amplifier. When installing with audio components on a
rack, avoid components that generate heat, by placing the
player below such components where there is adequate
ventilation and not much dust.
Avoid placing the player on surfaces such as shaggy
carpets, beds, and sofas which may block ventilation under
the player and cause damage.
CAUTIONS FOR AUTOMATIC LOADING
OPERATIONS
Since this player has an automatic loading construction,
use the key on the player or the remote contro! for
opening and closing of the disc table. To avoid damage,
be careful not to apply any force to the moving disc
table.
4
<VRB1022>
STRIPE
PATTERNS
APPEARING
ON
ATV
PROGRAM
Stripe patterns may appear during a TV program if the
player unit is turned on, depending on the quality of
reception of the TV station. This is neither a malfunction of
the television nor the player. If stripes appear while
watching the TV, or when watching the TV for long periods
of time, turn the player off,
CONDENSATION
Moisture will form in the operating section of the player
if the player is brought from cool surroundings into a
warm room or if the temperature of the room rises
suddenly. When this happens, player's performance will
be impaired.
To prevent this, let the player stand in its new
surroundings for about an hour before switching it on, or
make sure that the room temperature rises gradually,
The same, symptoms of condensation may be caused during
summer, if the player is exposed to the breeze from an air
conditioner. In such cases change the location of the player.
POWER-CORD CAUTION
Handie the power cord by the plug. Do not pull out the plug by tugging
the cord and never touch the power cord when your hands are wet as
this could cause a short circuit or electric shock. Do not place the unit,
a piece of furniture, etc., on the power cord, or pinch the cord. Never
make a knot in the cord or tie it with other cords. The power cords
should be routed such that they are not likely to be stepped on. A
damaged power cord can cause fire or give you an electrical shock.
Check the power cord once in a while. When you find it damaged, ask
your nearest PIONEER authorized service center or your dealer for a
replacement
CLEANING CARE —
Use a soft, dry cloth for cleaning. For stubborn dirt, soak the
cloth in a weak detergent solution; wring well first and
wipe. Use a dry cloth to wipe it dry. Do not use any volatile
agents such as benzene or paint thinner, as it may damage
the surface of the player.

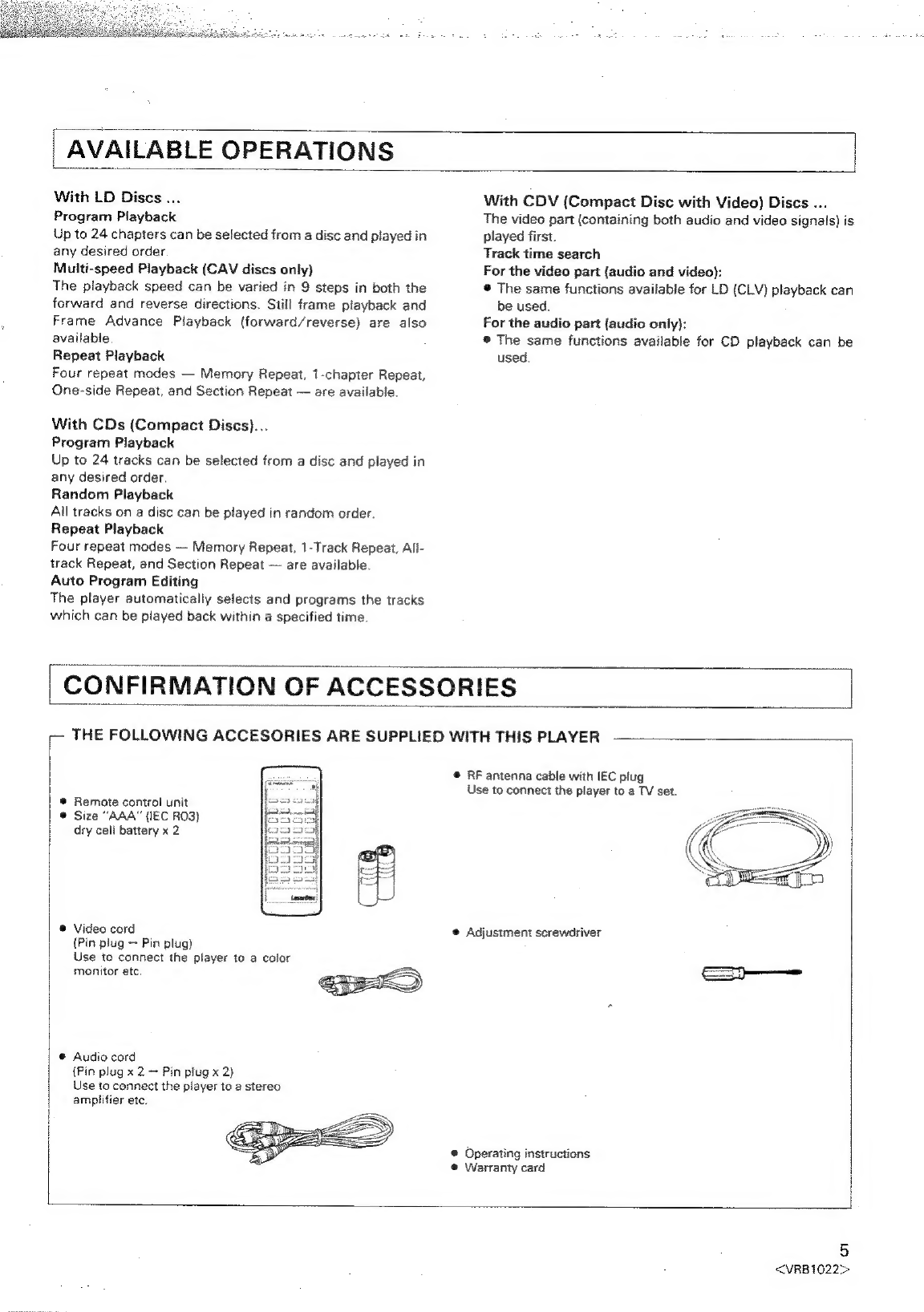

AVAILABLE OPERATIONS
With LD Discs ...
Program Playback
Up to 24 chapters can be selected from a disc and played in
any desired order
Multi-speed Playback (CAV discs only)
The playback speed can be varied in 9 steps in both the
forward and reverse directions. Still frame playback and
Frame Advance Playback (forward/reverse) are also
available
Repeat Playback
Four repeat modes — Memory Repeat, 1-chapter Repeat,
One-side Repeat, and Section Repeat — are available.
With CDs (Compact Discs)...
Program Playback
Up to 24 tracks can be selected from a disc and played in
any desired order.
Random Playback
All tracks on a disc can be played in random order.
Repeat Playback
Four repeat modes — Memory Repeat, 1-Track Repeat, Ail-
track Repeat, and Section Repeat — are available.
Auto Program Editing
The player automatically selects and programs the tracks
which can be played back within a specified time.
With CDV (Compact Disc with Video) Discs ...
The video part (containing both audio and video signals) is
played first.
Track time search
For the video part (audio and video):
® The same functions available for LD (CLV) playback can
be used.
For the audio part (audio only):
® The same functions available for CD playback can be
used
_ CONFIRMATION OF ACCESSORIES
THE FOLLOWING ACCESORIES ARE SUPPLIED WITH THIS PLAYER
® Remote control unit
© Size “AAA" (IEC RO3)
dry cell battery x 2
@ Video cord
{Pin plug - Pin plug)
| Use to connect the player to a color
monitor etc.
® Audio cord
{Pin plug x 2 — Pin plug x 2}
Use to connect the player to a stereo
amplifier etc.
® RF antenna cable with IEC plug
@ Operating instructions
@ Warranty card
Use to connect the player to a TV set.
@ Adjustment screwdriver |
5
<VRB1022>

DISCS
~ LD GLOSSARY
Chapter number
Chapter
numbers
are
used
to
indicate
the
boundaries
of
the
sections
on
a
disc,
similar
to
the
“chapters”
in
a
book.
If
chapter
numbers
are
recorded
on
a
disc,
it
is
so
indicated
on
the
jacket
of
the
disc,
etc.
Chapter
numbers
can
be
used
to
search
for
desired
chapters
(Chapter
Search).
Frame number
Frame
numbers
are
the
numbers
assigned
to
each
frame
on
a
CAV
disc.
Frame
numbers
can
be
used
to
search
for
desired
frames
(Frame
Search).
Time number
Time numbers indicate the time elapsed from the
beginning of a CLV disc. Time numbers can be used to
search for desired scenes (Time Search).
CDV/CD GLOSSARY
Track number
Track numbers indicate the boundaries of the sections, or
“tracks”, on a disc. Track numbers are assigned consist-
ently throughout the audio part and video part of a disc.
Track numbers can be used to search for desired tracks
(Track Search) or to repeat desired tracks (Track Repeat).
TOC
Every CD/CDV-type disc is provided with a section called
TOC (Table Of Contents) at the beginning of the disc. The
TOC section is just like the table of contents of a book, and
contains information on the contents (number of tracks,
playing time, etc.) of the disc.
® Some LO discs are also provided with a TOC section.
6
<VRB1022>
LD DISCS
The CLD-1450 can play both LD Discs and Compact Discs.
Unlike
conventional
phonograph
records,
these
discs
are
played back from the inside edge out.
LD Discs are available as both standard play discs and
extended play discs.
® Active/standard play (CAV) discs
-
Standard
play
discs
are
played
at
constant
angular
velocity
(CAV).
®@ Long/extended play (CLV) discs
These discs are played back at constant linear velocity
(CLV), and are therefore able to play for a longer time than
standard play discs.
7
tc
ong
rere
mr
tee
RC
SA

| CARE OF DISCS
How to hold discs
When loading or removing discs, try not to touch their
playing surfaces.
| coker we a
Cleaning
Fingerprints or other dirt on the disc may affect sound and
picture quality.
To clean your discs, use a soft clean cloth to wipe them. If
necessary, moisten a soft cloth with diluted neutral
detergent to remove heavy dirt or fingerprints.
Gently wipe from the
inside toward the outer edge.
Do not wipe ina
circular direction
Discs may not be cleaned with record cleaning sprays, or
static prevertion sprays, etc. Also do not use volatile liquids
such as benzene, or thinner, etc.
DO NOT PLAY CRACKED OR WARPED DISCS.
@ Thedisc revolves on the player at a high speed when it
is played. Never play a cracked, scratched or warped
disc. This may damage the player or cause it to
malfunction.
After using discs, store them upright
After playing a disc, always remove it from the player and
return it to its jacket. Then store it standing upright away
from heat and humidity.
® Store discs carefully. If you store discs at an angle, or
stacked on top of each other, discs may become warped
even when in their jackets.
® Do not leave discs in locations such as the seat of car,
which may become excessively hot.
if an LD disc is warped ...
if an LD disc is warped, put the disc into its protective
envelope, and then place it between two flat plates of
glass. Then place heavy books on top of the plates so that
approximately 4 to 5 kgs (10 Ibs) is applied. Leave the disc
like this for a day or so. This may correct the warp.
Heavy books 4 — 5 kgs (10 Ibs)
Glass plate
LD di ——
=
—— Protective
Glass
plate
envelope
CAUTION WHEN USING THE DISC
Ail rights reserved,
Unauthorized public performance, broadcasting or copying is a
violation of applicable laws.
7
<VRB1022>

CONNECTIONS
USING
TELEVISION
WITH
AUDIO
AND
VIDEO
JACKS
CLD-1450, stereo system, monitor television
~
UHF I
antenna I
i
i
[
iF
outlet
VIDEO
IN
| ~~ Video cord
ay
.
ee Audio cord
AUDIO
IN
| jaa oN -
TV monitor Sas ee edi ada!
Amplifier
®
Connect
the
VIDEO
OUT
jack
of
the
player
to
the
video
@
When
using
a
video
TV
monitor
{or
TV}
with
“VIDEO/
input
jack
of
the
monitor
television.
AUDIO”
input
terminal,
connect
the
“VIDEO
AUDIO”
®
Connect
the
AUDIO
OUT
jacks
to
the
stereo
amplifier
input
terminal
to
the
VIDEO/AUDIO
OUT
terminal
of
the
AUX, CD or other jacks, except the PHONO input jacks. player.
The
television
speakers
can
also
be
used
by
connecting
For
this
purpose
you
need
a
special
lead,
please
obtain
a
the
television
audio
input
jacks
and
the
player
AUDIO
suitable
lead
from
your
dealer.
OUT jacks, however connection to a stereo amplifier is
recommended to obtain superior audio playback quality
for
Compact
Discs
and
LD
Discs.
No
need
to
change
the
television antenna and VCR connections.
8
<VRB1022>

USING TELEVISION WITHOUT AUDIO AND VIDEO JACKS
CLD-1450, regular television, stereo system, (VCR)
Refer to next page concerning the identified numbers. Make the
connections in this order.
Channel adjustment
RF antenna cable with IEC plug
SUB CODE OUT
Audio cord
O)|O
Stereo amplitier
To power
outlet i
UHF antenna
UHF input
See >
Cismewnn]
gue ne Ss oe)
$ UHF output
When the sound from a LaserVision Disc or Compact Disc
is output from a television speaker it becomes monaural
sound.
9
<VRB1022>

| [4] UHF TV ANTENNA CONNECTION
Detach the antenna cable from the antenna terminal of
your TV set, and connect the cable to the ANTENNA
terminal on the player. |
(2) CONNECTING TO TV SET
Connect the TV terminal of the player to the antenna
terminal of your TV set with the accessory RF antenna
cable.
NOTE: i
®
Push
the
plug
in
firmly.
If
the
plug
is
not
properly
inserted.
it
may
result
in
snow
on
the
screen
or noise.
® The shape of the antenna input termina! and the method of
connecting the antenna cable may differ from one TV set to
another. For details, please refer to your TV instruction manual. |
[S] CONNECTING TO STEREO AMPLIFIER
Connect the AUDIO OUT jacks of the player to the AUX or
CD input jacks of stereo amplifier.
NOTE:
® Do not connect these terminals to your amplitier PHONO input
Jacks.
[4] PLUG THE POWER CORDS INTO AC
OUTLET
Plug the AC power cords of the player, stereo amplifier and
TV set into an AC outlet
TIMER CONNECTION
CLO-1450 Stereo amplifier
+(s009)
Audio timer
[ie:oo Bees)
AC outlet <n =)
10
<VRB1022>
S|; UHF CHANNEL ADJUSTMENT FOR
PLAYBACK
| (1) Turn on the TV and tune to channel 36.
| (2) Turn on the player.
(3) lf the TV is correctly tuned, a blue background picture |
will appear on the screen.
® If you are using a VCR tuned to channel 36, the player
must be retuned to a different channel.
To change the player channel, use the accessory screwariver to
turn the screw inside the opening in the rear panel marked
| CHANNEL SELECTOR (from CH 32 to CH 40). Note that the screw
only needs to be turned a little.
Turn the screw.
SUB CODE OUT jack/ & Terminals
used to extend the utility of this player in the future.
CAUTION
; BE SURE TO USE THE SHIELDED CABLE WITH THE
LENGTH OF LESS THAN 2 METERS WHEN CONNECT-
ING THE SUB CODE OUT JACK TO SOME ADAPTER IN
ORDER TO COMPLY WITH THE RADIO INTERFERENCE
REQUIREMENT.

TO WATCH A TV BROADCAST
When a UHF TV antenna has been connected to your TV
via the player’s ANTENNA terminal, in accordance with the
connection example given in these instructions (page 9},
TV broadcasts can be received normally by proceeding in
one of the following two ways:
@ By switching power of the player off
Before switching off power, press the STOP/OPEN
button to stop disc playback.
@ By pressing the TV/LDP key on the remote
control, TV mode can be selected.
UHF antenna
| A . CLD-1450
* To return to disc playback, press the TV/LDP key again.
In
either
case,
the
signals
from
the
UHF
antenna
are
fed
to
a
oti
A Press the ul ey on the
the TV set via the player. remote control unit, or turn
off power
NOTE:
(in an area where the TV broadcast signal is weak, slanting stripes In such cases, or when you wish to watch TV for a long period of
may appear on the TV screen when the TV/LOP key is pressed to time, we recommend that you turn off the power switch of the
receive a TV broadcast. This does not always indicate a problem. player.
The stripes should be eliminated by turning power of the player
off.
ce
When using a TV set with video and audio input jacks
When using the video input jack of your TV, switch to the broadcast using
the controls of your TV.
14
<VRB1022>

FRONT PANEL FACILITIES
A detailed description is provided on the indicated page(s).
POWER switch ——-——
Press to turn power to the unit ON and OFF
If there is disc in the unit when power is turned ON,
playback will begin automatically
Door/Disc table ... p. 17
® PIONEER 60 COV LD PLAvER CLD-1450
; :
LaserDise
B-TIMES OVERSAMPLING DIGITAL FILTER
TRUE 18 SIT DIRECT LINEAR CONVERSION
&
REMOTE
POWER SENSOR
PHONES sm LEVEL,
© @ (|e
man | max
PHONES jack
Insert a headphone plug into this jack for private ke
listening.
PHONES LEVEL control
Turn this control in the ‘MAX’
the output level from the PHONES jack. Turn this
control in the “MIN” direction to decrease the output
level from the PHONES jack.
REMOTE SENSOR
’ direction to increase
Receives the signal from the remote control unit.
12
<VRB1022>

PLAY button ... p. 17
STOP/OPEN button ... p. 16, 17
When a disc is being played back, pressing this button
once stops the player. Pressing it again opens the disc
table after disc rotation has stopped.
PAUSE button
oieeee Press this button to stop playback temporarily. To
PLAY
—<— resume playback, press this button again.
“Porrine.
SKIP buttons ... p. 19, 20
SCAN buttons ... p. 19
RANDOM PLAY button ... p. 21
-— AUTO PGM EDITING button ... p. 26
eDiets INTRO SCAN button... p. 21
——-—----- PROGRAM button ... p. 23
(~~ Digit buttons ... p. 19, 20, 23, 26
-——— Display window
TRACK/CHAP. indicator 7 REMAIN/TOTAL indicator
Visual calendar ————----—-
When a disc is loaded, all of the selection! Indicates the TRACK number or CHAP Indicates the REMAIN TIME {remain-
numbers recorded on the disc light up on] (chapter) number ing play time) or TOTAL TIME (total
the display. If the disc contains more than play time }.
19 selections, the [] indicator fights.
During program piay, only the pro-
grammed selection numbers light
When a disc without a TOC section ts
played, only the selection number being
played lights
After the selection is finished playing, the
number goes out.
FRAME/TIME indicator
Indicates the FRAME number
or TIME {elapsed play. time}
ad RANDOM indicator
LD/CD/CDV indicator Lights during random play.
| indicates the type of disc
loaded in the player. tear,
n ; aa PROGRAM indicator
Lights during. program play.
4 3] RANDO NZ
l
TRACK
CN
erocran!
CO
_
CX
indicator
5] G1 8] CHAP. AME REM. NPAUSR) 4/ Cights whan a'diec
- 10) ij ve bot I been Te TOT Bese e/A recorded with the
73] F4) FS} Fe im rl mz ri mi ri rl a A~8 II[bigraL cA evstery is
mrmrma LLicodeon & SOpNo| |
a T/L, 2/R
» PLAY indicator J indicator
Lights during play. Blinks during 7
Indicates the audio
search.
i i Wes output channel.
EDIT indicator ———————~
Lights when editing is performed. DIGITAL SOUND indicator
rr Lights when the disc being played has a
REPEAT/A-B indicator oe Gghatsound signal.
REPEAT: Lights during repeat play. &8 PAUSE indicator -
A-B: Lights during A-B repeat play. Lights when the player is in pause
A: Lights during Memory repeat play. mode.
13
AIMDIAIN

| REMOTE CONTROL UNIT FACILITIES
A detailed description is provided on the indicated page(s).
The
buttons
with
the
same
names
or
marks
on
the
front
panel
of
the
player
unit
control
the
same
operations
as
the
corres-
ponding
keys
on
the
remote
contro!
unit.
=
r--—— REPEAT A/B keys ... p. 22
{@ PIONEER }
&
PAUSE ke
EJECT k ij 16.17 : r~ TV/LDP key... p. 11
ss is . When the UHF antenna is con-
CX key ... p. 16 nected to the TV set via the player,
this key switches between disc play
AUDIO MONITOR key ... p. 18 alle pasa os ees
STILL/STEP keys ... p. 25
CHAPTER SKE
TRACK SEARCH,
CHAPTER SKIP/TRACK
SEARCH/PGM CORRECT
keys ... p. 19, 20, 24
' PLAY key ... p. 17
\____ CLEAR key
Used to clear the repeat mode,
program mode, random play mode,
or intro scan mode. This key can
also be used for correcting input
digits.
BGM CORRECT
Puay
SCAN keys ... p. 19
Digit keys ... p. 19, 20, 23, 26
Geasteny SEARCH)
DISPLAY FRAME TIME PROGRAM MEMORY
DISPLAY key... p. 15
CHAPTER/FRAME
TIME/TRACK/TIME key SEARCH/MEMORY
vp. 20, 25 key ... p. 20, 22
PROGRAM key ... p. 23
INSERTING BATTERIES INTO THE REMOTE
CONTROL UNIT
1. Open the battery compartment cover on the back of
the remote control unit. The cover should open easily
if you press on it with your thumb while sliding it in
the direction of the arrow.
2. Take out the two accessory size “AAA” (IEC RO3) dry
cell batteries, and insert them into the battery
compartment in accordance with the display inside the
compartment.
3. Close the cover of the battery case.
Incorrect use of batteries may lead to leakage or rupture.
| Always be sure to follow these guidelines:
; A. Always insert batteries into the battery compartment
correctly matching the positive (+) and negative 4)
polarities, as shown by the display inside the
compartment.
B.
Never
mix
new
and
used
batteries.
H
@
When
the
unit
is
not
to
be
used
for
a
long
period
of
time
{more
than one month), remove the batteries to prevent them from
NOTE
FOR
USING
THE
REMOTE
CONTROL
UNIT
leaking
inside
the
compartment.
If
leakage
occurs,
wipe
up
the
®
if
the
range
of
operation
of
the
remote
control
unit
becomes
too
liquid
inside
the
compartment
and
replace
the
batteries
with
short, replace the batteries. new ones.
14
<VRB1022>

DISPLAY SWITCHING
]
nformation regarding operations is displayed on the
player and the TV screen when the DISPLAY key on the
remote controil unit is pressed. The information displayed
depends on the type of disc being played. With LD discs,
you can display the chapter and Time/Frame number on
the TV screen. With discs containing TOC information,
each press of the DISPLAY key changes the display from
LD with TOC
Chapter No.
Minutes
CLV dise with a TOC
03 12-49 PLAY =
(03 0:12) DISPLAY
xa
Minutes
(If the seconds digits are not recorded on
the disc, the time number is displayed as
03 12-49 PLAY
Remain Time
AUL31-08 -——-—————
the Time/Frame number display to the Remain Time/
Frame display, to the Total Time display, and then back
around to the Time/Frame number display again.
During playback of a CD or the audio part of a CDV disc,
pressing the DISPLAY key displays the visual calendar on
the screen with a blue background with this key.
CLV disc with a TOC
= 03 12:49 PLAY
DISPLAY
Total Time
Seconds
Minutes
Total number of
. chapters
VO
GS
6
7
nnn
Lo.
"0:127)
CDV/CD
cDv
CD
cD
0312-49
PLAY
oseray
|
091249
osPLay
Disc Time
ABS 27-10 — Seconds
K.
Minutes Fay
03 12:49 PLAY
Total Time
1043-57
Total number of tracks
0312-49 PLAY
DISPLAY
Remain Time
TRK 04-25
0312-49 PLAY
OISPLAY
Pas
Remain Time
ALL 31°08
Function
Other displays
Lights - Flashes Function Lights - Flashes
OPEN Opening of the table Repeat Random
CLOSE Closing of the table Repeat Program
sToPp Stop mode Program
PLAY Play mode Step-
PAUSE Pause mode Random
STILL Frozen picture Editing
41/2, 1/4... Slow-speed play intro
x2, x3 High-speed play Digital
CLV CLV play Analog
Video Video part search Stereo
Audio Audio part search 1/Leh
Repeat Memory Memory repeat 2/Rch
Repeat A-B A-B repeat CX ON
Repeat Side-A (B) One side repeat CX OFF
Repeat Chapter (Track) Chapter/track repeat
Random repeat
Program repeat
Program mode
Program step
Random play
Edit mode
Intro scan mode
Digital signal setting
Analog signal setting
Stereo
Main audio/Left channel
| Sub audio/Right channel
CX noise reduction system ON
i CX noise reduction system OFF
* During CD or CDV {audio part) playback, the visual calendar is displayed on the screen with a blue background.
15
<VRB1022>

TO PLAY LD/CDV/CD
2
4
5
3,6
1
Switch
on
the
power
to
the
2
Turn
on
the
power
to
the
monitor
TV
and/or
audio
CLD-1450.
system.
Set the TV to the video-use
channel (the vacant channel
in your area) or select the
appropriate video signal input.
(See page 10.)
When a stereo system is
used for audio listening:
Turn on the power of the
amplifier, and set its input
selector to the proper position
for listening to the CLD-1450,
POWER
3 With the STOP/OPEN
button, open the disc table.
Front panet
STOP / OPEN
]
Remote control unit
such as “CD”.
Discs
marked
with
the
Cag
mark
If
the
is
not
clear:
Discs
marked
Ca
are
recorded
with
the
CX
noise
reduction
system
1.
Set
your
TV
to
the
channel
used
for
disc
playback,
for
powerful
audio
reproduction
with
little
noise,
2.
Start
disc
playback.
The
CX
indicator
on
the
front
panel
lights
when
such
a
disc
is
3.
Adjust
your
TV
so
that
a
clear
is
obtained.
played.
However,
some
discs
marked
CXS
are
not
encoded
with
the
signals
necessary
to
instruct
the
unit
to
automatically
switch
on
the
CX
system.
If
the
CXF
indicator
does
not
light
when
a
disc
with
a
mark
is
played,
press
the
CX
key
on
the
remote
control
unit.
©
CR
is
a
trademark
of
CBS
inc.
This
player
meets
the
CX
EXPANDING
SPECIFICATION.
16
<VRB1022>

LD/CDV/CD
: i
The buttons with the same names or marks on
the front panel of the player unit control the
same operations as the corresponding keys on
the remote control unit.
3 5
4 Place a disc on the table. | [5 with the PLAY button, 6 With the STOP/OPEN
As shown in the following diagram, start playback. button, stop playback
place the disc on the disc table in the Frént‘panel and remove the disc.
a : panel
groove corresponding to the size of the
disc. Puay To stop playing
If the disc is not centered correctly on | sxe} Onen
the disc table, the disc will not be iL ave |
played or the disc or the player may be x ae
damaged. Yo L
Always
place
the
disc
correctly
accord-
oe,
“s
ing to the required disc size on the disc
table. ‘a ie.
Set the disc so that its edge is properly To remove disc
aligned with the appropriate guide on S108) OPEN
PLAY =
LD: With the desired side up x
BemcD
12m
CD/CDV
ye
7
twice
After removing the disc from
core
“re
soe
Ea
CD/CDV:
With
the
labeled
side
up
®
Playback
of
CDV
discs
starts
the
disc
table,
press
the
with
the
video
part.
PLAY
button
to
close
the
disc
table.
When
playing
8
cm
CDs:
Timer
playback
Do
not
use
an
adapter
when
placing
8
cm
CDs
on
the
disc
table.
When
using
an
commercially
available
audio
timer,
it
is
possible
to
CAUTION
initiate
playback
at
any
Hime
automatically.
,
i : ,
1.
Place
a
disc
on
the
disc
table
and
close
it.
@
Do
not
place
anything
on
the
disc
table
other
than
a
disc.
3
: i
i
Fi
®@
Leave
the
POWER
switch
of
the
player
turned
on.
®
Do
not
lift
up
the
player
during
playback,
as
this
could
result
in
7
2
¥
damage
to
the
disc
2.
Set
the
time
you
wish
to
start
playback.
The
timer
will
supply
*
Be
careful
not
to
pinch
your
fingers
between
the
player
and
the
Power'to
the:amplifier.and
the
player
at
the
preset
time,
turning
all the components on and initiating the playback mode.
disc
tavie.
Playback
starts
from
the
beginning
of
the
di
®
Be
careful
to
take
measures
to
prevent
smail
children
from
2
SETS
ATOM
the
Deginning
or
ie’
disc;
opening the disc table and inserting their fingers into the unit.
This is hazardous and may cause injury.
17
i Sil on a Pai nae

Ta listen to only one channel of a stereo disc
18
<VRB1022>
On the remote
control unit
AUDIO
MONITOR
Co
SIA
4
SIA
/)
During playback
Audio source Display on
Stereo disc Sound multiplex disc display window
Stereo Audio 1/1 (Left) 1/L, 2/R
Audio 2/R (Right)
Lett Audio 1/1 (Left) T/L
Right Audio 2/R {Right} 2/R
Return to start

LD/CDV/CD
Manual Search by Fast Forward or Fast Reverse Key —
For about two seconds after the key is pressed, the
scan speed is fairly slow, after that, it changes to
high speed.
With the video part of CDV, the scan speed does not
change to high speed.
-—-Sita—
a)
Press for fast-forward
operation.
Press tor fast-reverse
operation.
During manual search operation
LD: Sound is muted.
CD: Sound is heard at a smail volume level.
TO SEARCH FOR A PARTICULAR CHAPTER/TRACK
Chapter Skip/Track Search
The term “chapter” refers to each section on an LD,
and the term “track” refers to each section on a CD or
CDV disc.
if chapter or track numbers are encoded on a disc, it is
so indicated on the disc jacket.
[ To search by designating the chapter/track number
To search for chapter number 10 or above:
Use the|+10} key.
(Example) To enter 17: [£70], [7]
To enter 30: [+10], [470], 4-10), [0
Example To view from the
beginning of Chapter 3 of an LD:
<Direct Search>
A
To search for the beginning of a chapter/track
Enter 3 with the digit
key
CHAPTER SKIP
TRACK SEARCH,
fA.
Press once to return the playback
position to the beginning of the
chaper/track being played. If the
key is pressed more than once
before the picture reappears, the
beginning of a chapter/track
located before the chapter/track
being played is searched for and
played. The position of the located
track corresponds to the number
of times the key is pressed.
if this key is pressed once or a
number of times, playback is
advanced to the beginning of a
chapter/track located after the
chapter/track being played. The
Position of the located track cor-
responds to the number of times
the key is pressed.
CAUTION
if a number beyond the last number on the disc is specified, the
end of the disc is played for about 8 seconds and disc playback
stops.
19
<VRB1022>

LD/CDV/CD
_|. TO SEARCH FOR A PARTICULAR TIME
| Search for a Time Number
[To search for the scene located at time number 12 min. 34 sec (LD/CDV}
1. Press the CHAPTER/FRAME TIME key.
2. Enter [1], [2], [3] and [4] with the digit keys.
lf you make a mistake during entry:
Press the CLEAR key to reset the time number to
“00:00”, and press the correct digit keys (4 digits with
discs containing information on the digits of seconds, 2
digits with discs without the second information) again.
3. Press the SEARCH/MEMORY key or PLAY key.
CAUTION
@ if a disc does not contain information on the digits of
seconds, specify the time number only as far as the
minute digits.
@ if a time number beyond the last time number on the disc
is specified, the end of the disc is played for about 8
seconds and disc playback stops.
|. To search for a time on a specified track (CD)
=
1. Press the CHAPTER/FRAME TIME key.
2. Press the CHAPTER SKIP/TRACK SEARCH |€4 or
P| key so that the desired track number appears in
the front panel display window.
CHAPTER SKIP
TRACK SEARCH
74
3. Enter the track time with the digit keys (0-9). The
+10 key does not function.
4. Press the PLAY » key or SEARCH/MEMORY key.
SEARCH,
PLAY. MEMORY
4
Playback starts under the playback
conditions set before the search.
[ To search for a point by designating the elapsed time from the beginning of the disc (CD)
1, Press the CHAPTER/FRAME TIME key so that “Ab”
appears in the front panel display window. (On the
monitor screen, “ABS” appears).
2. Enter the elapsed time from the beginning of the disc
with the digit keys (0-9).
3. Press the PLAY » key or SEARCH/MEMORY key,
Playback starts from the specified elapsed time.
LD/CDV/CD
TO PLAY EACH BEGINNING OF ALL CHAPTERS/TRACKS
Intro Scan
|
When the INTRO SCAN button on the front panel is
pressed, the beginning of each track is played for about 8
seconds,
INTRO
SCAN
B
20
<VRB1022>
During the desired chapter or track is played, press the
PLAY ® key. The unit enters play mode. If the PAUSE key
is pressed, the unit enters pause mode.
® intro Scan of CDV starts with the video part.
