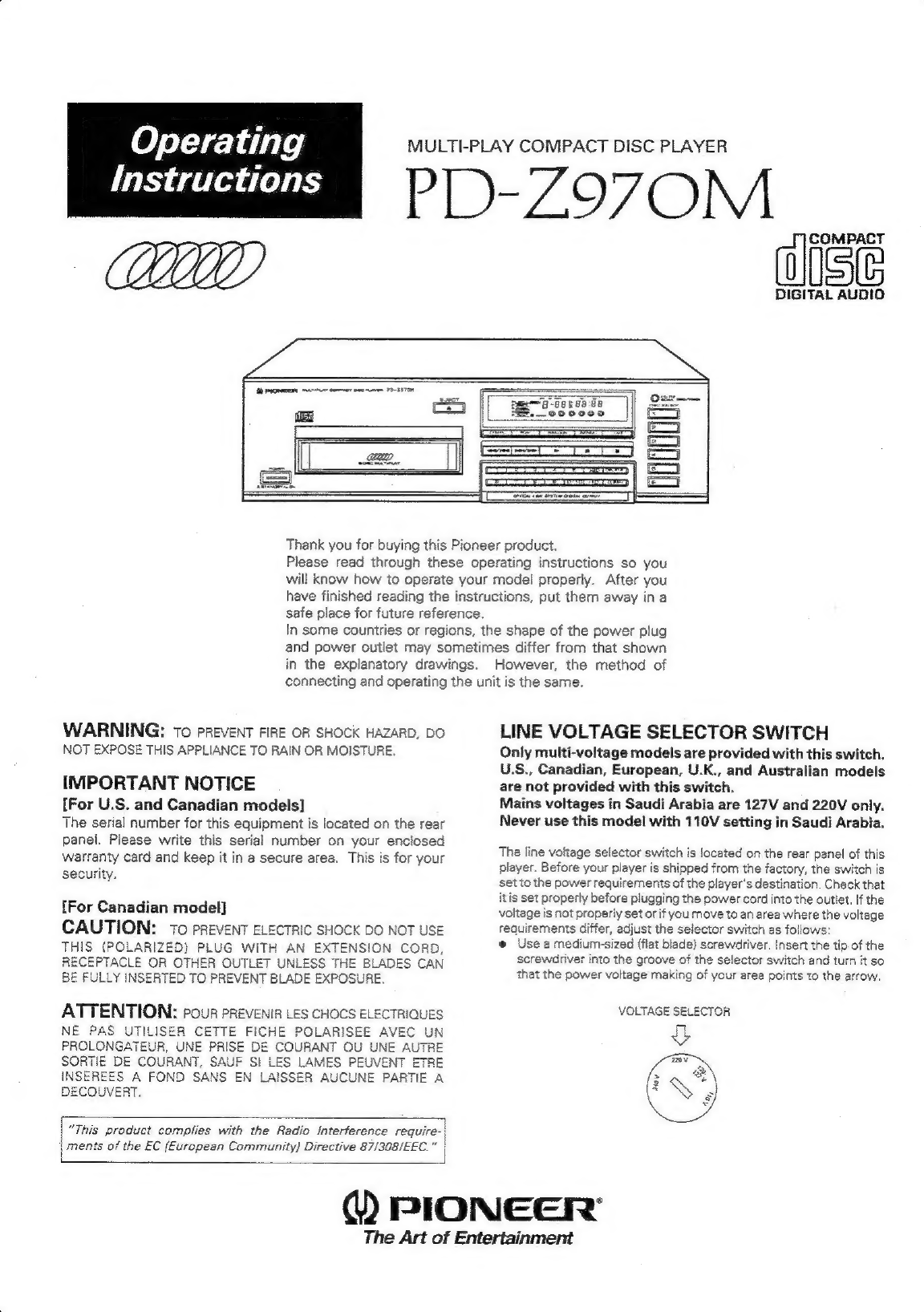

Pioneer PD-Z970M User manual

Operating
Instructions
MULTI-PLAY COMPACT DISC PLAYER
PD-Z970M
Pap -banee:8e
i=. co0oeod
Thank you for buying this Pioneer product.
Please read through these operating instructions so you
will know how to operate your model properly. After you
have finished reading the instructions, put them away ina
safe place for future reference.
In some countries or regions, the shape of the power plug
and power outlet may sometimes differ from that shown
in the explanatory drawings. However, the method of
COMPACT
aise
DIGITAL AUDIO
connecting and operating the unit is the same.
