Pioneer PD-Z85M User manual

Operating |
Instructions
©
MULTI-PLAY COMPACT DISC PLAYER
PD-Z85M
(OPROTE oacnnssemer onan POZA: ob
Thank you for buying this Pioneer product.
Please read through these operating instructions so you
will know how to operate your model properly. After you
have finished reading the instructions, put them away in a
safe place for future reference.
In some countries or regions, the shape of the power plug
and power outlet may sometimes differ from that shown
COMPACT
DIGITAL AUDIO
in the explanatory drawings.
However, the method of
connecting and operating the unit is the same
WARNING: To PREVENT FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
IMPORTANT NOTICE
[For U.S. and Canadian models]
The serial number for this equipment is located on the rear
panel. Please write this serial number on your enclosed
warranty card and keep it in a secure area. This is for your
security.
[For Canadian model]
CAUTION: to PREVENT ELECTRIC SHOCK DO NOT USE
THIS (POLARIZED) PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN
BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
ATTENTION: pour pREVENIR LES CHOCS ELECTRIQUES
NE PAS UTILISER CETTE FICHE POLARISEE AVEC UN
PROLONGATEUR, UNE PRISE DE COURANT OU UNE AUTRE
SORTIE DE COURANT, SAUF SI LES LAMES PEUVENT ETRE
INSEREES A FOND SANS EN LAISSER AUCUNE PARTIE A
DECOUVERT.
“This product complies with the Radio Interference require-
ments of the EC (European Community) Directive 87/308/EEC.”
LINE VOLTAGE SELECTOR SWITCH
Only multi-voltage models are provided with this switch,
U.S., Canadian, European, U.K., and Australian models
are not provided with this switch.
Mains voltages in Saudi Arabia are 127V and 220V only.
Never use this model with 110V setting in Saudi Arabia.
The line voltage selector switch is located on the rear panel of this
player. Before your player is shipped from the factory, the switch is
set to the power requirements of the player's destination. Check that
itis set properly before plugging the power cord into the outlet. If the
voltage is not properly set or if you move to an area where the voltage
requirements differ, adjust the selector switch as follows:
e Use a medium-sized {flat blade) screwdriver, insert the tip of the
screwdriver into the groove of the selector switch and turn it so
that the power voltage marking of your area points to the arrow.
VOLTAGE SELECTOR
@® PIONEER’
The Art of Entertainment

IMPORTANT 1
The lightning fash with arrowhead, within an equilaterat
trangie, is intended to alert the user to the presence of
uninsutated “dangerous voltage’ un the product's
enclosure that may be af sufficient magnitude to constitute
a tisk of electric shock to persons.
|
|
|
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO PREVENT THE RISK OF ELECTRIC SHOCK, 00
NOT REMOVE COVER (OR BACK}. NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The
exctamation
point
within
an
equilateral
trangie
is
imended
to
alert
the
user
to
the
presence
of
important
operating
and
maintenance
(servicing)
instructions
in
the
literature
accompanying
the
apptiance.
Hf the apparatus 1s Itted with AC mains oower outletish
; see REAR PANEL FACILITIES for convensent
connection o tional HiFrcomponentis) Make all
connections to the AC outlets) ang the signal terminals
first. Connect the plug to the wali socket fast (make
sure that the power switch is off4
FOR USE IN THE UNITED
KINGDOM
WARNING: This plug must only be connected to
electronic apparatus equipped with suitable sockets
if not, cut off the plug and fit an appropeate type in
accordance with the instructions below:
The cut-off piug must be disposed of as an electrical
shock hazard could exist if connected to a socket
outlet
‘The wares in this mains tead are Coloured in accordance
with the following code
Blue sutral
Brown: Live
As the colours of the wires in the mams fead of this
apparatus May not correspond with the coloured
rnarking wdentitying the fecminals im your plug proceed
28 follows
The wire which «s coloured blue must be connected to
the terminal which 1s marked with the letter N or
coloured blac
The wire which is coloured brawn must be connected
to the termina’ whieh is marked with the letter L ot
coloured red.
Do not connect either wire to the earth terminal of a
three pin plug
READ INSTRUCTIONS — Ali the satety and operating
instructions should pe read before the appliance is
opersied
RETAIN INSTRUCTIONS — The operating instructions
should be retained for future reference
HEED WARNING | All warnings on the appliance and in
the operating instructions should be adhered to
FOLLOW INSTRUCTIONS © Ail operating and use i:
structions should be follawed
WATER AND MOISTURE ~ The appliance should nor
he used near water ~ tor example. neat a bathtub,
washbow!, kitchen sink, laundry tub, in a wet base
ment, of near a swimming pool, ete
LOCATION ~ The appliance should be installed in a
stable location
WALL OR CEILING MOUNTING The appliance
should not be mounted to a wall or ceiting
VENTILATION ~ The apptiance should be situated so
that its location oF position does not interfere with
its proper ventilation. For exampis, the appliance
should not be situated on a bed, sofa, rug, ar similar
surface that may black the ventitation openings; or,
placed in a built-in instaltation, such as a bookcase
‘or cabinet that may impede the flow of air through
the ventilation openings.
HEAT ~ The anpliance should be situated away from
heat sources such as cadiators, Neat registers.
stoves, or other appliances tincluding amptifiers}
that produce heat,
POWER SOURCES ~ The appliance should be con
nected ta a power supply only of the type de-
scribed in the operating instructions or as marked
| onthe appliance
POWER-CORD PROTECTION ~ Power-supply cords
should be outed se that they are not likely 1 be
walked on or pinched by items placed upon or
against them. Pay particular attention to cords at
plugs. convenience receptactes, and the point
Where they exit from the appliance
POLARIZATION -- If your purchased product is pro
vided with ¢ polarized power plug, piease read the
foflowing instructions. This product is equipped
with a polarized alternating current fine piug (3 plug
having one blade wider than the other}. This pug
will fil into the power outlet only one way. This is 3
safety feature. If you are unable to insert the plug
fufly into the outlet. try reversing the plug. If the
plug should still fail to fit, contact your electrician to
feplace your obsolete outiet. Do not defeat the
saiety purpose of the polarized plug
CLEANING ~ The appliance should be cleaned only
with a gabshing cloth or a soft dry cloth Never
clean with furniture wax. Denzine, insecticides or
other volatile liquids since they may carrade the
cabinet
POWERLINES | Ar. outdoor antenna should betocated
away from power lines
NONUSE PERIODS = The power cord of the appliance
should be unplugged from the outlet when left un
used for a long period of time
OBJECT AND LIQUID ENTRY Care should be taken
So that abjects do not fall and fiquids are not spilled
into the enclosure through openings
DAMAGE REQUIRING SERVICE The appliance
should be serviced by a Pioneer authorized service
center ot qualified service personnel when
The power-supply cord or the plug has been dam:
aged
Objects have falien, or liquid has been spilled mto
the appliance
The appliance has been exposed to rain
The appliance does not appear to operate normaly
or exhibits a marked change in performance
The appliance has been dropped or the enclosure
damaged
SERVICING ~ The user should not attempt to service
the appliance beyond that described in the opera-
ting instructions, For all other servicing, contact the
nearest Pioneer authorized service cemer
e@eees
GROUND
CLAMP
ELECTRIC
SERVICE
EQUIPMENT
FIG. A
ROUND CLAMPS, i
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
IMEC ART 250, PART H)
OUTDOOR ANTENNA GROUNDING | Hfan outside an
Jenne 1s connected to the antenna terminal, be sure
the antenna system is grounded so a5 10 pravide
some protection against vokage surges and built
up static charges
In the U.S A, sectian 810 of the National Electrical
Code, ANSI/NFPA No. 70-1984, provides informa
tion with respect to proper grounding af the mast
and supporting structure, grounding of the lead-in
wire to an antenna discharge unit, size of grounding
conductors, location of ameana discharge unit,
cannection to grounding electrodes, and require
ments for the grounding electrade. See Fig. A
CART ~ An appliance and cart combination should be
moved with care, Quick stops, excessive force, and
uneven surfaces may cause the appliance and cart
combination to averturn
NEG NATIONAL ELECTRIC CODE
ANTENNA
LEAD IN
WIRE
ANTENNA i
DISCHARGE UNIT
{NEC SECTION S10 201
GROUNDING CONDUCTORS
INEC SECTION 810-23)
<PRB1167>
En

[FOR
EUROPEAN
AND
U.K.
MODELS]
CAUTION
This product contains a laser diode of higher class
than 1. To ensure continued safety, do not remove
any covers or attempt to gain access to the inside
of the product.
Refer all servicing to qualified personnel.
The
following
caution
label
appears
on
your
player.
Location: rear of the player
CLASS 1
LASER PRODUCT
VRW-328
[FOR U.S. AND MULTI-VOLTAGE MODELS]
CAUTION
radiation exposure.
e@
Use
of
controls
or
adjustments
or
performance
of
procedures
other
than
those
specified
herein
may
result
in
hazardous
@
The
use
of
optical
instruments
with
this
product
will
increase
eye
hazard.
INFORMATION
TO
USER
[FOR
U.S.
AND
MULTI-VOLTAGE
MODELS]
Tins equipment generates and uses radio frequency
energy and if not installed and used properly, that is, in
Strict accordance with the manutacturer's instructions,
‘May cause interference to radio and television secep:
tion. It has been type tested and found (o comply with
the limits for a Class 8 computing device in accordance
with the specifications in Subpart J of Part 15 of FCC
Rules,
which
are
designed
to
provide
reasonable
pro-
tection against such interference in a residential instal-
lation Hawever, there is no guarantee that interference
if
this
equipment
does
cause
interference
to
radio
or
television reception, which can be determined by turn
ing the equipment off and on, the user 1s encouraged to
ty to correct the interference by one or more of the
following measures
@ seorient the receiving antenna
@ relocate this equipment with respect to the recever
@ move this equipment away from the recerver
@ plug this equipment into a different outiet so that
equipment and receiver are on different branch cit
Mf
necessary.
the
user
should
consult
the
dealer
or
an
experienced
radio/television
technician
for
additional
suggestions
The
user
may
find
the
following
booklet
prepared
by
the
Federal
Communications
Commussion
heiptut
How to idenufy and Resolve Radio-TV Interference
Problems
This
booklet
1s
available
from
the
US
Government
Printing
Office,
Washington.
DC,
20402,
Stock
No
004
-000-00345.4
will
not
accur
in
a
particular
instatiation
cuits.
The above :nstructions apply only ta units which will
be operated in the United States.
[For Canadian model]
This
digital
apparatus
does
not
exceed
the
Class
B
limits
for
radio
noise
emissions
from
digital
apparatus
set
out
in
the Ra-
dio
Interference
Regulations
of
the
Canadian
Department
of
Communications.
THE
POWER
SWITCH
IS
SECONDARY
CONNECTED
AND
THEREFORE
DOES
NOT
SEPARATE
THE
UNIT
FROM
MAINS
POWER
IN
STANDBY
POSITION.
POWER-CORD CAUTION
Handle
the
power
cord
by
the
plug.
Do
not
pull
out
the
plug
by
tugging
the
cord
and
never
touch
the
power
cord
when
your
hands
are
wet
as.
this
could
cause
a
short
circuit
or
electric
shock.
Do
not
place
the
unit,
a
piece
of
furniture,
etc.,
on
the
power
cord,
or
pinch
the
cord.
Never
make
a
knot
in
the
cord
or
tie
it
with
other
cords.
The
power
cords
should
be
routed
such
that
they
are
not
likely
to
be
stepped
on,
A
damaged
power
cord
can
cause
fire
‘or
give
you
an
electrical
shock.
Check
the
power
cord
once
in
a
while.
When
you
find
it
damaged,
ask
your
nearest
PIONEER
authorized
service
center
or
your
dealer
for
a
replacement.
3
<PRB1167>
En

Selecting fine audio equipment such as the unit you've just
purchased js only the start of your musical enjoyment. Now it’s
time co consider how you can maximize the fun and excitement
your equipment offers. This manufacturer and the Electronic
Industries Association’s Consumer Electronics Group want you
to get the most out of your equipment by playing it at a safe
level. One that Jets the sound come through loud and clear
without annoying blaring or distorion—and, most importantly,
without affecting your sensitive bearing,
Sound ean be deceiving, Over me your hearing “comfort
level” adapts to higher volumes of sound. So what sounds
“normal” can actually be loud and: harmful to vour hearing.
Guard against chis by setting your cquipment at a safe level
BEFORE vour hearing adapts.
‘To establish a safe level:
@ Start your volume control ata low setting,
@ Slowly increase the sound until you can hear it comfortably
and clearly, and without distortion,
Once you have established a comfortable sound level:
@ Set the dial and leave it there.
‘Taking a minute to do this now will help to prevent hearing
damage or loss in the future. After all, we want vou listening for
a lifetime.
CONTENTS
CONFIRM SUPPLIED ACCESSORIES
CAUTIONS REGARDING HANDLING .
CONNECTIONS
BEFORE OPERATING THE PLAYER...
NAMES AND FUNCTIONS OF PARTS
BASIC OPERATION .
To play a compact disc
To stop playback and take out the magazine .
Time display

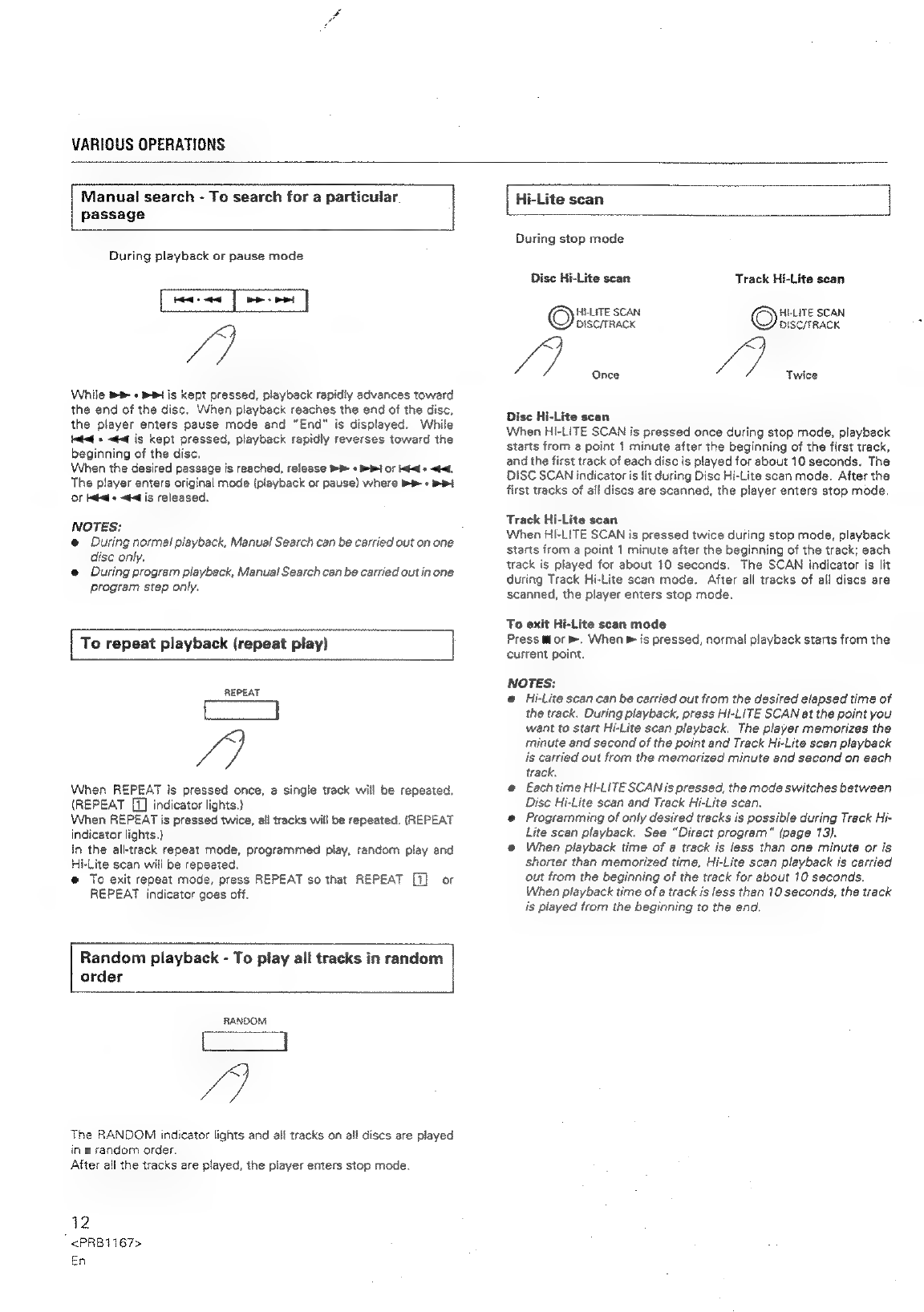

VARIOUS OPERATIONS
Disc search - To search for a particular disc ..
Track search — To search for a particular track
Manual search — To search for a particular passage
To repeat playback (repeat play) :
Random playback - To play all tracks in random order 12
Hi-Lite scan 242,
TO PLAY ONLY DESIRED TRACKS/DISCS. 13
Program playback — To program tracks/discs
in desired order ........
Programming a pause .
To clear all of the program contents
CONVENIENT OPERATION FOR RECORDING
Compu program editing (Computer allocated
program editing) ....
TROUBLESHOOTING .
SPECIFICATIONS
13
13
13
14
14
15
4
<PRB1167>
En
We Want You Listening For A Lifetime
Used wisely, your new sound equipment will provide a
lifecime of fun and enjoyment. Since hearing damage from loud
noise ts often undetectable until ic is reo face, this manufacturer
and the Electronic Industries Association's Consumer Electronics
Group recommend vou avoid prolonged exposure (0 excessive
noise. This list of sound levels is included for vour protection.
Decible
Level Example
30 Quict library, soft whispers
40 Living room, refrigerator, bedroom away from traffic
50 Light traffic, normal conversation, quiet office
60 Air conditioner at 20 feet, sewing machine
70 Vacuum cleaner, hair d NOISY FEstaurant
30 Average city traffic, garbage disposals, alarm clock
at wo feet.
THE FOLLOWING NOISES CAN BE DANGEROUS
UNDER CONSTANT EXPOSURE
90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage tuck, chain saw pneumatic drill
120 Rock band concert in front of speakers, thunderclap
140. Gunshot blast, jec plane
180, Rocket launching pad
Informanon courtesy of the Deafness Research Foundanon:
@ 6-Compact Disc Magazine x 7
{Called magazine in the explanatory text.)
NOTE:
The supplied magazine is for 12-cm (5-inch) discs only.
@® Output cable x 1
@® Control cord x 4

CAUTIONS REGARDING HANDLING
Location |
| Cleaning discs
install the player in a well ventilated focation where it will not
be exposed to high temperature or humidity.
Do not instail the player in a location which is exposed to direct
rays of the sun, or near stoves or radiators. Excessive heat can
adversely affect the cabinet and internal components. Installation
of the player in a damp or dusty environment may also result in
malfunction or accident. (Avoid installation near cookers etc.,
where the player may be exposed to smoke from oil, steam or
heat.)
Precautions regarding installation |
@ Placing and using the compact disc player for long periods on
heat-generating sources such as amplifiers will affect
performance. Avoid placing the player on heat-generating
sources.
@ Install this compact disc player as far as possible from tuners
and TV sets. A compact disc player installed in close proximity
to such equipment, may cause noise or degradation of the
picture,
@ Such noise may be particularly noticeable when an indoor
antenna is used. In such cases, make use of an outdoor antenna,
or turn off power to the compact disc player.
@ Please place this unit on a level surface.
Condensation
When this unit is brought into a warm room from previously cold
surroundings or when the room temperature rises sharply,
condensation may form inside, and the unit may not be able to
attain its full performance. ff this occurs, allow the unit to stand for
about an hour or raise the room temperature gradually.
e@ Fingerprints or smudges on the surface of the disc will not
directly affect the recorded signals, but depending on the degree
of contamination, the brightness of the light reflected from the
signal surfaces may be reduced, causing degradation of sound
quality. Always keep your discs clean by wiping them gently
with a soft cloth from the inner edge toward the outer periphery.
e if a disc becomes very dirty, dip a soft cloth in water, and after
wringing it out well, wipe the dirt away gently, and then remove
any water drops with another soft, dry cloth.
@ Do not use record cleaning sprays or anti-static agents on discs.
Never clean discs with benzene, thinner, or other volatile
solvents, since damage to the disc surface may result.
Storing discs
e Discs are made of the same kinds of plastic used for conventional
analog audio records. Be careful not to allow discs to warp;
always store discs in their cases vertically, avoiding locations
with high heat or humidity, or extremely low temperatures.
Avoid leaving discs in cars, since the seat of a car in direct
sunlight can become extremely hot.
e@ Always read and abide by the precautionary notes listed on disc
labels.
a
| CD lens cleaner
[ Cleaning the player and the magazine
The player's pickup lens should not become dirty in normal use,
but if for some reason it should malfunction due to soiling, ask
your nearest PIONEER authorized service center. Lens cleaners
for CD players are commercially available, but special care should
be exercised in their use since some may cause damage to the
fens.
To clean the PLAYER and the MAGAZINE wipe with a soft, dry
cloth. For stubborn dirt, wet a soft cloth with a mild detergent
solution, wring well, then wipe off the dirt. Use a dry cloth to wipe
the surface dry, Do not use volatile liquids such as benzene and
thinner which are harmful to the unit.
5
<PRBI167>
En

CONNECTIONS
When combined with cassette deck receiver
{RX-Z15, RX-Z35)
L____
Fiat cable - Not necessary to connect. Leave foided.
Not available with U.S. and Canadian models.
When combined with cassette deck amplifier
(DC-Z75, DC-Z85)
Fiat cable ~ Make sure that the connector is inserted into
the terminal in the correct up/down direction.
CD player
Control cord cg (=)
et. O
Bi:=23
| _—_—_— (ceed aed =
t Power cord a
White Red White Cassette deck receiver
Red
Output cable
White
i to. cord |
ied White gk
Red
Cassette deck amplifier
Output cable
Make sure that all of the components are turned off before making
connections,
Output cable connection
Connect the OUTPUT jacks of this unit to the input jacks (CD or AUX)
of the receiver {or amplifier). Make sure that the white plugs are
connected to the left (L) jacks and the red plugs to the right (R) jacks.
e Be sure not to connect this unit to the receiver's PHONO jacks,
as sound will be distorted and normal playback will not be
possible.
@ Make sure plugs are inserted fully into the jacks.
Flat cable connection
(Not available with U.S. and Canadian models.)
When combined with cassette deck amplifier of PIONEER (DC-
275, DC-Z85), connect the flat cable terminal of the player to the CD
terminal of the cassette deck amplifier.
Insert the connector until it locks. When disconnecting the
connector, pull it in the opposite direction while pressing the left
and right claws.
e@ For details on connections and operation, refer to the operating
instructions supplied with the cassette deck amplifier.
Power cord connection
Connect the power cord to an AC outlet on your receiver (or
amplifier).
CONNECTING THE POWER CORD
(For U.S. and Canadian models)
Household electrical outlets are provided with specific polarity, a live
side and a neutral (ground) side. This unit utilizes such polarity inorder
to improve sound quality. As shown in the illustration, be sure to
insert the power plug so that its blades match the width of slots in the
outlet.
AC wall outlet
Long slot is neutral
(ground) side.
insert the wide blade
into the ground side
slot.
6
<PRB1167>
En
System remote control with a Pioneer stereo
receiver (or amplifier) that has the mark
When a Pioneer stereo receiver (or amplifier) bearing the
mark is used, connect the CONTROL IN jack on the rear panel of
the CD player to the CONTROL OUT jack of the receiver (or
amplifier). This will enabie the CD player to be controlled using
the remote contro! unit supplied with the stereo receiver (or
amplifier), If you do not plan to use this feature, it is not
necessary to connect CONTROL IN/OUT jacks.
@ The control cord is supplied with the CD player.
@ The remote control unit supplied with the receiver (or amplifier)
can be used to control Play, Stop, Pause, Track/Dise Search
and Disc Change operations.
e For instructions regarding connections and operation, refer to
the operating instructions provided with your stereo receiver
{or amplifier).
NOTES:
e Besure to connect either the CONTROL IN jack or the flat cable
terminal. Never connect both of the CONTROL IN jack and flat
cable terminal at the same time.
When connecting either the CONTROL IN jack or the flat cable
terminal, turn off the power of the player beforehand. The
corresponding function can be carried out whenever the power
is turned on.
@ Be sure to connect both of the control cord's plugs securely to
the CONTROL IN and CONTROL OUT terminals. Donot connect
only one end of the cord.

BEFORE OPERATING THE PLAYER
CARE OF DISCS
With this player, use discs which display the mark shown below.
{Optical audio digital discs.}
When holding discs, do not touch their signal surfaces {the side
reflecting a “rainbow” pattern, opposite the label side). Hold by
the edges, or by one edge and the center hole.
Do not affix gummed labels or tape to the label surfaces. Also,
do not scratch or damage the label.
Discs rotate at high speed inside the player. Do not use damaged
{cracked or warped} discs.
NOTES:
@ in order to piay an 8-cm (3-inch}) CD you will need a special
Multi-Piay Magazine (JD-M108 or JD-M308) which is sold
separately, Be sure to read thoroughly the Operating Instructions
before using it.
e 88cm (3-inch) CD Adaptors
it is possible that even an adaptor which meets recommended
standard CD specifications will not be usable with the CD player.
ft is recommended that the special Multi-Play Magazine (JD-
M108 or JD-M308} be used.
e@ Never load an 8<m (3-inch) CD or its adaptor into a standard
12-cm {-inch) magazine. This may seriously damage the CD
player.
COMPACT
DIGITAL AUDIO
INSERT DISCS INTO THE MAGAZINE
Insert any discs which you may have into the supplied magazine.
Up to six discs may be inserted. The numbering of the discs begins
with 1 at the topmost tray, and then increases in order downwards
to 6 for the lowest tray. The magazine has a window through
which the pulled-out disc tray can be checked. Even during playback,
the number of the disc being played back can be checked through
this window,
4, Pull out only one disc tray.
2. Position discs with the label side downward.
3. Put the disc tray back as it was originally.
4. insert other discs by repeating steps 1 to 3,
CAUTION:
@ Please make sure you only pull out one disc tray ata time. (When
a disc tray has been pulled out, do not pull out other disc trays.)
® if discs are inserted label side upward, it will not be possible for
them to be played. Please make sure you insert them with the
label side downward.
@ Objects other than discs (song cards, explanations of disc contents,
etc.}, must never be inserted into the disc trays.
@ Do not touch the piaying surface of discs (iridescent side) with
hands or fingers.
For U.S. customers only
You may purchase additional Pioneer six-compact-disc
magazines from your dealer. If however, they are not available
at your dealer in the United States, you may order from:
PIONEER ELECTRONICS SERVICE, INC.
2265 East 220th Street
P.O. Box 1760, Long Beach
CA. 90801-1760
USA.
Phone #[phone]
7
<PRB1167>
En

BEFORE OPERATING THE PLAYER
aM
8
<PRB1167>
En
AFFIXING LABELS TO THE MAGAZINE
®@ Always attach the labels provided in the designated locations.
Correct operation may not be possible if labels or tape are
attached in other locations.
e@ The following are convenient ways of using labels:
A: For titles
B: For disc names
C: For classification
®@ Do not attach labels on top of other labels.
Additional magazines identical to the one supplied are
available as options (*JD-M100, JD-M200, JD-M300, JD-
M108, JD-M308).
Please use thern to make your own disc library, with separate
magazines for each artist or genre.
* JD-M100, JD-M200, JD-M300 ......... Magazine for 12-cm (5-inch)
discs
JD-M108, JD-M308 wo. Magazine for 8-cm (3-inch) discs
NOTE:
Both 12-cm {5-inch) discs and 8-cm (3-inch) discs cannot be installed
together in a magazine.

NAMES AND FUNCTIONS OF PARTS
WD PIONEER Manny ommacrome afr PD-ZESM
FRONT PANEL
@ POWER Ml STANDBY . ON switch
@ Magazine insertion slot
@ EJECT button ( # }
@ compu (Computer allocated program editing)
button
© pam (program) button
© RANDOM button
@ REPEAT button
TIME button
© HL-LITE SCAN button (DISC/TRACK)
DISC SELECT buttons (1 - 6)
@ Track/Manual search buttons
( Heed + <<, ep - pp; )
® Play button ( » )
@® Pause button (ul)
Stop button (@)}
iS]
<PRB1167>
En

BASIC OPERATION
|
1
MISTANDBY/—ON
io PP oog
S666
@: it Pause
®: Mm Stop
Sh SF
10
<PRB1167>
En
[ To play a compact disc
1 Turn on the power to the player.
2 insert a magazine, pushing it in until a click
sound is heard.
® The first disc is automatically set for playback.
3 Press > to start playback.
® To pause playback temporarily:
Press i. The If indicator lights and playback is paused at that point.
Pressing iI again or » resumes playback from the position where
pause mode was entered.
To stop playback:
Press m. The player returns to the beginning of the first track on
the disc at which playback was stopped. {f mis pressed twice, the
player returns to the beginning of the first track on the first disc
and enters stop mode.
To stop playback and take out the magazine
Press EJECT, remove the magazine, and then press POWER to
turn off the power.
Cautions regarding handling of magazines
e@ When inserting a magazine into the player, make sure that the
direction of insertion is correct.
e After use, store in the case provided. Do not place in. locations
subjected to high temperatures or exposed to direct suntight.
@ Oo not take magazines apart.
e Be careful not to drop, or hit magazines against things. Also do
not apply strong force to trays which have been withdrawn.
e@ Application of benzine, thinner, insecticide or other volatile liquids
tO a magazine may damage the surface, so keep magazines
away from such substances.
Caution:
Do not unplug the power cord during playback, as this could result
in damage to the disc.

BASIC OPERATION
wee
92°
05:30
eo
yee
Bet
==.
Ce
eee
==
__—
ee
ees
TIME
1g ea
wa
| B— }-99° 42:39 wee RL Pegs}
= (eecess = ‘esesse
He
[ Time display
During playback, pressing the TIME button changes the time display
in the following sequence: @ Elapsed playback time of the track
being played -» ® Remaining playback time of the track being
piayed -- © Remaining playback time from the playing point to the
end of the disc -- © Total playback time of the disc.
e If TIME is pressed during stop mode, the total playback time of
the disc will not be displayed.
@ With track No. 24 or more, remaining playback time of the track
® cannot be displayed.
@ During program playback or random playback, remaining playback
time from the playing point to the end of the disc © cannot be
displayed. ;
@ During Program playback, the number of program steps can be
displayed with the total playback time setting O.
VARIOUS OPERATIONS
Disc search - To search for a particular disc |
| Track search - To search for a particular track
During playback or stop mode
DISC SELECT
The player searches for the specified disc and playback starts from
the beginning of that disc.
NOTE:
If the disc number of a tray which does not contain a dise (disc
symbol indicator is not lit) is selected, playback cannot start from
that disc number.
During playback, stop mode or pause mode
When ht - bis pressed once or a number of times, playback is
advanced to the beginning of a track located after the track being
played. The position of the located track corresponds to the number
of times the button is pressed.
When t+ <#< is pressed once, playback returns to the beginning
of the track being played. When this button is pressed more than
once, playback is returned to a track located before the track being
played. The position of the located track corresponds to the number
of times the button is pressed.
@ During stop mode or pause mode, after selecting the track No.,
press » to start playback.
NOTES:
@ During normal playback, Track Search can be carried out on one
disc only.
@ During program playback, Track Search can be carried out in the
programmed order.
11
<PRB1167>
En

VARIOUS OPERATIONS
Passage
During playback or pause mode
coe
Va
While ht + ie is kept pressed, playback rapidly advances toward
the end of the disc. When playback reaches the end of the disc,
the player enters pause mode and “End" is displeyed. While
iad © «<q is kept pressed, playback rapidly reverses toward the
beginning of the disc.
When the desired passage is reached, release >> « mh oF Md + <td.
The player enters original mode (playback or pause) where he + mri
OF Heat » «td is released.
NOTES:
@ During normal playback, Manual Search can be carried out on one
dise only,
@ During program playback, Manual Search can be carried out inone
program step only.
To repeat playback (repeat play)
REPEAT
Ve
When REPEAT is pressed once, a single track will be repeated.
(REPEAT indicator lights.)
When REPEAT is pressed twice, all tracks will be repeated. (REPEAT
indicator lights.)
in the alt-track repeat mode, programmed play, random play and
Hi-Lite scan will be repeated.
@ To exit repeat mode, press REPEAT so that REPEAT [7] or
REPEAT indicator goes off.
Random playback - To play all tracks in random
order
RANDOM
ff
The RANDOM indicator lights and all tracks on ali discs are played
in a random order.
After all the tracks are played, the player enters stop mode.
42
" ePRB1167>
En
| Manual search - To search for a particular |
| Hi-Lite scan
During stop mode
Disc Hi-Lite scan Track Hi-Lite scan
HELITE SCAN © HE-LITE SCAN
DISC/TRACK DISC/TRACK
ra) Ve
Once Twice
Disc Hi-Lite scan
When HI-LITE SCAN is pressed once during stop mode, playback
starts from a point 1 minute after the beginning of the first track,
and the first track of each disc is played for about 10 seconds. The
DISC SCAN indicator is lit during Disc Hi-Lite scan mode. After the
first tracks of all discs are scanned, the player enters stop mode,
Track Hi-Lite scan
When Hi-LITE SCAN is pressed twice during stop mode, playback
starts from a point 1 minute after the beginning of the track; each
track is played for about 10 seconds. The SCAN indicator is lit
during Track Hi-Lite scan mode. After all tracks of all discs are
scanned, the player enters stop mode.
To exit Hi-Lite scan mode
Press mor. When » is pressed, normal playback starts from the
current point
NOTES:
@ Hi-Lite scan can be carried out from the desired elapsed time of
the track. During playback, press HI-LITE SCAN at the point you
want to start Hi-Lite scan playback. The player memorizes the
minute and second of the point and Track Hi-Lite scan playback
is carried out from the memorized minute and second on each
track,
@ Eachtime HI-LITE SCANis pressed, the mode switches between
Disc Hi-Lite scan and Track Hi-Lite scan.
@ Programming of only desired tracks is possible during Track Hi-
Lite scan playback. See “Direct program” (page 13).
@ When playback time of a track is less than one minute or is
shorter than memorized time, Hi-Lite scan playback is carried
out from the beginning of the track for about 10 seconds.
When playback time of a track is less than 10 seconds, the track
is played from the beginning to the end.

| TO PLAY ONLY DESIRED TRACKS/DISCS
EJECT 1,4
Program playback - To program tracks/discs in
desired order
3
1 PGM
ase
2 DISC SELECT
3
4 PGM
aes |
6
a
®
=
1 During stop mode, press PGM.
@ PROGRAM indicator lights.
2 Press the DISC SELECT button which contains
the track to be programmed.
To program entire discs, enter the desired disc numbers with
the DISC SELECT buttons and go to step 5.
@ When DISC SELECT is pressed, “AL” (ail tracks) appears
‘on the display.
3 Press M4. <4 or b> - >i so that the desired
track number appears on the display.
4 Press PGM.
5 Repeat steps 2 through 4 for other tracks to
be programmed.
6 Press >.
The tracks are played in the programmed order. When all
programmed tracks have been played, the player enters stop
mode.
@® To stop Program playback, press @.
® Programs containing up to 32 steps can be created,
*@ Togo to the previous or next step in a program, press Mtl + <td
OF D> + PI,
Direct program
Programming can be carried out during normal playback or
Track Hi-Lite scan playback. You can program the tracks
while listening to a part of each track.
1. During playback, press PGM.
2. Whenever a track to be programmed is played, press PGM.
3. You can repeat step 2 until up to 32 tracks are programmed.
4. When finished, press ®. The current playback is cleared and the
tracks are played in the programmed order,
@ Direct program can also be carried out during Track Hi-Lite scan
playback with the above procedure.
Programming a pause
Inserting a pause in your program can be very useful when carrying
out recording. Press HM instead of entering a track number, “PA”
appears on the display panel.
® For example, when recording on both sides of a cassette tape,
if you program a pause after the last track to be recorded on
the first side, program playback will pause at that point to allow
you to switch tape sides. To resume program playback after the
player enters pause mode, press Mt.
NOTES:
@ A pause cannot be programmed at the beginning of a program
{P-O1}, nor can two pauses be programmed one after the other.
@ A pause inserted in a program is counted as one step.
® If a pause is programmed as the last step of a program, the
player will not enter the pause mode.
| To clear all of the program contents
@ During stop mode, press ™.
@ Press EJECT. When the magazine is ejected, the program
contents will be cleared.
13
<PRB1167>
En

CONVENIENT OPERATION FOR RECORDING
DISC SELECT
46 <-> 54 «-- 60
COMPU
14
<PRB1167>
En
=
Compu program editing (Computer allocated
program editing)
Tracks are selected for both sides of the tape.
1 During stop mode, press COMPU.
@ COMPU indicator lights.
2 Select the disc No. with the DISC SELECT
button.
Select the tape playing time with <4. << or
PP. PP.
Each time me «mp1 is pressed, the time will be changed in the
following sequence: 46 -» 54 > 60 -» 74 -* GO (minutes), With
Hed « «44, the time will be changed in the reverse direction.
Press COMPU.
The displayed time is memorized. The player now programs
the tracks for the first side of the tape within half the selected
playing time, programs a pause, and then programs the tracks
for the second side of the tape within a half the selected playing
time. After the programming is completed, the display shows
all of the programmed tracks and their playing time in the
programmed order.
Ww
>
Example: The tape playing time 46 minutes is selected.
@ The programmed contents are displayed in the programmed
order.
First side
mom OY 2:56 |... pe | MEE -06 22:56
od
ee eS — @
Second side
meme $F 22:59 |... pe | EP h-O9 OAS
ene @ — @
NOTES:
e@ Up to 32 steps can be programmed.
@ With discs contained 24 tracks or more, programming may not
be correctly performed.
@ Compu program editing can be carried out on one disc only.

TROUBLESHOOTING
Incorrect
operations
are
often
mistaken
for
trouble
and
maifunctions.
!f
you
think
that
there
is
something
wrong
with
this
component,
check
the
points
below.
Sometimes
the
trouble
may
lie
in
another
component.
Investigate
the
other
components
and
electricai
appliances
being
used,
If
the
trouble
cannot
be
rectified
even
after
exercising
the
checks
listed
below,
ask
your
nearest
PIONEER
authorized
service
center
or
your
dealer
to
carry
out
repair
work.
produced, or play stops.
Sound is distorted, noise is output.
@ incorrect connections.
Symptom
Cause
Remedy
Magazine
is
not
expelled
when
|
Power
plug
is
disconnected
from
outlet.
@
Connect
plug
to
amplifier
or
wail
outlet.
EJECT
button
is
pressed.
@
POWER
switch
is
STANDBY.
|
@
Press
POWER
switch
ON.
When
playback
is
started,
it
stops
|
e
Disc
is
loaded
upside
down.
e@
toad
the
disc
correctly
with
the
label
side
immediately.
Pauses
or
stops
during
DOWN.
playback.
e
Dirt,
etc.,
on
the
disc.
®
Clean
the
dirt
from
the
disc
and
then
play
it
again.
No
sound
@
Output
cables
are
connected
incorrectly
or
|
@
Connect
properly.
loosely.
@
incorrect
operation
of
stereo
amplifier.
e@
Check
the
settings
of
amplifier
switches
and
sound
volume
controls.
@
Pin
plugs
and/or
amplifier
terminals
are
dirty.
|
@
Clean
away
dirt.
@
Player
is in
pause
mode.
®@
Press
the
button.
Connect to amplifier's AUX or CD terminals.
Do not connect to PHONO terminats.
interfered with noise.
[sree :
fluctuated or FM broadcast is
———_—__—_—_l.
CD player.
@ Pin piugs and/or amplifier terminals are dirty. | @ Clean away dirt.
@
Interference
is
being
picked
up
from
a
TV
|
@
Switch
OFF
TV
set,
or
move
player
away
from
set.
TV
set.
|
With
certain
discs,
loud
noise
is
|
e
Disc
has
bad
scratch
or
warp.
e@
Replace
the
disc.
@ Disc is extremely dirty. @ Clean the disc.
meek eae
The
of
the
TV
screen
is
|
@
interference
is
being
picked
up
from
the
|
e
Turn
off
POWER
of
the
player,
or
move
the
player away from TV or tuner,
Abnormal functioning of this unit may be caused by lightning, static
electricity, or other external interference. To restore normal
operation, turn the power off and then on again, or unplug the AC
power cord and then plug it in again.
15
<PRB1167>
En

| SPECIFICATIONS
1. General
Type .. er
Power requirements
U.K., Australian model
ULS., Canadian models
Compact dise digital audio system
AC 240 V, 50/60 Hz
AC 120 V, 60 Hz
Other modets > 4127/220/240 V
(switchable), 50/60 Hz
Power
consumption
...
a
TOW
+5°C- 435°C
{+41°F - +95°F)
piic etude tetas 3.7 kg (8 tb, 3 oz}
360(W) X 290(D) X 105(H} mm
14-3/16(W) X 11-7/16(D) X 4-1/8(H) in
Operating temperature
Weight
External dimensions
2. Audio section
Frequency response
SIN ration.
Dynamic range
Channel separation
Wow and flutter ....
2 Hz - 20 kHz
100 dB or more (EIAJ)
94 dB or more (EIAJ)
93 dB or more {EIAJ}
. Limit of measurement
{0.001% W.PEAK) or less (EIAJ)
.. 2-channel (stereo)
Channels
3. Output terminal
Audio line output
Control input jack
Flat cable (Not available with U.S. and Canadian models.)
4. Functions
Number of discs to be stored — maximum 6.
Basic operation buttons
@ Flay, pause, stop
Search function
@ Disc Search
e@ Track Search
e@ Manual Search
Hi-Lite Scan
@ DISC HI-LITE SCAN
@ TRACK HI-LITE SCAN
Programming
@ Maximum 32 steps
® Pause
@ Direct program
Repeat functions
@ 1 track repeat
@ All discs repeat
@ Program repeat
@ Random play repeat
Random play
RANDOM play (repeat also available)
Switching display
Time consumed, remaining time (track/disc), and total time
Compu Program Editing
Selects the tracks for both sides of the tape within the specified
time.
. Accessories
Six-compact-dise magazine .
Output cable.
Control cord
Operating instructions
eeoeeown
NOTE:
Specifications
and
design
subject
to
possible
modification
without
notice, due to improvements.
The Magazine Type Multi-Play CD Players with
(QD mark and the Magazines with the same
mark
are
compatible
for
5-inch
(12cm)
discs.
Published by Pioneer Electronic Corporation.
Copyright © 1991 Pioneer Electronic Corporation.
Ail rights reserved
PIONEER
ELECTRONIC
CORPORATION
PIONEER
ELECTRONICS
[USA]
INC.
4-1,
Meguro
1-Chome,
Meguro-ku,
Tokyo
153,
Japan
2265
East
220th
Street,
Long
Beach,
California
90810,
U.S.A
P.O. BOX 1720. Long Beach, California 90801, U.S.A.
PIONEER ELECTRONICS OF CANADA. INC.
PIONEER ELECTRONIC [EUROPE] N.V.
PIONEER
ELECTRONICS
AUSTRALIA
PTY.
LTD.
<91LO2WFOCO1 >
505 Cochrane Drive. Markham, Ontario LR 8E3, Canada
Haven
1087
Keetbergiaan
1,
9120
Melsete,
Beigium,
TEL:
03/750.05.11
478-184
Boundary
Road,
Braeside,
Victoria
3195,
Austratia,
TEL:
[03}
580-9911
Printed in Japan <PRB1167-A>
\
\
