Pioneer AVIC-8DVD User manual

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2001 K-ZZY. JUNE 2001 Printed in Japan
ORDER NO.
CRT2708
DVD NAVIGATION UNIT
AVIC-8DVD EW
Service
Manual
-This service manual should be used together with the following manual(s):
Model No. Order No. Mech. Module Remarks
CX-954 CRT2670 MS2 DVD Mech. Module:Circuit Description, Mech.Description, Disassembly
-This product has the unit part numbers as below.
Unit Part No. Description
CPN1745 Main Assy
*) The unit part numbers listed above are not for the service components.
-For your inspection, the following extention cords are supplied. Use them if necessary.
part to use Part No.
Main PCB (CN3251) <--> DVD Core Unit R (CN1701) GGD1170
Main PCB (CN3254) <--> CC Unit (CN302) GGD1264
Main PCB (CN3901) <--> Interface PCB (CN5004) GGD1171
Main PCB (CN552) <--> GPS Unit (CN461) GGD1265
CC Unit (CN2) <--> DVD Core Unit R (CN1401) GGD1268

2
AVIC-8DVD
1. SAFETY INFORMATION
CAUTION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.
1. Safety Precautions for those who Service this Unit.
• Follow the adjustment steps (see pages 115 through 119)in the service manual when servicing this unit. When
checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results.
Caution:
1. During repair or tests, minimum distance of 13cm from the focus lens must be kept.
2. During repair or tests, do not view laser beam for 10 seconds or longer.
CONTENTS
1. SAFETY INFORMATION ............................................2
2. EXPLODED VIEWS AND PARTS LIST.......................6
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...12
4. PCB CONNECTION DIAGRAM ................................82
5. ELECTRICAL PARTS LIST ........................................98
6. ADJUSTMENT........................................................114
7. GENERAL INFORMATION .....................................120
7.1 DIAGNOSIS ......................................................120
7.1.1 TEST MODE............................................120
7.1.2 USING THE TEST MODE .......................136
7.1.3 DISASSEMBLY .......................................143
7.1.4 CONNECTOR FUNCTION DESCRIPTION.....146
7.2 IC ......................................................................147
7.3 EXPLANATION .................................................166
7.3.1 CIRCUIT DESCRIPTION..........................166
7.3.2 OPERATIONAL FLOW CHART ...............167
8. OPERATIONS AND SPECIFICATIONS...................168
-High voltage is generated in the inverter when the power is supplied to the system. To avoid an electric shock,
reconfirm that the power switch is set to OFF before starting operation.
-Check of installation direction when G-Sensor Unit was after repair.
Lock-screw
Lock-screw
Parallel
Parallel
Lever
Lever
Forward / Aft direction of vehicle
Forward / Aft direction
of vehicle
Front
Front
-DVD Player Service Precautions
1. Never adjust the LD VR in the pickup unit to protect the pickup from electrical damages.
2. For pickup unit(service)(CXX1530) handling, please refer to"Disassembly"(see page 143).
During replacement, handling precautions shall be taken to prevent an electrostatic discharge(set the short switch
of the pickup unit to the SHORT side).
3. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a connector is
plugged or unplugged.
4. Please adjusting the skew after changing the pickup unit(see page 118).

3
AVIC-8DVD

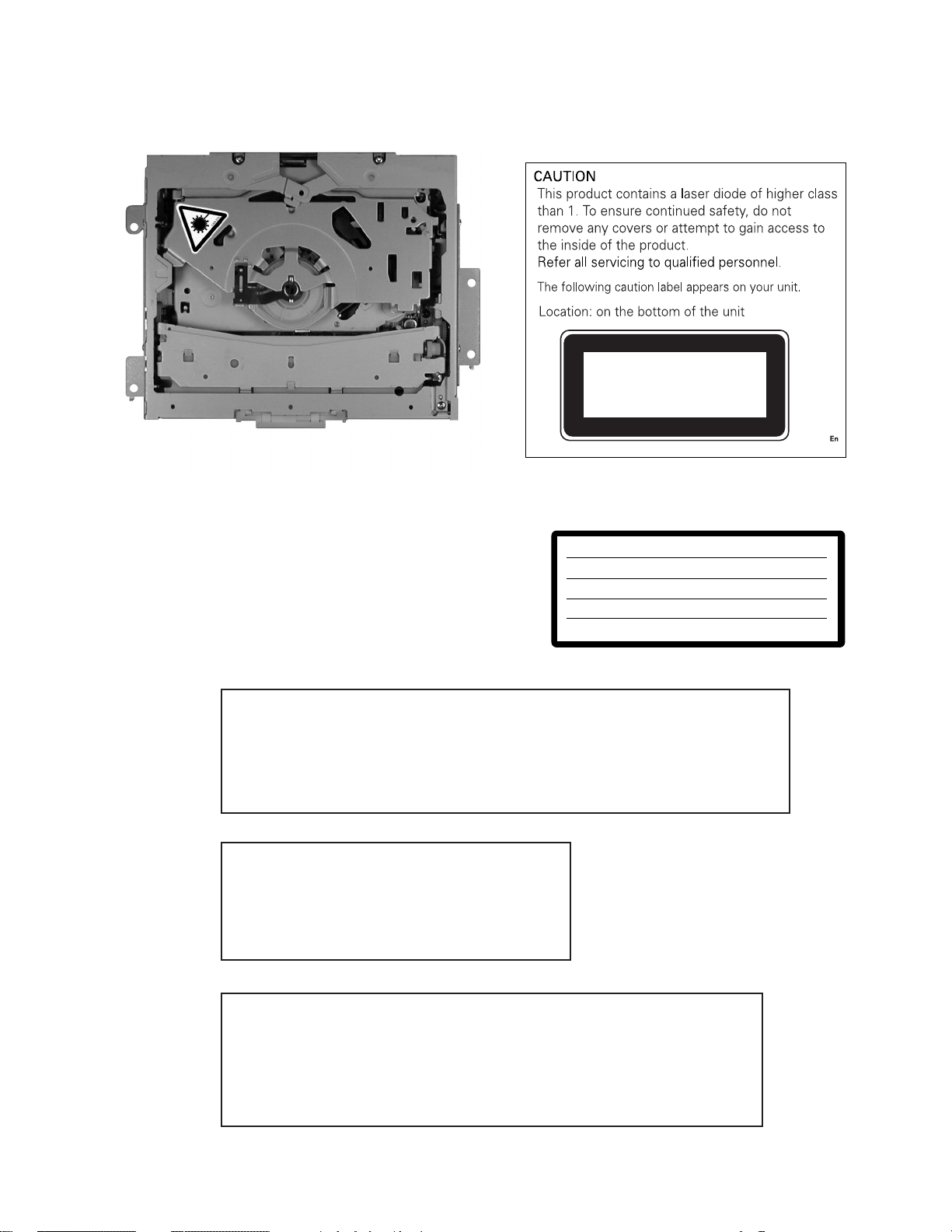

2. The triangular label is attached to the mechanism
unit frame.
On the bottom of the player.
CAUTION :
VORSICHT :
ADVARSEL :
VARNING :
VARO! :
VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
AVOID EXPOSURE TO BEAM.
SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG, WENN
ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETZEN!
SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING
UNDGÅ UDSÆTTELSE FOR STRÀLING.
SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA
DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN.
AVATTAESSA ALTISTUT NÄKYVÄ JA NÄKYMÄTTÖMÄLLE
LASERSATEIL YLLE. ÄLÄ KATSO SÄTEESEN. VRW1699
CLASS 1
LASER PRODUCT
WARNING!
The AEL (accessible emission level )of the laser power output is less than CLASS 1
but the laser component is capable of emitting radiation exceeding the limit for
CLASS 1.
A specially instructed person should do servicing operation of the apparatus.
Laser diode characteristics
Wave length:
DVD:640~660nm
CD:770~810nm
Maximum output:2.44mw(Emitting period :9sec.)
DVD:743mw(Emitting period : unlimited)
Additionla Laser Caution
Transistors Q1104 and Q1108 in PCB drive the laser diodes for DVD and CD
respectively. When Q1104 or Q1108 is shorted between their terminals,
the laser diodes for DVD or CD will radiate beam. If the top cover is removed
with no disc loaded while such short-circuit is continued, the naked eyes may
be exposed to the laser beam.

4
AVIC-8DVD
This warning is stated on the product or
in the operating instructions. When replac-
ing the lithium batteries, follow the note
below.
Dispose of the used battery promptly.
Keep away from children. Do not disas-
semble and do not dispose of in fire.
The battery used in this device may present
a fire or chemical hazard if mistreated. Do
not recharge, disassemble, heat above
100°C or incinerate. Replace only with the
same Part Number. Use of another battery
may present a risk of fire or explosion.
Note: The lithium battery installation po-
sition is shown in the exploded view
and the P.C. board pattern.
Denne advarsel or angivet på produktet
eller i brugsvejledningen. Ved udskiftning
af lithium batterierne følges nedenstående
anveisning.
Batterierne må kun udskiftes med batteri-
er af samme type og mærke.
Denna varning finns på apparaten eller i
bruksanvisningen. Följ nedanstående an-
visningar vid byte av litiumbatterier.
Batterierna får endast bytas ut mot litium-
batterier av samma typ och fabrikat.
VARNING
Explosionsfara vid felaktigt batteribyte.
Använd samma batterityp eller en ek-
vivalent typ som rekommenderas av ap-
parattillverkaren. Kassera använt batteri
enligt fabrikantens instruktion.
ADVARSEL!
Lithiumbatteri — Eksplosionsfare ved
fejlagtig håndtering. Udskiftning må kun
ske med batteri af samme fabrikat og
type. Levér det brugte batteri tilbage til
leverandøren.
WARNING!
Lithium batteries. Danger of explo-
sion. Replacement must be done by
qualified personnel and only by fol-
lowing the instructions given in the
service manual.

5
AVIC-8DVD

6
AVIC-8DVD
2. EXPLODED VIEWS AND PARTS LIST

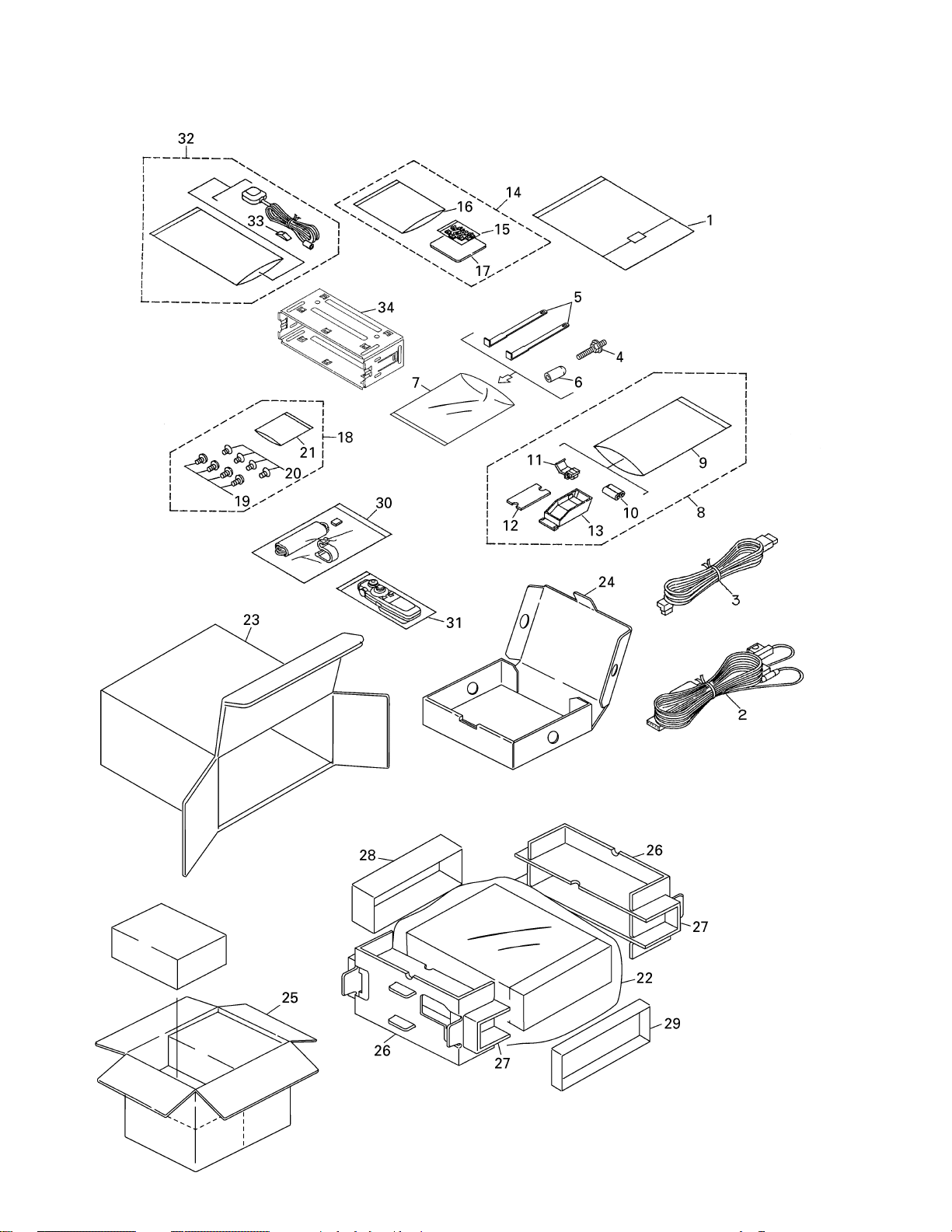

2.1 PACKING

7
AVIC-8DVD
1-1 Owner’s Manual CRD3461
1-2 Installation Manual CRD3456
1-3 Owner's Manual/PEE/ENG CRB1678
1-4 Owner's Manual/PEE/SPE CRB1679
1-5 Owner's Manual/PEE/GER CRB1680
1-6 Owner's Manual/PEE/FRE CRB1681
1-7 Owner's Manual/PEE/ITA CRB1682
1-8 Owner's Manual/PEE/DUT CRB1683
* 1-9 Warranty Card CRY1157
1-10 Passport CRY1013
* 1-11 Polyethylene Bag E36-634
2 Cord Assy CDE6678
3 Cord Assy CDE6659
4 Screw CBA1002
5 Handle CNC5395
6 Bush CNV3930
* 7 Polyethylene Bag E36-615
8 Accessory Assy CEA2536
9 Polyethylene Bag CEG1011
10 Battery CEX1021
11 Connector CKX1049
12 Sheet CNM6370
13 Holder CNS5606
14 Accessory Assy CEA2643
15 Cord Clamper Assy CEA2644
16 Polyethylene Bag CEG1161
17 Sheet CNM6902
18 Screw Assy CEA2896
19 Screw BMZ50P060FZK
20 Screw CMZ50P060FMC
* 21 Polyethylene Sheet CNM4338
22 Polyethylene Bag CEG-162
23 Carton CHG4390
24 Sub Carton CHG4392
25 Contain Box CHL4390
26 Protector CHP2383
27 Protector CHP2384
28 Protector CHP2386
29 Protector CHP2387
30 Microphone Assy CPM1048
31 Remote Control Assy CXB7427
32 GPS Antenna Assy CXB7600
33 Water Proof Pad CZN5352
34 Holder CNC8659
-PACKING SECTION PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
NOTE:
-Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.
-Screws adjacent to ∇mark on the product are used for disassembly.
Part No. Language
CRD3461 English, Spanish, German, French, Italian, Dutch
CRB1678 English
CRB1679 Spanish
CRB1680 German
CRB1681 French
CRB1682 Italian
CRB1683 Dutch
-Owner's Manual
Part No. Language
CRD3456 English, Spanish, German, French, Italian, Dutch
-Installation Manual

8
AVIC-8DVD

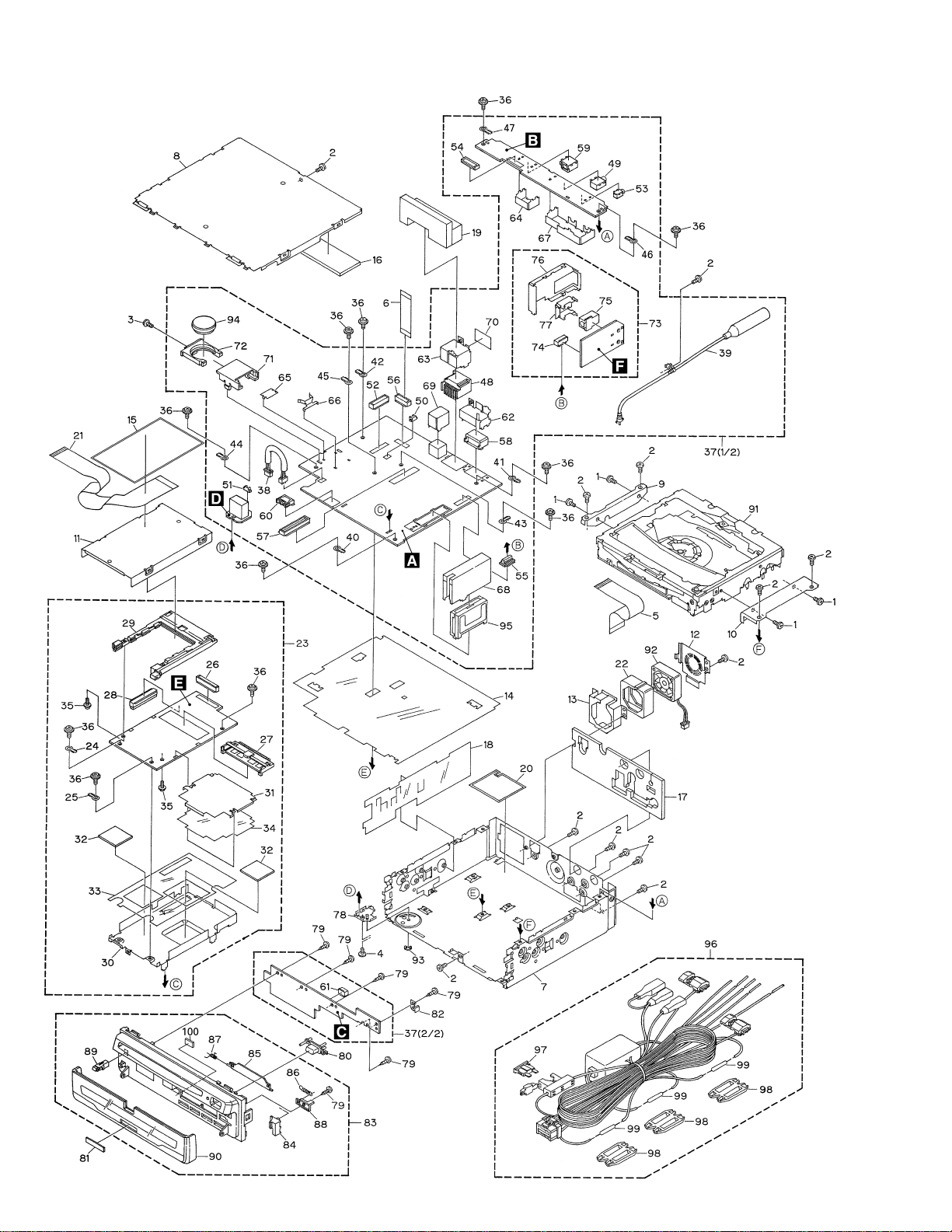

2.2 EXTERIOR

AVIC-8DVD
1 Screw BMZ20P025FMC
2 Screw BMZ26P040FMC
3 Screw(M2.6x4) CBA1013
4 Screw(M3x3) CBA1534
5 FFC CDE6529
6 FFC CDE6530
7 Chassis CNA2429
8 Case CNB2712
9 Bracket CNC9280
10 Bracket CNC9281
11 Shield CNC9643
12 Holder CNC9719
13 Holder CNC9720
14 Insulator CNM7186
15 Insulator CNM7597
16 Cushion CNM7442
17 Cushion CNM7459
18 Insulator CNM7460
19 Cushion CNM7461
20 Insulator CNM7506
21 PCB CNP6231
22 Cover CNV6912
23 CC Unit CWM7628
24 Terminal(CN99) CKF1064
25 Terminal(CN100) CKF1064
26 Connector(CN2) CKS3930
27 Connector(CN901) CKS4070
28 Connector(CN302) CKS4429
29 Connector CKS4434
30 Shield CNC9267
31 Shield CNC9485
32 Sheet CNM6903
33 Insulator CNM7456
34 Insulator CNM7532
35 Screw IMS20P060FCR
36 Screw IMS26P030FMC
37 Main Unit CWM7680
38 Cord Assy(CN555) CDE5955
39 Antenna Cable(CN551) CDH1304
40 Terminal(CN553) CKF1064
41 Terminal(CN554) CKF1064
42 Terminal(CN1803) CKF1064
43 Terminal(CN3258) CKF1064
44 Terminal(CN3259) CKF1064
45 Terminal(CN3903) CKF1064
46 Terminal(CN5006) CKF1064
47 Terminal(CN5007) CKF1064
48 Connector(CN1801) CKM1341
49 Jack(CN5005) CKN1035
50 Connector(CN1802) CKS3124
51 Connector(CN556) CKS3125
52 Connector(CN3251) CKS3751
53 Connector(CN5001) CKS3759
54 Connector(CN5004) CKS3991
55 Connector(CN552) CKS4065
56 Connector(CN3901) CKS4361
57 Connector(CN3254) CKS4430
58 Connector(CN3257) CKS4463
59 Connector(CN5002) CKS4473
60 Connector(CN660) CKS4518
61 Connector(CN2851) CKS4519
62 Holder CNC9270
63 Holder CNC9271
64 Holder CNC9272
65 Holder CNC9474
66 Holder CNC9475
67 Holder CNC9477
68 Shield CNC9533
69 Shield CNC9635
70 Insulator CNM7535
71 Holder CNV6763
72 Holder CNV6764
73 GPS Unit CWX2590
74 Connector(CN461) CKS4280
75 Connector(CN504) CKS4432
76 Shield CNC9191
77 Holder CNC9252
78 Holder Unit CXB7069
79 Screw BPZ20P050FMC
80 Button(EJECT) CAC7005
* 81 Badge CAH1754
82 Earth Plate CNC9476
83 Grille Unit CXB8289
84 Button(PC-CARD) CAC7105
85 Door CAT2285
86 Spring CBH2258
87 Spring CBH2499
88 Holder CNV6794
89 Latch Unit CXB3967
90 Door Unit CXB7569
91 DVD Mechanism Module(MS2)CXK6121
92 Fan Motor CXM1192
93 Washer YE20FUC
* 94 Battery CEX1068
95 Tuner Unit(FE551) CWE1622
96 Cord Assy CDE6678
97 Fuse(7.5A) CEK1135
98 Cap CNS1472
99 Resistor RS1/2PMF102J
100 Sheet CNM7595
-EXTERIOR SECTION PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
9

2.3 DVD MECHANISM MODULE
10
AVIC-8DVD
G

1 DVD Core Unit R CWX2576
2 Terminal(CN1703) CKF1065
3 Terminal(CN1705) CKF1065
4 Connector(CN1401) CKS4052
5 Connector(CN1100) CKS3749
6 Connector(CN1701) CKS4052
7 Connector(CN1700) CKS4374
8 Connector(CN1300) CKS4507
9 Screw(M2x3) CBA1486
10 Screw CBA1535
11 Screw(M2x2.2) CBA1547
12 Screw(M2x2.2) CBA1548
13 Screw(M1.4x2) CBA1549
14 Damper CNV6927
15 Washer CBF1038
16 Spring CBH2394
17 Spring CBH2395
18 Spring CBH2396
19 Spring CBH2397
20 Spring CBH2398
21 Spring CBH2399
22 Spring CBH2400
23 Spring CBH2401
24 Spring CBH2402
25 Spring CBH2403
26 Spring CBH2404
27 Spring CBH2405
28 Spring CBH2406
29 Spring CBH2407
30 Spring CBH2408
31 Spring CBH2410
32 Spring CBH2411
33 Spring CBH2413
34 Spring CBH2414
35 Spring CBL1499
36 Spring CBL1500
37 Sheet CNM7590
38 Pickup Unit(Service)(DP4)CXX1530
39 Shaft CLA3878
40 Shaft CLA3879
41 Shaft CLA3881
42 Lever CNC8988
43 Bracket CNC8992
44 Arm CNC8994
45 Sheet CNM6883
46 Sheet CNM6884
47 PCB CNP5971
48 Ball CNR1189
49 Guide CNV6352
50 Guide CNV6353
51 Guide CNV6354
52 Guide CNV6355
53 Guide CNV6356
54 Clamper CNV6357
55 Arm CNV6358
56 Gear CNV6361
57 Gear CNV6362
58-61 •••••
62 Rack CNV6367
63 Damper CNV6368
64 Arm CNV6369
65 Arm CNV6370
66 Gear CNV6372
67 Holder CNV6374
68 Rack CNV6376
69 Arm CNV6377
70 Arm CNV6378
71 Arm CNV6379
72 Gear Unit CXB5959
73 Holder CNV6383
74 Guide CNV6384
75 Holder CNV6385
76 Lever Unit CXB5943
77 Holder Unit CXB5944
* 78 Holder Unit CXB5947
79 Frame Unit CXB5948
80 Frame Unit CXB5949
81 Arm Unit CXB5950
82 Arm Unit CXB5951
83 Arm Unit CXB5952
84 Chassis Unit CXB5953
85 Arm Unit CXB5954
86 Motor Unit(CRG) CXB5955
87 Screw Unit CXB5957
88 Roller Unit CXB5958
89 Washer CBF1060
90 Spring CBH2170
91 Roller CNV6068
92 Holder CNV6210
93 Washer YE20FUC
94 Motor Unit(LOAD) CXB5960
95 Motor Unit(SPDL) CXB6218
96 Washer YE15FUC
97 Screw IMS20P030FMC
* 98 Shaft CLA3877
* 99 Gear CNV6359
* 100 Caller CNV6382
* 101 Arm Unit CXB5945
102 •••••
103 Washer CBF1087
104 Roller CNV6928
105 Shaft CLA4091
106 Shaft CLA4092
107,108 •••••
109 Screw (M2x3.5) CBA1560
110 Screw (M2x2.2) CBA1419
Mark No. Description Part No. Mark No. Description Part No.
-DVD MECHANISM MODULE SECTION PARTS LIST
11
AVIC-8DVD

12
AVIC-8DVD
1234
1234
D
C
B
A
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM
3.1 BLOCK DIAGRAM
1
19
1
19
1
19
1
19
IC 101
TC74LCX08FT 11
IC 112
TC7SH00FU 4
1
IC 114
TC7SH08FU
4
2
2
IRQPWR
R/w
cs^
CKE
84
96
105
CPU
IC 2
UPD705103GM-180
IC 102
TC7SH04FU
1
13 IC 4
TC7SZ08FU 4
IC 1
K4S281632C-TL1L
SDRAM
IC 3
M2V2840ATP-7L
SDRAM
3737
XCS_SRAM
SRAM_CSE
30
16
11
28
18
10
IC 803
TPS5102IDBT
Q803
Q805
CCONB
B.U
POWER AMP
SD3V
Q807
Q806
IC 802
LP3965ES-ADJ
2.5V REGULATOR
CCD2.5V
CCD3V
CC UNIT
CN2
11
44
193
X2X1
56 57
X1
30.000MHz
24
24
Q804
CCD5V
1
13
47
78
PORT80/TI
GCN1401
E

13
AVIC-8DVD
5678
5678
D
C
B
A
1
IC 908
TC74VHC541AFT
IC 904
TC74VHCT541AFT
Q301
A
PC-CARD_I/F
9
XMS2RS
K0RST 9
12
4
2IC 309
TC7SH08FU
7
2IC 302
TC7WH08FU
62 IC 301
M51957BFP
CN302
CN3254
IC 304
PCM1725U
DAC
2
81
IC 305
PCM1801U
ADC
CN901
55
IC 901
TC74VHCT541AFT
IC 902
TC74VHCT541AFT
IC 903
TC74VHCT541AFT
IC 905
TC74LVX4245FS
IC 906
TC74LVX4245FS
2
2
2
SCARLET
IC 201
MB86291PFVS-G-DL
129 S
128
124
202 207
OSCOUT
CLK
X202
14.31818
MHz
Q201
CCD3V
SWDPC5CARD
Q901
CCD5V
Q903
CCD3V Q902
IC 103
TC74LCX245FT
IC 104
TC74LCX245FT
IC 105
TC74LCX245FT IC 113
M5M5V216ATP-70HI
IC 111
PD6350C
IC 110
PD6349C
IC 106
TC74LCX245FT
IC 107
TC74VHC541FT
IC 108
TC74VHC541FT
IC 109
TC74VHC541FT
1
19
1
19
1
19
1
19
BUS BUFFER
BUS BUFFER
BUS BUFFER
FLASHROM
FLASHROM
SRAM
BUS BUFFER
BUS BUFFER
BUS BUFFER
BUS BUFFER
CCD3V
SOURCEON
CPUWDT
IRQPWR
CTOSYS
REM_IN
PBSNS
ANTON
GUIDEON
VIDEOSW
CHGON
HYOKA0
MONION
ADC_GCNT0
ADC_GCNT1
CTOGPS
DACOUTL
ADC_GCNT2
GPSTOC
10
14
16
17
19
21
22
23
4
24
36
44
52
53
28
49
54
29
43
46
17
18
51
52
FSC
OVER
ONSEIMIC
FSC OVER
EXTAL0 XTAL0
16 18
X2
33.000MHz
EXTAL1 XTAL1
58 60
X3
33.8688MHz
ASIC
IC 5
PD6336B
(1/2)
CCD3V
X4
48.000MHz
ADC_GCNT2
ADC_GCNT1
ADC_GCNT0
CPUWDT
ILM
PBSNS
ANTON
GUIDEON
MONION
CTOSYS
VIDEOSW
LPFSW
REM_IN
SOURCEON
CTOGPS
GPSTOC
USB_CLK
65
142
143
127
148
126
125
124
45
27
82
50
14
96
29
30
10
11
44
XCS_SRAM
SRAM_CSE
193 PC_XPWR
6
63
3
CCONB
511
CCON
5
129
ONSEIMUTE 68
ONSEIMUTE
59
20
ILM
46
ILM
IC 907
TC74LVX4245FS
25
PCLED
CDSW 26
CDSW
47
ASIC
IC 5
PD6336B
(2/2)
DAC_DATA
ADC_DATA
2
60
ADNOISE
AOUTR
AOUTG
AOUTB
152
147
143
38
39
40
OUTRED
OUTGREEN
OUTBLUE
96
CDDATA
CD_DATA 52
TH153
CCX1056 5
PALMCTS
THERMISTOR

14
AVIC-8DVD
1234
1234
D
C
B
A

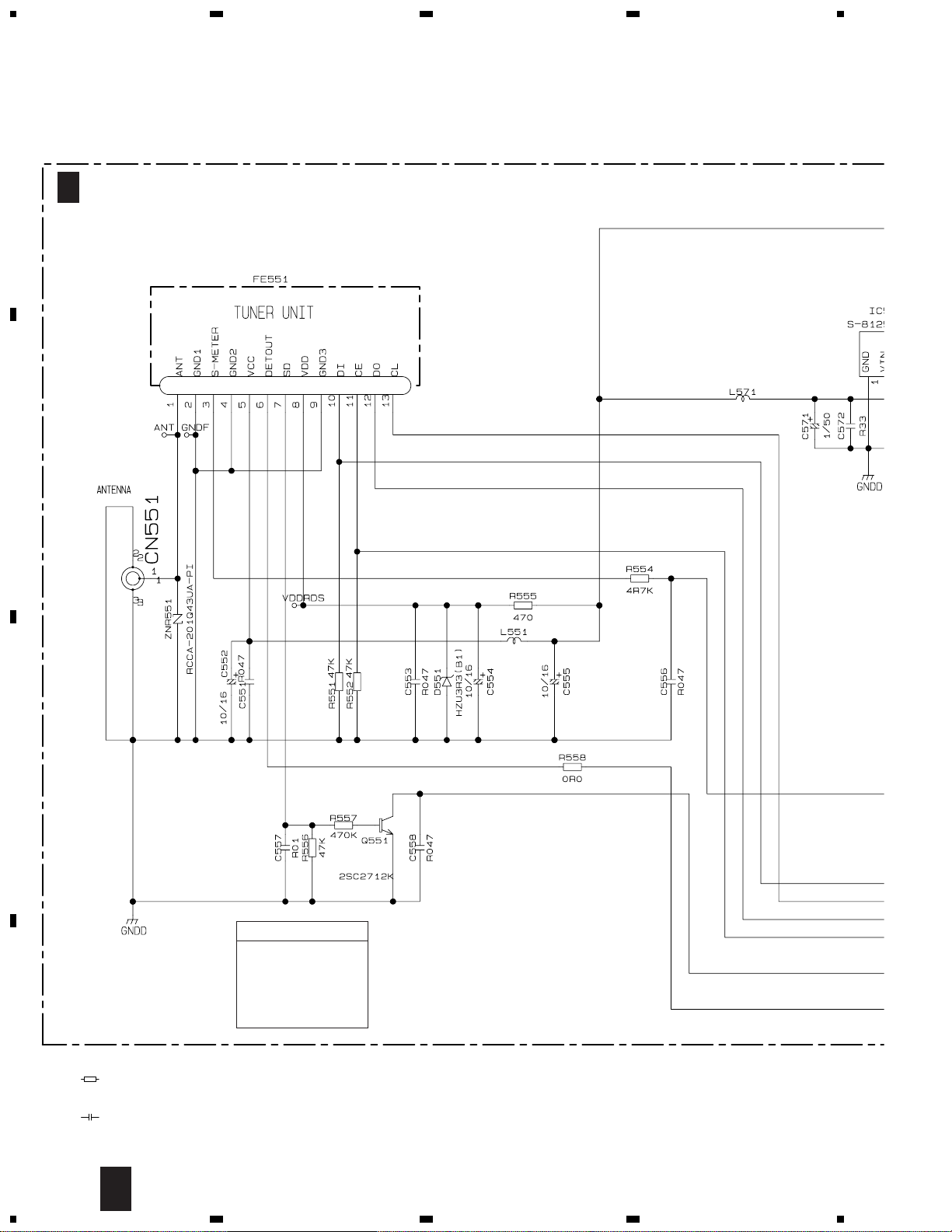

TUNER UNIT
12
IC 3001
TC7S66F
10
CN556
CN3254
CN302
E
RDS
ANT.
CN552
22
CN555
3 3
21
SL
SD
CTOGPS
SPEED
REVSNS
RQ
16
13
GYRO OUT 11
3
GSNS 12
3
20
GPSTOC 19
POUT 15
G-SENSOR
MODON
28
29
CN3254
CTOGPS
GPSTOC
FSC
MONION
43
44
38
39
40
46
AOUTRED
AOUTGREEN
AOUTBLUE
OVER
20
21
23
ILM
PBSNS
GUIDEON
22 ANTON
1,2 IC 602
TC7SET08FU
3→5V REG.
1,2 4
IC 3004
TC7SZ08FU
24
IC 3002
TC7SET08F
15
IC 665
NJM2904M
SPEED SENSOR
76
IC 631
S-8423AFS
BU3V(SRAM)
6
10
23
22
21
234
IC 3005
CXA1645M
4IC 604
TC7SH08FU
5→3V REG.
1,2 IC 603
TC7SET08FU
3→5V REG.
4IC 605
TC7SH08FU
BUFFER
4
17 CTOSYS
16 IRQPWR
14 CPUWDT
1,2 IC 612
TC7SET08FU
3→5V REG.
1,2 IC 613
TC7SET08FU
3→5V REG.
19 REM_IN
26 CDSW
25 PCLED
RQ
Q3001
CN3251
MAIN PCB
BUP3V
23
IC 571
S-81250SGUP AD5V
AD5V
SD S-METER
AU8V
Q551
8VDD
73
ROUT
GOUT
BOUT
GY 572
CSX1046
31
GYRO SENSOR
GY 573
CSX1042
G-SENSOR PCB
1
2
CN551
Q3857
Q3858
Q3859
AU8V
Q3856 Q3855 Q3854
12
76
IC 3851
NJM3404AM
AUDIO LPF GAIN CONTROL (0dB to -13dB)
Q3853 Q3852 Q3851
PROGGAIN2
PROGGAIN1
PROGGAIN0
ADNOISE
ADONSEI
59
60
54
53
52
LPFSW
24 ONSEIMUTE
68
HYOKA
36 CCON
11
VIDEOOUT
28
VIDEOSW
4
Audio Rchout
12
XAMUTE
22
TMODE
20 DISC SET
24
EJSNS
21
Audio Lchout
15
7
IC 3951
NJM4558M 51
IC 3953
NJM4558M
DACOUT LPF
17
2
IC 3006
NJM2246M 37
IC 3007
NJM2244M
75ΩDRIVER
IC 3752
TC74HC4053AFT
VOICE CON /
TEL SW. LPF SW.
2
15
4
13
12
11
11
4
214 IC 3902 (1/2)
NJM3414AM
GUIDE AMP
761
IC 3601 (1/2)
NJM3404M
MIC AMP
13
IC 3601 (2/2)
NJM3404M
MIC HPF
IC 3952
TC7S66FU
GUIDE MUTE SW
VOL CONT.
Q3901
Q3905
Q3907
VDD5V
VDD5
Q669
Q673
C
CN302
E
31
IC 3602
NJM2904M
1/2VCC (AU2.5)
AU25
CCD5
57
IC 3902 (2/2)
NJM3414AM
AU5V
AU5V
AU8V
A
PALMCTS
5
35 IC 609
TC7SH04FU
IC 608
TC7W32FU
1,2
4
IC 3753
TC7SET08FU
DACOUTL
49 3
12 K0RST
XRST
9
XRESET
16
CN1701
G
CN461
CN504
22
21
SL
SD
CTOGPS
SPEED
REVSNS
RQ
8
28
9
133
132
16
13
3
20
DETIN
2
14
1
6
1
7
1
4
17
19
22 110
130
131
120
140
143
5
2
X401
IC 502
PD6361B
FLASH ROM
IC 532
LC72720YVS
RDS DECODER
IC 503
M5M5V216ATP-70HI
DRAM
CRCK
PIN0
PIN1
BOWWOWB
RESETB
IF
Q441
IC 461
ADC12034CIMSA
RXD0
GPSTOC 7
19 TXD0
PLIO2
SPEED
PSWOUT 17
15 ADIO2
PIN2
PIN3
IC 401
UPC2749T F401 CTF1548
IC 402
UPB1006GS
IC 441
NJM2100V
IC 501
PD3390A
DRAGON
RESET
IC 504
MAX6364PUT29
BUP3V
128
129 X502
20.00MHz
X532
15
16
16.368MHz
XAUXIN
XAUXOUT
102
103 X501
32.768kHz
XRTCIN
XRTCOUT
4.332MHz
3
2
12
11 GSNSIN
GYROIN
GPS UNIT
GPS
ANTENNA
A F
D
CDDATA
96
AOUT0
37
3V BATTERY
VIDEO SELECTOR
20
1
125→3V REG.
3

15
AVIC-8DVD
5678
5678
D
C
B
A
61
IC 662
TPD1018F
ANT DRIVER
B.U
SYSTEM
CONTROLLER
IC 601
PE5228A
4FROMCC 863
62
IC 602
TC7SET08FU
31 IC 1951
M5237ML
3→5V REG.
11
5
210
12
47
IC 661
PAJ002A
18
19
17
IC 1850
TPS5103IDB
KEY
MATRIX
RESET
BUFF
RGB SENSE
2
35 6
IC 610
TC7W126FU
42
10
10
IC 606
TC7S14FU
1,2 4
IC 607
TC7SET08FU
1,2
IC 604
TC7SH08FU
5→3V REG.
4
IC 603
TC7SET08FU
3→5V REG.
1,2
IC 605
TC7SH08FU
BUFFER
2
IRQPOW
32
CPUWDT
53
REMIN
61
CCON
X2
X1
31
TVON 41
RGBMUTE 27
4
IC 612
TC7SET08FU
3→5V REG.
4
IC 613
TC7SET08FU
3→5V REG.
TESTMODE
50
DISC
65
Q636
VDD5V
DVD6V
DVD8V
Q661
asens
bsens
60
reset
5
12
11
VOL
TOEX
FROMEX
BUP
VSW5V
Q635
VDD5V
Q1852
BUP
18
19
17
IC 1851
TPS5103IDB
Q1853
BUP A
Q1803
B.U
Q1804 FAN MOTOR
2
11
10
ILM
PKB
GUIDE ON
REV
SOUND ON
ACC
PULSE
13
9
4
14
ANT ON 12
BUP 15
MONI ON
BEACON
3
1
CN660
CN1801
CN1802
2
1
CN3257
CORD ASSY
MONON 22
HRXN
HTXN 24
25
GUIDEON 21
REM-IN 18
TVON 20
YS
RED
GREEN
BLUE
CSYNC
8
1
2
3
4
CDSW 2
GLED 6
RLED
CDSW
GLED
RLED
KRST
EJT
5
KRST 4
EJECT 3
CN2851
5
1
2
3
4
GUIDE+
GUIDE- 13
14
Lch 10
DVDVBS 6
Rch 11
GRILLE PCB
INTERFACE PCB
BUP AU8V
Q1953
Q1952Q1951
GND
+BATTERY
PARKING BRAKE
+
MUTE
CAR SPEED
SIGNAL INPUT
ILL
REVERSE-GEAR
SIGNAL INPUT
ACC
EJECT SW
RESET SW
CARD SW
Q2851
Q2852
CN5004CN3901
MIC
SPEAKER
EXTENSION
CN5001
CN5002
CN5005
18
19
17
16
GUIDE-
GUIRTN+
GUIRTN-
GUIDE+
30 MICIN
MICIN
EXSP+
EXSP-
RETSP+
RETSP-
HYOKA
VCE
VCE
4HYOKA
GUIRTN-
GUIRTN+
GUIDE-
HYOKA
VCUE
GUIDE+
IC 5001
UPD4723GS
RS232C DRIVER
SP POWER AMP
9
6
7VCUE
8
13
12
14
15
1
27
24
23 VCUE
B
Q1841
Q1842
Q667
ILM SENSE
PARKING
SENSE
REVERSE
SENSE
Q665
Q668
Q664
Q671
61
IC 663
TPD1018F
MOTOR DRIVER
Q672
Q670
Q1805
Q1806
AU8V
B.U
B.U
GPSBU
2
34
5
8
7
IC 3926
TDA7052A
IC 3927
NJM2904M
C
Q662
B.U
70
69
X601
12.58MHz
D
DQ3151
B
61
IC 3901
NJM2068MD
AUDIO Lch LPF+AMP
Q3903
61
IC 3903
NJM2068MD
AUDIO Rch LPF+AMP
Q3902
Q3904
VDD5V
Q3906
ACCPW 24
Q675
61Q1802
IC 1801
NJM2903V
IC 609
TC7SH04FU
Q5001
29
RSTOUT
B
C
5→3V REG.

16
AVIC-8DVD
1234
1234
D
C
B
A
30
37
26 21
28 27
6 7 8
DVD CORE UNIT R
Q1104 Q1108
Q1105
Q1107
Q1102
65LD 78LD
241 4
VSHF
Q1109
LCDSG1
Q1110
LCDSG2
Q1111
LCDSG3
CN1100 CN1300
LPC01 RFENV LPC02
57
IC 1101
NJM2904M
IC 1704
TC7SH08FU
IC 1701
M5M5V216ATP-70HI
IC 702
PD6378A
FEP
IC 1100
AN8702FH
ODC
IC 1400
MNZS25BDAUB
ADSC
IC 1200
MN677061ZYUB
59 100 101
XWR
CPU
IC 1700
PE5277A
62 63 78 105
X1700
5MHz
X2ENV
DISCDET
94 23 36 33
117
6
17
1 2
4
11
116 74 107 88
243
1 4
2 2
1 1
4
2
97
71 83 79
96
CD/DVD
X2 X1
XWR
59
XRESET
AMUTE
XCSSRAM
EJSNS
VCONTA
VCONTB
XUWR
TILT1 TILT2 TILT3 AVREF ADENA DSCSNS
Q1700
S1301
S1303 S1304 S1302
IC 1703
TC7SH04FU IC 1705
TC7SH32FU
SRAM
FLASH MEMORY
IC 1802
BA033SFP
IC 1801
BA05SFP
VD5
IC 1300
BA5985FM
CN1401
CN1701
CN1700
DISCDET
EJSNS
22
AMUTE
AOUT0
33
16
XRESET
EMPH
X1500
33MHz
A,B1-4,C,RF+,RF-
M
SPINDLE
MOTOR
M
CARRIGE
MOTOR
M
LOADING
MOTOR
FOP,FOM,TOP,TOM
EC,CONT
COP,COM
DRIVER BLOCK
9
LOM 10
LOP
GBAL,
TBAL,
FBAL
66
CLAMP SW
12cm detect SW
8cm detect SW
L/E ON/OFF SW
A0-17,D0-15
114
EMPH
IC 1804
BA00BC0WFP
CTS,DTR,RXPC,TXPC,VPP,SICOMN,SOCOMN,SCKCOMN
VCC33
4
VCC27
4
PICKUP UNIT (SERVICE) (DP4)
VD63 VCC5
20
TMODE
TMODE 25
A
E
G
CN3251
CN2

17
AVIC-8DVD

18
AVIC-8DVD
1234
1234
D
C
B
A
3.2 OVERALL CONNECTION DIAGRAM
Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS
LIST”.
MAIN ASSY CPN1745
DVD MECHANISM MODULE
(MS2)
MAIN UNIT
CC UNIT GRILLE ASSY
A
1/5
A
2/5
A
3/5
A
4/5
A
5/5
MAIN PCB(RDS/GPS)
MAIN PCB(SYSCOM)
MAIN PCB(P/S)
MAIN PCB(VIDEO•CC CORE I/F)
MAIN PCB(AUDIO)
E
1/6
E
2/6
E
3/6
E
4/6
E
5/6
CC UNIT(CPU,ASIC,SDRAM)
CC UNIT(ROM,SRAM,BUS-BUFFER)
CC UNIT(GRAPHIC)
CC UNIT(PC CARD)
CC UNIT(DSP,I/F CONNECOR)
CC UNIT(CC POWER SUPPLY)
E
6/6
CGRILLE PCB
BINTERFA
D
G-SENSOR PCB
G
1/2
G
2/2
DVD CORE UNIT R(FRONT END)
DVD CORE UNIT R(BACK END)

19
AVIC-8DVD
5678
5678
D
C
B
A
TUNER UNIT
)
)
C CORE I/F)
NTERFACE PCB
FGPS UNIT

20
AVIC-8DVD
1234
1234
D
C
B
A
A
MAIN PCB(RDS/GPS)
1/5
5V Re
Decimal points for resistor
and capacitor fixed values
are expressed as :
2.2 2R2
0.022 R022
←
←
The >mark found on some component parts indicates
the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of
identical designation.
Symbol indicates a resistor.
No differentiation is made between chip resistors and
discrete resistors.
NOTE :
Symbol indicates a capacitor.
No differentiation is made between chip capacitors and
discrete capacitors.
MAIN UNIT
Consists of
MAIN PCB
INTERFACE PCB
GRILLE PCB
G-SENSOR PCB
3.3 MAIN PCB 1/5 (RDS/GPS)
A1/5
