Pioneer HTV-2 User manual

ORDER NO.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880
PIONEER ELECTRONIC CORPORATION 1998
RRV1977
HOMETHEATER SYSTEM
HTV-2
T – ZZE JUNE 1998 Printed in Japan
Remarks
KUXC type
Service
Manual
Component
POWERED SUBWOOFER HTV-SW2/KUCXC
HTV-2
KCXC type
CONTROL CENTER
AMPLIFIER
HTV-SW2/KUCXC
HTV-A2/KUCXJ HTV-A2/KUCXJ
HTV-C2/AUXJ HTV-C2/ACXJ RRV1978
RRV1970
RRV1979
Model
The HTV-2 is a combination of the components in the Table below.
For details regarding each component, refer to the Service Manuals below.

HTV-2
2
EXPLODED VIEWS AND PARTS LIST
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to mark on product are used for disassembly.
NOTES:
Mark No. Description Part No.
1 Corner Pad Assy BTM 261136
(SHA2105)
2 Corner Pad Assy TOP 261141
(SHA2106)
3 Card Board (SHB1069) 257845
4 Packing Case See Contrast table (2)
5 Poly. Bag (SHL1186) 235305
NSP 6 Coaded Label (SRM1069) 244126
(1) PACKING PARTS LIST
7PACKING
(2) CONTRAST TABLE
HTV-2/KUXC and HTV-2/KCXC are constructed the same except for the following:
2 (2/2)
1 (2/2)
1 (1/2)
2 (1/2)
35
HTV-SW2
HTV-C2
4
6
Mark KUXC type KCXC type
4 Packing Case (SHG2066) 254975 Not used
4 Packing Case (SHG2081) Not used 257870
Part No. Remarks
Symbol and Description
No.

ORDER NO.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V . Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 23880
CC
CC
C PIONEER ELECTRONIC CORPORATION 1998
CONTROL CENTER
RRV1978
HTV-C2
T–ZZY JUNE 1998 Printed in Japan
Refer to the service manual RRV1960 for HTV-C1/AUXJ.
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
RemarksPower Requirement
Type Model
HTV-C2
AUXJ O AC26V power supplied from other system component
ACXJ O AC26V power supplied from other system component
•This product is a system component.
For the system composition, refer to the service manual RRV1979 for HTV-A2/KUCXJ.
•This product does not operate normally by itself. Please connect it to the AMPLIFIER HTV-A2/
KUCXJ, for adjustment and operation inspection. Otherwise damage may result.
Hometheater System Control Center
HTV-2 (This manual)
(service manual RRV1977) Powered Subwoofer
HTV-SW2 (service manual RRV1970)
Amplifier
HTV-A2 (service manual RRV1979)

HTV-C2
2
1. CONTRAST OF MISCELLANEOUS PARTS
NOTES : ÷Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List.
÷The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing,be sure to use parts of identical designation.
÷Reference Nos. indicate the pages and Nos. in the service manual for the base model.
÷Screw adjacent to ∞mark on the product are used for disassembly.
÷When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by
J = 5%, and K = 10%).
560 Ω=56 ×101 =561................................................... RD1/4PU 561J
47k Ω=47 ×10 3=473 .................................................. RD1/4PU 473J
0.5 Ω=R50 ...................................................................... RN2H Â50K
1 Ω=1R0 ......................................................................... RS1P 1Â0K
Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors).
5.62k Ω=562 ×10 1=5621 ........................................... RN1/4PC 5621F
Part No. Remarks
AUXJ AUXJ ACXJ
Ref.
No. Mark Symbol and Description
PACKING
P3-8 Operating Instructions (French) Not used Not used ARC7200
P3-10 NSP Warranty Card ARY1051 ARY1051 ARY1075
P3-11 Remote Control Unit (CU-HTV001) AZN7713 Not used Not used
P3-12 NSP Remoto Control Unit (CU-HTV001) AXD7157 Not used Not used
P3-12 NSP Remoto Control Unit (CU-HTV002) Not used AXD7160 AXD7160
P3-13 Battery Cover RZN1156 AZN2256 AZN2256
P3-15 NSP Dry Cell battery (R6P, AA) VEM-013 Not used Not used
P3-15 NSP Alkali Ne Battery (LR03, AAA) Not used AEX1006 AEX1006
P3-21 Packing Case AHD7574 AHD7590 AHD7590
EXTERIOR
P5-8 Rear Panel ANC7655 ANC7661 ANC7661
HTV-C1 HTV-C2
CONTRAST TABLE
HTV-C2/AUXJ, ACXJ and HTV-C1/AUXJ are constructed the same except for the following :

HTV-C1
CONTROL CENTER
ORDER NO.
RRV1960
T - IZY MAY 1998 Printed in Japan
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880
PIONEER ELECTRONIC CORPORATION 1998
c
1. SAFETY INFORMATION ...................................... 2
2. EXPLODED VIEWS AND PARTS LIST................ 3

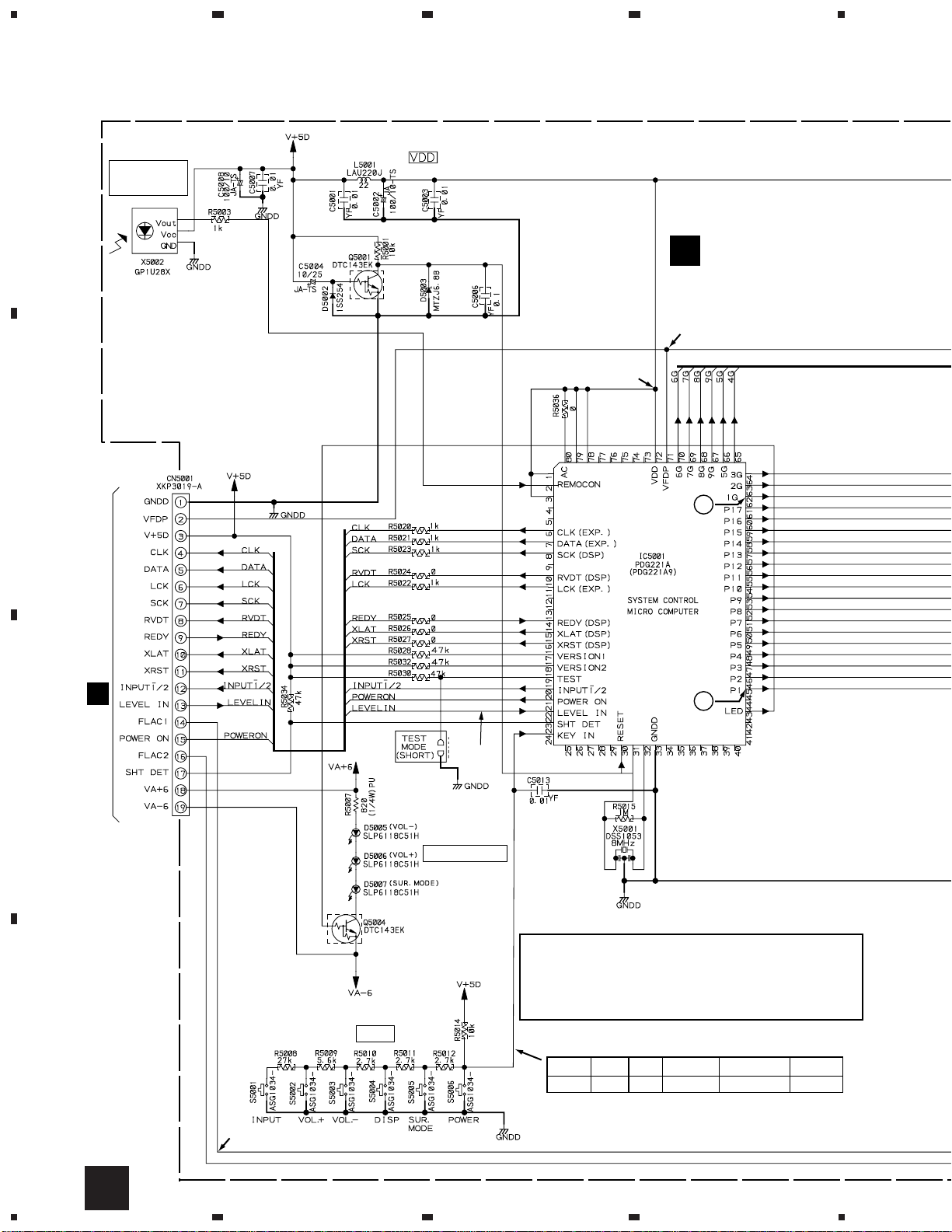

3. SCHEMATIC DIAGRAM ....................................... 6
4. PCB CONNECTION DIAGRAM.......................... 12
5. PCB PARTS LIST ............................................... 16
6. ADJUSTMENT .................................................... 17
CONTENTS
7. GENERAL INFORMATION ................................ 18
7.1 PARTS .......................................................... 18
7.1.1 IC ........................................................... 18
7.1.2 DISPLAY................................................ 19
7.2 TEST MODE................................................. 20
7.3 BLOCK DIAGRAM........................................ 21
8. PANEL FACILITIES AND SPECIFICATIONS.... 23
Type Model Power Requirement Remarks
HTV-C1
AUXJ AC26V power supplied from other system component
ACXJ AC26V power supplied from other system component
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
•This product is a system component.
For the system composition, refer to the service manual RRV1957 for HTV-A1/KUCXJ.
•This product does not operate normally by itself. Please connect it to the AMPLIFIER HTV-A1/
KUCXJ, for adjustment and operation inspection. Otherwise damage may result.
Hometheater System Control Center
HTV-1 (This manual)
(service manual RRV1968) Powered Subwoofer
HTV-SW1 (service manual RRV1969)
Amplifier
HTV-A1 (service manual RRV1957)
SURROUNDMODE
STANDBY/ON
DISPLAY INPUT
VOLUME

2
HTV-C1
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians ; it is not meant for the casual do-it-
yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained
to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
Lead in solder used in this product is listed by the California Health and Welfare agency as a known reproductive toxicant which may
cause birth defects or other reproductive harm (California Health & Safety Code, Section 25249.5).
When servicing or handling circuit boards and other components which contain lead in solder, avoid unprotected skin contact with
the solder. Also, when soldering do not inhale any smoke or fumes produced.
NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must
be of identical designation.
REMARQUE
(POUR MODÈLE CANADIEN SEULEMENT)
Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces
de remplacement doivent avoir la même désignation.
ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL
SHOCK HAZARD AND MUST BE CORRECTED BEFORE
RETURNING THE APPLIANCE TO THE CUSTOMER.
2. PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are
often not evident from visual inspection nor the protection
afforded by them necessarily can be obtained by using
replacement components rated for voltage, wattage, etc.
Replacement parts which have these special safety
characteristics are identified in this Service Manual.
Electrical components having such features are identified
by marking with a on the schematics and on the parts list
in this Service Manual.
The use of a substitute replacement component which does
not have the same safety characteristics as the PIONEER
recommended replacement one, shown in the parts list in
this Service Manual, may create shock, fire, or other hazards.
Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current PIONEER Service
Manual. A subscription to, or additional copies of, PIONEER
Service Manual may be obtained at a nominal charge from
PIONEER.
1. SAFETY PRECAUTIONS
The following check should be performed for the
continued protection of the customer and service
technician.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground (water
pipe, conduit, etc.) by connecting a leakage current tester
such as Simpson Model 229-2 or equivalent between the
earth ground and all exposed metal parts of the appliance
(input/output terminals, screwheads, metal overlays, control
shaft, etc.). Plug the AC line cord of the appliance directly
into a 120V AC 60Hz outlet and turn the AC power switch
on. Any current measured must not exceed 0.5mA.
(FOR USA MODEL ONLY)
Leakage
current
tester
Reading should
not be above
0.5mA
Device
under
test
Test all
exposed metal
surfaces
Also test with
plug reversed
(Using AC adapter
plug as required)
Earth
ground
AC Leakage Test

3
HTV-C1
2.1 PACKING
1 System Cable A (L=3.0m) ADX7239
2 System Cable B (L=3.0m) ADE7023
NSP 3 MOUNT Kit AEA7021
4 Bolt Cap AEB7111
5 Velcro Tape (hook) AED7028
6 Velcro Tape (loop) AED7029
7 Operating Instructions ARB7147
(English)
8 Operating Instructions See Contrast table (2)
(French)
9 Quick Instructions Guide ARH7036
NSP 10 Warranty Card See Contrast table (2)
11 Remote Control Unit AZN7713
(CU-HTV001)
NSP 12 Remote Control Unit AXD7157
(CU-HTV001)
(1) PACKING PARTS LIST
Mark No. Description Part No.
2. EXPLODED VIEWS AND PARTS LIST
NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
•The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
•Screws adjacent to mark on the product are used for disassembly.
18
22
19
21
17
10
9
7
8
1
15 4
411
13
12
20
5
6
16 214
23 2426
27 3
25
17
ACXJ type
only
Mark No. Description Part No.
13 Battery Cover RZN1156
14 Audio Cord (L=1.5m) VDE1033
NSP 15 Dry Cell Battery (R6P,AA) VEM-013
NSP 16 Polyethylene Bag Z21-033
17 Polyethylene Bag Z21-038
(0.03 ×230 ×340)
18 L Protector AHA7209
19 R Protector AHA7210
20 Paper Protector AHA7217
21 Packing Case AHD7574
22 Packing Sheet AHG7053
23 Bolt (L) ABA7042
24 Bolt (S) ABA7041
25 Nut NA60FZK
26 Wing Nut NR60FZK
27 Washer WB60FZK
(2) CONTRAST TABLE
Mark No. Symbol and Description Part No. Remarks
AUXJ Type ACXJ Type
8 Operating Instructions (French) Not used ARC7200
NSP 10 Warranty Card ARY1051 ARY1075

4
HTV-C1
A
A
A
Note :
Grille Assy is adhered with the woodworking bond to the Rear Case.
Put a square-bar screwdriver and so on in the two gaps under the
Grille, and pry it opens when it is removed.
(BOTTOM VIEW)
Gap Gap
22
22
2
4
13
22
22
3
7
16
22
1
16
22
14
24
6
17
24
24
6
24
15
19
5
20
22 23
22
22
23
23
21
8
9
11
10
12
10
12
18
11
2.2 MAIN SECTION

5
HTV-C1
1 DISPLAY Assy AWU7070
2 MAIN Assy AWU7071
3 TERMINAL Assy AWU7072
4 19P FFC/30V ADD7092
5 Cable Assy 4P ADX7240
6 Speaker D87DU61-51F
NSP 7 PCB Bracket ANA7068
8 Rear Panel ANC7655
NSP 9 Shield Cover ANK7040
10 Cushion 3 AEB7110
NSP 11 Baffle AMD7004
NSP 12 Acoustic Absorbent AMT7001
13 Card Spacer DNK2769
14 Button AAD7454
15 Display Panel AAK7550
•MAIN SECTION PARTS LIST
Mark No. Description Part No.
•The attention points when remove the MAIN Assy from the chassis and diagnose it
It doesn't move when Earth Plates KN501 and KN4001 aren't connected.
When you remove the MAIN Assy from the chassis and diagnose it, short-circuit Earth Plate KN501 and KN4001 and diagnose it.
FRONT
CN501
CN3001
CN503
KN4001
KN501
T2
Short-circuit Earth Plate KN501 and KN4001
MAIN ASSY
A
SIDE A
Mark No. Description Part No.
16 Lens AAK7551
17 Grille Assy AAS7001
NSP 18 Rear Case AMC7025
19 Sub Panel AMD7003
NSP 20 Fuse Caution Label AAX7645
NSP 21 Founding Caution AAX7649
22 Screw BBZ30P080FMC
23 Screw VPZ30P080FMC
24 Screw BPZ40P140FZK
NOTE :

HTV-C1
6
A
B
C
D
1234
1234
CDISPLAY ASSY
(AWU7070)
3. SCHEMATIC DIAGRAM
3.1 OVERALL WIRING DIAGRAM

HTV-C1
7
A
B
C
D
5678
5678
AMAIN ASSY
(AWU7071)
B
TERMINAL ASSY
(AWU7072)
CONDITION SURROUND MODE
No. Pin Name OFF VD ST WIDE
10 D5V 4.9 4.9 4.9
16 XRST 5.0 5.0 5.0
18 CSL1 4.9 4.9 4.9
22 RDAV 5.0 5.0 5.0
23 ROUT 2.5 2.9 2.9
24 RADV 5.0 5.0 5.0
26 RINOP 2.4 2.4 2.4
27 RIN 2.4 2.4 2.4
28 CDAV 5.0 5.0 5.0
31 CLKV 5.0 5.0 5.0
32 XTLO 2.5 2.5 2.5
33 XTLI 2.5 2.5 2.5
37 SDAV 5.0 5.0 5.0
38 LIN 2.4 2.4 2.4
39 LINOP 2.4 2.4 2.4
41 LADV 5.0 5.0 5.0
42 LOUT 2.5 2.9 2.9
43 LDAV 5.0 5.0 5.0
46 SCK 5.0 5.0 5.0
47 READY 4.9 4.9 4.9
49 XLAT 5.0 5.0 5.0
50 RVDT 5.0 5.0 0.0
51 XS24 4.9 4.9 4.9
52 D5V 4.9 4.9 4.9
73 D5V 4.9 4.9 4.9
Voltages of MAIN Assy
IC3001 (CXD2724Q) (V) FROM AMPLIFIER
(HTV-A1)
JACB ASSY
CN1003
TO AMPLIFIER
(HTV-A1)
JACB ASSY
JA4501
Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST".

HTV-C1
8
A
B
C
D
1234
1234
INPUT SELECT
INPUT LENEL DETECTOR
DOLBY VIRTUAL DECODER
5.0V
INPUT 1 , INPUT2
0.0V 4.8V
1 2
SIGNAL ROUTE
: AUDIO SIGNAL ROUTE
Waveforms
CN3001-Pin7 (SCK) 0.5 V/div 50mS/sec
1
1
2
CN3001-Pin8 (RVDT) 0.5 V/div 50mS/sec
2
CN5001
C
– GND
– GND
3.2 MAIN AND TERMINAL ASSEMBLIES
A

HTV-C1
9
A
B
C
D
5678
5678
BALANCED OUT
LPF
POWER SUPPLY
-13.2V
13.2V
-40.0V
-18.8V
-28.0V
4.8V
4
3
5
A
MAIN ASSY
(AWU7071)
Waveforms
JA4001-Pin4 (DATA) 0.5 V/div 1mS/sec
3
3
4
5
4
JA4001-Pin1 (CLK) 0.5 V/div 1mS/sec
4JA4001-Pin2 (LCK) 0.5 V/div 1mS/sec
5
JA4001-Pin1 (CLK) 0.5 V/div 1mS/sec
4
B
TERMINAL ASSY
(AWU7072)
SW AMP UNIT
FRONT
SPEAKER
– GND
– GND
– GND
– GND
CAUTION : FOR CONTINUED PROTECTION AGAINST
RISK OF FIRE. REPLACE ONLY WITH SAME
TYPE NO. 491.630 MFD BY LITTELFUSE
INK. FOR IC501 AND IC502 (AEK7006).
CAUTION : FOR CONTINUED PROTECTION AGAINST
RISK OF FIRE. REPLACE ONLY WITH SAME
TYPE NO. 491.200 MFD BY LITTELFUSE
INK. FOR IC503 (AEK7023). A B

HTV-C1
10
A
B
C
D
1234
1234
INDICATOR
KEY
REMOCON
SENS.
5.0V
-28V
-18V
6
7
INPUT VOL+ VOL- DISPLAY SUR.MODE POWER
4.1V 2.9V 2.3V 1.8V 1.1V 0V
KEY MODE VOLTAGE
C
DISPLAY ASSY
(AWU7070)
∗
About a voltage of IC5001-pin 22 (LEVEL IN)
∗
This terminal is the terminal watching the level of the input signal to
make the Auto standby mode function.
About 3V DC apply to this terminal when -46dBV (about 5mVrms)
(Frequency is 1kHz with both channels as well.) is inputted to INPUT1
(INPUT2) when INPUT1 (INPUT2) is chosen.
(In the case of one of the channels, about 3V DC apply with -40dBV).
CN3001
A
S5001 : INPUT
S5002 : VOL+
S5003 : VOL–
S5004 : DISPLAY
S5005 : SURROUND MODE
S5006 : POWER (STAND BY/ON)
3.3 DISPLAY ASSY
C

HTV-C1
11
A
B
C
D
5678
5678
Waveforms
IC5001-Pin45 (P1) 1V/div 2mS/sec
6
IC5001-Pin62 (1G) 1V/div 2mS/sec
7
GND –
GND –
C

HTV-C1
12
A
B
C
D
1234
1234
SW AMP
UNIT
FRONT
SPEAKER
(ANP7252-B)
MAIN ASSY
A
TERMINAL ASSY
B
Q501IC501–IC503 Q505Q502 IC504–IC507
ASIDE A B
4. PCB CONNECTION DIAGRAM
4.1 MAIN, TERMINAL AND DISPLAY ASSEMBLIES

HTV-C1
13
A
B
C
D
5678
5678
DISPLAY ASSY
C
(ANP7252-B)
NOTE FOR PCB DIAGRAMS :
1. Part numbers in PCB diagrams match those in the schematic
diagrams.
2. A comparison between the main parts of PCB and schematic
diagrams is shown below.
3. The parts mounted on this PCB include all necessary parts for
several destinations.
For further information for respective destinations, be sure to
check with the schematic diagram.
4. View point of PCB diagrams.
Symbol In PCB
Diagrams Symbol In Schematic Diagrams Part Name
BCE
D
D
G
G
S
S
BCE
BCE
DGS
BCEBCE
BCE
Transistor
Transistor
with resistor
Field effect
transistor
Resistor array
3-terminal
regulator
Capacitor
Connector
P.C.Board Chip Part
SIDE A
SIDE B
C
SIDE A

HTV-C1
14
A
B
C
D
1234
1234
MAIN ASSY
A
TERMINAL ASSY
B
(ANP7252-B)
Q504 Q507 IC4001 IC4002
IC3501 IC2002
IC2001IC2501IC3001 Q2032 Q2031
SIDE B
A B

HTV-C1
15
A
B
C
D
5678
5678
DISPLAY ASSY
C
(ANP7252-B)
IC5001 Q5002 Q5004
C
SIDE B

16
HTV-C1
Mark No. Description Part No. Mark No. Description Part No.
LIST OF ASSEMBLIES
COMPLEX ASSY AWM7369
MAIN ASSY AWU7071
TERMINAL ASSY AWU7072
DISPLAY ASSY AWU7070
MAIN ASSY
SEMICONDUCTORS
IC501,IC502(630mA) AEK7006
IC503(200mA) AEK7023
IC507 BA05ST
IC2001 BU4066BCF
IC3001 CXD2724Q
IC2002,IC2501,IC3501,IC4001 NJM4558MD
IC4002 NJM4558MD
IC504 NJM7805FA
IC505 NJM7806FA
IC506 NJM7906FA
Q501 2SB1237X
Q2031 DTA124EK
Q2032 DTC124EK
D501-D505 11ES2
D2501,D506 1SS254
D507 MTZJ27D
D2502 MTZJ4.3B
D4001-D4003 MTZJ8.2B
D508 MTZJ9.1C
D4007,D4008,D4017,D4018 UDZS8.2B
COILSL2001,L2002 DTL1019
L2501 LAU1R0J
L3203 LFA220J
L3202 LFA6R8J
L501 VTH1024
TRANSFORMER
T2 ATT7025
Mark No. Description Part No. Mark No. Description Part No.
5. PCB PARTS LIST
NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
•The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
•When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
560 Ω→56 × 101→561 ........................................................ RD1/4PU 56
1
J
47k Ω→47 × 103→473 ........................................................ RD1/4PU
4 7
3J
0.5 Ω→R50 ..................................................................................... RN2H R5
0
K
1 Ω→1R0 ..................................................................................... RS1P
1
R0K
Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).
5.62k Ω→ 562 × 101→5621 ...................................................... RN1/4PC 56
2
1F
CAPACITORS
C500(0.01µF,AC250V) ACG1005
C2005,C3285-C3288,C3295 CCSQCH101J50
C3206,C3207 CCSQCH120J50
C3204,C3209 CCSQSL101J50
C3517-C3520 CCSQSL331J50
C2001,C2003,C4001,C4002 CEAT100M50
C4011,C4012,C504-C506,C509 CEAT100M50
C503 CEAT101M63
C501 CEAT222M25
C502 CEAT331M25
C2502,C3201-C3203,C3523 CEAT470M25
C3524 CEAT470M25
C511 CEAT470M25
C507,C508 CEAT470M50
C3282,C3292 CEAT471M6R3
C2503,C3511,C3512,C3521 CEAT4R7M50
C3522 CEAT4R7M50
C2501 CEATR10M50
C2031,C3296,C3515,C3516 CKSQYB102K50
C3205,C3208 CKSQYB331K50
C2002,C2004,C2507,C2509 CKSQYF103Z50
C3283,C3284,C3289-C3291 CKSQYF103Z50
C3293,C3294,C3513,C3514 CKSQYF103Z50
C534-C536 CKSQYF103Z50
C540 CKSQYF104Z50
RESISTORS
R503 RD1/4PU223J
R4003-R4006 RS1/10S1002F
R502 RS1LMF122J
Other Resistors RS1/10S J
OTHERS
CN2001,CN2002 4P PIN JACK AKB7015
CN501 8P CONNECTOR AKP7026
X3201 CRYSTAL RESONATOR ASS7000
(33.8688MHz)
CN3001 FFC CONNECTOR 19P HLEM19S-1
CN503 4P SOCKET KP250NA4
JA4001 I/O JACK VKN1070
KN4001,KN501 VNF1084
EARTH METAL FITTING
A
