Walker WP2209LCD User manual

COLOUR TELEVISION WITH REMOTE CONTROL
OPERATING INSTRUCTIONS
WP2209LCD

English - 1 -

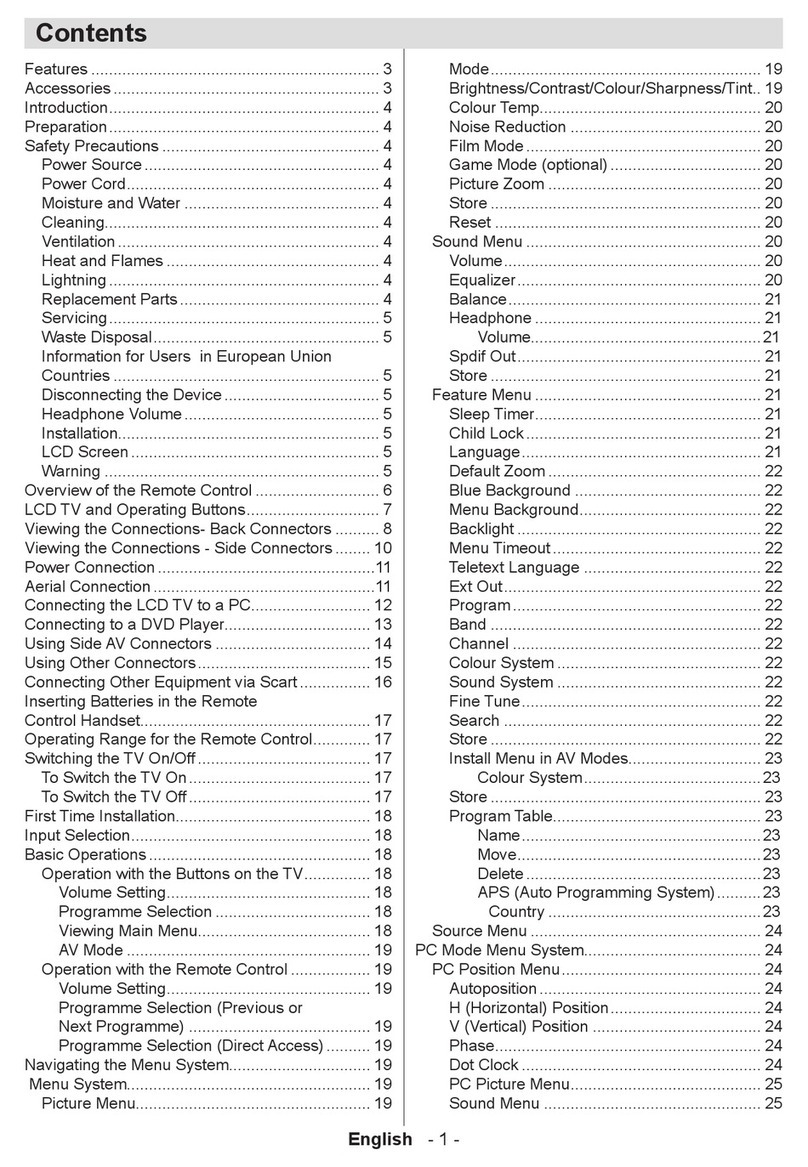

Contents
Picture Zoom ............................................... 17
Store ........................................................... 17
Reset .......................................................... 17
Sound Menu .................................................... 17
Volume ........................................................ 17
Equalizer ..................................................... 18
Balance ....................................................... 18
Headphone.................................................. 18
Volume .................................................. 18
Store ..................................................... 18
Sound Mode ................................................ 18
AVL ............................................................. 18
Store ........................................................... 18
Feature Menu .................................................. 18
Sleep Timer ................................................. 19
Child Lock ................................................... 19
Language .................................................... 19
Ext-2-SPDIF Out .......................................... 19
PC Audio In .................................................. 19
Default Zoom ............................................... 19
Blue Background ......................................... 19
Menu Background ....................................... 19
Backlight ..................................................... 19
Menu Timeout .............................................. 19
TXT Language ............................................. 20
Install Menu ..................................................... 20
Program ...................................................... 20
Band ........................................................... 20
Channel ....................................................... 20
Colour System ............................................. 20
Sound System ............................................. 20
Fine Tune .................................................... 20
Search ........................................................ 20
Store ........................................................... 20
Install Menu in AV Modes ............................ 20
Program Table ................................................. 20
Name .................................................... 21
Move ..................................................... 21
Delete.................................................... 21
APS (Auto Programming System) ......... 21
Source Menu .................................................. 21
Displaying TV Information ................................... 22
Mute Function ..................................................... 22
Freezing Picture ................................................. 22
Zoom Modes ....................................................... 22
Auto ............................................................ 22
16:9 ............................................................. 23
4:3 ............................................................... 23
Panoramic ................................................... 23
14:9 ............................................................. 23
Cinema ........................................................ 23
Subtitle ........................................................ 23
Zoom .............................................................. 23
Features ............................................................... 3
Accessories ......................................................... 3
Introduction ........................................................... 4
Preparation ........................................................... 4
Safety Precautions ............................................... 4
Power Source .................................................. 4
Power Cord ...................................................... 4
Moisture and Water .......................................... 4
Cleaning ............................................................ 5
Ventilation ......................................................... 5
Heat and Flames ............................................... 5
Lightning ........................................................... 5
Replacement Parts ............................................ 5
Servicing ........................................................... 5
Waste Disposal ................................................. 5
Information for Users in European Union
Countries .......................................................... 5
Disconnecting the Device ................................. 5
Headphone Volume ........................................... 6
Installation ......................................................... 6
LCD Screen ...................................................... 6
Warning ............................................................ 6
Overview of the Remote Control .......................... 7
LCD TV and Operating Buttons ............................ 8
Viewing the Connections ..................................... 9
Power Connection .............................................. 11
Aerial Connection ............................................... 11
Connecting to a DVD Player ............................... 12
Using Side Connectors ....................................... 13
Using Other Connectors ..................................... 13
Inserting Batteries in the Remote Control Handset 14
Operating Range for the Remote Control ............ 14
Switching the TV On/Off .................................... 15
To Switch the TV On ...................................... 15
To Switch the TV Off ...................................... 15
Input Selection .................................................... 15
Navigating the Menu System .............................. 16
Basic Operations ................................................ 16
Operation with the Buttons on the TV ............ 16
Volume Setting ............................................ 16
Programme Selection .................................. 16
Viewing the Main Menu ............................... 16
AV Mode ..................................................... 16
Operation with the Remote Control ................. 16
Volume Setting ............................................ 16
Programme Selection (Previous or Next
Programme) ................................................. 16
Programme Selection (Direct Access) ........ 16
Menu System ...................................................... 17
Picture Menu ................................................... 17
Mode ........................................................... 17
Contrast/Brightness/Sharpness/Colour/Tint 17
Colour Temp ................................................ 17
Noise Reduction .......................................... 17
ENG-22784W-MB30-1055UK-1HDMI-YPBPR-SPDIF-LOUT-CVBS-WO PC-WO SVHS-50130255.p6502.07.2008, 17:001

English - 2 -
Teletext ............................................................... 23
Tips .................................................................... 24
Screen Care ................................................... 24
Image Persistence .......................................... 24
No Power ........................................................ 24
Poor Picture .................................................... 24
No Picture ....................................................... 25
Sound ............................................................. 25
Remote Control ............................................... 25
Input Sources ................................................. 25
Appendix: AV and HDMI Signal Compatibility ....... 26
Specifications ..................................................... 27
Pin Specifications ............................................... 28
Important Instruction ........................................... 29
ENG-22784W-MB30-1055UK-1HDMI-YPBPR-SPDIF-LOUT-CVBS-WO PC-WO SVHS-50130255.p6502.07.2008, 17:002

English - 3 -
Features
• HD TV: It has one HDMI connector for digital
video and audio. This connection is also
designed to accept high definition signals.
• On Screen Display (OSD): Controlling the
TV is very easy by its menu driven system.
• APS: Automatic Programming System.
• Stereo sound system (German+Nicam).
• AVL: Automatic Volume Limiting.
• Child lock.
• Sleep timer.
• Scart sockets and AV connectors.
• Fully functional teletext .
• NTSC playback.
• When no valid signal is detected, after 5
minutes the TV switches itself automatically
to standby mode.
Accessories
ABC DEF
GHI
JKL
MNO
PQR
STU
VWX
YZ
1 2
3
45
6
7 8
9
0
AV
SOURCE
P/CH
P<P/SWAP
PP
I-II
INFO EXIT
-/--
MENU
TV/DTV
OK
WIDE
GUIDE
Remote Controller
Batteries
2 XAAA
Instruction Book
ENG-22784W-MB30-1055UK-1HDMI-YPBPR-SPDIF-LOUT-CVBS-WO PC-WO SVHS-50130255.p6502.07.2008, 17:003

English - 4 -
Introduction
Thank you for choosing this
product. This manual will guide
you for the proper operation of your
TV. Before operating the TV, please
read this manual throughly.
Please do keep this manual in a safe place
for future references.
Preparation
For ventilation, leave a free space of at least
10 cm all around the set. To prevent any fault
and unsafe situations, please do not place
any objects on top of the set.
Use this device in moderate climates.
Safety Precautions
Please read the following recommended
safety precautions carefully for your safety.
Power Source
The TV set should be operated only from a
220-240 V AC, 50 Hz outlet. Ensure that you
select the correct voltage setting for your
convenience.
Power Cord
Do not place the set, a piece of furniture, etc.
on the power cord (mains lead) or pinch the
cord. Handle the power cord by the plug. Do
not unplug the appliance by pulling from the
power cord and never touch the power cord
with wet hands as this could cause a short
circuit or electric shock. Never make a knot in
the cord or tie it with other cords. The power
cords should be placed in such a way that
they are not likely to be stepped on. A damaged
power cord can cause fire or give you an
electric shock. When it is damaged and needs
to be replaced, it should be done by qualified
personnel.
Moisture and Water
Do not use this device in
a humid and damp place
(avoid the bathroom, the
sink in the kitchen, and
near the washing
machine). Do not expose
this device to rain or
water, as this may be dangerous and do not
place objects filled with liquids, such as flower
vases, on top. Avoid from dripping or
splashing.
If any solid object or liquid falls into the cabinet,
unplug the TV and have it checked by qualified
personnel before operating it any further.
ENG-22784W-MB30-1055UK-1HDMI-YPBPR-SPDIF-LOUT-CVBS-WO PC-WO SVHS-50130255.p6502.07.2008, 17:004

English - 5 -
Cleaning
Before cleaning, unplug the
TV set from the wall outlet.
Do not use liquid or aerosol
cleaners. Use soft and dry
cloth.
Ventilation
The slots and openings on the TV set are
intended for ventilation and to ensure reliable
operation. To prevent overheating, these
openings must not be blocked or covered in
anyway.
Heat and Flames
The set should not be placed
near to open flames and
sources of intense heat such as
an electric heater. Ensure that
no open flame sources, such as lighted
candles, are placed on top of the TV. Batteries
should not be exposed to excessive heat such
as sunshine, fire or the like.
Lightning
In case of storm and lightning or
when going on holiday,
disconnect the power cord from
the wall outlet.
Replacement Parts
When replacement parts are required, make
sure that the service technician has used
replacement parts, which are specified by the
manufacturer or have the same specifications
as the original one. Unauthorized
substitutions may result in fire, electrical shock
or other hazards.
Servicing
Please refer all servicing to
qualified personnel. Do not
remove the cover yourself as
this may result in an electric shock.
Waste Disposal
Instructions for Waste Disposal
• Packaging and packaging aids are recyclable
and should principally be recycled.
Packaging materials, such as foil bag, must
be kept away from children.
• Batteries, including those which are heavy
metal-free, should not be disposed of with
household waste. Please dispose of used
battery in an environment friendly manner.
Find out about the legal regulations which
apply in your area.
• Cold cathode fluorescent lamp in LCD
PANEL contains a small amount of mercury;
please follow the local laws or regulations
for disposal.
Information for Users in European
Union Countries
This symbol on the product or
on its packaging means that
your electrical and electronic
device should be disposed at
the end of its service life
separately from your household
wastes. There are separate collection
systems for recycling in EU.
For more information, please contact the local
authority or the dealer where you purchased
the product.
Disconnecting the Device
The mains plug is used to disconnect TV set
from the mains and therefore it must remain
readily operable.
ENG-22784W-MB30-1055UK-1HDMI-YPBPR-SPDIF-LOUT-CVBS-WO PC-WO SVHS-50130255.p6502.07.2008, 17:005

English - 6 -
Headphone Volume
Excessive sound pressure from
earphones and headphones can
cause hearing loss.
Installation
To prevent injury, this device must be securely
attached to the wall in accordance with the
installation instructions when mounted to the
wall (if the option is available).
LCD Screen
The LCD panel is a very high technology
product with about a million thin film
transistors, giving you fine picture details.
Occasionally, a few non-active pixels may
appear on the screen as a fixed blue, green
or red point. Please note that this does not
affect the performance of your product.
Warning
Do not leave your TV in standby or operating
mode when you leave your house.
ENG-22784W-MB30-1055UK-1HDMI-YPBPR-SPDIF-LOUT-CVBS-WO PC-WO SVHS-50130255.p6502.07.2008, 17:006

English - 7 -
Overview of the Remote Control
Standby
Direct programme
External source
Info
Programme up / Programme down
Okay/Freeze picture
Cursor buttons
Menu
Sound
Time
Teletext
Mix/no function
Expand/Image size
Previous programme
Picture mode selection
Reveal
Index page
Update/No function
Hold/No function
Instal
Feature
TV/Quit menu
Mono-Stereo/Dual I-II
Volume up / Volume down
No function
Mute
ABC DEF GHI
JKL MNO PQR
STU VWX
YZ
1 2
3
45
6
7 8
9
0
AV
SOURCE
EXIT
-/--
INFO
I-II
MENU
TV/DTV
P/CH
OK
WIDE
GUIDE
PP
P<P/SWAP
17
ENG-22784W-MB30-1055UK-1HDMI-YPBPR-SPDIF-LOUT-CVBS-WO PC-WO SVHS-50130255.p6502.07.2008, 17:007

English - 8 -
LCD TV and Operating Buttons
FRONT VIEW
REAR VIEW
SIDE VIEW
+
P/CH
+
TV/AV
MENU
+
P/CH
+
TV/AV
MENU
TV/AV button
MENU button
Program Up/
Program Down buttons
Volume Up/
Volume Down buttons
Standby button
ENG-22784W-MB30-1055UK-1HDMI-YPBPR-SPDIF-LOUT-CVBS-WO PC-WO SVHS-50130255.p6502.07.2008, 17:008

English - 9 -
Viewing the Connections
Headphone jack is used for connecting an external headphone to the system.
Connect to the HEADPHONE jack to listen to the TV from headphones (optional).
Audio Inputs are used for connecting audio signals of external devices.
Connect the audio cable between the AUDIO INPUTS on the TV and the AUDIO OUTPUT
jacks on your device.
Video Input is used for connecting video signals of external devices.
Connect the video cable between the VIDEO IN socket on the TV and the VIDEO OUT jack on
your device.
RF Input connects to an antenna or a cable.
Note that if you use a decoder or a media recorder, you should connect the aerial cable
through the device to the television with an appropriate antenna cable.
CVBS Video Out outputs video signals to an external device such as recorder or monitor TV..
You can use CVBS Video Out to send video signals to an external device. The source of the
signal is defined by your selection of EXT-2/SPDIF setting in the Feature menu.
For enabling the sound connection, use Audio Line Outs of the TV.
• Connect your equipment to the TV via VIDEO (yellow) input.
ENG-22784W-MB30-1055UK-1HDMI-YPBPR-SPDIF-LOUT-CVBS-WO PC-WO SVHS-50130255.p6502.07.2008, 17:009

English - 10 -
S/PDIF Out is used for transferring digital audio signals. Use an RCA cable to transfer
audio signals to a device that has S/PDIF input.
This connector is for service use only..
Audio Line Outs output audio signals to an external device such as an optional sound
system.
To connect the external speakers to your TV, use AUDIO LINE OUTS of the TV with an audio
cable.
HDMI Input are for connecting a device that has an HDMI socket.
Your LCD Television is capable of displaying High Definition pictures from devices such as a
High Definition Satellite Receiver or DVD Player. These devices must be connected via the
HDMI sockets or Component Socket. These sockets can accept either 720p or 1080i signals.
No sound connection is needed for an HDMI to HDMI connection.
SCART 1 inputs or outputs for external devices.
Connect the SCART cable between SCART sockets on TV and SCART socket on your
external device (such as a decoder, a VCR or a DVD player).
Note: If an external device is connected via the SCART sockets, the TV will automatically
switch to AV mode. If both sockets are employed at the same time, SCART 1 becomes
the preferential.
SCART 2 inputs or outputs for external devices.
Connect the SCART cable between SCART sockets on TV and SCART socket on your
external device (such as a decoder, a VCR or a DVD player).
Component Video Inputs (YpBPr) are used for connecting component video.
You can connect the component video and audio sockets with a device that has component
output. Connect the component video cables between the COMPONENT VIDEO INPUTS on
on the TV and the component video outputs of your device. While connecting, be sure that the
letters on your TV, “Y”, “Pb”, “Pr” correspond with your device’s connectors.
Component Audio Inputs are used for connecting component audio. Connect the audio
cable between COMPONENT AUDIO INPUTS on the TV and audio outputs of your device.
PC Audio In is used for listening the PC sound from the TV..
Use a PC audio cable to connect between PC Audio In socket of the TV and Audio Out jack
on your computer. See also “PC Auido In” explained in the Feature Menu section.
ENG-22784W-MB30-1055UK-1HDMI-YPBPR-SPDIF-LOUT-CVBS-WO PC-WO SVHS-50130255.p6502.07.2008, 17:0010

English - 11 -
Power Connection
IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz.
• After unpacking, allow the TV set to reach the ambient room temperature before you
connect the set to the mains.
• Plug the power cable to the mains socket outlet.
Aerial Connection
• Connect the aerial or cable TV plug to the AERIAL INPUT socket located at the rear of the TV.
Aerial Input
REAR VIEW
ENG-22784W-MB30-1055UK-1HDMI-YPBPR-SPDIF-LOUT-CVBS-WO PC-WO SVHS-50130255.p6502.07.2008, 17:0011

English - 12 -
Connecting to a DVD Player
If you want to connect a DVD player to your LCD TV, you can use connectors of the TV set. DVD
players may have different connectors. Please refer to your DVD player’s instruction book for
additional information. Power off both the TV and the device before making any connections.
Note: Cables shown in the illustration are not supplied.
• If your DVD player has an HDMI socket, you can connect via HDMI. When you connect to DVD
player as illustrated below, switch to HDMI source. See, “Input selection” section.
• Most DVD players are connected through COMPONENT SOCKETS. Use a component video
cable to connect video input. For enabling audio, use a component audio cable as illustrated
below. When the connection is made, switch to YPbPr source. See, “Input selection” section.
• You may also connect through the SCART 1 or SCART 2. Use a SCART cable as shown
below.
Component
video
inputs
Component
audio
inputs
Component
video
cable
HDMI
cable
HDMI
input
Component
audio
cable
SCART
cable
REAR VIEW
Note: These three methods of connection perform the same function but in different levels of
quality. It is not necessary to connect by all three methods.
ENG-22784W-MB30-1055UK-1HDMI-YPBPR-SPDIF-LOUT-CVBS-WO PC-WO SVHS-50130255.p6502.07.2008, 17:0012

English - 13 -
Using Side Connectors
You can connect a range of optional equipment to your LCD TV. Possible connections are
shown below. Note that cables shown in the illustration are not supplied.
• For connecting a camcorder, connect to the VIDEO IN socket and the AUDIO SOCKETS. Do
not connect the camcoder to VIDEO IN socket at the same time since it can cause noise in
the picture. For selecting the related source, see the section “Input selection” in the following
parts..
• To listen the sound from headphones, connect to the HEADPHONE jack of theTV.
Headphones
Using Other Connectors
• For connecting a VIDEO, connect to the CVBS OUT.
• To connect external speakers, use an audio cable. Do not reverse the AUDIO LEFT and
AUDIO RIGHT jacks. Turn on the LCD TV and external speaker set after all connections are
made. Refer to your speaker set’s manual for further queries.
External speakers
Audio
Line Out
CVBS Out
VÍDEO
Amplifier
ENG-22784W-MB30-1055UK-1HDMI-YPBPR-SPDIF-LOUT-CVBS-WO PC-WO SVHS-50130255.p6502.07.2008, 17:0013

English - 14 -
Inserting Batteries in the
Remote Control Handset
• Remove the battery cover located on the back
of the handset by gently pulling backwards
from the indicated part.
•Inserttwo AAA/R3 or equivalent type batteries
inside. Place the batteries in the right
directions and replace the battery cover.
Note: Remove the battery from remote control
handset when it is not to be used for a
long period. Otherwise, it can be
damaged due to any leakage of
batteries.
Operating Range for the
Remote Control
• Point the top of the remote control toward
the LCD TV's remote sensor LED while
pressing a button.
30
30
ABC
DEF
GHI
JKL
MNO
PQR
STU
VWX
YZ
1 2
3
45
6
7 8
9
0
AV
SOURCE
P/CH
P<P/SWAP
PP
I-II
INFO EXIT
-/--
MENU
TV/DTV
OK
WIDE
GUIDE
Remote range is approximately 7m/23ft.
ENG-22784W-MB30-1055UK-1HDMI-YPBPR-SPDIF-LOUT-CVBS-WO PC-WO SVHS-50130255.p6502.07.2008, 17:0014

English - 15 -
Switching the TV On/Off
To Switch the TV On
• Connect the power cord to the 220-240V AC,
50 Hz.
• Press STANDBY button. Then the standby
LED lights up.
• To switch on the TV from standby mode either:
• Press the button, P+ / P- or a numeric
button on the remote control.
• Press the -P/CH or P/CH+ button on the TV.
The TV will then switch on.
Note: If you switch on your TV via
PROGRAMME UP/DOWN buttons on the
remote control or on the TV set, the
programme that you were watching last
will be reselected.
By either method the TV will switch on. When
the TV is operated for the first time, the
following screen appears:
By pressing “ ” or “ ” button, adjust the
“Language” item and press “ ” to highlight
“Country” item. Use “ ” or “ ” button to set
“Language”. Use “ ” or “ ” buttons to select
“TXT Language” and set it by using ” or “ ”
buttons. Press “OK” or “RED” button to
continue.
To Switch the TV Off
• Press the button on the remote control or
STANDBY button on the TV, so the TV will
switch to standby mode.
• To power down the TV completely, unplug
the power cord from the mains socket.
Input Selection
Once you have connected external systems
to your TV, you can switch to different input
sources.
• Press the
AV
button on your remote control
until the desired source is highlighted. The
TV will then switch to the selected source
after a short while.
SOURCE : TV
ENG-22784W-MB30-1055UK-1HDMI-YPBPR-SPDIF-LOUT-CVBS-WO PC-WO SVHS-50130255.p6502.07.2008, 17:0015

English - 16 -
Navigating the Menu System
MENU TV/DTV
OK
For Displaying
Menu Options
For Navigation
To Confirm Choices
• Press MENU to display the main menu.
• Press or button to select an icon. Press
or OK button for more options.
• Use or button to highlight.
• Press or buttons to change the settings.
• To exit the menu or return from sub-menu
screen, press MENU.
Note: These explanations are valid for the
navigation of the whole menu system.
To select options that are explained in
the following parts, refer to “Navigating
the Menu System”.
Basic Operations
You can operate your TV using both the
remote control and onset buttons.
Operation with the Buttons on the TV
Volume Setting
• Press - button to decrease volume or
+button to increase volume, so a volume level
scale (slider) will be displayed on the screen.
Programme Selection
• Press P/CH + button to select the next
programme or P/CH - button to select the
previous programme.
Viewing the Main Menu
• Press the MENU button to enter main menu.
In the main menu select sub-menu using P/
CH - or P/CH + buttons and enter the sub-
menu using - or + buttons. To learn
the usage of the menus, refer to the menu
system sections.
AV Mode
• Press the TV/AV button at the control panel
on the the TV to switch your TV to AV modes.
Operation with the Remote Control
• The remote control of your TV is designed to
control all the functions of the model you
selected. The functions will be described in
accordance with the menu system of your TV.
• Functions of the menu system are described
in the following sections.
Volume Setting
Press V + button to increase the volume.
Press V - button to decrease the volume. A
volume level scale (slider) will be displayed
on the screen.
Programme Selection (Previous or
Next Programme)
• Press P- button to select theprevious programme.
• Press P + button to select the next programme.
SOURCE
P/C H
I-II
INFO EXIT
Programme Selection (Direct Access)
•Press numeric buttons on the remote control
to select programmes between 0 and 9. The
TV will switch to the selected programme.
To select programmes between 10-99,
press the numeric buttons consecutively
(e.g. for programme 27, first press 2 and then
7). When the pressing time is due for the
second numeric button, only the first digit
programme will be displayed. The limit of
the delay time is 3 seconds.
• Press directly the programme number to
reselect single digit programmes.
ENG-22784W-MB30-1055UK-1HDMI-YPBPR-SPDIF-LOUT-CVBS-WO PC-WO SVHS-50130255.p6502.07.2008, 17:0016

English - 17 -
Menu System
Picture Menu
Mode Cinema
Contrast 59
Brightness 37
Sharpness 7
Colour 45
Colour Temp. Normal
Noise Reduction Off
Picture Zoom Panoramic
Store
Reset
Mode
For your viewing requirements, you can set
the related mode option.
Press or button to select Picture Mode.
Press or button to choose from one of these
options: Cinema,User, Dynamic and Natural.
Contrast/Brightness/Sharpness/
Colour/Tint
Press or button to select the desired
option. Press

/

button to set the level.
Hint: Tint (Hue) is displayed in picture menu when
the TV receives an NTSC signal.
Colour Temp
Press or button to select Colour Temp.
Press

/

to choose from one of these
options: Cool, Normal and Warm.
Note:
• Setting Cool option gives white colours a
slight blue stress.
• Setting Warm option gives white colours a
slight red stress.
• For normal colours, select Normal option.
Noise Reduction
If the broadcast signal is weak and the picture
is noisy, use Noise Reduction setting to
reduce the noise amount.
Press or button to select Noise
Reduction. Press

/

to choose from one of
these options: Low, Medium, High or Off.
Picture Zoom
Picture Zoom setting enables you to select
the aspect ratio of the broadcast.
Select Picture Zoom by pressing / button.
Use

/

buttons to change Picture Zoom to
Auto, 16:9, 4:3, Panoramic, 14:9, Cinema,
Subtitle or Zoom.
Store
Press or button to select Store. Press
or OK button to store the settings.
“Stored...” will be displayed on the screen.
Reset
Press or button to select Reset. Press

/

or OK button to reset the picture modes to
factory default settings.
Sound Menu
Volume 15
Equalizer
Balance 0
Sound Mode Mono
AVL On
SOUND
Volume
When you enter the sound menu, Volume will
be the first selected option. Press

/

button
to change the level of the Volume.
ENG-22784W-MB30-1055UK-1HDMI-YPBPR-SPDIF-LOUT-CVBS-WO PC-WO SVHS-50130255.p6502.07.2008, 17:0017

English - 18 -
Equalizer
Press or button to select Equalizer. Press

button to view Equalizer submenu:
SOUND
Preset Music
120 Hz 8
500 Hz 4
1.5 KHz -4
5 KHz 6
10 KHz 10
Equalizer
Store
Press

/

button to change the preset. In
equalizer menu, the preset can be changed
to Music, Movie, Speech, Flat, Classic and
User.
Select the desired frequency by pressing /
button and increase or decrease the frequency
gain by pressing

/

button.
Note: Equalizer menu settings can be changed only
when the mode is in User.
Press or button to select Store. Press
or OK button to store the settings.
“Stored...” will be displayed on the screen.
Balance
This setting is used for emphasizing the left
or right speaker balance.
Press or button to select Balance. Press

/

button to change the level of the balance.
Balance level can be adjusted between -32
and + 32.
Headphone
Press or button to select Headphone.
Press

button to view the headphone menu.
Volume
Press or button to select Volume. Press

button to increase headphone volume level.
Press

button to decrease headphone
volume level. Headphone volume level can
be adjusted between 0 and 63.
Store
Press or button to select Store. Press
or OK button to store the settings.
“Stored...” will be displayed on the screen.
Sound Mode
Press or button to select Sound Mode.
Using

/

button, you can select Mono,
Stereo, Dual I or Dual II mode, only if the
selected channel supports that mode.
AVL
Automatic Volume Limiting (AVL) function adjusts
the sound to obtain fixed output level between
programmes (For instance, volume level of
advertisement s tends to be louder than
programmes).
Press or button to select AVLVL. Press

/

button to set the AVL as On or Off.
Store
Press or button to select Store. Press
or OK button to store the settings.
“Stored...” will be displayed on the screen.
Feature Menu
FEATURE
Sleep Timer Off
Child Lock Off
Language English
TXT Language West
Default Zoom 16:9
Blue Background On
Menu Background Opaque
Backlight Medium
Menu Timeout 15 sec
Ext-2/SPDIF Out EXT-1
ENG-22784W-MB30-1055UK-1HDMI-YPBPR-SPDIF-LOUT-CVBS-WO PC-WO SVHS-50130255.p6502.07.2008, 17:0018

English - 19 -
Sleep Timer
Press or button to select Sleep Timer.
Use

/

button to set the Sleep Timer.
The timer can be programmed between Off
and 120 minutes in steps of 10 minutes.
If Sleep Timer is activated, at the end of the
selected time, the TV goes automatically to
standby mode.
Child Lock
Press or button to select Child Lock.
Use

/

button to set the Child Lock On or
Off. When On is selected, the TV can only be
controlled by the remote control handset. In
this case the control panel buttons (except for
the STANDBY button) will not work.
Hence, if one of those buttons is pressed,
“Child Lock On” will be displayed on the
screen when the menu screen is not visible.
Language
Press or button to select Language. Use

/

button to select the Language.
Ext-2-SPDIF Out
Use this setting to define Ext-2 and SPDIF
Out signal output.
Press or button to select Ext-2/SPDIF Out.
Use

/

button to set Ext-2/SPDIF Out to TV,,
EXT1, FAV, YPbPrAudio, PC Audio or Screen.
Note: If you select Ext-2/SPDIF Out as
“Screen”, you will get audio output from
SPDIF on the current source setting. In this
case, “SPDIF ON” will be displayed on the
bottom part of the OSD. If Ext-2/SPDIF Out is
set to another option apart from “Screen”,
SPDIF out will be off andthe OSD notification
will then be changed as “SPDIFOFF”. In such
a case, you cannot get audio output from
the SPDIF out on the selected source
PC Audio In
This setting controls the PC audio signal.
Press or button to select PC Audio In.
Use

/

button to set PC Audio In to TV,,
EXT-1, EXT-2, FAV, YPbPr Audio or PC Audio.
Default Zoom
While zoom mode is set as AUTO, the TV will
set the zoom mode in accordance with the
signal of the broadcast. If there is no WSS or
aspect ratio information, the TV will then use
this setting to adopt.
Press or button to select Default Zoom.
You can set Default Zoom to 16:9, 4:3,
Panoramic or 14:9 by pressing

/

button.
Blue Background
If the signal is weak or absent, the TV will
automatically change to a blue screen. To
enable this, set Blue Background to On.
By pressing or button, select Blue
Background. Press

/

button to set Blue
Background as On or Off.
Menu Background
Press or button to select Menu
Background. You can set menu background
to Opaque or Translucent by pressing /
button.
Backlight
This setting controls the backlight level. Select
Backlight by pressing or button. Press
/ button to set Backlight to Medium,
Maximum or Minimum.
Menu Timeout
To set a specific display timeout for menu
screens, set a value for this option.
Press or button to select Menu Timeout.
Use / button to change menu timeout to
15 sec,30 sec or 60 sec.
ENG-22784W-MB30-1055UK-1HDMI-YPBPR-SPDIF-LOUT-CVBS-WO PC-WO SVHS-50130255.p6502.07.2008, 17:0019
