Pitaka MagEZ Juice User manual

MagEZ Juice User Manual

Welcome&Intro
Package Includes
Key Features
Compatibility
Quick Guide
Buttons and LED Indicators
Spec
Warranty
Exclusion
Important
Customer Service
FCC WARNING
Thank you for purchasing the PITAKA MagEZ Juice.
You can slide MagEZ Juice in the Dock to use it as a
wireless charging dock, or you can slide MagEZ Juice
up from the Dock to use it as a wireless power bank.
Contents
Welcome & Intro
1
2
3
4
4
10
12
15
16
16
17
18
1

Package Includes
1. MagEZ Juice * 1
2. Dock for MagEZ Juice*1
3. Charger*1
4. Metal Plate * 1
5. Document Kit *1
① ② ③
④⑤
Documents
2

Key Features
Magnetic Attach. Best Compatible with
MagEZ Case and MagEZ Case Pro.
Universal Compatibility: Works with all
Qi-enabled devices.
Compact & ergonomic design. Comfortable to
hold in hands.
Safe and reliable. Designed to provide
overvoltage protection, under-voltage
protection, over-temperature protection,
overcurrent protection, short-circuit protection
and FOD.
Wireless charging stand with pass-thru
charging technology which powers your phone
in priority while assign juices synchronously to
the power bank battery.
You can set up the Dock on table with
washable reusable gel.
3

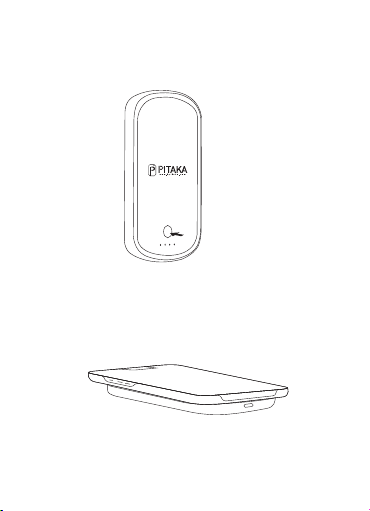

Compatibility
Quick Guide
With the slide-or-detach design, you can slide up
to take your phone with the MagEZ Juice Which is
automatically attached to use the power bank
on-the-go, or you can take your phone by
detaching from the Dock.
All wireless charging receiving devices that
support Qi standard.
If you are a MagEZ Case user, put your phone into the
MagEZ Case so that it is ready to use.
Charge a phone with MagEZ Juice.
1, Get your phone ready.
①
4

If you are not using a MagCase, follow below steps to affix the
supplied metal plate before using the MagEZ Juice to charge
your phone;
*Please use the alignment paper supplied to help locate metal plate
MetalPlate
②
③
5
Alignment paper
*Scan QR code for video instruction.

2, Use MagEZ Juice as a power bank
①
②
6

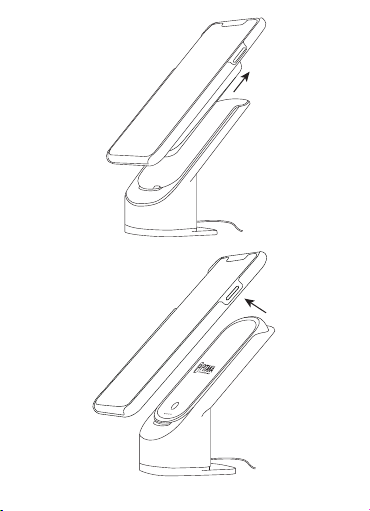

3, Use MagEZ Juice as a desktop stand while charging
①
7

8
②
③

9
④
⑤

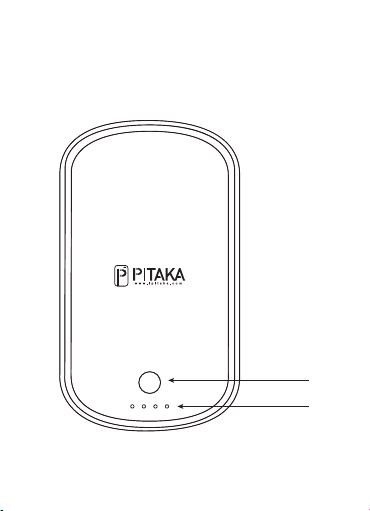

Buttons and LED Indicators
10
Button
LED indicators

11
When clicking the button once, the LED indicators
will light on as below;
When connecting the MagEZ Juice with power, the
LED indicators will light on based on the remaining
battery and keep blinking.
When charging your phone with the MagEZ Juice,
the LED indicators will light on based on the
remaining battery.
Battery Percentage Indication
*Applicable only when home button is clicked.
0% ~ 25%
25% ~ 50%
50% ~ 75%
75% ~ 100%

Spec
12
Width
Length
Thickness
Battery Capacity
Input
Output
Wireless Output
Transmission Distance
Transmission Efficiency
Operating Temperature
Storage Temperature
Wireless Charging Frequency
61.91mm
107.60mm
12.62mm
67.90mm
113.80mm
99.70mm
Specification
2000mAh
DC 5V/0.5A
DC 5V/0.5A
DC 5V/1A
≤8mm
75% Max
-10℃~30℃
-20℃~60℃
110KHZ-205KHZ
MagEZ Juice Dock
Items

13
61.91 mm
107.60 mm
12.62 mm
MagEZ Juice

14
99.70 mm67.90mm
113.80 mm
Dock

The PITAKA MagEZ Juice is warranted for 12
months from the date of purchase.
The MagEZ Juice is warranted to be free defects in
materials and function under regular use for the
lifetime of the product. A defect is defined as an
imperfection or flaw that is produced by a
manufacturing error, including malfunction of
wireless charging or surface defect, etc.
This warranty is non-transferable and covers only
the original end-user purchaser. PITAKA will only
authorize the warranty claim if the product was
purchased from the official store or authorized
dealer.
MODIFICATION: Any change or modification of this
device will void the warranty.
15
Warranty

Damages don’t cover those resulting from abuse,
not correctly maintained, alteration or misuse
(including disassemble, drops), abnormal wear and
tear, cosmetic damages that do not affect the
functionality.
1.Do not disassemble the MagEZ Juice or attempt
to modify it in any way.
2.Do not attempt to power the MagEZ Juice with
any connector other than Type-C connector.
3.Do not attempt to replace any part of the MagEZ
Juice.
4.Do not keep the MagEZ Juice in a high-tempera-
ture environment, including heat caused by
intense sunlight or other forms of heat. Do not
place it in fire or other excessively hot environ-
ments.
5.Do not throw the MagEZ Juice in any common
dustbin.
16
Important
Exclusion

6.All parts have gone through a thorough quality
assurance inspection. If you find that your MagEZ
Juice is excessively hot, is emitting odor, is
deformed, abraded or is experiencing or
demonstrating an abnormal phenomenon,
immediately stop all product use and contact
manufacturer.
7.If theMagEZ Juice is intended by the purchaser
to be used by a minor, purchasing adult agrees to
provide detailed instructions and warnings to any
minor prior to use. Failure to do so is the sole
responsibility of the purchaser, who agrees to
indemnify manufacturer for any unintended
use/misuse by a minor.
Phone：[phone]
E-mail: [email protected]
Website: www.ipitaka.com
17
Customer Service

This device complies with part 15 of the FCC Rules.
Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Any changes or modifications not expressly
approved by the party responsible for compliance
could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may
cause harmful interference to radio communica-
tions. However, there is no guarantee that
interference will not occur in a particular
installation.
18
FCC WARNING

If this equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment
and receiver.
-- Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV
technician for help.
To maintain compliance with FCC’s RF Exposure
guidelines, this equipment should be installed and
operated with minimum distance between 20cm
the radiator your body: Use only the supplied
antenna.
FCC ID: 2ARI5- MJ1001
