pitsco Banty Roaster User manual

Banty Roaster
User Guide
59755 V0210

2 Banty Roaster User Guide 59755 V0210
Materials Included
A. Silver styrene mirror K. 4 threaded mounting brackets
B. 2 legs L. 4 – 4-40 x 3/8" PHP screws
C. 2 braces M. 4 – 4-40 nuts
D. 2 mirror cradles N. 8 – 6-32 x 3/8" PHP screws
E. 2 mirror end caps O. 4 – 6-32 hex nuts
F. 2 solar angle gauges P. 2 – 6-32 x 1" PHP screws
G. 2 tube holders Q. 2 Nylock nuts (not shown)
H. Foam grip R. 4 nylon at washers
I. Metal cooking tube S. 2 nylon spacers
J. Wooden dowel (not shown)
Tools Required (not included)
• Phillipsscrewdriver
• Cool-meltglueandgluegun
• Scissors
• Small,needle-nosepliers
How the Banty Roaster Works
The curved shape of Banty Roaster’s silver styrene mirror reects the Sun’s
light energy and directs it toward the cooking tube.
BantyRoasterworksbestonbright,sunnydays.Cookingtimeranges
from ve to seven minutes depending on the outside temperature and
the brightness of the sunlight.
B.
A.
C.
D.
E.
F.
G.
H.
I.
K.
L.
M.
N. O.P. R.S.

Banty Roaster User Guide 59755 V0210 3
Assembling the Base
1. Peel the paper backing from all plastic parts.
2. Assemblethebraces–Locatethebraces,threadedmountingbrackets,
fourofthe6-32x3/8”PHPscrews,andfour6-32hexnuts.Attachthe
round ends of a bracket to each end of the braces with the screws (Figure
1).Secureeachwithahexnut,loosely
tightened.
3. Attach the braces to the legs –
Locatethelegs,theremaining6-32x
3/8”PHPscrews,andtheassembled
braces. Note that the notches on the
ends of the braces are of two dierent
widths. The widths correspond to the
size of the slits in the legs.
4. Slide the braces into their
corresponding slots and secure with a
screw,looselytightened(Figure2).
5. Tightenallscrewsandnuts,making
sure the braces t snugly in their
slots.

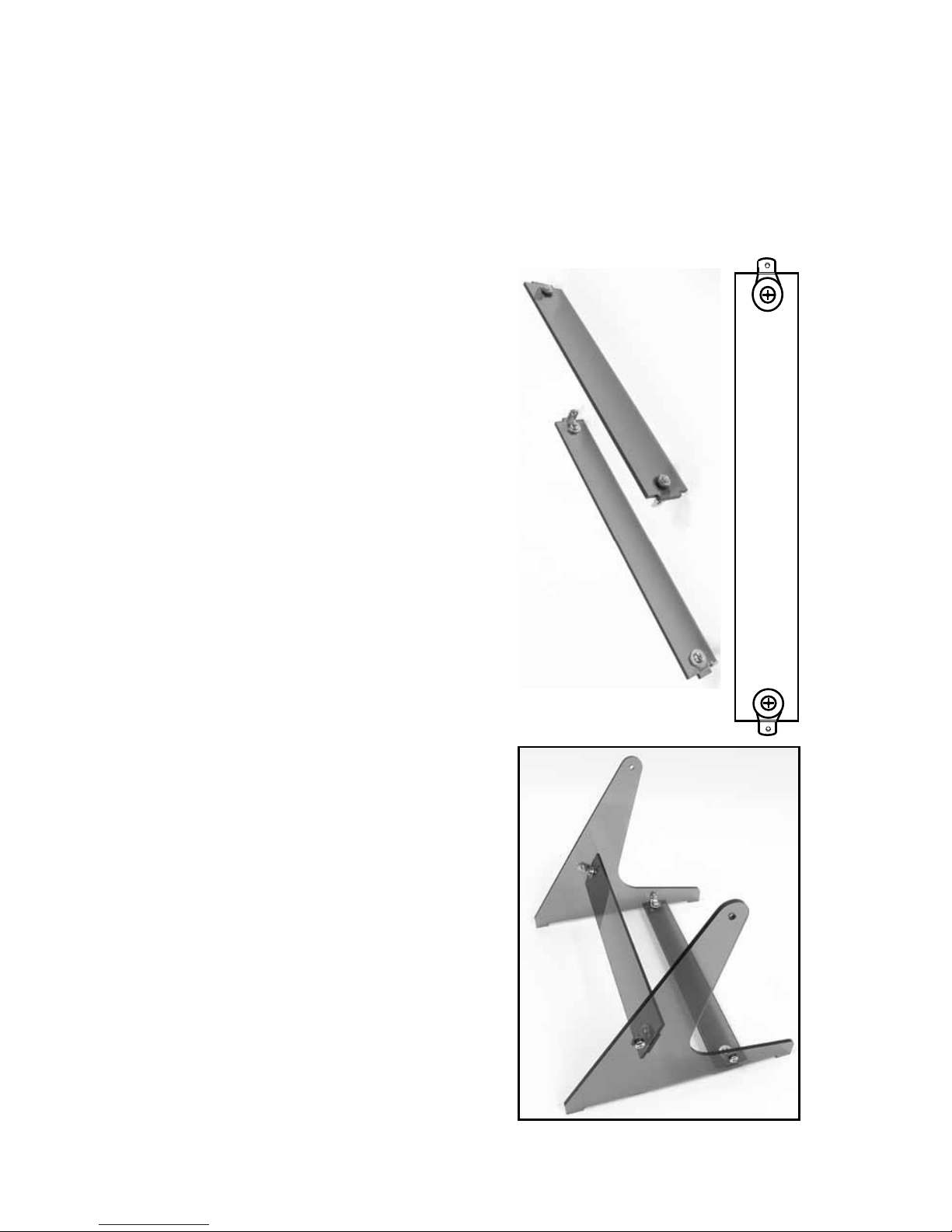

Figure 1 – Attach mounting
brackets to braces.
Figure 2 – Attach braces to legs.

4 Banty Roaster User Guide 59755 V0210
Construct the Mirror Frame
1. Begin heating the glue gun.
2. Locatethecradles,endcaps,
and silver styrene mirror.
3. Peel the protective plastic o
the styrene mirror.
4. Place the cradles together.
Note the slight variance in the
shape of the U-curve in the
center of each cradle. Make
sure these curves are oriented
the same direction when
putting the frame together.
5. Slip the edges of the styrene
sheet,mirrorsideup,intothe
slots along the sides of the
cradles (Figure 3).
6. Slip end caps onto the tabs
at the top and bottom of the
cradles (Figure 4).
7. Slide the mirror material
through the slots in the end
caps (Figure 5).
Figure 3 – Slip the mirror into the slots in the cradles.
Figure 4 – Attach end caps.
Figure 5 – Slide mirror material through the slots in the end caps.

Banty Roaster User Guide 59755 V0210 5
8. Carefully turn the mirror
assembly over so that the
shiny side is facing down.
Make sure that the mirror
material is still tting
through all the slots. Apply
glue along the seams at
all four corners and at the
centers of all four sides
(Figure 6).
9. Whentheglueisdry,turn
the mirror assembly over
so the mirror side is up. Slip
the solar angle gauges into
the slots at the side of the
cradle (Figure 7). The gauge
with the larger hole should
be on top. Glue in place
with cool-melt glue.
10.Unplug the glue gun.
Attach the Mirror to the Base
1. Locatethenylonwashers,nylon
spacers,6-32x1"PHPscrews,and
nylock nuts.
2. Slide a nylon washer onto the screw.
Slide this assembly through the hole
at the top of the base. Slide a nylon
spacer onto the screw and then slide
the assembly through the center
hole in the mirror assembly. Slide a
nylon washer onto the screw and
secure with a nylock nut (Figure 8).
Use needle-nose pliers to hold the
nylocknutwhiletighteningthescrew,
but take care not to overtighten. The
mirror should move easily yet stay in
various tilted positions.
3. Repeat for the other side.
Figure 6 – Glue the mirror to the frame.
Glue Glue
Glue Glue
Glue
Figure 7 – Attach the solar angle gauges with glue. The gauge
with the largest hole should be on top.
Gauge with
larger hole
goes on top.
Figure 8 – Attach the mirror frame to the base.

6 Banty Roaster User Guide 59755 V0210
Attach the Tube Holders
Locate the tube holders and
the 4-40 x 3/8" PHP screws
and the 4-40 nuts. As shown in
Figure9,centeratubeholder
on the outside surface of each
cradle,aligningeachwiththe
predrilled holes. Note: The
U-shape should face upward
and tilt ever so slightly toward
the top of the unit. Attach with
screws and secure with the
nuts (Figure 9). Figure 9 – Attach the tube holders.
Screw heads on
inside of unit.
Hex nuts
on outside
of unit
Prepare the Cooking Tube
Locate the metal cooking tube
andthefoamgrip.Usingscissors,
cut two 1-1/2"-long pieces from
the open end of the foam grip.
Slide one onto each end of the
cooking tube (Figure 10). Set the
cooking tube in the tube holder
slots. The Banty Roaster is now
assembled.
Figure 10 – Cut and attach the foam grips.
1-1/2" 1-1/2"

Banty Roaster User Guide 59755 V0210 7
Cooking with the Banty Roaster
Preparation for Use
Wipe dust and ngerprints from the mirrored surface with a small amount of
glass cleaner and a soft cloth.
What to Cook
Banty Roaster is designed to cook one cocktail sausage wrapped in foil.
Althoughmorethanonewilltinthetube,wedonotrecommendthatyou
try this as steam buildup will cause the additional sausages to be expelled.
Items Needed (not included)
• Cocktailsausages • Woodendowel,3/8"or1/2"diameter
• Aluminumfoil • Ovenmitts
Cooking Instructions*
1. Roll a cocktail sausage in a 3” x 3” piece of foil and twist the ends closed.
2. Slide the foil-wrapped sausage into the cooking tube. Use the wooden
dowel to push the sausage to the center of the tube. Place the cooking
tube on the tube holders and take the Banty Roaster outside.
3. Position the Roaster so it faces the Sun. Adjust the angle of the Roaster so
the sunlight shines through the big hole in the forward solar angle gauge
and is projected onto the smaller hole in the rear gauge. This ensures the
cookerispositionedtooptimizetheSun’sheatenergy.AstheSunmoves,
the angle may need to be adjusted.
Caution: The cooking tube will become very hot during the cooking
process. Do not touch it with bare hands.
4. Aftervetosevenminutes,putontheovenmittsandremovethe
sausage by pushing it out of the tube with the wooden dowel. Unwrap
and enjoy!
* Always use safe food-preparation and food-handling practices.

8 Banty Roaster User Guide 59755 V0210
