Pixsys CNV580-1AD User manual

User manual - Manule d’uso
CNV580
Hub for remote monitoring
of Pixsys devices
Hub per il controllo remoto
di dispositivi Pixsys

Table of contents
1 Safety guidelines ................................................................................................................5
1.1 Organization of safety notices ..........................................................................6
1.2 Safety Precautions................................................................................................7
1.3 Precautions for safe use.......................................................................................8
1.4 Environmental policy / WEEE.......................................................................... 10
2 Dimensions and installation.........................................................................................11
2.1 Model identification...........................................................................................12
3 Technical data...................................................................................................................12
3.1 General features..................................................................................................12
3.2 Reference standards...........................................................................................13
3.3 Hardware data.....................................................................................................14
3.4 Isolation data.......................................................................................................15
4 Electrical wirings...............................................................................................................15
5 Mounting sequence for CNV580-3AD........................................................................ 23
6 Wiring examples.............................................................................................................. 25
7 App “Pixsys Guard” ......................................................................................................... 29
7.1 Add / share new system.................................................................................... 29
7.2 System configuration.........................................................................................31
7.3 CNV580 parameters editable with “Pixsys Guard”.................................... 32
7.4 Customized notifications................................................................................. 40
8 Limited warranty............................................................................................................. 43

Indice degli argomenti
1 Norme di sicurezza.......................................................................................................... 46
1.1 Organizzazione delle note di sicurezza ....................................................... 47
1.2 Note di sicurezza ................................................................................................ 48
1.3 Precauzioni per l’uso sicuro............................................................................. 49
1.4 Tutela ambientale e smaltimento dei rifiuti / Direttiva WEEE................ 52
2 Dimensioni ed installazione......................................................................................... 52
2.1 Identificazione del modello............................................................................. 53
3 Dati tecnici ........................................................................................................................ 53
3.1 Caratteristiche generali.................................................................................... 53
3.2 Normative di riferimento ................................................................................. 54
3.3 Caratteristiche hardware................................................................................. 55
3.4 Caratteristiche di isolamento ......................................................................... 56
4 Collegamenti elettrici..................................................................................................... 56
5 Sequenza di montaggio del CNV580-3AD................................................................ 63
6 Esempi di collegamento................................................................................................ 66
7 App “Pixsys Guard” ......................................................................................................... 70
7.1 Creazione / condivisione impianto............................................................... 70
7.2 Configurazioni di sistema................................................................................ 72
7.3 Elenco parametri CNV580 modificabili con “Pixsys Guard” ................... 73
7.4 Notifiche personalizzate.................................................................................. 83
8 Limitazione di responsabilità....................................................................................... 86

User manual - CNV580 - 5
Download “Pixsys Guard” App for Android®
Use App only after checking User manual.
Check chapter 7for details.
1 Safety guidelines
Read carefully the safety guidelines and programming instructions
contained in this manual before connecting/using the device.
Disconnect power supply before proceeding to hardware settings or
electrical wirings to avoid risk of electric shock, fire, malfunction. Do not
install/operatethedeviceinenvironmentswithflammable/explosivegases.
This device has been designed and conceived for industrial environments
and applications that rely on proper safety conditions in accordance with
national and international regulations on labour and personal safety. Any
application that might lead to serious physical dama ge/ life risk or involve
Table of contents

6 - CNV580 - User manual
medical life support devices should be avoided. Device is not conceived
for applications related to nuclear power plants, weapon systems, flight
control, mass transportation systems. Only qualified personnel should be
allowed to use device and/or service it and only in accordance to technical
data listed in this manual. Do not dismantle/modify/repair any internal
component. Device must be installed and can operate only within the
allowed environmental conditions. Overheating may lead to risk of fire
and can shorten the lifecycle of electronic components
1.1 Organization of safety notices
Safety notices in this manual are organized as follows:
Note di sicurezza Descrizione
Danger! Disregarding these safety guidelines and notices can be
life-threatening.
Warning! Disregarding these safety guidelines and notices can
result in severe injury or substantial damage to property.
Information! This information is important for preventing errors.

User manual - CNV580 - 7
1.2 Safety Precautions
Danger!
CAUTION - Risk of Fire and Electric Shock.
This product is UL listed as open type process control
equipment. It must be mounted in an enclosure that does not
allow fire to escape externally.
Warning!
If the output relays are used past their life expectancy,
contact fusing or burning may occasionally occur.
Always consider the application conditions and use the
output relays within their rated load and electrical life
expectancy. The life expectancy of output relays varies
considerably with the output load and switching conditions.
Warning!
Loose screws may occasionally result in fire.
For screw terminals tighten screws to tightening torque of
0,5 Nm.

8 - CNV580 - User manual
Warning!
A malfunction in the Digital Controller may occasionally make
control operations impossible or prevent alarm outputs,
resulting in property damage. To maintain safety in the event
of malfunction of the Digital Controller, take appropriate
safety measures, such as installing a monitoring device on a
separate line.
1.3 Precautions for safe use
Be sure to observe the following precautions to prevent operation failure,
malfunction, or adverse affects on the performance and functions of the
product. Not doing so may occasionally result in unexpected events. Do
not handle the Digital Controller in ways that exceed the ratings.
• The product is designed for indoor use only. Do not use or store the
product outdoors or in any of the following places.
- Places directly subject to heat radiated from heating equipment.
- Places subject to splashing liquid or oil atmosphere.
- Places subject to direct sunlight.
- Places subject to dust or corrosive gas (in particular, sulfide gas and
ammonia gas).

User manual - CNV580 - 9
- Places subject to intense temperature change.
- Places subject to icing and condensation.
- Places subject to vibration and large shocks.
• Installing two or more controllers in close proximity might lead to
increased internal temperature and this might shorten the life cycle of
electronic components. It is strongly recommended to install cooling
fans or other air-conditioning devices inside the control cabinet.
• Always check the terminal names and polarity and be sure to wire
properly. Do not wire the terminals that are not used.
• To avoid inductive noise, keep the controller wiring away from
power cables that carry high voltages or large currents. Also, do
not wire power lines together with or parallel to Digital Controller
wiring. Using shielded cables and using separate conduits or ducts is
recommended. Attach a surge suppressor or noise filter to peripheral
devices that generate noise (in particular motors, transformers,
solenoids, magnetic coils or other equipment that have an inductance
component). When a noise filter is used at the power supply, first check
the voltage or current, and attach the noise filter as close as possible
to the Digital Controller. Allow as much space as possible between the

10 - CNV580 - User manual
Digital Controller and devices that generate powerful high frequencies
(high-frequency welders, high-frequency sewing machines, etc.) or surge.
• A switch or circuit breaker must be provided close to device. The
switch or circuit breaker must be within easy reach of the operator,
and must be marked as a disconnecting means for the controller.
• The device must be protected by a fuse 2A (cl. 9.6.2).
• Wipe off any dirt from the Digital Controller with a soft dry cloth. Never
use thinners, benzine, alcohol, or any cleaners that contain these or
other organic solvents. Deformation or discoloration may occur.
• The number of non-volatile memory write operations is limited.
Therefore, use EEprom write mode when frequently overwriting data,
e.g.: through communications.
1.4 Environmental policy / WEEE
Do not dispose electric tools together with household waste material.
According to European Directive 2012/19/EU on waste electrical and
electronic equipment and its implementation in accordance with national
law, electric tools that have reached the end of their life must be collected
separately and returned to an environmentally compatible recycling facility.

User manual - CNV580 - 11

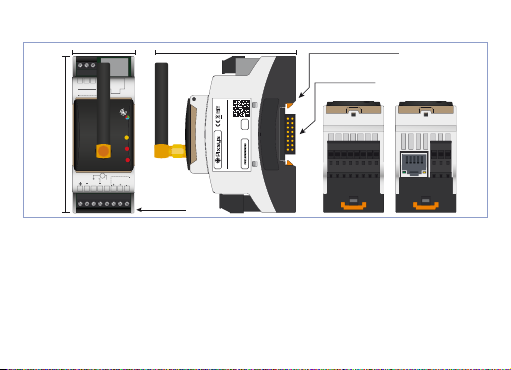

2 Dimensions and installation
36 mm 84 mm
90 mm
COM
RF
RUN
Ix
Qx
9
12345678
10 11
B(+)
+V
70mA 4/20 mA
DI1 DI2 DI
0V(PNP)
AI1
O1 mA
A(-) C
RS485
12.. 24V DC
24VAC
ETH1
ISOLATION
ISOLATION
CNV580-4AD
GATEWAY IoT-NB BLE 4.2 NFC
WI-FI 802.11 B/G/N
MADE IN
EU
Power Supp. 12 24VDC/24VAC 50/60Hz Power Consumption: 5VA 2DI 1AI 1DO RS485 ETH CAN
PLE DIN Bus (Optional)
DIN rail mounting guide EN50022
Extractable
terminal blocks

12 - CNV580 - User manual
2.1 Model identification
CNV580-1AD Gateway IoT 2G GSM 2G/GPRS 2DI 1AI 4-20mA 1DO
CNV580-2AD Gateway IoT 2G GSM 2G/GPRS RS485 Modbus / 2DI 1AI
4-20mA 1DO
CNV580-3AD Gateway IoT 2G GSM 2G/GPRS BUS PLExxx / 2DI 1AI
4-20mA 1DO
CNV580-4AD Gateway IoT 2G GSM 2G/GPRS Eth LAN-WAN / 2DI 1AI
4-20mA 1DO
3 Technical data
3.1 General features
Power supply 12..24VDC / 24 VAC ±15%
Consumption Tipico 2 W - Max 12 W (for UPS start-up)
Operating
temperature Temperature 0-45 °C, humidity 35..95 RH%
Enclosure 36 x 90 x 84 mm (DIN43880, 2 modules, DIN rail
mounting)

User manual - CNV580 - 13
Material Enclosure: Noryl V0 self-exstinguish
Sealing IP20 (enclosure and terminal block)
APP Programming via App
“Pixsys Guard” for Android®
IoT Radio
network Module 2G GSM GPRS (multi-band 2G GSM GPRS)
Weight approx 250 gr.
3.2 Reference standards
• EMC DIRECTIVE 2014/52/EU (EMC)
• RADIO EQUIPMENT DIRECTIVE 2014/53/EU (RED)
• RoHS 2011/65/EU, 2015/863/EU

14 - CNV580 - User manual
3.3 Hardware data
1analogue input
4...20mA 2 wires, current/loop (30000 points)
±0,2% F.S. - min. 100 milliseconds (1...30 mean
filter)
2 digital inputs PNP , galvanic isolation 2.5 kV
1 digital output PNP 24 VDC - 30 mA max
Serial communication RS485 - only for Pixsys devices
Bus protocol PLE-DIN-BUS real time for I/O modules PLE500
Ethernet 10/100 T IEE802.3
SIM slot
Nano Sim preinstalled and already activated.
Do not remove it unles authorized by the
manufacturer/Pixsys.

User manual - CNV580 - 15
3.4 Isolation data
9
1 2 3 4 5 6 7 8
10 11
B(+)
+V
70mA 4/20 mA
DI1 DI2 DI
0V(PNP)
AI1
O1 mA
A(-) C
RS485
12..24VDC
24VAC
ETH1
ISOLATION
ISOLATION
The 4 sections of the device are completely
isolated.
Isolation :1500 Vac
4 Electrical wirings
This product has been designed and manufactured in conformity to
Low Voltage Directive 2006/95/EC, 2014/35/EU (LVD) and EMC Directive
2004/108/EC, 2014/30/EU (EMC). For installation in industrial environments
please observe following safety guidelines:
• Separate control line from power wires.
• Avoid proximity of remote control switches, electromagnetic
contactors, powerful engines.
• Avoid proximity of power groups, especially those with phase control.

16 - CNV580 - User manual
• It is strongly recommended to install adequate mains filter on power
supply of the machine where the controller is installed, particularly
if supplied 230 VAC. The device is designed and conceived to be
incorporated into other machines, therefore CE marking on the
controller does not exempt the manufacturer of machines from safety
and conformity requirements applying to the machine itself.
• Wiring device, use crimped tube terminals or flexible/rigid copper
wire with diameter 0.14 to 1.5 mm2(min. AWG28, max. AWG16). Cable
stripping lenght is 7 mm.
• It is possible to connect on a single terminal two wires with same
diameter comprised between 0.14 and 0.75mm2.
4.a Power supply
1
+ -
2
SUPPLY
12...24 V AC / DC ± 15%
4.b Digital output PNP
3+V Q1-4
LOAD
Q1-: PNP output max. 30 mA.

User manual - CNV580 - 17
4.c Input AI1 4...20 mA
3
+V AI1
5
mA
For linear signals
• Rispect polarity
• When using shielded cable, only one shield end
must be grounded.
• Pin AI1: 4...20 mA signal input
4.d Pin +V
3
+V
Output for sensor supply (Max. 70mA).
If device supply is DC, +V = supply voltage.
If device supply is AC, +V = supply voltage x 1,41 V
DC , hence rectified supply output. With supply 24 V
AC, +V will be approx. 34 V DC.

18 - CNV580 - User manual

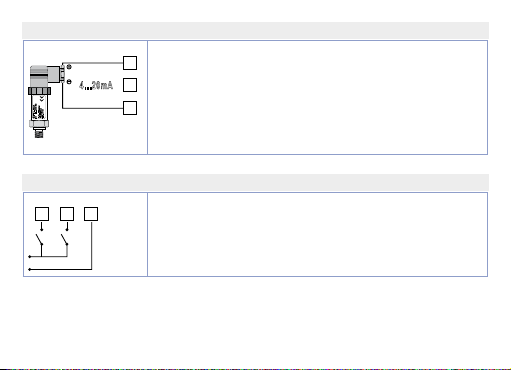

4.e Examples of connection for AI1 input
4...20mA
P:0...100mbar Pmax :3bar T:0..70°C
OUT: 4...20mA IN :9...33VDC
3
5
For 0/4..20 mA normalized current signals with two
wire sensor.
Respect the polarity:
5 = Sensor output
3 = Power supply (12...34 V DC)
In the picture: pressure sensor.
4.f Isolated digital inputs
6
DI1 0V
8
DI2
7
12..24 V AC / DC
PNP inputs (to activate input, connect a positive
signal to corresponding pin)
1,5 kV galvanic isolation

User manual - CNV580 - 19
4.g Isolated RS485 (only for -2AD)
Shield/Schermo
9
CA-B+
10 11
RS485:
330Ω Terminator
470Ω Polarizer
4.h Ethernet (only for -4AD)
Ethernet port 10/100 Mbit for network connectivity
LAN / WAN.
4.i PLE / DIN bus (only for -3AD)
Bus connector for CNV580 placed inside DINrail.
See chapter 5for mounting instructions

20 - CNV580 - User manual
4.j GSM 2G / GPRS Antenna
Frequency range: 850 / 900 / 1800 / 1900/ 2100 MHz
M2M Applications
Connector: SMA (male)
Dimensions: 18.4 x 8.0 x 49.5mm
Nominal impedence: 50Ω
Radiation Pattern Omni
Polarization: Linear
