PL Project PL2000 User manual

Main Page

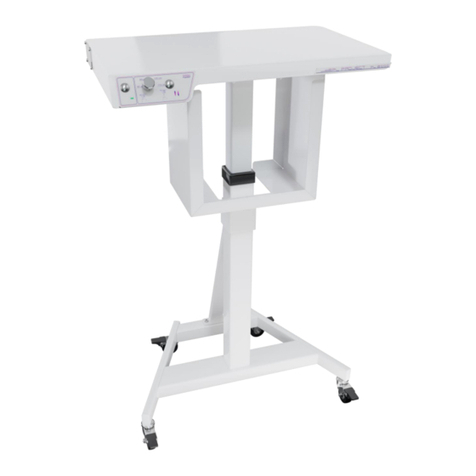

Work Table with Adjustable Height
PL2000
User Manual PL2000
ORIGINAL’S
TRANSLATION
2182&DC_UserManual_HeightAdjustableTable_EN_220114 1/29
Work Table with Adjustable Height
PL2000
User Manual

History
Work Table with Adjustable Height
PL2000
User Manual PL2000
ORIGINAL’S
TRANSLATION
2182&DC_UserManual_HeightAdjustableTable_EN_220114 2/29
History
Date
Name
Description
30.11.2021
BoL
Creating the document
06.02.2022
RoM
Update Package contents
27.02.2022
RoM
Change first page image, add Figure 2 with description for it. Cor-
rect power consumption. Replace Electrical circuit diagram and
needed Assembly and Installation of the Table figures.
28.02.2022
BoL
Some figures added, Maintenance chapter extended with residual
current breaker description.
11.05.2022
RoM
Edit Package contents replace figures in paragraphs Mount the Ta-
ble Top:, Fasten the Table Top, Mount the Stand to the Table Top:,
Fasten the Stand to the Table Top
14.01.2023
YoM
Updated Electrical circuit diagram
Subject to technical modifications to improve the quality and safety of the manufactured
equipment.

Table of contents
Work Table with Adjustable Height
PL2000
User Manual PL2000
ORIGINAL’S
TRANSLATION
2182&DC_UserManual_HeightAdjustableTable_EN_220114 3/29
Table of Contents
1GENERAL ......................................................................................................................5
2PACKAGE CONTENTS ................................................................................................... 6
3SAFETY PRECAUTIONS................................................................................................. 9
3.1 Subject of application ................................................................................................................................ 9
3.2 Common risks of non-compliance with safety instructions........................................................................... 9
3.3 Residual hazards ....................................................................................................................................... 9
3.4 Transformation and modifications.............................................................................................................10
3.5 Qualified personnel ..................................................................................................................................10
3.6 Accident prevention .................................................................................................................................10
3.7 Electromagnetic hazards ..........................................................................................................................10
4INTENDED USE OF THE EQUIPMENT............................................................................11
4.1 Purpose of all main modules .....................................................................................................................11
5TECHNICAL SPECIFICATIONS.......................................................................................13
6EQUIPMENT INSTALLATION........................................................................................14
6.1 Stability during use, installation and maintenance .....................................................................................14
6.2 Environmental installation requirements...................................................................................................14
6.3 Measurements for installation in order to reduce the noise and vibration level of the equipment ..................14
6.4 Assembly and Installation of the Table ......................................................................................................14
7EQUIPMENT OPERATION ............................................................................................21
8MACHINE MAINTENANCE ............................................................................................22
8.1 Spare parts list .........................................................................................................................................22
8.2 Troubleshooting. Blocking and unblocking of the equipment......................................................................23
8.2.1 Changing fuse of the machine ...................................................................................................................... 23
8.3 Reactivating the differential (residual) current protection after a trip ..........................................................24

Table of contents
Work Table with Adjustable Height
PL2000
User Manual PL2000
ORIGINAL’S
TRANSLATION
2182&DC_UserManual_HeightAdjustableTable_EN_220114 4/29
9ELECTRICAL CIRCUIT DIAGRAM ...................................................................................25
10 DECLARATION OF CONFORMITY .................................................................................28
11 ADDRESS ....................................................................................................................29
FIGURES:
FIGURE 1 MACHINE DESCRIPTION FRONT.................................................................................................................... 11
FIGURE 2 MACHINE DESCRIPTION BACK ...................................................................................................................... 12
FIGURE 3 MOUNTING THE BACK SUPPORT TO THE FLOOR BASE ............................................................................... 14
FIGURE 4 ALIGNING THE MOTORIZED COLUMN.......................................................................................................... 15
FIGURE 5 FASTENING THE MOTORIZED COLUMN ....................................................................................................... 15
FIGURE 6 GROUND WIRES OF THE STATIC PART ......................................................................................................... 16
FIGURE 7 MOUNTING OF THE TABLE TOP .................................................................................................................... 16
FIGURE 8 FASTENING THE TABLE TOP ......................................................................................................................... 17
FIGURE 9 MOUNTING THE STAND TO THE TABLE TOP................................................................................................ 17
FIGURE 10 FASTEN THE STAND .................................................................................................................................... 18
FIGURE 11 CONNECTING THE GROUND WIRES ON THE MOVING PART ..................................................................... 18
FIGURE 12 CONNECTING THE MOTOR CABLE .............................................................................................................. 19
FIGURE 13 POWER SUPPLY CABLE................................................................................................................................ 19
FIGURE 14 SUPPLYING A MACHINE THROUGH THE TABLE .........................................................................................20
FIGURE 15 CONTROL DEVICES OF PL2000 .................................................................................................................... 21
FIGURE 16 REMOVING FUSE.......................................................................................................................................... 23
FIGURE 17 VIEW OF THE FUSE-HOLDER........................................................................................................................24
FIGURE 18 REACTIVATING OF THE RESIDUAL CURRENT PROTECTION.......................................................................24
TABLES:
TABLE 1 PACKAGE CONTENTS.......................................................................................................................................8
TABLE 2 SPARE PARTS AND ACCESSORIES................................................................................................................. 23

General
Work Table with Adjustable Height
PL2000
User Manual PL2000
ORIGINAL’S
TRANSLATION
2182&DC_UserManual_HeightAdjustableTable_EN_220114 5/29
1 General
PL2000 is a stable and versatile single leg working table, which is intended to enable a relia-
ble support of small machinery in different light industries.
Note
The illustrations in this document are for informational purposes only
and may not be accurate. Differences between revisions of the vari-
ous components may not be reflected in the illustrations where this
is not decisive for the principle of operation of the system.

Package contents
Work Table with Adjustable Height
PL2000
User Manual PL2000
ORIGINAL’S
TRANSLATION
2182&DC_UserManual_HeightAdjustableTable_EN_220114 6/29
2 Package contents
The presence of the following parts is to be checked immediately after unboxing the package:
Pos.
Nr
Qty.
Designa-
tion
1
1
Table Top
2
1
Back Support
3
1
Floor Base with
mounted Wheels
4
1
Stand
5
1
Pressing Plate
6
1
Motorized Col-
umn
7
5
Toothed lock
washers
DIN 6797 A 4,3

Package contents
Work Table with Adjustable Height
PL2000
User Manual PL2000
ORIGINAL’S
TRANSLATION
2182&DC_UserManual_HeightAdjustableTable_EN_220114 7/29
8
5
Screw
DIN 7045 H
M4 x 6
9
4
Metal Washer
DIN-9021 Size
6.4
10
2
Metal Washer
DIN-125-1 A-A
Size 6.4
11
8
Screw ISO
7380-2
Size M6 x16
12
2
Screw ISO
7380-1
Size M6 x 16
13
4
Screw ISO
7380-1
Size M6 x 60
14
1
Floor base
YE/GN
grounding wire
(single side
mounted)
15
1
Back support’s
YE/GN grounding
wire (single side
mounted)
16
1
Stand’s YE/GN
grounding wire
(single side
mounted)
17
1
YE/GN Wire for
grounding of the
motorized column
(single side
mounted)
18
1
Hex Key 4 mm
19
1
Hex Key 2.5 mm

Package contents
Work Table with Adjustable Height
PL2000
User Manual PL2000
ORIGINAL’S
TRANSLATION
2182&DC_UserManual_HeightAdjustableTable_EN_220114 8/29
20
1
Table to Machine
Cable IEC C13-
C14
21
1
Power Supply Ca-
ble IEC C13 2)
22
1
Wrench 10mm 1)
Table 1 Package contents
1) Dependent on the table’s revision the Wrench 10mm could not be included
2) The mains plug of the cable depends on the target country

Safety precautions
Work Table with Adjustable Height
PL2000
User Manual PL2000
ORIGINAL’S
TRANSLATION
2182&DC_UserManual_HeightAdjustableTable_EN_220114 9/29
3 Safety precautions
3.1 Subject of application
Electrically adjustable in height work table PL2000, for short referred as "table", is intended to
support different types of small machines in the industry.
It is unacceptable to use the table for other purposes or outside of measured parameters.
For safety purposes, the table has to be used and maintained according to the following man-
ual only.
In order to ensure safe and trouble-free operation, the device should be transported, placed,
mounted and leveled correctly in a right environmental condition. Also exploitation has to be
with care and regularly maintained.
3.2 Common risks of non-compliance with safety instructions
This table is safe and reliable. There is a risk of harm if it is not mounted properly or used by
not trained personnel. Anyone involved in the relocation, mounting, maintenance and opera-
tion with the table must be familiar with the operating and installation instructions.
3.3 Residual hazards
The hazards that were impossible to remove by technological means during the design and
manufacturing of the equipment are listed in this instruction. The following symbols are used
to warn of residual risks:
Symbol:
Meaning: Dangerous situation
A warning of a potentially dangerous situation in which non-
compliance with safety measures can result in death or serious
physical injury.
WARNING!
CAUTION
Symbol:
Meaning: Potentially dangerous situation
Warns of a potentially dangerous situation in which non-com-
pliance with safety measures could lead to the destruction of
property or some kind of physical damage.
Symbol:
Note
Meaning: Important note
Meaning: Useful information about the equipment or its
maintenance
Symbol:
The national environmental and recycling legislation requires any waste
equipment and used consumables to be disposed separately from the
household waste. More information can be obtained from the respective
public authorities or the vendor of the product to be disposed.

Safety precautions
Work Table with Adjustable Height
PL2000
User Manual PL2000
ORIGINAL’S
TRANSLATION
2182&DC_UserManual_HeightAdjustableTable_EN_220114 10/29
3.4 Transformation and modifications
The table PL2000 must not be modified in terms of its design or safety measures without ex-
press written consent by the manufacturer - PL Project Ltd. Any modification excludes any re-
sponsibility by the manufacturer for any damage or injury resulting from the modification.
3.5 Qualified personnel
The equipment must be installed, set up and placed for operation by associates familiar with
the equipment and by following the safety instructions and measures described below. Quali-
fied personnel are person or group of people that are trained for installation, relocation and
maintenance of the equipment.
3.6 Accident prevention
The table has a board controller and the motor speed is software preset in order to prevent
any danger to the operator, also motor electrical current is limited to prevent any damage to
the equipment.
The general rules and instructions for accident prevention must be followed.
3.7 Electromagnetic hazards
The PL2000 table complies with EN 55011 cl. 62.2 –Limits of electromagnetic disturbances
for class B group 1. The tests and measurements designate the system as safe for use even
in domestic and light industrial areas.

Intended use of the equipment
Work Table with Adjustable Height
PL2000
User Manual PL2000
ORIGINAL’S
TRANSLATION
2182&DC_UserManual_HeightAdjustableTable_EN_220114 11/29
4 Intended use of the equipment
The PL2000 is a single leg work table with electrical adjustment of height, which is intended
to carry small and relatively light machinery in different industry areas.
4.1 Purpose of all main modules
The basic components and controls of the table are shown on Figure 1 and Figure 2.

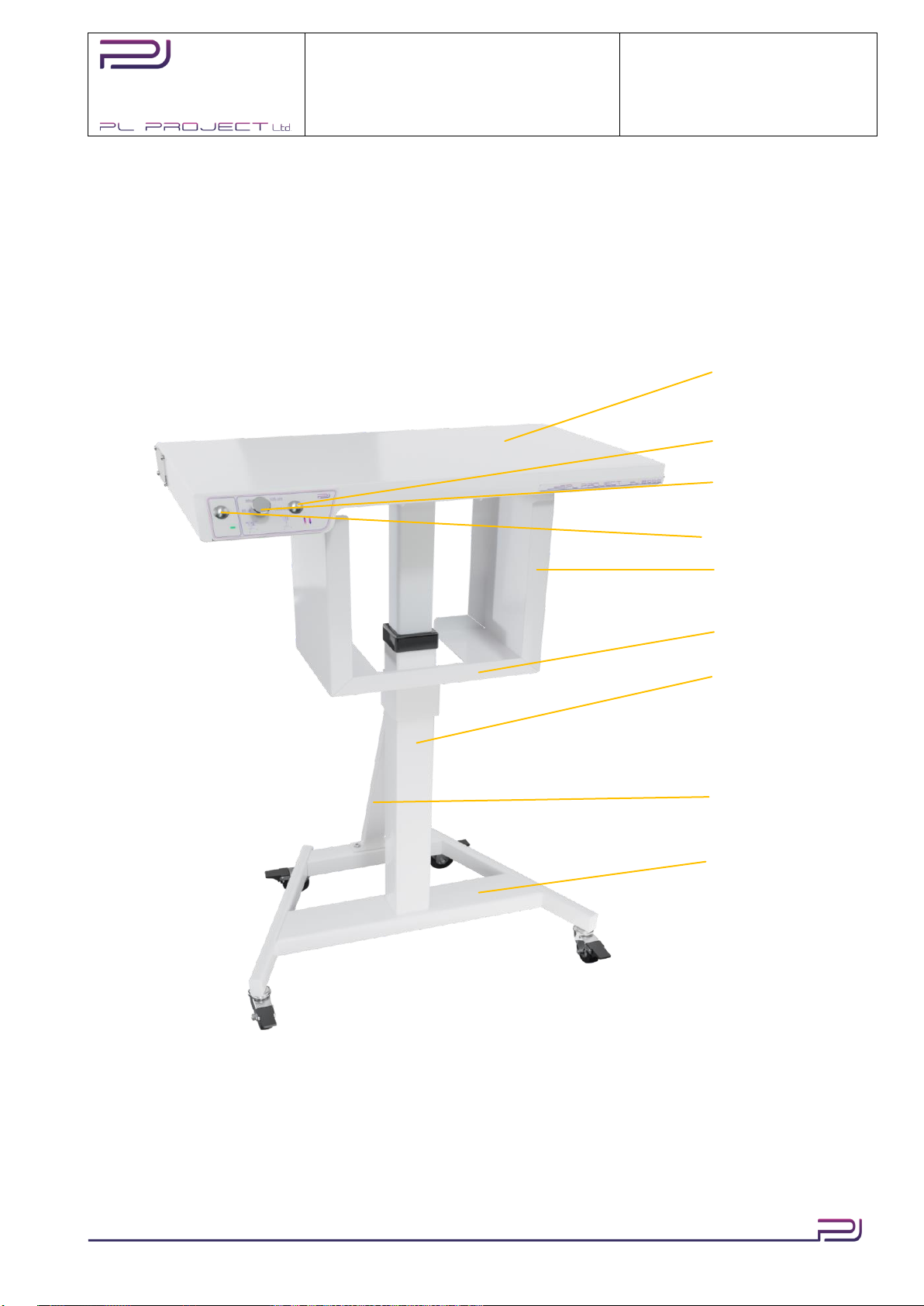

Figure 1 Machine description front
2
5
1
6
7
3
4
9
8

Intended use of the equipment
Work Table with Adjustable Height
PL2000
User Manual PL2000
ORIGINAL’S
TRANSLATION
2182&DC_UserManual_HeightAdjustableTable_EN_220114 12/29
Figure 2 Machine description back
1. Table’s top with the working surface;
2. Table’s back support;
3. Tables floor base with mounted wheels;
4. Stand for different tools, materials and accessories;
5. Trigger button –pressing this button starts the movement of the table’s top together
with the stand (4);
6. Height adjustment dial –using this one the desired height is chosen;
7. Power on switch;
8. Stand’s front board;
9. Motorized lifting column;
10. Differential current protection;
11. Power Supply Socket for Cable IEC C13 with switch and fuse;
12. Power Supply Socket for cable IEC C13-C14;
Any operation of the equipment outside its intended use may result
in damage to the equipment and injury to the operating personnel
CAUTION

Technical specifications
Work Table with Adjustable Height
PL2000
User Manual PL2000
ORIGINAL’S
TRANSLATION
2182&DC_UserManual_HeightAdjustableTable_EN_220114 13/29
5 Technical specifications
Outer dimensions of the package:
width
530 mm
length
680 mm
height
150 mm
Gross weight
23 kg
Net weight
21 kg
Max permissible load
50 kg
Power supply
100-240V/50-60 Hz
Power consumption
50 W
Height range
~78-120 cm
Maximal linear velocity
10 mm/s
Noise level
<70dB (А)
Working temperature
10÷38°C
Storing and transporting temperature
-20÷+60°C
Average humidity without condensation
10÷90%
Environment: additional measures may become necessary when working in a dusty or ag-
gressive environment or exposed to strong electromagnetic interference.

Equipment installation
Work Table with Adjustable Height
PL2000
User Manual PL2000
ORIGINAL’S
TRANSLATION
2182&DC_UserManual_HeightAdjustableTable_EN_220114 14/29
6 Equipment installation
6.1 Stability during use, installation and maintenance
Following the instructions in present Chapter 6 the operator, respectively the maintenance
personnel ensure the safety of the equipment and people during use, installation and mainte-
nance.
6.2 Environmental installation requirements
The table is designed for indoor use only.
Keep it away from moisture or rain, snow, ice, salt water and aggressive chemicals.
The presence of metallic dust or corrosive gases in the air can impair the functionality of the
machine.
Installing of the machine can be made by each user by keeping with the following require-
ments:
6.3 Measurements for installation in order to reduce the noise and vibration level of
the equipment
The table with electrical height adjustment PL2000 works with levels of the noise and vibra-
tions which are safe for the operators and the maintenance personnel.
There are not special measures foreseen in order to reduce these levels.
6.4 Assembly and Installation of the Table
Installation of the machine is easy and doesn’t require additional instruments unless the ones
that could be found in the packaging.
1. Unpack of the table. Take it out from the transportation packaging and released from
all sealing.
2. Assembly the table according the following diagrams:
a.. Mount the Back Support to the Floor Base:
Figure 3 Mounting the back support to the floor base

Equipment installation
Work Table with Adjustable Height
PL2000
User Manual PL2000
ORIGINAL’S
TRANSLATION
2182&DC_UserManual_HeightAdjustableTable_EN_220114 15/29
b.. Align the Motorized Column and the Pressing Plate:
Figure 4 Aligning the Motorized Column
c.. Fastening the Motorized Column:
Figure 5 Fastening the Motorized Column

Equipment installation
Work Table with Adjustable Height
PL2000
User Manual PL2000
ORIGINAL’S
TRANSLATION
2182&DC_UserManual_HeightAdjustableTable_EN_220114 16/29
d.. Connecting the ground wires :
Figure 6 Ground wires of the static part
e.. Mount the Table Top:
Figure 7 Mounting of the Table Top

Equipment installation
Work Table with Adjustable Height
PL2000
User Manual PL2000
ORIGINAL’S
TRANSLATION
2182&DC_UserManual_HeightAdjustableTable_EN_220114 17/29
f... Fasten the Table Top:
Figure 8 Fastening the Table Top
g.. Mount the Stand to the Table Top:
Figure 9 Mounting the Stand to the Table Top

Equipment installation
Work Table with Adjustable Height
PL2000
User Manual PL2000
ORIGINAL’S
TRANSLATION
2182&DC_UserManual_HeightAdjustableTable_EN_220114 18/29
h.. Fasten the Stand to the Table Top:
Figure 10 Fasten the Stand

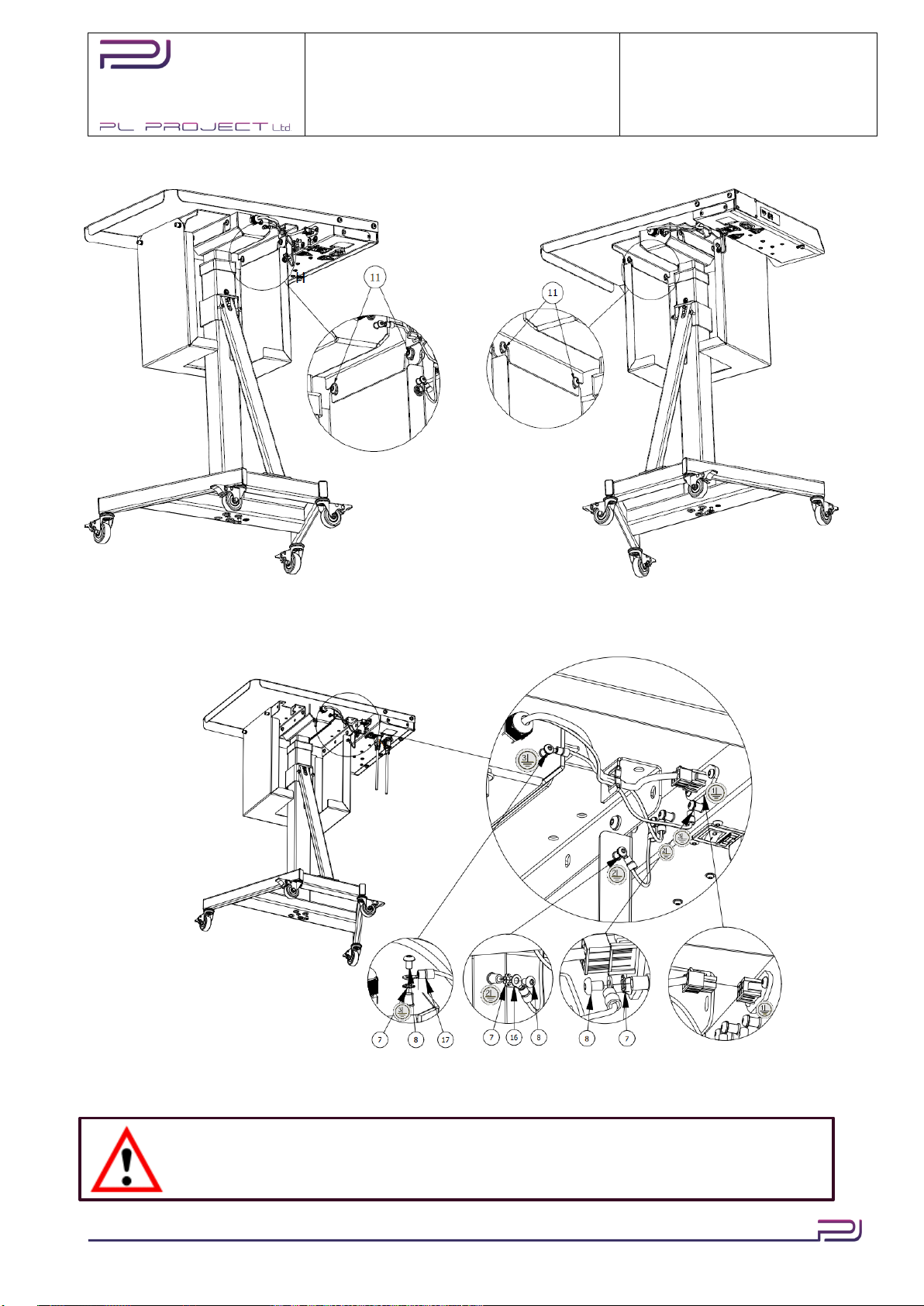

i... Connecting the ground wires of the moving part:
Figure 11 Connecting the ground wires on the moving part
CAUTION
DANGER! Incorrect connection or fastening of grounding wires
may cause danger for life and health of the operating personnel

Equipment installation
Work Table with Adjustable Height
PL2000
User Manual PL2000
ORIGINAL’S
TRANSLATION
2182&DC_UserManual_HeightAdjustableTable_EN_220114 19/29
j... Plug in the Motorized Column’s cable into the control module’s socket. Please,
see Figure 12:
Figure 12 Connecting the motor cable
3. Place for installation:
The table should be placed on a flat, horizontal and stable floor with area equal or larger in
each dimension than 70cm.
4. Power supply
The machine is supplied by a standard IEC C13, 3-wire power supply cable. The cable is in-
cluded in the delivery.
The receptacle’s side of the cable should be plugged in the appropriate connector on the bot-
tom side of the PL2000 control box - Figure 13.
Figure 13 Power supply cable

Equipment installation
Work Table with Adjustable Height
PL2000
User Manual PL2000
ORIGINAL’S
TRANSLATION
2182&DC_UserManual_HeightAdjustableTable_EN_220114 20/29
5. The machine should be plugged in a power supply outlet, which provides a standard
sinusoidal voltage of 100-240V/50-60Hz
6. The power socket should be undamaged, grounded, in distance allowing the machine
to be freely disconnected from the power supply if needed.
7. In case the table is used in combination with another equipment, which is to be sup-
plied via an IEC C13 cable and has a power consumption of up to 150 W, the CEE M
CEE F Cable (Table 1, position 18):
Figure 14 Supplying a machine through the table
