Planar Clarity Matrix User manual

Clarity Matrix Fiber Video
Extension User Guide

Copyright © 2015 by Planar Systems, Inc. All rights reserved.
Contents of this publication may not be reproduced in any form without permission of Planar
Systems, Inc.
Trademark Credits
Windows™ is a trademark of Microsoft Corp.
All other names are trademarks or registered trademarks of their respective companies.
Disclaimer
The information contained in this document is subject to change without notice. Planar
Systems, Inc. makes no warranty of any kind with regard to this material. While every
precaution has been taken in the preparation of this manual, the Company shall not be liable
for errors or omissions contained herein or for incidental or consequential damages in
connection with the furnishing, performance, or use of this material.
Warranty and Service Plans
Planar warranty and service plans will help you maximize your investment by providing great
support, display uptime, and performance optimization. From post-sale technical support to
a full suite of depot services, our services are performed by trained Planar employees. When
you purchase a Planar product, you get more than a display, you get the service and support
you need to maximize your investment. To find the latest warranty and service information
regarding your Planar product, please visit http://www.planar.com/support
RoHS Compliance Statement
The Clarity Matrix Video Walls are fully RoHS compliant.
ADA Compliance Statement
The Clarity Matrix Video Walls are compliant with the Americans with Disabilities Act.
Part Number: 020-1300-00A

© 2015 Planar Clarity Matrix Fiber Video Extension User Guide 3
Introduction
The ClarityMatrixTM with G2 Architecture has added to its mission-critical
capabilities with the Fiber Video Extension option. The ClarityMatrixTM Fiber Video
Extension option provides a more secure and longer distance option for extending
the video signal from the off-board electronics to the Clarity Matrix LCD modules.
Features of the Fiber Video Extension option include:
• Utilizes fiber optic cable to extend the Matrix G2 video signal
• Allows the Quad Controller module and the Fiber Video Extension module to be
placed up to 1000 feet/300 meters away from the Matrix wall with standard
duplex multi-mode fiber cable or up to 10 kilometers with duplex single-mode
fiber cable
• Extends the IR remote control over the fiber cable
• Extends the USB signal for the Matrix MultiTouch sensor and can power the
touch sensor from the Matrix LCD module
Manual Scope
This manual covers the unpacking, installation and troubleshooting of the Fiber
Video Extension option.
General and technical information regarding fiber optics can be found here:
http://www.thefoa.org.
For specific fiber termination details, please reference the information supplied by
the termination kit and/or fiber cable manufacturer.

System Architecture
© 2015 Planar Clarity Matrix Fiber Video Extension User Guide 4
System Architecture
The Fiber Video Extension module is the main component of the Fiber Video
Extension option. It works with the Quad Controller module to send images to the
LCD modules.
The following example shows the connections for a basic video wall.
Supported Fiber Cable Lengths
The following graphic illustrates the supported fiber cable lengths for the Fiber Video
Extension module. Planar supplies multi-mode transceivers, but the Fiber Video
Extension module is also compatible with single-mode transceivers available from
third parties.
Note: To accommodate the Fiber Video Extension module extended distance difference from
the maximum Power Supply distance, Quad Controllers may need to be separated from the
Power Supply module and powered from an optional DC Power Brick. See the Clarity Matrix
LCD Video Wall System with G2 Architecture Installation Guide for information.
Clarity Matrix Quad Controller
C
larity Matrix Fiber Video
Extension Module

System Architecture
© 2015 Planar Clarity Matrix Fiber Video Extension User Guide 5
Fiber Video Extension Module – Front View
Fiber Video Extension Module – Rear View
Air intake – keep clear
Fiber module
power switch
DC Power (4-pin mini-DIN)
for Fiber module
Input from the Quad Controller
USB 2.0
(Type-B connector)
SFP fiber transceiver connection output to the panel

© 2015 Planar Clarity Matrix Fiber Video Extension User Guide 6
Installing the Fiber Video
Extension

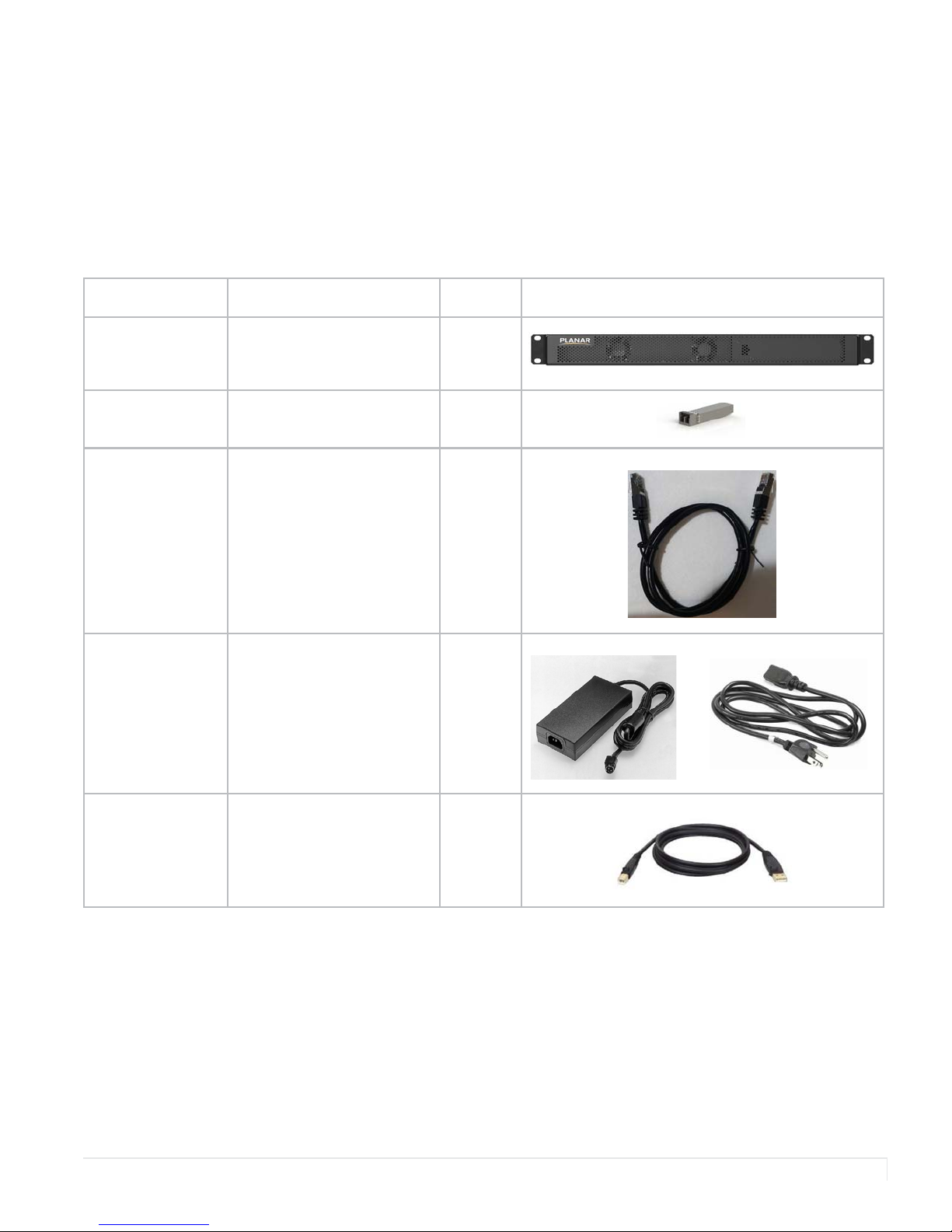

Unpacking the Box
The following items are included with the Fiber Video Extension module:
Part Description Number Picture
Fiber Video
Extension
module
Extends the Quad
Controller with fiber optic
cable out to the LCDs.
1
Transceiver Connections for the fiber
optic cable.
4
CAT6 patch
cables (1 m)
Connects the Quad
Controller module to the
Fiber Video Extension
module.
4
DC power brick
(4 ft)
Powers the Fiber Video
Extension module.
Includes AC cable (2.5 m).
1
USB cable (3 m) Connects a PC to the Fiber
Video Extension module
for USB devices located at
the panel, such as a touch
sensor.
1

Unpacking the Box
© 2015 Planar Clarity Matrix Fiber Video Extension User Guide 7
Optional Accessories
Part Number Description
159-0055-00 10G OM3 50/125 micron multi-mode duplex Plenum fiber optic
cable – 20 m / 65.6 ft.
159-0054-00 10G OM3 50/125 micron multi-mode duplex Plenum fiber optic
cable – 30 m / 98.4 ft.
903-1474-00 Bulk Matrix multi-mode fiber cable – 1640 ft./500m spool.
159-0057-00 50 um multi-mode LC Unicam, OM3 pre-polished fiber connector –
1 piece.
159-0058-00 Connector trigger, narrow pitch. Used to create a duplex connector
using 2 159-0057-00 single connectors.
541-0139-00 Pre-polished kit for field termination of multi-mode and single-
mode LC, SC and ST® compatible connectors. Includes precision flat
cleaver, 1.25 and 2.50 mm VFL ferrule adapters and all required fiber
preparation, cleaning tools and materials.
175-1068-00 Cable Assy, PWR, AUX, TOUCH. Used to connect the optional touch
sensor to the LCD panel for DC power.

Connecting Cables
© 2015 Planar Clarity Matrix Fiber Video Extension User Guide 8
Connecting Cables
This procedure provides steps for how to connect the Fiber Video Extension module
to the Quad Controller module and the LCDs.
It does not cover how to install the LCDs, Quad Controller modules, and power
supply. For detailed installation instructions, refer to the Clarity Matrix LCD Video Wall
System with G2 Architecture Installation Guide.
1On the Quad Controller module, plug one end of the CAT 6 video cables into
the LCD Out connections. Plug the other end into the LCD In connections on
the Fiber Video Extension module.
2On the Fiber Video Extension module, do the following:
aInsert the transceivers into the LCD Out connections.
bRemove the black cap from the end of each of the transceivers.
cPlug one end of the fiber optic cables into the transceivers.

Connecting Cables
© 2015 Planar Clarity Matrix Fiber Video Extension User Guide 9
3On the Panel Interface Board of each LCD, do the following:
aInsert a transceiver into the LCD In connection.
bRemove the black cap from the transceiver.
cPlug the other end of the fiber optic cable into the transceiver.
4Connect the DC power brick to the Fiber Video Extension module and plug
the AC power cord into the power source.

Connecting the USB Option
© 2015 Planar Clarity Matrix Fiber Video Extension User Guide 10
Connecting the USB Option
The Fiber Video Extension also incorporates an embedded USB extension in the fiber
optic cable, eliminating the need for a third party USB extension when using
Clarity® Matrix™ MultiTouch interactive LCD video wall displays and other USB
devices at the video wall. The LCD modules can also provide power for Clarity Matrix
MultiTouch, eliminating the need for separate AC power connection at the video
wall.
Follow these steps to set up the USB option.
1Connect the touch sensor USB cable to a LCD Panel Interface Board that is
connected to LCD 1 on the Fiber Video Extension module.
2Use the power adapter cable to connect all points of power on the touch
sensor to the 5V Aux port on any convenient LCD Panel Interface Board.
3Connect the touch control PC to the Fiber Video Extension module that is
connected to the LCD Panel Interface Board in step 1.

© 2015 Planar Clarity Matrix Fiber Video Extension User Guide 11

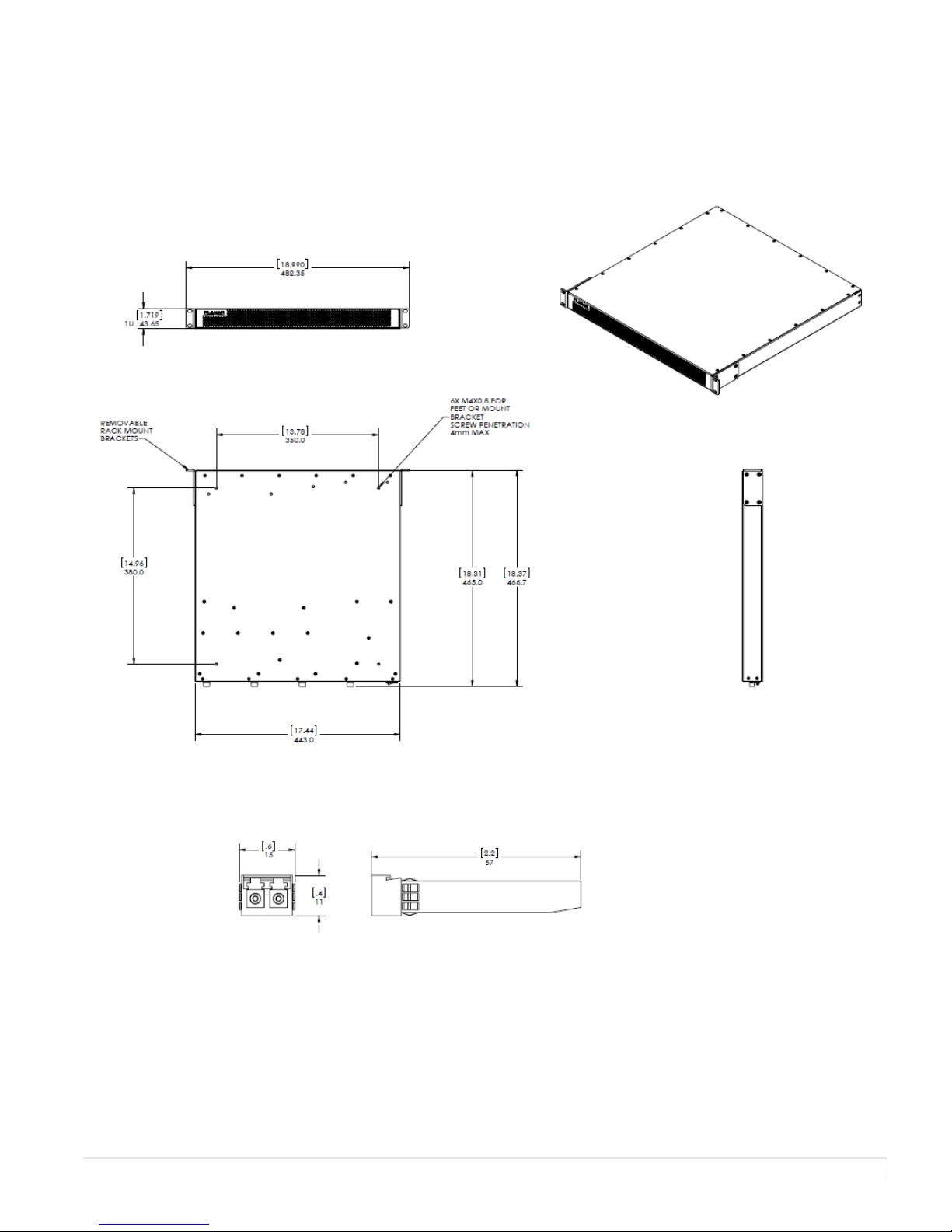

Dimensions
Fiber Video Extension Module
Transceiver

© 2015 Planar Clarity Matrix Fiber Video Extension User Guide 12
Specifications
Fiber Video Extension Module Specification
Environmental Specifications
Specification MG2-FC Connector Notes
Dimensions in/lbs mm/kg
Width 19" 482.4 mm
Height 1.7" 43.7 mm
Depth 20.4" 517.7 mm
Weight 13.5 lbs 6.1 kg
Power In Mini DIN 24-48V, 5A max
Video Input RJ45
Video Out LC SFP+
USB USB Type B
Specification Maximum Minimum Optimal Notes
Temperature
operating
non-operating
40° C
113° F
85° C
122° F
10° C
50° F
–20° C
–4° F
20° C
68° F
All performance specifications
are maintained within this
temperature range.
Fan Noise 45dB
Altitude (barometric pressure) 2000m Above sea level, or equivalent
barometric pressure. De-rate
temperature 10° for every 1km
above 1000m.
Humidity
operating 80% R.H. 20% R.H. non-condensing
