Planet Mobility Easy Travel Elite ET1E User manual

Elite
Patent Pending
USER’S MANUAL

Easy Travel Elite – ET1E User’s Manual Rev. 0061 PM 2

Easy Travel Elite – ET1E User’s Manual Rev. 0061 PM 3
Table of contents:
Page
1. Introduction 4
2. Safety 4
3. System Components 5
4. Assembly and Folding Instructions 7
5. Operating Your Easy Travel Elite 10
6. Moving and Transporting YourEasy Travel Elite 14
7. Helpful Hints for Everyday Use 16
8. General Maintenance and Inspection 17
9. EMI – Electromagnetic Interference 19
10. Fault Finding 22
11. Disposal and Recycling 23
12. Technical Data 23
NOTE: Design details may change without notice.

Easy Travel Elite – ET1E User’s Manual Rev. 0061 PM 4
1. INTRODUCTION
The Easy Travel Elite is a “Class A” Electrically powered scooter. It is in-
tended to be used by individuals that are able to walk, but suffer from mild
mobility limitations. The user must have sufficient arm and leg strength to get
on and off the Easy Travel Elite alone and to safely steer under all driving
conditions.
The Easy Travel Elite is intended for indoor and restricted outdoor use on
pavementsor paved footpaths only during daylight hours. Easy Travel Elite
does not have lights andreflectors andtherefore must not beused in
the dark or in limited visibility conditions.
CAUTION: Failure to follow the instructions contained in this manual may re-
sult in injury to the user or to other persons.
2. SAFETY
During your initial use of the Easy Travel Elite we recommend caution as you
practice operating the unit in various situations. Keep the speed at a reduced
level until you are comfortable controlling the scooter. Follow the safety tips
and instructions and you will be comfortable maneuvering through doorways,
on and off lifts, over moderate terrain and up and down ramps.
These safety considerations and tips will help you to operate theEasy Travel
safely. The Easy Travel Elite is apowerful electric vehicle; these rules
will help you prevent personal injury and damage to your scooter.
1. Read this manual and all labels before operating.
2. Do not carry passengers or exceed the maximum weight capacity.
3. Do not mount or dismount the Easy Travel unless it has cometoa
full stop and is turned off.
4. Do not back up on to uneven inclines or surfaces.
5. Always switch the speed selector to low when driving in a confined space.
6. Always reduce speed when turning.

Easy Travel Elite – ET1E User’s Manual Rev. 0061 PM 5
7. Do not operate your scooter when under the influence of alcohol, medica-
tions or drugs that may impair your safety.
8. Always keep your feet on the foot platform when driving.
9. Do not sit on the scooter while being transported in a moving vehicle. Al-
ways fold downand secure your Easy Travel Elite and transfer yourself
to a vehicle seat.
3. SYSTEM COMPONENTS AND DETAILS

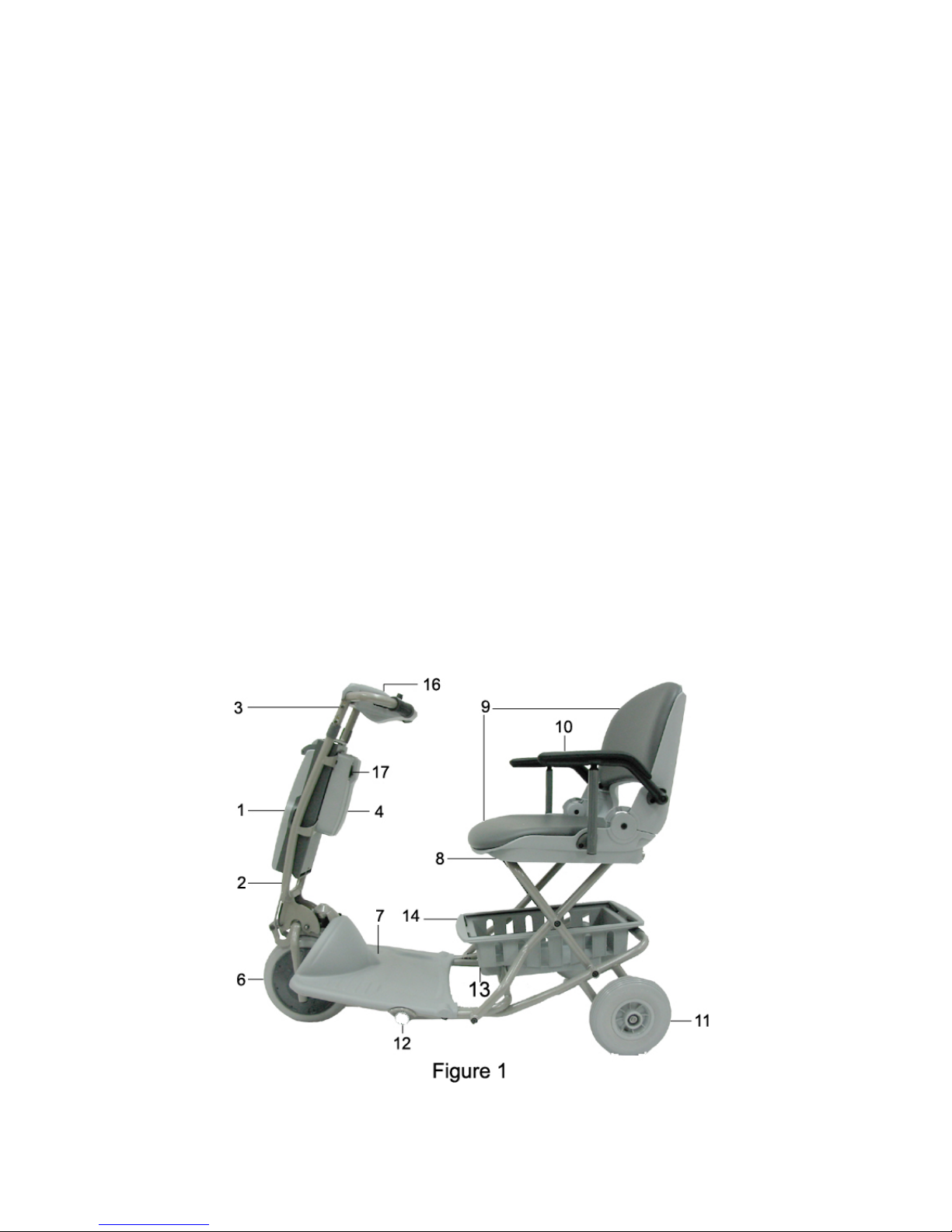

3.1.Easy Travel Elite parts –(Figure1)
1. Battery pack (detachable) 11. Rear wheel
2. Front column (detachable) 12. Folded frame lock/release pin
3. Column lock/release triggers 13. Unfolded frame lock/release pin
4. Controller cover 14. Utility basket (holding capacity
5. Charging socket (Fig. 1A) 20lbs/9kg)
6. Front drive wheel 15. Charger and connecting cables
7. Foot platform (Fig. 1B)
8. Seat shell 16. Control Panel
9. Seat cushions 17. Freewheel switch
10. Foldable armrests

Easy Travel Elite – ET1E User’s Manual Rev. 0061 PM 6
3.2. Control Panel – (Figure 2)
1. Switch
2. Hand control lever (right and left)
3. Speed adjusting knob
4. Indicator light (LED)
5. Battery Gauge
6. Hand-grips
3.3.Easy Travel Elite Optional Accessories:
1. Extra battery pack
BELL: If the user requires an audible warning device, a standard bicycle bell
can be attached to the handlebar.

Easy Travel Elite – ET1E User’s Manual Rev. 0061 PM 7
4. ASSEMBLY AND FOLDING INSTRUCTIONS
4.1.Assembling your Easy Travel Elite.
Unfolding Rear Frame
Pull on the folded frame lock pin ring (Fig.
4/1) to release the foot platform and un-
fold the frame. Pull the seat backrest
(Fig. 4/2) and lift it to the upright position.
Ensure that the unfolded frame lock pin
secures the platform in the horizontal po-
sition.
Unfolding Front Column
Pull the column lock triggers (Fig. 4/3)
upward towards the handle to release the
tilt lock. Move the drive unit away from
the column (all the way) to open the
quick-release housing.
This is the column “detach” position.
Connecting The Front Column To The
Rear Frame
Position the column in the “detach” posi-
tion. Lift the front of the Foot platform and
insert connection pin into the quick-
release housing on the drive unit. This
may be done without bending down by
lifting the front of the seat “lip” while hold-
ing the front column hand-grip as shown
in Fig. 5.

Easy Travel Elite – ET1E User’s Manual Rev. 0061 PM 8
Front Column Adjustment (Figure 6)
To adjust the angle of the front column,
pull the column lock triggers upward.
Move the column into the desired position
and release. Push lightly back and forth
on the column to ensure that it is locked
in the desired position.
1. For driving the Easy-Travel-Elite,
adjust column to one of the two the
rear-most positions.
2. For getting in and out of the
Easy Travel Elite seatcomfortably,
the column may be moved away from
the seat to the entry/exit position.
3. For detaching the front column from
the rear frame, adjust the column
fully forward to the detach position
(Fig. 6/3); remove battery before
adjusting the column to the detach
position.
CAUTION:When getting inand out of theEasy Travel Elite seat, steponly
on CENTER of foot platform. DO NOT STEP ON SIDE OF FOOT PLAT-
FORM to avoid tippingthe Easy Travel Elite.
NOTE: The rear frame, when folded, can be lifted by the handles (Fig 4/4).

Easy Travel Elite – ET1E User’s Manual Rev. 0061 PM 9
4.2. Folding and Unfolding your Easy Travel Elite
Folding the Easy Travel Elite
Step 1: Fold backrest of seat down and ensure it is locked (Fig. 7/1)
Step 2: Hold handgrip of front column (Fig. 7/2) in the “Operating” or
“Entry/Exit” position and push forward away from seat to fold
platform upwards.
Step 3: Grasp platform
handle (Fig. 7/3)
and pull column
lock triggers (Fig.
7/4) to fold column
towards the
platform. Fold
together until
folded frame lock
pin (Fig. 7/5) and
column latch (Fig.
7/6) click into
place and holdEasy Travel Elite in folded position.
UnfoldingtheEasy Travel Elite
Step 1: Pull on the frame lock pin ring (Fig. 8/1) to release platform and rest
front wheels on floor.
Step 2: Pull the seat
backrest and lift it
upright. (Fig. 8/2)
Step 3: Grasp top of seat
backrest (Fig. 8/3)
and pull column
lock triggers (Fig.
8/4) to release
column from
platform. Pull
outwards to unfold
Easy Travel Elite
until platform and column lock into the operating position.

Easy Travel Elite – ET1E User’s Manual Rev. 0061 PM 10
5. OPERATING YOUR Easy Travel Elite

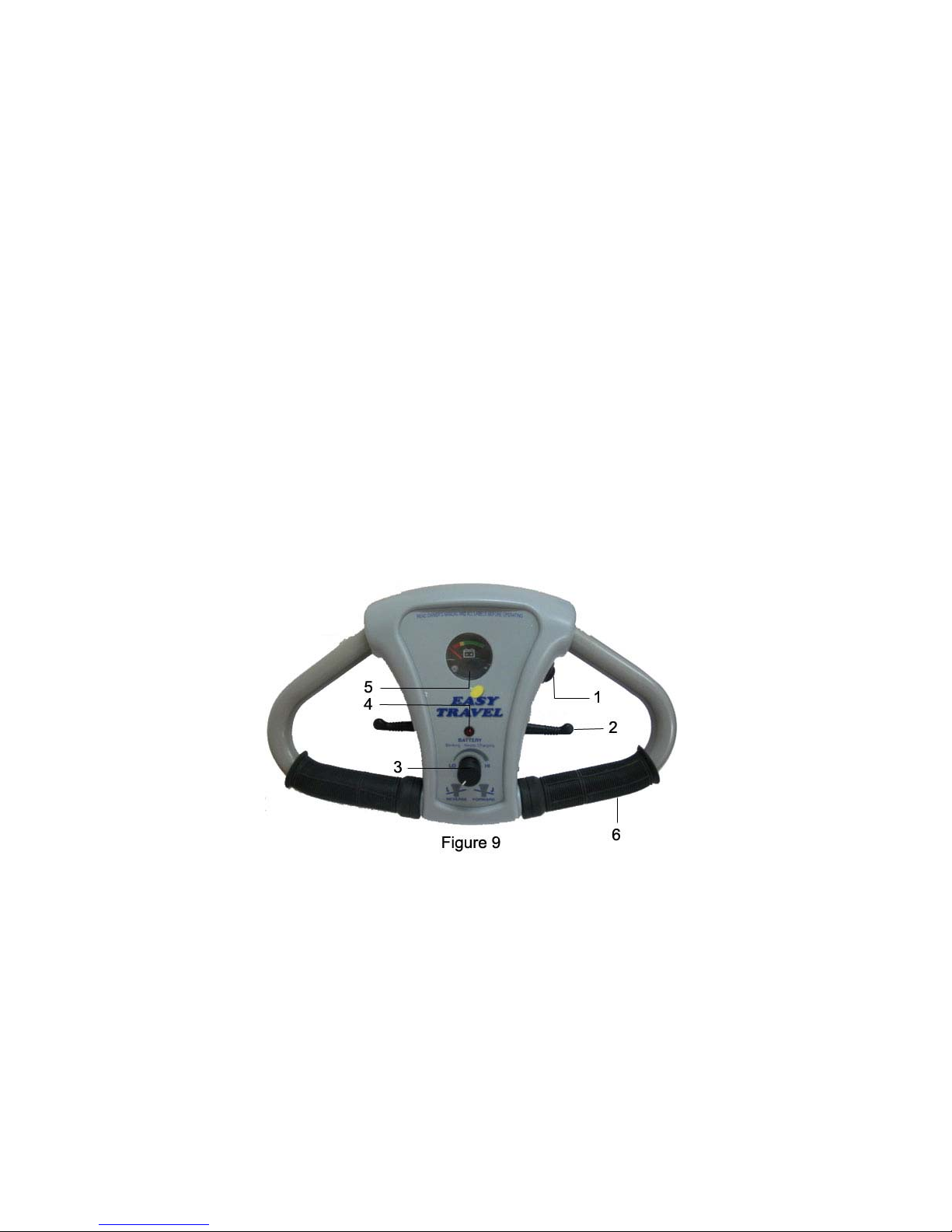

5.1. Control Panel operation features
The switch located on the right side of the control panel (Fig. 9/1), will turn
the power of theEasy Travel Elite ON orOFF.
NOTE: Turn your Easy Travel Elite switchto theOFF positionwhen not
in use in order to conserve battery power, and prevent unintentional op-
eration.
The top speed may be adjusted by turning the Speed-adjusting knob (fig
9/3). By turning the knob to the HIposition,your Easy Travel Elite top
speed will be up to 3.7mph/6kph. When the knob is set to the Lo position,
the speed will be reduced to a slow crawl, ideal for less experienced driv-
ers and for operating indoors.
5.2. Indicator light (Fig. 9/4)
The light, located at the bottom of the handle control cover, displays bat-
tery status and fault indications as follows:
Indicator light steady - This indicates that all is well.
Indicator light flashes slowly - The controller is functioning cor-
rectly but batteries should be charged as soon as possible. The Bat-
tery Gauge (Fig. 9/5) shows the charge that is left.

Easy Travel Elite – ET1E User’s Manual Rev. 0061 PM 11
Blinking - Ne eds Charging
BATTERY
FORWARDREVERSE
SPEED
LO HI
BATTERY
REVERSE FORWARD
SPEED
Blinking- Needs Charging
LO HI
BATTERY
REVERSE FORWARD
SPEED
Blinking - Ne eds Charging
LO HI
Indicator light flashes rapidly - This indicates that there is a fault.
Please follow the following procedure:
1. Switch off the Easy Travel Elite
2. Make sure that theEasy Travel Elite is not in the FREEWHEEL
position.
3. Make sure that the charger is not connected to the Easy Travel Elite.
4. Make sure that the control lever is in the middle position.
CAUTION: If control lever does not return by itself to the middle po-
sition – do not operate. Contact your service agent.
5. Switch the Easy Travel Elite onagain and try to drive. If the indi-
cator light flashes rapidly again, switch off and do not operate.
Contact your service agent!
5.3. Battery Gauge (Fig. 9/5)
The Battery Gauge (Fig. 9/5) shows the battery charge that is left.

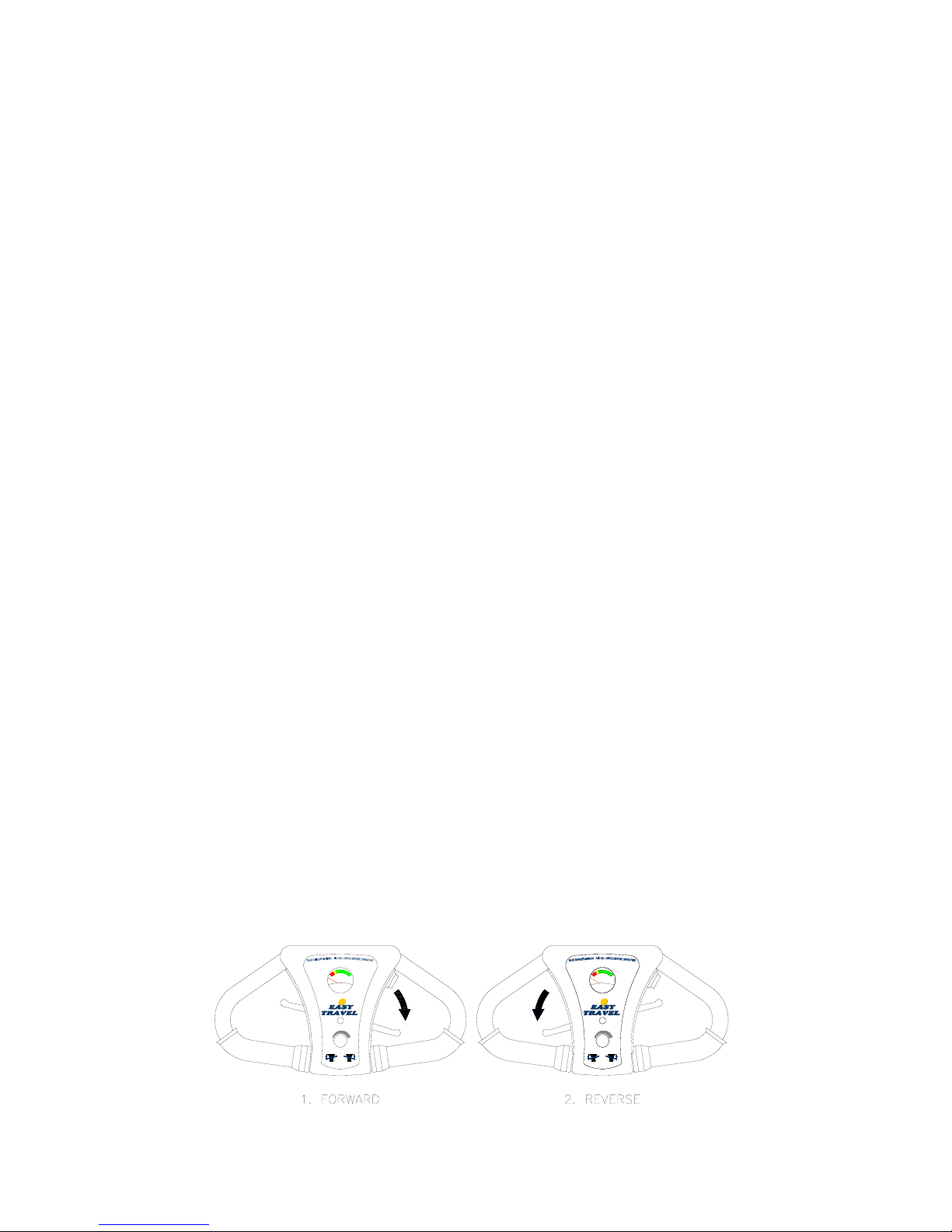

5.4. Driving yourEasy Travel Elite
To drive forward, pull the right side of the hand control lever towards you
(Fig. 10/1). You can also move forward by pushing the left side of the
control lever away from you. By releasing the control lever, you will
gradually come toa stop, and theEasy Travel Elite brake will be applied
automatically. To operate in reverse, pull the left side of the hand control
lever towards you (Fig. 10/2).
Figure 10

Easy Travel Elite – ET1E User’s Manual Rev. 0061 PM 12
5.5. Safetyconsiderations when driving yourEasy Travel Elite
Footpaths and sidewalks appear to be level but are usually slightly
sloped for drainage of rainwater. Counter-steering may be necessary
for overcoming excessive slopes. In such cases the speed should be
reduced as necessary.
When approaching ditches, bumps or similar obstacles – reduce
speed as necessary.
Do not operate Easy Travel Elite in places or on surfaces where a
loss of wheel grip could be hazardous, for example on wet grassy
slopes.
5.6. Armrests
To enable easier entry to and exit from
your Easy Travel Elite the armrest can
be lifted, see Fig. 10A.
5.7. Batteries
Battery information
The Easy Travel Elite is designed to use sealed lead acid, maintenance-
free, 12V batteries.
Always turnyour Easy Travel Elite OFF before removing and installing
batteries. To get the maximum out of your batteries, it is recommended to
fully charge the batteries overnight after every day of use. Reconnecting
the charger when the batteries are partially discharged or fully
charged will not harm them. Extended charging is good for the batteries
and you cannot overcharge them.
Battery range depends on operator weight, terrain and the condition of
batteries used. Charge your batteries daily and/or overnight when the
Easy Travel Elite is notin use.
Battery Recharging Instructions
To recharge, turn offEasy Travel Elite It is possible to either charge the
battery while connected ontheEasy Travel Elite (seeinstruction 1 below)
or directly (instruction 2).

Easy Travel Elite – ET1E User’s Manual Rev. 0061 PM 13
1. Plug the charging connector into the Easy Travel Elite charging
socket and then connect the charger to an electrical outlet socket.
2. Plug the charging connector in the back of the battery pack and then
connect the charger to an electrical outlet socket.
During charging, the indicator light on the charger will be orange. When
the battery is approaching full charge the indicator light will turn green. In
order to achieve the maximum battery capacity and efficiency, it is ad-
vised to charge them overnight, and at least four hours after the indicator
light has turned to green.
Safety Instructions
CAUTION: Failure to follow these instructions may result in personal in-
jury or property damage.
1. Never smoke or allow an open flame in the vicinity of the batteries.
2. Use the charger for charging lead acid batteries only. It is not in-
tended to supply power to an extra-low-voltage electrical system or to
charge dry cell batteries.
3. Never charge a frozen battery.
4. Do not operate the charger in a closed-in area or restrict ventilation.
5. Prevent external damage to AC and DC cords. Do not use charger if
cords are damaged.
6. Connect DC charging cord to the Charging Socket before connecting
charger AC supply cord to the electrical outlet, and disconnect the AC
cord from the electrical outlet before disconnecting charge cord.
7. Be extra cautious not to drop a metal object onto the battery case.
8. Remove jewelry.
Battery Storage
Before storage, battery packs should be fully charged, and should
be recharged at least once every three months.
Store batteries indoors in a dry environment.
Storage temperature range: -20ºC (-4ºF) to 40ºC (104ºF)
Charging temperature range: 0ºC (32ºF) to 40ºC (104ºF)
Operating temperature range: -20ºC (-4ºF) to 50ºC (122ºF)

Easy Travel Elite – ET1E User’s Manual Rev. 0061 PM 14
WARNING: Store batteries in the 'correct' position. (See Fig. 14).
Battery Replacement and Disposal
The Easy Travel Elite battery pack contains two 12V maintenance-free
batteries. Replacement of the batteries is only permitted to an authorized
dealer.
Battery cells may emit minor acid fumes.
Batteries must be recycled. Disposals of potentially damaged batteries
present hazards of injury from acid leakage and environmental pollution.
NOTE: When removing a battery, always set it on cardboard, newspaper,
or surfaces that cannot be damaged by acid fumes or liquid from the bat-
tery.
6. MOVING AND TRANSPORTING YOUR Easy Travel Elite
6.1. Moving Your Easy Travel Elite inFreewheel Mode when unfolded:
The Freewheel switch (Fig. 1/17) is used for releasing the brake and mov-
ing the Easy Travel Elite without operating the motor. Before activating,
make sureyourEasy Travel Elite is switched on. Turn Freewheel switch to
the "freewheel" position and push or pull the Easy Travel Elite manually.
NOTE: The Freewheel mode can only be activated after the battery is in
place and the power switch (Fig.9/1) is turned on. Doing otherwise will
cause a fault situation indicated by rapid flashing of the Indicator light
(Fig. 9/4). See section 4.2.
WARNING: The Freewheel switch should never be engaged on a slope.
CAUTION: The seat back must remain in the upright position.

Easy Travel Elite – ET1E User’s Manual Rev. 0061 PM 15
6.2. “Walking” your Easy-Travel-Elite
in the folded position
The folded Easy-Travel-Elite may be
pulled along suitcase style. The battery
should be carried separately (Fig. 11) or
in the utility basket. See folding instruc-
tions on page 8.
6.3.Transportingyour Easy-Travel-Elite
quickly and easily
Your Easy Travel Elite canbe disassem-
bled and transported in most car trunks.
When disassembling for transportation or
storage:
1. Disconnect battery pack and place in
Utility basket (Fig. 12/1)
2. Disconnect front column (Fig. 12/2) and
fold rear frame separately (Fig. 12/3)
3. For storage – set down front column
in a stable position.
4. For transportation, placeEasy Travel Elite
components in car trunk as
shown in figure 13.

Easy Travel Elite – ET1E User’s Manual Rev. 0061 PM 16
7. HELPFUL HINTS FOR EVERYDAY USE
Beforeusing yourEasy Travel Elite take the following precautions:
Ensure that the front column and rear frame are locked together.
Ensure that the rear frame is locked open.
Speed Controls
Always operate your Easy Travel Elite at a reasonable speed forboth your
personal safety and others.
CAUTION: Reduce speed when turning.
Stopping
Dynamic braking will gradually bring your Easy Travel Elite to a stop when
hand control lever is released.
Ramps and Inclines
Lean forward and carefully manoeuvre your Easy Travel Elite upa ramp or
incline. Be aware that not all ramps are constructed according to Government
standards. The Government standard for wheelchair ramps is 2.5 cm (1 inch)
rise per 30 cm (1 foot).
Lower the speed setting to a slow speed when descending inclines.
Using an elevator
Backing into an elevator allows you to exit forward. Be sure that the elevator
is level with the floor.
Opening Doors
When a door opens towards you, approach at an angle and just off to one
side. Adjust the speed knob to a low setting. Grasp the doorknob, reverse
and pull the door open. For doors that open away from you, position the front
roller against the door, close to the doorjamb on the doorknob side of the
door. After you release the latch, use the roller to push the door open.
WARNING: Be careful with glass doors to avoid personal injury!

Easy Travel Elite – ET1E User’s Manual Rev. 0061 PM 17
8. GENERAL MAINTENANCE AND INSPECTIONS
Minimum maintenance should prevent unnecessary repairs.
Keep YourEasy Travel Elite Shining
Wipe the seat clean with a damp cloth. Protect the painted parts with a coat
of auto wax.
WARNING: Water or Excessive moisture around the controller unit or electri-
cal connections may cause contamination of electrical circuitry, damage and
malfunction aswell as personal injury.Donot leaveyour Easy Travel Elite in
the rain or in excessively humid locations.
Daily Checks
With the Easy Travel Elite switched off, check that the hand control lever me-
chanism returns to the rest position when you push and release. If there is a
problem do not use the Easy Travel Elite andcontact yourauthorizeddealer.
Weekly Checks
1. Throttle test: Pull the throttle to the full speed position and switch ON
the Power switch. The Easy Travel Elite shouldnot move andthe LED
on the panel should flash. If theEasy Travel Elite does move – do not
use your Easy Travel Elite.Contact yourauthorized dealer.
2. Automatic brake and drive test: This test should be carried out on a
level surface with at least 3’ / 1m.clear space around the Easy Travel
Switch the Easy Travel Elite on.
Move the control lever only slightly in the forward direction until you hear a
“click” when the brake disengages. The Easy Travel Elite should start to
move forwards slowly.
Immediately release the throttle. You must be able to hear a “click” when
the brake engages back, within a few seconds.
Repeat the test in the reverse direction.
If you do not hearthe brake operating, or the Easy Travel Elite does not move
slowly in the expected direction – do not use your Easy Travel Elite.Contact
your authorized dealer.

Easy Travel Elite – ET1E User’s Manual Rev. 0061 PM 18
Monthly Care
Clean upholstery, plastic and metal parts with a mild surface cleaner.
CAUTION:Keep cleaning solvents away from electrical wires and connectors.
Half-Year Care
1. Apply a lubricant/cleaner (such as WD40 or similar) these locations:
Column tilt lock pin and housing.
Unfolded lock pin and housing.
Battery pack lock pins.
2. Lightly apply Vaseline or similar lubricant to battery contact pins and
springs on front column.
3. Check for tire wear.

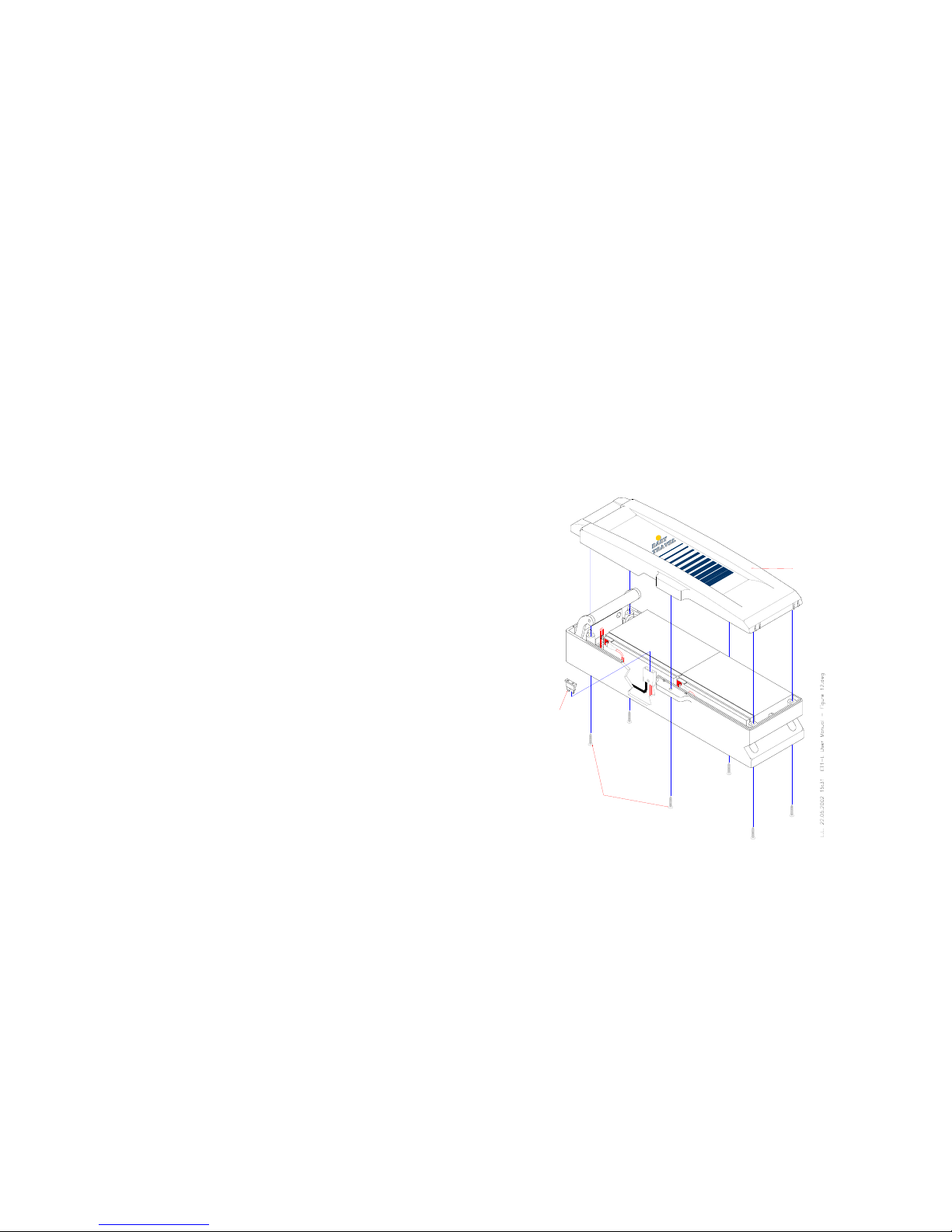

Fuse Replacement Instructions
A fuse protects the wiring and battery in the
event of a short circuit. If your Easy Travel
stops abruptly, checkthe fuse.If it
has 'blown', check for overloads or short
circuits.
The fuse is located inside the battery case.
To replace the fuse, open screws (Fig. 15/1)
and remove cover (Fig. 15/2). Remove the
fuse (Fig. 15/3) from its socket. If 'blown',
replace with the same style and size
(automotive “blade” type – 20 A). There is a
spare fuse attached to the battery-pack
cover.
WARNING: Do not attempt to repair or service the Easy Travel Elite or any
of its components, as this will void your warranty.
SERVICE AND REPAIR: CONTACT YOUR AUTHORIZED DEALER.
Figure 15
1
3
2

Easy Travel Elite – ET1E User’s Manual Rev. 0061 PM 19
9. EMI – ELECTROMAGNETIC INTERFERENCE
CAUTION: It is important that you read this information regarding the possi-
ble effects ofelectromagnetic interferenceonyour Easy Travel Elite.
Electromagnetic Interference (EMI) From Radio Wave Sources
Motorized scooters may be susceptible to electromagnetic interference (EMI),
which is interfering electromagnetic energy (EM) emitted from sources such
as radio stations, TV stations, amateur radio (HAM) transmitters, two-way ra-
dios, and cellular phones. The interference (from radio wave sources) can
cause scooters to release their brakes, come to a sudden stop, or move in an
uncontrolled manner. It can also permanently damage a scooter’s control sys-
tem. The intensity of the interfering EM energy can be measured in volts per
motor (V/m). Each Motorized scooter can resist EMI up to a certain intensity.
This is called its “immunity level". The higher the immunity level, the greater
the protection. The FDA has stated that all newly manufactured electric mobil-
ity vehicle models should have a resistance of at least 20 V/m, which would
provide a reasonable degree of protection from the more common sources of
radiated EMI.
Your Easy Travel Elite asshipped, with no further modification, has an im-
munity level of 20 V/m. This immunity was tested with the inclusion of these
accessories: a utility basket with a spare battery-pack and the charger unit
carried inside it.
There are a number of sources of relatively intense electromagnetic
fields in the everyday environment. Some of these sources are obvious
and easy to avoid. Others are not apparent and exposure is unavoid-
able. However, we believe that by following the warnings listed below,
your risk to EMI will be minimized.

Active Light ------- – ET1E User’s Manual Rev. 0061 PM 20
The sources of radiated EMI can be broadly classified into three types:
1) Hand-held portable transceivers (transmitters-receivers) with the an-
tenna mounted directly on the transmitting unit. Examples include citi-
zens band (CB) radios, "walkie-talkies”, security, fire, and police trans-
ceivers, cellular telephones, and other personal communication devices.
**NOTE: Some cellular telephones and similar devices transmit signals
while they are ON, even when not being used;
2) Medium-range mobile transceivers, such as those used in police cars,
fire trucks, ambulances, and taxis. These usually have the antenna
mounted on the outside of the vehicle; and
3) Long-range transmitters and transceivers, such as commercial broad-
cast transmitters (radio and TV broadcast antenna towers) and amateur
(HAM) radios.
NOTE: Other types of hand-held devices, such as cordless phones, laptop
computers, AM/FM radios, TV sets, CD players, and cassette players, and
small appliances, such as electric shavers and hair dryers, so far as we know,
are not likely to cause EMI problems to motorized scooters.
Motorized scooter Electromagnetic Interference (EMI)
Because EM energy rapidly becomes more intense as one moves closer to
the transmitting antenna (source), the EM fields from hand-held radio wave
sources (transceivers) are of special concern. It is possible to unintentionally
bring high levels of EM energy very close to the motorized scooter’s control
system while using these devices. This can affect the scooter’s movement
and braking. Therefore, the warnings listed below are recommended to pre-
vent possible interference with thecontrol system of yourEasy Travel Elite.
