Chapter 1. Product Introduction
1.1 Package Contents
The package should contain the following:
zPIR Sensor x 1
zQuick Installation Guide x 1
zCR123A Lithium Battery x 1
zAccessory Bag x 1
If any of the above items are missing, please contact your seller immediately.
1.2 Overview
Home Automation and Smart Home Control
The HZS (Z-Wave Sensing Device) series of PLANET Home Automation product family,
based on Z-Wave technology, provides the advanced security system that protects your home
and family 24/7. Easy operation and flexible configuration are the attractive features of our
system; the simple one-touch button lets you program your regular settings according to your
preference and operation mode. Worked with PLANET HAC-1000 Z-Wave Home Automation
Control Gateway, you get the all-round and reliable home security services that we offer. Our
full range of product lines ensure that you get all the devices you need for your home security
system.
- 5-

Z-Wave Wall-mount PIR Mostion Sensor
HZS-100E/HZS-100A

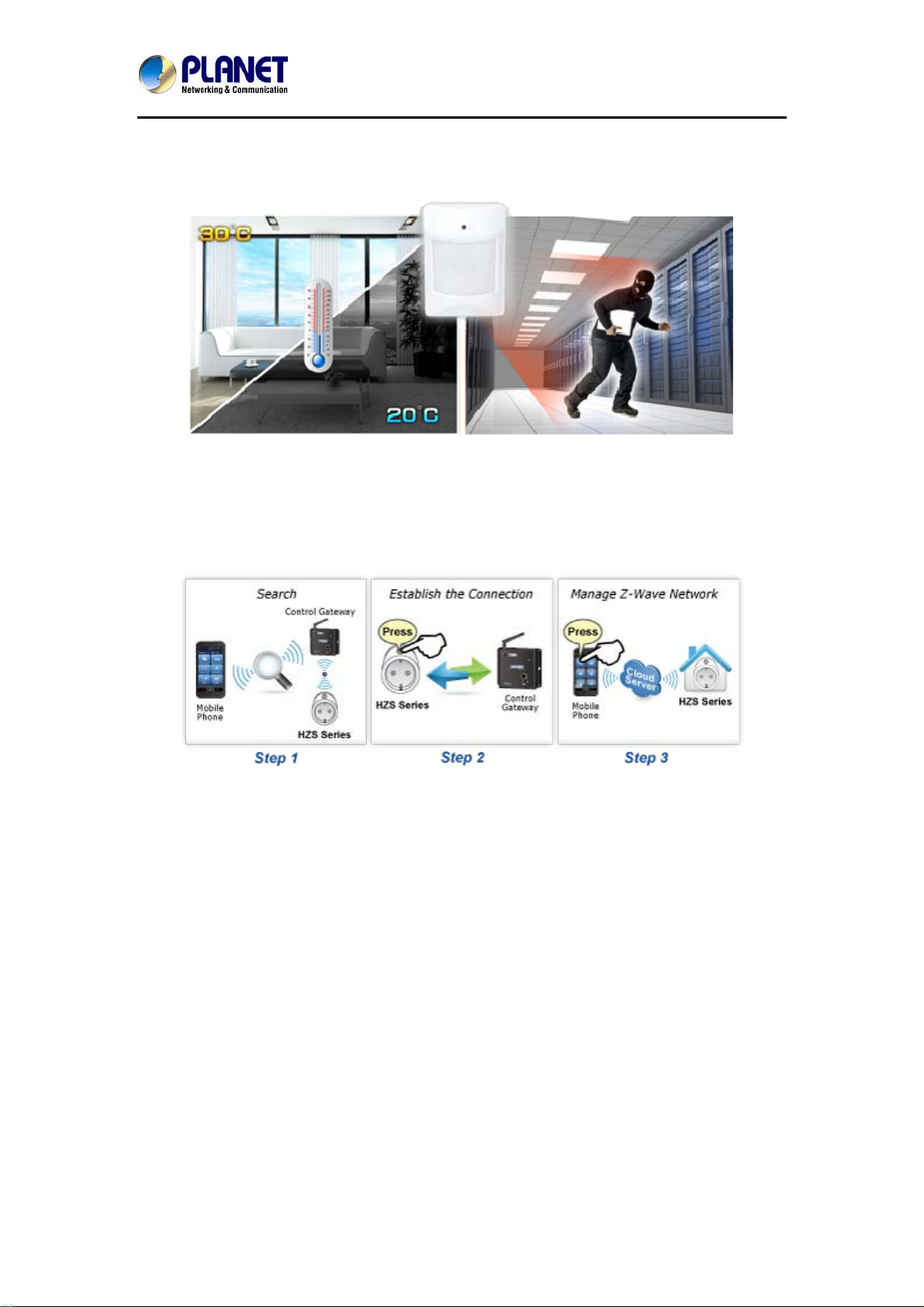

Motion and Temperature Detection
PLANET HZS-100 is a Z-Wave wall-mount PIR motion sensor that monitors movement and
sends Z-Wave signal when movement is detected. With its built-in temperature sensor feature,
the HZS-100 will send the signal out when temperature inside the building changes..
Getting Started is as Easy as 1-2-3
1. Via the Cloud HomeApp (including HomeAutomation Controller Pad and Control
Gateway): Press Inclusion/Exclusion to include/exclude Z-Wave device.
2. On the Z-Wave device: Press the Pair button to establish a connection with the control
gateway.
3. Users can enjoy and manage Z-Wave network right away.
- 6-

Z-Wave Wall-mount PIR Mostion Sensor
HZS-100E/HZS-100A
Real-time Alarm
Alerts like use of electricity, home alarms and more can be brought to your notice without
delays by way of cloud hosting. From now on, you can maintain your home security no matter
where you are.
1.3 Specifications
Product HZS-100A HZS-100E
Hardware and Network
Z-Wave Frequency America: 908.42MHz Europe: 868.42MHz
Installation Height About 2 meters
PIR Detecting Distance 3~10 meters
PIR Detecting Angle 120 degrees coverage
Operating Range Up to 30 meters in open space
Installation Plug connection for indoor use
General
Power Requirements CR123A 3V
Operating Temperature -15 ~ 40 degrees C
Operating Humidity 0 ~ 90% (non-condensing)
Weight 75g
Dimensions (W x D x H) 84 x 62 x 50 mm
Emission CE, FCC
- 7-

Z-Wave Wall-mount PIR Mostion Sensor
HZS-100E/HZS-100A

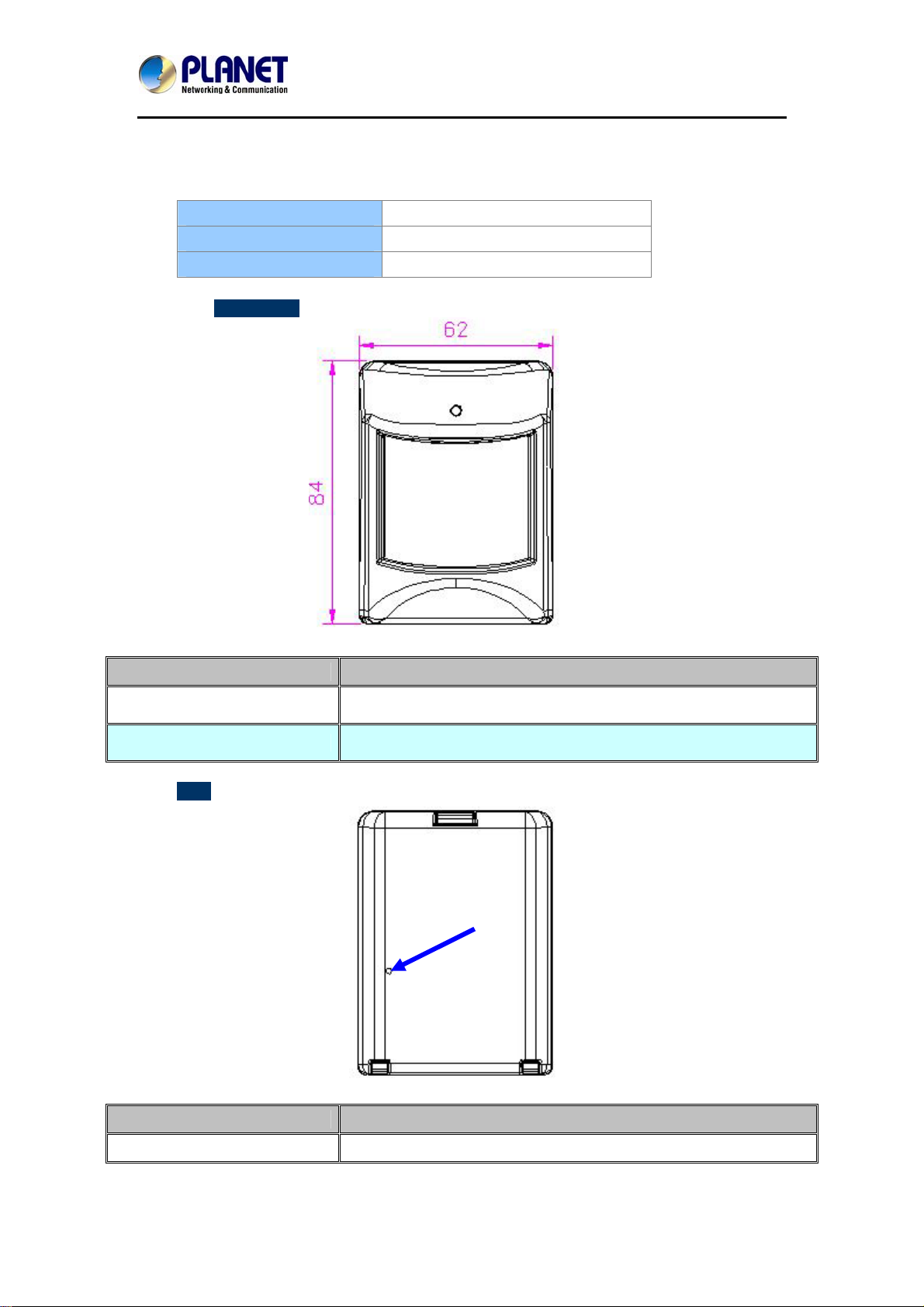

Chapter 2. Hardware Interface
Model HZS-100E/HZS-100A
Dimensions (W x D x H) 84 x 62 x 50 mm
Weight 75g (gross weight)
¾Front Panel
Interface Description
PIR Sensor PIR sensor is used to sense motion or detect whether a human has
moved in or out of the sensor range.
LED When movement is detected, the red LED will flash once.
¾Rear
Pro
g
ram switch
Interface Description
Program switch Press to include or exclude a Z-Wave network.
- 8-

Z-Wave Wall-mount PIR Mostion Sensor
HZS-100E/HZS-100A
Chapter 3. Z-Wave Device Setting
3.1 Configuring Z-Wave Device via HAC-1000
Please refer to the following steps to add Z-Wave device via HAC-1000 web.
Step 1. Include a Z-Wave device via web.
a) Go to "Z-Wave" and click "Device
Configuration".
b) Click” Include New Device” and the
screen will appear with "Add Device:
Waiting for a user action."
c) Use a paper clip or pin to press the
program button on the back of the
sensor for 1 time to connect.
d) If your device has successfully been added, it will show "Add Device: Command has
been completed successfully".
If the device didn’t add successfully, please place the device next to the
gateway and try again.
- 9-

Z-Wave Wall-mount PIR Mostion Sensor
HZS-100E/HZS-100A
Step 2. Set up the location and room for Z-Wave device via HAC-1000 web.
a. Create rooms in your environment.
b. Edit device.

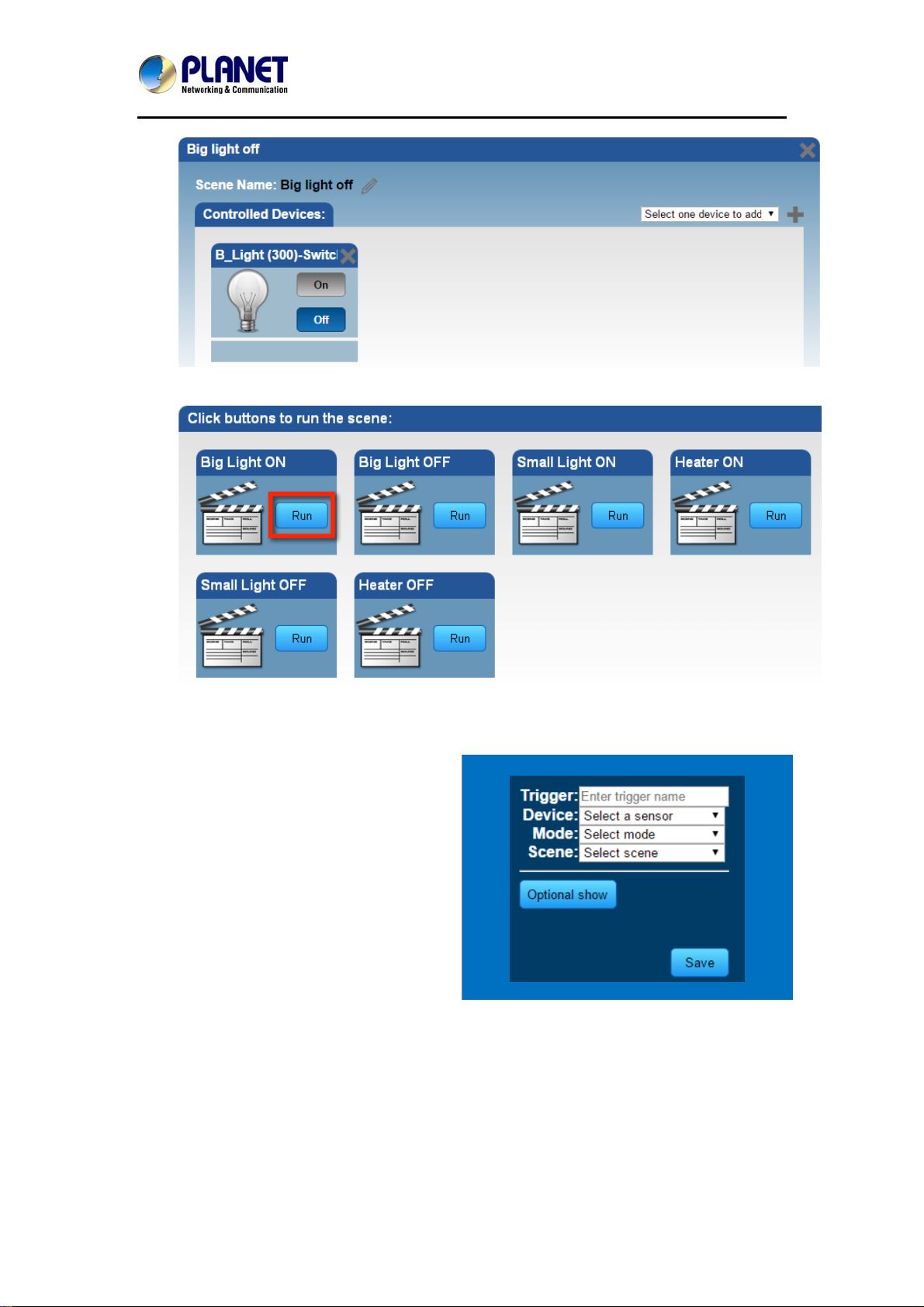

Step 3. Create a scene via web.
a. Click “Create Scene” and name new scene.
b. Select a device from this scene.
- 10 -

Z-Wave Wall-mount PIR Mostion Sensor
HZS-100E/HZS-100A
c. Select ON or OFF from this scene.
d. You can click “RUN” to run this scene.
Step 4. Create trigger via web.
a. Click “Create a Trigger” and name
new trigger.
b. Select a Z-Wave device for this
trigger.
c. Select when it triggers, it will alarm or
bypass.
d. Select when it triggers, it will run
which scene.
- 11 -

Z-Wave Wall-mount PIR Mostion Sensor
HZS-100E/HZS-100A
After entering the time selected for the scene to trigger, tick “Save and send alarm notification”.
Tick “Active” to enable this trigger.
3.2 Configuring Z-Wave via Smart Phone
The HAC-1100 can be used on iOS and Android operating system. Cloud Home can be
downloaded at Google Play store or app store.
Please refer to the following steps to install Cloud Home app and add Z-Wave device via
smart phone.
- 12 -

Z-Wave Wall-mount PIR Mostion Sensor
HZS-100E/HZS-100A
Step 1. Include a Z-Wave device via smart phone (Android/iOS).
a. Register a user account.
b. Setting
c. Inclusion/Exclusion
d. Click Inclusion to add device.
e. Use a paper clip or pin to press the
program button on the back of the
sensor for 1 time to connect.
- 13 -

Z-Wave Wall-mount PIR Mostion Sensor
HZS-100E/HZS-100A
Step 2. Set up the location and room for Z-Wave device.
a. Create rooms in your environment.
b. Click “No Room” to show the device.
And place the new device in a room.
c. Select “Name” to name this device
and select “Location” to place this
device in the room that you created.
d. Select Picture for your Z-Wave
device.
e. Click “Back” to save.
f. Done successfully.
- 14 -

Z-Wave Wall-mount PIR Mostion Sensor
HZS-100E/HZS-100A
Step 3. Create a scene via smart phone.
a. Click “Add” and name a new scene.
b. Click “Add” to add a Z-Wave device.
c. Select a Z-Wave device.
d. Click ON or OFF for the device you
select.
e. Click “Back” to save.
f. Done successfully.
- 15 -

Z-Wave Wall-mount PIR Mostion Sensor
HZS-100E/HZS-100A
Step 4. Create Trigger via smart phone.
a. Click “Add”.
b. Name this new Trigger.
c. Select the Z-Wave device and click
next.
d. Select a mode for a Z-Wave device.
e. Select a scene.
f. Select the time for the trigger and
which scene to run.
g. Done successfully.
h. If you enable Save and send alarm
notification, when it triggers, it will
have a log. You can check this in
Notification History.
- 16 -

Z-Wave Wall-mount PIR Mostion Sensor
HZS-100E/HZS-100A

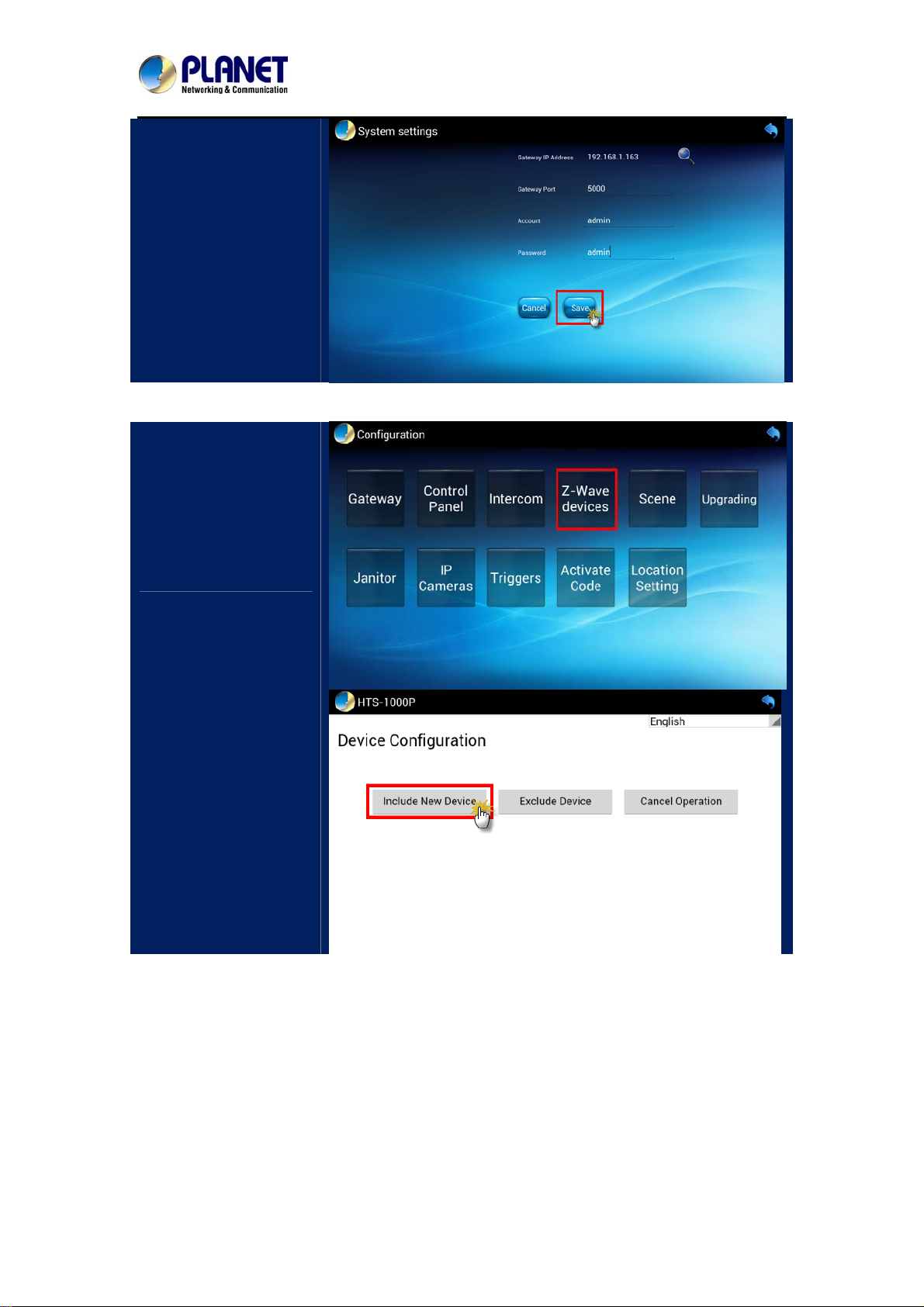

3.3 Configuring Z-Wave via HTS-1000P
Step 1. Fill out the IP of control gateway to connect with gateway.
Click the “Gateway”
button.
Click the magnifying
glass to search the IP of
gateway.
Control pad found an IP
of gateway. Click the IP
to join.
- 17 -

Z-Wave Wall-mount PIR Mostion Sensor
HZS-100E/HZS-100A
- 18 -
The default gateway port
is 5000, and user name
and password are both
admin.
Step 2. Include a Z-Wave device via HTS-1000P.
Click the “Z-Wave
devices” button to add
Z-Wave devices to
gateway.
Click the “Include New
Device” button to add
Z-Wave device.

Z-Wave Wall-mount PIR Mostion Sensor
HZS-100E/HZS-100A
- 19 -
When you see the
message “Waiting for
user action”, you can
press the match button
on Z-Wave devices.
Use a paper clip or pin to
press the program button
on the back of the sensor
for 1 time to connect.
If a device is added
successfully, it will show
the message: Command
has completed
successfully in device
No. XX.

Z-Wave Wall-mount PIR Mostion Sensor
HZS-100E/HZS-100A
- 20 -

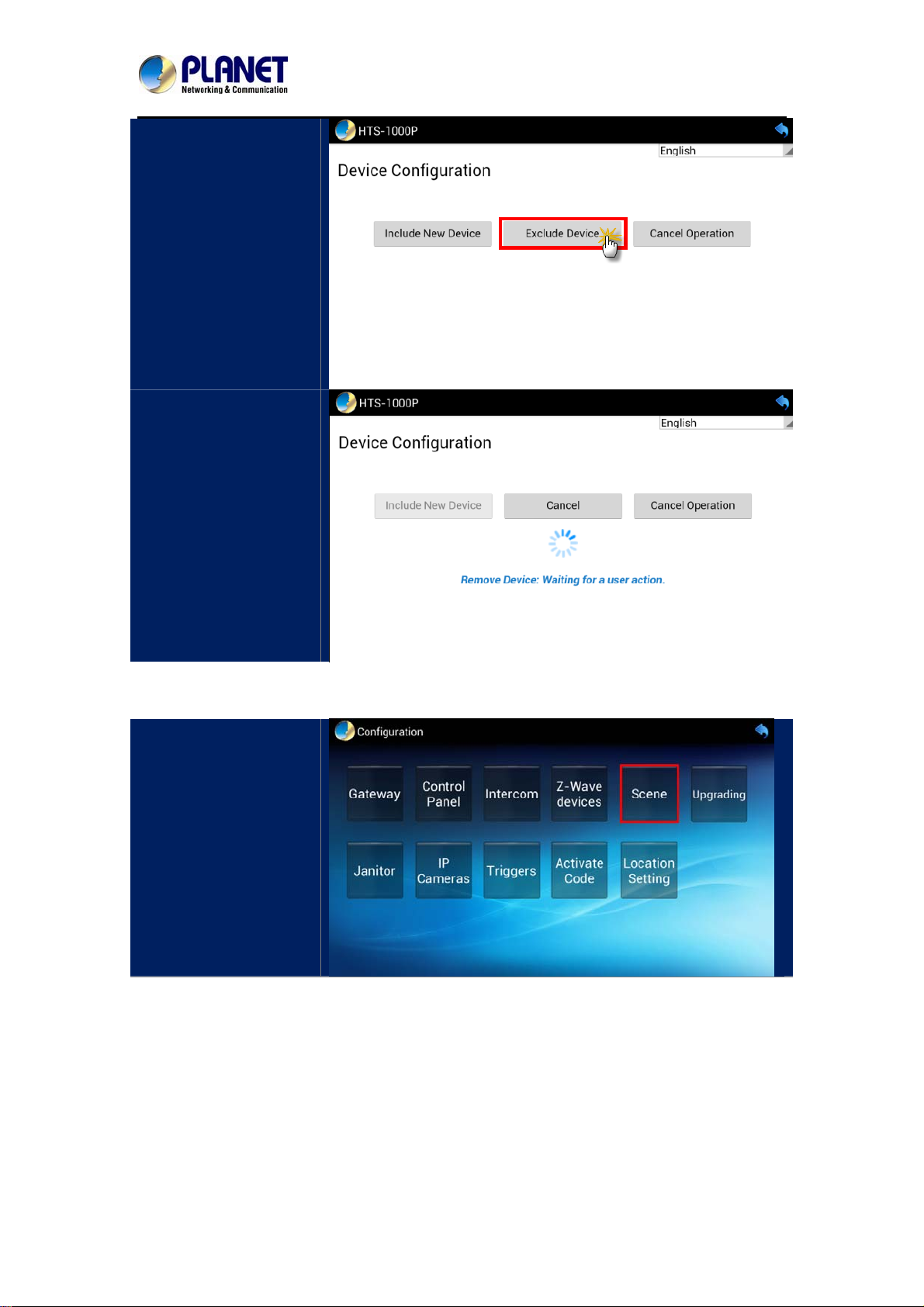

Click the “Exclude
Device” button to
exclude Z-Wave device.
When you see the
message “Waiting for
user action”, you can
press the match button
on Z-Wave devices to
exclude device.
Step 3. After including Z-Wave devices in gateway, you can create different scenes with this
function. You can set scenes to control your devices in Scene mode.
Click the “Scene” button.
