Planet WBS-900AC-KIT User manual

5GHz 802.11ac 900Mbps TDMA Outdoor
Long Range Wireless CPE Kit
WBS-900AC-KIT
Quick Installation Guide

Table of Contents
1. Package Contents................................................................................. 3
2. Physical Introduction ............................................................................ 5
3. Hardware Installation............................................................................ 6
4. WiredNetworkConguration(Windows)................................................. 8
5. Entering into the Web Management ....................................................... 9
6. EasytoSet UpTDMAmode (PtP)Connection ....................................... 10
FURTHER INFORMATION........................................................................... 11

3
1. Package Contents
Thank you for choosing PLANET TDMA Outdoor Long Range Wireless CPE
Kit. Before installing, please verify the contents inside the package box. The
"WBS-900AC-KIT" mentioned here is the model name of the device.
WBS-900AC CPE x 2 ParabolicReectorx2 Antenna Feed x 2
L Clip x 2 Clip x 2 Square Clamp x 4
Hex Nut x 8 Nut x 4 Support Ring x 2
Screw & Gasket x 8
RF Cable x 4 Mounting Strap x 2
Screw x 8

4
QR Code Sheet AP Stand x 2 Waterproof Cover x 2
Let’s get started with your PLANET product
WBS-900AC-KIT
EN Please scan the QR code to browse our online User’s Manual or Quick
Installation Guide and follow the instructions to complete the setup.
Quick
Installation
DE
Bitte scannen Sie den QR- Code sie werden per Browser zur
Bedienungsanleitung oder Schnellanleitung weiter geleitet. Folgen Sie den
Anweisungen um die Installation abzuschließen.
FR
Veuillez scanner le code QR pour obtenir notre Notice d’Utilisation en
ligne ou notre Guide d’Installation Rapide et suivez les instructions pour
compléter la conguration
ES
Escanee el código QR para encontrar el Manual del Usuario en línea o
la Guía de Instalación Rápida y siga las instrucciones para completar la
conguración.
IT Scansiona il codice QR per consultare online il Manuale utente o la Guida di
installazione rapida e segui le istruzioni per completare la congurazione.
PT Por favor,escaneie o QR code para navegar no Manual do Usuário ou Guia
de Instalação Rápida. Siga as instruções para completar a conguração.
PL
Zeskanuj kod QR, aby otworzyć naszą internetową instrukcję obsługi
lub instrukcję szybkiej instalacji. Postępuj zgodnie z instrukcjami, aby
zakończyć poprawną kongurację.
RU
One word modify: Отсканируйте QR-код, чтобы просмотреть наше
онлайн-руководство пользователя или руководство по быстрой
настройке, и следуйте инструкциям для завершения настройки
RO Te rugam sa scanezi codul QR, pentru a descarca User’s Manual sau Quick
Installation Guide si a urmari instructiunile necesare in nalizarea instalarii
AR
Need more help?
PLANET online FAQs:
http://www.planet.com.tw/en/support/faq
Technical Support: [email protected]
Copyright © PLANET Technology Corp. 2023.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp.
All other trademarks belong to their respective owners.
Part No. 2341-E10780-000
EU Wireless Use Restriction
This device is restricted to indoor use
when operating in the 5150 to 5350
MHz freguency range. This restriction
applies in: AT, BE, BG, CH, C Y, CZ, DE,
DK, EE, EL, ES, FI, FR, HR, HU, IE, IS,
IT, LI, LT, LU, L V, M T, NL, NO, PL, P T,
RO, SE, SI, SK, TR, UA.
If there is any item missing or damaged, please contact the
seller immediately.
IMPORTANT SAFETY PRECAUTIONS:
1. LIVES MAY BE AT RISK! Please be aware of the elec-
trical wires around. Carefully read the section “OUTDOOR
INSTALLATION WARNING” in the manual before installa-
tion.
2. Users MUST complete grounding wired with the device;
otherwise, a sudden lightning could cause fatal damage to
the device. EMD (Lightning) DAMAGE IS NOT COVERED
UNDER WARRANTY.

5
2. Physical Introduction
Hardware Description
Reset/Pair
PoELAN
PtP Switch
DC Power

6
3. Hardware Installation
Step 1: Installing Antenna Set and AP Stand
Step 2: Connecting Antenna to CPE with RF Cable

7
Step 3: Push the latch on the bottom of the Outdoor Wireless CPE to remove
the sliding cover.
Step 4: Plug the RJ45 Ethernet cable into the PoE Port of the Outdoor
WirelessCPE.Then,slidebackthecovertonishtheinstallation.
Step 5: Place the Outdoor Wireless CPE on the AP stand

8
4.WiredNetworkConguration(Windows)
A computer with wired Ethernet connection is required for the rst-time
congurationoftheWirelessAP.
1. Click the “Start” button located at the lower-left corner of your computer.
2. Select “Control Panel-> Network and Shari ng Center”.
3. Click “Change adapter settings”.
4. Double-click “Local Area Connection”.
5. Select “Internet Protocol Version 4 (TCP/IPv4)” and click “Proper-
ties”.
6. Select “Use the following IP address” to congure the IP address to
"192.168.1.x"("x" can be any number from 2 to 254, except 253) and
then click the “OK”buttontosavetheconguration.

9
5. Entering into the Web Management
Default Master IP Address: 192.168.1.253
Default Slave IP Address: 192.168.1.100
Default Username: admin
Default Password: admin
Default SSID: PLANET_5G
Step 1: Launch the Web browser and enter the default Master IP address
http://192.168.1.253.
Step 2: The default username and password are “admin”. Then click the
LOGIN button to continue.
For security reasons, it is recommended to change the password
at the first login and memorize it.

10
6.EasytoSetUpTDMAmode(PtP)Connection
Step 1: (1) Position “Slave” to “Master” on the master AP. Stay in
“Slave” on the slave AP.
 (2) Pressthe“Reset/Pair” button within 2 minutes on both sides.
 (3) Theconnectionwillbeestablishedeasily.

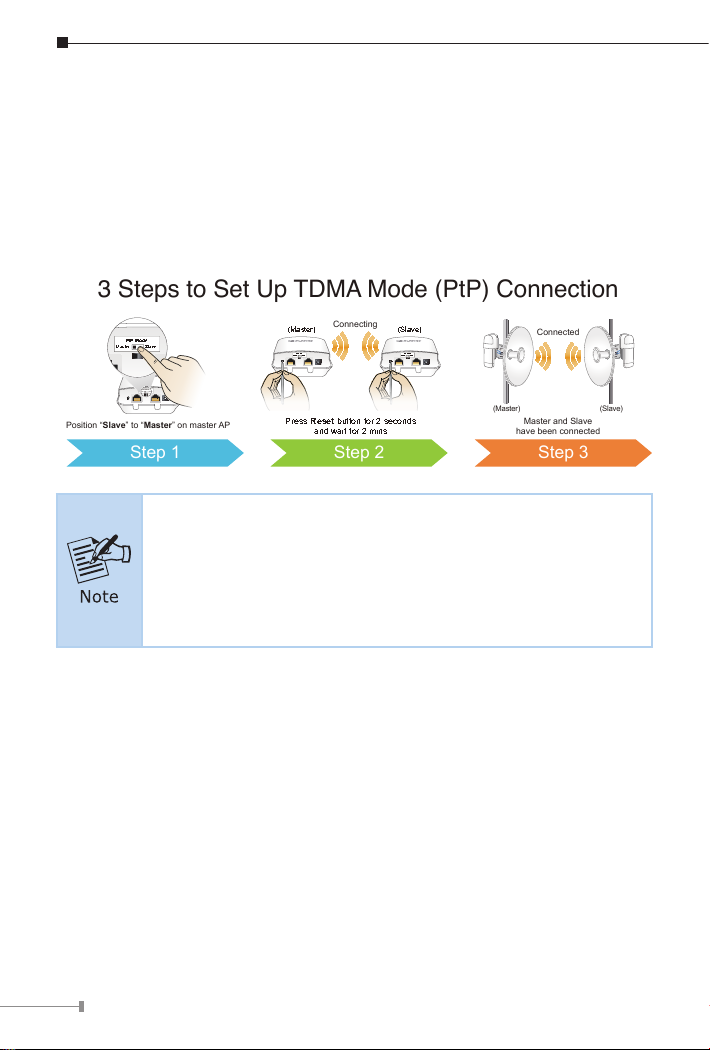

3 Steps to Set Up TDMA Mode (PtP) Connection
Connecting
Connected
Master and Slave
have been connected
Position “Slave” to “Master” on master AP
Step 1 Step 2 Step 3
(Master) (Slave)
Slave
Master
PtPMode
Slave
Master
PtP Mode
(Master)
Slave
Master
PtPMode
Slave
Master
PtPMode
(Slave)
Press Reset button for 2 seconds
and wait for 2 mins
The connection should be established within 2 minutes, and
when complete, the signal strength LED will light up. The LED
will display 1 to 4 lights based on the signal strength, with all 4
LEDs indicating a strong signal.

11
FURTHER INFORMATION
The above steps introduce the simple installations and congurations of the
device. For further congurations, please refer to the user manual, which can
be downloaded from the website.
WBS-900AC-KIT:
https://www.planet.com.tw/en/support/downloads?&method=keyword&keyword
=WBS&view=3#list
