Enclosed Waterfall Installation Guide

2
Enclosed Waterfall
CAUTION: WHEN SERVICING YOUR WATER FEATURE MAKE SURE THAT YOU DISCONNECT ALL ELECTRICAL AND LIGHTING.
Midwest Tropical Inc • 3420 West Touhy Ave • Skokie, IL 60076 USA • Phone: [phone] • Fax: [phone]
What you need for installation 3
What’s in the box 3
Uncrate the waterfall 4
Waterfall overview 5
Installation 6
First-time operation 9
Lighting operation (optional) 11
General operation: Valve overview 12
Troubleshooting 13
Surface cleaning and maintenance 14
Quarterly water maintenance 15
6-Month water maintenance 15
Yearly water maintenance 16
Yearly component replacement 17
Component replacement 18
Glossary 19
Specications 20
Safetycertications 21
Revision date: 6.27.18

3
Enclosed Waterfall
CAUTION: WHEN SERVICING YOUR WATER FEATURE MAKE SURE THAT YOU DISCONNECT ALL ELECTRICAL AND LIGHTING.
Midwest Tropical Inc • 3420 West Touhy Ave • Skokie, IL 60076 USA • Phone: [phone] • Fax: [phone]
• 4 people to help move and position waterfall
• Distilled water
• 14 gallons of distilled water for 8 x 4 ft. waterfall
• 18 gallons of distilled water for 9 x 5 ft. and 10 x 5 ft. waterfalls
• Safety gloves
• Latex gloves (optional)
• Electric drill
• No. 2 Phillips bit
• Bit holder
• Pair of platform dollies
• Liquid level
• Ladder or scissor lift
• Phillips screw driver
• Tablespoon measuring spoon
• Access to 120VAC 20 AMP Duplex outlet (US Standard outlet)
• Extension cord (optional)
• Rubber mallet
What you need for installation
What’s in the box
39” LED lighting fixture
Remote control with batteries
Standard
Components
Optional
components
Waterfall
Oase® water pump (assembled)
UV (Ultraviolet) sterilizer
UV bulb and sleeve
Plastic funnel
Fill insert
Tubing
Weimans® stainless steel wipes
Novus acrylic cleaner
Plumber tape
Leveling shims
Power strip
Suction cup glass holders
Microfiber cloth
Robelle Oxidizing Shock & Swim Monopersulfate (1 lb. bag)
REQUIRED Distilled water is absolutely required no tap water,
no spring water.

4
Enclosed Waterfall
CAUTION: WHEN SERVICING YOUR WATER FEATURE MAKE SURE THAT YOU DISCONNECT ALL ELECTRICAL AND LIGHTING.
Midwest Tropical Inc • 3420 West Touhy Ave • Skokie, IL 60076 USA • Phone: [phone] • Fax: [phone]
Your waterfall ships inside of a wooden crate to protect the waterfall
from damage.
Your container indicates which side is the front of the waterfall.
1. Position the package so that the front is facing towards the ceiling.
2. Starting with the front panel of the shipping container, use the
drill with the No. 2 Phillips bit to remove all of the screws.
3. Remove the cardboard. The waterfall is wrapped in plastic and
surrounded by protective insulation foam. Remove the top layer
of insulation foam, but do not throw it away. You can reuse the
foam to protect the stainless steel while you move it into its final
position.
4. Remove the remaining wooden panel pieces and cardboard from
the shipping container.
5. Once all of the wood is removed, lift the waterfall to a standing
position. Leave the metal header off until the waterfall is in its
final position.
CAUTION Because the waterfall is very heavy, it is best to use
four people to move and position it.
6. Use the platform dollies to move the waterfall near its final
location, if necessary.
• To position the dollies under the base, tip the base on one
of the short edges. Roll one of the platform dollies under the
lifted base edge. Lower the base onto the platform dolly and
carefully tilt the waterfall so that the other dolly can be rolled
underneath the opposite side. Move the waterfall nearest to the
final location as possible.
• To remove from dollies, lift one side of the waterfall, remove
a dolly then rest the base onto the floor. Do the same for the
other side.
Uncrate the
shipping
container
Uncrate the waterfall

5
Enclosed Waterfall
CAUTION: WHEN SERVICING YOUR WATER FEATURE MAKE SURE THAT YOU DISCONNECT ALL ELECTRICAL AND LIGHTING.
Midwest Tropical Inc • 3420 West Touhy Ave • Skokie, IL 60076 USA • Phone: [phone] • Fax: [phone]

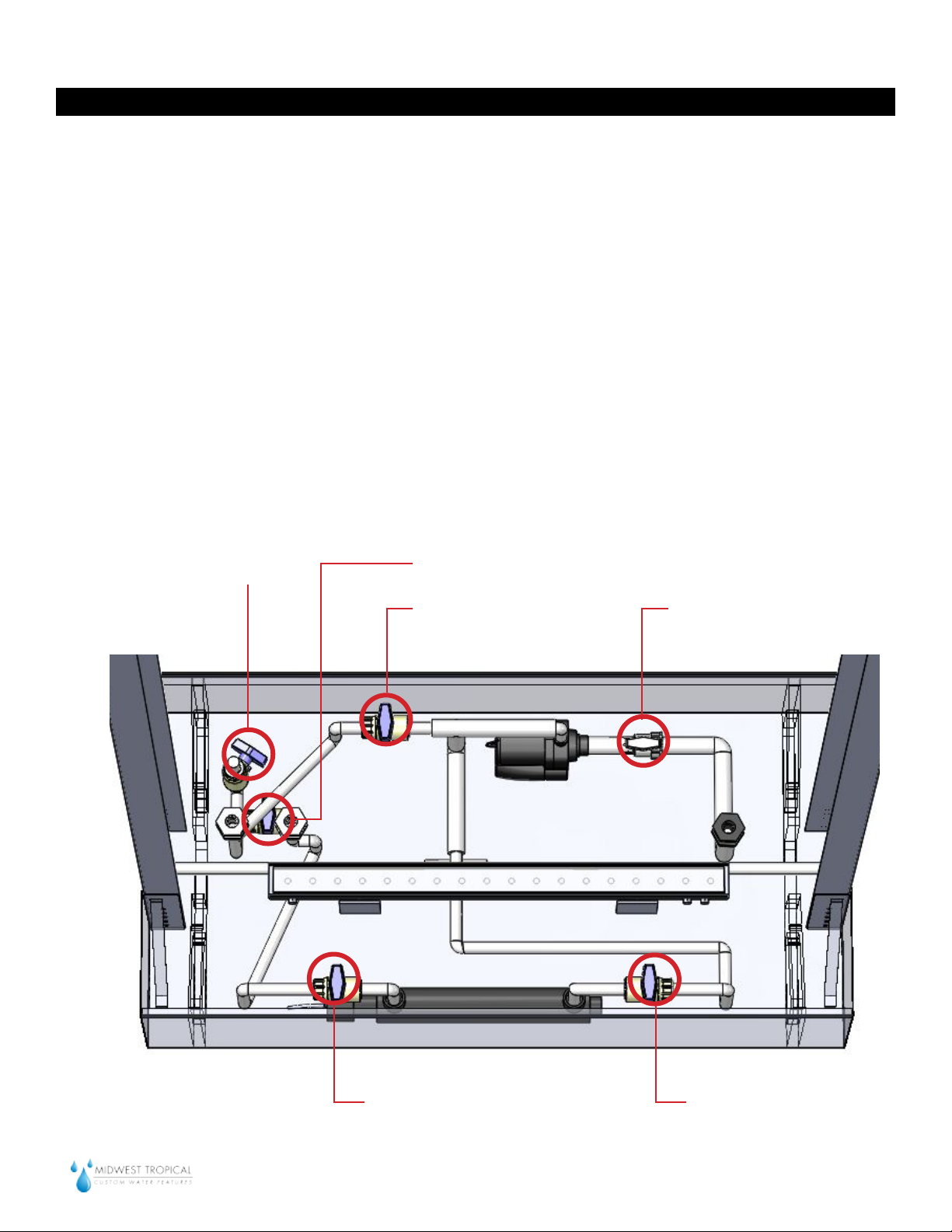

Waterfall overview
VIEW FROM TOP
UV sterilizer lamp housing
Drain valve
Fill valve
Water pump
Quick disconnects
LED light fixture
Spray bar
UV inlet valveUV outlet valve
Primary control
valve (intensity)
Water pump valve
HEADER
BASE
WATERFALL PANEL

6
Enclosed Waterfall
CAUTION: WHEN SERVICING YOUR WATER FEATURE MAKE SURE THAT YOU DISCONNECT ALL ELECTRICAL AND LIGHTING.
Midwest Tropical Inc • 3420 West Touhy Ave • Skokie, IL 60076 USA • Phone: [phone] • Fax: [phone]
Install bulb in UV
Position the
waterfall
Use a platform dolly under each end of the waterfall to move the
waterfall into position easily. Take the waterfall off the dollies and
slide into its final position.
If the waterfall is not level, use shims to level the waterfall.
1. Placing the level on the waterfall base lid, slightly tilt the waterfall
and insert the thinnest end of a shim between the floor and the
bottom of the waterfall unit. Check the level again. Use a mallet to
tap the shim further into the underside of the base, if necessary.
Repeat the process until the base is level on all sides.
2. Once the base is level, break off or cut the exposed ends of the
shims.
3. Place the header on top of the water fall.
NOTE Because the header is heavy, it is best to use two people to
move and position it.
Using the suction cup glass holders, remove the base lids. Remove
all packaging inside the base. The waterfall ships with the plumbing
installed except the UV bulb and bulb sleeve to prevent damage
during transit.
1. To install the bulb and sleeve, unscrew the ballast from the lamp
housing.
Installation
Level the
waterfall
Ballast

7
Enclosed Waterfall
CAUTION: WHEN SERVICING YOUR WATER FEATURE MAKE SURE THAT YOU DISCONNECT ALL ELECTRICAL AND LIGHTING.
Midwest Tropical Inc • 3420 West Touhy Ave • Skokie, IL 60076 USA • Phone: [phone] • Fax: [phone]
Installation

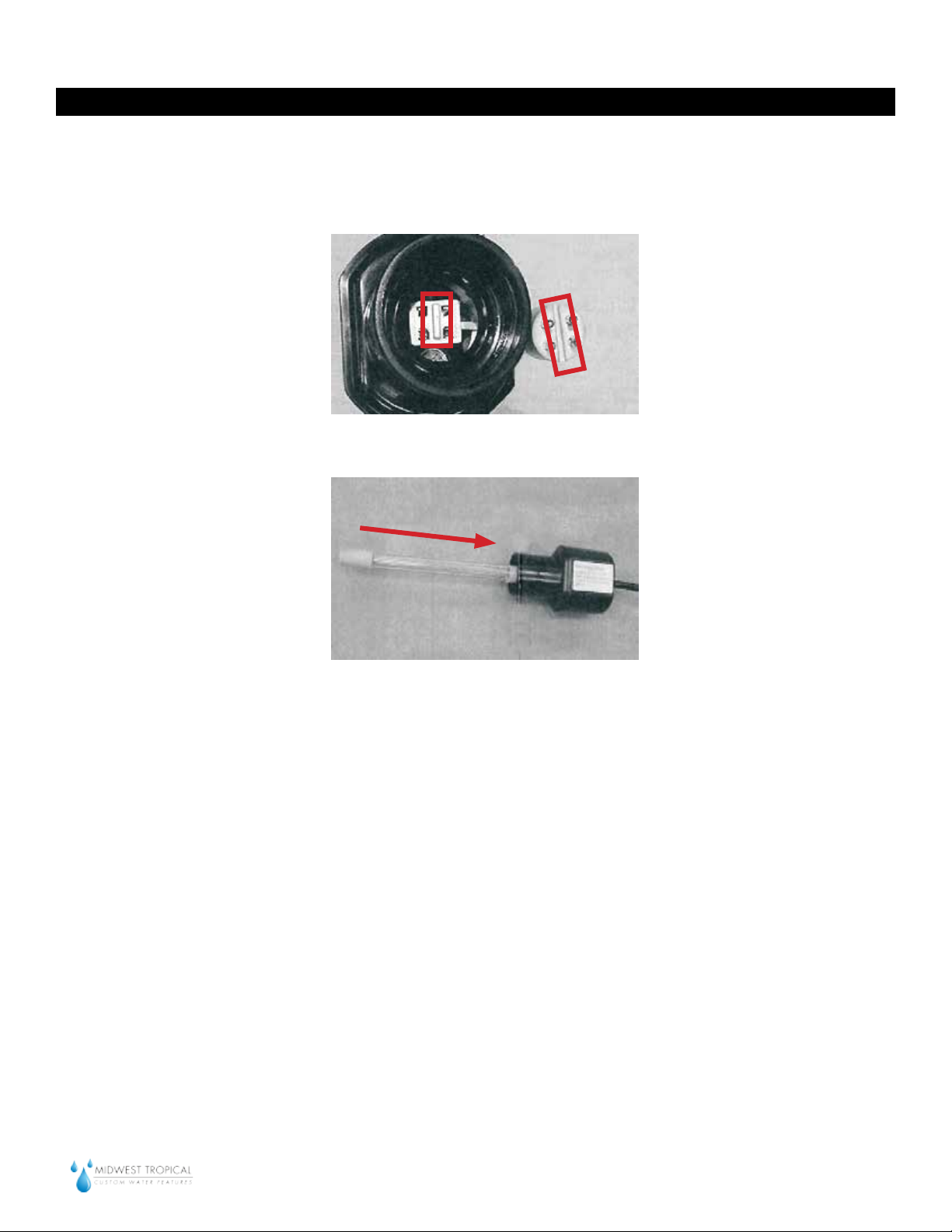

2. Wearing gloves or holding the bulb with a cloth (avoid touching
the bulb; oils from your skin will reduce the bulb lifespan), align
the center groove on the bulb with the pin on the inside of the
ballast.
3. Push the bulb in firmly.
4. Slide the bulb sleeve over the bulb until the rubber ring touches
the ballast housing.
5. Slide the bulb into the lamp housing. Screw the ballast back into
the lamp housing until it is hand tight. Do not overtighten!
6. Screw the lamp housing back into the base plumbing.
7. Do a quick check to make sure the UV light powers on. Look for
the three translucent rings to light up. Do not leave the light on
for more than 10 seconds. If it doesn’t illuminate, unscrew the
ballast and check to make sure the sleeve and bulb are correctly in
place.
Chase or run the cables for the water pump, UV sterilizer, and
lighting fixture (if purchased) out of the small hole on the side/back
of the waterfall base. Ensure the cords reach the outlet. If the cords
don’t reach, use a power strip and an extension cord.
CAUTION Do not plug in any components until you’ve filled the
panel with water.
Chase cables to
power

8
Enclosed Waterfall
CAUTION: WHEN SERVICING YOUR WATER FEATURE MAKE SURE THAT YOU DISCONNECT ALL ELECTRICAL AND LIGHTING.
Midwest Tropical Inc • 3420 West Touhy Ave • Skokie, IL 60076 USA • Phone: [phone] • Fax: [phone]
Installation
Fill with distilled
water

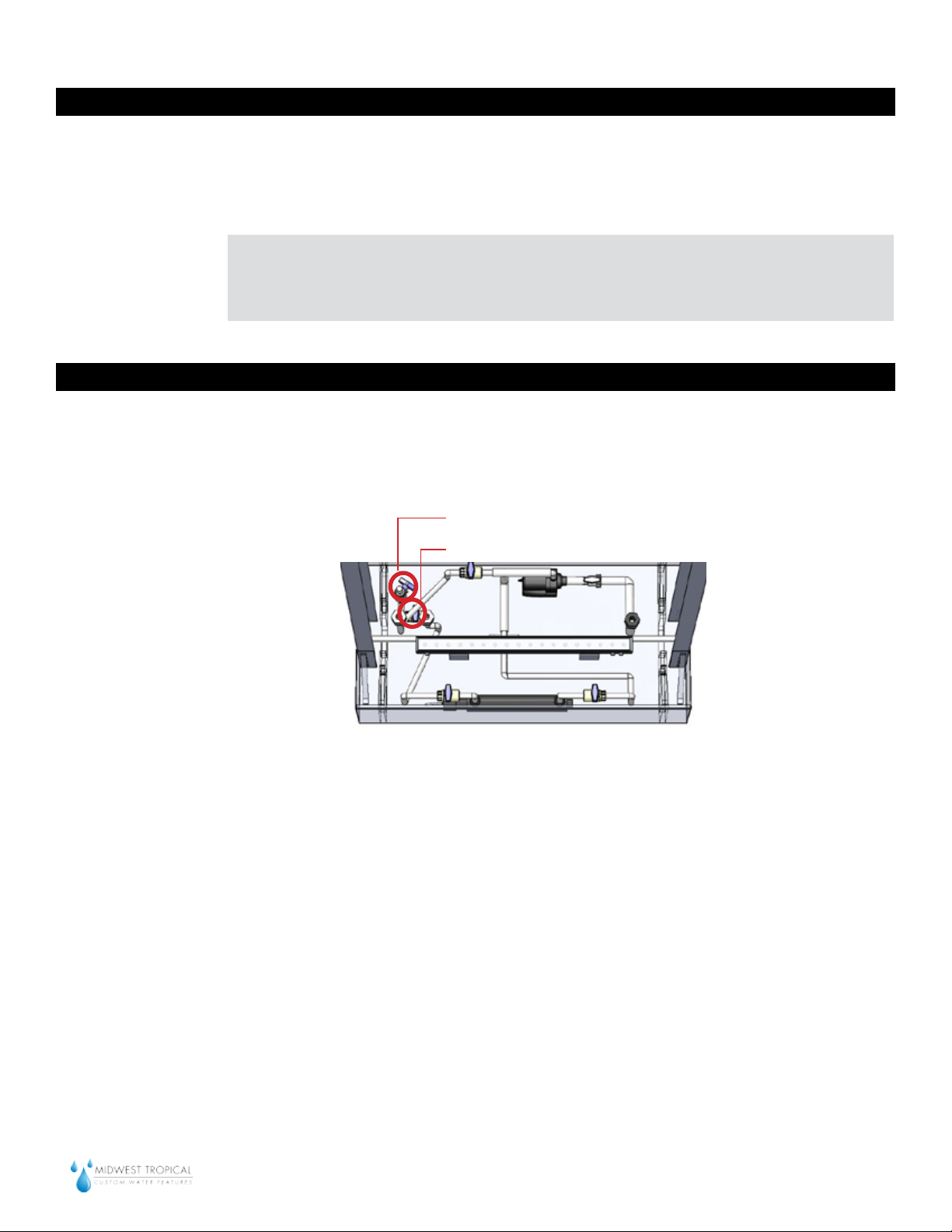

1. Ensure the drain valve is closed (perpendicular to pipe).
VIEW FROM REAR
Drain
2. Connect the fill insert spout and funnel (supplied) into the fill
valve.
3. Open the fill valve (parallel to pipe).
CAUTION Protect your waterfall and make sure to add the
water treatment before running for the first time.
4. Pour one tablespoon of monopersulfate powdered water
treatment (provided with purchase) into the funnel, which will
dissolve as you add the distilled water. We recommend “Robelle
Oxidizing Shock & Swim Monopersulfate.”
NOTE Treat water with 1 tablespoon monopersulfate every 6
months. See maintenance instructions on p. 15.
CAUTION Do not treat with any other additives or solutions
including chlorine, bromine, or cleaning solvents/solutions.
5. Using distilled water only, fill the panel until the water is 10 inches
from the bottom of the panel (5 inches above the base lid).
NOTE: The minimum water fill line indicator is located on the
clear acrylic panel near the water fill valve.
REQUIRED Distilled water is required.
Do not use tap water or spring water.
Model # Dimension Water
G048 4 x 8 ft. 14 gallons distilled water
G059/G060 5 x 9 ft. / 5 x 10 ft. 18 gallons distilled water
6. Close fill valve before removing funnel and insert. Have towels on
hand for any spills.
Treat the water

9
Enclosed Waterfall
CAUTION: WHEN SERVICING YOUR WATER FEATURE MAKE SURE THAT YOU DISCONNECT ALL ELECTRICAL AND LIGHTING.
Midwest Tropical Inc • 3420 West Touhy Ave • Skokie, IL 60076 USA • Phone: [phone] • Fax: [phone]
Double-check
valve position
Ensure the valves are in the following positions:
Valve Position
Drain valve Closed (perpendicular to pipe)
Primary control valve Open (parallel to pipe)
Water pump valve Open (parallel to pipe)
Fill valve Closed (perpendicular to pipe)
UV inlet valve Open (parallel to pipe)
UV outlet valve Open (parallel to pipe)
Connect all cables to standard US outlet or supplied power strip.
There are 3 cables with the optional lighting fixture, or 2 without it.
The waterfall and lighting fixture will power on.
1. Evaluate the waterfall and check for leaks.
2. If you notice any leaks, immediately disconnect power from the
waterfall.
3. Attempt to locate the source of the leak.
4. If the quick disconnect fittings above the spray bar are leaking,
tighten them.
5. If the leak is coming from elsewhere, call us at 847-679-6666.
QUICK DISCONNECTS FROM ABOVE
First-time operation
Connect power
Check for leaks

10
Enclosed Waterfall
CAUTION: WHEN SERVICING YOUR WATER FEATURE MAKE SURE THAT YOU DISCONNECT ALL ELECTRICAL AND LIGHTING.
Midwest Tropical Inc • 3420 West Touhy Ave • Skokie, IL 60076 USA • Phone: [phone] • Fax: [phone]
Two valves control the flow of water and must be adjusted to balance
the flow at the top and base of the panel.
VIEW FROM REAR
Primary control valve
UV inlet valve
• Adjust the primary control valve to control the water flow
through the spray bar to create the waterfall effect. Adjust to
ensure that there are no dry spots on the panel.
• Adjust the UV inlet valve flow until the fountain effect protrudes
approximately 1 inch above the water line on the left bottom side
of the panel.
Fountain effect
1 inch above waterline
If you have the optional lighting fixture, use the remote control to
customize the lighting. See pg 11.
Replace the header and base lids once you are satisfied with the water
flow and lighting.
Adjusttheow
Adjust lighting
Seal the
waterfall
First-time operation

11
Enclosed Waterfall
CAUTION: WHEN SERVICING YOUR WATER FEATURE MAKE SURE THAT YOU DISCONNECT ALL ELECTRICAL AND LIGHTING.
Midwest Tropical Inc • 3420 West Touhy Ave • Skokie, IL 60076 USA • Phone: [phone] • Fax: [phone]
The optional lighting fixture is installed in the base, just below the
enclosed acrylic waterfall panel.
Select Auto Run
mode
Not recommended.
Press “AUTO RUN” to choose Auto Run/demo mode.
Press FLASH to turn on/off the flash for the Auto Run, and then
pressing “+” and “-“ buttons to adjust flash speed. Press SPEED to
control the speed of the Auto Run, and then pressing “+” and “-”
buttons to adjust it.
Select color or
program
Remote control
Press PROG to go into color program select mode.
Press “+” or “-” to cycle through the 24 built-in programs (8 static
colors, 8 color dreaming modes and 8 color changing modes).
Presets
Press button 0 - 9 to choose a static color and the two built-in
programs:
0: black 5: yellow
1: red 6: purple
2: green 7: white
3: blue 8: color changing mode
4: cyan 9: color dreaming mode
Recommended presets
We recommend the following for office use:
color program benefits
7: white energize and focus
4: cyan calm and productive
9: color dreaming mode creativity and visual stimulation
Select brightness
Selectash/
strobe effect
Press R/G/B and press “+” and “-” buttons to adjust the intensity of
the lighting.
Not recommended.
Press FLASH to turn on/off strobe effect and press “+” or “-” to
adjust the flash speed.
Lighting operation (optional)
Your unit includes an infrared lighting remote control.
For best performance, stand close to the waterfall and aim the
remote control down towards the lighting fixture in the base.
aim remote control
down towards base

12
Enclosed Waterfall
CAUTION: WHEN SERVICING YOUR WATER FEATURE MAKE SURE THAT YOU DISCONNECT ALL ELECTRICAL AND LIGHTING.
Midwest Tropical Inc • 3420 West Touhy Ave • Skokie, IL 60076 USA • Phone: [phone] • Fax: [phone]
Primary control valve: Modifies the intensity of waterfall. This valve
controls the water flow through the spray bar.
UV inlet valve: Controls the water flow through the UV sterilizer and
to the fountain feature at the base of the enclosed panel.
UV outlet valve: Keep open (parallel to pipe) unless you are
servicing the UV sterilizer.
Water pump valve: Keep open (parallel to pipe) unless you are
servicing the water pump.
Fill valve: Keep closed (perpendicular to pipe) unless you are filling
the waterfall.
Drain valve: Keep closed (perpendicular to pipe) unless you are
draining the waterfall.
General operation: Valve overview

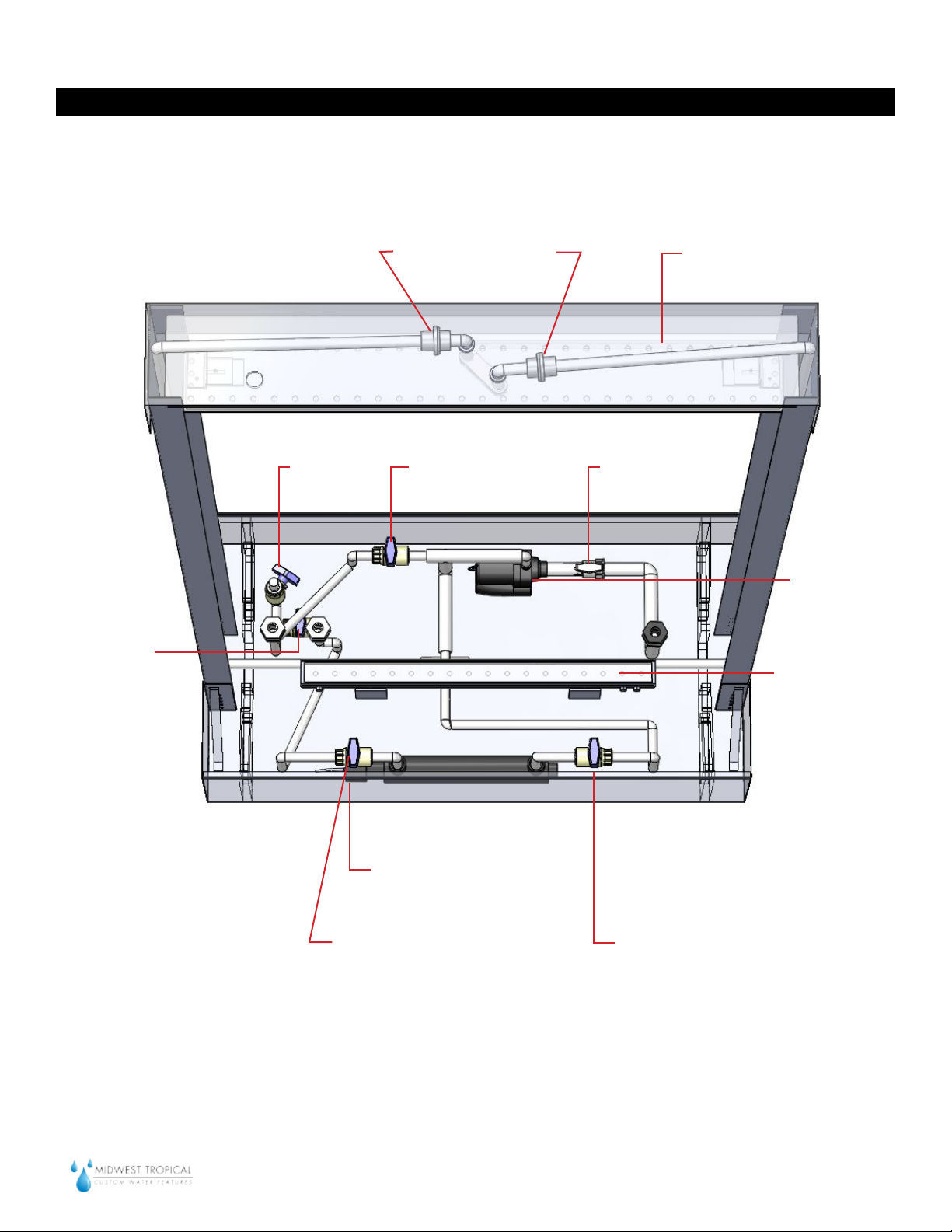

VIEW FROM REAR
Fill valve Drain valve
UV inlet valveUV outlet valve
Primary control valve Water pump valve

13
Enclosed Waterfall
CAUTION: WHEN SERVICING YOUR WATER FEATURE MAKE SURE THAT YOU DISCONNECT ALL ELECTRICAL AND LIGHTING.
Midwest Tropical Inc • 3420 West Touhy Ave • Skokie, IL 60076 USA • Phone: [phone] • Fax: [phone]
Dry spots on panel
There is not
enough water
inside the panel
Fill panel with more distilled water if the
water level is less than 4” above the base lid
when waterfall is powered on. (See page 8)
Water flow is too low. Adjust the primary
control valve to increase flow to the spray bar.
Leaking water Immediately disconnect power to the
waterfall.
Tighten all disconnect fittings above the spray
bar. Check seal at top of enclosed panel and
ensure screws are fully tightened.
Symptom Problem Solution
Uneven water
ow
Pumpisloud/
has sucking
sound
Leaking water
Lighting
unresponsive Batteries are
depleted
Signal interrupted
Pump auto start
off
Pump
unresponsive
Replace batteries in the remote control.
You may be too far away from the light fixture
when using the remote control:
• Stand close to the waterfall and aim the
remote control downward at the base
The base lids may be interrupting the signal:
• Remove base lids before using remote
control
Ensure there is enough distilled water in the
panel.
Without adequate water, the pump will suck
in air and produce bubbles or interruptions
in the water supply to the header.
Troubleshooting
4 inches

14
Enclosed Waterfall
CAUTION: WHEN SERVICING YOUR WATER FEATURE MAKE SURE THAT YOU DISCONNECT ALL ELECTRICAL AND LIGHTING.
Midwest Tropical Inc • 3420 West Touhy Ave • Skokie, IL 60076 USA • Phone: [phone] • Fax: [phone]
Cleaning acrylic
Cleaning
stainless steel
We recommend Weimans® Stainless Steel Cleaner. Follow package
instructions.
Use a clean microfiber cloth to remove blemishes such as fingerprints
and dust.
For tougher stains, use:
• Novus acrylic cleaner or
• Dish-detergent-and-water mixture and clean microfiber cloth
We recommend Novus acrylic cleaner, a 3-part product for
general cleaning, scratch removing and polishing. Follow package
instructions.
Surface Cleaning and Maintenance
CAUTION Do not use Windex® or any ammonia-based cleaning
product. It will damage the waterfall’s acrylic surface.
CAUTION Use only a clean microfiber cloth to wipe the acrylic
surface. Other materials may damage the surface.

15
Enclosed Waterfall
CAUTION: WHEN SERVICING YOUR WATER FEATURE MAKE SURE THAT YOU DISCONNECT ALL ELECTRICAL AND LIGHTING.
Midwest Tropical Inc • 3420 West Touhy Ave • Skokie, IL 60076 USA • Phone: [phone] • Fax: [phone]
Check water level every three months and refill with distilled water
if the water level is less than 4” above the base lid when waterfall is
powered on.
Quarterly Water Maintenance
6-Month Water Maintenance
REQUIRED Distilled water is required.
Do not use tap water or spring water.
1. Disconnect the waterfall from power.
2. Ensure the drain valve is closed (perpendicular to pipe).
VIEW FROM REAR
Drain valve
Fill valve
3. Connect the fill insert spout and funnel (supplied) into the fill valve.
4. Open the fill valve (parallel to pipe).
5. Pour one tablespoon of monopersulfate powdered water treatment into the
funnel, which will dissolve as you add the distilled water. We recommend
“Robelle Oxidizing Shock & Swim Monopersulfate.”
CAUTION: Do not treat with any other additives or solutions including
chlorine, bromine, or cleaning solvents/solutions.
6. Use funnel to add distilled water to 10 inches above the bottom of the panel
(5 inches above the base lid).
7. Close fill valve before removing funnel and insert. Have towels on hand for
any spills.

16
Enclosed Waterfall
CAUTION: WHEN SERVICING YOUR WATER FEATURE MAKE SURE THAT YOU DISCONNECT ALL ELECTRICAL AND LIGHTING.
Midwest Tropical Inc • 3420 West Touhy Ave • Skokie, IL 60076 USA • Phone: [phone] • Fax: [phone]
For optimum performance, replace the water with fresh distilled
water and water treatment annually.
Drain the
waterfall
Add water
treatment and
distilled water
1. Disconnect power to the waterfall
2. Prepare buckets for waste water
3. Remove front base lid
4. Connect the drain fitting to the drain insert and tubing (supplied)
or to a hose.
5. Open the drain valve (parallel to pipe)
6. Drain the unit by siphoning manually or buying and using a pump.
1. Close the drain valve (perpendicular to pipe).
2. See pg 8 for water filling instructions and water quantity.
Yearly Water Maintenance
REQUIRED Distilled water is required.
Do not use tap water or spring water.

17
Enclosed Waterfall
CAUTION: WHEN SERVICING YOUR WATER FEATURE MAKE SURE THAT YOU DISCONNECT ALL ELECTRICAL AND LIGHTING.
Midwest Tropical Inc • 3420 West Touhy Ave • Skokie, IL 60076 USA • Phone: [phone] • Fax: [phone]
For replacement parts contact:
Danner Mfg. Inc.
Islandia, New York 11749-1489
[phone]
www.dannermfg.com or www.amazon.com
Yearly component replacement
Pondmaster®UV Sterilizer
• For optimum performance, replace bulb once every year.
• It should remain on 24 hours per day throughout the year.
• The bulb has a lifespan of 9000 hours before the UV output
drops below a useful level.
• The UV sterilizer housing has 3 rings that will glow blue if the
bulb is still producing UV wavelength.
• The bulb will produce visible light long after it has stopped
producing UV.
• The valves on the UV sterilizer should remain in the on (parallel
to plumbing) position until you are ready to change UV sterilizer
or service the bulb.
Yearly bulb replacement
You will need: towels, bucket
1. Disconnect power to the waterfall
2. Turn both UV valves to the OFF position (perpendicular to
plumbing). This will prevent water from draining from the
waterfall while servicing. Water will be inside the UV fixture, so
have towels on hand.
3. Loosen the union valves at the ends of the UV to disconnect UV
fixture from waterfall.
4. Carefully remove from base and discard the leftover water into a
bucket or drain.
5. See instructions on page 7 to replace the UV bulb.

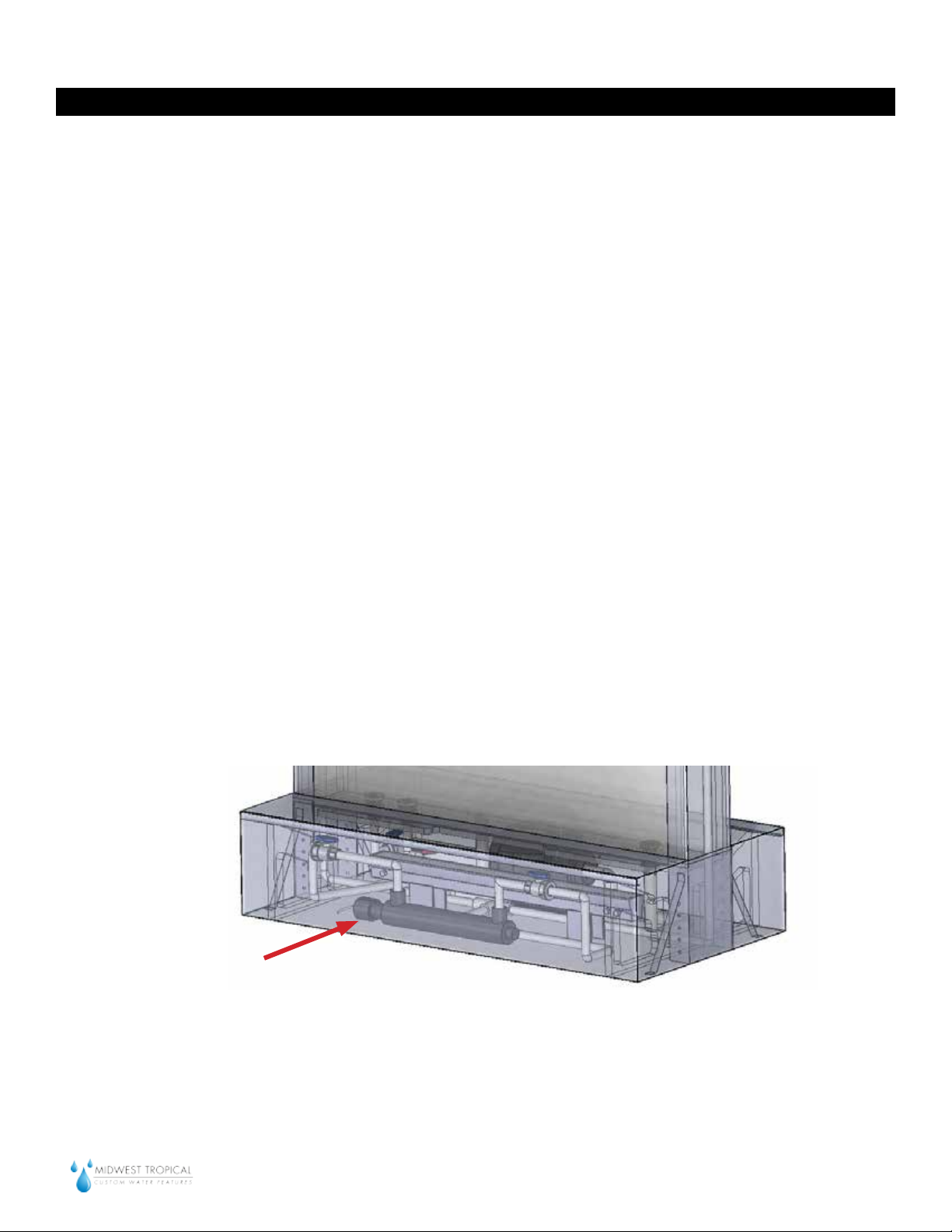

UV sterilizer bulb
(replace yearly)
CAUTION Disconnect all cables from power
when servicing the waterfall.
Union valve

18
Enclosed Waterfall
CAUTION: WHEN SERVICING YOUR WATER FEATURE MAKE SURE THAT YOU DISCONNECT ALL ELECTRICAL AND LIGHTING.
Midwest Tropical Inc • 3420 West Touhy Ave • Skokie, IL 60076 USA • Phone: [phone] • Fax: [phone]
Component replacement
Pump
(replace as
needed)
Because you are using distilled water inside of an enclosed waterfall,
your waterfall pump requires little maintenance; however should
your pump fall outside of warranty, you will need to replace it.
To replace the pump:
You will need: towels, bucket, plumbers tape
1. Disconnect power to the waterfall.
2. Remove front base lid.
3. Turn the primary control and water pump valves to the OFF
position (perpendicular to pipe). This will prevent water from
draining from the waterfall while servicing. However water will
be inside the pump, so have towels on hand.
4. Remove the quick disconnects at the inlet and outlet of the
waterfall pump.
5. Carefully remove pump from base and discard the leftover water
into a bucket or drain.
6. Remove the plumbing connections and transfer them to the
replacement pump.
7. Use plumbers tape on the threads of the new pump before
transferring the piping to the new pump.
8. Ensure the piping is tightly threaded onto the new pump before
reconnecting to the quick disconnects.
9. Turn the water supply and water pump valves to the ON position
(parallel to pipe).
10. Check for leaks around the pump. Tighten fittings.
11. Connect power to the waterfall and test.

19
Enclosed Waterfall
CAUTION: WHEN SERVICING YOUR WATER FEATURE MAKE SURE THAT YOU DISCONNECT ALL ELECTRICAL AND LIGHTING.
Midwest Tropical Inc • 3420 West Touhy Ave • Skokie, IL 60076 USA • Phone: [phone] • Fax: [phone]
Glossary
• Base
The stainless steel enclosure that holds the plumbing assembly and optional lighting
fixture.
• Base lids
The base lids conceal the base. To prevent damage to stainless steel, remove and replace
the lids using suction cup glass holders.
• Header
The stainless steel cover for the acrylic panel top, spray bar and plumbing components
above the waterfall panel.
• Plumbing assembly
Includes pump, UV sterilizer, flow control valves, drain fittings, routing.
• Enclosed panel
The water-tight reservoir is the focal point of the waterfall.
• Drain
Valved connection that releases water from waterfall panel.
Base lids
Enclosed panel
Header
Plumbing assembly
Base
VIEW FROM REAR
Drain

20
Enclosed Waterfall
CAUTION: WHEN SERVICING YOUR WATER FEATURE MAKE SURE THAT YOU DISCONNECT ALL ELECTRICAL AND LIGHTING.
Midwest Tropical Inc • 3420 West Touhy Ave • Skokie, IL 60076 USA • Phone: [phone] • Fax: [phone]
• Clear acrylic, enclosed panel waterfall
• Low maintenance unit
• 39” LED color changing RGB lighting with remote control
(optional)
• Ultraviolet sterilizer to keep water clean
• Silent pump operation
• No plumbing required
• Power requirements 120 V / 60 Hz
• Power consumption 720 W
• Power requirements 120 V / 60 Hz
• Power consumption 220 W
• 40 watt output
• Max flow rate to kill bacteria 2000 GPH
• Input power 120/220v
• Power consumption 80 watts
• 18 super bright 3 watt tri-color (3 in 1) LEDs
• Beam angle: 40 degree
• Control mode: receiving IR signal
• Outdoor rated ip65
• Aluminum construction
Enclosed
waterfall
Specications
Oase®Pronaut
6000 Waterfall
Pump (9 x 5 ft.,
10 x 5 ft.)
Pondmaster®UV
Sterilizer
39” LED lighting
xturewith
remote control
Oase®Neptun
2600 Waterfall
Pump (8 x 4 ft.)
