Platinum 7093852 User manual

INSTRUCTION MANUAL
HAND BLENDER
MODEL: 7093852 (HB989) EAN: 6001001430647
INDOOR HOUSEHOLD USE ONLY
Please save and read this instruction manual carefully before use.

1
ENGLISH
INTRODUCTION
Thank you for purchasing our “Platinum” Hand Blender. Each unit has been manufactured to
ensure safety, reliability, and ease of use. Before use, please read these instructions carefully
and save them for future reference.
IMPORTANT SAFEGUARDS
When using your “Platinum” Hand Blender, basic precautions should always be followed,
cluding the following:in
zThis appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge concerning the use of
this product, unless they are supervised or have been given instruction concerning use of the
appliance by a person responsible for their safety.
z
Close supervision is required when any appliance is used near children or invalids.
z
Always ensure that the voltage on the rating label corresponds to the voltage in your home.
zCheck the power cord and plug regularly for any damage. If the cord or the plug is damaged,
it must be replaced by the manufacturer or a qualified person in order to avoid an electrical
hazard.
zThis appliance is intended for household use only. Industrial or commercial use will void the
warranty, and the supplier can not be held responsible for injury or damage caused when
using the appliance for any other purpose than that intended.
z
Incorrect operation and improper use can damage the appliance and cause injury to the user.
zDo not use the appliance if it has been dropped or damaged in any way. In case of damage,
take the unit in for examination and/or repair by an authorized service agent.
zTo reduce the risk of electric shock, do not immerse or expose the motor assembly, plug or
the power cord to water or any other liquid.
z
Never immerse the unit in water or any other liquid for cleaning purposes.
zRemove the plug from the socket by gripping the plug. Do not pull on the cord to disconnect
the appliance. Always unplug the unit when not in use, before cleaning or when adding or
removing parts.
zThe use of accessory attachments that are not recommended or supplied by the
manufacturer may result in injuries, fire or electric shock.
zDo not let the cord hang over the edge of a table or counter. Ensure that the cord is not in a
position where it can be pulled on inadvertently.
zDo not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric
burner or in a heated oven.
zUse of an extension cord with this appliance is not recommended. However, if it is
necessary to use an extension lead, ensure that the lead is suited to the power consumption
of the appliance to avoid overheating of the extension cord, appliance or plug point. Do not
place the extension cord in a position where it can be pulled on by children or animals or
tripped over.

2
ENGLISH
zThis appliance is not suitable for outdoor use. Do not use this appliance for anything other
than its intended use.
z
Do not carry the appliance by the power cord.
zDo not leave this appliance unattended during use. Always unplug the unit when not in use.
Allow it to cool before putting on or taking off parts, and before cleaning the appliance.
zAlways operate the appliance on a smooth, even and stable surface. Do not place the unit
on a hot surface.
zThe manufacturer does not accept responsibility for any damage or injury caused by the
improper or incorrect use of the appliance, or by repairs carried out by unauthorized
personnel.
zIn case of technical problems, switch off the machine and do not attempt to repair it yourself.
Return the appliance to an authorized service facility for examination, adjustment or repair.
Always insist on the use of original spare parts. Failure to comply with the above mentioned
precautions and instructions, could affect the safe operation of this machine.
zThis appliance is intended to be used in household and similar applications such as:
-Staff kitchen areas in shops, offices and other working environments;
-Farm houses;
-By clients in hotels, motels and other residential type environments;
-Bed and breakfast type environments.
zAvoid contacting moving parts.
zKeep hands and utensils out of container while blending to reduce the risk of severe injury
to persons or damage to the blender. A scraper may be used but must be used only when
the Blender is not running.
zThe appliance cannot be used for chopping ice or blending hard and dry substance,
otherwise the blade could be blunted.
zTo reduce the risk of injury, never place cutting blade on base without first putting bowl
properly in place.
zBe sure chopper lid is securely locked in place before operating appliance.

ENGLISH

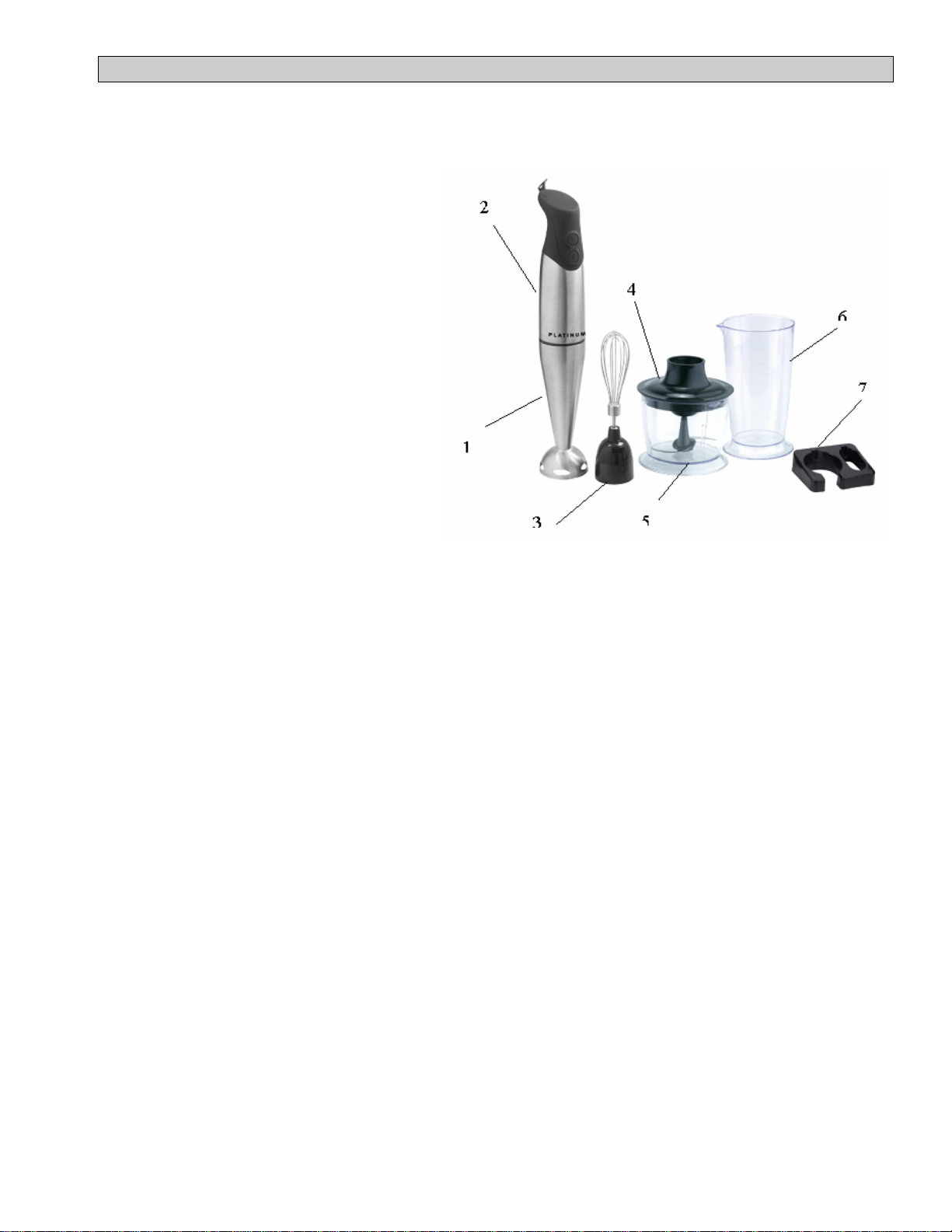

KNOW YOUR BLENDER
1. Detachable blending rod
2. Motor unit
3. Whisk
4. Detachable chopper
5. Chopper Bowl
6. Mixing cup
7 Wall bracket
5
7
6
4
3
2
1
SPECIFICATION
Speed : 2 speeds
Voltage : 230V~ 50Hz
Wattage : 300W
Cord : 2 round pins plug
USING YOUR HAND BLENDER
You must read all instructions before using.
Before the first use, clean the Blender according to the section of “quick cleaning”.
The time running unit without load can’t exceed 15s.
Important: Blades are very sharp, handle with care. Ensure that the Hand Blender is unplugged from the
power outlet before assembling or removing attachments.
Note：
zAvoid contacting moving parts.
zKeep hands and utensils out of container while blending to reduce the risk of severe injury
to persons or damage to the blender. A scraper may be used but must be used only when
the Blender is not running.
zThe appliance cannot be used for chopping ice or blending hard and dry substance,
otherwise the blade could be blunted.
zTo reduce the risk of injury, never place cutting blade on base without first putting bowl
properly in place.
zBe sure chopper lid is securely locked in place before operating appliance.
3

ENGLISH
TO USE YOUR HAND BLENDER
Note: It is recommended to operate the appliance not more than one minute for each
blending period. The appliance should be stopped to cool down to room temperature
before using it again.

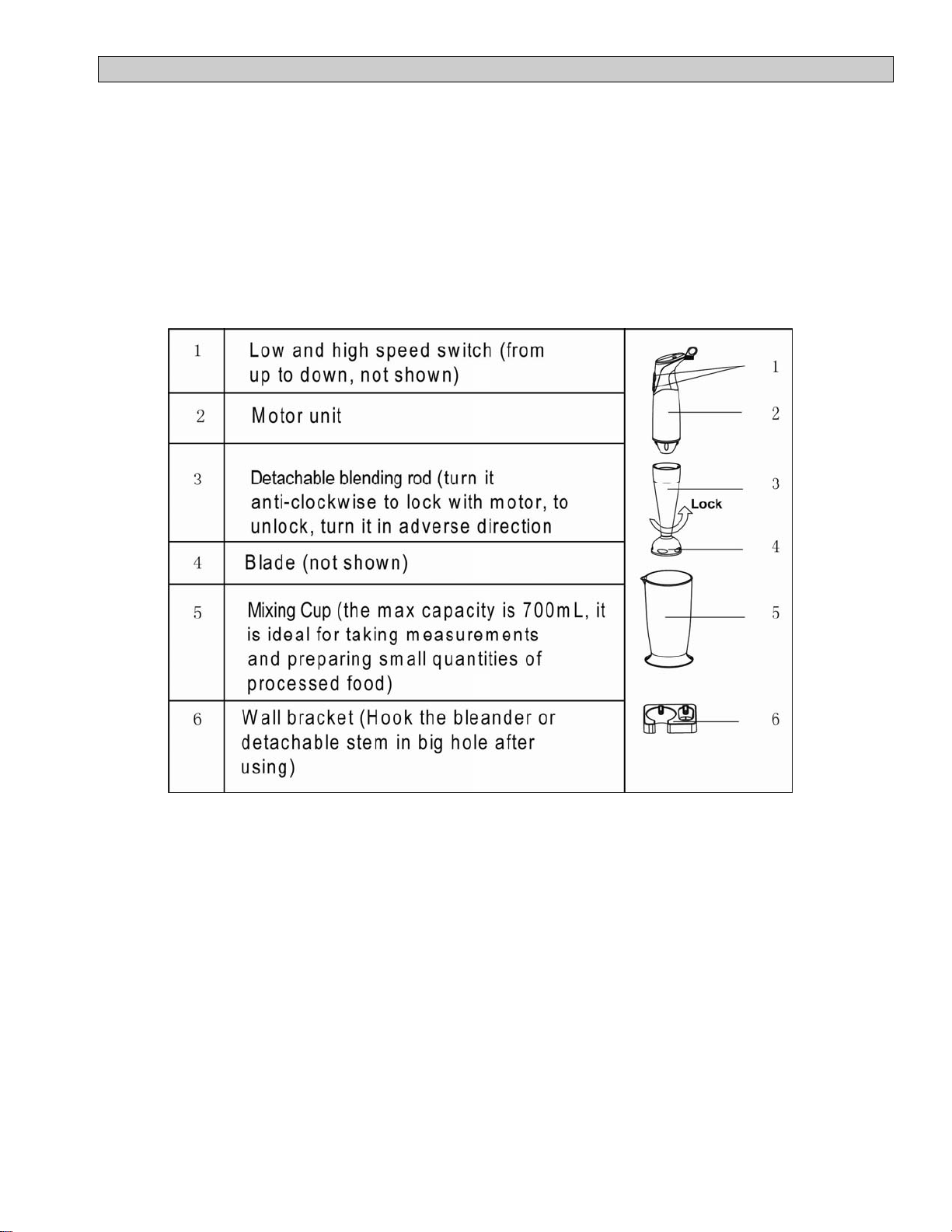

Instruction for Handle Blender
Blender (It is suitable for blending vegetable and fruit)
1. To assemble the detachable blending rod with the motor unit, turn the shaft anti-clockwise
direction until tightened. To disassemble, just turn in the adverse direction.
2. Simply plug the Hand Blender to power outlet.
3. Lower the Hand Blender into food and depress the switch at the top of the motor unit.
4. To stop the Hand Blender by releasing the switch at the top of the motor unit.

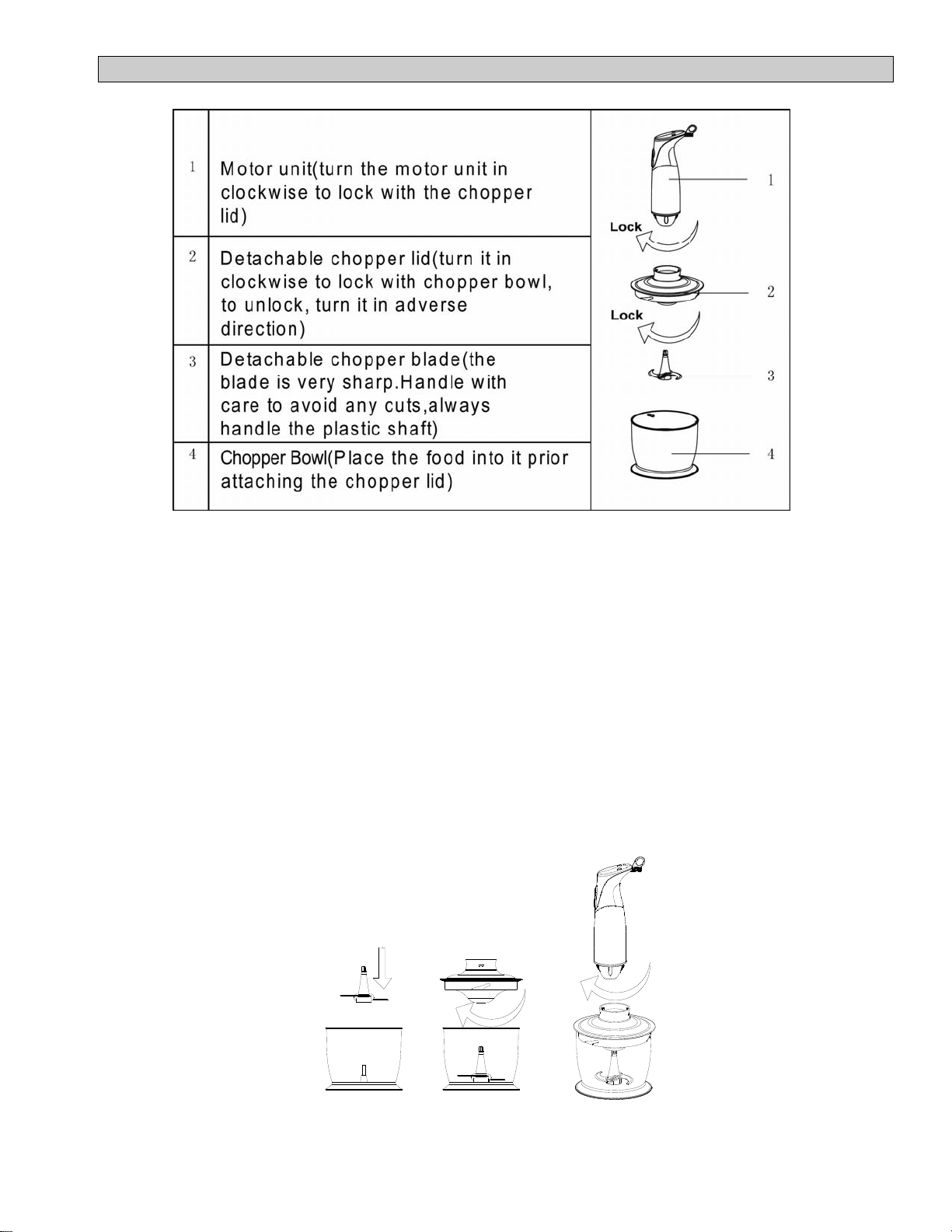

Instruction for Chopper
Accessory-chopper (Using for chopping meat and making garlic paste)
4

ENGLISH
1. Place the chopper bowl on a clean, level surface.
2. Assemble the stainless steel blade into the chopper bowl, as shown in Fig.1.
3. Place food into the chopper bowl.
Note: remove the bone of the meat, cut small piece, then place the meat into bowl, the max
quantity of meat can’t exceed 200g in every blending.
4. Attach the Lid onto the chopper bowl and turn it in clockwise direction until it locks into
position. (see Fig.2) To detach the lid, turn in adverse direction.
5. Insert the top part of the chopper into the hole of the chopper lid, and turn in clockwise
direction to lock. (See Fig.3)
6. Plug the appliance to power outlet and depress the switch to begin operation.
7. To stop the appliance release the switch at the top of the motor unit.
Caution:
-To reduce the risk of injury, never place cutting blade on base without first putting bowl
properly in place.
-Be sure chopper lid is securely locked in place before operating appliance.
5
Lock
Lock
Fig.1 Fig.2 Fig.3

ENGLISH

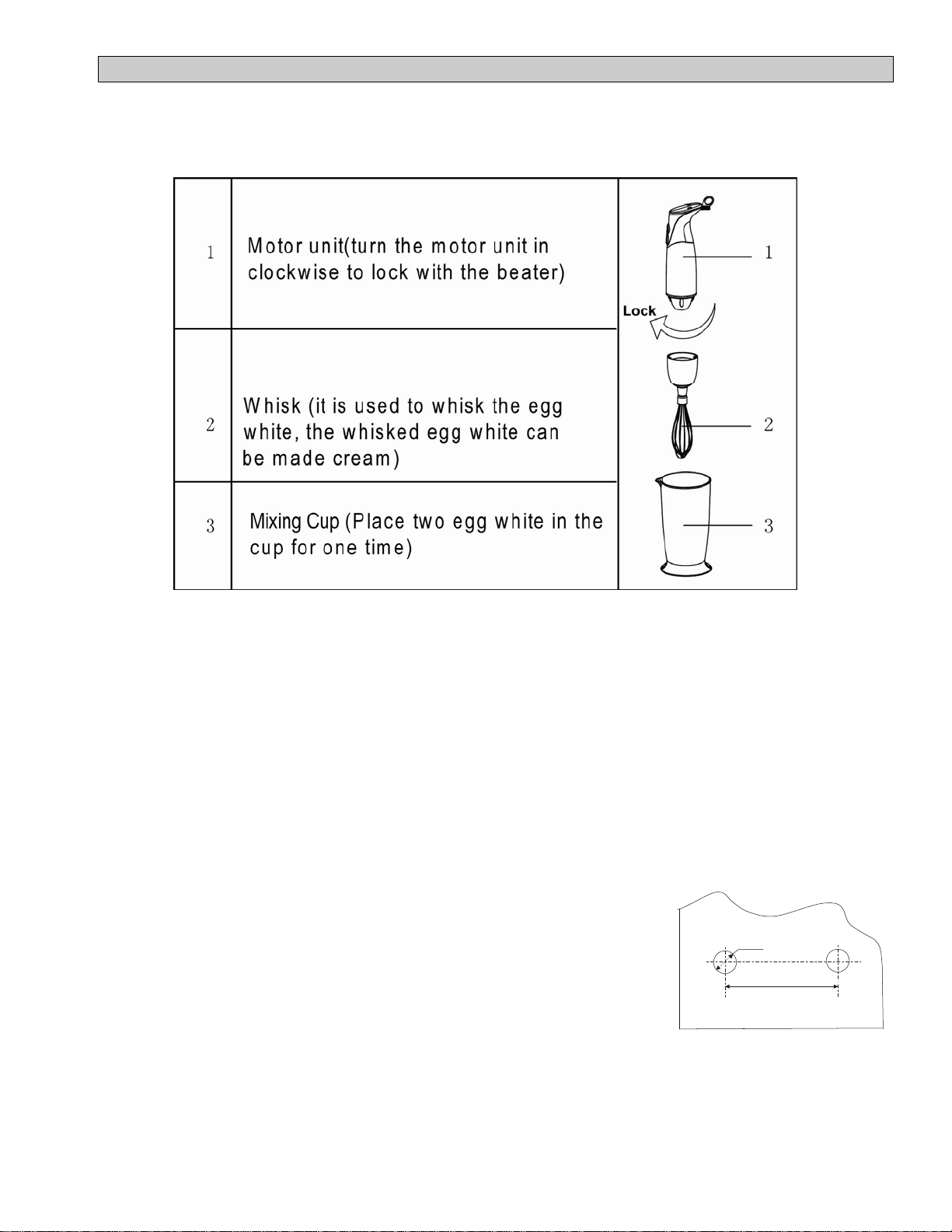

Instruction for Egg white beater
Accessory- Egg white beater (for mixing egg white)
1. To assemble the egg white beater with the motor unit, turn the whisk anti-clockwise
direction until tightened. To disassemble, just turn in the adverse direction.
2. Simply plug the Hand Blender to power outlet.
3. Place egg white into the cup, generally, put two egg white is enough.
4. Lower the Hand Blender into food and depress the switch at the top of the motor unit.
5. To stop the Hand Blender release the switch at the top of the motor unit.
Fixing wall bracket
You can fix the wall bracket as following:
1) Drill two same holes in wall and strictly follow the dimension as indicated in the fig.4
2) Knock two plastic tubes in them with hammer.
6mm
51mm
Fig. 4
3) Secure the bracket on wall with another two screws.
6

ENGLISH
CARE AND CLEANING
1. Unplug the appliance and remove the detachable stem.
Note: Do not immerse the detachable stem of the Blender in water because overtime the
lubrication on the bearings may wash away. Wash the detachable stem under running water,
without the use of abrasive cleaner or detergents. After finishing cleaning the detachable
stem, place it upright so that any water which may have got in, can drain out. The stem is
dishwashing safe component.
2. Wash the cup, chopping bowl, beater and blade in warm soapy water. The bowl and the
beater are not recommend to place in dishwashing machine as the plastic component
deteriorate through prolonged use of dishwasher cleaning.
3. Wipe the motor unit with a damp cloth. Never immerse it in water for cleaning as electric
shock may occur.
4. Dry thoroughly.
Caution: Blades are very sharp, handle with care.
5. Reassemble the blender stem to motor unit then place it upright in wall bracket
(see Fig.5) or hang it up for saving space.
7
Quick cleaning
Between processing tasks, hold the Hand Blender in the cup half filled with water
and turn on for a few seconds.
Fig. 5

8
ENGLISH
WARRANTY
PLEASE AFFIX YOUR RECEIPT/PROOF OF PURCHASE HERE.
IN THE EVENT OF A CLAIM UNDER THIS WARRANTY THE AFORESAID
RECEIPT/PROOF OF PURCHASE MUST BE PRODUCED TOGETHER WITH THIS
WARRANTY.
Model number (Lot number: )
Product name
Date of purchase
Place of purchase
1. The party selling the product (“the seller”) to the original purchaser of this product (“the
customer”) hereby warrants that this product will be of good quality and, in good
working order and, free of defects and suitable for its intended purpose under normal
household use, for a period of 1 (one) year from the date of purchase (“warranty
period”) of this product.
2. In the event that the warranty period has not lapsed and the product is not of a good
quality, or in good working order or, is defective or is not suitable for its intended
purpose under normal household use, the customer may, subject to paragraph 3 below,
return the product to the seller and have the following options available:
2.1 Within the first 6 (six) months of the warranty: to receive a refund of the actual
price paid or to exchange the product for the same or similar product of the same
purchased value;
2.2 Within the second 6 (six) months of the warranty: to have the product exchanged
for the same or similar product of the same purchased value.
3. The seller will not replace the product or refund the customer in terms of this warranty if
the product:
3.1 has been altered contrary to the instructions provided in the product manual;
3.2 has been misused, abused or tampered with;
3.3 is defective or not in working order due to ordinary wear and tear;
3.4 is damaged resulting from the customer’s gross negligence, recklessness,
malicious behavior or criminal conduct;
3.5 has been utilised for commercial use.
4. This warranty applies only to the product that has been purchased from the seller and
not to any expendables attached to or installed on the product by the customer.
5. Any claim in terms of this warranty must be supported by the original proof of purchase.

9
PORTUGUÊS
INTRUÇÃO
Obrigado pela sua compra da nossa “Platinum” O Liquidificador de mão. Cada unidade foi
manufaturada para assegurar a segurança, a confiabilidade, e a facilidade de utilização. Antes
de usar, por favor leia estas instruções com cuidado e conserve-as para a referência futura.
PROTEÇÕES IMPORTANTES
Quando usar a sua “Platinum” O Liquidificador de mão, as precauções básicas devem sempre
ser seguidas, incluindo o seguinte:
zEste dispositivo não destina-se a ser utilizada por pessoas (incluindo crianças) com
potencialidades físicas, sensórias ou mentais reduzidas, ou falta d ervisionados ou forem
dados a instrução a respeito do uso do dispositivo por uma pessoa responsável para sua
segurança.
zAs crianças devem ser supervisionadas para assegurar-se de que não joguem com o
apparatus.
zCertifique-se de que a voltagem usada na casa corresponde à voltagem indicada na
etiqueta.
zVerifique regularmente o cabo de força e o plugue para ver se há todos os danos Se o cabo
de alimentação ou o plugue estiver danificado, deve ser substituído pelo fabricante, ou por
pessoa qualificado a fim de evitar um perigo elétrico.
zEste produto destina-se ao uso doméstico somente. O uso industrial ou comercial anulará a
garantia, e o fornecedor não é responsável para ferimento ou danos causados ao usar o
dispositivo para nenhuma outra finalidade.
zOperação e uso incorretos podem danificar o aparelho e causar danos ao usuário.
zNão use o aparelho se ele caiu ou foi danificado de alguma maneira. Em caso de dano,
examine o aparelho e / ou repare por um agente autorizado.
zPara reduzir o risco de choque elétrico, não submergir ou exponha o motor, o plugue ou o
cabo de alimentação à água ou qualquer outro líquido.
zNunca submergir o aparelho na água ou outro líquido para limpeza.
zRetire o plugue da tomada segurando o plugue. Não puxe o cabo para desconectar o
aparelho. Sempre desligue o aparelho quando não estiver em uso, antes de limpar ou
quando adicionar ou remover peças.
zO uso dos acessórios não recomendado pelo fabricante do dispositivo pode causar os
ferimentos,, incêndio ou choque elétrico.
zNão deixe o cabo pendurar sobre a borda da mesa ou do balcão. Garantir que o cabo não
está em uma posição onde ele pode ser puxado descuidadosamente.
zNão deixe o cabo tocar em superfícies quentes e não coloque sobre ou perto de um gás
quente ou queimador elétrico ou em forno aquecido.a experiência e do conhecimento, a
menos que forem sup
zO uso de um cabo de extensão com este aparelho não é recomendado. No entanto, se for
necessário usar um cabo de extensão , certifique-se que o cabo é apropriado para o
consumo. de energia do aparelho para evitar o sobreaquecimento do cabo de extensão,
equipamento ou ponto. Não coloque o cabo de extensão em uma posição onde ele pode ser
puxado por crianças ou animais.
