Welcome
Your choice shows that you really
want to invest in your well being and
condition; it also shows you really value
high quality, safe and motivating product
as your training partner. Whatever your
goal in training, we are certain this is
the training equipment to get you there.
You’ll find information about using your
exercise equipment and what makes for
efficient training at Tunturi’s website at
WWW.TUNTURI.COM
Important Safety Instructions
Read this guide through carefully
before assembling, using or servicing
your fitness equipment. Please keep
the guide somewhere safe; it will
provide you now and in the future with
the information you need to use and
maintain your equipment. Always follow
these instructions with care.
Note about your health
• Before you start any training, consult
a physician to check your state of
health.
• If you experience nausea, dizziness
or other abnormal symptoms while
exercising, stop your workout at once
and consult a physician.
• To avoid muscular pain and strain,
begin each workout by warming up
and end it by cooling down (slow
pedaling at low resistance). Don’t
forget to stretch at the end of the
workout.
Note about the exercise
environment
• The equipment is not to be used
outdoors.
• Place the equipment on a firm,
level surface. Place the equipment
on a protective base to avoid any
damages to the floor beneath the
equipment.
• Make sure that the exercising
environment has adequate
ventilation. To avoid catching cold, do
not exercise in a draughty place.
• In training, the equipment tolerates
an environment measuring +10°C to
+35°C. The equipment can be stored
in temperatures ranging between
-15°C and +40°C. Air humidity in the
training or storage environment must
never exceed 90%.
Note about the equipment
• If children are allowed to use
the equipment, they should be
supervised and taught to use the
equipment properly, keeping in
mind the child’s physical and mental
development and their personality.
• Before you start using the equipment,
make sure that it functions correctly
in every way. Do not use faulty
equipment.
• Press the keys with the tip of the
finger; your nails may damage the
key membrane.
• Never lean on the interface.
• Never remove the side covers. Do
not step on the frame casing.
• Only one person may use the
equipment at a time.
• Hold the handlebar for support when
getting on or off the equipment.
• Wear appropriate clothing and shoes
when exercising.
• Protect the meter from sunlight and
always dry the surface of the meter if
there are any drops of sweat on it.
• Further information on warranty
terms can be found in the warranty
booklet included with the product.
• Please note that the warranty does
not cover damage due to shipping
or negligence of adjustment or
maintenance instructions described
in this manual.
• The equipment must not be used by
persons weighing over 150 kg.
• Do not attempt any servicing or
adjustments other than those
described in this guide. Everything
else must be left to someone
familiar with the maintenance of
electromechanical equipment and
authorized under the laws of the
country in question to carry out
maintenance and repair work.
• Never drop or insert any object into
any openings.

4
Owner’s manual •PLATINUM PRO
Circuit breakers
Some circuit breakers used in homes
are not rated for high inrush currents
that can occur when a treadmill is first
turned on or even during normal use.
If your treadmill is tripping the circuit
breaker (even though it is the proper
current rating and the treadmill is the
only appliance on the circuit) but the
circuit breaker on the treadmill itself does
not trip, you will need to replace the
breaker with a high inrush type. This is
not a warranty defect. This is a condition
we as a manufacture have no ability to
control. This part is available through
most electrical supply stores
Grounding Instructions
This product must be grounded. If the
treadmill’s electrical system should
malfunction or breakdown grounding
provides a path of least resistance for
electric current, reducing the risk of
electric shock. This product is equipped
with a cord having an equipment-
grounding plug. The plug must be
plugged into an appropriate outlet that
is properly installed and grounded in
accordance with all local codes and
ordinances.
NOTE:
Improper connection of the equipment-
grounding conductor can result in a risk
of electric shock. Check with a
qualied electrician or serviceman if
you are in doubt as to whether the
product is properly grounded. Do not
modify the plug provided with the
product if it will not t the outlet; have
a proper outlet installed by a qualied
electrician.
• Do not use outdoors.
• Do not use excessive pressure
on console control keys. They are
precision set to properly function with
little finger pressure. Pushing harder
is not going to make the unit go faster
or slower. If you feel the buttons are
not functioning properly with normal
pressure, contact your dealer.
SAVE THIS INSTRUCTION MANUAL
Important Electrical Information
NOTE:
NEVER use a RCD - Residual Current
Device (U.S. ver.= GFCI) - wall
outlet with this treadmill. As with any
appliance with a large motor, the RCD/
GFCI will trip often. Route the power
mains cord away from any moving part
of the treadmill including the elevation
mechanism and transport wheels.
NOTE:
NEVER remove any cover without first
disconnecting AC power. If voltage
varies by ten percent (10%) or more,
the performance of your treadmill may
be affected. Such conditions are not
covered under your warranty. If you
suspect the voltage is low, contact your
local power company or a licensed
electrician for proper testing.
NOTE:
NEVER expose this treadmill to rain
or moisture. This product is NOT
designed for use outdoors, near
a pool or spa, or in any other high
humidity environment. The temperature
specification is 40 degrees c, and
humidity is 95%, non condensing (no
water drops forming on surfaces).

GB
Owner’s manual •PLATINUM PRO
5
Heart Rate Training
A word about Heart Rate:
The old motto, “no pain, no gain”, is a
myth that has been overpowered by the
benefits of exercising comfortably.
A great deal of this success has been
promoted by the use of heart rate
monitors. With the proper use of a heart
rate monitor, many people find that their
usual choice of exercise intensity was
either too high or too low and exercise
is much more enjoyable by maintaining
their heart rate in the desired benefit
range.
To determine the benefit range in
which you wish to train, you must first
determine your Maximum Heart Rate.
This can be accomplished by using the
following formula: 220 minus your age.
This will give you the Maximum heart
rate (MHR) for someone of your age. To
determine the effective heart rate range
for specific goals you simply calculate
a percentage your MHR. Your Heart
rate training zone is 50% to 90% of your
maximum heart rate. 70% of your MHR
is the zone that burns fat while 80% is
for strengthening the cardio vascular
system. This 70% to 80% is the zone to
stay in for maximum benefit.
For someone who is 40 years old their
target heart rate zone is calculated:
220 – 40 = 180 (maximum heart rate)
180 x 0.7 = 126 beats per minute (70%
of maximum)
180 X 0.8 = 144 beats per minute (80%
of maximum)
So for a 40 year old the training zone
would be 126 to 144 beats per minute.
General Instructions
• NEVER operate this treadmill
without reading and completely
understanding the results of any
operational change you request from
the computer.
• Understand that changes in speed
and incline do not occur immediately.
Set your desired speed on the
computer console and release the
adjustment key. The computer will
obey the command gradually.
• NEVER use your treadmill during an
electrical storm. Surges may occur
in your household power supply that
could damage treadmill components.
• Use caution while participating in
other activities while walking on your
treadmill; such as watching television,
reading, etc. These distractions may
cause you to lose balance or stray
from walking in the centre of the belt;
which may result in serious injury.
• NEVER mount or dismount the
treadmill while the belt is moving.
The treadmills start with at a very
low speed and it is unnecessary
to straddle the belt during start up.
Simply standing on the belt during
slow acceleration is proper after you
have learned to operate the unit.
• Always hold on to a handrail or hand
bar while making control changes
(incline, speed, etc.).
Do not use excessive pressure on
console control keys. They are precision
set to function properly with little finger
pressure. Pushing harder is not going
to make the unit go faster or slower. If
you feel the buttons are not functioning
properly with normal pressure contact
your dealer.

6
Owner’s manual •PLATINUM PRO
• Your workout must be within range -
distance between transmitter/receiver
– to achieve a strong steady signal.
The length of range may vary some
• what but generally stay close enough
to the console to maintain good,
strong, reliable readings. Wearing
the transmitter immediately against
bare skin assures you of proper
operation. If you wish, you may wear
the transmitter over a shirt. To do so,
moisten the areas of the shirt that the
electrodes will rest upon.
• To disconnect from the machine
Remark
The transmitter is automatically activated
when it detects activity from the user’s
heart. Additionally, it automatically
deactivates when it does not receive any
activity. Although the transmitter is water
resistant, moisture can have the effect
of creating false signals, so you should
take precautions to completely dry the
transmitter after use to prolong battery
life (estimated transmitter battery life
is 2500 hours). If your chest strap has
a replaceable battery the replacement
battery is Panasonic CR2032.
Caution!
Do not use this product for Target Heart
Rate unless a steady, solid Actual Heart
Rate value is being displayed. High,
wild, random numbers being displayed
indicate a problem. Areas to look at for
interference, which may cause erratic
heart rate: Microwave ovens, TVs, small
appliances, etc.Fluorescent lights. Some
household security systems. Perimeter
fence for a pet. Some people have
problems with the transmitter picking
up a signal from their skin. If you have
problems try wearing the transmitter
upside down. Normally the transmitter
will be oriented so the logo is right side
up. The antenna that picks up your
heart rate is very sensitive. If there is
an outside noise source, turning the
whole machine 90 degrees may de-
tune the interference. If you continue
to experience problems contact your
dealer.
How to wear your wireless chest
strap transmitter:
• Attach the transmitter to the elastic
strap using the locking parts.
• Adjust the strap as tightly as possible
as long as the strap is not too tight to
remain comfortable.
• Position the transmitter with the logo
centered in the middle of your body
facing away from your chest (some
people must position the transmitter
slightly left of center). Attach the final
end of the elastic strap by inserting
the round end and, using the locking
parts, secure the transmitter and
strap around your chest.
• Position the transmitter immediately
below the pectoral muscles.
• Sweat is the best conductor to
measure very minute heart beat
electrical signals. However, plain
water can also be used to pre-wet
the electrodes (2 black square areas
on the reverse side of the belt and
either side of transmitter). It’s also
recommended that you wear the
transmitter strap a few minutes
before your work out. Some users,
because of body chemistry, have
a more difficult time in achieving
a strong, steady signal at the
beginning. After “warming up”, this
problem lessens. As noted, wearing
clothing over the transmitter/strap
doesn’t affect performance.

GB
Owner’s manual •PLATINUM PRO
7
Assembly
Step 1: Upright Tubes
• The right side upright tube (19) has
the computer cable (A) pre installed.
Lift the tube off the walking surface
and attach it to the base frame. You
need to gently pull on the computer
cable as you line u the upright tube,
taking the slack out, so the cable
does not get pinched between the
tube and the base frame. Assemble
one 3/8” x 3-3/4” Button Head Socket
bolt (104), 3/8” split washer (58)
and 3/8” 1. flat washer (59) and 10”
nylon washer (153) through the top
hole in the retaining plate (21), and
corresponding top hole in the upright
tube, and screw into the base frame.
Now install the other two bolts (104)
and washers (58 & 59 & 153) and
tighten all three hand tight fixed
• Install the left upright (18) in the
same manner, but without 10” nylon
washer (153)
58 Split washer
59 Flat washer
104 Button head
socket bold.
153 Nylon washer.

8
Owner’s manual •PLATINUM PRO
Step 2: Console Assembly to
Upright Tubes
• Connect wire connections between
user interface electronics and user
interface assembly frame.
• Fix the upper cover with the lower
cover by fastening the 7 screws (117)
117 Metal sheet
screw

GB
Owner’s manual •PLATINUM PRO
9
Step 3: Console Assembly to
Upright Tubes

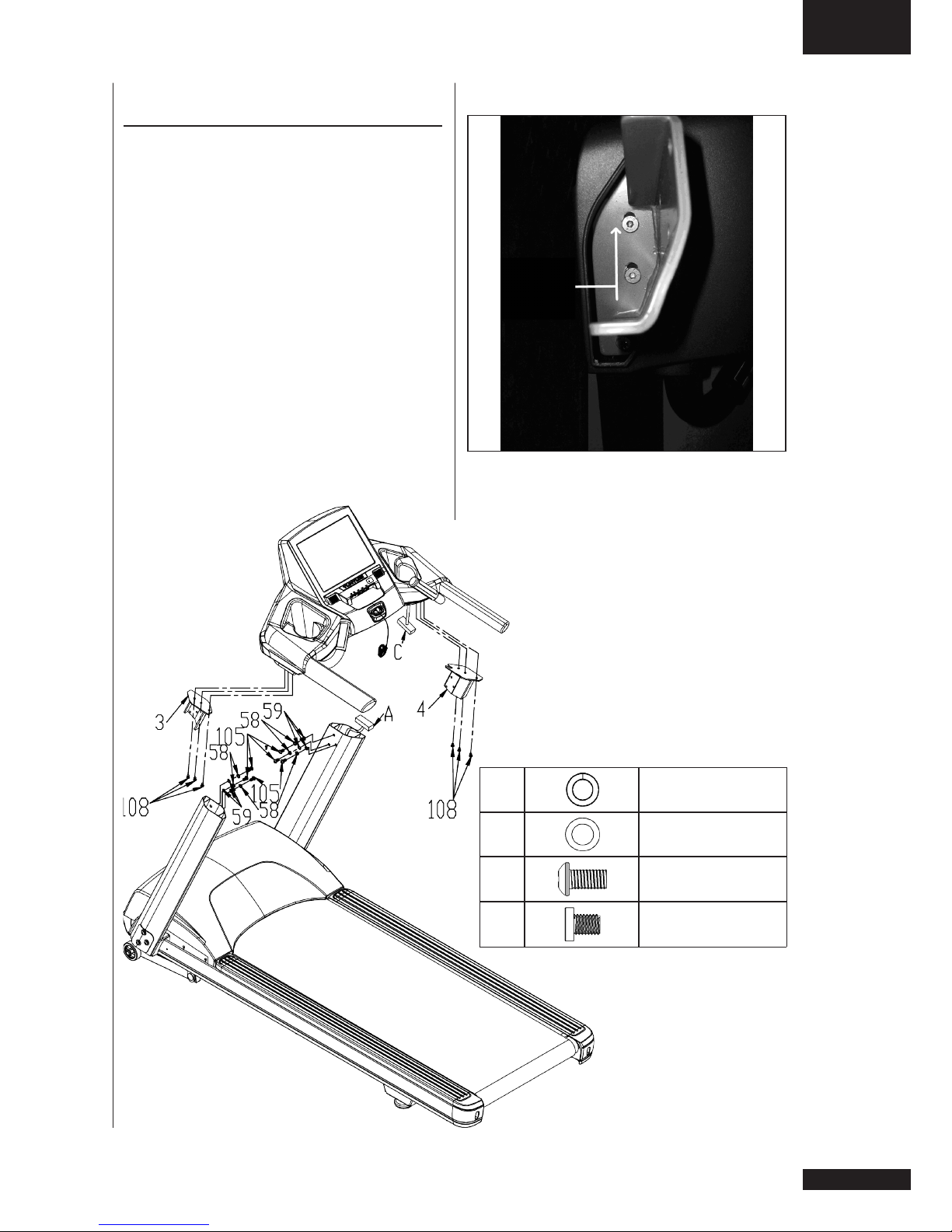

• Attach the two interface mounts
(3 left & 4 right) to the console
assembly frame with six M8x12mm
socket head cap bolts (108). Note:
Position mounting brackets (3 & 4) all
the way to the back of the console,
then tighten the screws.
• Connect the console computer cable
(C) to the mating cable (A) from the
upright tube.
• 3. Attach the console assembly to the
top of the uprights with six 3/8” x 3/4”
bolt (105), 3/8” split washer (58) and
3/8” flat washer (59). Be careful not
to pinch the computer cable.
Position mounting brackets
(3 & 4) all the way to the back of the
console, then tighten the screws.
58 split washer
59 flat washer
105 bold
108 socket head cap
bolt

10
Owner’s manual •PLATINUM PRO
Step 4: Lower side caps
• Fully tighten the in assembly step 1
hand tight tightened bolts (104) on
the right hand and left hand side to fix
the upright tubes.
• Install the lower side caps (32 & 33)
with four M5x12mm Phillips Head
screws (73).
73 Phillips head
screw

GB
Owner’s manual •PLATINUM PRO
11
User interface
Hardware buttons
Energy efficient:
Pressing Energy efficient button will
wakes up console when being in
stand by mode. ( See “settings/ Power
Management” for more details )
Connectors:
Display is equipped with 2 x 3,5 mm jack
sockets.
Right hand Jack near USB is for Line out
Left hand side Jack is for Line in
Display is equipped with 3 USB sockets
for storage device connection.
The USB socket can only read FAT32
formated format.
Remark:
FAT32 environment is limited to 4GB file
size.
Safety Key
A safety key is provided with this unit. It
is a simple magnetic design that should
be used at all times. It is for your safety
should you fall or move too far back on
the running belt.
Pulling this safety key will stop running
belt movement.
To Use:
• Place the magnet into position on the
console control head. Your treadmill
will not start and operate without this.
• Fasten the plastic clip onto your
clothing securely to assure good
holding power. Note: The magnet has
strong enough power to minimize
accidental, unexpected stopping.
The clip should be attached securely
to make certain it does not come
off. Be familiar with its function and
limitations. The treadmill will stop,
depending on speed, with a one to
two step coast anytime the magnet
is pulled off the console. Use the
red Stop / Pause switch in normal
operation.
Software Buttons
Software buttons:
Remark:
Only buttons shown bright can be used
for its function. When buttons are in grey
shade, the button option is not active.
Back
Go back to former window without
saving changes.
OK
Confirm setting/ save change and go to
next screen.
Cancel
Clear changed data without saving
change.
Scroll
Use arrows Left-Right/ Up-Down to
see more selectable items than can be
shown in main window.
Data change
Upper or lower the data value.
Software key pad
show software key pad when available.

12
Owner’s manual •PLATINUM PRO
Power on
Display will show at power on, a
window as a screen saver to inform you
the display software is preparing the
application.
When display has started you will see
the above window
The display can be divided in 3
sections.
Main function bar (Left)
Main function bar is showing main
function buttons to access different mode
options. Main function bar is visible in
any exercise mode, and buttons can be
pressed at all times.
Information bar (upper)
Information bar is showing:
In right upper corner the selected user
profile at all times.
In left upper corner program mode
information.
Information bar is not active as touch
screen region.
Main display region (Centre)
Main display region is changing in every
program mode.
In active mode it shows the progress of
your program, and in programming mode
it shows buttons and selection tools to
set required data for your workout.
It is also your main window for web
browser mode, and multimedia play
back.
Display functions
Multi language support
The user manual can be preset in multi
languages. When setting a language
most of the user interface content will
change into selected language.
Note: Engineer mode related text will not
change into selected language, as this is
only available in English.
User can choose from shown languages.
Select your language by pressing the
matching flag button and user text will
change into selected language directly.
You can select an other display function
by selecting a button from the main
function bar

GB
Owner’s manual •PLATINUM PRO
13
Programs
Select Programs by pressing the
workout selection button.
Setting your workout goal
Depending on your workout type you can
set your workout goal in different ways.
Setting your goal for distance.
When your program allows you to set
your workout goal for a distance you will
see the below window after selecting

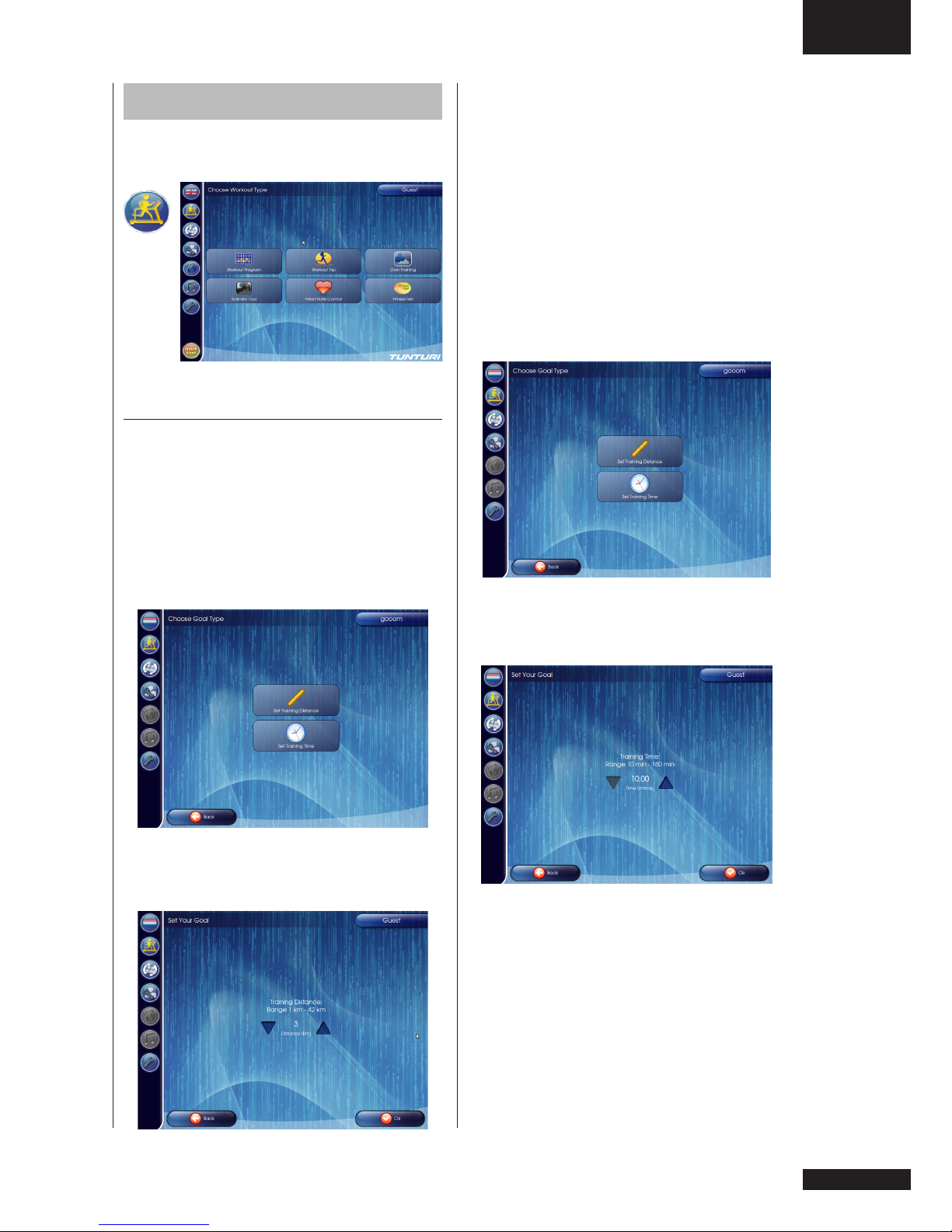

your workout program.
To set a distance you need to select the
“set Training distance” button to go to the
next step in programming.
Use the arrow buttons to upper or lower
your goal. The goal limits are shown in
window too. (this image shows the limits
in metric settings) Press “OK” button to
confirm. You will go to your ready to go
program you have selected.
Setting your goal for time.
When your program allows you to set
your workout goal for a time you will see
the below window after selecting your
workout program.
To set a time you need to select the “set
Training time” button to go to the next
step in programming.
Use the arrow buttons to upper or lower
your goal. The goal limits are shown
in window too. Press “OK” button to
confirm. You will go to your ready to go
program you have selected.

14
Owner’s manual •PLATINUM PRO

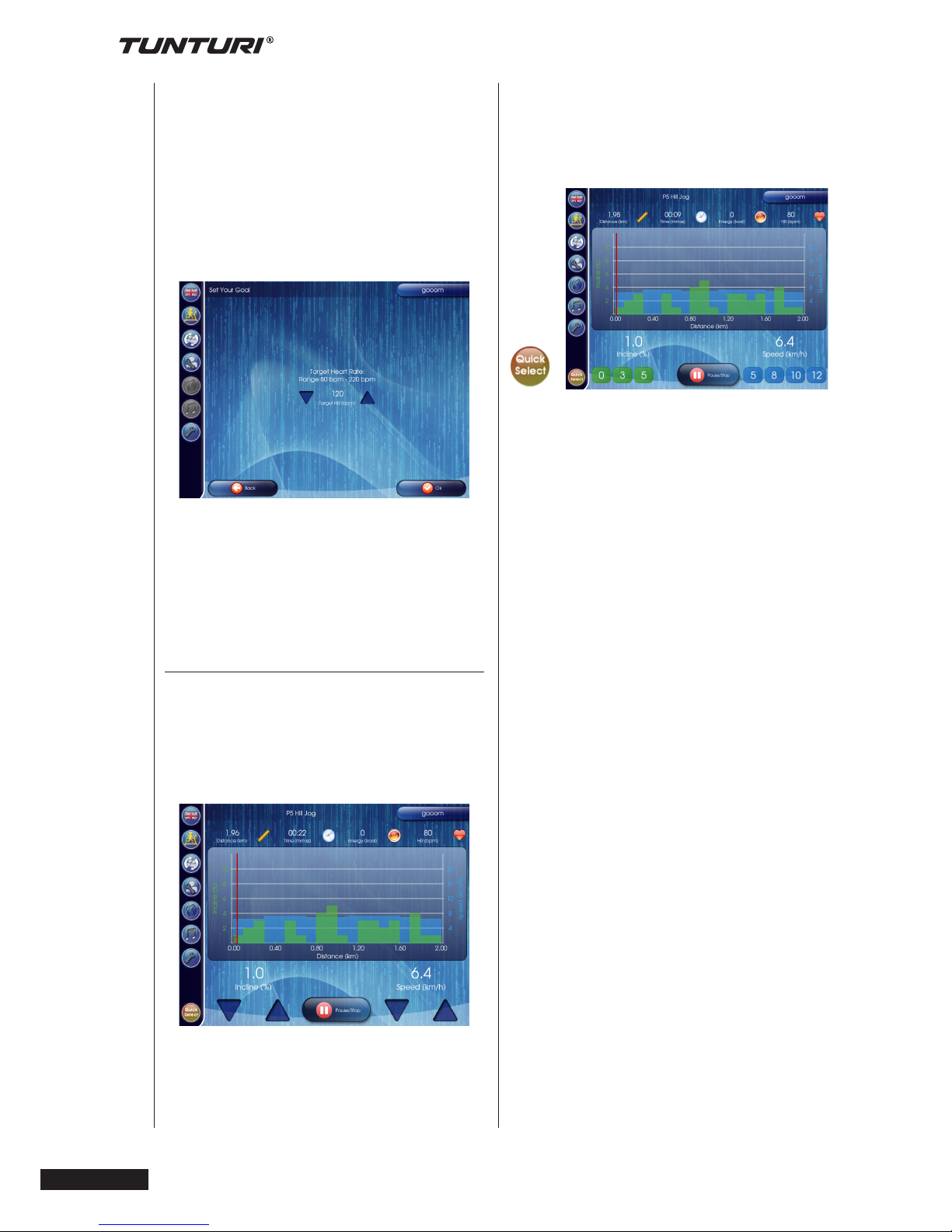

Quick select buttons
When pressing Quick Select button in
lower corner you can change the manual
arrow adjust buttons into speed buttons
as shown below.
Speed hot keys:
Speed Hot Keys are set as 5, 8, 10,12
For example, the speed changes from
any speed to 10 by pressing the
Speed Hot Key 10.
Elevation hot keys::
Incline Hot Keys are set 0, 3, 5%
For example, the elevation level changes
from any level to 3% by pressing the
Elevation Hot Key 3.
When pressing the Quick select button
once again, it will show the standard
adjust arrows again for speed and
incline.
Setting your goal for heart rate.
When your program allows you to set a
heart rate limit to control your workout
intensity, see the below window after
selecting your heart rate controlled
workout program.
(Note: you may need to set a goal
for distance and/ or time too to set a
duration / distance limit still.)
Use the arrow buttons to upper or lower
your goal. The goal limits are shown
in window too. Press “OK” button to
confirm. You will go to your ready to go
program you have selected.
Speed and incline control
Standard adjustment
You can use the arrows in left lower
corners at all times to adjust your incline
setting, or arrows in the right corner to
adjust your speed setting.

GB
Owner’s manual •PLATINUM PRO
15
Workout Program
The “Workout Program” programs
contain preset incline and speed pattern.
User could select distance or time
as workout goal. There are 5 preset
programs: P1 (manual), P4 (Hill Walk),
P5 (Hill Jog), P6 (Hill Run),
P7 (Rolling Hils)
Select your program and the goal
selection window appears. Set your work
out goal to start your selected program.
You will see below program profile when
being in active mode.
Chart display shows:
• Y-Axis left side: Incline %
• Y-axis.right side: Speed meter
• X-axis: Distance when in distance
mode. Time when in time mode
Window size is 2KM for distance unit
and 10 Min for time unit.
Workout Trip
The “Workout Trip” programs contain
real geometric data, like position,
altitude, and incline. Therefore, these
programs only contain preset incline.
The default speed is 0.8 KM/h. However,
user still could adjust NM when running.
There are 3 preset programs:
A: Tuscany Country road
B: Tuscany Sandy Track
C: Tuscany Scenery Slopes
Select your program and the goal
selection window appears. Set your work
out goal to start your selected program.
You will see below program profile.
Chart display shows:
• Y-Axis left side: Incline %
• Y-axis.right side: Speed meter
• X-axis: Distance when in distance
mode. Time when in time mode
Window size is 2KM for distance unit
and 10 Min for time unit.

16
Owner’s manual •PLATINUM PRO

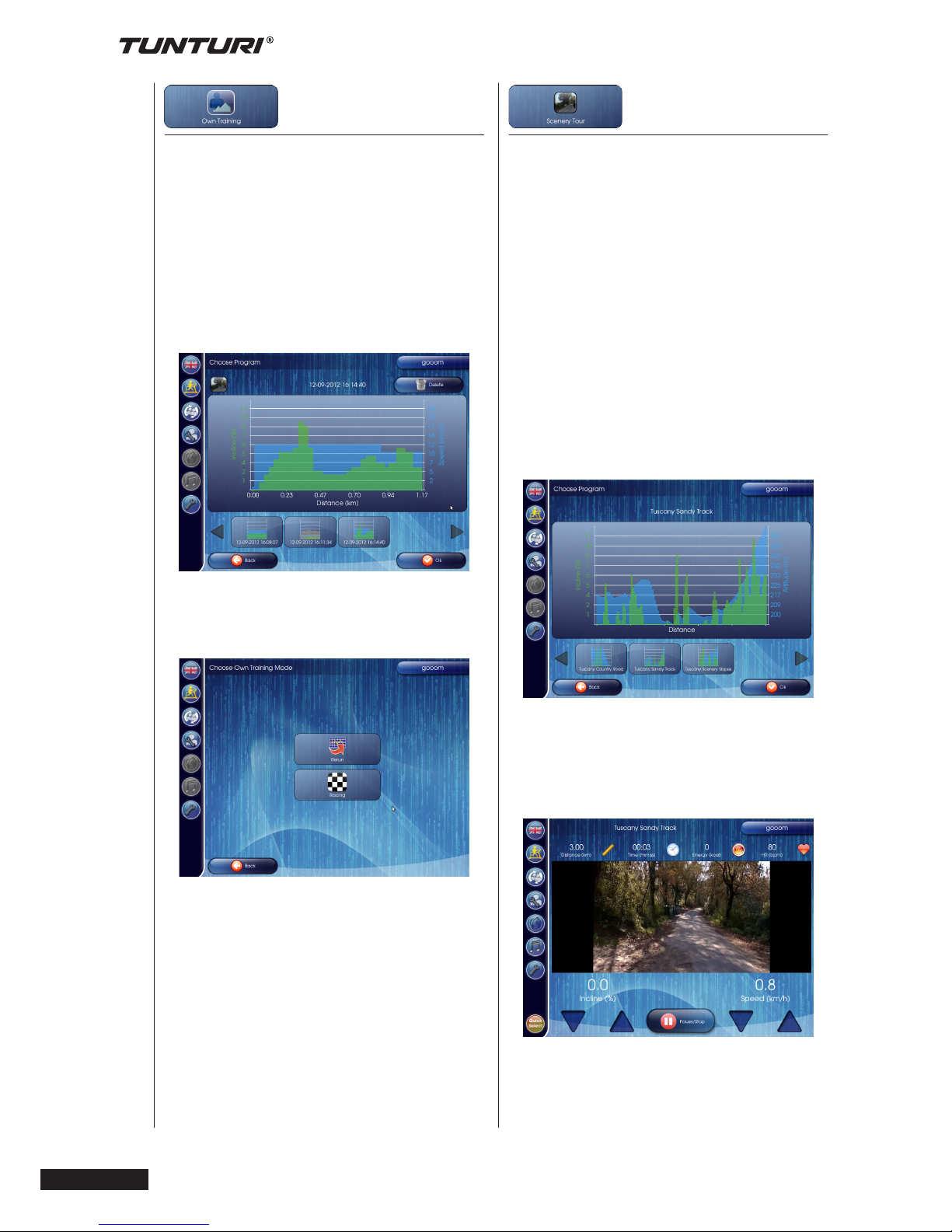

Own Training
User could save workout as his/her
“Own Training” in following criteria:
• Workout type is one of Workout
Program, Workout Trip, Scenery Tour,
and Heart Rate Control.
• Workout ran exceeds 0.1KM and
5Min.
Select a stored training if there are any
by using the arrows ( Left/ Right )
When selected your program you can
choose between Rerun mode and Race
mode after confirm by pressing OK
button.
When select Rerun mode:
Before workout, setup distance or time
as goal. Default distance and time is
set to max value depends on each own
training.
When select Race mode:
Workout always uses the distance or
time as goal in previous workout. After
workout, result will show on chart region.
The workout screen outlook depends on
workout mode type.
Scenery Tour
“Scenery Tour” uses the same workout
profiles as in “Workout Trip”, except it
has the video playback. The video was
recorded the scene in the local site. The
video playback speed will be adjusted
automatically depends on treadmill
speed: The programs contain real
geometric data, like position, altitude,
and incline. Therefore, these programs
only contain preset incline. The default
speed is 0.8 KM/h. However, user still
could adjust speed when running. There
are 3 preset programs:
A: Tuscany Country road
B: Tuscany Sandy Track
C: Tuscany Scenery Slopes
Select your program and the goal
selection window appears. Set your work
out goal to start your selected program.
You will see below program profile.
•
You can use the speed/ incline control
arrows at all times to adjust your workout
intensity.

GB
Owner’s manual •PLATINUM PRO
17
You will see below program profile.
Chart display shows:
• Y-Axis left side: Heart rate ( BMP)
• Y-axis.right side: Target heart rate
• X-axis: Distance when in distance
mode. Time when in time mode
Window size is 2KM for distance unit
and 10 Min for time unit.
•
You can use the arrows to adjust
settings. The adjustable settings are
depending on the chosen training mode.
Heart Rate Control
The “Heart Rate Control” programs are
designed to control user heart rate by
resistance adjustments. So, heart rate
transmitter is required for the workout.
There are 6 preset programs
A: HRC
B: P08 Fat Burner 1
C: P09 Fat Burner 2
D: P10 Cardio
E: P11 Fit
Select your program and select your
training mode.
In speed mode you can manually adjust
incline setting and change your target
heart rate. Speed is controlled by the
program.
In incline mode you can manually adjust
speed setting and change your target
heart rate. incline is controlled by the
program.
In combination mode you can change
your target heart rate only. incline and
speed are controlled by the program.
After confirm the goal selection window
appears. Set your work out goal to start
your selected program.

18
Owner’s manual •PLATINUM PRO

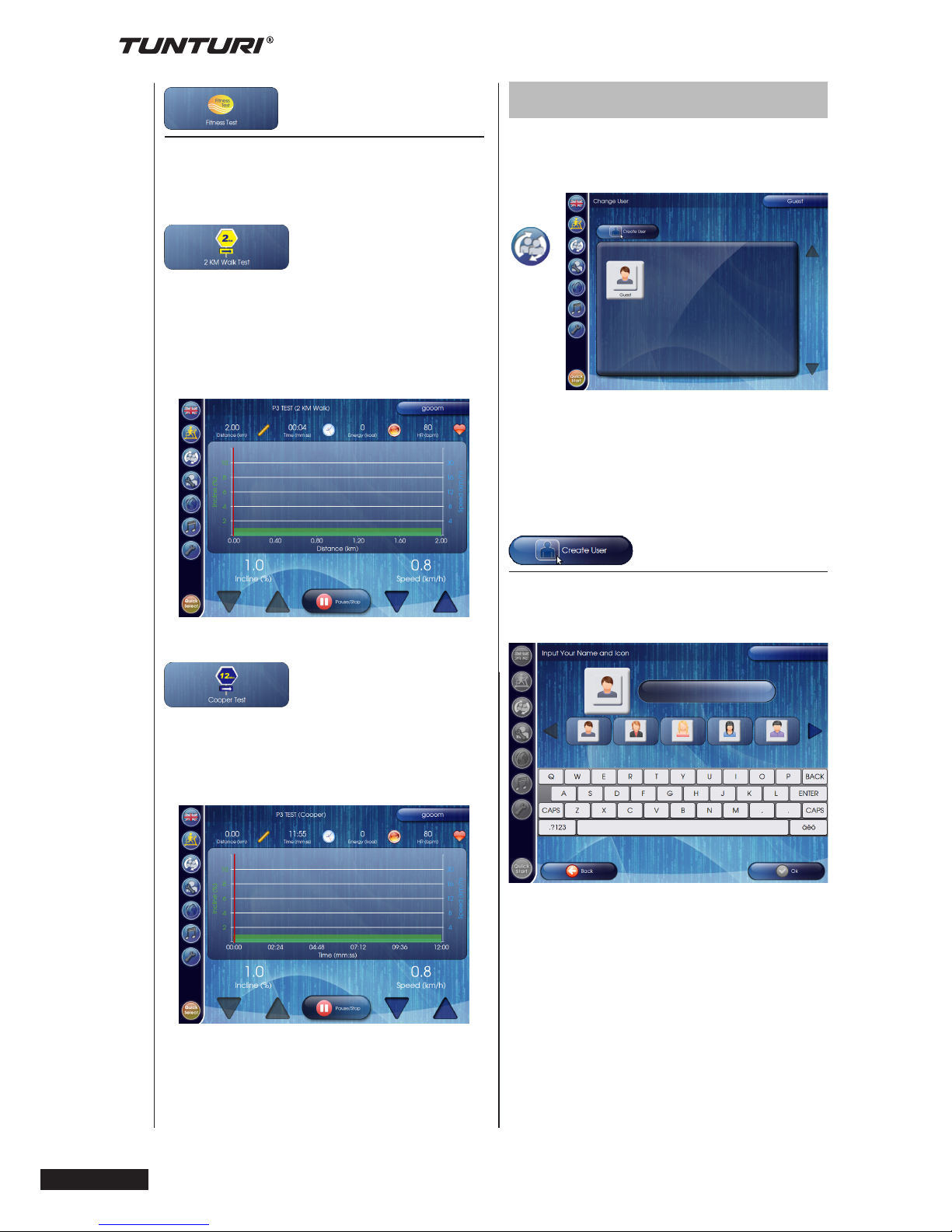

Fitness Test
Fitness test measure users fitness and
show the result after test. There are two
test modes
2KM Walk test
Fits to ordinary people.
The distance is 2KM and incline is set
to 1%. HR transmitter is required during
test. User should walk/run as fast as
possible and stop/pause will fail the test.
Speed is controlled by user.
Cooper test
Fits more fit users.
The time is set on12 min and incline is
set to 1%. User should walk/run as far as
possible. Speed is controlled by user.
Change user
Open Change user menu
by pressing “Change user”
button in main function bar.
You can change a user in the same way
as you would create a user.
Select a user you want to change or
press “Create User” button and create/
modify as below:
Create User
To create a new user you press the
“Create User” button. Below window will
appear.
Use the digital keyboard to write your
name, and select an avatar to use as
your personal icon. Press the “DONE”
key on the digital key board when you
have set up your name and avatar right.
Press “OK” button to continue.
Your user is created with the standard
user settings. Continue the setup of the
user profile by “Change User” details in
“Edit User” chapter.

GB
Owner’s manual •PLATINUM PRO
19
Unit details:
• Mass unit ( KG/ LBS )
• Length unit ( Metric/ Imperial )
• Energy unit ( Calorie/ Jouls )
When all filled out correctly, press “OK”
button to confirm.
Delete User
When button pressed the user interface
will ask to confirm your action to delete
user and it’s data completely.
Rename
When button is pressed you can change
user name, and keep the stored by the
new given name.
See “Create User” for details.

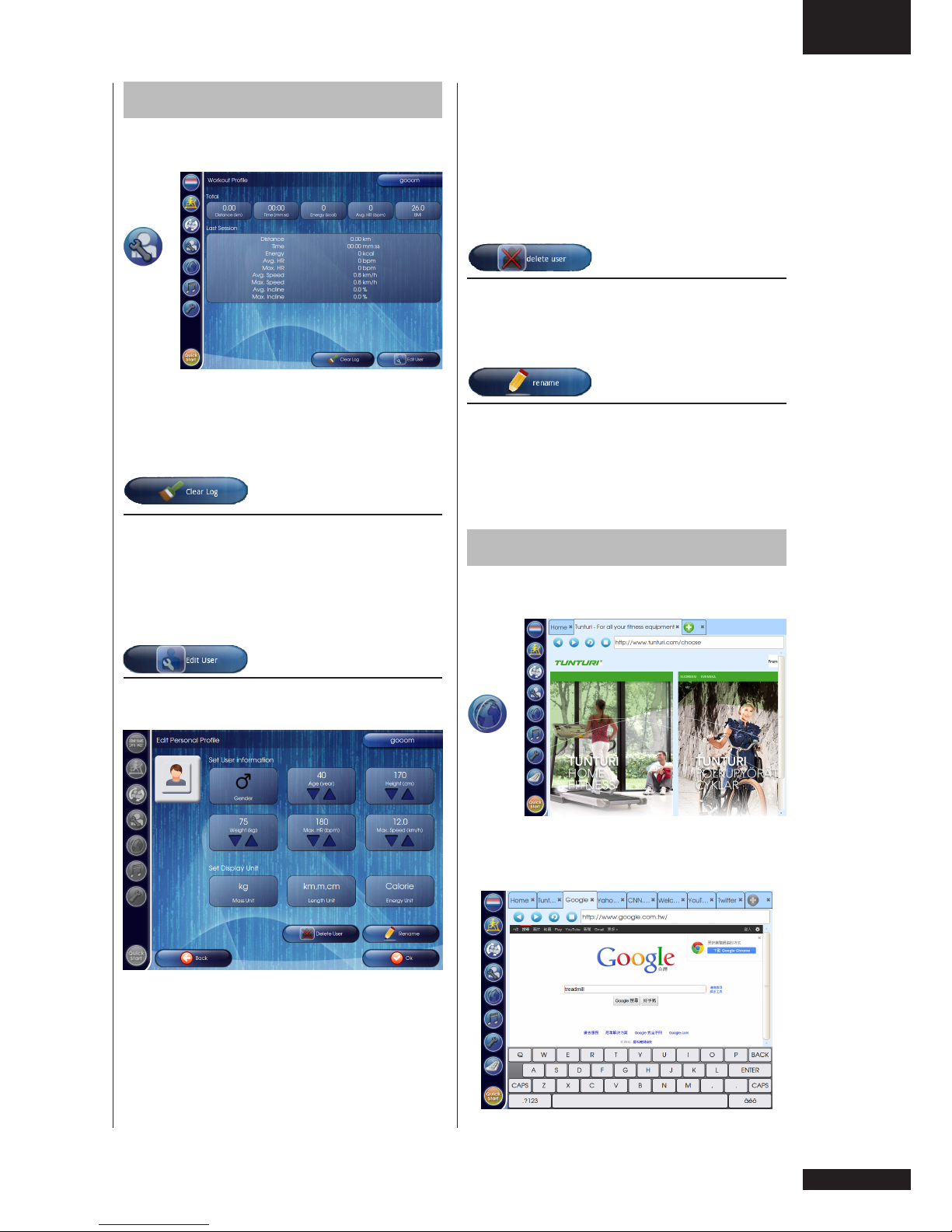

Edit User
Open Change user menu by pressing
“Edit User” button in main function bar.
This menu shows in the upper section
the total workout log of the user.
The lower section shows the workout log
of latest workout.
Clear Log
“Clear Log” button can be pressed
to delete as well total value as latest
workout value.
Note: Display will not prompt to confirm.
Edit User
“Edit User” button can be pressed to
change user preferences/ settings.
User details:
• Gender
• Age
• Height
• Weight
• Max HR ( will be set automatically by
selecting gender and age. But can be
changed if wanted
Web browser
Open “Web browser” by pressing the
“Internet” button in main function bar.
When touching the URL bar you will
automatically see a software keyboard
appear.
