Playcraft FairField Collection Colorado User manual

Colorado
ASSEMBLY INSTRUCTIONS

assistance.
1) Your table is designed for use indoors in a climate controled environment only.
Damage can occur if the table is exposed to water, dampness, high humidity,
freezing temperatures, etc.
2) Professional assembly is strongly recommended. This assembly manual is intended to
guide an experienced slate pool table installer with the assembly process of this
for which the process is the same regardless of the cabinet type.
2) The pool table cabinet and slate are extremely heavy. Two or more people are
required for assembly.
or serious injury.
5) Only use the table for its intended purpose.
6) Damaged or worn parts may be dangerous for users and the integrity of the table.
will void the warranty.
8) Check all screws, bolts, etc. on a regular basis to ensure that they are in good working
as required with owning a slate pool table
Colorado
altering

COMPONENT LIST
NO. IMAGE DESCRIPTION SPECIFICATION QTY UNIT
H1
TABLE LEG 1100*745*200 2 PCS
ASSEMBLY
POSITION FRAME
H2
SUPPORT BEAM 1696*150*80 1 PCS
ASSEMBLY
POSITION FRAME
H3
FRAME 2052*889*57 1 PCS
ASSEMBLY
POSITION GRADE A BEAM
H4
WOODEN BLOCK 125*92*80 12 PCS
ASSEMBLY
POSITION GRADE A BEAM
H5
SHORT BEAM 1173*180*40 2 PCS
ASSEMBLY
POSITION GRADE A BEAM
H6
SHORT BEAM 1936*180*40 2 PCS
ASSEMBLY
POSITION GRADE A BEAM
H7
893*120*40 2 PCS
ASSEMBLY
POSITION GRADE A BEAM
H8
SIDE SLATE 805*1295*25 1
ASSEMBLY
POSITION TOP RAIL
H9
MIDDLE SLATE 805*1295*25 1 PCS
ASSEMBLY
POSITION TOP RAIL
H10
SIDE SLATE 805*1295*25 1
TOP RAIL
H11
CLOTH 1
TOP RAIL
H12
1# RAIL 1064*145*163 2 PCS
ASSEMBLY
POSITION TOP RAIL
H13
2# RAIL 1026*145*163 2 PCS
ASSEMBLY
POSITION TOP RAIL
H14
3# RAIL 1026*145*163 2 PCS
ASSEMBLY
POSITION TOP RAIL
H15
MATEL FRAME 140*80*10 2 PCS
ASSEMBLY
POSITION FRAME

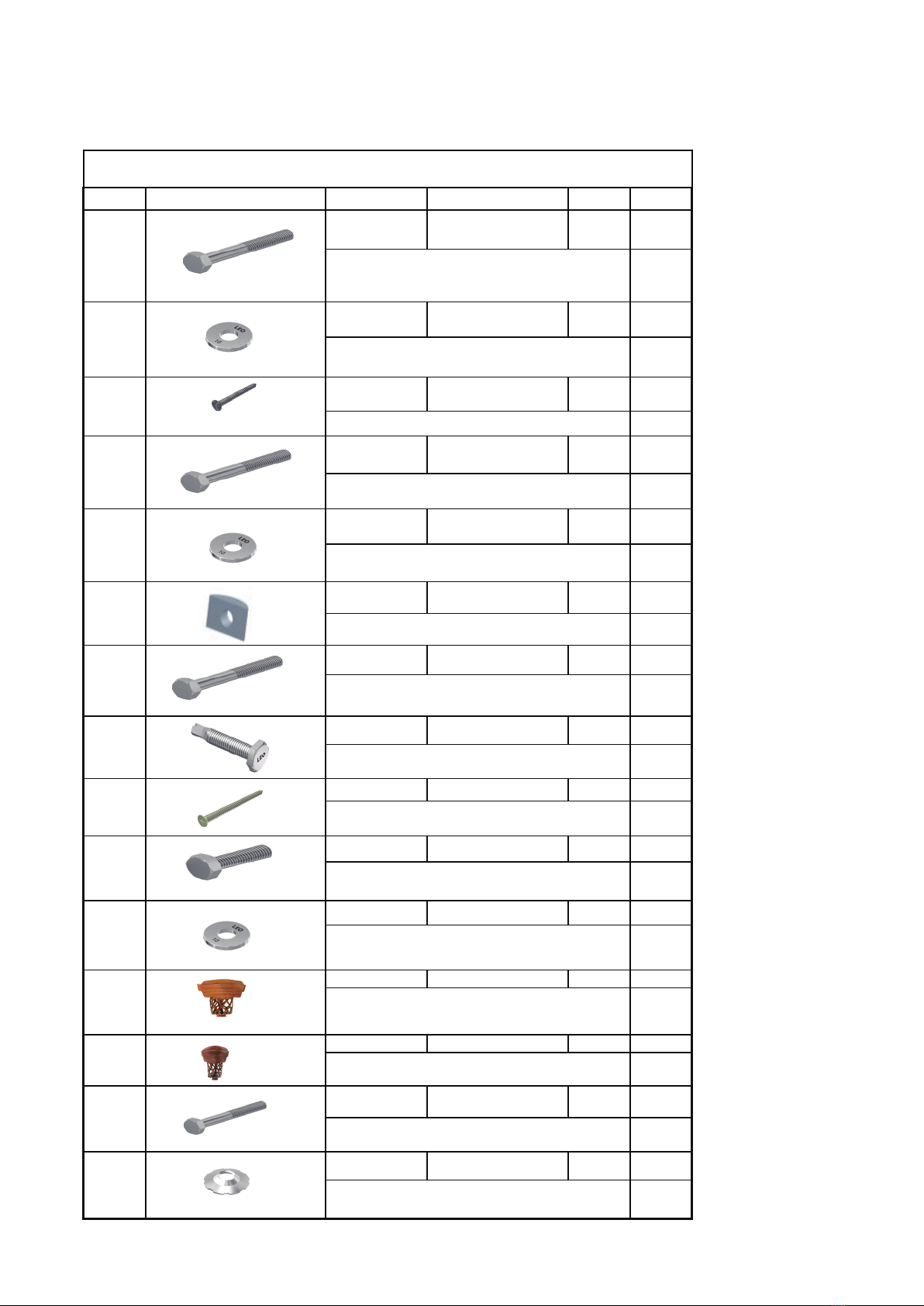

HARDWARE LIST
NO. IMAGE DESCRIPTION SPECIFICATION
QTY
UNIT
A
HEXAGON BOLT ø10*110 8 PCS
4PCS FOR CONNECTING THE LEG AND BOTTOM SUPPORT
BEAM , 4PCS FOR LEG AND CROSS BEAM
ASSEMBLY
POSITION
B
FLAT WASHER M10*30*2 8 PCS
4PCS FOR CONNECTING THE LEG AND BOTTOM SUPPORT
BEAM , 4PCS FOR LEG AND CROSS BEAM
ASSEMBLY
POSITION
C
FLAT HEAD SCREW 4.2*60 100 PCS
USED TO FIX THE GRADE A BEAM PCS
D
HEXAGON BOLT ø12*180 4 PCS
USED TO FIX THE CROSS BEAM ASSEMBLY
POSITION
E
FLAT WASHER M12*30*2 4 PCS
USED TO FIX THE CROSS BEAM ASSEMBLY
POSITION
F
ACRON NUT M12 4 PCS
USED TO FIX THE CROSS BEAM ASSEMBLY
POSITION
G
HEXAGON BOLT ø10*140 4 PCS
USED TO FIX THE TABLE LEGS AND GRADE A BEAM ASSEMBLY
POSITION
H
SLATE LEVELLER ø10*50 16 PCS
USED TO ADJUST AND LEVEL THE SLATE ASSEMBLY
POSITION
I
FLAT HEAD SCREW 6*60 12 PCS
USED TO FIX THE AND TABLE FRAME ASSEMBLY
POSITION
J
HEXAGON BOLT ø8*35 12 PCS
USED TO FIX THE LEATHER POCKET(PACKED IN THE BOX
WITH LEATHER POCKET)
ASSEMBLY
POSITION
K
FLAT WASHER M8 12 PCS
USED TO FIX THE LEATHER POCKET(PACKED IN THE BOX
WITH LEATHER POCKET)
ASSEMBLY
POSITION
L
SIDE POCKET 4 PCS
ASSEMBLY
POSITION
M
MIDDLE POCKET 2 PCS
ASSEMBLY
POSITION
O
HEXAGON BOLT ø10*60 18 PCS
USED TO FIX THE TOP RAILS AND SLATE ASSEMBLY
POSITION
N
DOME WASHER ø10*60 18 PCS
USED TO FIX THE TOP RAILS AND SLATE ASSEMBLY
POSITION

Step 1
Step 2

Step 3
Step 4

Step 5
Step 6

Step 8
Step 7

Step 9
Step 10

Customer Service
Global Merchants, Inc.
12 Lunar Drive
Woodbridge, CT 06525
