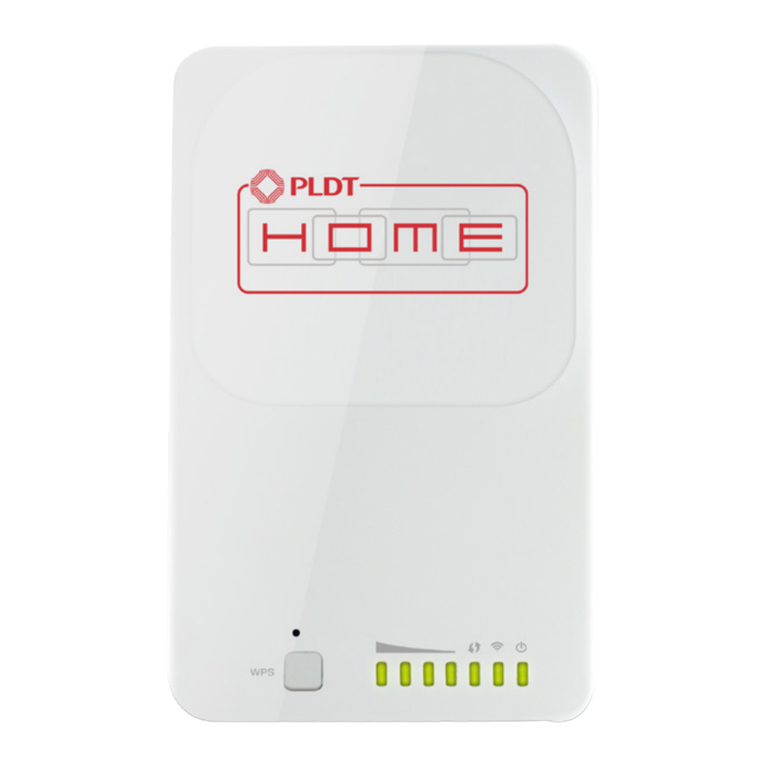

PLDT Home PWN3701 User manual

PLDT HOME REPEATER
Wireless-N Repeater
Quick Installation Guide Revision 1.0
www.prolink2u.com © Copyright 2014. PROLiNK® All rights reserved.
Package Contents:
www.prolink2u.com
1. Overview
Note:
The illustration in this document may appear different from your model.
1
2
3
4
WPS : Press 1 second to trigger WPS function
LED Indicators:
Power : On - Power On
Off - Power Off
WLAN : On - Wireless turn On
Off - Wireless turn Off
WPS : On - WPS feature turn On
Off - WPS feature turn Off
Blinking - WPS triggering
Signal Strength : 1 LED On : Low Signal
2 LEDs On : Medium Signal
3 LEDs On : Good Signal
4 LEDs On : Excellent Signal
Reset : Press 1 - 5 seconds to reboot Repeater.
Press > 5 seconds to reset to factory default and reboot.
AC Power Input
Back View
Front View Left View Right View
4
WPS
21 2
Reset 3
2. Hardware Installation
Router WiFi Range WiFi Repeater Range
Laptop
Cable / DSL Modem Router
Wifi Repeater
Smartphone Tablet
www.prolink2u.com
3. Connecting to the Root AP
Step 1. Plug the Wifi Repeater into the electrical socket and power on the electrical socket. The Power
LED on Wifi Repeater will illuminate. Wait until the WLAN and WPS LEDs light
up.
Step 2. Press the Wi-Fi Protected Setup (WPS) button on your wireless router or root AP.
Step 3. Press the WPS button of Wifi Repeater for 1 second until the WPS LED starts to blink.
Note 1. The Signal Strength LEDs will illuminate to show the link quality once connected to
the root AP.
Note 2. Both buttons must be pressed within 2 minutes.
Method 1 : With WPS button
LOCATION 1
LOCATION 2
2
Minutes
2 seconds
Within 2 Minutes1 second
WPS
WPS
WPS
Wireless Router
Wifi Repeater
www.prolink2u.com
●1 x WiFi Repeater ●1 x Quick Installation Guide

www.prolink2u.com
3. Connecting to the Root AP
Step 1. Connect your computer to Wifi Repeater via wireless.
The wireless network (SSID) shall appear as “PLDTHOMEREPEATER”.
Note: The Wi-Fi Key or password can be found on the label pasted on Wifi Repeater.
Step 2. Open web browser and type http://192.168.1.253 in the browser’s address box. This
is the default IP address for Wifi Repeater.
The default user name is “admin” and password is “1234”.
Step 3. Click on Quick Setup Wizard -> Start
Click <Next>, the repeater will scan and find the available wireless network.
Method 2 : With Web Configuration
www.prolink2u.comwww.prolink2u.com
3. Connecting to the Root AP
Select the wireless network or root AP that you want to connect to, and click on <Next>.
Key in the wireless password of the wireless router or root AP, and click on <Next> to
proceed.
www.prolink2u.com
3. Connecting to the Root AP
Check and confirm if the information are correct.
Click <Finish> and the Wifi Repeater will attempt to connect to the root AP.
Note: The Signal Strength LEDs will illuminate to show the link quality once
connected to the root AP.
Important:
Please obtain the wireless password
from the owner of the wireless router
or root AP.
The repeater will not able to connect
to the wireless router or root AP if the
password is incorrect.
www.prolink2u.com
