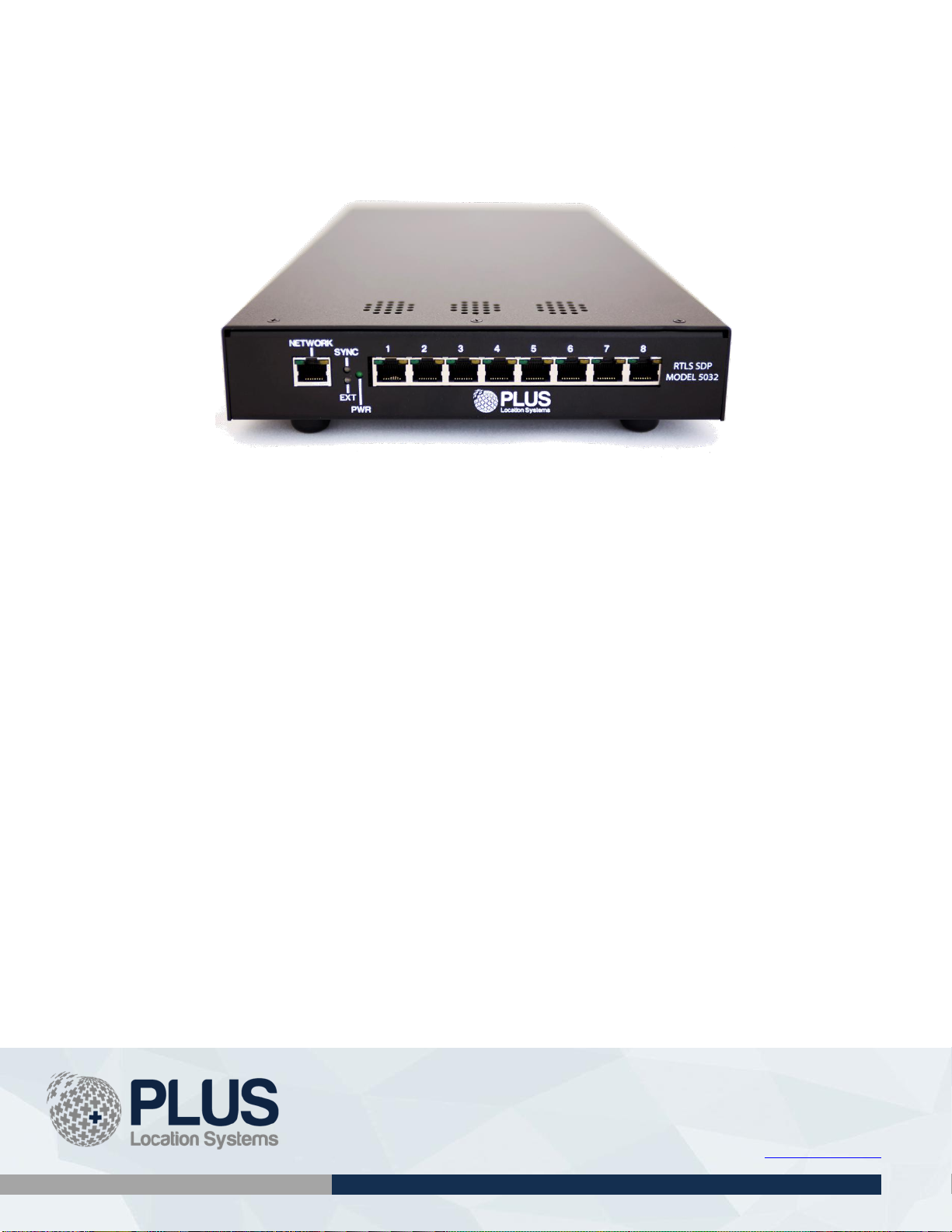

Plus 5032 User manual

8-Port Synchronization Distribution Panel
Model Number 5032
User Manual

PLUS Location Systems
6767 Old Madison Pike NW, Suite 310
Huntsville, AL 35806
(p) 1.256.217.4072
(f) 1.256.964.7614
www.pluslocation.com
2
Contents
Safety Information .................................................................................................................................................. 3
Overview ................................................................................................................................................................. 4
Specifications .......................................................................................................................................................... 5
Mounting................................................................................................................................................................. 6
Standalone SDP Installation.................................................................................................................................... 7
Standalone SDP Installation, Continued ............................................................................................................. 8
Multiple SDP Installation ........................................................................................................................................ 9
Multiple SDP Installation, Continued ................................................................................................................ 10
Regulatory & Legal Information............................................................................................................................ 11

PLUS Location Systems
6767 Old Madison Pike NW, Suite 310
Huntsville, AL 35806
(p) 1.256.217.4072
(f) 1.256.964.7614
www.pluslocation.com
3
Safety Information
Read and follow all instructions before using the SDP.
Only plug the SDP into approved power outlets.
Unplug the SDP before removing cover.
Unplug the power cord when changing fuses.
Do not use the SDP with a damaged cord.
Do not use SDP near water.
Do not use the SDP near heat sources.
Do not install in environments that exceed temperature and humidity requirements.
Do not cover the ventilation ports on the SDP.
Do not use the SDP if it has been dropped.
Only connect PLUS sensors to the sensor ports.
Attach the rubber feet to the device.

PLUS Location Systems
6767 Old Madison Pike NW, Suite 310
Huntsville, AL 35806
(p) 1.256.217.4072
(f) 1.256.964.7614
www.pluslocation.com
4
Overview
The PLUS Location 8-Port SDP (Synchronization Distribution Panel) provides power, timing synchronization,
and Ethernet connectivity to a network of PLUS sensors.
The SDP includes eight sensor ports. Each sensor port can provide power for up to three sensors, 24 sensors
total. Each senor port can also provide timing synchronization for up to six sensors, 48 sensors total.
Each of the SDP’s sensor ports connect to the network port, allowing sensors linked to the SDP to transmit
information to a computer. The network connection also enables the 8-Port SDP to match the timing signal of
a primary SDP, so all SDPs are synchronized.

PLUS Location Systems
6767 Old Madison Pike NW, Suite 310
Huntsville, AL 35806
(p) 1.256.217.4072
(f) 1.256.964.7614
www.pluslocation.com
5
Specifications
Dimensions
(HxWxD)
With rubber feet: 2.16 x 8.62 x 16.0 inches (43.8 x 219 x 406.4 millimeters)
Without rubber feet: 1.72 x 8.62 x 16.0 inches (43.8 x 219 x 406.4 millimeters)
Weight
4.1 pounds (1.86 kg)
Mounting
19-inch rack mount, table top, or wall/column mount
Power Supply
Input: 100 –240 VAC, 50/60 Hz
Line Harmonic Emissions: Meets EN61000-3-2, Class A, B, C, D
Safety: Thermal and power overload protection
Input Power
9W (no sensor load)
140W (24 sensor load)
AC Power Connection
IEC C14 power receptacle (mating power cord should have IEC 320-C13 plug
with approved regional connector at other end of cord)
Fuse
250V IEC Slow 5X20mm 4A; Littelfuse 0218004.HXP or Equivalent
Temperature
Operating: -20⁰C to +50⁰C
Storage: -40⁰C to +60⁰C
Relative Humidity
Up to 95% non-condensing
I/O Ports
8 sensor ports; 1 network/sync regeneration port; all 10/100 BaseTx Ethernet
compatible
Sensor Port Capacity
Up to 3 sensors per port (24 total) powered by SDP; maximum of 6 sensors per
port (48 total) with auxiliary power
Max Cable Length
100 meters maximum from SDP to last sensor in chain
Certifications
cTUVus certification per
oCAN/CSA C22.2.60950-1: 2011
oUL 60950-1: 2011 (2nd Ed.)
CB Scheme per IEC 60950-1:2005 +A1:2009
LVD Compliance per EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 +
AC:2012
FCC Part 15 (Class A)
RoHS
Warranty
1 year
Part Number
5032

PLUS Location Systems
6767 Old Madison Pike NW, Suite 310
Huntsville, AL 35806
(p) 1.256.217.4072
(f) 1.256.964.7614
www.pluslocation.com
6
Mounting
Rack Mount the SDP
For rack mounting, use two brackets in orientation A with an adapter.
Wall Mount the SDP
For wall mounting, use all four brackets in orientation B.
Orientation A
Orientation B

PLUS Location Systems
6767 Old Madison Pike NW, Suite 310
Huntsville, AL 35806
(p) 1.256.217.4072
(f) 1.256.964.7614
www.pluslocation.com
7
Standalone SDP Installation
Installation
Connect sensors and the server to the SDP as shown in the diagram. Connections between the SDP and a
sensor, or between any two sensors, must use CAT5E Shielded Twisted Pair (STP) 24 AWG cable.
Compatible sensor models
1000RL1
3002RNC
4001RNC
102RK01
The diagram above shows a typical standalone installation of an 8-Port SDP with a full load of sensors.

PLUS Location Systems
6767 Old Madison Pike NW, Suite 310
Huntsville, AL 35806
(p) 1.256.217.4072
(f) 1.256.964.7614
www.pluslocation.com
8
Standalone SDP Installation, Continued
Maximum Cable Length
The maximum cable length for each sensor port to the farthest sensor in the chain in 100 meters. Likewise, the
maximum distance from the SDP to a networked computer is 100 meters.
Powering on the SDP
Connect the SDP to power outlet and turn on power switch on the rear panel. The PWR and SYNC LEDs will
light up green. The EXT LED should be off.
LEDs
If the SYNC LED does not turn back to green after 10 seconds, then either one of the SDP units has a defect or
the interconnect cable is defective.

PLUS Location Systems
6767 Old Madison Pike NW, Suite 310
Huntsville, AL 35806
(p) 1.256.217.4072
(f) 1.256.964.7614
www.pluslocation.com
9
Multiple SDP Installation
The diagram above shows primary and secondary SDPs installed with sensors.

PLUS Location Systems
6767 Old Madison Pike NW, Suite 310
Huntsville, AL 35806
(p) 1.256.217.4072
(f) 1.256.964.7614
www.pluslocation.com
10
Multiple SDP Installation, Continued
Installation
Connect sensors and the server to the SDP as shown in the diagram. However, one port on the primary SDP
must be connected to the NETWORK port on the secondary SDP.
Power each SDP. After at least 10 seconds, check LEDs on the secondary SDP:
EXT light should be green
SYNC light should be green
If the LEDs are not on, solid green, check for cable faults (including excessive cable length).

PLUS Location Systems
6767 Old Madison Pike NW, Suite 310
Huntsville, AL 35806
(p) 1.256.217.4072
(f) 1.256.964.7614
www.pluslocation.com
11
Regulatory & Legal Information
Copyright
© PLUS ® Location Services. No part of this user manual may be copied or
reproduced without prior written consent from PLUS ® Location Services.
Disclaimer
The information in this document is subject to change without notice. PLUS ®
Location Services (“PLUS”) assumes no responsibility for inaccuracies or
omissions and specifically disclaims any liabilities, losses, or risks, personal or
otherwise, incurred as a consequence, directly or indirectly, of the use or
application of any of the contents of this document. For the latest
documentation, contact your local supplier or visit us online at
www.pluslocation.com.
Trademarks &
Patents
PLUS and the PLUS logo are trademarks of PLUS ® Location Services.
Other trademarks and trade names used in this manual are the property of the
manufacturers or vendors of the respective products.
Intended Use
This manual examines the installation and uses of the PLUS 8-Port
Synchronization Distribution Panel. Use this product only for the purpose it was
designed for; refer to the data sheet and user documentation for details.
FCC Compliance
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to
radio communications.
Regulatory
Information
Manufacturer
© PLUS ® Location Services
HQ and regulatory responsibility:
6767 Old Madison Pike NW, Suite 310
Huntsville, AL 35806
EU authorized manufacturing representative:
Level 13, 56 Berry St.,
North Sydney, NSW AUSTRALIA, 2060
European Union
Directives
2002/96/EC (WEEE directive): Products marked with this symbol
cannot be disposed of as unsorted municipal waste in the European
Union. For proper recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at
designated collection points. For more information see: www.recycle this.info.
Contact Information
www.pluslocation.com
