PLUSLITE DUOBAT-PL073 User manual
DUOBAT-PL073 User Manual Page 2
Thank you for purchasing the DUOBAT-PL073. Every DUOBAT-PL073has been thoroughly tested and has been
shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred
during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all
accessories necessary to operate the unit has arrived intact. In the case damage has been found or parts are
missing, please contact the manufacturer or your dealer for further instructions. Do not return this unit to your
dealer without first contacting.
Introduction: The DUOBAT-PL073is a DMX intelligent LED par battery light. This unit can be used as a
stand alone, The unit can also be controlled via DMX controller.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself; doing so
will void your manufactures warranty. In the unlikely event your unit may require service please contact the
manufacturer or your dealer.
PLEASE recycle the shipping carton when ever possible.
To optimize the performance of this product, please read these operating instructions carefully to
familiarize you with the basic operations of this unit. These instructions contain important safety
information regarding the use and maintenance of this unit. Please keep this manual with the unit,
for future reference.
⚫
Multi-Colors
⚫
Color Strobe
⚫
Electronic Dimming 0-100%
⚫
DMX-512 protocol
⚫
Master/Slave synchronization
DUOBAT-PL073
Genaral Information
DUOBAT-PL073User Manual Page 3
The DUOBAT-PL073carries a 2 year limited warranty. Please fill out the enclosed warranty card to
validate your purchase. All returned service items whether under warranty or not, must be freight pre-
paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on
the out- side of the return package. A brief description of the problem as well as the R.A. number must
also be written down on a piece of paper included in the shipping carton. If the unit is under warranty,
you must provide a copy of your proof of purchase invoice. You may obtain a R.A. number by
contacting our customer support team on our customer support number. All packages returned to the
service department not displaying a R.A. number on the outside of the package will be returned to the
ship- per.
Power Supply: Before plugging your unit in, be sure the source voltage in your area matches the
required voltage for your DUOBAT-PL073. The BAT-PL073is available in a 120v and 220v
version. Because line voltage may vary from venue to venue, you should be sure your unit voltage
matches the wall outlet voltage before attempting to operate you fixture.
DMX Linking: To ensure proper DMX data transmission, when using several DMX fixtures try to
use the shortest cable path possible. The order in which fixtures are connected in a DMX line does
not influence the DMX addressing. For example; a fixture assigned a DMX address of 1 may be
placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a
fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to
address 1 to that unit, no matter where it is located in the DMX chain.
⚫
Be sure that the local power outlet match that of the required voltage for your unit.
⚫
Do not attempt to operate this unit if the power cord has been frayed or broken. Do not attempt to
remove or break off the ground prong from the electrical cord. This prong is used to reduce the risk
of electrical shock and fire in case of an internal short.
⚫
Disconnect from main power before making any type of connection.
⚫
Do not remove the cover under any conditions. There are no user serviceable parts inside.
⚫
Never operate this unit when it’s cover is removed.
⚫
Never plug this unit in to a dimmer pack.
⚫
Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6” (15cm)
between this device and a wall.
⚫
Do not attempt to operate this unit, if it becomes damaged.
DUOBAT-PL073
Warranty Registration
DUOBAT-PL073
Installation
DUOBAT-PL073
Safety Guidelines
DUOBAT-PL072 User Manual Page 4
⚫
During long periods of non-use, disconnect the unit’s main power.
⚫
Always mount this unit in safe and stable matter.
⚫
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to the point they exit from the unit.
⚫
Cleaning -The fixture should be cleaned only as recommended by the manufacturer. See “Cleaning”
for details.
⚫
Heat -The appliance should be situated away from heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers) that produce heat.
⚫
The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a marked change in performance.
DUOBAT-PL073 IP65 notice
IP65 RATED
An
IP
rated lighting fixture
is
one, which
is
commonly installed in outdoor
environments and has been designed with an enclosure that effectively
water. The
International Protection (IP)
rating system
is
commonly
expressed as
"IP"
(Ingress Protection)followed by two numbers (i.e. IP65)
where the numbers define the degree of protection. The first digit (Foreign
Bodies Protection) indicates the extent of protection against particles
entering the fixture and the second digit (Water Protection) indicates the
extent of protection against water entering the fixture. An IP65 rated
lighting fixture
is
one, which has been designed and tested to protect
against the ingress of dust (6) and low-pressure water jets from any
direction(5).
MAR
I
NE/COAS
T
AL ENV
I
RONMEN
TI
NS
T
ALLAT
I
ONS!
PleasenotealthoughthisfixtureisIPrated,thefixtureisNOT suitable for marine
and/or coastal environment installations.
Installing this fixture in amarine and/or
coastalenvironmentmay
cause corrosion and/or excessive wear to the interior
and/or
exterior components of the fixture. Damages and/or performance
issues
resulting from installation in a marine and/or coastal
environment will void the
manufactures warranty and will NOT be
subject to any warranty claims and/or
repairs.
DUOBAT-PL073User Manual Page 5
DUOBAT-PL073Featuring
Product Type: Outdoor Par Battery Light
Voltage: AC110-240V/50-60Hz
Power consumption: 120W
Light source: 6x15W RGBWA+UV 6in1 LEDs
DMX Channels: 6/8/10CH
Control Mode: Auto-run,Master/Slave,Sound-Active,DMX Mode
Battery powered with Remote control;
Full color battery time about 7hours and single color batteyr time about 9hours
Battery Charging Times: 4-5 hours
App wifi Wireless 2.4G on/off
Support RDM 32types static color for choice
Frenquency 600HZ~25K HZ
Back light display the screen off for 10/20/30seconds in standby
Menu lock on/off
LED Lifespan:1 00,000 hours life expectancy
Beam angle: 15°/25°/30°/45° for optional
Electronic Dimming: 0-100% linear dimmer
Indicators: LED digital display
DMX In/Out: 3-pin connectors
Power in/out: IP65 powercon connector Touch screen OLED,the latest
technology Housing case: Die cast Aluminum
Working temperature:- 25°C~+35°C
Protection class IP: IP 65
Package size: 253X248X183mm
Weight: 5.5kg
DUOBAT-PL073User Manual Page 6
DUOBAT-PL073
Operating Instruction

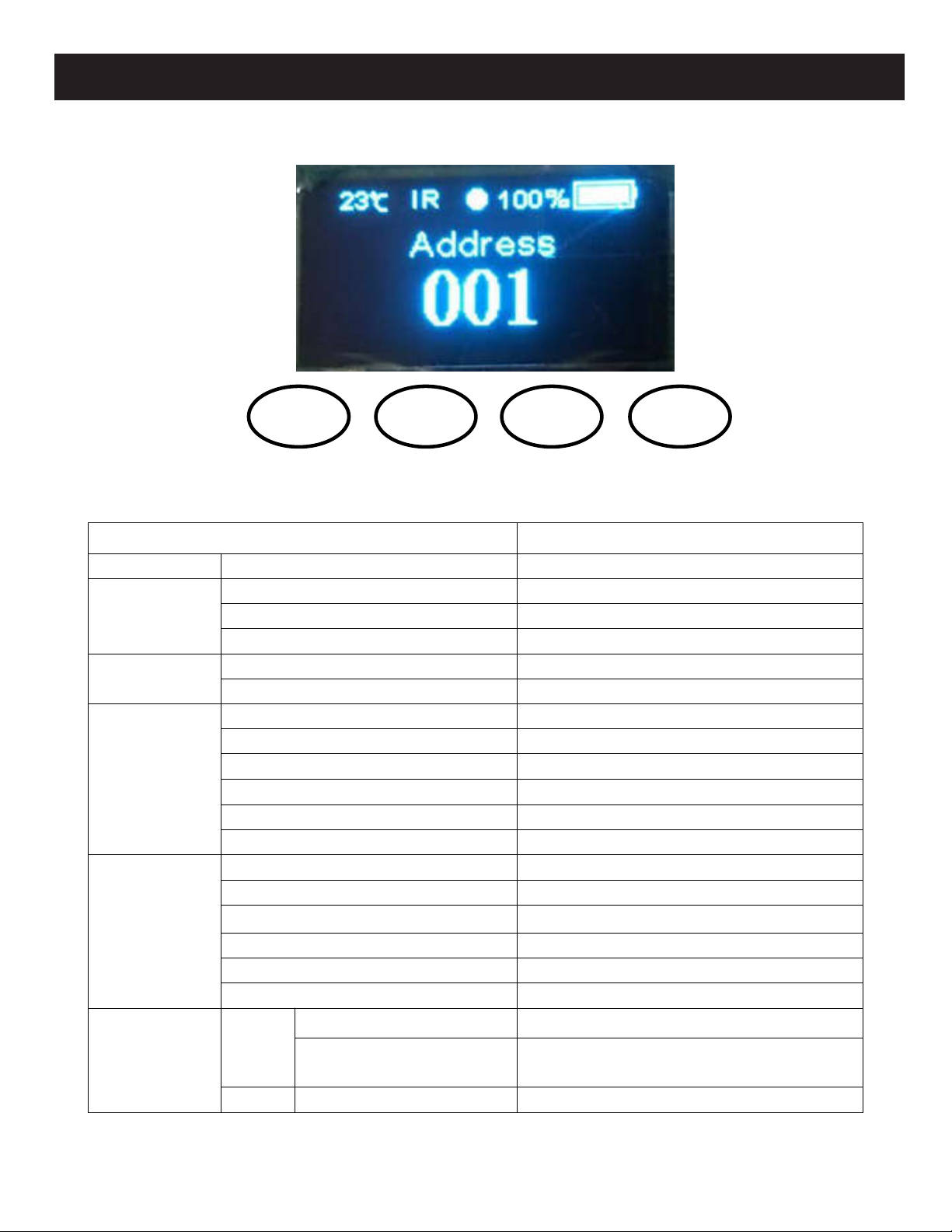

Menu：
OLED Functions
Address 001—512 Address code setting
Channel
6CH 6 channel mode
8CH 8-channel mode
10CH 10-channel mode
DMX Fail Hold Console data retention
Blackout Black field of console data
Frequency
600HZ 600 refresh rate
1200HZ 1200 refresh rate
2000HZ 2000 refresh rate
4000HZ 4000 refresh rate
12KHZ 12K refresh rate
25KHZ 25K refresh rate
Custom
Red:0-255 Red manual dimming
Green:0-255 Green manual dimming
Blue:0-255 Blue manual dimming
White:0-255 White manual dimming
Amber:0-255 Yellow/amber manual dimming
UV:0-255 Purple manual dimming
Program
Static 32 static color mixing 32 static color mixing
Speed:00-16 Strobe speed (when the speed is 00, it is static
color mixing)
Auto Speed:00-16 Color jump
MENU UP ENTERDOWN
Display panel
DUO BAT-PL073User Manual Page 7
DUOBAT-PL072 Operating Instruction
Fade Speed:00-16 Color gradient
Sound Sound:01 Sens:00-99 Voice control
Sound:02 Sens:00-99 Voice control mutation
Sound:03 Sens:00-99 Voice control color changing strobe
Sound:04 Sens:00-99 Voice control color change + mutation +
color change strobe
WIFI LED_XXX WIFI mode and link address
Wireless DMX（ON/OFF）Wireless 2.4G on/off
Group ID:1-7 7frequencybands
(red/green/yellow/blue/purple/cyan/white)
Key Power ON/OFF One key on/off (the MENU key is this
function)）
Back Light Always on Display normally open
10s Displays the screen off for 10 seconds in standby
20s Displays the screen off for 20 seconds in standby
30s Display the screen off for 30 seconds in standby
IR ON/OFF Infrared remote control on/off
Menu Lock ON/OFF Key lock on/off
(ENTER+DOWN key is this function)
Factory Reset NO/YES System self-test reset
Curve Led Curve 1 Linear curve
Led Curve 2 Square curve
Led Curve 3 Logarithmic curve
Led Curve 4 S curve
Information Version V1.0 Software version
Remarks: A. In the A001 state mode, long press the ENTER key for 3 seconds, the program
will automatically enter the current adjustment mode. Press the ENTER key again to select the
color (up and down keys to adjust the value), after adjusting, press the menu key to return.
B. The frequency band indicator flashes slowly in red when the host sends, and the
frequency indicator flashes slowly in green when the slave receives.
C. The operation steps of mobile phone WIFI control are as follows:
Step 1: Install the APP (LED LAMP) of this software on the mobile phone
Step 2. Switch the lamp display function to WIFI mode (under the menu Program\WIFI
mode)
Step 3. Turn on the setting icon on the phone, turn on WIFI and search for the WIFI address,
the words starting with LED will appear. Such as "LED-XXX", click the link
Step 4. The phone returns to the main interface, find the APP installed on the phone and
open it, and wait for the link to succeed.
D. In the menu Wireless mode, you can adjust the 7 frequency bands of wireless 2.4G, and
the corresponding light colors of the 7 frequency bands are such as (01 red/02 green/03
yellow/04 blue/05 light blue/06 purple/07 white)
DUOBAT-PL073User Manual Page 8
enter the operation mode and running mode)
F. Over-temperature protection function: (When the temperature reaches 75 degrees or more,
the program will automatically reduce the brightness by 30%, and the temperature will
automatically turn off when the temperature reaches 95 degrees or more)
G. This lamp supports wired RDM and software online upgrade function.
DMX512：
CH 6CH 8CH 10CH
CH1 1-255 red linear
dimming
1-255 total dimming 1-255 total dimming
CH2 1-255 green linear
dimming
0-9 closed light, 10-255
strobe (slow to fast)
1-255 red linear dimming
CH3 1-255 blue linear
dimming
1-255 red linear dimming 1-255 green linear dimming
CH4 1-255 white linear
dimming
1-255 green linear dimming 1-255 blue linear dimming
CH5 1-255 yellow linear
dimming
1-255 blue linear dimming 1-255 white linear dimming
CH6 1-255 purple linear
dimming
1-255 white linear dimming 1-255 yellow linear dimming
CH7 1-255 yellow linear dimming 1-255 purple linear dimming
CH8 1-255 purple linear dimming 0-9 closed light, 10-255 strobe (slow to fast)
CH9 0-9 closed light
10-50 static color mixing, with 10CH
optional color mixing
51-100 jump mode, with 10CH speed
101-150 sudden change mode, with
10CH speed
151-200 gradient mode, with 10CH
speed
201-220 Jump voice control 1
221-240 Mutation Voice Control 2
241-255 Color-changing strobe sound
control 3
CH10 1-255 speed
E. During the charging process, the charging interface will appear on the display screen (if
you need to use the lamp while charging, press the MENU button under the charging interface to
DUOBAT-PL073Operating Instruction
DUOBAT-PL072 User Manual Page 9
Cleaning
DUOBAT-PL073
Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must be carried
out periodically to optimize light output.
Use normal glass cleaner and a soft cloth to wipe down the outside casing.
Clean the external optics with glass cleaner and a soft cloth every 20 days.
Always be sure to dry all parts completely before plugging the unit back in.
Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog residue,
dust, dew).
Trouble Shooting
Listed below are a few common problems the user may encounter, with solutions.
Unit not respond to DMX:
Check that the DMX cables are connected properly and are wired correctly (pin 3 is “hot”; on some
other DMX devices pin 2 may be ‘hot’). Also, check that all cables are connected to the right connectors;
it does matter which way the inputs and outputs are connected.
DUOBAT-PL073Operating Instruction
Infrared remote control function:
1. Dimming up button
2. Dimming down button
3. OFF closed light pause
4. ON operation
5. R, G, B, W, A, UV keys are 6 kinds of monochrome
6, 0 key is 32 kinds of static color mixing, up and down keys to adjust
7, 1-9 number keys are 9 mixed colors
8. The AUTO key is for color jump, the up and down keys adjust the speed
9. STROBE key is strobe, up and down keys to adjust the speed
10. The FADE key is a color gradient, and the up and down keys adjust the speed
11. The SOUND key is for voice control, and the up and down keys adjust the voice control
DUOBAT-PL073

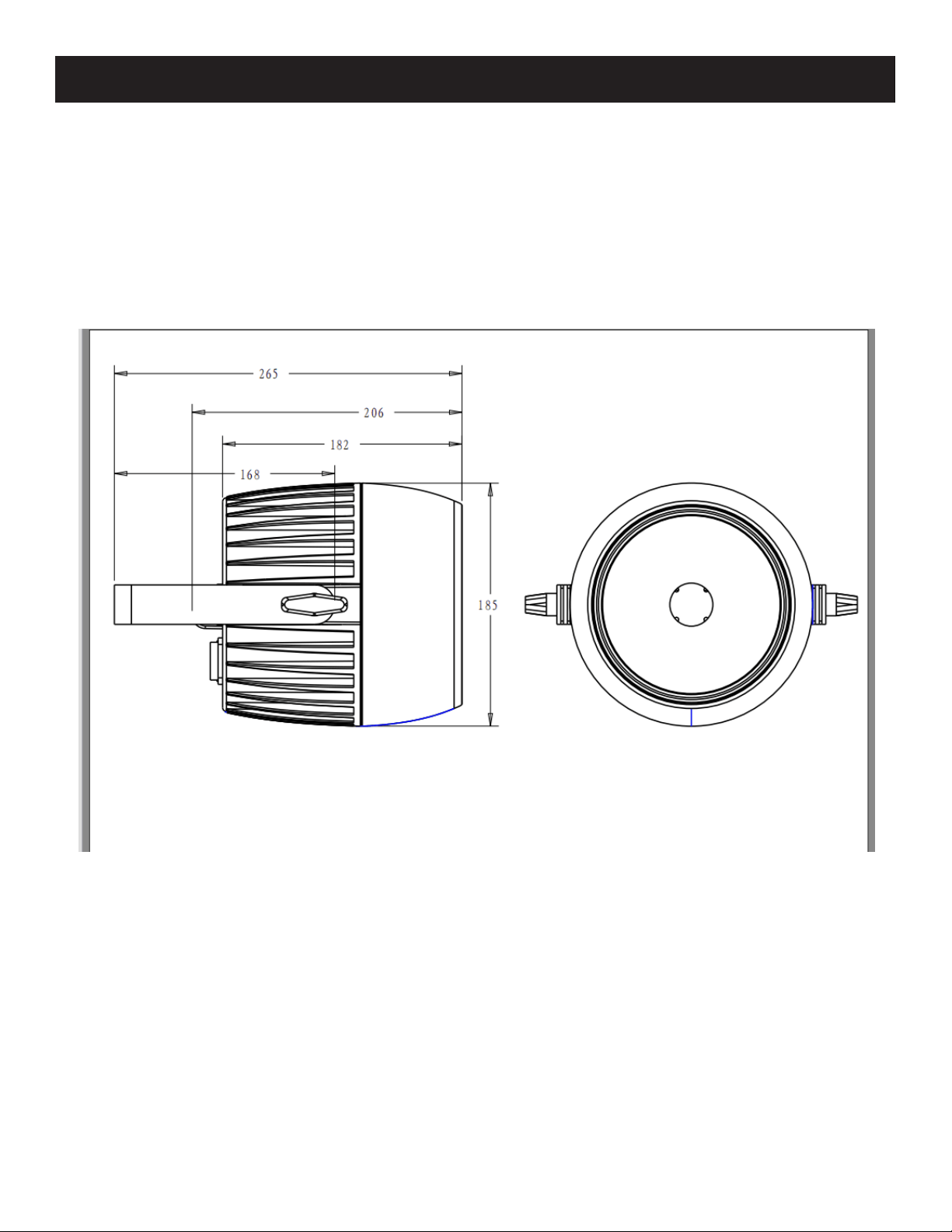

Dimensional Drawing
DUOBAT-PL073User Manual Page 10
*NOT TO SCALE
Please Note: Specifications and improvements in the
design of this unit and this manual are subject to change
without any prior written notice
Model: DUOBAT-PL073
Voltage:
LEDs:
IP Rating:
Working Position:
Power Draw:
Colors:
Weight:
Package Size:
Led Beam angle:
DMX Channels:
Warranty:
100V ~ 240V/50~60Hz
6x15w 6IN1 Brighter LED
IP65
Any safe working position
120W
Red, Green, Blue and White,
Amber, Purple, Stepless Color Mix
5.5 Kgs.
253(L) x 248(W) x 183(H) mm
15°/25°/30°/45°
6/8/10CH
DMX512 control channels
2 Years
DUOBAT-PL073Specification
https://www.piu39av.com/pluslite-lighting/
DUOBAT-PL073User Manual Page 11
Table of contents
