USER-MANUAL
Tamson Cool Cube
Immersion Cooler

www.tamson.com
[email protected]
Tamson Instruments bv
Page 2/14
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-ic-man.docx Rev 2.0 UK 1017
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
1SAFETY AND WARNINGS .............................................................................................................................3
2WARRANTY .................................................................................................................................................... 3
3DISCLAIMER................................................................................................................................................... 3
4PRECAUTIONS AND HAZARDS ...................................................................................................................4
5INSTALLATION............................................................................................................................................... 4
5.1 IMPORTANT.................................................................................................................................................4
6USE.................................................................................................................................................................. 5
7WHAT IS WHAT .............................................................................................................................................. 6
7.1 START ........................................................................................................................................................7
7.2 AIR CIRCULATION ........................................................................................................................................8
8SPARE PARTS LIST AND PRODUCT CODE................................................................................................9

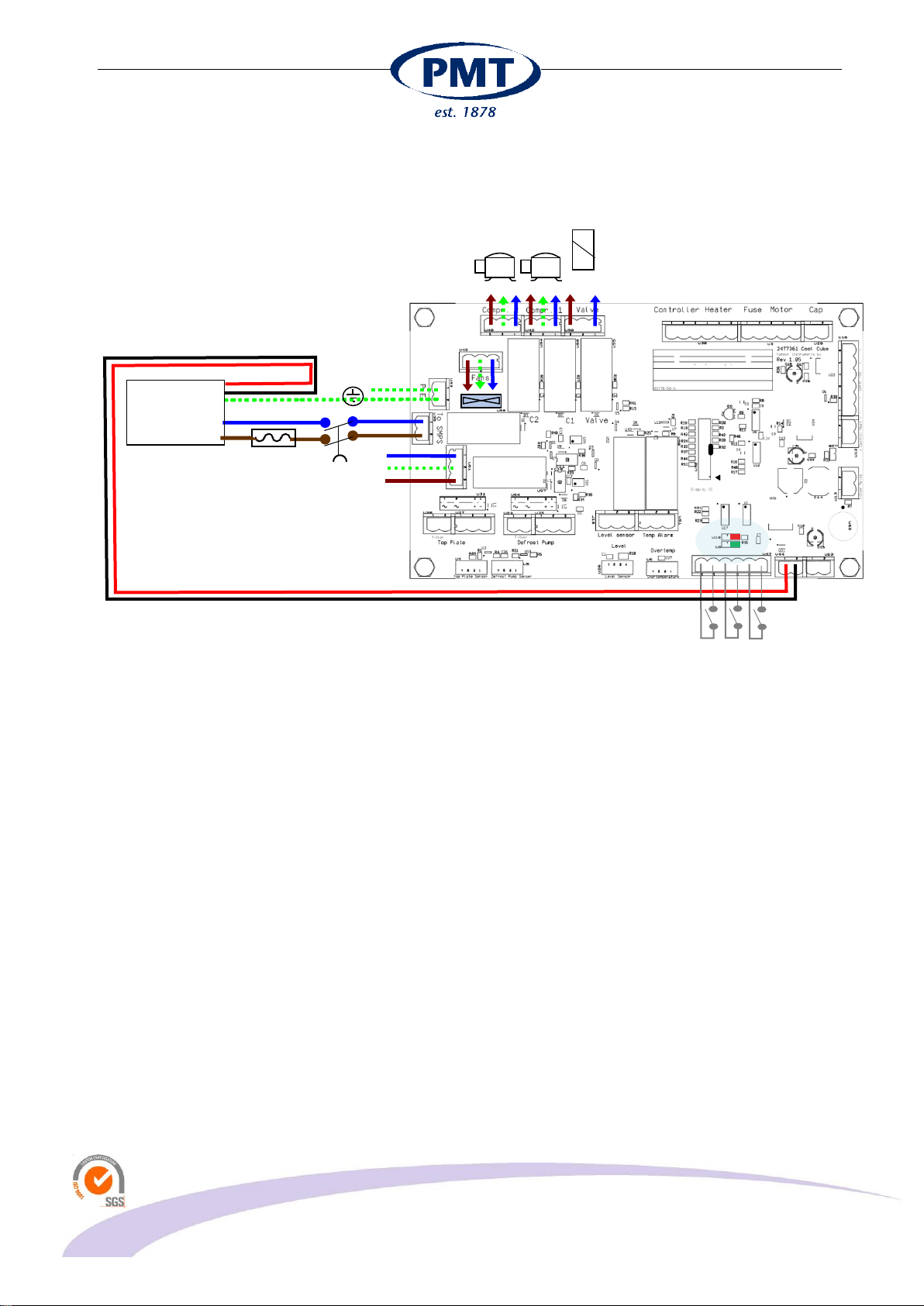

9WIRING..........................................................................................................................................................10
10 DIMENSIONS.............................................................................................................................................11
11 TROUBLE SHOOTING..............................................................................................................................11
12 CE DECLARATION OF CONFORMITY.................................................................................................... 13

www.tamson.com
[email protected]
Tamson Instruments bv
Page 3/14
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-ic-man.docx Rev 2.0 UK 1017
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
1 SAFETY AND WARNINGS
Make sure before installing or operating the equipment to read and understand all instructions and safety
precautions listed in this manual. If there are any questions concerning the operation of the equipment or about
the information given in this manual, please contact your local dealer or our sales department first.
Performance of installation, operation, or maintenance other than those described in this manual may result in a
hazardous situation and may void the manufacturer's warranty.
Never operate equipment that is not correctly installed. Unqualified personnel must not operate the equipment.
Avoid damage to the equipment, or its accessories, caused by incorrect operation.
Important:
-When performing service, maintenance or moving the apparatus, always disconnect the apparatus at the
main's socket,
-Proper skilled and trained personnel are only allowed to operate this equipment,
-Take notice of warning labels and never remove them,
-Refer service and repairs to qualified technician,
-If a problem persists, call your supplier or Tamson Instruments b.v.
2 WARRANTY
Tamson Instruments b.v. warrants that all their manufactured equipment is free from defects in material and
workmanship, preventing the device from normal operation. Tamson Instruments b.v. does not warranty that the
equipment is fit for any other use than stated in this manual. The manufacturer can only be held responsible for
the security, reliability and performance of the equipment, when operated in accordance with the operating
instructions, extensions, adjustments, changes and/or if repair is performed by Tamson Instruments b.v. or
authorized persons only. This warranty is limited to one year from the date of invoicing. All equipment and
materials are subject to standard production tolerances and variations.
3 DISCLAIMER
For relevant measurements always an independent reference measurement is needed. Tamson can not be held
responsible for misinterpretation or consequences of an erroneous reading.

www.tamson.com
[email protected]
Tamson Instruments bv
Page 4/14
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-ic-man.docx Rev 2.0 UK 1017
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41

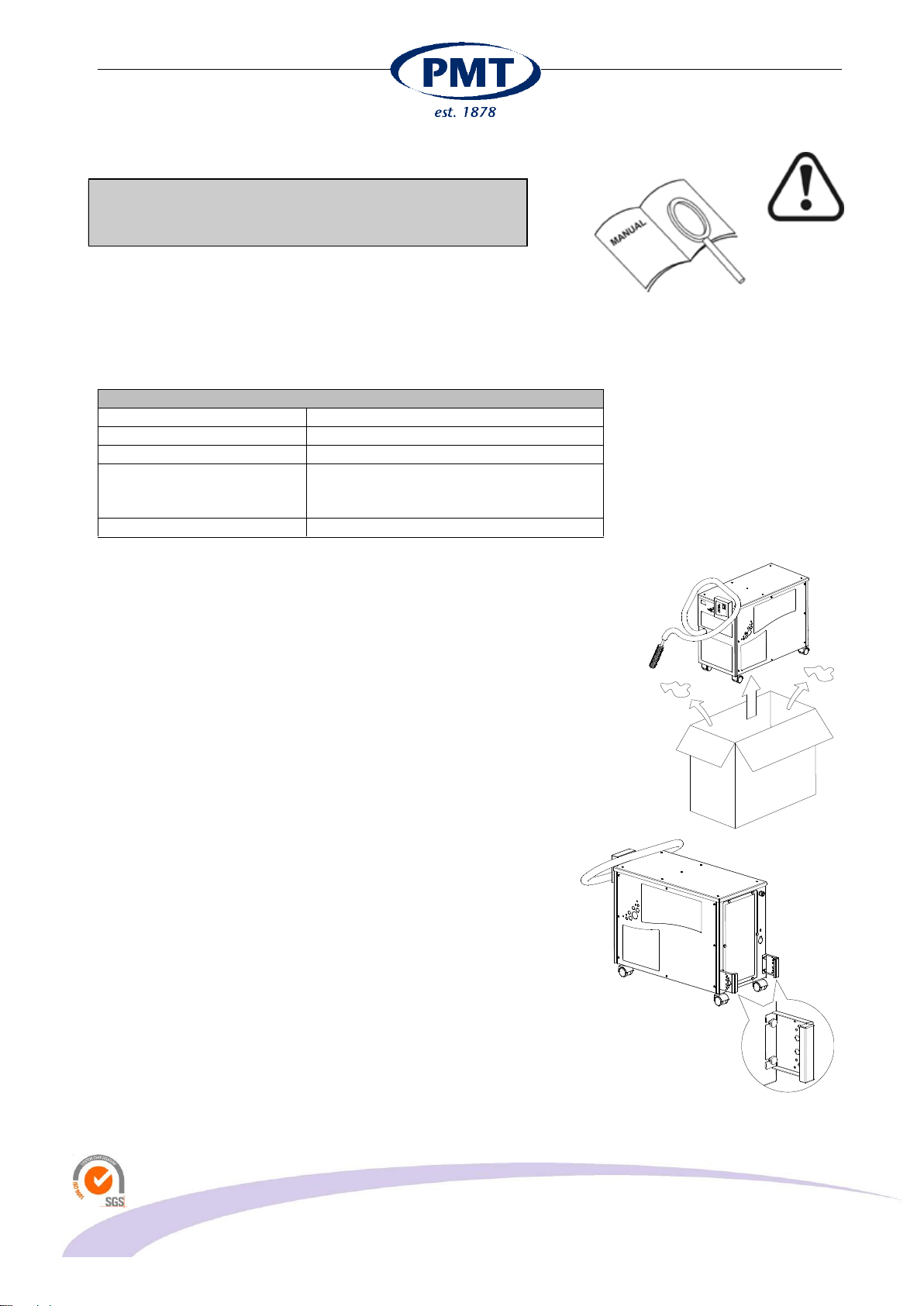

4 PRECAUTIONS AND HAZARDS
Before attempting to operate the TCC - IC read all parts of
this manual carefully to insure smooth operation and
avoid damage to the equipment or its accessories.
If a malfunction occurs, consult section "Trouble shooting”,
page 11. If the problem persists email us at:
[e-mail].
Never operate the equipment if not correctly installed. The
equipment must be operated only by qualified personnel.
Avoid damage to the equipment or its accessories through
incorrect operation.
Environment
Panel sealing
Confirms EN60529: IP65
Environment Temperature
0 tot 35°C. Supply enough ventilation
Humidity
5 tot 95 %, non condensating
Atmosphere
Not suited for altitudes above 2000m
or
explosive/corrosive environment
Pollution cat. 2
Conducting pollution must be prevented
5 INSTALLATION
5.1 Important
Tamson Instruments bv is not responsible for any
consequential damage or harm caused by using this TCC -
IC. Repairs on the electrical system of the TCC –IC may only
be carried out by well trained and authorized persons.
Unpacking
Before leaving the factory Tamson products are adequately
packed to prevent damage during normal transportation.
Check the packing for external damage and make a note on
the shipping documents if any damage is found. Always retain
the cartons and packing material until the product has been
tested and found in good condition. (Transport companies
generally will not honor a claim for damage if the respective
packing material is not available for examination).
Mount spacers
Mount the two spacers at the backside of the TCC-IC apparatus.
READ
CAREFULLY
REMOVE ALL
PACKAGE MATERIAL
MOUNT SPACERS

www.tamson.com
[email protected]
Tamson Instruments bv
Page 5/14
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-ic-man.docx Rev 2.0 UK 1017
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41

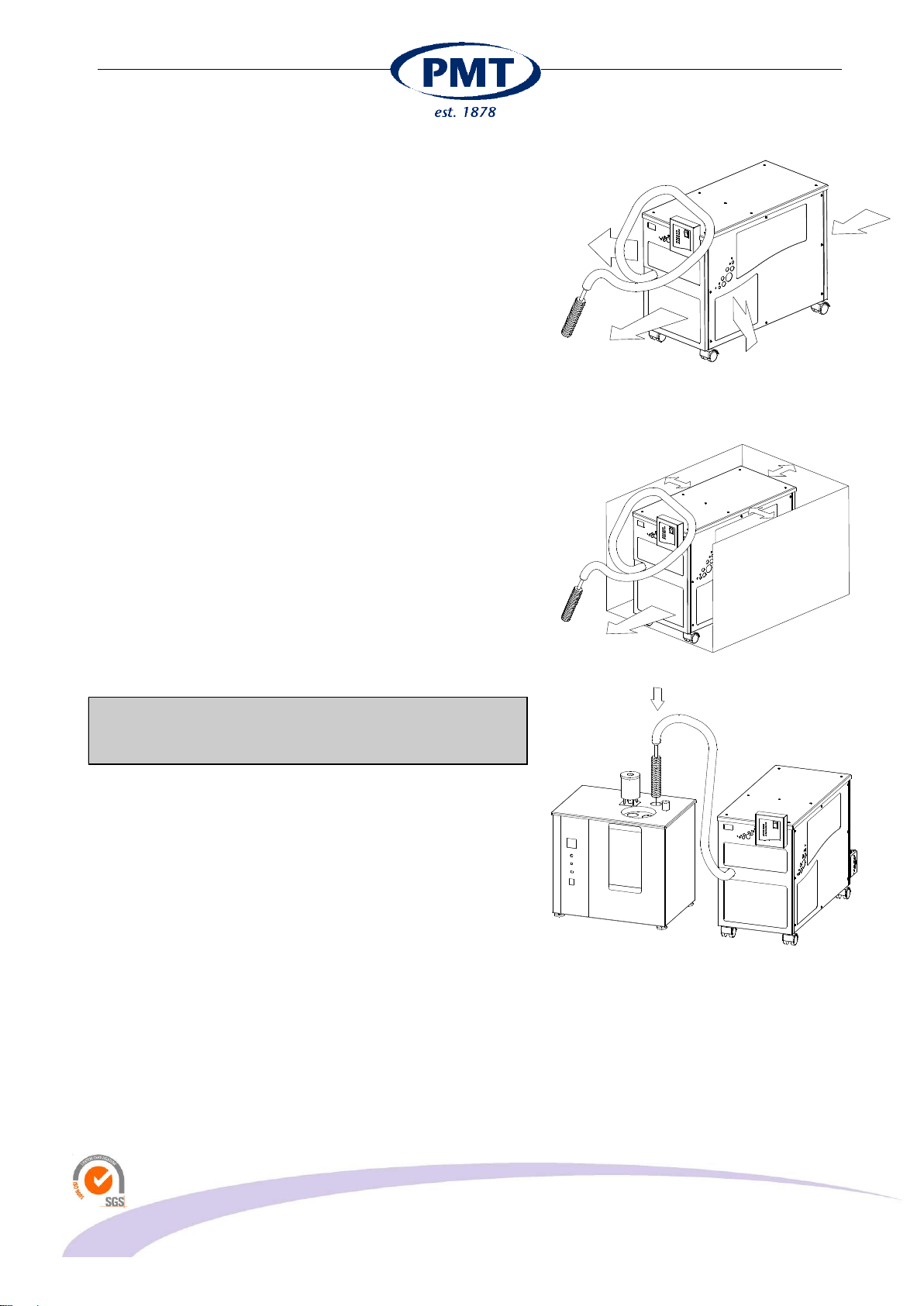

6 Use
Put the unit in its proper place. Leave enough room around
the cryostat for sufficient air circulation. Place the unit in a
clean working environment and keep away from dust. When
air can not circulate well the cryostat will overheat itself
resulting in irreversible and severe mechanical damage. Dust
will block the condenser and might also cause overheating of
the system. Overheating will cause severe damage to the
compressor.
The cold finger can be placed in the TLV25 holder, next to the
three opening lids for the viscometer holders. When the
TLV25 is fully filled with methanol the cryostat can be
switched-on. In all cases water is not recommended to use in
combination with a cryostat. Water will freeze very quick
around the cooling coil preventing proper energy exchange
between the cold finger and the bath fluid.
It is possible to cool down other processes with the cold finger
i.e. rapidly lower temperature in hot fluids. It is not
recommended to permanently cool fluids with a temperature
above 80C. Pressure inside the evaporator circuit will be
extremely high and can cause severe thermal damage to the
compressor.
Regularly check:
The apparatus to see if airflow is not blocked around
apparatus,
Apparatus and condensor are free from dust,
Hose is not mechanically damaged.
It is advised not to move the refrigeration hose at low
temperatures. Only move the apparatus and hose when
switched-off and cold finger at room temperature.
KEEP AIR FLOW FREE
>10cm
>10cm
>10cm
ROOM FOR AIR CIRCULATION
TLV25

www.tamson.com
[email protected]
Tamson Instruments bv
Page 6/14
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-ic-man.docx Rev 2.0 UK 1017
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41

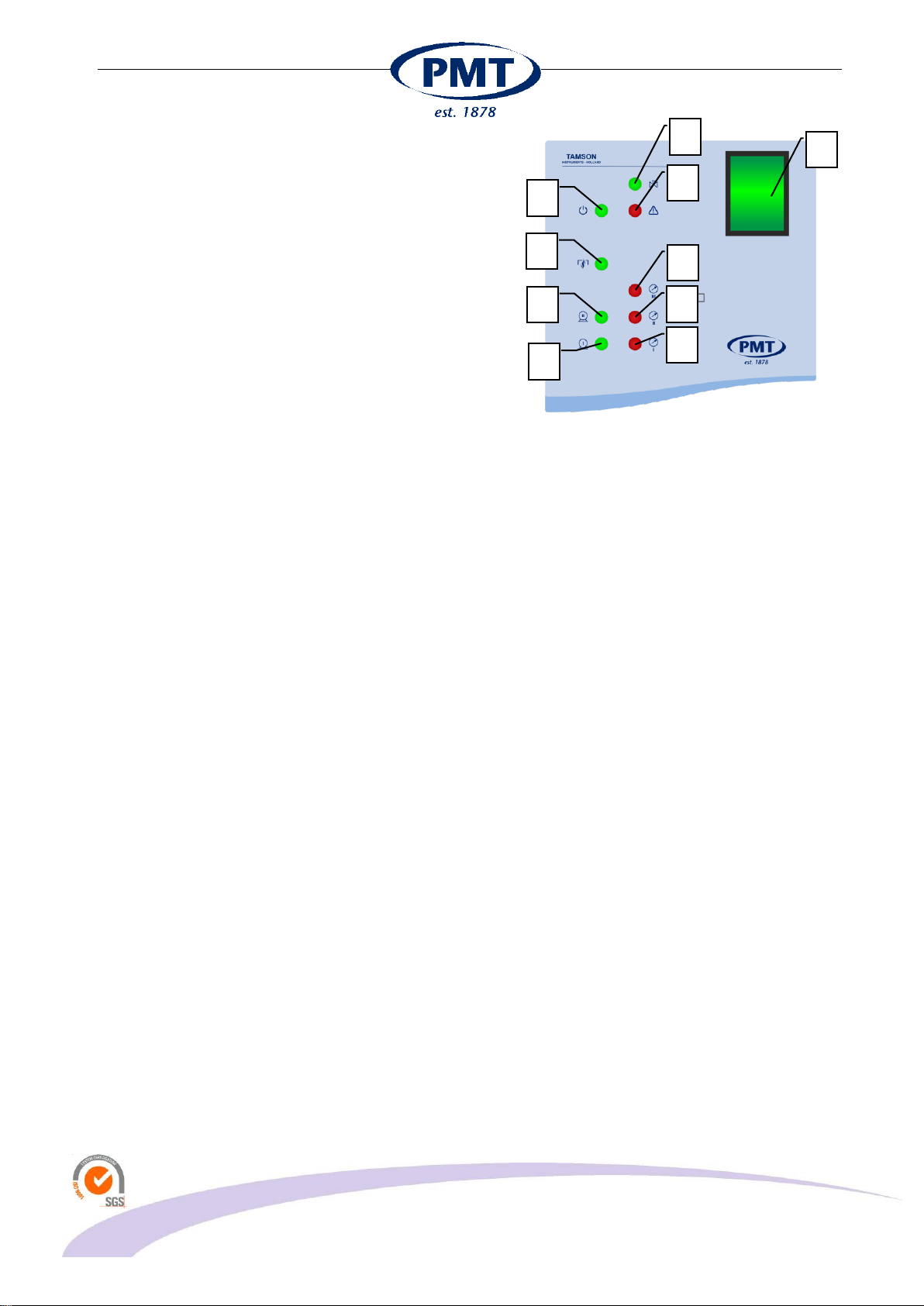

7 What is what
1 Indicator on / off
2 On / off switch
3 Pressure valve open
4 System error
5 High pressure
6 Pressostat stage 2
7 Pressostat stage 1
8 Compressor stage 2 running
9 Compressor stage 1 running
X Not used
1
3
4
5
6
7
x
x
8
9
2

www.tamson.com
[email protected]
Tamson Instruments bv
Page 7/14
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-ic-man.docx Rev 2.0 UK 1017
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41

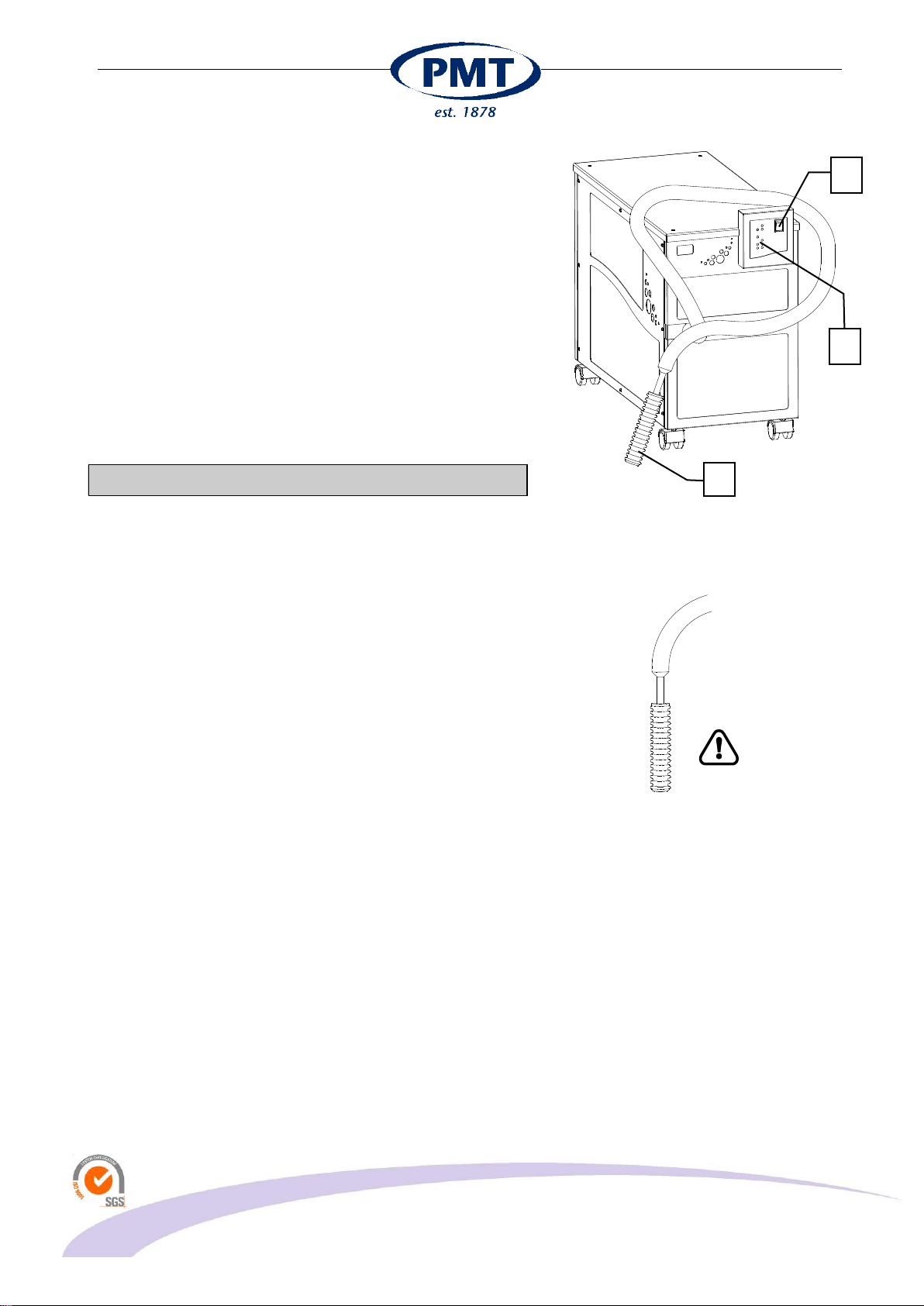

7.1 Start
Place the probe [1] in the viscometer bath TLV25
Switch on the apparatus [2]
After approximately 30 seconds the compressor starts
indicated by the green LED [3]
After approximately 300 seconds the compressor of the
second stage starts indicated by the green LED [3]
After a few seconds the probe starts to cool.
Always keep the probe [1] in an vertical position
2
1
3
ALWAYS USE PROBE VERTICAL

www.tamson.com
[email protected]
Tamson Instruments bv
Page 8/14
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-ic-man.docx Rev 2.0 UK 1017
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41

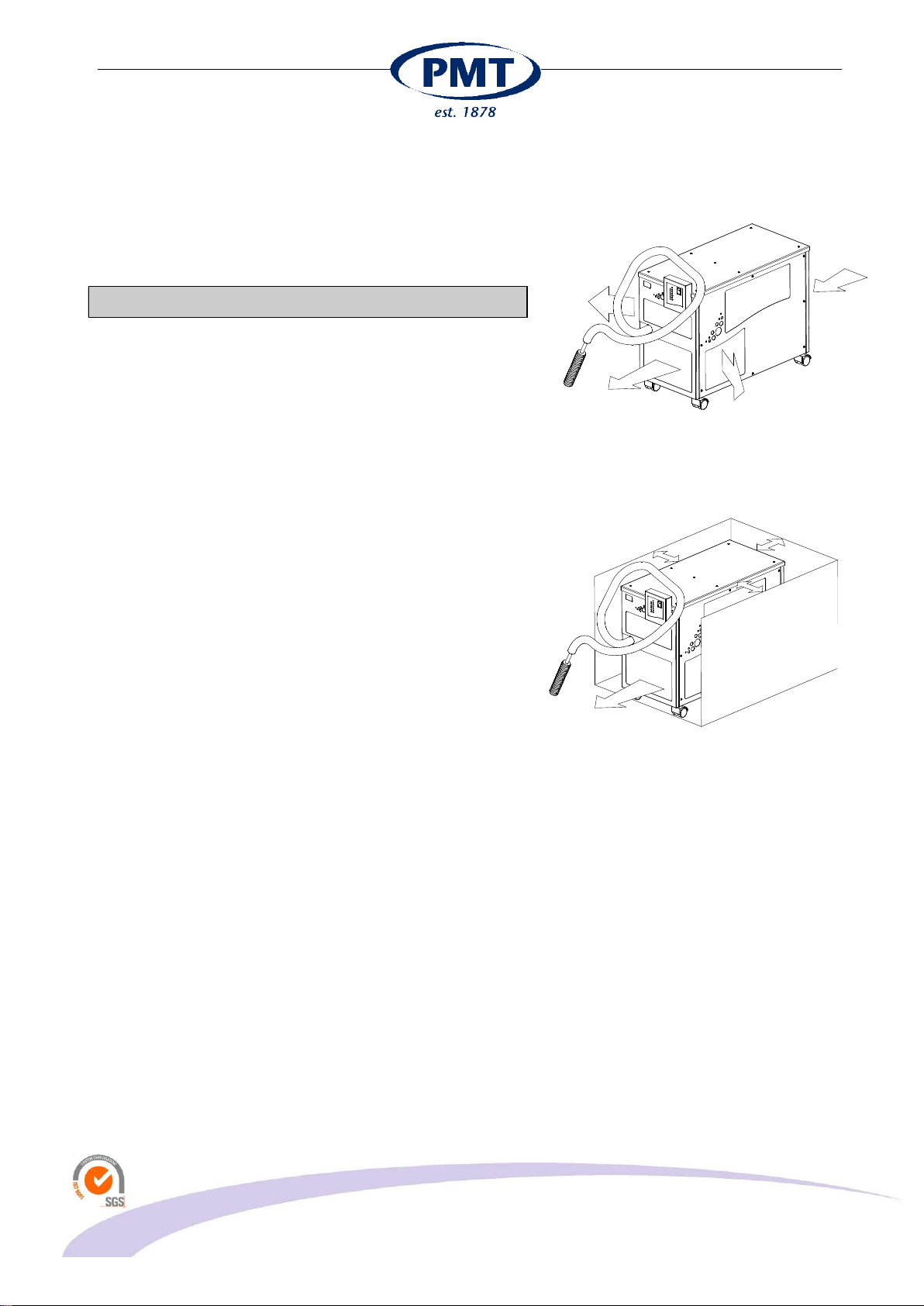

7.2 Air circulation
The system transfers heat from the probe to the ambient. It
therefore uses airflow. In order to work properly free airflow
should be available. The system must be kept free 10 cm from
all sides.
Keep backside and sidepanels free for air circulation
KEEP AIR FLOW FREE
>10cm
>10cm
>10cm
ROOM FOR AIR CIRCULATION

www.tamson.com
[email protected]
Tamson Instruments bv
Page 9/14
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-ic-man.docx Rev 2.0 UK 1017
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
8 Spare parts list and product code
Product code
Ordering
code
Description
00T0300
Tamson Cool Cube –Immersion Cooler 230V / 50Hz
00T0301
Tamson Cool Cube –Immersion Cooler 230V / 60Hz
00T0302
Tamson Cool Cube –Immersion Cooler 115V / 60Hz
Sparepart - list
Ordering
code
Description
24T7085
Swing Wheel
24T7086
Swing Wheel with break/lock
24T7091
Mounting Pin Wheel
24T8544
Mains Switch
28T4355
Front Foil With Status Indicators
28T4354
Type Foil
06T0462
PCB, Mains Circuit Board
06T0464
Display Board
24T0029
Power Supply 24V/1,1A Wide Range Input
28T8006
Fan Motor
28T1209
Adjustment Key - Pressostat P20EA Johnson Control

www.tamson.com
[email protected]
Tamson Instruments bv
Page 10/14
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-ic-man.docx Rev 2.0 UK 1017
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
9 Wiring
P1
P2
P3
C1
C2
Valve
24Vx1,1A
24T0029
Switched Mode Power Supply
P1 = Compressor stage 1
P2 = Compressor stage 2
P3 = Valve
C1 = Compressor stage 1
C2 = Compressor stage 2
Mains in
Fuse 2A - T

www.tamson.com
[email protected]
Tamson Instruments bv
Page 11/14
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-ic-man.docx Rev 2.0 UK 1017
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41

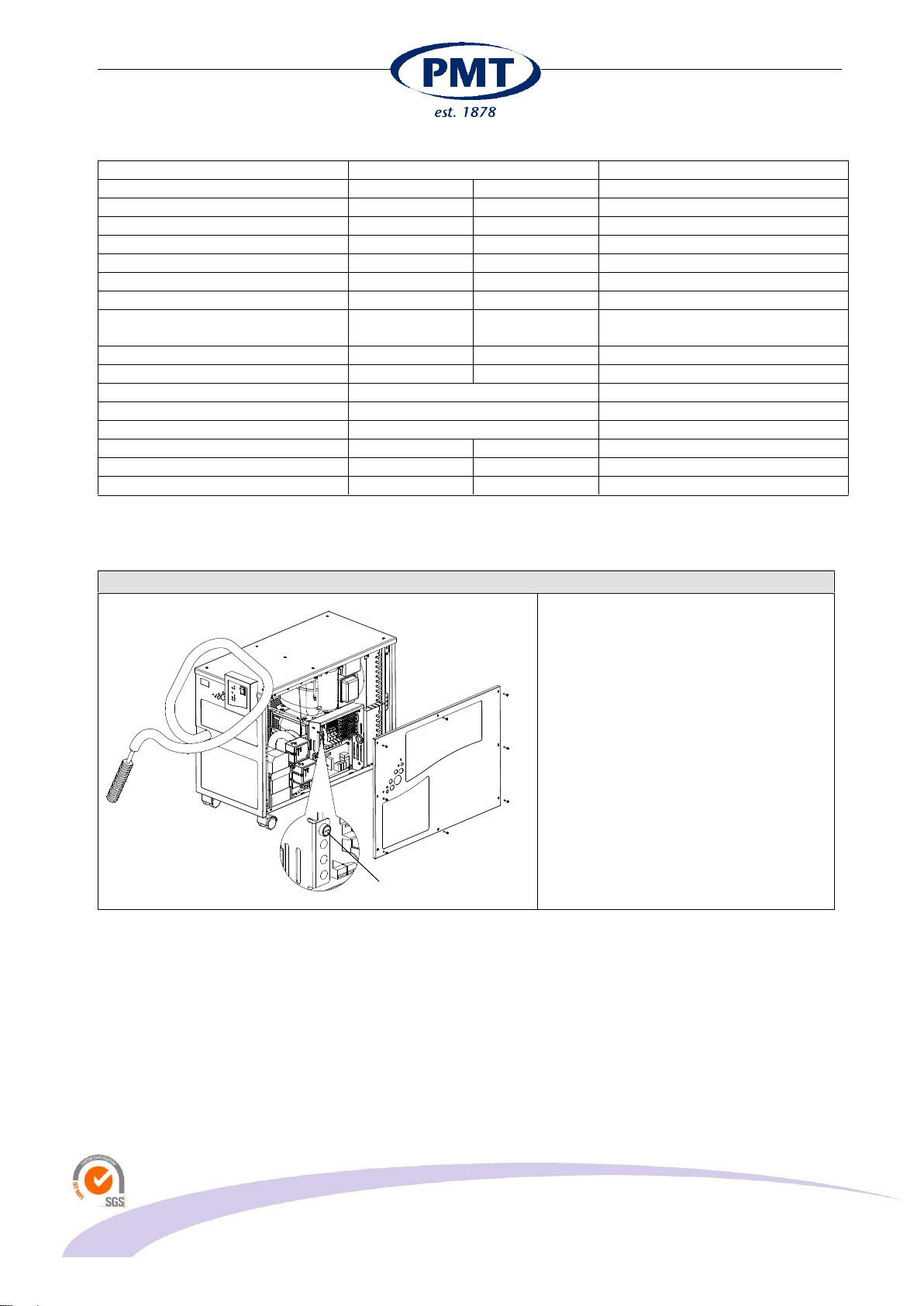

10 Dimensions
Dimensions Probe
Remark
Diameter
46
[mm]
Length probe
200
[mm]
Length hose + probe
2200
[mm]
Dimensions Casing
Height + display
660
[mm]
Height casing (without display)
610
[mm]
Width
380
[mm]
Depth (casing)
830
[mm]
Do not operate backside directly
to the wall
Depth with distance spacers
920
[mm]
Enabling airflow at backside
Weight
76
[kg]
Power consumption
Initial start (first 15 min. max)
2600W
During first starting minutes
Working load
1500W max
During normal operation
Working conditions (ambient)
Temperature
15..26
[°C]
Humidity
10..90
[%]
relative humidity
11 Trouble shooting
:
Electronics seem to be "dead"
:
Check fuse
☺:
Replace fuse by 2A-T. So 2 ampère,
slow. Fuse can be accessed by
removing right side panel.
FUSE

www.tamson.com
[email protected]
Tamson Instruments bv
Page 12/14
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-ic-man.docx Rev 2.0 UK 1017
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
:
Compressor (C1 or C2) do not run
:
Check apparatus for dust.
☺:
Remove all dust using a vacuum
cleaner. Do not use pressurised air.
:
Fan makes noise
:
Check fans inside for blocking
☺:
Remove dust or litter sucked in.
:
Ice forming on probe
:
Water vapour in the air condensates on
the top of the cold finger. In time this ice
will grow, forming a block of ice.
☺:
Turn off the cryostat and let the ice melt.
Prevent air from forming condensate by
insulating the cold finger.
:
System does not cool down
:
Ice forming (crystals) on the probe.
☺:
Use new methanol
Do not use ethanol

www.tamson.com
[email protected]
Tamson Instruments bv
Page 13/14
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-ic-man.docx Rev 2.0 UK 1017
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
12 CE DECLARATION OF CONFORMITY
Following equipment is in complience with EMC Directive 2014/30/EU:
Product: Thermostatic bath and circulator
Model: TCC - IC
TCC - B
Serial code: Effective from 17Txxx
Manufacturer: Tamson Instruments bv
van 't Hoffstraat 12
2665 JL Bleiswijk
The Netherlands
The products are in conformity with the following specifications:
Item
Reference
Description
Test result
a
RoHS Directive
2011/65EU
p
b
EN61010-2-010
Safety requirements for electrical
equipment for measurement, control,
and laboratory use. Particular require-
ments for laboratory equipment for the
heating of material
c
Machine Directive
2006/42/EC
Machinery Directive, of the European
Parliament and of the Council of 17 May
2006/42/EC 2nd Edition June 2010
p
d
EN 60204
Machinery Directive and Safety
requirements
p, pi
e
EN60950-1
Low Voltage Directive
p
f
EN61000-3-2:2014
Harmonics
p
g
EN61000-3-3
Flicker
p
h
EN61000-4-2 +A1+A2
ESD
p
j
EN61000-4-3 +A1+A2
Radiated immunity
p (anechoic room)
k
EN61000-4-4
Electrical Fast Transients
Minimum requirements pass
l
EN61000-4-5+A1
Surges
Minimum requirements pass
m
EN61000-4-6+A1
Conducted immunity
p
n
EN61000-4-11 +A1
Voltage dips and Voltage variations
p
o
EN55016-2-1
Conducted emission
p
p
EN55016-2-3
Radiated emission
p (anechoic room)
q
Pr EN 378
Refrigerating systems and heat pumps -
Safety and environmental requirements
r
EN 13445-5
PED Inspection and Testing
Maximum working pressure level
of 30 Bar is confirmed.
On each apparatus following
pressure and leak tests have
been carried out with positive
result
- Low pressure side 20 Bar
- High pressure side 30 Bar
p = Pass
pi = Individually tested

www.tamson.com
[email protected]
Tamson Instruments bv
Page 14/14
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-ic-man.docx Rev 2.0 UK 1017
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
not applicable were:
Conducted discontinuous emissions (Clicks)
Radiated emission (OATS)
Magnetic field immunity
The equipment conforms with all the specifications and norms in this regard.
The equipment conforms without any further notice.
Entity responsible for marking this declaration :
Manufacturer, Tamson Instruments bv, van 't Hoffstraat 12, Bleiswijk The Netherlands,
Name : R.C. van Hall
Function : Director
Date : January, 2018
Version : 1.04
