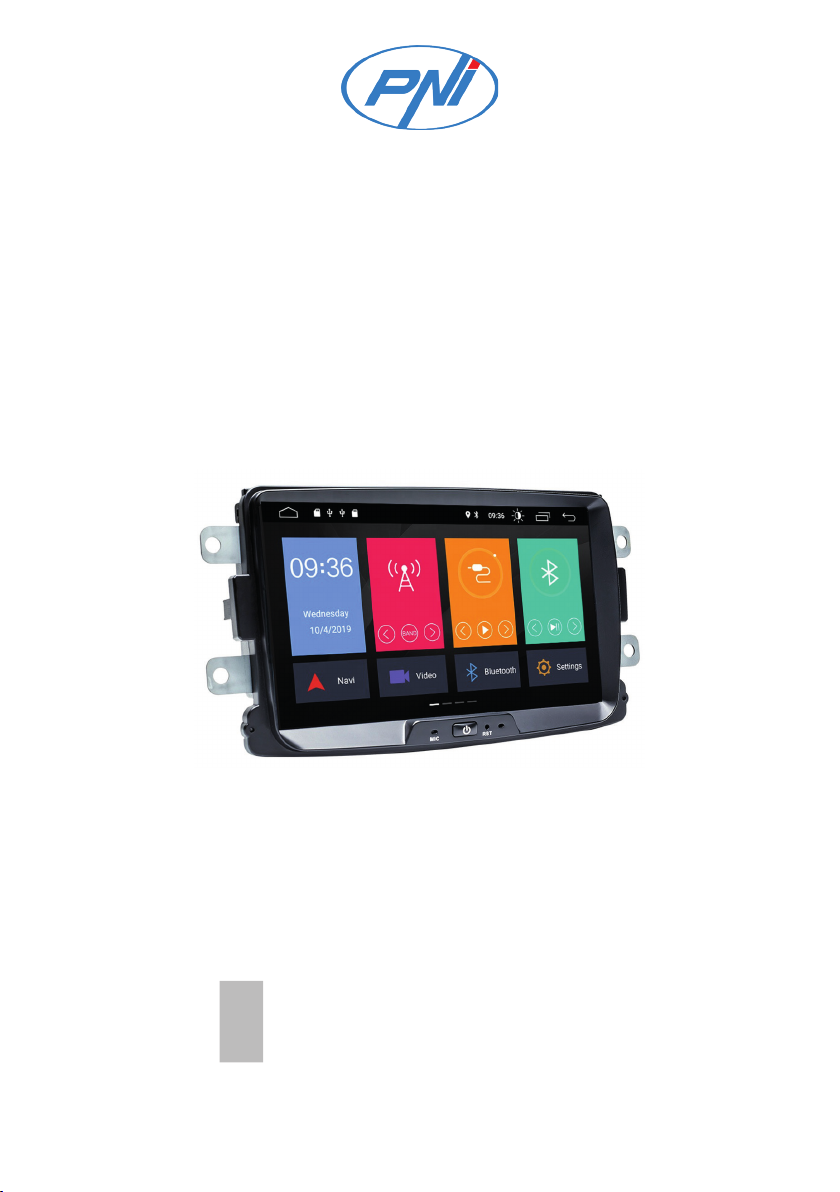

PNI DAC100 User manual

PNI DAC100
2 DIN multimedia player
EN User manual ............................................. 2
IT Manuale dell’utente ................................... 17
RO Manual de utilizare ................................... 31

3User manual
English
Warnings
»For your own safety and the safety of other passengers, do not set up
your device or watch video files while driving. Stop the car if you want to
do these actions.
»While driving, adjust the volume to a comfortable level.
»Before putting the device into operation, carefully read the instructions
and warnings in this manual.
»When using the GPS navigation, follow the trac signs and rules.
»Do not use the device in areas with risk of explosion (petrol stations) or in
areas with a strong electromagnetic field.
»In case of failure, do not open the housing or repair the product by
yourself, we reccommend that you call a service center.
»Protect the product from direct sunlight, dust and moisture.
Basic operation
Turning on/o the device
After the device is powered, press and hold the key on the front panel to
turn on the device.
Turn o the engine and remove the key to turn o the device.
Volume
When the device is switched on, briefly press the key to adjust the volume.
The volume bar will show up in the bottom side of the screen.

User manual 4
English
Backlight
Go to Settings  Car Infotainment - Display
Camera
The image taken by the rear view camera will appear immediately on the
screen,whenyouputthegearboxinthereverseposition. Therearviewcamera
is not included. The connection mode of the rear view varies according to the
car model.
Playback source
On the main screen, select the mode by pressing the Radio, Music, Video or
AV_IN icon
Playback mode
When you reboot the device, the system will resume to the earlier mode prior
to shutdown. For radio, it will resume to the radio channel prior to shutdown.
For music or video, it will resume playing the last song or video prior to
shutdown.

5User manual
English
Settings
Press Settings icon on the main screen.
Nota: turning the function on/o:
Network & Internet
Go to Settings - Network & Internet -Hotspot & tethering. Select the Wi-Fi
hotspot network and input your password to connect.

User manual 6
English
Car infotainment
Standby time
Go to Settings - Car infotainment - Common - Standby time. Select the
time after which the device goes into standby mode. Options: 0, 10, 20, 30,
60 minutes.
Assistive Touch
By activating this function, a bar with several options will show up on the
upper side of the screen, such as: Home, Back, Open applications, Volume,
Brightness.
Reverse Volume Supression
To be able to control the volume when you are in the reverse position, select
one of the options: None, Weak, Medium, Strong.
Boot logo
Access this menu to select the logo you want to appear on the screen when
the device is switched on. Enter the password 5678 to access the list of logos.

7User manual
English
Reset all setttings
Confirm to return the device to factory settings.
Display
Go to Settings - Car infotainment - Display.
Select the brightness level of the screen at day or night or activate the auto
mode.
Volume
Go to Settings - Car infotainment - Volume
Customize the volume level for dierent playback sources: media, GPS

User manual 8
English
navigation, Bluetooth, etc..
Sound
Go to Settings - Car infotainment - Sound
Customize the sound according to your personal preferences. Dierent
settings and modes are available.

9User manual
English

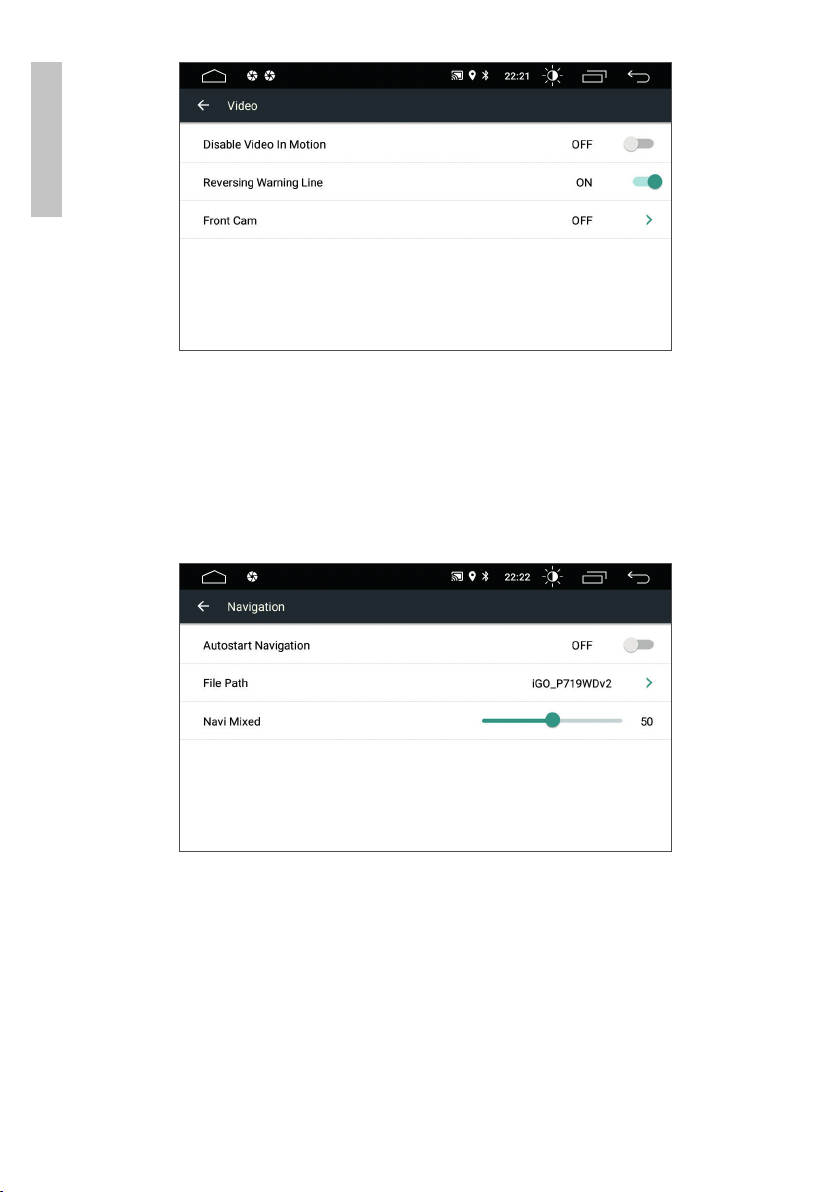

Video
Go to Settings - Car infotainment - Video
Video in motion
If the function is active, you cannot view video if the vehicle is in motion.
Reversing Warning Line
By activating this function, you will be able to see the warning line on the
screen when reversing.

User manual 10
English
Navigation
Go to Settings - Car infotainment - Navigation
You can set the path to the navigation software and set the automatic start of
the navigation software after powering the car’s engine on.
Bluetooth
Go to Settings - Car infotainment - Bluetooth
You can set the automatic activation of the Bluetooth function, as well as the
automatic answering of calls through Bluetooth.

11 User manual
English
SWC
To set the functions of the buttons on the steering wheel, proceed as follows:
»Press the desired button on the steering wheel
»Tap on the device screen the function you want to assign to the respective
button
»When the color of the button on the screen changes to blue, it means
that the allocation was successful
»Do this for all the buttons on the steering wheel
»To clear the assigned functions, press the CLEAR ALL button on the
monitor
»This function is only compatible with certain models of cars

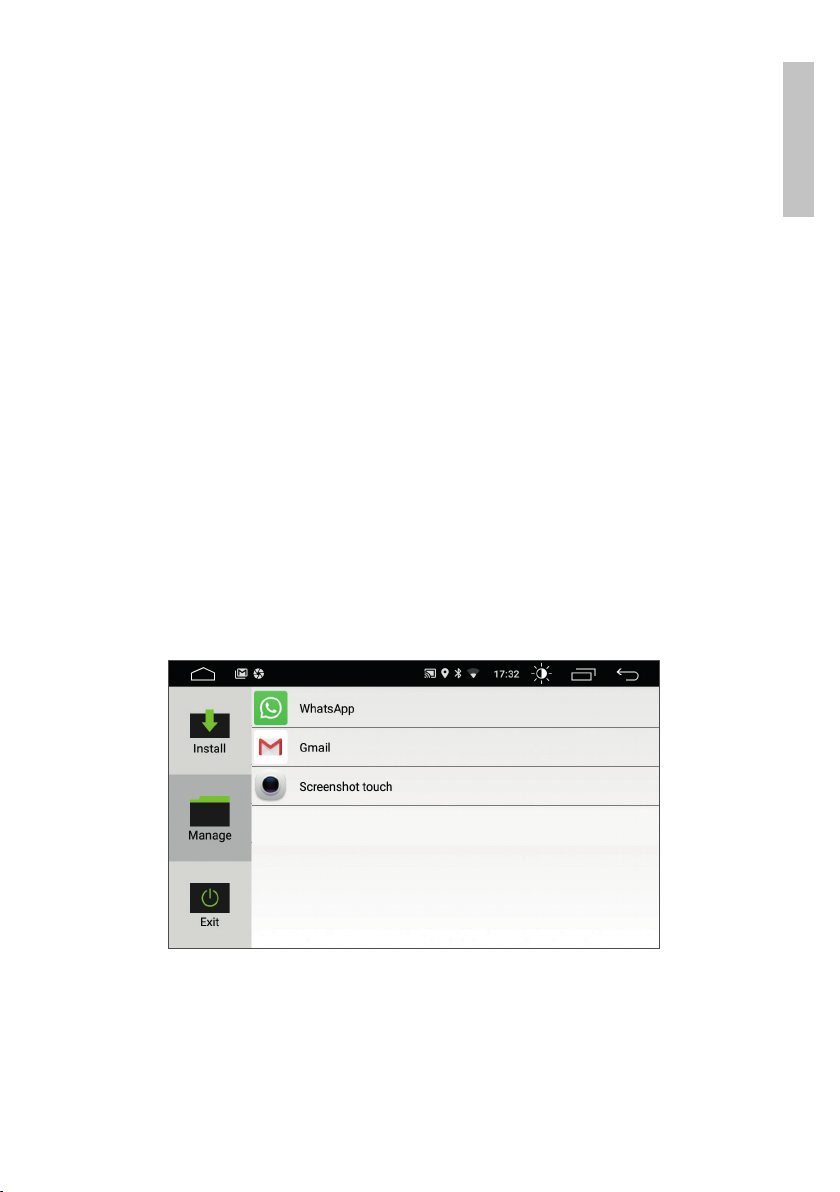

Applications
The system comes with a number of pre-installed applications, such as:
Google Chrome, Maps, Youtube, etc. You can install new applications using
the Google Play Store or the Apkinstaller function if you have the apk file of
the application.

User manual 12
English

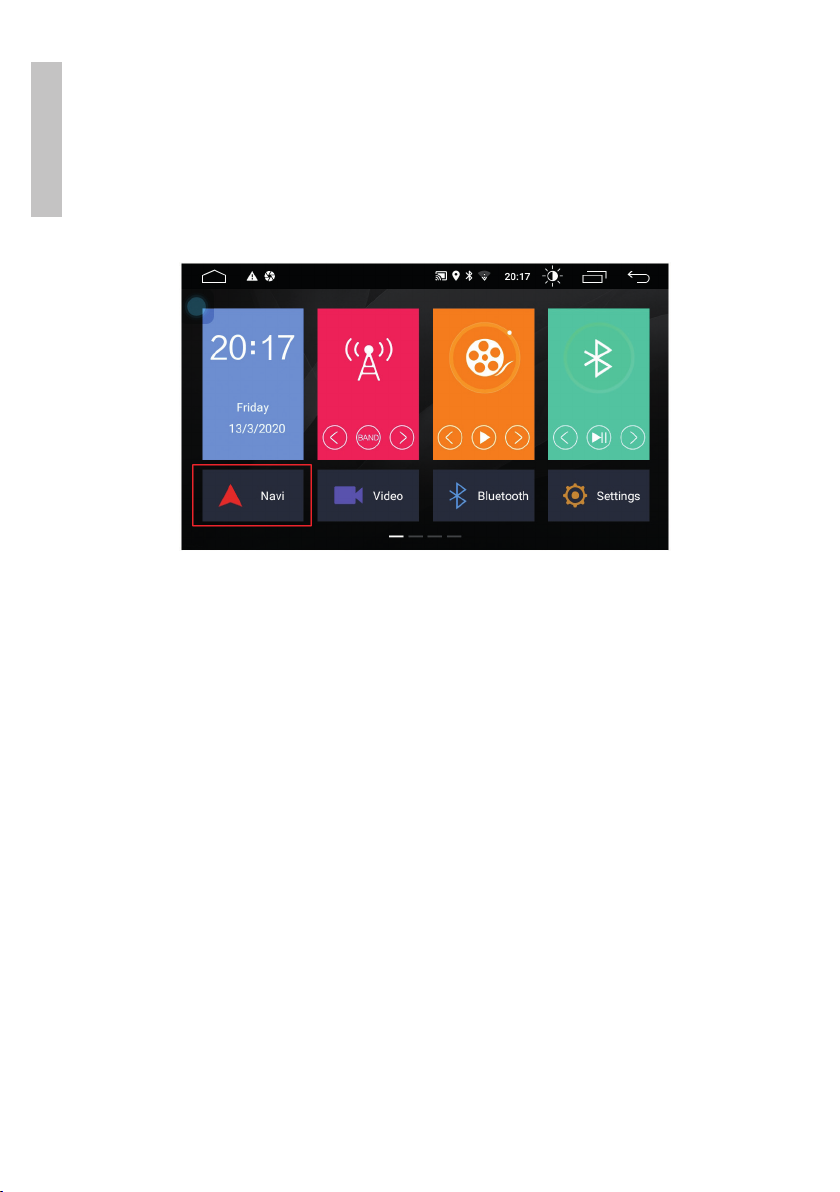

Navigation
Before using the GPS navigation function, set the path to the navigation
software by accessing the Settings - Car infotainment - Navigation - File
path menu.
You can also install various GPS navigation applications through the Google
Play Store.
Installing the GPS antenna
We recommend installing the antenna on the car dashboard facing the sky.
Installing the antenna next to the tempered glass or with protective film
would reduce the eciency of the GPS signal reception. In such conditions,
we recommend installing the antenna on the outside.

13 User manual
English
Notes:
»Turn o the power of the device before installing the GPS antenna
»Do not shorten or extend the GPS antenna cable.
»Install the antenna in a place free of interference that could aect the accuracy
of the location.
»Do not pass the antenna cable through the steering wheel or gearbox to avoid
serious accidents.

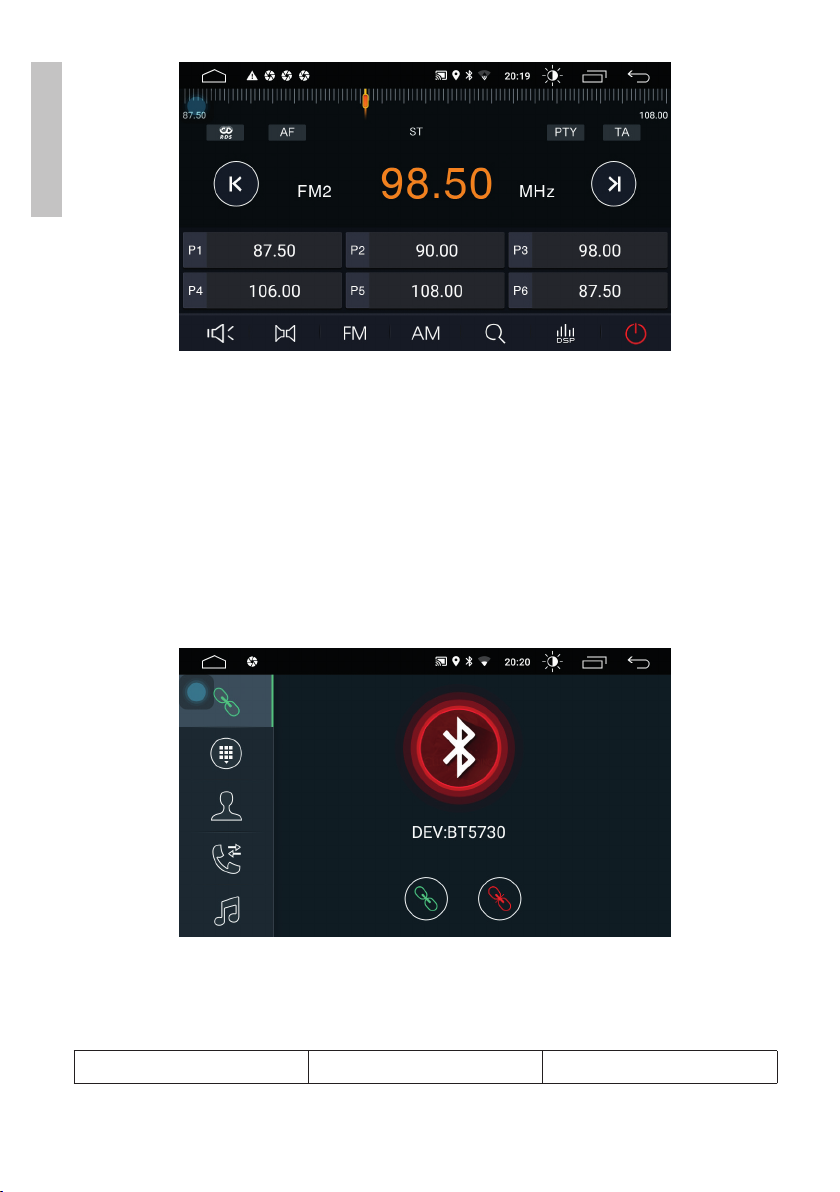

Radio
Select the FM or AM radio function in the main interface.

User manual 14
English
You have 18 memories on FM and 12 memories on AM to save your favorite
radio stations.
Bluetooth
Connect your mobile phone using the Bluetooth function. You can listen to
the music saved on the phone or you can pick up or make phone calls directly
from the multimedia player.
Troubleshooting
Problem Possible cause Solution

15 User manual
English
The device does not
turn on
The key is not in
contact.
The power cord was not
inserted into the device.
The fuse is burned.
Insert the key.
Connect the power
cable.
Replace the fuse.
The screen does not
respond to touch
The system can execute several commands in the
background. Wait a little while. If the problem
persists, contact a specialized service center.
The image taken by
the rear view camera
does not appear on the
screen
No reversing camera is
installed.
The installed camera is
not compatible.
Connect the reversing
chamber correctly.
Replace the reversing
camera.
Lack of GPS signal
GPS antenna is not
connected.
You are in an area
without GPS signal.
Install the GPS antenna
correctly.
Move until you reach an
areawithGPScoverage.
If the problem persists,
contact a specialized
service center.
Wrong positioning on
the map
You are in an unmarked
area on the map.
GPS antenna was not
installed correctly.
Update the GPS map.
Check the location of
the GPS antenna.
The system cannot
identify the routes to
the chosen destination
Make sure you enter corectly the destination
address. Try several ways to write your destination.
If the problem persists, the destination probably
does not exist in the system database.
Blank image on the map
Zoom in and zoom out the map until you identify
exactly where you are. If the problem persists,
you may have lost your GPS signal. Reset the
destination or change the location.
Technical specifications
Operating system Android 10.0

User manual 16
English
CPU Quad ARM A7 4x1.3 GHz
RAM 2GB DDR3
ROM 32GB
Screen Capacitive Touch Screen
Screen resolution 1024 x 600 px
GPS chipset MT6625
Bluetooth V4.0
Video decoding HD 1920x1080
WIFI Built-in
Supports Aux, Rear view camera
Audio input AUX-L; AUX-R
Video output Video1, Video2
Audio output FL; FR; RL; RR and Subwoofer
USB Yes
Supported audio formats MP3/WMA/AAC/RM/FALC etc
Supported video formats MPEG-1/2/4/H264/H263/VC1/RV/RMVB/
DivX/Sorenson SparK/Spark/VP8/AVS Stream
Supported photo
formats JPG/BMP/JEPG/GIF/PNG
Radio frequency FM: 76.0MHz-108.0MHz
AM: 522KHz-1620KHz
Power voltage 12V
Working temperature -26 ~ +60°C

Manuale utente
Italiano
17
avvertenze
»Per la propria sicurezza e quella degli altri passeggeri, non installare
il dispositivo e non visualizzare i file video durante la guida. Ferma la
macchina se vuoi fare questo.
»Durante la guida, regolare il volume a un livello confortevole.
»Prima di mettere in funzione il dispositivo, leggere attentamente le
istruzioni e le avvertenze contenute in questo manuale.
»Quando si utilizza la navigazione GPS, osservare le regole dal traco.
»Non utilizzare il dispositivo in aree a rischio di esplosione (stazioni di
servizio) o in aree con forte campo elettromagnetico.
»In caso di guasto, non smontare o riparare il prodotto da soli, chiamare un
centro di assistenza.
»Proteggere il prodotto dalla luce solare diretta, polvere e umidità.
Istruzioni di base
Accensione / spegnimento del dispositivo
Se il dispositivo è alimentato, tenere premuto il tasto sul pannello anteriore
per accenderlo.
Spegnere il motore e rimuovere la chiave per spegnere il dispositivo.
Volume
Quando il dispositivo è acceso, premere brevemente il tasto per regolare il
volume. La barra del volume apparirà nella zona inferiore dello schermo.

Manuale utente
Italiano
18
Controllo retroilluminazione
Accedere il menu Settings  Car Infotainment - Display
Camera
L’immaginescattatadallavideocameradiretromarciaappariràimmediatamente
sulloschermoquandosimetteilcambioinposizioneinversa.La videocameradi
retromarcia non è inclusa. Nota: La modalità di connessione della videocamera
di retromarcia varia a seconda del modello di auto.
Selezione della sorgente di riproduzione
Nella schermata principale, selezionare la modalità facendo clic sull’icona
Radio, Music, Video sau AV_IN
Modalità di riproduzione
Dopo aver riavviato il dispositivo, questo riprenderà dalla modalità di
riproduzioneprimadiarrestarsi.Seildispositivo èinmodalitàRadio,riprenderà
la riproduzione dell’ultima stazione radio riprodotta. Se il dispositivo riproduce
file audio o video, riprenderà la riproduzione dopo il riavvio.

Manuale utente
Italiano
19
Impostazioni
Premere Settings sulla schermata principale.
Nota: abilita / disabilita la funzione:
Network & Internet
Accedere il menu Settings - Network & Internet -Hotspot & tethering.
Seleziona la rete hotspot Wi-Fi e inserisci la password per connetterti.

Manuale utente
Italiano
20
Car infotainment
Standby time
Accedere il menu Settings - Car infotainment - Common - Standby time.
Seleziona il tempo trascorso dopo il quale il dispositivo entra in modalità
standby. Opzioni: 0, 10, 20, 30, 60 minuti.
Assistive Touch
Attivando questa funzione, sullo schermo apparirà una barra con diverse
opzioni, come: Home, Indietro, Applicazioni attive, Volume, Luminosità.
Reverse Volume Supression
Per poter controllare il volume quando ci si trova nella posizione di retromarcia,
selezionare una delle opzioni: None (senza suono), Weak (debole), Medium
(medio), Strong (Forte).
Boot logo
Accedere a questo menu per selezionare il logo che si desidera visualizzare
sullo schermo quando il dispositivo è acceso. Inserire la password 5678 per
accedere alla lista.
