8320 AXION MSR™
COMBINATION
EYE / FACE WASH
&
DRENCH SHOWER
1 1/4"G
1 1/4"G
20,4 kg
No
CH
Z535.1
•AXION MSR™ eye / facewash head
(SP65)
•Strainer SP509
•11” catch basin, ABS plastic (SP93)
•Stainless steel push flag valve (SP225)
•AXION MSR™ shower head, ABS
plastic (SP829)
•Stay open valve (SP260)
•Combination emergency shower &
eyewash sign (S)178).
•Floor flange (SP75)
•Stainless steel push rod (SP200)
•High visibility stripe (SP185)
•Test tag (SP170)
•Eye-face bowl fixing (SP81)
•Foot control assembly (SP220)
•Flow control valve (SP37.5)
•Strainer-repair kit (VRKEWSTR) for
spare part SP509.
•
HAWS AG
•
Bachweg 3
•
CH-3401 Burgdorf
•
Switzerland
•
www.haws.ch
HAWS Corporation •P.O.Box 2070 •1455 Kleppe Lane •Sparks,Nevada 89431/USA www.hawsco.com
HAWS DRINKING FAUCET COMPANY
INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS
NOTE TO INSTALLER: please leave this information with the maintenance department.

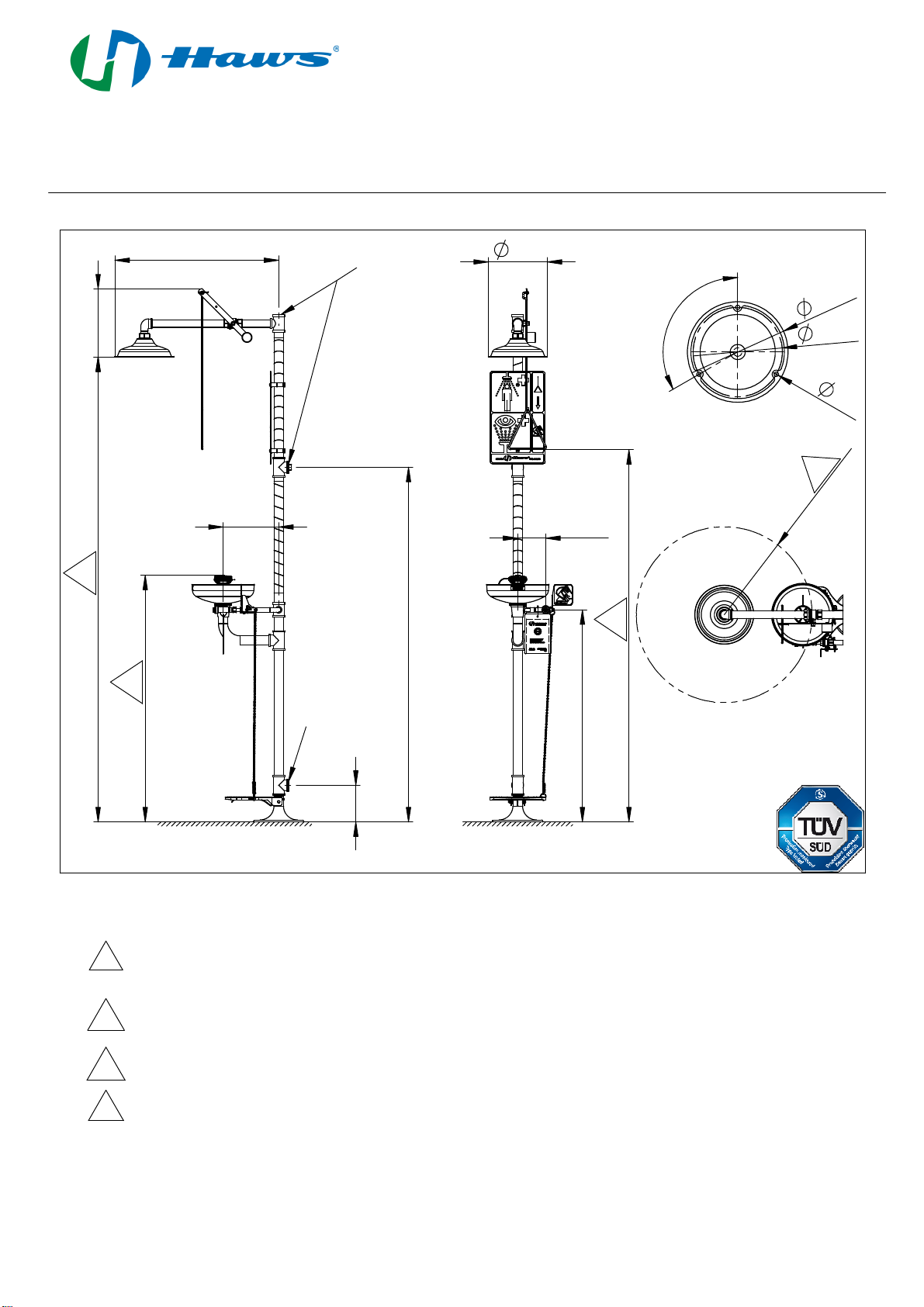

THESE DIMENSIONS MAY VARY +/- 12,7mm (1/2")
Floor Flange Detail
1122 4.
120°
R4001.
TÜV tested
Top View
3.
2080170/1
SCALE 1:20
8320Axion
Jeannine Ruf 13.10.2011
1/4
No.
1.
2.
times. The operator is responsible for the observance of this requirement.
Model
Combination Shower and Eyewash
8320Axion
Legally-stipulated dimensions:
There must be a minimum clearance radius of 400 mm / 1' 3 3/4" (not counting
operating controls and eyewasher units) between a vertical line running down from
the shower head and the nearest obstacle (wall, vertical inlet pipe or similar).
Height above floor level: 2100mm - 2300mm (6' 10 1/2" - 7' 6 1/2").
The operating controls must be no higher than 1750mm (5' 9") above floor level
(while conforming to local regulations).
Height above floor level: 800mm - 1200mm (2' 7 1/2" - 3' 11 1/4").
Free access to the eyewash station/body shower 8320Axion must be guaranteed at all
4.
268
127
965
1693 3.
1 1/4" G
Supply
1 1/4" G
Waste
253
1613
166
745
3102115 2.
229
203
3x10
•
HAWS AG
•
Bachweg 3
•
CH-3401 Burgdorf
•
Switzerland
•
www.haws.ch
HAWS Corporation •P.O.Box 2070 •1455 Kleppe Lane •Sparks,Nevada 89431/USA www.hawsco.com
HAWS DRINKING FAUCET COMPANY
INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS
after 30 minutes, the assembly must be dismantled and re-
Problem
4. Water does not discharge correctly
The flow conduit may be blocked (for remedy, see above).
The eyewash station may not have been set up correctly.
Check the line pressure. This schould be at least 2 BAR /1.
30 PSI (dynamic).
Blocked flow, possibly due to the conduit not being2.
correctly flushed out. Dismantle the flow-control element,
and clean the filter insert.
TROUBLESHOOTING
Repair-checklist
1. No flow Check the main shutoff valve.
2. Insufficient flow of water
3. Flow rate is not as specified
Check the building's main drainage outlet.
Note that it must have adequate capacity to handle the entire
drainage system.
5. Loose connections or fittings Tighten any loose connection elements. The application of hot
water sometimes makes it easier to put slightly-misaligned
connection elements back into place. If the join is still leaking
sealed.
2080170/1
8320Axion
Jeannine Ruf 13.10.2011
2/4
No.
Model 8320Axion
Combination Shower and Eyewash
Shower location: The eyewash station/body shower 8320Axion must be installed in the vicinity of
potential danger zones. It must be highly visible and easily accessible.
Connection conduit: You are recommended to use a 1 1/4" G conduit, capable of withstanding
pressures of 2 - 6BAR (30 - 90PSI). The use of an inlet filter designed to prevent the entry of
suspended particles and other impurities is also recommended.
Water quality: Eyewash stations/body shower require a supply of drinking water conforming to
European standards or their equivalents in other countries.
Water temperature: The required water temperature should be determined the user. The accepted
ideal range is 15 - 35°C / 60 - 95°F (but please ensure conformity with local regulations).
Volume flow: A minimum flow rate of 60 litres / 15,8 US gallons per minute must be maintained for
the body shower. A minimum flow rate of 6 litres / 1,6 US gallons per minute must be maintained for
the eyewash station. The eyewash station/body shower must be capable of delivering this amount
of water for at least 15 minutes.
Connection to plumbing: The inlet consists of a 1 1/4" G conduit with female-thread adapter. The
outlet is likewise a 1 1/4" G female-thread conduit.
Regular inspection:
The eyewash station/body shower 8320Axion should be inspected at weekly intervals. The
inspection tag should be dated and signed after each check.
PARTS BREAKDOWN
SP65 EYE WASH ASSEMBLY
1 2 3 4
2
A
1 3 4
F
E
B
C
D
A
B
C
D
E
F
Jeannine Ruf 05.07.2010
05.07.2010
8320Axion
Combination Shower and Eyewash
13.10.2011
DRAW-NO.
REVISED
Jeannine Ruf
PARTS
BREAKDOWN
WHEN ORDERING
PARTS PLEASE
SPECIFY YOUR
MODEL NUMBER
www.haws.ch
info@haws.ch
BACHWEG 3
CH3401 BURGDORF
SWITZERLAND
T +41 (0)34 420 60 00
F +41 (0)34 420 60 01
Jeannine Ruf
TITLE
2080170/1
CHECKED
DRAWN
APPROVALS DATE
REV.
SHEET 4 OF 4
A4
PART NO.SIZE
ECN NO.
THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR HEREWITH IS NOT TO BE
REPRODUCED, USED, OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT
THE PERMISSION OF HAWS CORPORATION.
DATEDESCRIPTION BYECNREVZONE
REVISIONS
SCALE 1:15
MATERIAL
TÜV tested
ITEM PART NU. DESCRIPTION
1 SP65 Axion eye/face wash
2 SP509 Strainer
3 SP93 Bowl
4 SP225 Valve assembly
5 SP829 Axion shower head
6 SP260 Valve assembly
7 SP178 Shower sign
8 SP75 Floor flange
9 SP200 Pull rod
10 SP185 Stripe tape
11 SP170 Test tag
12 SP81 Bracket
13 SP220 Foot treadle assembly
14 SP37.5 Flow control
15 VRKEWSTR Repair kit to SP509
5
6
10
813
4
12
2
37
9
15
1
14
11
