POK 29342 User manual

POK SA - ZI Les Guignons - 10400 Nogent-sur-Seine - FRANCE
Tel : [phone] - Fax : [phone] - Email : [email protected] - Site Web : www.pok.fr
Flowmeter 2012
Reference : 29342, 39383, 29390, 29396, 30287
Doc 1822 EN
Rev-A : 20/02/12 The technical informations included in this document might change without any warning. Contact our sales service for further details.
Presentation
Overall dimensions
Exploded view
Bill of materials
Warning
User manual
Maintenance
Stickers
Option
Would you please read this note before using the equipment

POK SA - ZI Les Guignons - 10400 Nogent-sur-Seine - FRANCE
Tel : [phone] - Fax : [phone] - Email : [email protected] - Site Web : www.pok.fr
1
Presentation
Doc 1822 EN
Rev-A : 20/02/12 The technical informations included in this document might change without any warning. Contact our sales service for further details.
Diameter DN40 (1.5") DN65 (2.5") DN80(3") DN100 (4")
Reference 29342 29383 29390 29396
Note : references without coupling, any type available, has to be precised when the order is placed.
Characteristics Details
Construction • Body in aluminium alloy
• Case in grivory charge with glass
Maximum pressure of use 16 bar / 230 PSI
Working temperature -10°C to 70°C (14°F to 158°F)
Waterproofness IP65
Working ow rates limits
•DN 40 (1.5") : 100 l/min to 1000 l/min (26GPM to 260 GPM)
•DN 65 (2.5") : 300 l/min to 2500 l/min (80 GPM to 660 GPM)
•DN 80 (3") : 500 l/min to 3000 l/min (130 GPM to 800 GPM)
•DN 100 (4") : 1000 l/min to 5000 l/min (260GPM to 1350 GPM)
Accuracy About 3% (if use within the working ow rate limits)
Flow rate results shown in GPM or l/min (parameter dened in factory
Pressure results shown in PSI or bar (parameter dened in factory)
Power supply 9V Battery (6LR61)
Bluetooth Connection kit sold separately
USB 5m USB Cable sold separately
Software Software for PC (Windows XP, Vista, Seven only) sold only with
the USB or Bluetooth® kit.
Bluetooth version 2.0

POK SA - ZI Les Guignons - 10400 Nogent-sur-Seine - FRANCE
Tel : [phone] - Fax : [phone] - Email : [email protected] - Site Web : www.pok.fr

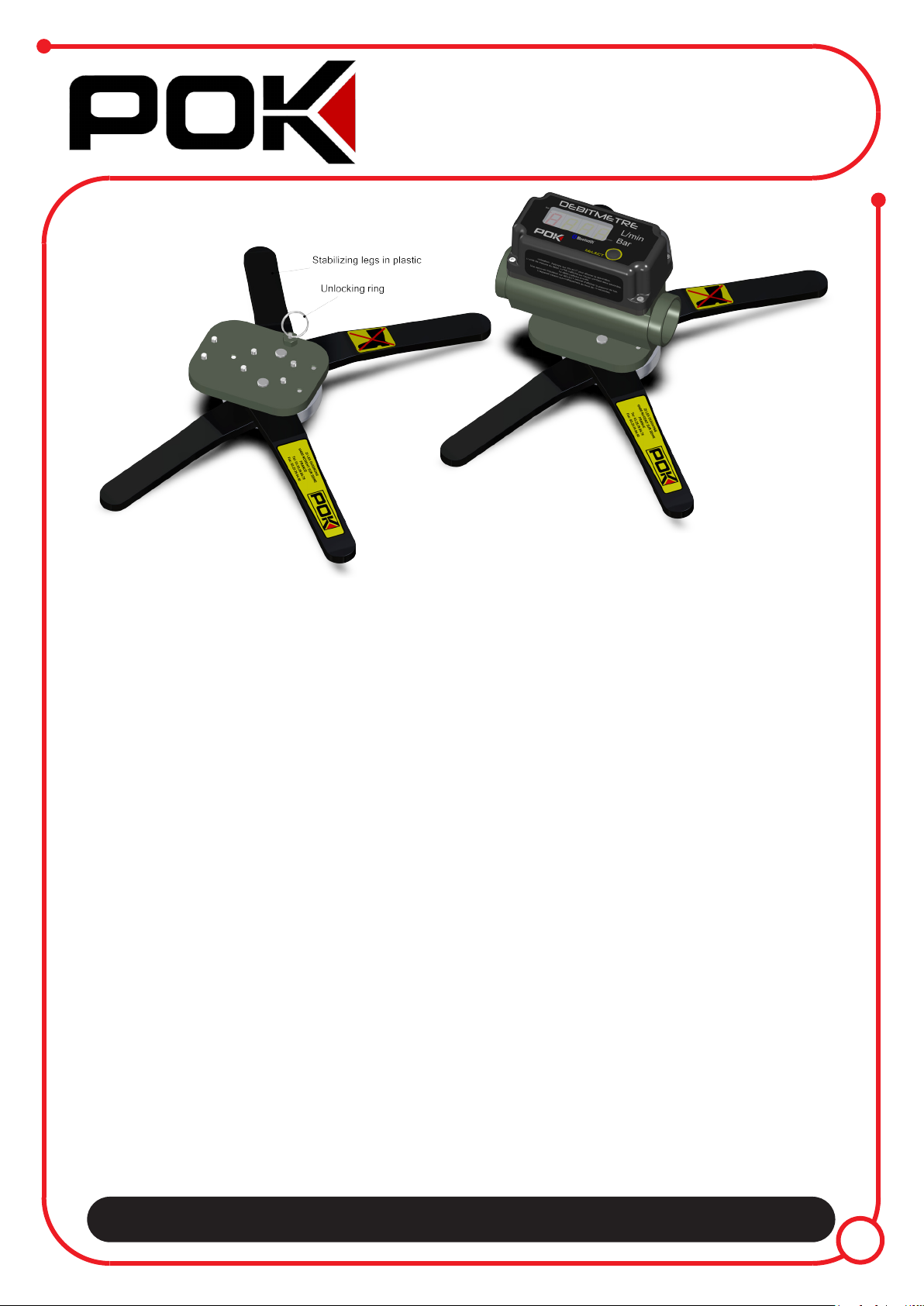

Option
2
Example with a DN65 owmeter
Construction :
Stabilizing legs in technical plastic
Holding system in aluminium
Axis and fastenings in stainless steel
Security : Automated locking system
Note : This option is the same for any model of owmeter (DN40/65/80/100). It can't be removed
easily.
Ref : 30287
Doc 1822 EN
Rev-A : 20/02/12 The technical informations included in this document might change without any warning. Contact our sales service for further details.

POK SA - ZI Les Guignons - 10400 Nogent-sur-Seine - FRANCE
Tel : [phone] - Fax : [phone] - Email : [email protected] - Site Web : www.pok.fr
Overall dimensions
3
Diameter A (mm) B (mm) Weight (kgs)
DN40 146 250 3
DN65 169 254 3.5
DN80 185 262 3.8
DN100 205 268 4.2
Note : dimension and weight without coupling or accessories
Flowmeter
Doc 1822 EN
Rev-A : 20/02/12 The technical informations included in this document might change without any warning. Contact our sales service for further details.

POK SA - ZI Les Guignons - 10400 Nogent-sur-Seine - FRANCE
Tel : [phone] - Fax : [phone] - Email : [email protected] - Site Web : www.pok.fr

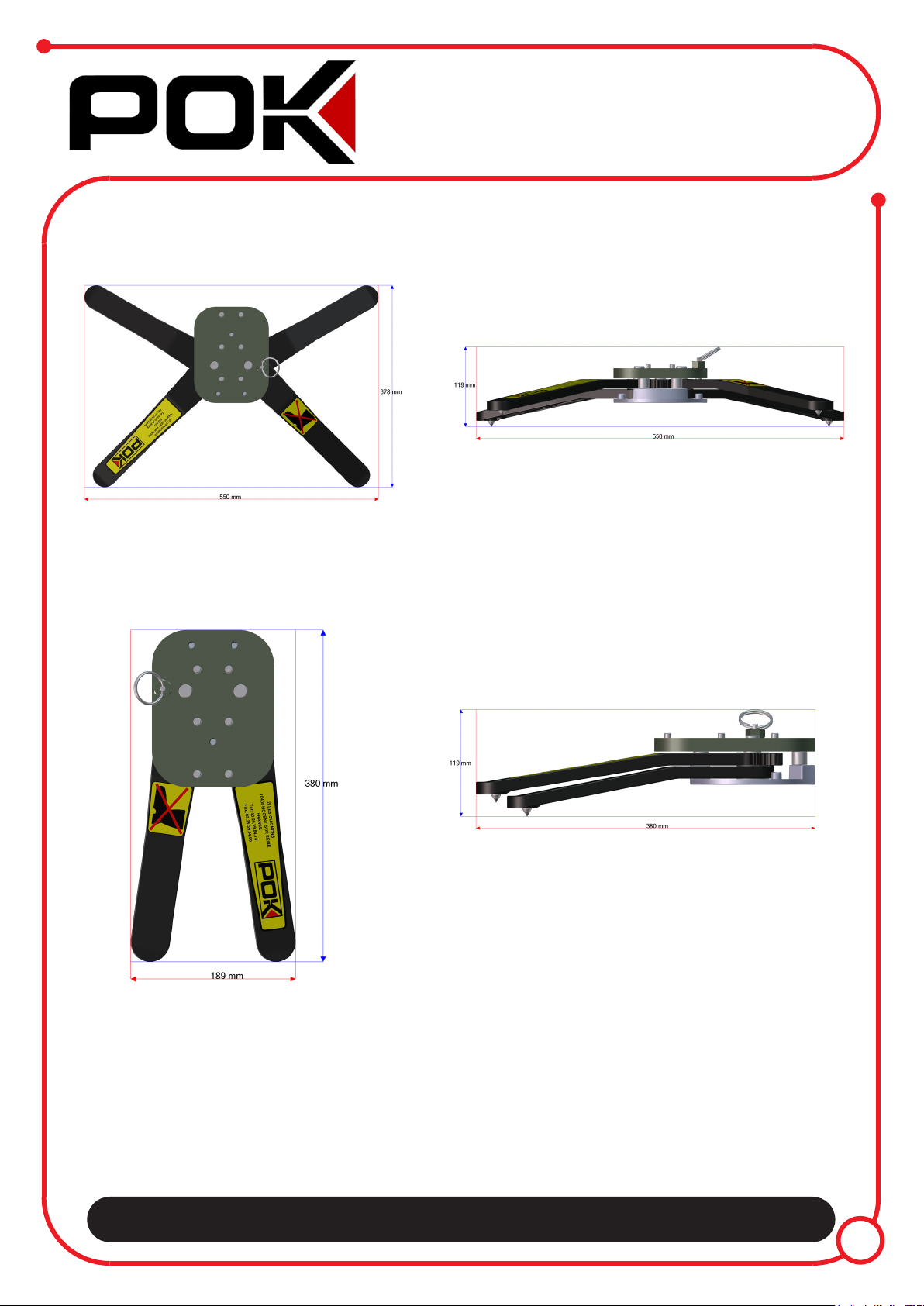

Overall dimensions
4
Stand
 •Fold:
 •Unfold:
Weights : 2.36 Kgs
Doc 1822 Fr
Rev-A : 20/02/12 The technical informations included in this document might change without any warning. Contact our sales service for further details.

POK SA - ZI Les Guignons - 10400 Nogent-sur-Seine - FRANCE
Tel : [phone] - Fax : [phone] - Email : [email protected] - Site Web : www.pok.fr
Exploded view
5
Flowmeter
Doc 1822 EN
Rev-A : 20/02/12 The technical informations included in this document might change without any warning. Contact our sales service for further details.

POK SA - ZI Les Guignons - 10400 Nogent-sur-Seine - FRANCE
Tel : [phone] - Fax : [phone] - Email : [email protected] - Site Web : www.pok.fr
6
Bill of materials
REP QTY DESCRIPTION REF
1 1 Stand for electronic parts 29453
2 1 Stand for ow rate sensor 29339
3 1 Nut for ow rate sensor 229389
4 1 Seal Ø30xØ2 16833
5 1 Flow rate sensor 26624
6 1 Pressure sensor 26631
7 1 Electronic part 29449
8 1 Waterproof cap 26537
9 4 Washer W3 RGW3
10 4 Screw CHC M8-30 VTCHC 8x30
11 1 Viewer 29336
12 1 Case 29382
13 1 4 pins female binder plug 26653
14 1 Case for 9V battery 38023
15 1 Seal Ø48x2 26848
16 2 Screw FHC M3-10 FTFHC 3x10
17 1 Battery cap 29335
18 1 Screw M3-10 26634
19 1 Sticker "user manual"
--- French 30004
--- English 30005
--- German 30006
20 1 Push-buton 26651
21 1 Sticker "case"
--- French 29497
--- English 29498
--- German 30007
22 4 Washer W6 RGW6
23 4 Screw CHC M6-20 VTCHC 6x20
24 1 Seal R26 8226
25 1 Seal R13 8213
26 1 Cut seal ep.03 29901
27 1 Stand
--- DN40 29347
--- DN65 29388
--- DN80 29395
--- DN100 29401
28 1 Seal Ø175x2,5 6245
29 1 Screw TBHC M3x8 VTBHC 3x8
- 2 Plug Mollex Male 2c 38043
- 2 Plug Mollex female 2c 38042
- 1 Cable for ow rate sensor 26625
Flowmeter
Doc 1822 EN
Rev-A : 20/02/12 The technical informations included in this document might change without any warning. Contact our sales service for further details.

POK SA - ZI Les Guignons - 10400 Nogent-sur-Seine - FRANCE
Tel : [phone] - Fax : [phone] - Email : [email protected] - Site Web : www.pok.fr
Exploded view
7
Stand
Doc 1822 EN
Rev-A : 20/02/12 The technical informations included in this document might change without any warning. Contact our sales service for further details.

POK SA - ZI Les Guignons - 10400 Nogent-sur-Seine - FRANCE
Tel : [phone] - Fax : [phone] - Email : [email protected] - Site Web : www.pok.fr
8
Bill of materials
Stand
REP QTY DESCRIPTION REF
1 1 Stand 13735
2 2 Stabilizing leg axis 13736
3 2 Spring washer -
4 4 Wedge washer 10916
5 4 Tip 10868
6 2 Screw FHC M8-16 VTFHC 8x16
7 2 Back leg 13734
8 1 Front right leg 13732
9 1 Front left leg 13733
10 1 Stand 30290
11 1 Locking axis holder 10918
12 1 Spring for locking system 10919
13 1 Ring -
14 6 Screw CHC M8-12 VTCHC 8x12
15 3 Cylindrical wedge 30331
16 3 Screw FHC M8-50 VTFHC 8x50
17 1 Locking system axis 30332
Doc 1822 EN
Rev-A : 20/02/12 The technical informations included in this document might change without any warning. Contact our sales service for further details.

POK SA - ZI Les Guignons - 10400 Nogent-sur-Seine - FRANCE
Tel : [phone] - Fax : [phone] - Email : [email protected] - Site Web : www.pok.fr
Stickers
9
1 2
1
Ref : 29118
2
Ref : 18102
Doc 1822 EN
Rev-A : 20/02/12 The technical informations included in this document might change without any warning. Contact our sales service for further details.

POK SA - ZI Les Guignons - 10400 Nogent-sur-Seine - FRANCE
Tel : [phone] - Fax : [phone] - Email : [email protected] - Site Web : www.pok.fr
Warning
10
Would you please respect the information given in this document. Ignoring them might cause wrong
results or might damaged the device.
Do not pull apart the device, electric shock might occur.
Pulling the device apart outside our factory cause a guarantee loss.
Pulling apart and/or modifying the device by unqualied person might cause wrong results and/or
damaged the device.
Only POK SA can repair the device and making it working well, without danger.
The exploded view and bill of materials given in this document or not pulling apart notes. They do
exist only to make technical support easier.
Bluetooth® is a registered trademark by the Bluetooth SIG Consortium.
Would please respect rules about your environment/installation before using the device, it emits
continually bluetooth waves when working, which might not be allow in some place and/or condition.
Bluetooth waves might in rare cases create interference with other electronic devices.
Using electronic device might be forbidden according to the places and/or conditions in those you
are.
Do not expose to an excessive heat.
POK SA can't be responsible of any damage due to a pull apart outside of
itsfactory,amodicationorabaduseofthedevice.
Doc 1822 EN
Rev-A : 20/02/12 The technical informations included in this document might change without any warning. Contact our sales service for further details.

POK SA - ZI Les Guignons - 10400 Nogent-sur-Seine - FRANCE
Tel : [phone] - Fax : [phone] - Email : [email protected] - Site Web : www.pok.fr
User manual
11
•Introduction:
The POK owmeter offers a precision of about 3% (for the ow rate) only in certain ow rates limits,
variable following the inlet diameter.
DN 40 (1.5") : 100 l/min to 1000 l/min (26GPM to 260 GPM)
DN 65 (2.5") : 300 l/min to 2500 l/min (80 GPM to 660 GPM)
DN 80 (3") : 500 l/min to 3000 l/min (130 GPM to 800 GPM)
DN 100 (4") : 1000 l/min to 5000 l/min (260GPM to 1350 GPM)
Results outside this value might not be correct.
The maximum pressure of use is 16 bar (230 PSI), over this value the sensors might be damaged.
The owmeter is not waterproof. Seals are present in order to protect the electronic parts from few
water projections.
Before exposing the device to an environment with liquid projection, make sure the battery case and
the cap on the binder plug are correctly closed.
The owmeter is supplied only with a 9V battery. If this battery can be recharged, it will have to be
done outside the battery case.
Do not expose the device to a heat over 70°C (158°F), the electronic parts might not resists.
A user manual reminder is stuck on the device if needed.
 •Howtousetheowmeter:
The owmeter is made of a screen which is able to indicate 4 characters, 2 lights (on the screen, on
the top left corner and on the bottom right corner) and a push-button (in a yellow circle).
Pushing the push-button "select" make the owmeter working, it will indicate the ow rate unit
during 2 sec (GPM or LPM depending your conguration), the ow rate will appear after.
Pushing one more time the push-button allow the pressure to be indicated (PSI or bar depending on
your conguration).
The device will be turned off automatically after 15 sec.
Please notice that if you don't remember on which mode you are, a light is on the screen, on the top
left corner to indicate the pressure mode and on the bottom right corner to indicate the ow rate
mode.
Changing the battery is easily made by removing the 4 screws (rep.18 on the owmeter exploded
view) on the device side, then remove the cap. Extract the battery and change it before closing the
case correctly.
Please do this in a dry place.
Note : Please make sure the couplings are correctly attached before putting the device under pressure.
Doc 1822 EN
Rev-A : 20/02/12 The technical informations included in this document might change without any warning. Contact our sales service for further details.

POK SA - ZI Les Guignons - 10400 Nogent-sur-Seine - FRANCE
Tel : [phone] - Fax : [phone] - Email : [email protected] - Site Web : www.pok.fr
User manual
12
Doc 1822 EN
Rev-A : 20/02/12 The technical informations included in this document might change without any warning. Contact our sales service for further details.
•Howtousethestand:
Some owmeters might have a stand like the one shown in this document.
- 1 - Unfold the stabilizing legs by pulling one of them.
- 2 - Make sure the locking system locks the legs.
- 3 - Make sure that all the legs' tip are in contact with the oor, and that the owmeter can't slip.
After using the device, the legs can be fold by pulling the ring on the locking system.
Note : Do not walk or put weight on the stabilizing legs, it would damage it.

POK SA - ZI Les Guignons - 10400 Nogent-sur-Seine - FRANCE
Tel : [phone] - Fax : [phone] - Email : [email protected] - Site Web : www.pok.fr
Maintenance
13
•Cleaningandtidyingthedevice:
In order to preserve the device, it is important to :
• Make sure the cap on the binder plug is correctly closed before cleaning/tidying it.
• Clean up with clear water after every use.
• Do not use high pressure jet.
• If salt or unclear water has been use, make the device working with clear water to remove corrosive
parts.
• Do not use corrosive products, it might damaged the seals and/or the electronical parts.
• Do not tidy the device moist.
• Tidy the device in a dry place and away from rodents and/or pests.
• Do not tidy the device in a place with a high humidity rate in the air.
 •Spareparts:
Please contact our sales service in order to be informed on tariffs and conditions for returns or to obtain
spare parts.
Use the bill of materials in this document to identify the parts to change.
