Omega OMEGAETTE HHT-1500 User manual

TABLE OF CONTENTS
1. SPECIFICATIONS ...................................................................................... 1
2. PANEL FUNCTIONS................................................................................... 2
3. OPERATING INSTRUCTION..................................................................... 4
3.1. Normal Operation................................................................................... 5
3.2. Using the Mechanical Adaptor (Option RM1502)................................ 6
3.3. Measurement of Surface Speed(m/min, ft/min, or yd/min)................. 7
3.4. Use as an Event Counter with External Light Source.......................... 8
3.5. Use as an Event Counter with Internal Red LED................................. 8
3.6. External Signal(TTL) Input (RM1501)................................................... 9
3.7. Digital Pulse Signal Output (RM1501) ................................................. 9
3.8. Measuring Slow Rotating Objects........................................................ 10
3.9. Using the MAX/MIN/AVE Function...................................................... 10
3.10. Turning On/Off Tachometer............................................................... 11
3.11. Disable Auto-Power-Off Function...................................................... 11
3.12. REPLACING THE BATTERIES....................................................... 12
4. Protocol of RS-232C Serial Interface (RM-1501)..................................... 13
5. Installation of WindowTM Application Software (RM-1501)........................ 14
6. Description of WindowsTM Application Program (RM-1501)..................... 15

1
1
1. SPECIFICATIONS
Speed (Non-contact):
Range Resolution Accuracy
RPM 10.00 - 99999 0.01/0.1/1 0.04% ±2 dgts
rps(Hz) 0.200 - 2000.0 0.001/0.01/0.1 0.04% ±2 dgts
Speed (Contact) Range Resolution Accuracy
RPM / (/
symoblizes
"Contact"
20.00 - 29999 0.01/0.1/1 0.04% ±2 dgts
m/min 2.000 - 2999.9 0.001/0.01/0.1 0.04% ±2 dgts
ft/min 6.00 - 10000 0.01/0.1/1 0.04% ±2 dgts
yard/min 4.00 - 3000 0.01/0.1/1 0.04% ±2 dgts
Event Counter:
Range Max. Input Frequency
0 - 99999 10KHz. with 5% duty cycle
External TTL Input High > 4.5V (RM1501)
Display: 5 digits 99999 counts
Sampling Rate: 0.7 second (> 60 rpm)
> 1 second (10 to 60 rpm)
Measuring Distance: 50 to 300 mm
Time Base: 4.0 MHz Quartz Crystal
Range Selection: Automatic
Battery: Four 1.5V batteries (AA, UM-3)
Power Consumption: 1.5mA (Idle)
5mA (1000.0 - 99999 rpm)
25mA (10.00 - 999.99 rpm)
25mA (Max, Min or Ave Enabled)
25mA (Event Counter)
Auto-Power-Off: 30 minutes.
Operating Temp. 0 to 50°C (32 to 122 °F)
Size: 172 mm x 63 mm x 36 mm (6.8" x 2.5" x 1.5")
Weight: 190 g(6.7 oz.) (including battery)
Accessories: Carrying case x 1, Reflective tape x 1,
Instruction Manual x 1

2
2

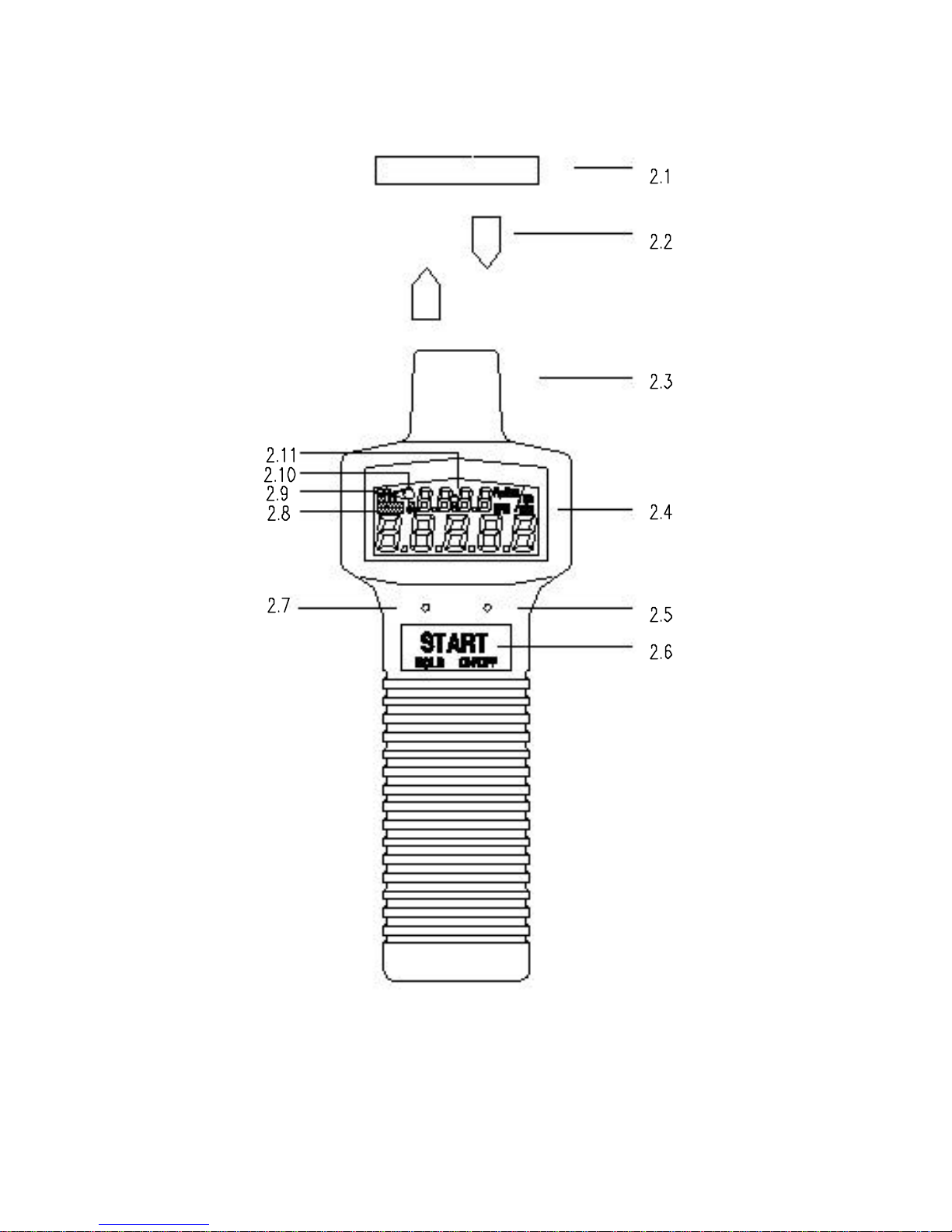

2. PANEL FUNCTIONS

3
3
2.1. Reflecting tape
Attach a reflecting tape to the surface of the unit to be measured
2.2.Reflecting signal light beam
It is recommenced that the reflecting surface is perpendicular to the
emitting/receiving unit for best measurement.
2.3. Emitting/Receiving Unit
The red light emits from the left side of the tachometer. And a receiving
sensor is installed in the right side to receive light signal from the reflecting
surface.
2.4. LCD
The lower row of the LCD is a 5 digit number to display RPM, m/min,
ft/min, yd/min or counts.
The upper row of the LCD is a clock. If only the minutes is displayed,
tachometer is in the auto-power off mode. Power will be turned off in 30
minutes. To disable auto-power-off mode, press and hold the unit button
(left button) for 2 seconds. Then the hours will be displayed.
2.5. Function Button
Press the button to select MAX, MIN or AVE function. To return to normal
mode, press and hold the button for 2 seconds.
2.6. Start/Hold/On/Off
When the power is turned off, press this button to turn the power on. If the
power is on, press this button to start measurement. Press again to hold
the data and stop measurement. To turn the power off, press and hold
button until "OFF" is displayed in the LCD (about 2 seconds). Release the
button, then the power will be turned off.
2.7. Unit Button
Press this button to select different units, such as RPM, RPM / ( /
Symbolizes "contact"), m/min, ft/min, yd/min, rps (Hz) or No. of counts. To
measurement speed in RPM /, m/min, ft/min or yd/min, the option RM1502
mechanical adaptor must be attached.
When the No. symbol is displayed in the LCD, the unit becomes an event
counter. The clock will be reset to zero, and start counting. To stop
counting, press the HOLD (START) button once. To reset counts, press
the function button(right button).
2.8. MAX/MIN/AVE symbols
Symbols to indicate which of MAX, MIN or AVE function is enabled.
2.9. Low battery warning

4
4
2.10. Start Measurement Symbol
2.11. Hours:Minutes Clock

5
5
3. OPERATING INSTRUCTION

6
6
3.1. Normal Operation
a. Install four 1.5V AA size batteries.
b. Cut off a piece of reflective tape of size 1.0 cm x 1.4 cm (optimal
size)
c. Wipe off oil or stains from the surface where reflective tape will be
adhered.
d. Stick the self-adhesive reflective tape on the object whose
rotational speed is to be measured. The reflective tape should be
attached as close to the outer edge of the object to be measured as
possible.
e. Press the START button to turn on tachometer.
f. Point the photoelectric probe at the object as Figure 2. Press the
START button once and confirm that the red emitting LED lamp lights
up. Then read the rotational speed on the LCD display.
g. If the rotational speed is less than 60 rpm, it may take about 1 to 6
seconds to measure (60 rpm takes 1 second, and 10 rpm takes 6
seconds).
h. The reading will be held for 6 seconds, if you aim the photoelectric
probe at a 0 speed object right after one measurement.
Note: If the speed is less than 999.99 rpm, the red LED is turned on all the
time to detect speed. If the speed is great than 999.99, the unit goes into
power-saving mode. The LED is turned on for a very short period of time,
then turned off for most of the time to save power.

7
7
3.2. Using the Mechanical Adaptor (Option RM1502)
a. Select proper rubber head.
b. Attach the mechanical adaptor to the unit.and fasten the screw.
c. Press the unit button (left button) to select RPM / ( instead of RPM
only). The auxiliary LED will be turned on while the main LED will be
turned off.
d. Press against the shaft of the object to be measured.
e. Do not press against the shaft too hard to avoid hazard.
WARNING: Do not exceed the speed limit of 29999 rpm when using
mechanical adaptor.

8
8
3.3. Measurement of Surface Speed(m/min, ft/min, or yd/min)
a. Attach the mechanical adaptor (option RM-1502) to the unit.
b.Press the unit button to select desired unit. The auxiliary LED will
be turned on while the main LED will be turned off.
c. Slightly touch against the surface to be measured.

9
9
3.4. Use as an Event Counter with External Light Source
a. Press the unit button several times to select the unit of "No. O"
(counts). The "O" symbol is used to instruct users that external light
source is required.
b. When the symbol "No. O" appears, the tachometer reset the upper
clock to 00:00 and start counting the pulses it detects. (Auto-power-
off is automatically disabled)
c. To stop counting, press the START button once.
d. To reset counts to zero, press the function(right) button.
3.5. Use as an Event Counter with Internal Red LED
a. Press the unit button several times to select the unit of "No. "
(counts).
b. When the symbol "No." appears, the tachometer reset the upper
clock to 00:00 and start counting the pulses it detects (Auto-power-
off is automatically disabled).
c. To stop counting, press the START button once.
d. To reset counts to zero, press the function(right) button.

10
10
3.6. External Signal(TTL) Input (RM1501)
Instead of receiving signal from light source, users can input external
TTL signal (High: > 4.5V, Low: 0V) through pin 8 of RS232C
connector with pin 5 as signal ground.
NOTE: It is strongly recommended that the emiting/receiving unit be
covered to avoid undesired light signal coming in.
3.7. Digital Pulse Signal Output (RM1501)
Users can output digital pulse signal through pin 8 of RS232C
connector with pin 5 as signal ground to oscilloscope.

11
11
3.8. Measuring Slow Rotating Objects
If the rotating speed of the object which you are measuring is very
slow, it is recommended that you use a tripod to hold the tachometer
in place and use multiple pieces of tape for more accurate result.
If multiple pieces of tape are used, each piece of tape should be
located at a equal distance to each other on the object. Any number
of pieces of tape are acceptable. But you need to divide the reading
by the number of pieces to obtain the correct result.
Correct RPM = Reading / (number of pieces of tape)
Example: 4 pieces of tape and reading is 12 RPM.
Correct Speed = 12 / 4 = 3 rpm
3.9. Using the MAX/MIN/AVE Functions
These functions allow users to analyze the stability of rotational
speed. These value are actually peak (MAX), valley(MIN), and true
average(AVE) values.
MAX: Press the function button to select maximum function. The
MAX function can be used to find the peak value of speeds
measured.
MIN: Press the function button to select minimum function. The MIN
function can be used to find the valley value of speeds measured.
AVE: Press the function button to select average function. The
average function is a true average value.
If summation of average value overflow, or n > 65535, the last
average RPM will be used as initial value for successive calculation.
And n will be reset to 1.
When users press the HOLD button (same as START button), the
max/min/ave values are still stored in memory. Users can press the
function button (right button) to review the values. To return to
normal mode, press and hold the function (right button) for 2
RPMAVE=1
nårpm)n; årpm) < 232 , n< 65535

12
12
seconds,
and the max/min/ave symbols will disappear in LCD.
3.10. Turning On/Off Tachometer
Press any button will turn on the power of tachometer. To turn off the
power of tachometer, press and hold the START button until word "OFF"
is displayed in LCD. Then release the START button.
3.11. Disable Auto-Power-Off Function
If tachometer is in auto-power-off mode, only the minutes will be
displayed. And tachometer will be turned off in 30 minutes. To disable
the auto-power-off function, press and hold the UNIT button (left button)
for 2 seconds until the hours is displayed.

13
13
3.12. REPLACING THE BATTERIES
a. When the symbol (low battery) appears in the LCD, it is
time to replace the batteries.
b. Remove the screw of the battery cover and remove the battery cover.
cReplace the old batteries with 4 new batteries. Do not mix different
type of batteries together.
d. Replace the battery cover and fasten the screw.

14
14
4. Protocol of RS-232C Serial Interface (RM-1501)
Ten bytes are sent out through RS-232C connector to PC. The definitions of
each byte are as followings:
Byte 1: Leading byte 0x0D
Byte 2: Decimal point of LCD display
bit0: dp1 (0000.0), if 1
bit1: dp2 (000.00), if 1
bit2: dp3 (00.000), if 1
Byte 3: Flags for current status
bit0: low battery, if 1
bit1: Max. value overflow, if 1
bit2: Counter overflow, if 1
bit3: Auto-power-off disable, if 1
bit4: Min. value overflow, if 1
bit5: Ave. value overflow, if 1
Byte 4: Unit
bit0: rpm, if 1
bit1: m/min, if 1
bit2: ft/min, if 1
bit3:yd/min, if 1
bit4: rps, if 1
bit5: counter with external light source, if 1
bit6: counter without external light source, if 1
Byte 5: Function
bit0: normal, if 1
bit1: max, if 1
bit2: min, if 1
bit3: average, if 1
Byte 6: Flags for current status
bit4: LCD reading over load (OL)
bit7: Hold
Byte 7: Least significant byte of reading in binary format
Byte 8: 2nd byte of reading in binary format
Byte 9: 3rd byte of reading in binary format
Byte 10: Most significant byte of reading in binary format

15
15
5. Installation of WindowTM Application Software (RM-1501)
5.1.For Windows 3.1
A. Start MicrosoftTM WindowsTM
B. Insert disk in drive A (or B)
C. From Program Manager, select File menu and choose Run
D. Type a:\setup (or b:\setup) and press Enter key
5.2.For Windows 95
A. Start WindowsTM 95
B. Insert disk in drive A (or B)
C. Press START button, then select Run
D. Type in a:\setup (or b:\setup) and press Enter key

16
16
6. Description of WindowsTM Application Program (RM-1501)
Main Window:
When the program is executed, the program automatically search for connected
tachometer or available serial port. If no serial port is available, then a message
of "No communication port" will be displayed, and the program exits . Once
communication port is setup, a main window will be displayed on the screen as
below:
Sample: Sampling time.
Option: Display option of anemometer. Normal, MAX, MIN, AVE
Unit: rpm, m/min, ft/min, yard/min, counter 0, counter
Value: The value under VALUE is the reading from the tachometer
Range: The text displayed under RANGE is the range of the unit selected at
the tachometer
Minimum: The minimum value ever recorded by PC.
Reset: Clear minimum and maximum value recorded.
Maximum: The maximum value ever recorded by PC.
Lower: The minimum value of the range specified.
Upper: The maximum value of the range specified.
File: If you select File, a pull down menu will show six options: Name,
Start Recording, End Recording, VIEW, Plot Data from File, and Exit.
Name: Enter file name to store data dispalyed in LCD at specified interval.
Start Recording: Start recording when selected
End Recording: End recroding when selected.
