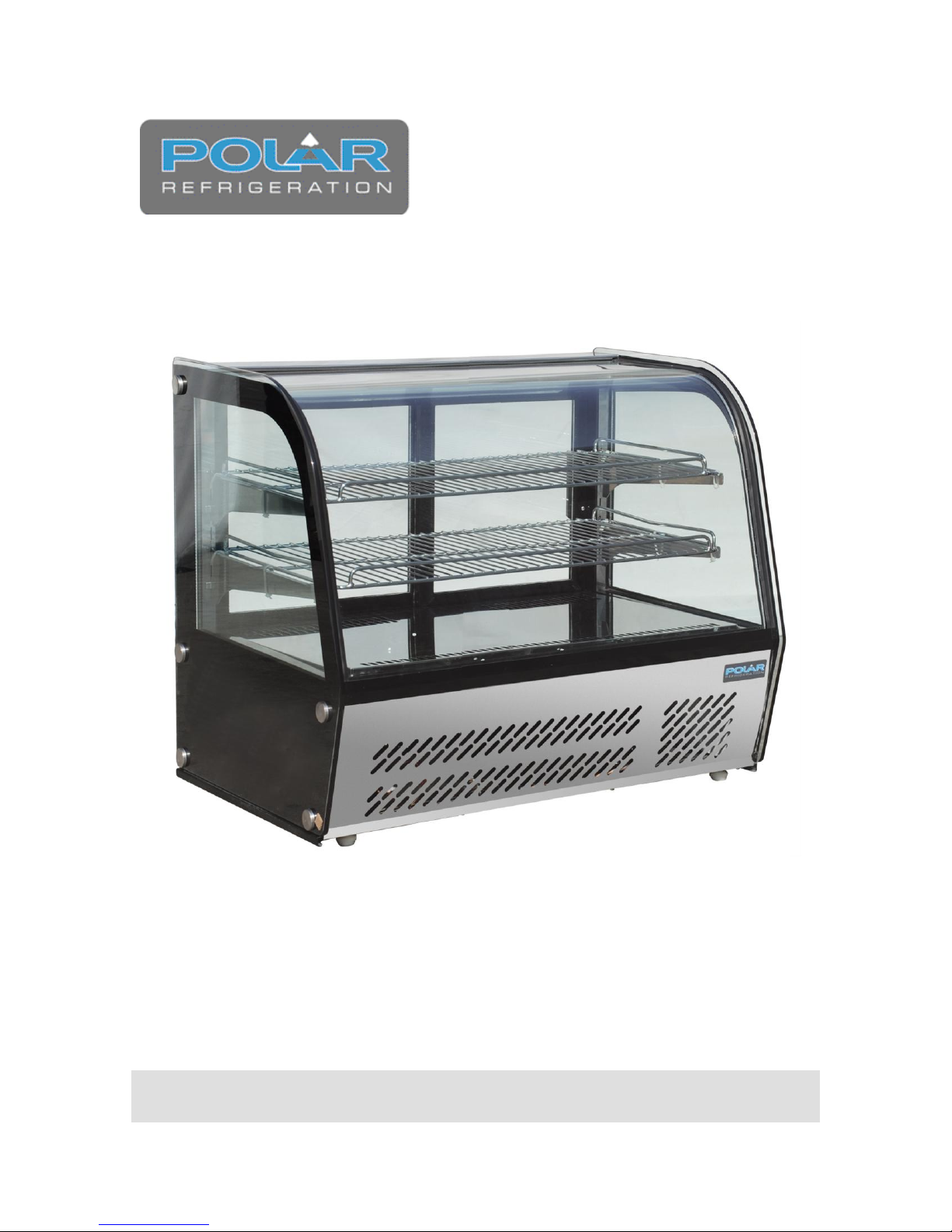

Polar Refrigeration GC872-A User manual

Display Merchandiser
Instruction Manual
Model .
GC872-A/GC873-A/GC874-A

Telephone Helpline: 1300225960
Safety Tips
Position on a flat, stable surface.
A service agent/qualified technician should carry out installation and any repairs if required.
Do not remove any components or service panels on this product.
Consult Local and National Standards to comply with the following:
oHealth and Safety at Work Legislation
oBS EN Codes of Practice
oFire Precautions
oIEE Wiring Regulations
oBuilding Regulations
DO NOT use jet/pressure washers to clean the appliance.
DO NOT use the appliance outside.
DO NOT use this appliance to store medical supplies.
DO NOT use electrical appliances inside the appliance (e.g. heaters, ice-cream makers etc.).
DO NOT allow oil or fat to come into contact with the plastic components or door seal. Clean
immediately if contact occurs.
Always carry, store and handle the appliance in a vertical position and move by holding the base
of the appliance.
Always switch off and disconnect the power supply to the unit before cleaning.
Keep all packaging away from children. Dispose of the packaging in accordance with the
regulations of local authorities.
If the power cord is damaged, it must be replaced by a POLAR agent or a recommended qualified
technician in order to avoid a hazard.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety
Product Description
GC872-A Refrigerated Display Merchandiser 100 litres
GC873-A Refrigerated Display Merchandiser 120 litres
GC874-A Refrigerated Display Merchandiser 160 litres

Telephone Helpline: 1300225960
Pack Contents
The following is included:
GC872-A/GC873-A/GC874-A - 2 adjustable shelves
Instruction manual
POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are supplied
fully functional and free of damage.
Should you find any damaged as a result of transit, please contact your dealer immediately
Installation
1. Remove the appliance from the packaging. Make sure that all protective plastic film and coatings
are thoroughly removed from all surfaces.
2. Maintain a distance of 20cm (7 inches) between the unit and walls or other objects for ventilation.
Increase this distance if the obstacle is a heat source.
Operation
The control panel is located below the doors on the rear of the appliance
Turn On
1. Close the doors of the appliance
2. Connect the appliance to a mains power supply
3. Press the Power switch (Green) to the On position.
Internal Light
The light switch is located on the rear of the appliance next to the power switch.
Setting the Operating Temperature
1. Press the button. The display will flash
2. Press the or buttons to display the required
temperature
3. Press the button to store the temperature

Telephone Helpline: 1300225960
Manual Defrost:
Press and hold the button for 2 seconds to begin automatic defrost. The defrost light illuminates
Cleaning, Care & Maintenance
1. Switch off and disconnect from the power supply before cleaning
2. The doors can be removed for ease of cleaning
3. Clean the interior of the appliance as often as possible
4. Do not use abrasive cleaning agents. These can leave harmful residues
5. Clean the door seal with water only
6. Always wipe dry after cleaning
7. Do not allow water used in cleaning to run through the drain hole into the evaporation pan
A POLAR agent or a qualified technician must carry out repairs if required
Replacing the Interior Lamp
Call your dealer or a qualified electrician, the Lamp Assembly is available to purchase as a spare part.
Cleaning the Condenser
Periodic cleaning of the Condenser can extend the life of the appliance. POLAR recommend that an agent
or qualified technician cleans the condenser.

Telephone Helpline: 1300225960
Troubleshooting
If your appliance develops a fault, please check the following table before making a call to the
helpline
Fault
Probable Cause
Action
The appliance is not
working
The unit is not switched on
Check the unit is plugged in correctly and
switched on
Plug and lead are damaged
Call POLAR agent or a qualified Technician
Fuse in the plug has blown
Replace the fuse
Power supply
Check power supply
Internal wiring fault
Call POLAR agent or qualified Technician
The appliance turns on, but
the temperature is too
high/low
Too much ice on the evaporator
Defrost the appliance
Condenser blocked with dust
Call POLAR agent or a qualified Technician
Doors are not shut properly
Check doors are shut and seals are not
damaged
Appliance is located near a heat
source or air flow to the condenser
is being interrupted
Move the refrigerator to a more suitable
location
Ambient temperature is too high
Increase ventilation or move appliance to a
cooler position
Unsuitable foodstuffs are being
stored in the appliance
Remove any excessive hot foodstuffs or
blockages to the fan
Appliance is overloaded
Reduce the amount of food stored in the
appliance
Factory default parameters
adjusted
Call POLAR agent or a qualified technician
The appliance is leaking
water
The appliance is not properly
leveled
Adjust the screw feet to level the appliance
(if applicable)
The appliance is unusually
loud
Loose screw/nut
Check and tighten all nuts and screws
The appliance has not been
installed in a level or stable position
Check installation position and change if
necessary
The display lamp does not
illuminate
Lamp needs replacing
Call POLAR agent or a qualified technician
Light not turned On
Ensure Light button has been pressed
Properly
Door does not shut
Dirt/obstacle in runners
Clean runners

Telephone Helpline: 1300225960
Technical Specifications
Model
Voltage
Power
Range
Capacity
(litres)
Refrigerant
Dimensions
H X W X D
(mm)
Weight
(Kg)
GC872-A
220-240V 50Hz
160W
3 to 8°C
100
R134a 100g
663 x 705 x 452
39
GC873-A
220-240V 50Hz
160W
3 to 8°C
120
R134a 120g
663 x 705 x 570
64
GC874-A
220-240V 50Hz
200W
3 to 8°C
160
R134a 130g
663 x 883 x 570
71
Electrical Wiring
The plug is to be connected to a suitable mains socket.
POLAR appliances are wired as follows:
Live wire (coloured brown) to terminal marked L
Neutral wire (coloured blue) to terminal marked N
Earth wire (coloured green/yellow) to terminal marked E
All POLAR appliances must be earthed, using a dedicated earthing circuit.
If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any emergency
disconnection being required they must be readily accessible.
Compliance
The WEEE logo on this product or its documentation indicates that the product must not be
disposed of as household waste. To help prevent possible harm to human health and/or the
environment, the product must be disposed of in an approved and environmentally safe
recycling process. For further information on how to dispose of this product correctly, contact
the product supplier, or the local authority responsible for waste disposal in your area.
POLAR parts have undergone strict product testing in order to comply with regulatory
standards and specifications set by international, independent, and federal authorities.
POLAR products have been approved to carry the following symbol:
All rights reserved. No part of these instructions may be produced or transmitted in any form or by
any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written
permission of POLAR.
Every effort is made to ensure all details are correct at the time of going to press, however, POLAR
reserve the right to change specifications without notice.

Telephone Helpline: 1300225960
DECLARATION OF CONFORMITY
Equipment
Type
Refrigerated Merchandiser
Model
GC872-A/GC873-A/GC874-A
Legislation
C-Tick
AS/NZ 3820 Essential Safety Requirements for Low Voltage Electrical Equipment
Standards
EN55014-1
EN55014-2
EN61000-3-2
EN61000-3-3
EN60335-2-89
EN60335-1
EN62233
AS-NZS 60335.2.89:2010
Producer
Name
Polar
Producer
Address
15 Badgally Road,
Campbelltown,
NSW 2560
I, the undersigned, hereby declare that the equipment specified above conforms to the above Legislation and
Standard(s).
Date
12/07/12
Signature
Full Name
Richard Cromwell
Position
Marketing Director

Telephone Helpline: 1300225960
